JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck

Export reference
From $12,889
MSRP ¥9.28M CNY
Horsepower: 120
Emission: China II/Euro II
Fuel: Diesel
Engine: Chaochai4102
Transmission: Lu'an
Curb Weight:: 3.4ton
seating capacity: 3Personnel
Rated payload: 4.9ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck is a Light Truck featuring 5.2m cargo length, stake body cargo body, 3Personnel volume and 4.9t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Chaochai4102 engine, 120 hp, 4X2 (6 wheels) drive and China II/Euro II emissions.

China II/Euro II 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1081KR1T
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4150mm
Box length class: 5.2m
engine: Chaochai CY4102BZQ Energy-saving & Eco-friendly
transmission: Lu'an LC5T35
Rear Axle Ratio: 5.74
Cab length: 7.285m
Cab width: 2.17m
Cab height: 2.315m
Front track width: 1665mm
rear track: 1600mm
Curb Weight: 3.4ton
Rated payload: 4.9ton
GVWR: 8.3ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
market segment: Building materials, agricultural products
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: Chaochai CY4102BZQ Energy-saving & Eco-friendly
Engine info: Chaochai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China II/Euro II
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 324N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical inline, water-cooled, 4-stroke, turbocharged
Transmission Parameters
Transmission Model: Lu'an LC5T35
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.2m
Cargo box width: 2m
Cargo box height: 0.55m
*Cargo box interior width: 2
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 200L
Chassis Specs

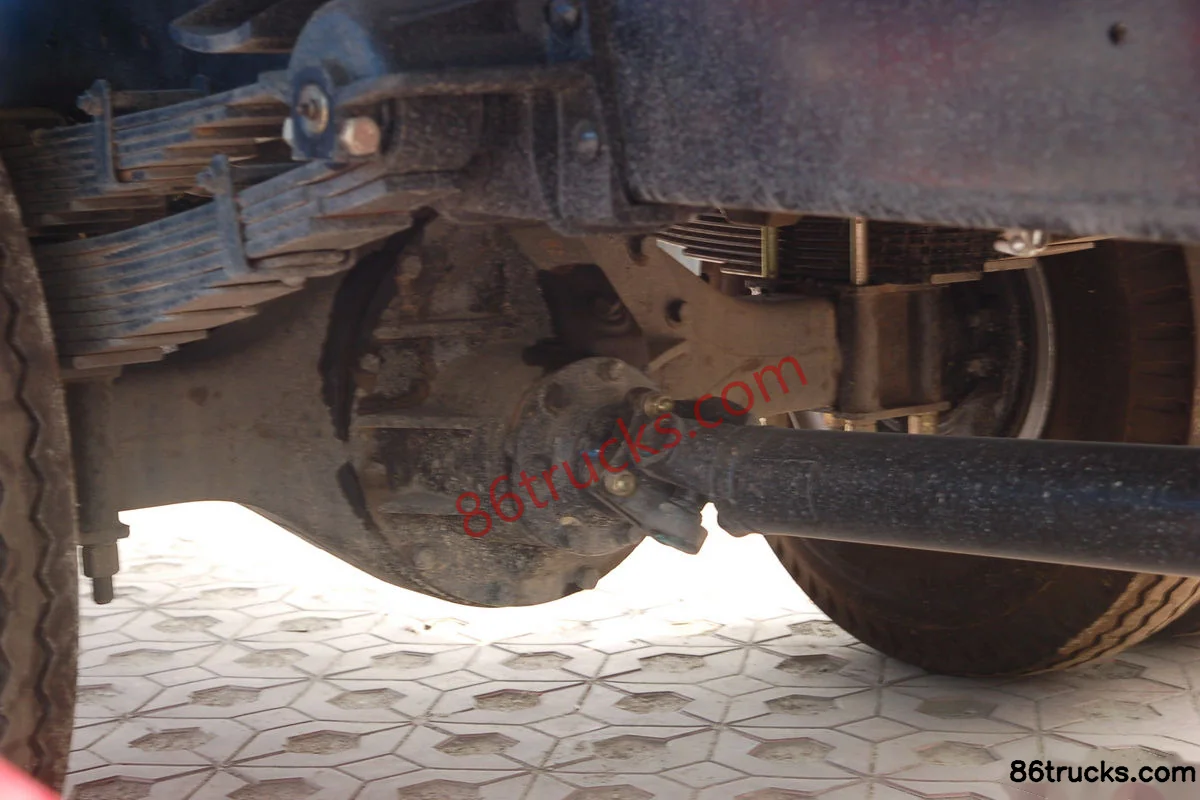

Axle ratio: 5.74

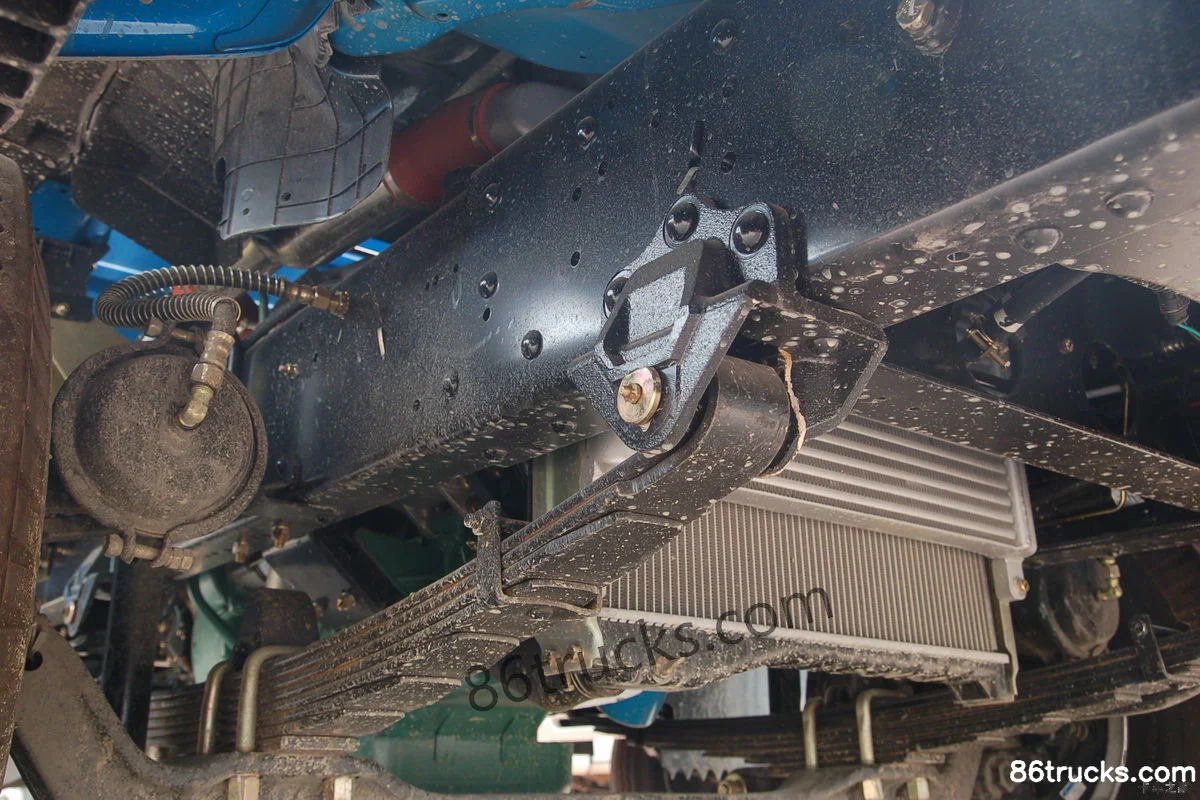

Leaf spring count: 9/12
Tire
Tire Size: 8.25R16
Number of tires: 6pcs

Photos

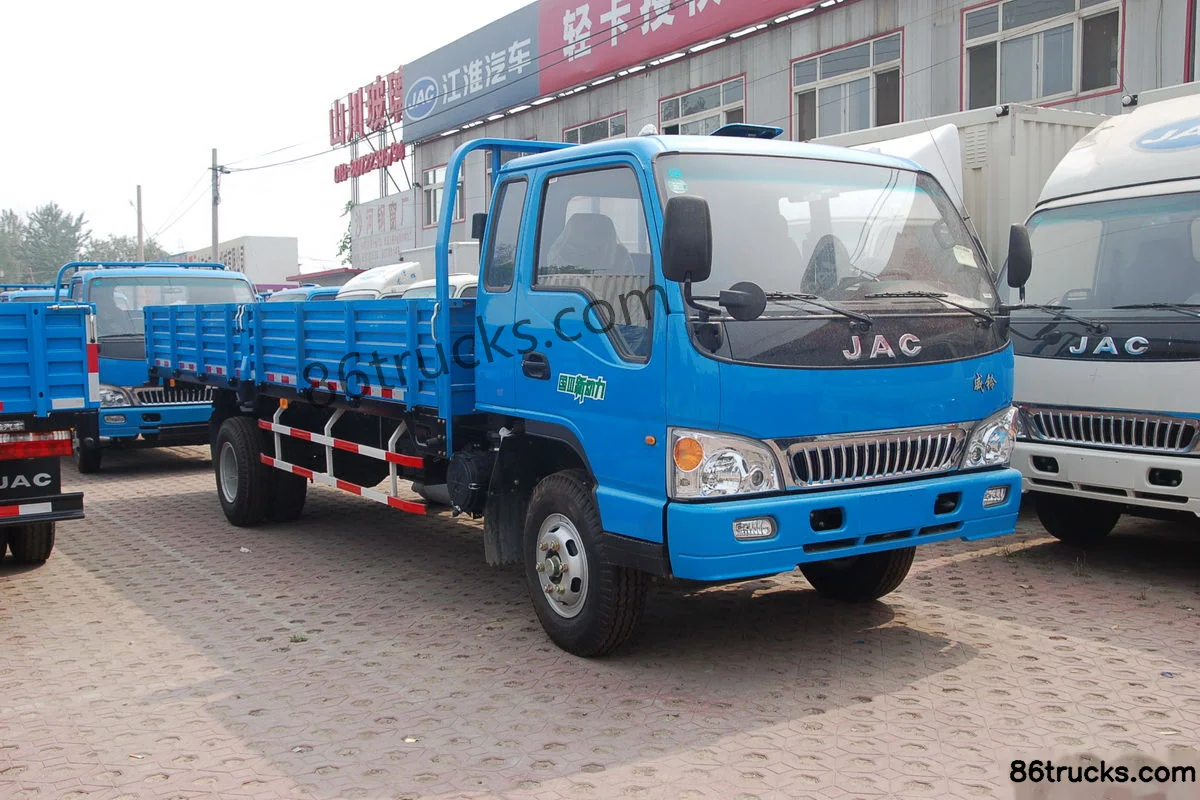

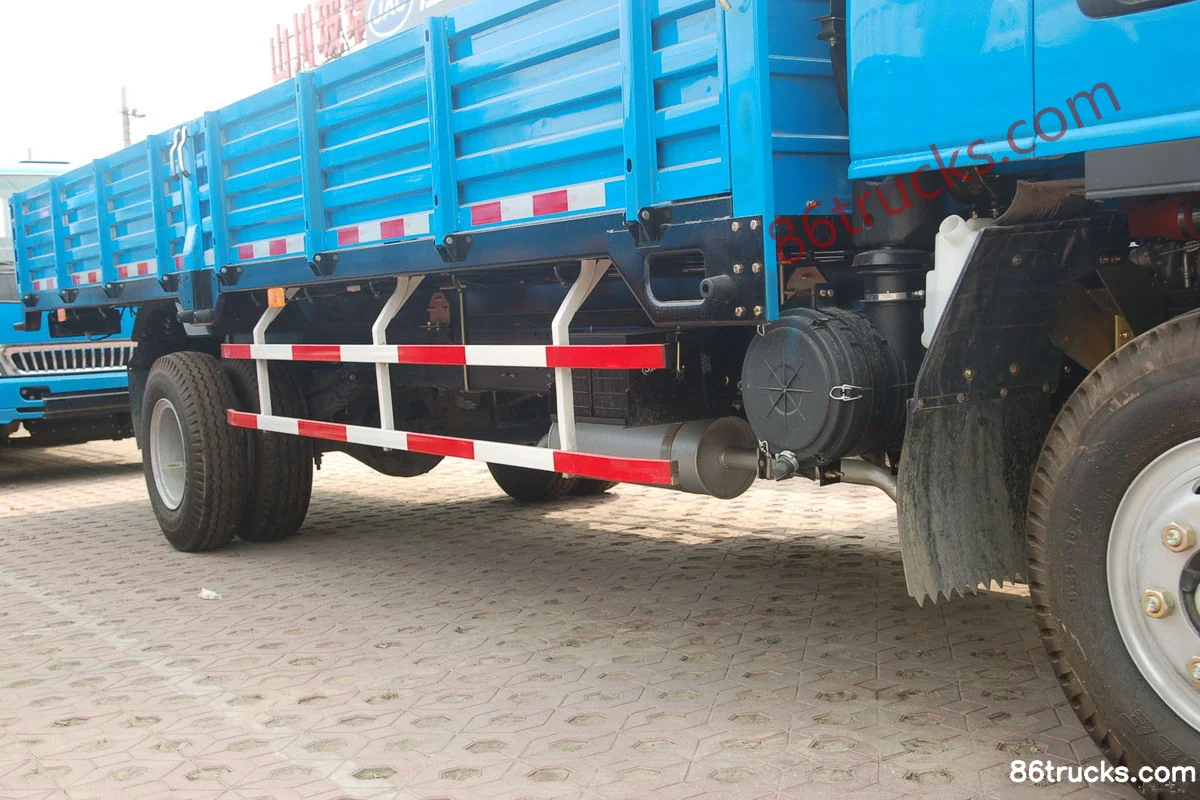

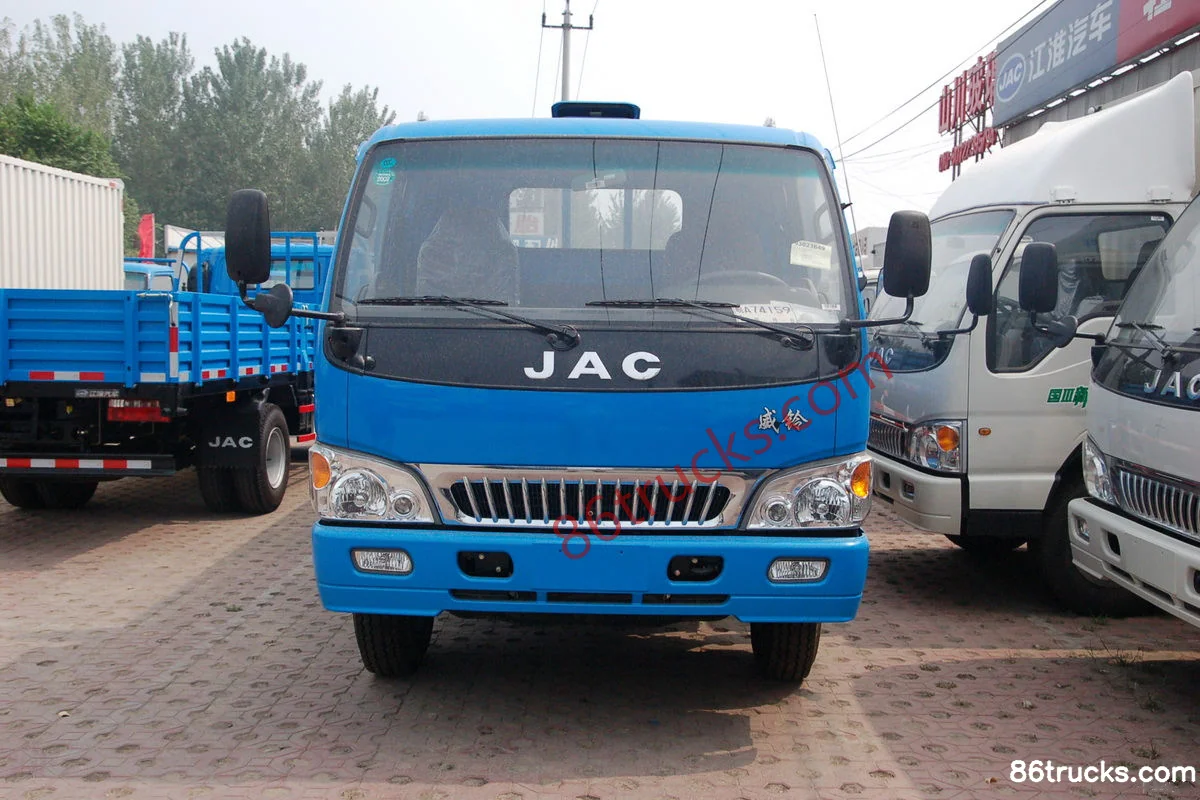

Exterior3

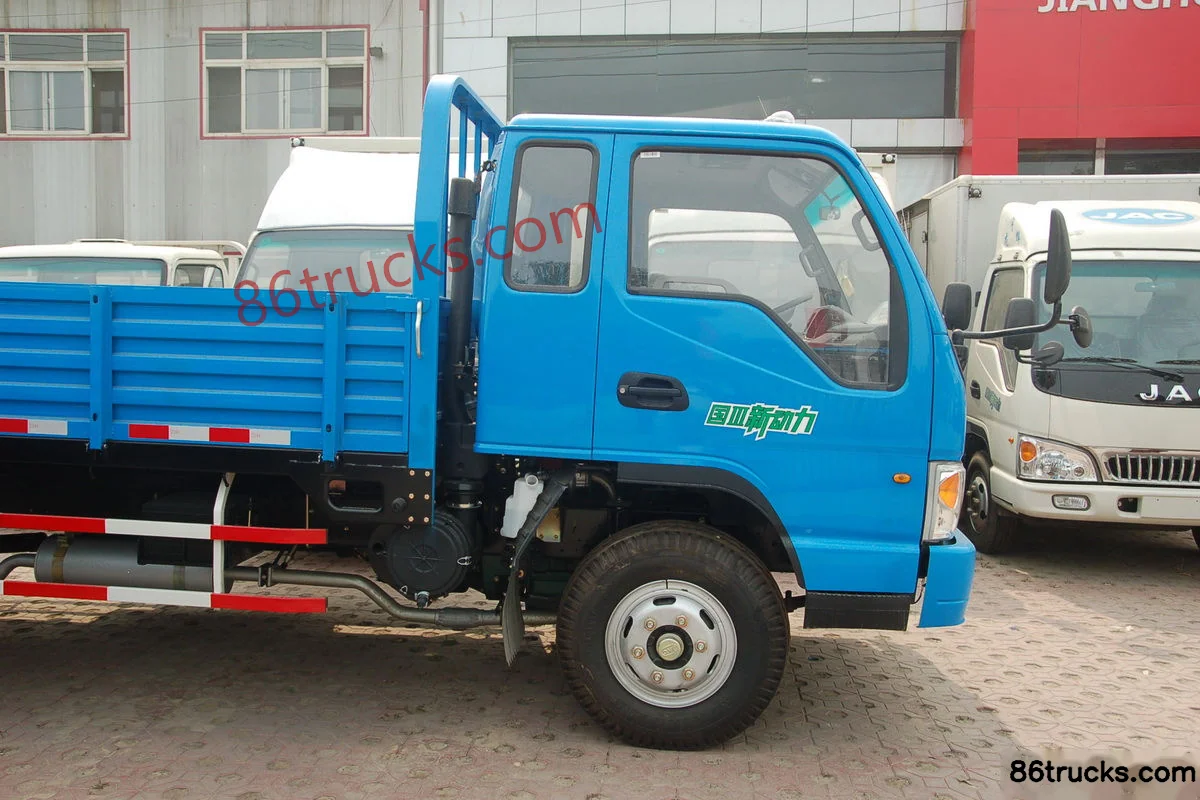

Cab3

6 photos

FAQ

What is the export price of JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck, and what does it include?

JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck export reference is about From $12,889; MSRP is ¥9.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck?

Key specs of JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck: Drive: 4x2; Horsepower: 120 hp; Emission: China II/Euro II; Fuel: Diesel; Engine: Chaochai4102; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck suited for?

JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck differ from other variants in the same series?

JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck belongs to JAC medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Weiling 120hp 4X2(6 wheels) 5.2m semi-row stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
