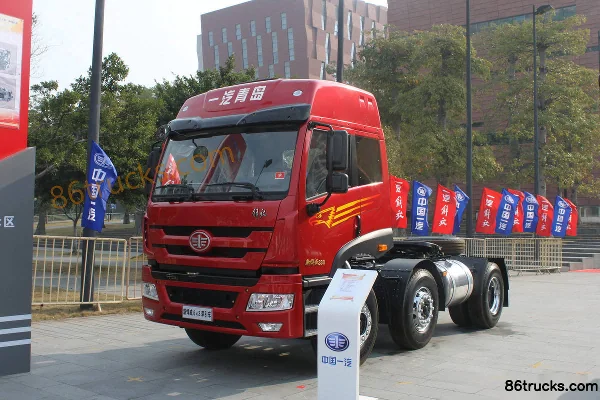

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck

Export reference
From $34,722
MSRP ¥25M CNY
Fuel: Diesel
Gross Trailer Weight:: 35.355ton
Wheelbase:: 1900+2450mm
Tire Size:: 12R22.5 16PR
Front axle allowable load:: 4500/4500kg
Displacement:: 9.726L
Drive 6X2 (8 wheels)
Horsepower 270
Emission China IV
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck is a Heavy truck featuring 6X2 (8 wheels) drive, 270 hp, 20.49t GVW and China IV emissions. On the powertrain side, it comes with a WeichaiWP10.270E40 engine, Fast Gear transmission and Diesel fuel.

China IV 270 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4206P1K15T3E4A80
Drive type: 6X2
Wheelbase: 1900+2450mm
engine: WeichaiWP10.270E40
transmission: Fast Gear9JS135
Rear Axle Ratio: 3.364
Cab length: 6.675m
Cab width: 2.49m
Cab height: 3.75m
Front track width: 1942/1942mm
Gross Trailer Weight: 35.355ton
rear track: 1847mm
Curb Weight: 7.65ton
GVWR: 20.49ton
Max. speed: 107km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.270E40
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1270N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear9JS135
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 450L
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
Front axle description: A5S
Front axle allowable load: 4500/4500kg
Frame Dimensions: Roll-formed 280*90*8mm
rear axle description: 485 stamped-welded axle
rear axle allowable load: 11490kg
Axle ratio: 3.364
Leaf spring count: 3/3/4+3
Suspension (front/rear): Leaf spring
clutch: Φ430
Tire
Tire Size: 12R22.5 16PR
Number of tires: 8pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
AC control type: Manual

Photos

0 photos

FAQ

What is the export price of FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck, and what does it include?

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck export reference is about From $34,722; MSRP is ¥25M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck?

Key specs of FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck: Drive: 6x2; Horsepower: 270 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck suited for?

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck differ from other variants in the same series?

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck belongs to FAW Jiefang Qingdao New Hanwei J5M Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 270 hp 6X2(8 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
