Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.92ton
Wheelbase:: 2400mm
Cargo box type:: Van body
Model code (announced):: BJ5030XXYEV2
Type:: enclosed cargo truck
Box length class:: 2.8m

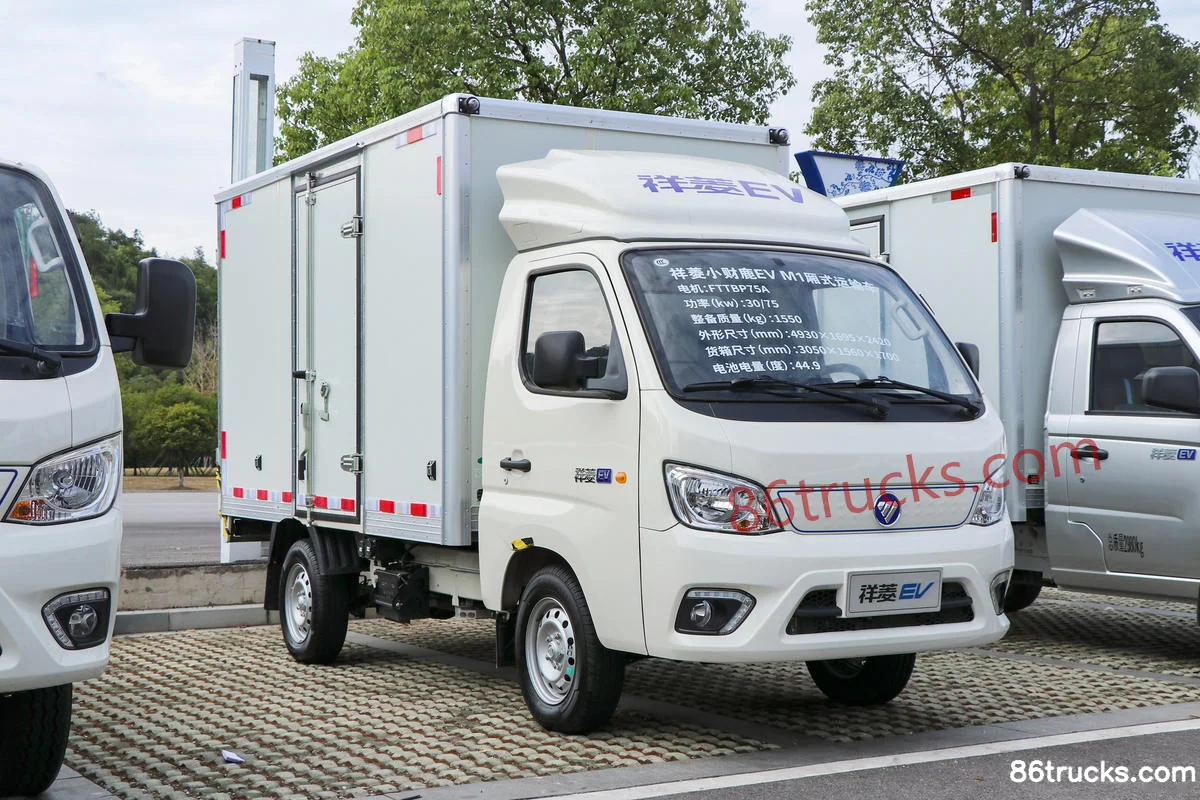

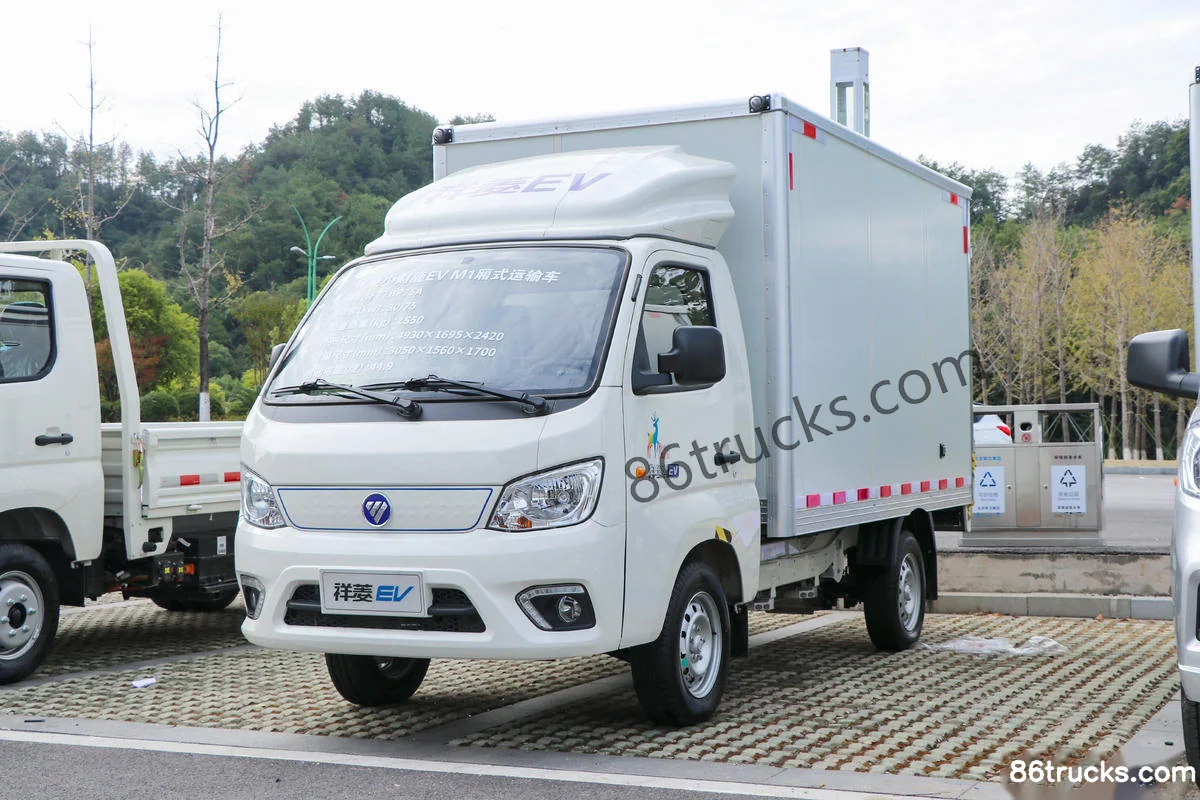

Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 245km
Motor 1 Brand: Foton
Curb Weight: 1.6ton

Overview

The Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) is a mini truck featuring 245km battery/range, Foton motor, 4X2 (6 wheels) drive and 0.92t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5030XXYEV2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2400mm
Box length class: 2.8m
Cab length: 4.745m
Cab width: 1.707m
Cab height: 2.44m
CLTC range: 245km
Curb Weight: 1.6ton
Rated payload: 0.92ton
GVWR: 2.65ton
Max. speed: 85km/h
Origin: Zhucheng, Shandong; Changping, Beijing
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTB030
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
total rated torque: 220N·m
Battery/Charging
Battery Brand: Bike
Battery type: NMC lithium battery pack
Battery capacity: 44.43kWh
Energy Density: 144.35
Battery Model: 2T-44P102S
Cargo box parameters
Cargo box type: Van body
Cargo box length: 2.82m
Cargo box width: 1.56m
Cargo box height: 1.57m
Cab parameters
Cab width: 1520mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1260kg
rear axle allowable load: 1390kg

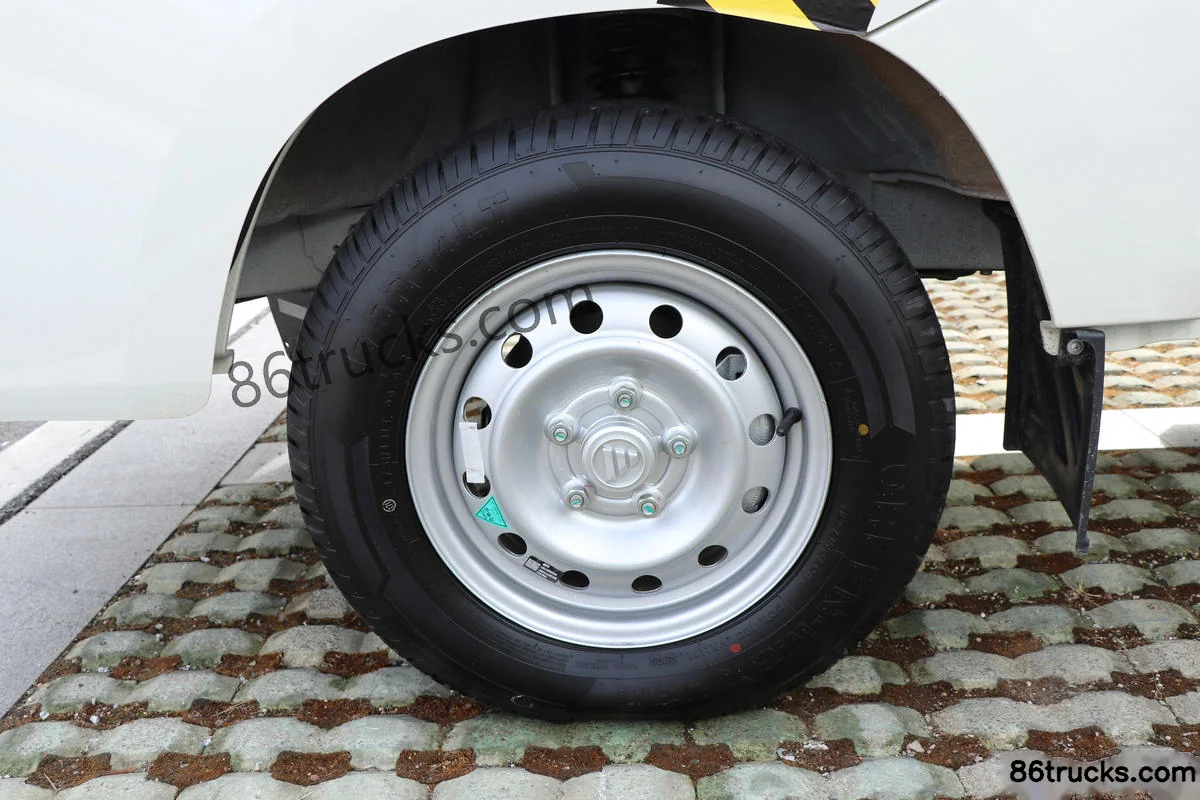

Tire
Tire Size: 175R14LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

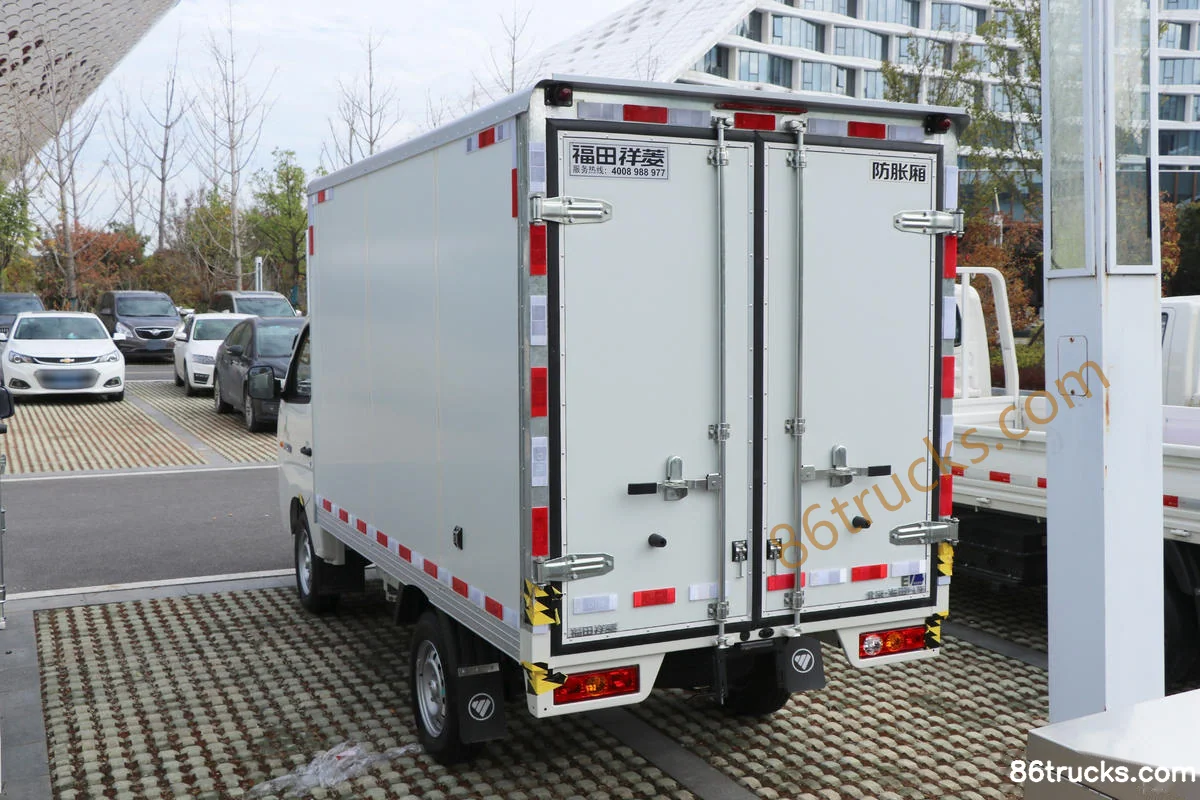

Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Exterior (1) | 86Trucks Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Exterior (2) | 86Trucks Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

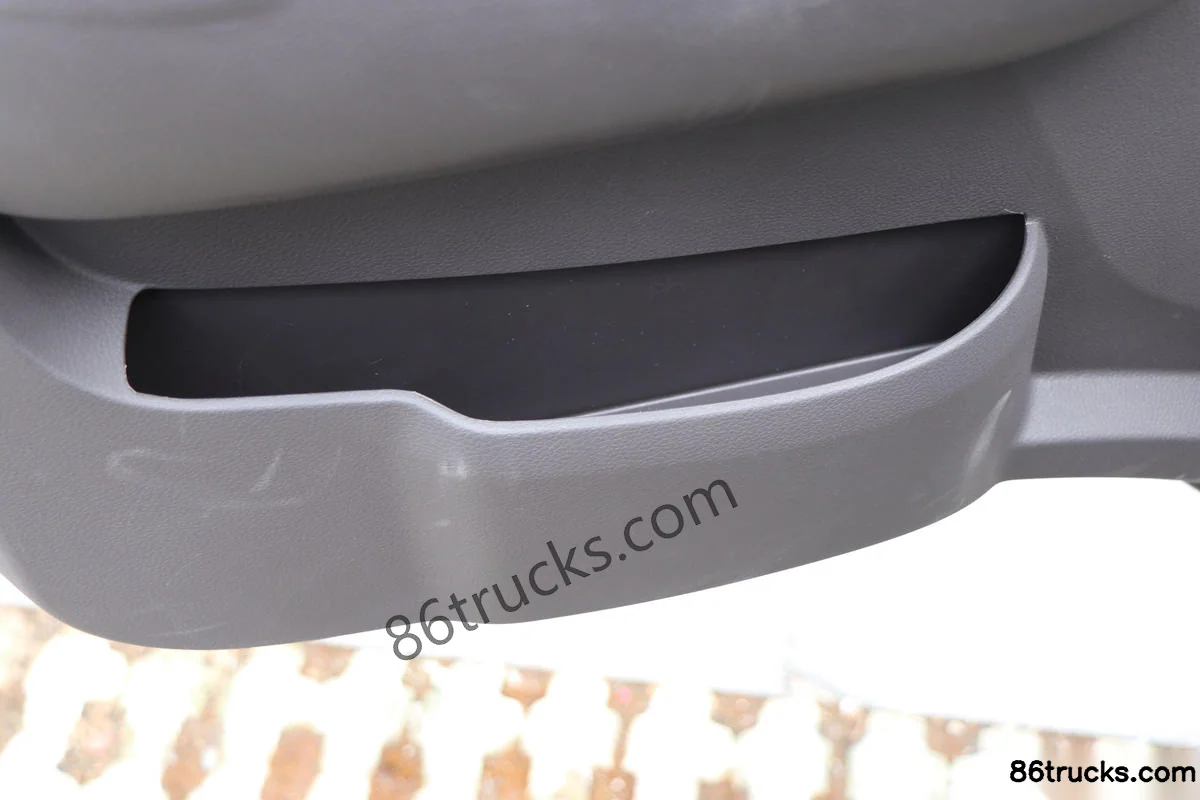

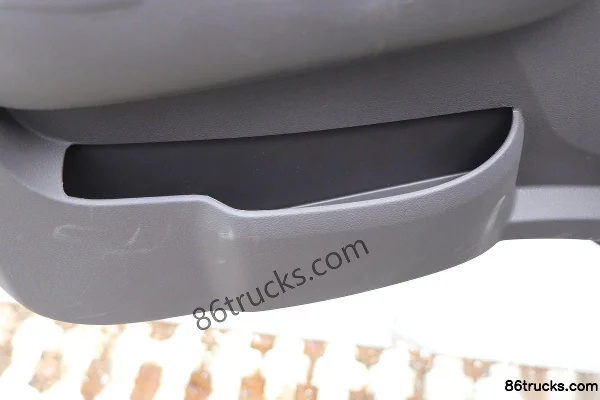

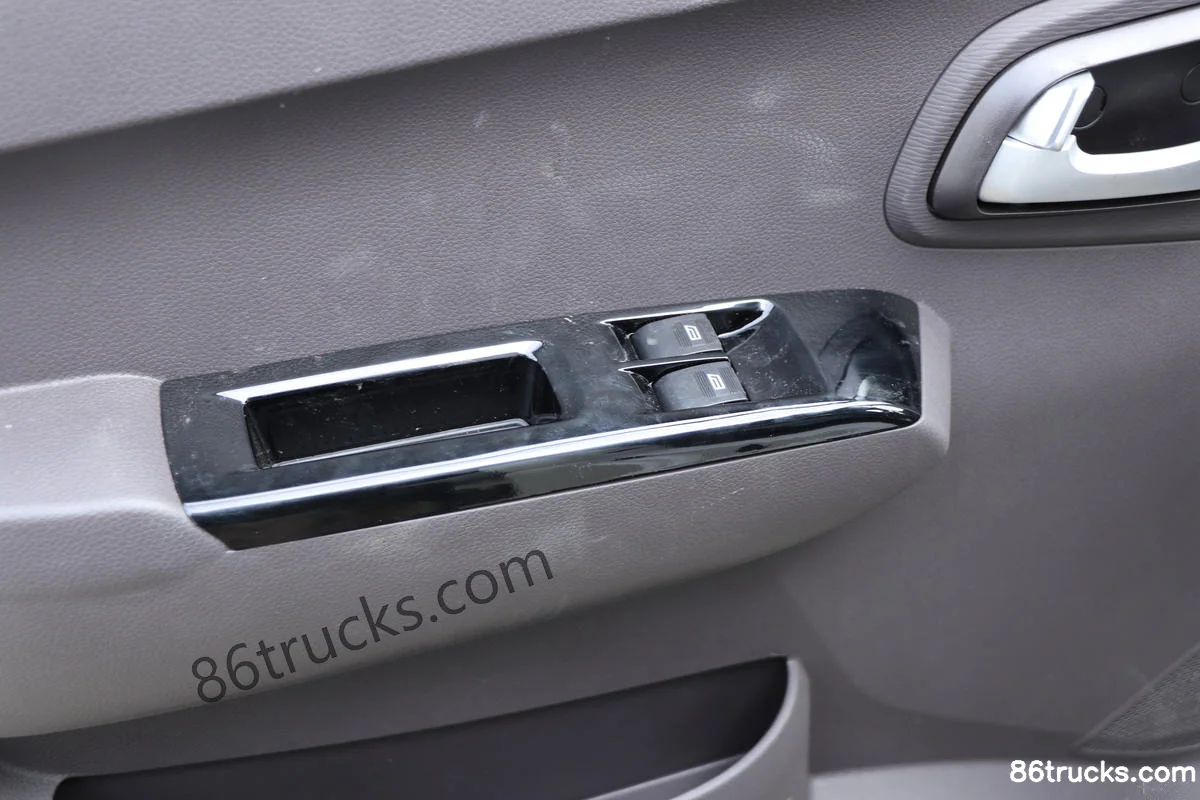

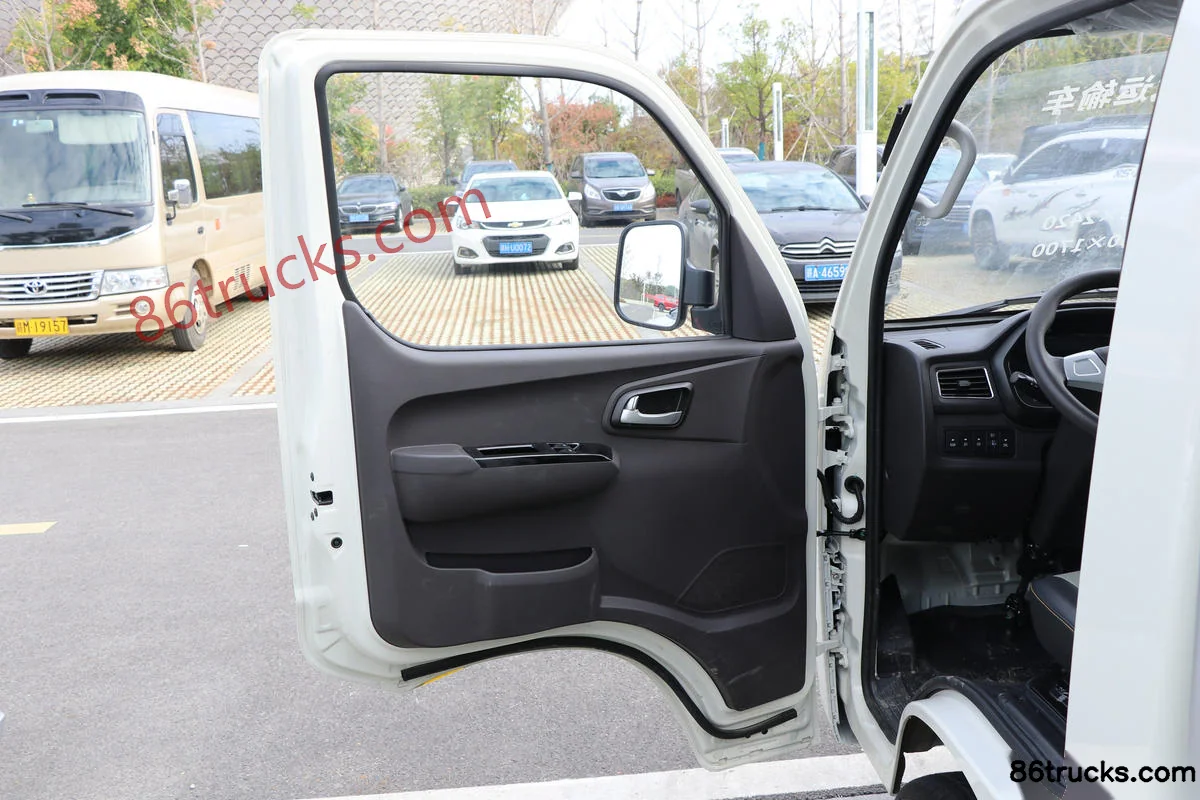

Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Interior (1) | 86Trucks Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Interior (2) | 86Trucks Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Interior (3) | 86Trucks

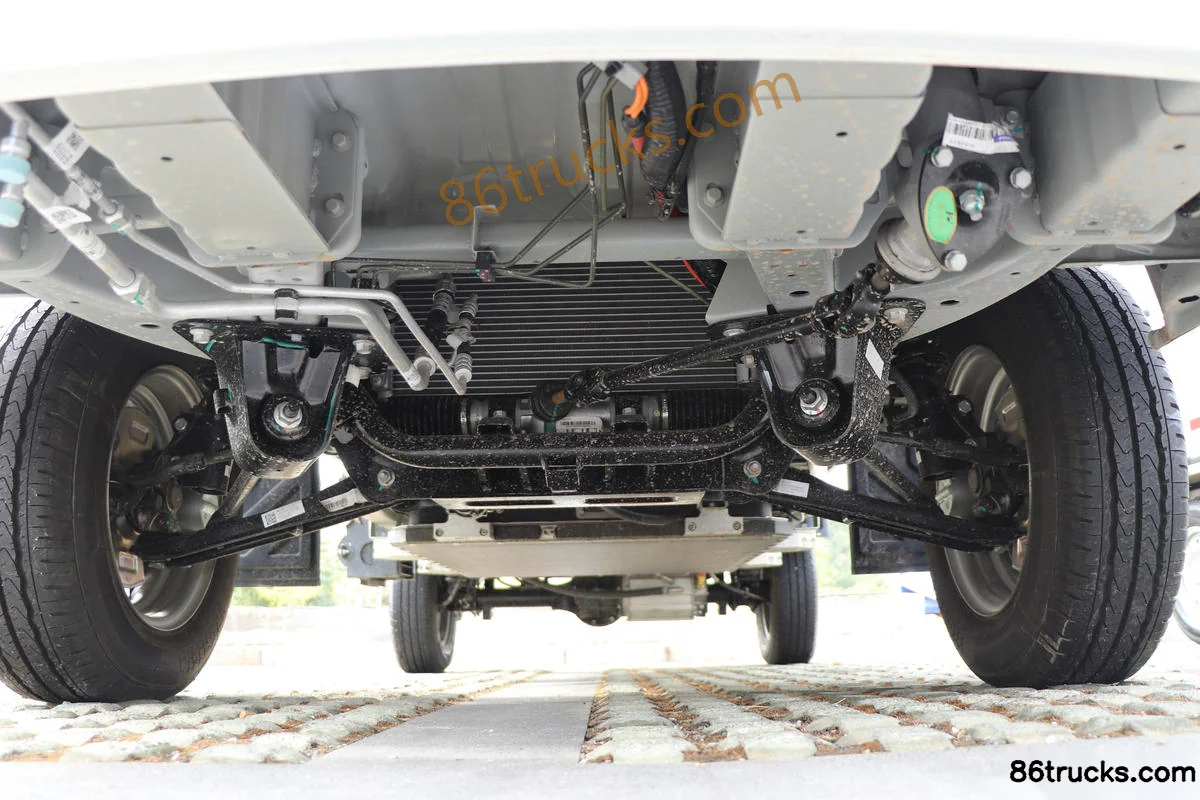

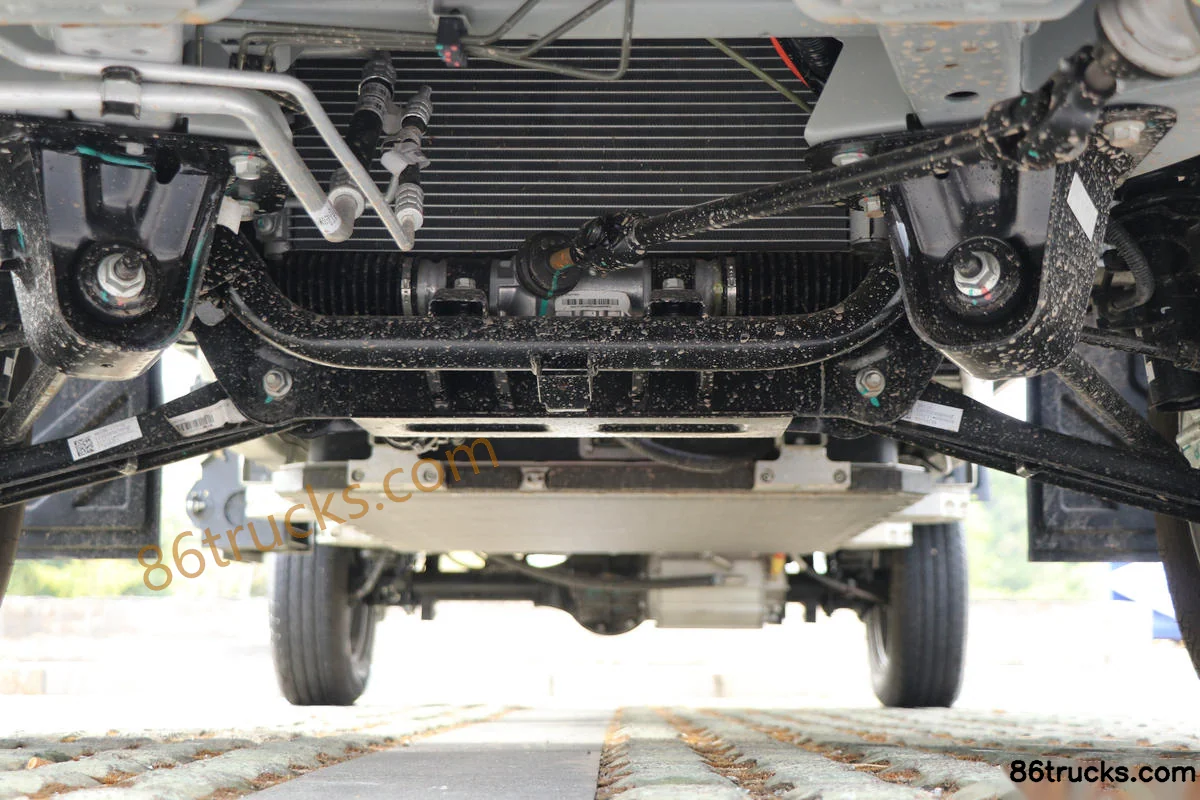

Chassis3

Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Chassis (1) | 86Trucks Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Chassis (2) | 86Trucks Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Chassis (3) | 86Trucks

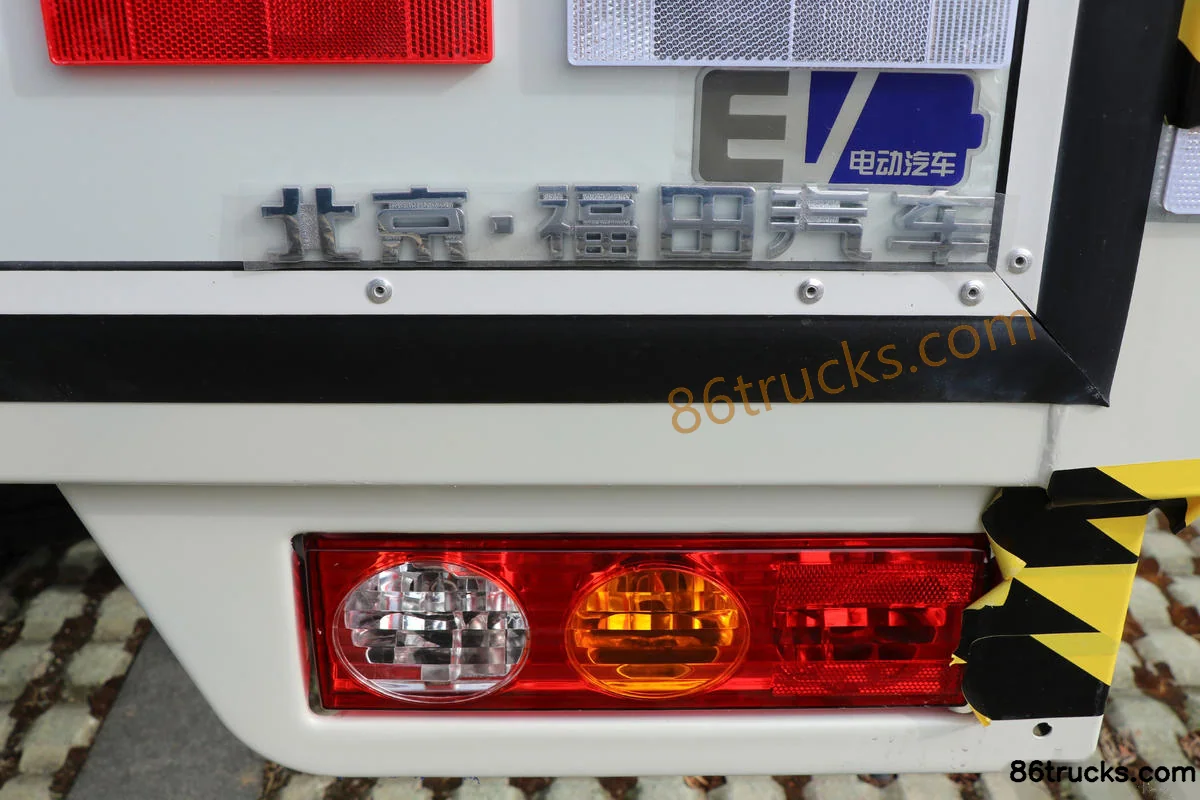

Body3

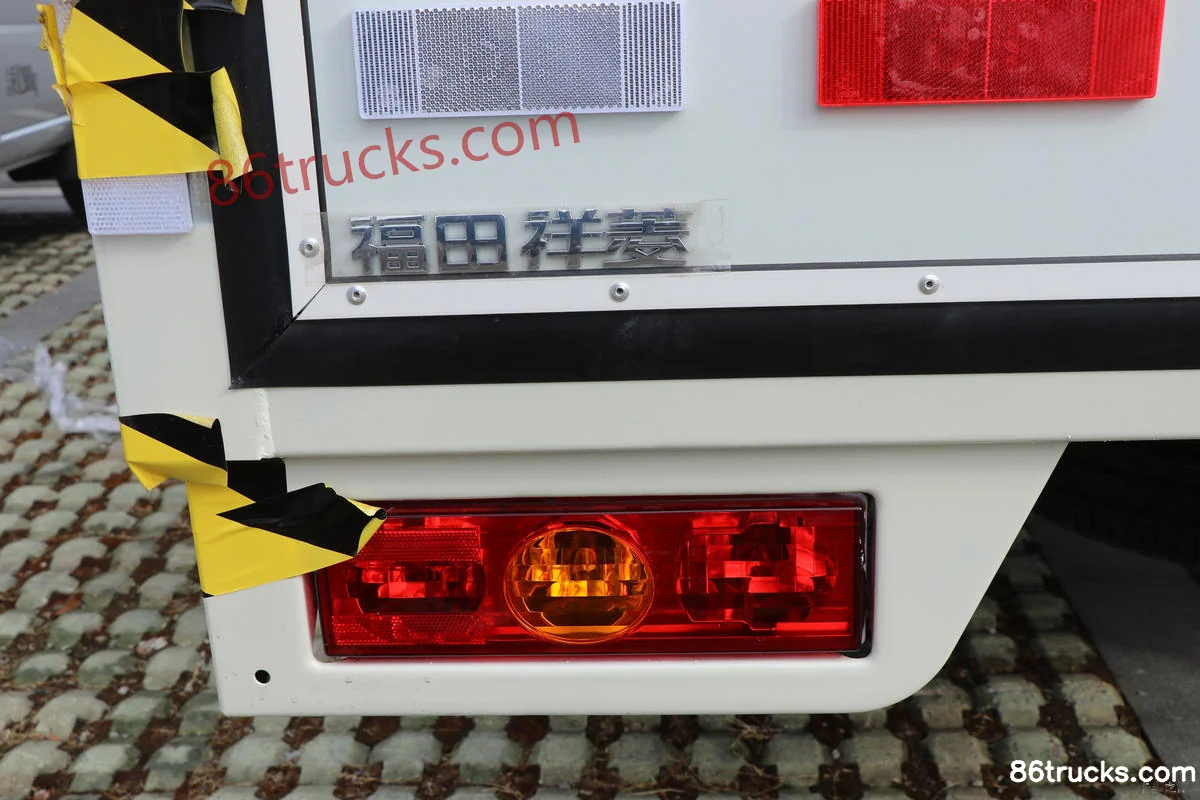

Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Body (1) | 86Trucks Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Body (2) | 86Trucks Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels)?

Key specs of Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) suited for?

Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) differ from other variants in the same series?

Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels) belongs to Foton M1 Mini Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiangling M1 2.65T 2.82m Single Row Pure Electric Van Micro Truck 44.43kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
