King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh

Export reference

MSRP N/A

Wheelbase:: 2890mm

Cargo Box Height:: 1.445

Model code (announced):: XMQ5030XXYBEVL06

Cab length:: 5.3m

warranty policy:: 3 years or 60,000 km (whichever comes first) Three electrics: 5 years or 200,000 km (whichever comes first)

GVWR:: 3.49ton

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh exterior

View more photos (12)

Battery Brand: CATL

Motor 1 Brand: King Long

Curb Weight: 1.745ton

Rated payload: 1.615ton

Overview

The King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh is a Electric Panel Van featuring CATL battery/range, King Long motor, 1.615t payload and 1.445 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): XMQ5030XXYBEVL06

Wheelbase: 2890mm

Cab length: 5.3m

Cab width: 1.7m

Cab height: 2.085m

warranty policy: 3 years or 60,000 km (whichever comes first) Three electrics: 5 years or 200,000 km (whichever comes first)

Curb Weight: 1.745ton

Rated payload: 1.615ton

GVWR: 3.49ton

Max. speed: 100km/h

Front/rear suspension: 1.3/1.11m

Energy Type: Electric

electric motor

Motor 1 Brand: King Long

Motor 1 Model: TZ220XS030D1SG

Motor Type: Permanent magnet synchronous motor

Fuel Type: Electric

total rated power: 50kW

Peak power: 80kW

Battery/Charging

Battery Brand: CATL

Charging method: 2-hour fast charge, 8-10 hour slow charge

Battery type: Lithium Iron Phosphate Battery

Battery capacity: 41.86kWh

Chassis Specs

steering assist type: Electric power steering

Front suspension type: Independent suspension

rear suspension type: Leaf spring

Body Parameters

Cab structure: Load-bearing

Seat count: 2Seats

Body parameters

Max body depth: 3.24

Max body width: 1.55

Cargo Box Height: 1.445

Wheel brake

Front brake type: Disc brake

rear brake type: drum brake

Front tire specification: 195/70R15LT

Rear Wheel Specification: 195/70R15LT

Control configuration

ABS:

interior configuration

AC control type: Manual

Multimedia features

External audio input (AUX/USB/iPod etc.):

Photos

Exterior3

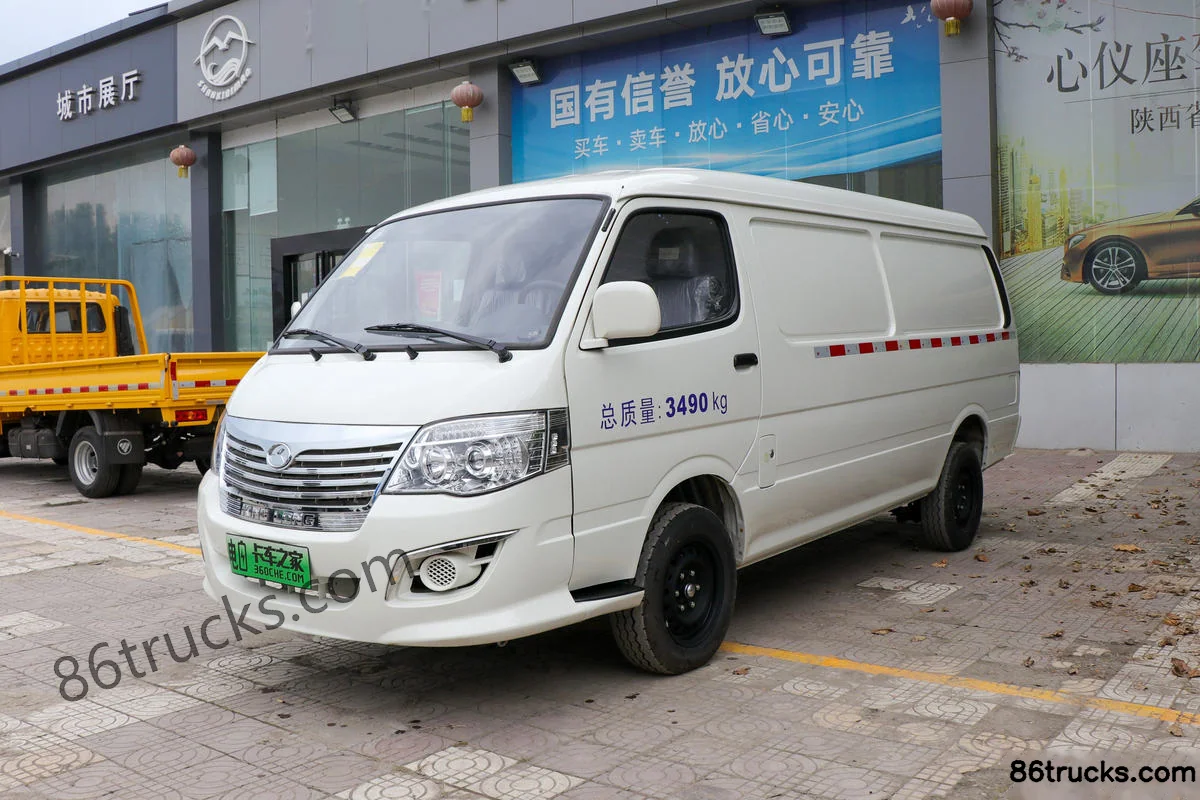

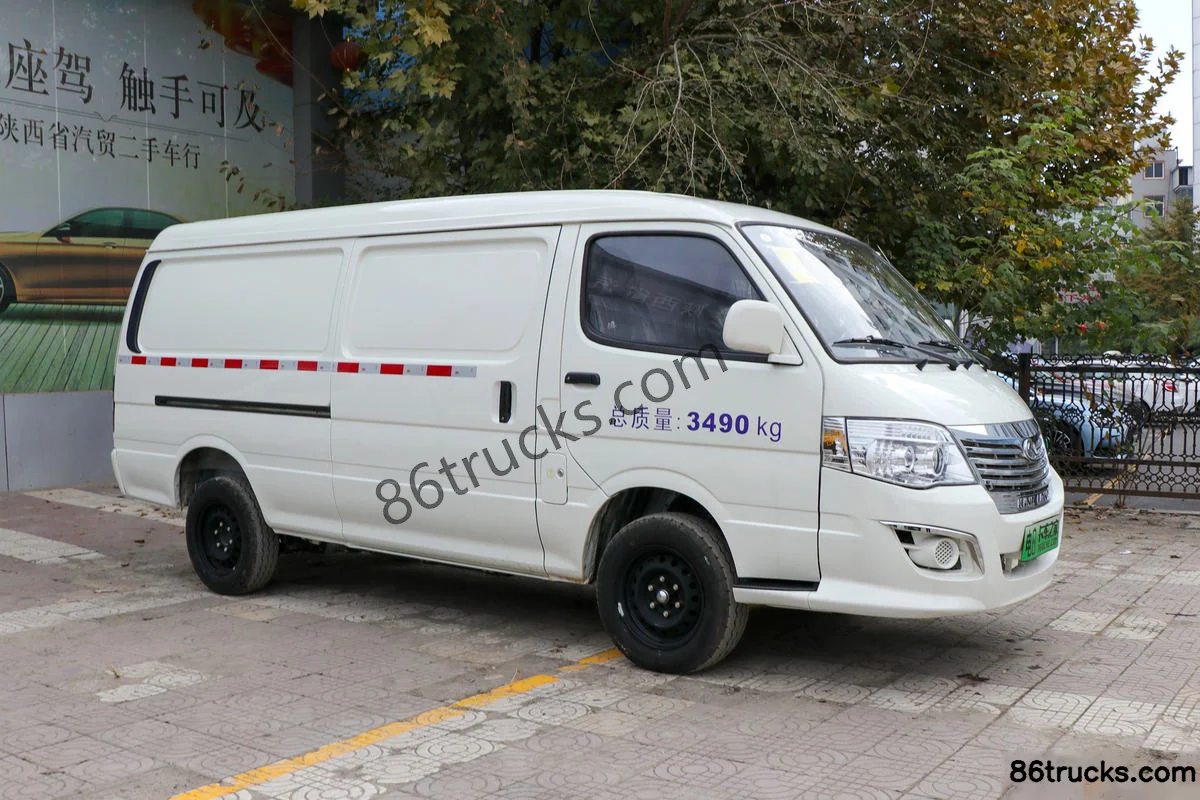

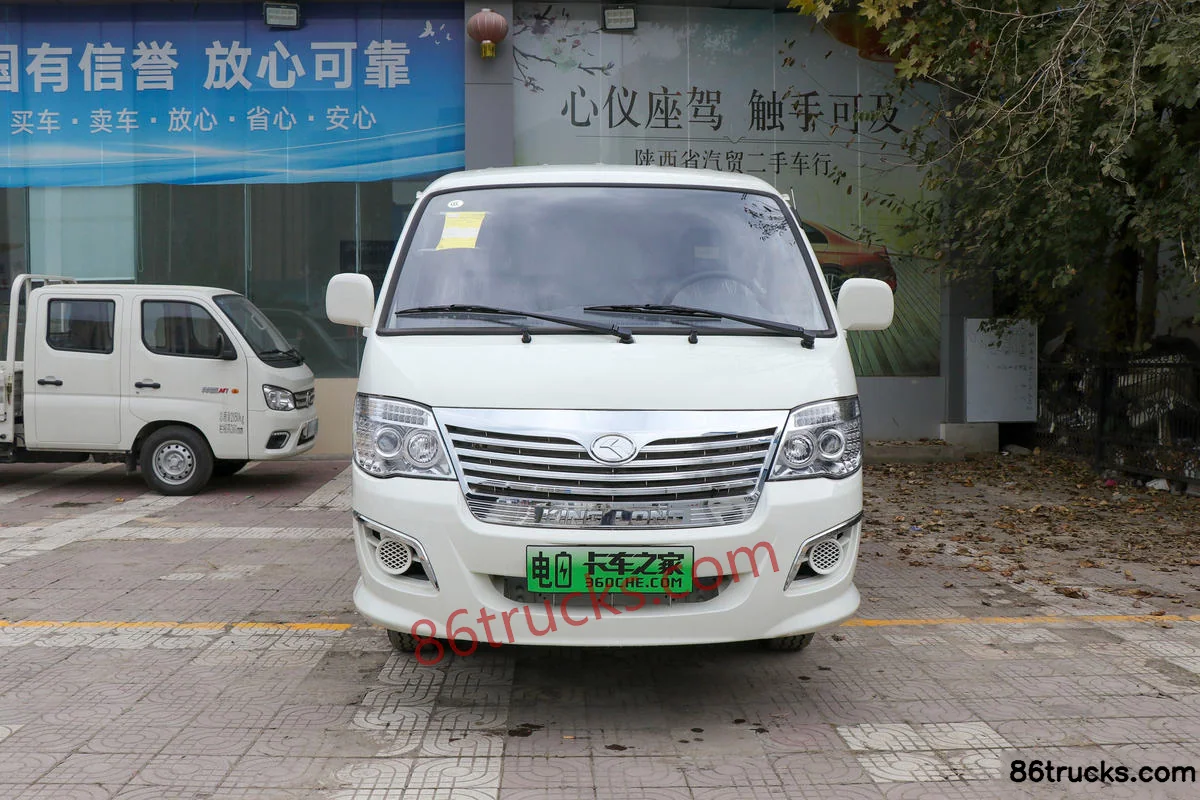

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Exterior (1) | 86Trucks

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Exterior (2) | 86Trucks

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Exterior (3) | 86Trucks

Cab3

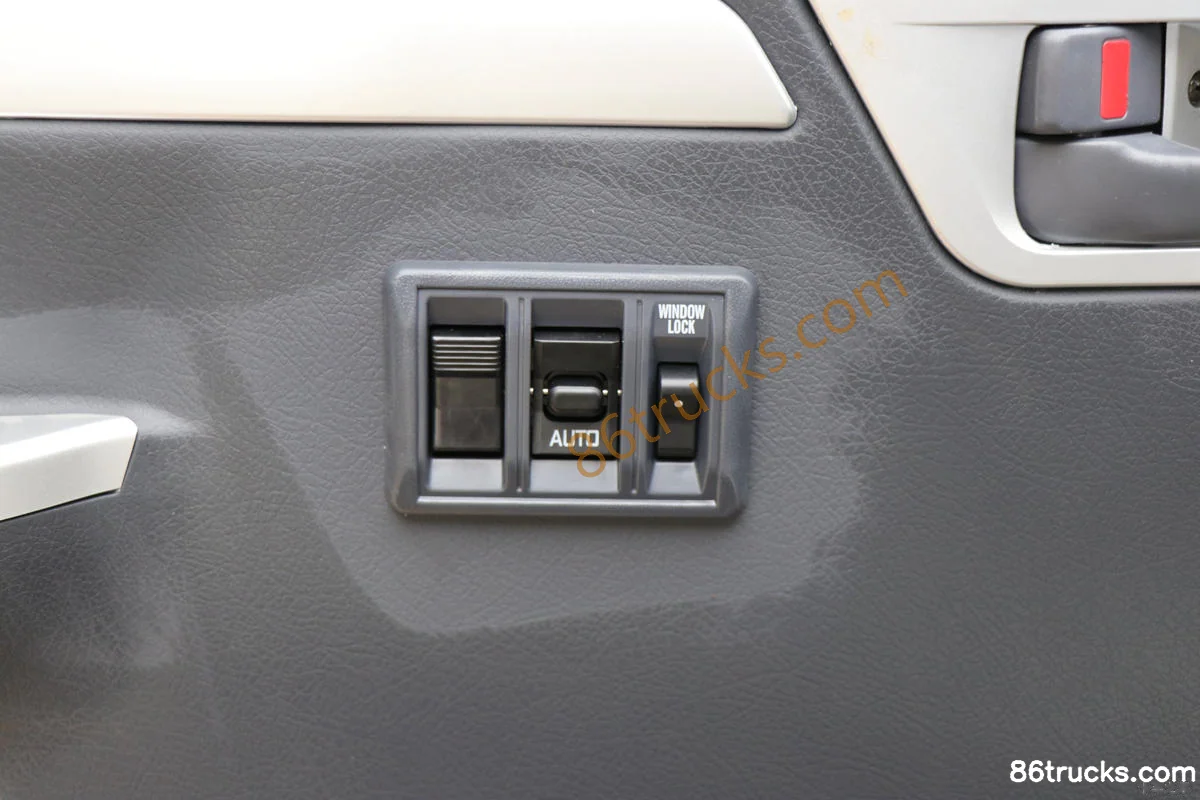

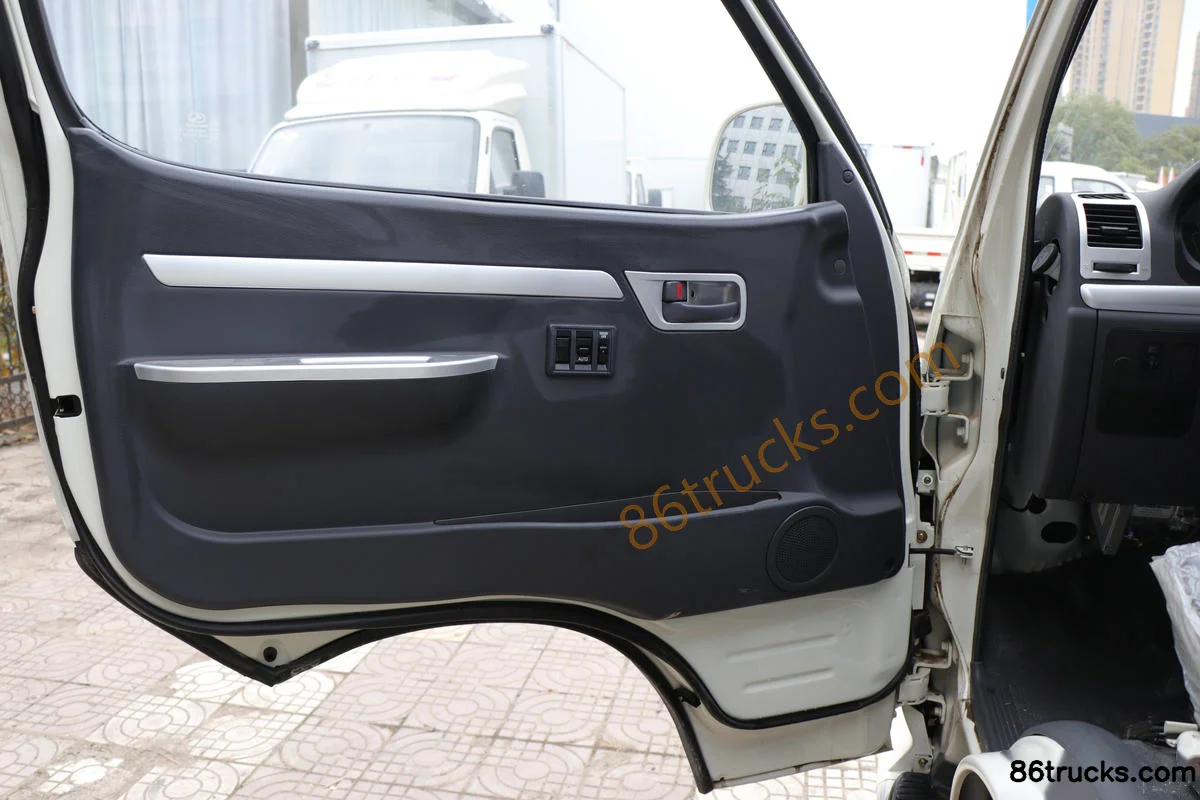

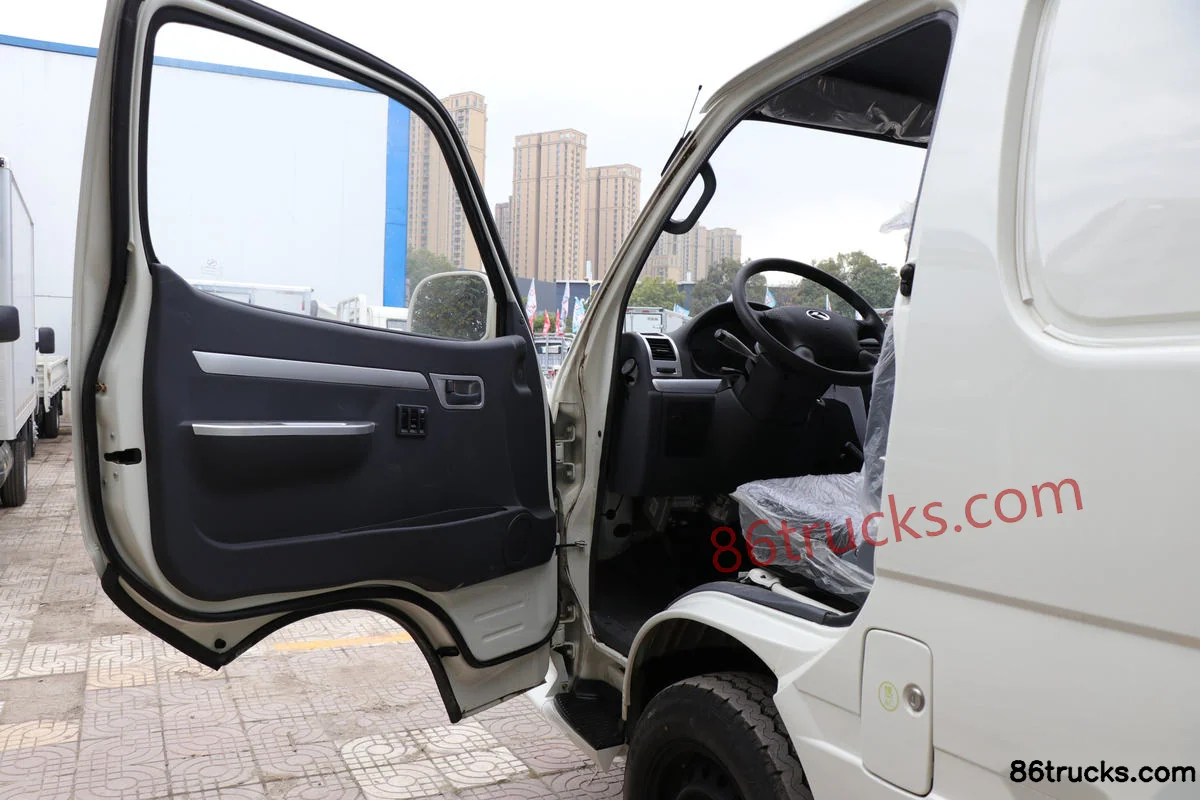

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Cab (1) | 86Trucks

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Cab (2) | 86Trucks

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Cab (3) | 86Trucks

Chassis3

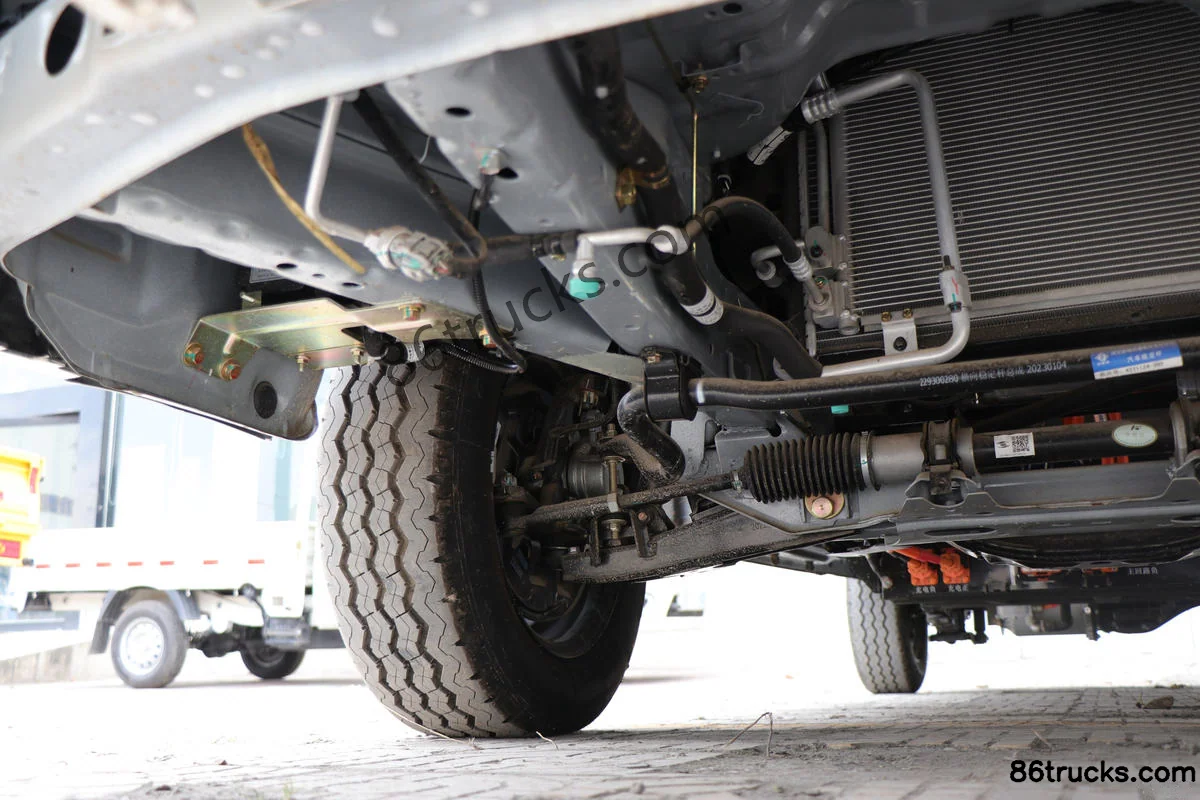

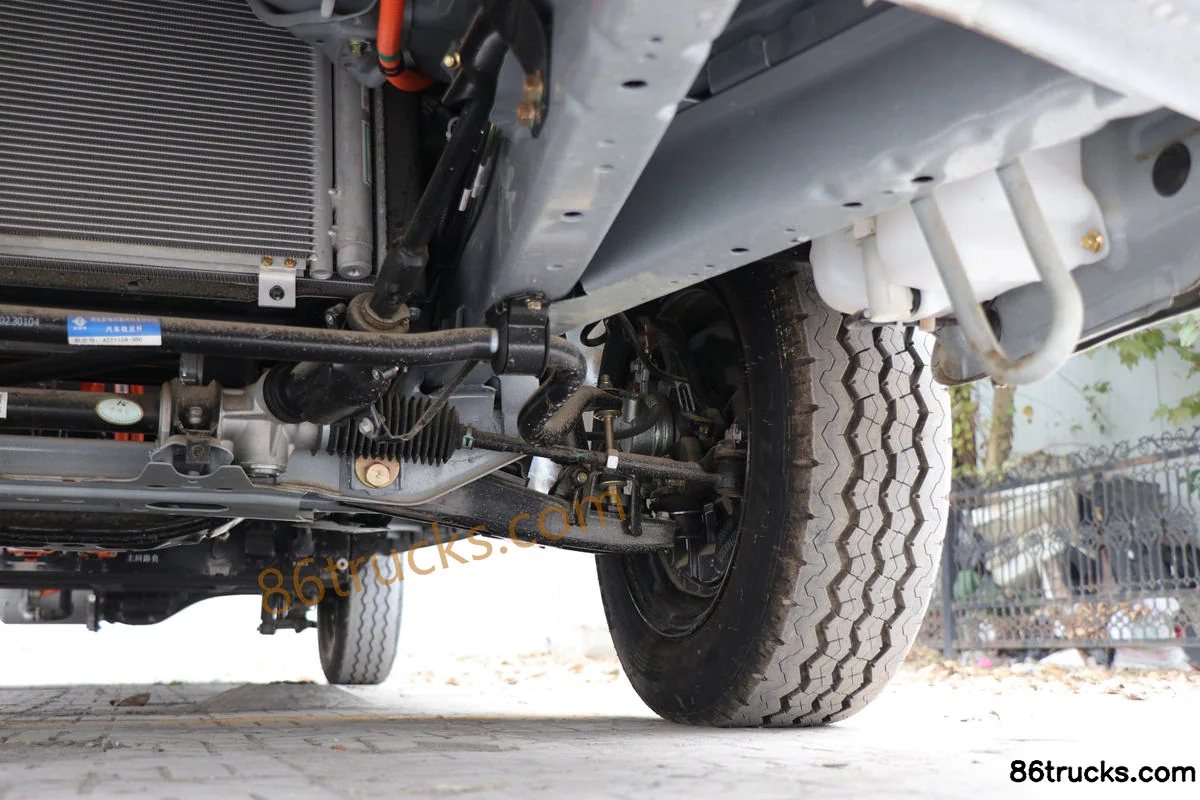

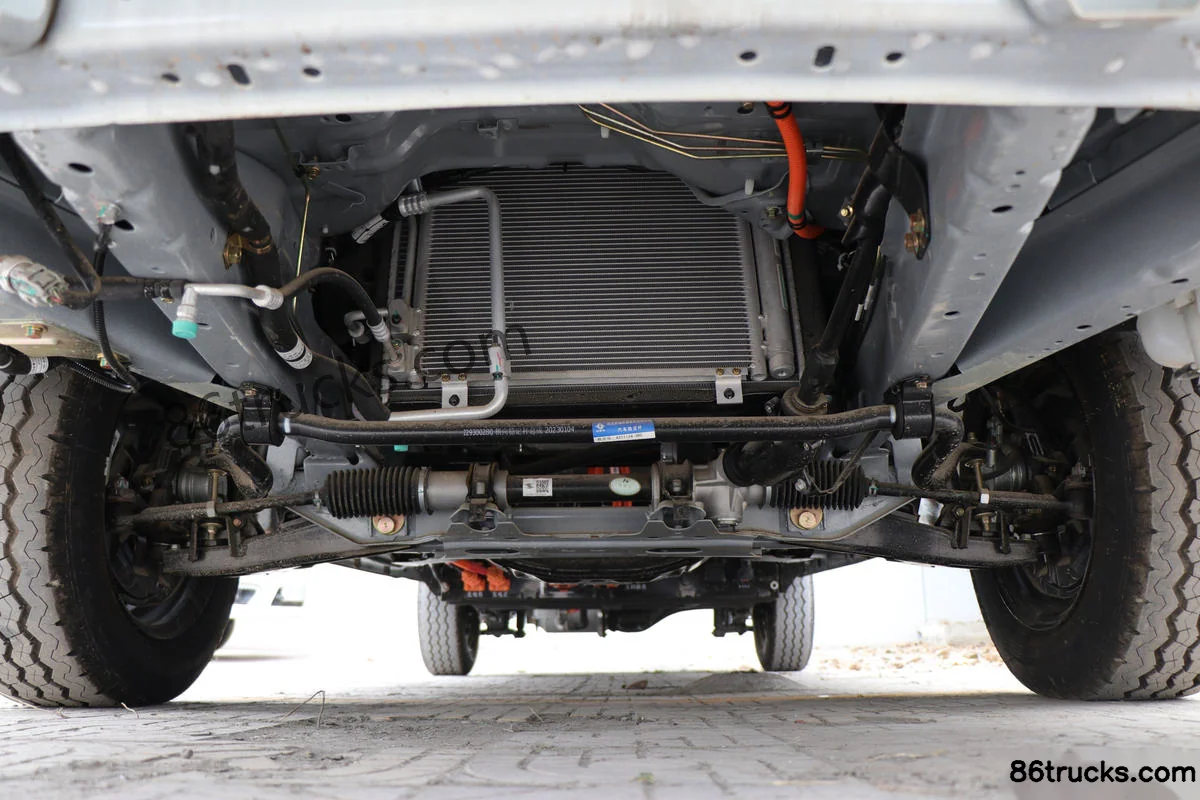

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Chassis (1) | 86Trucks

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Chassis (2) | 86Trucks

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Chassis (3) | 86Trucks

Cargo Box3

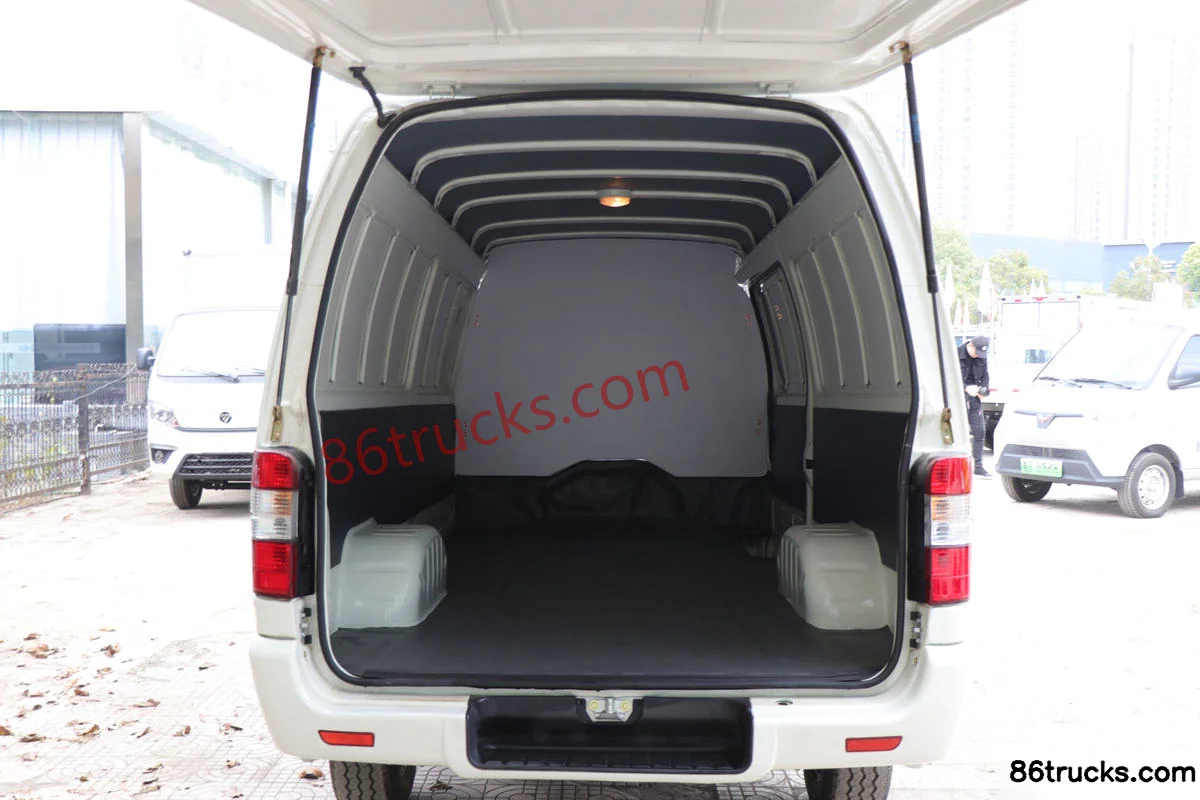

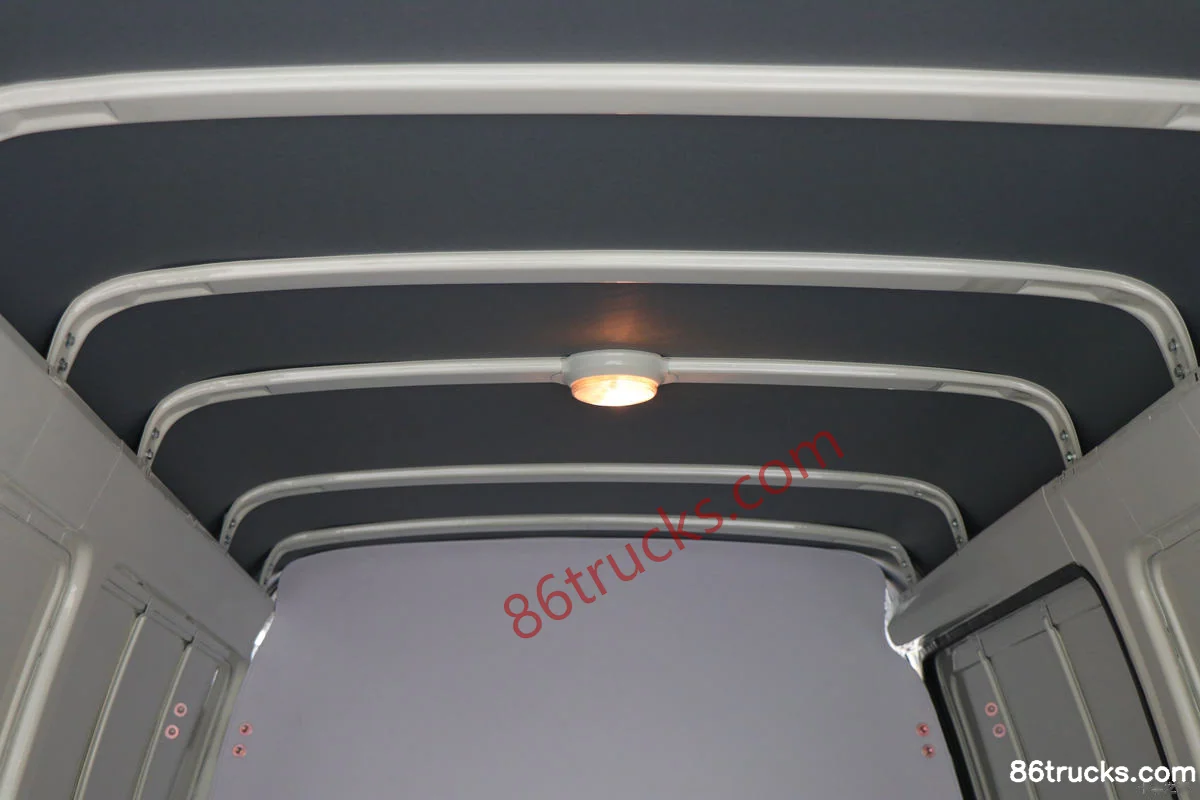

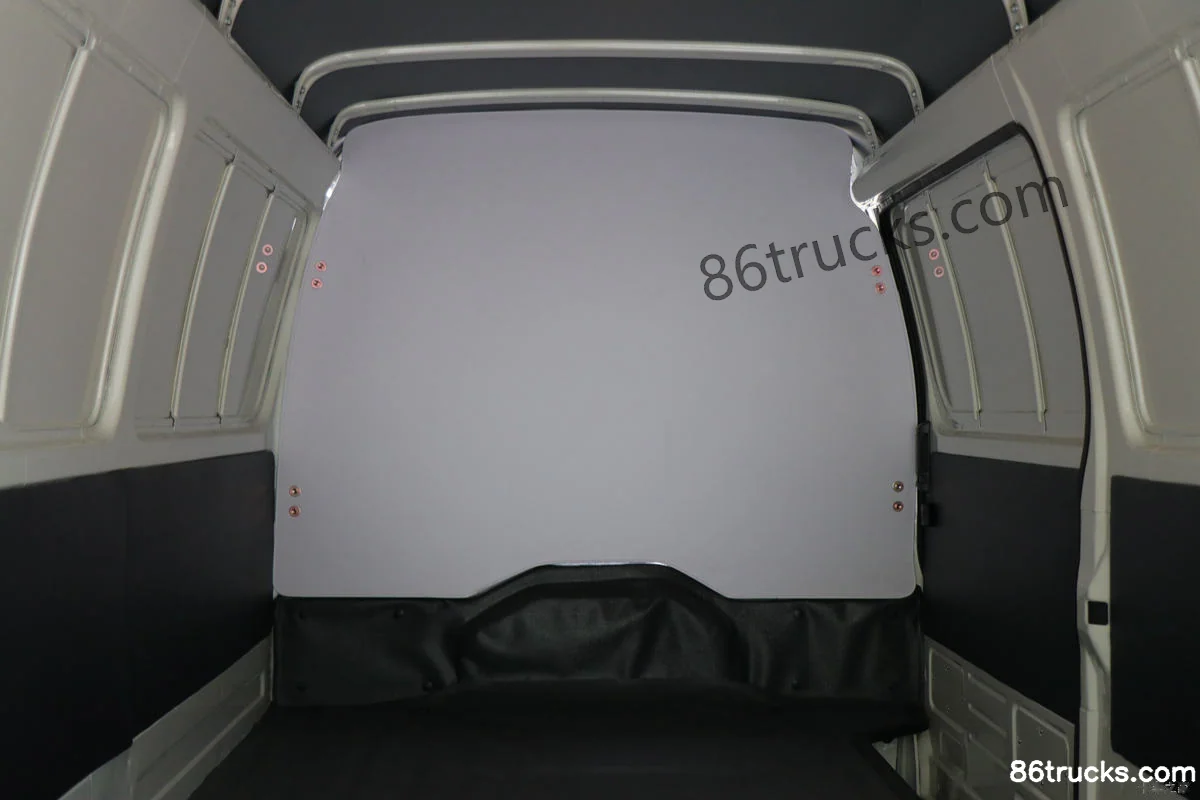

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Cargo Box (1) | 86Trucks

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Cargo Box (2) | 86Trucks

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What transport jobs is King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh suited for?

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh differ from other variants in the same series?

King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh belongs to King Long Longyao 8 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long Longyao 8 3.5T 3.24m Pure Electric Panel Van (Mid-Roof) 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
