SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 34.8ton
Wheelbase:: 3800mm
Tire brand:: Linglong
Front axle allowable load:: 6700kg
Displacement:: 11.596L
SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck exterior
View more photos (6)
Drive 4X2 (6 wheels)
Horsepower 430
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 430 hp, 18t GVW and China V emissions. On the powertrain side, it comes with a WeichaiWP12.430E50 engine, Fast Gear transmission and Diesel fuel.

China V 430 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX4180GC1Q1
Drive type: 4X2
Wheelbase: 3800mm
engine: WeichaiWP12.430E50
transmission: Fast GearSF12J220T
Cab length: 6.28m
Cab width: 2.55m
Cab height: 4m
Front track width: 2070mm
Gross Trailer Weight: 34.8ton
rear track: 1860mm
Curb Weight: 7ton
GVWR: 18ton
Max. speed: 115km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Remarks: Standard Tianxingjian smart terminal, electric tilt cab, 8-inch multimedia display, electronically controlled automatic climate control, lane departure warning system, driver fatigue detection system, environment monitoring system, side tool box, flip-up side guard.
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.430E50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.596L
Emission standard: China V
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2060N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast GearSF12J220T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 690L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 7.3T
Fifth wheel: JOST lightweight 90 fifth wheel
Front axle allowable load: 6700kg
rear axle description: 13T
rear axle allowable load: 11300kg
Leaf spring count: 2/-
Aluminum wheels:
Suspension (front/rear): Front multi-leaf spring/rear air suspension
Tire
Tire brand: Linglong
Tire Size: 315/70R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:
LED taillight:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Disc brake
smart configuration
Cruise control (CCS):

Photos

Exterior3

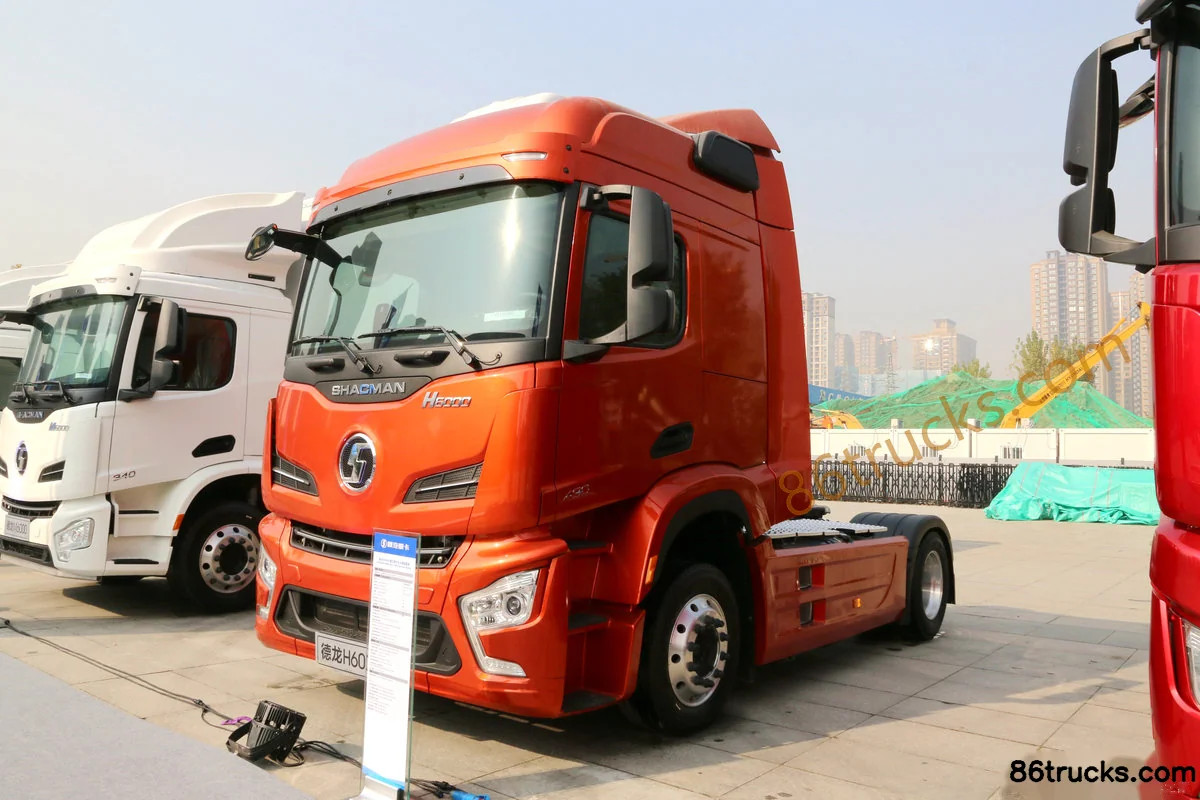

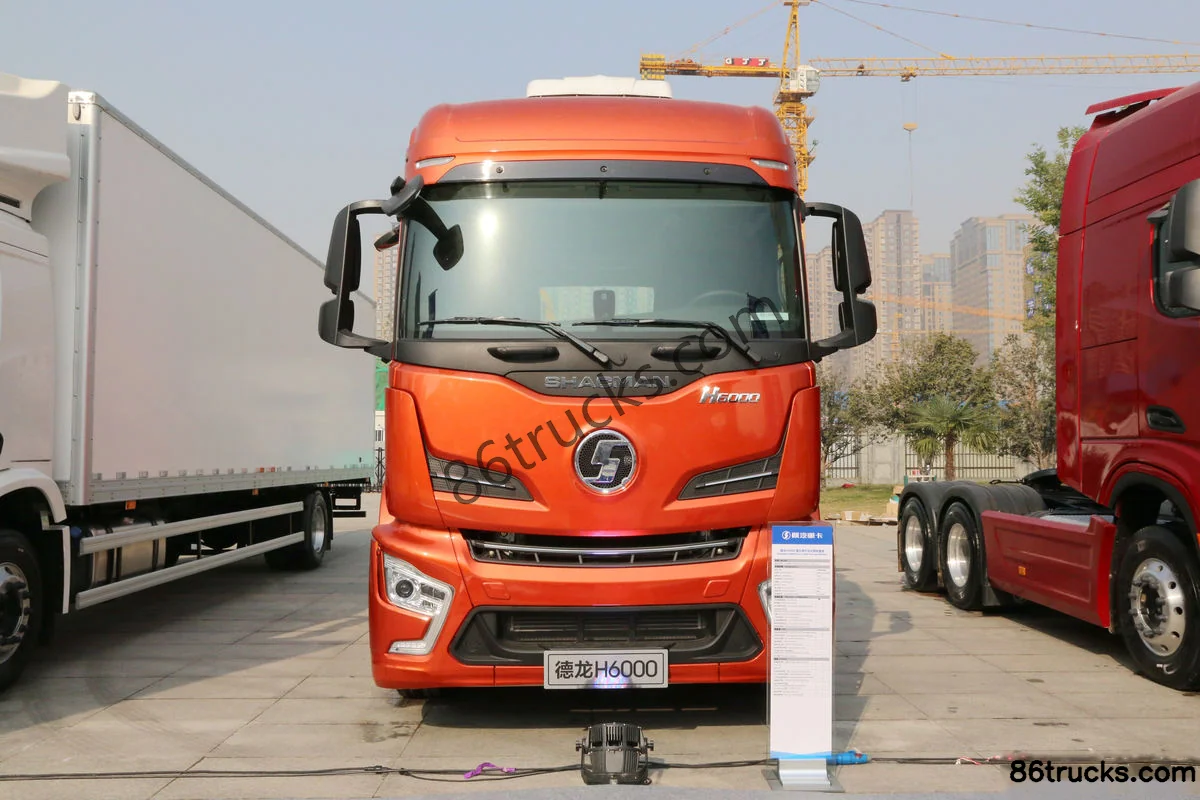

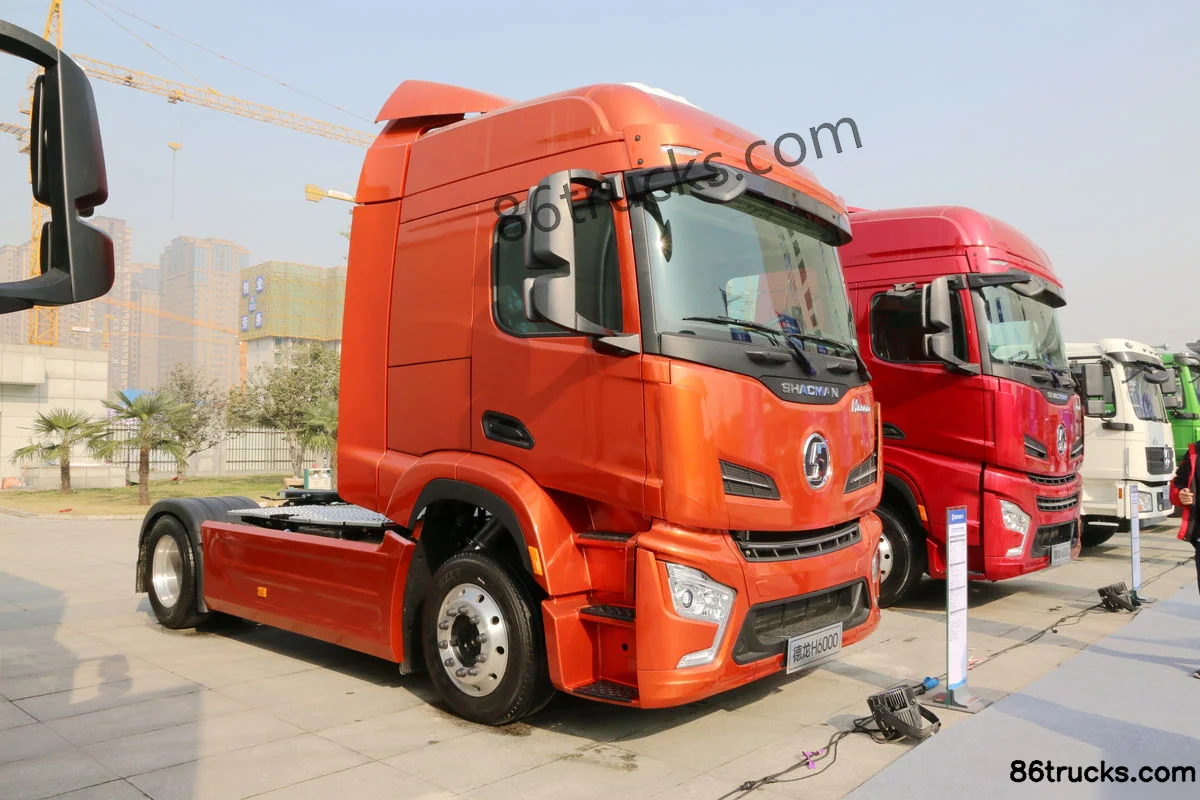

SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck Exterior (1) | 86Trucks SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck Exterior (2) | 86Trucks SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck Exterior (3) | 86Trucks

Chassis3

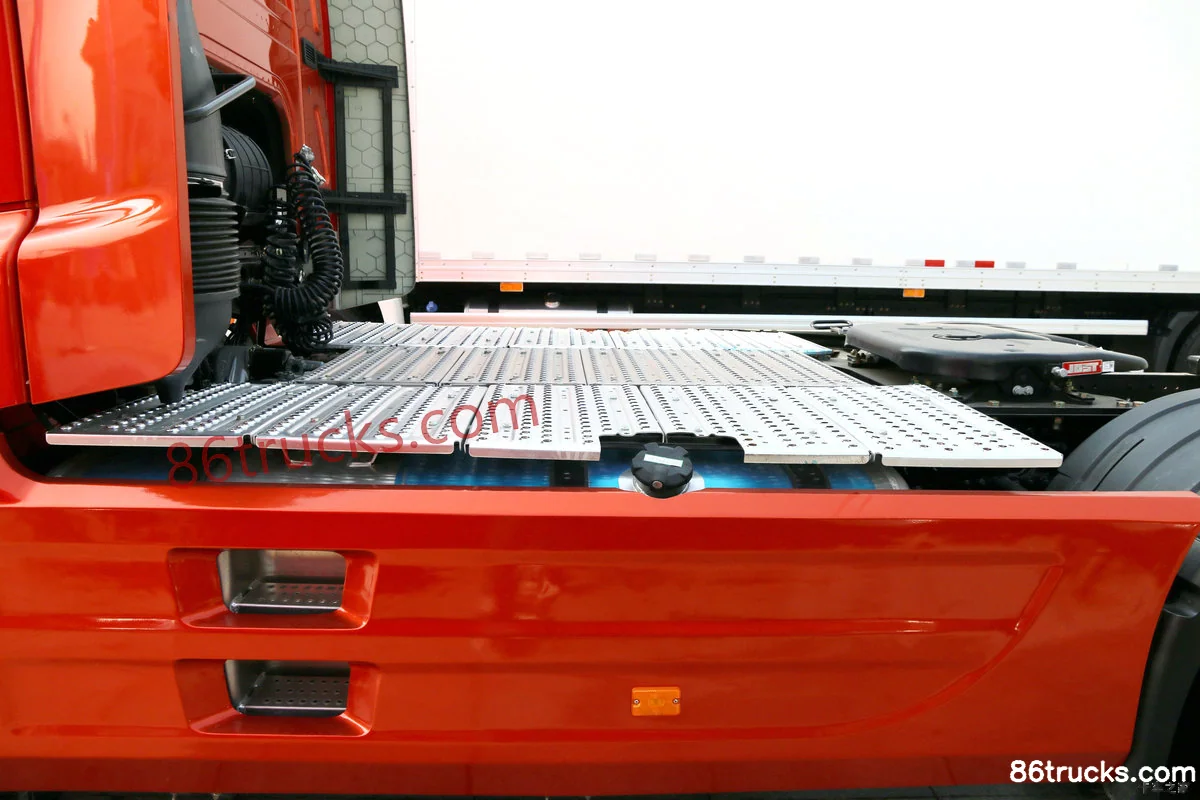

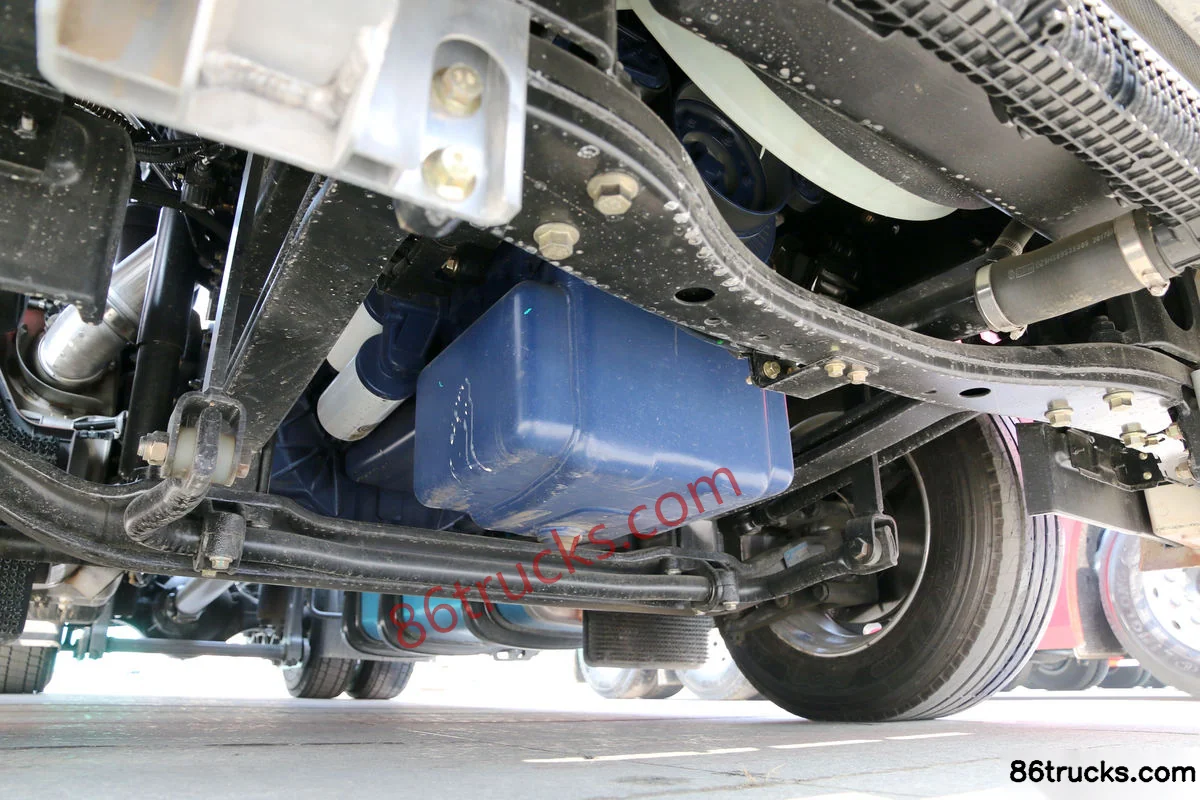

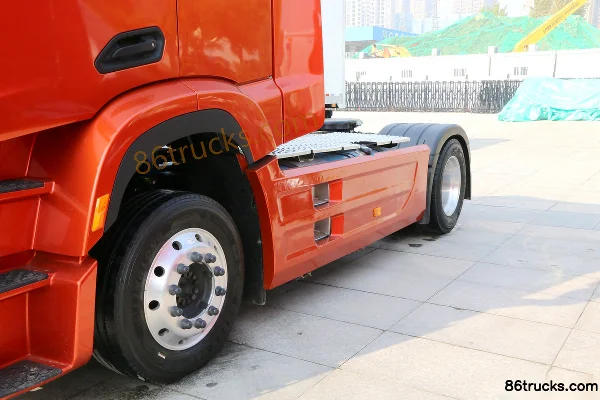

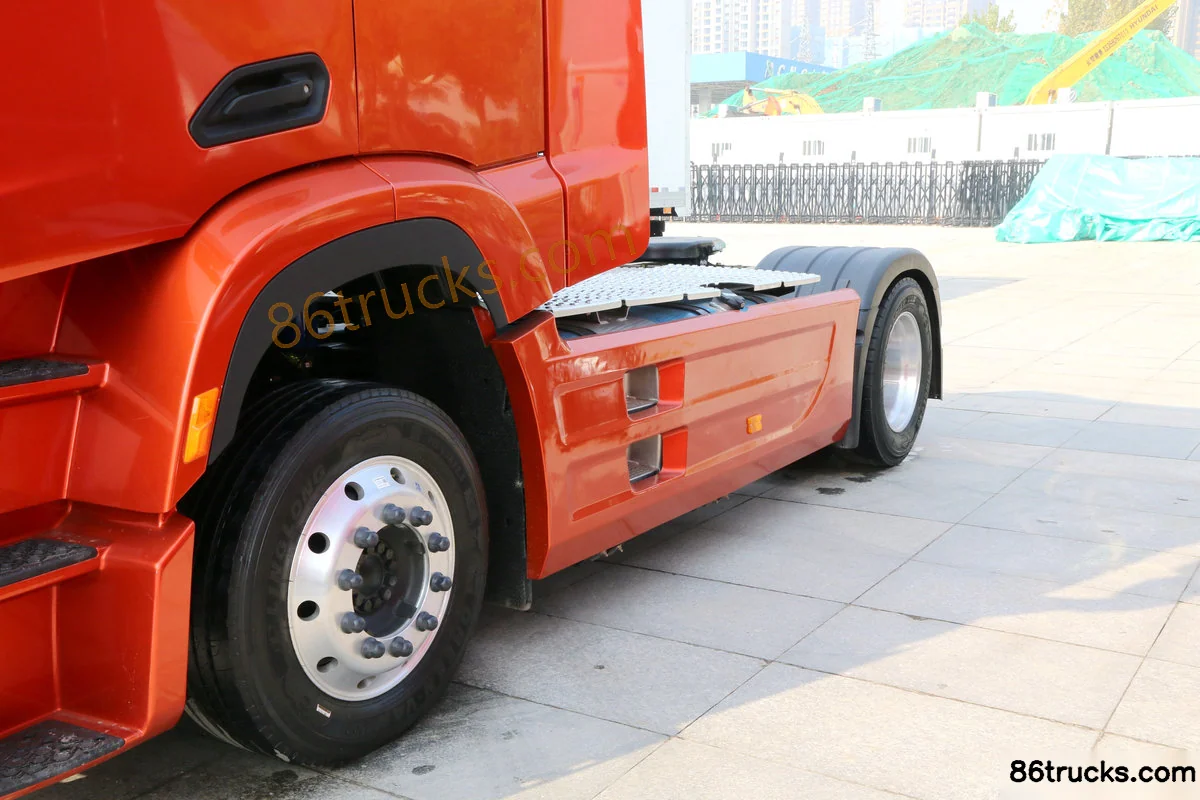

SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck Chassis (1) | 86Trucks SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck Chassis (2) | 86Trucks SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck Chassis (3) | 86Trucks

6 photos

FAQ

What emission standard does SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck?

Key specs of SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck: Drive: 4x2; Horsepower: 430 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck suited for?

SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck differ from other variants in the same series?

SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck belongs to SHACMAN Delong H6000 (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong H6000 430hp 4X2(6 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
