Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck

Export reference
From $30,792
MSRP ¥22.17M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9ton
Wheelbase:: 1800+3200mm
Tire Size:: 11.00R20 18PR
Rated payload: 15.87ton
Drive 6X2 (8 wheels)
Horsepower 245
Cargo box type: Dump type

Overview

The Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck is a Heavy truck featuring 15.87t payload, 25t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06245-60 engine, 245 hp, China VI emissions and Fast Gear transmission.

China VI 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3253D6CB
Drive type: 6X2
Wheelbase: 1800+3200mm
engine: YuchaiYCS06245-60
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.73
Cab length: 8.35m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 1775/1775mm
rear track: 1700mm
Curb Weight: 9ton
Rated payload: 15.87ton
GVWR: 25ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06245-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.5m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab: Day cab low roof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
Chassis Specs
Front axle description: Dual 153 standard shortened axle/5t
Front axle allowable load: 6750/6750kg
Frame Dimensions: (860-800)×280×(8+5)mm
rear axle description: Steyr wheel reduction shortened axle/13t
rear axle allowable load: 11500kg
Axle ratio: 5.73
Leaf spring count: 9/9/10+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

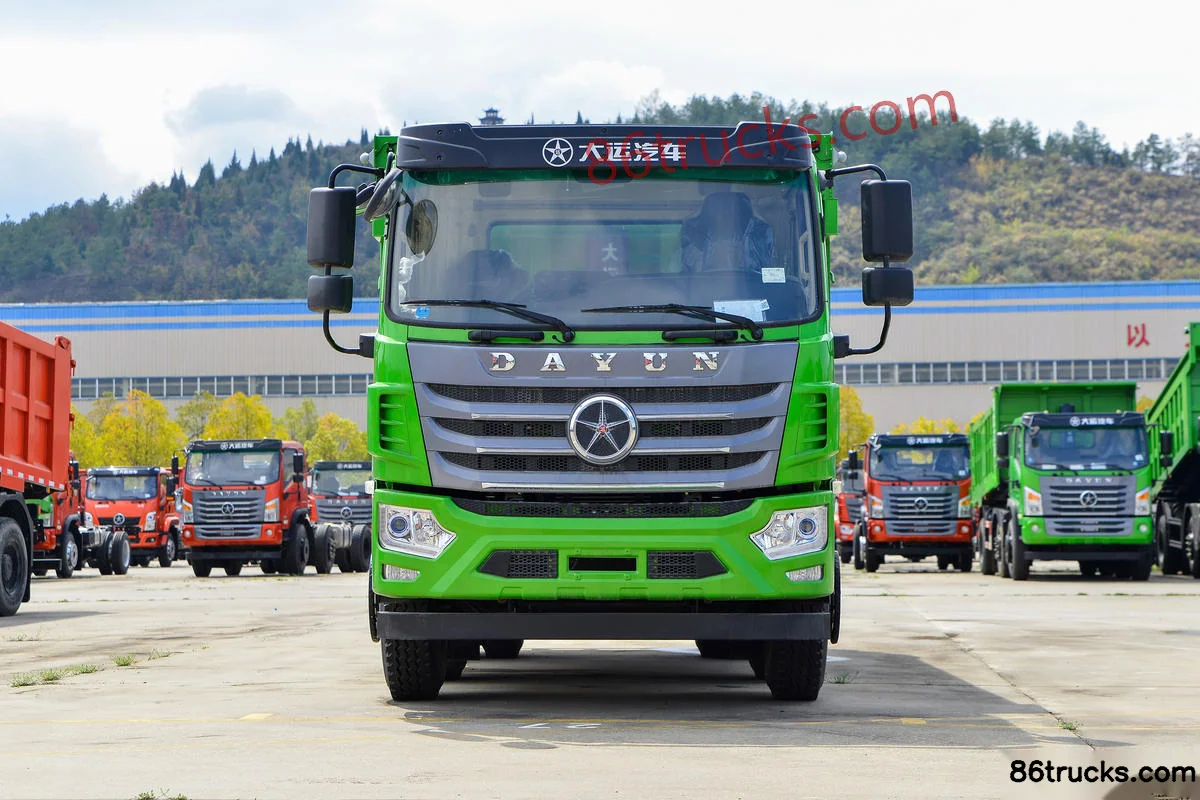

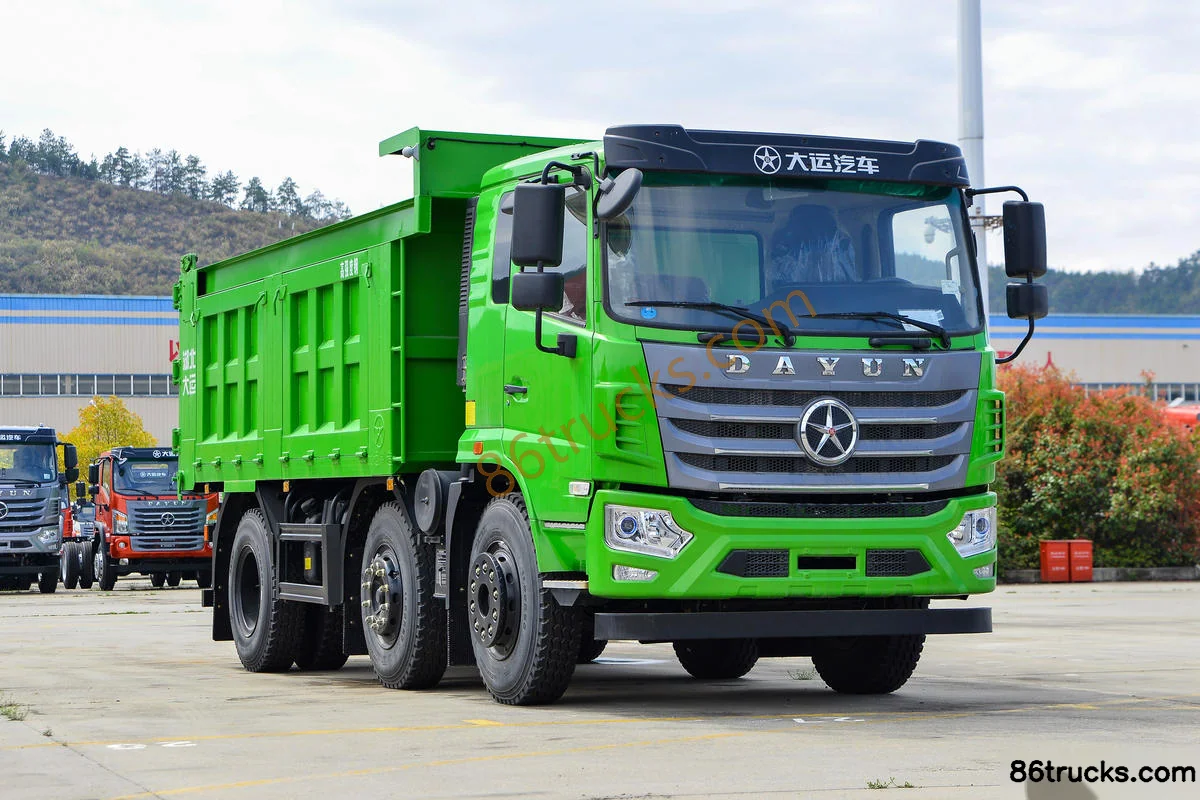

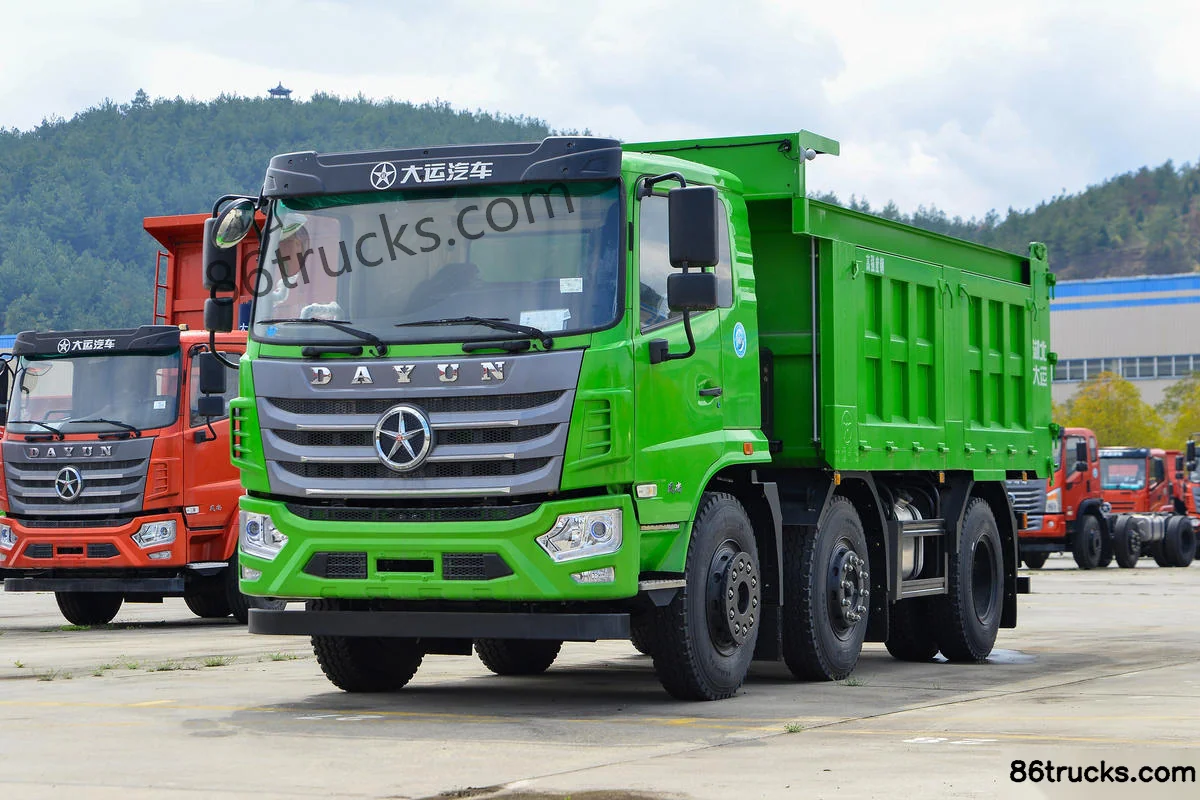

Exterior3

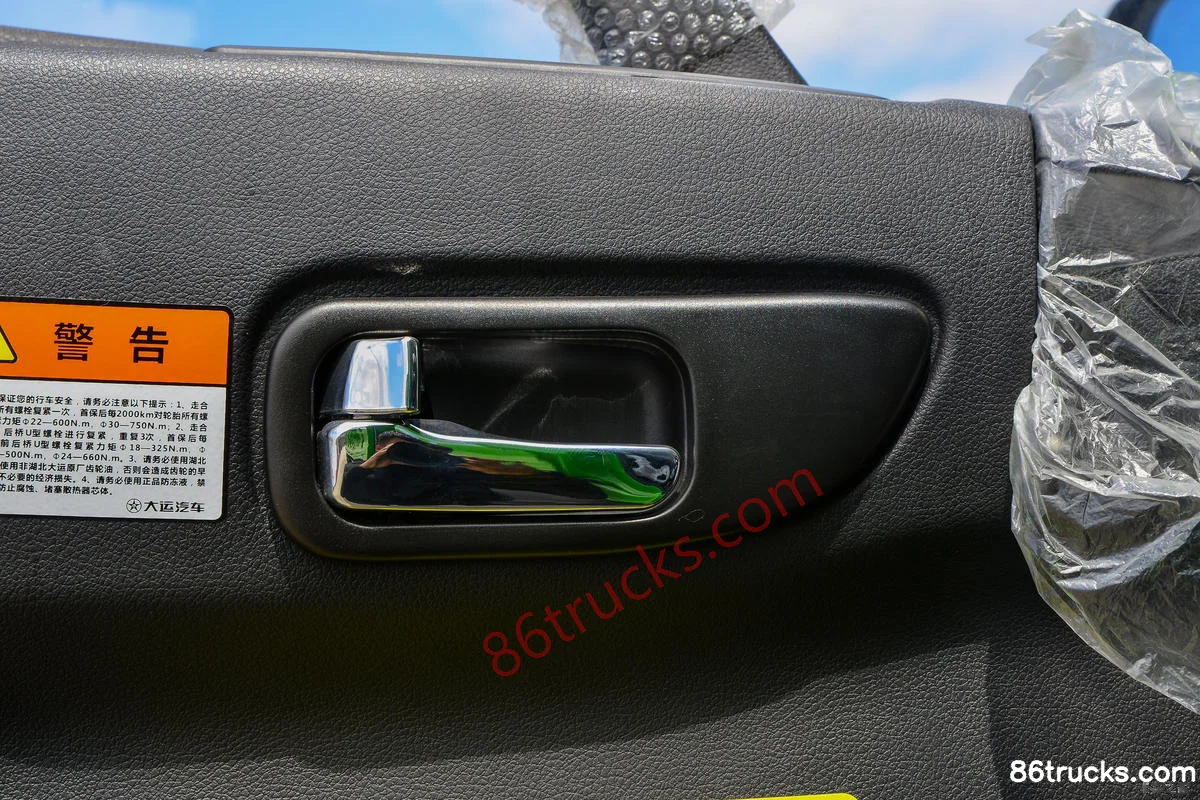

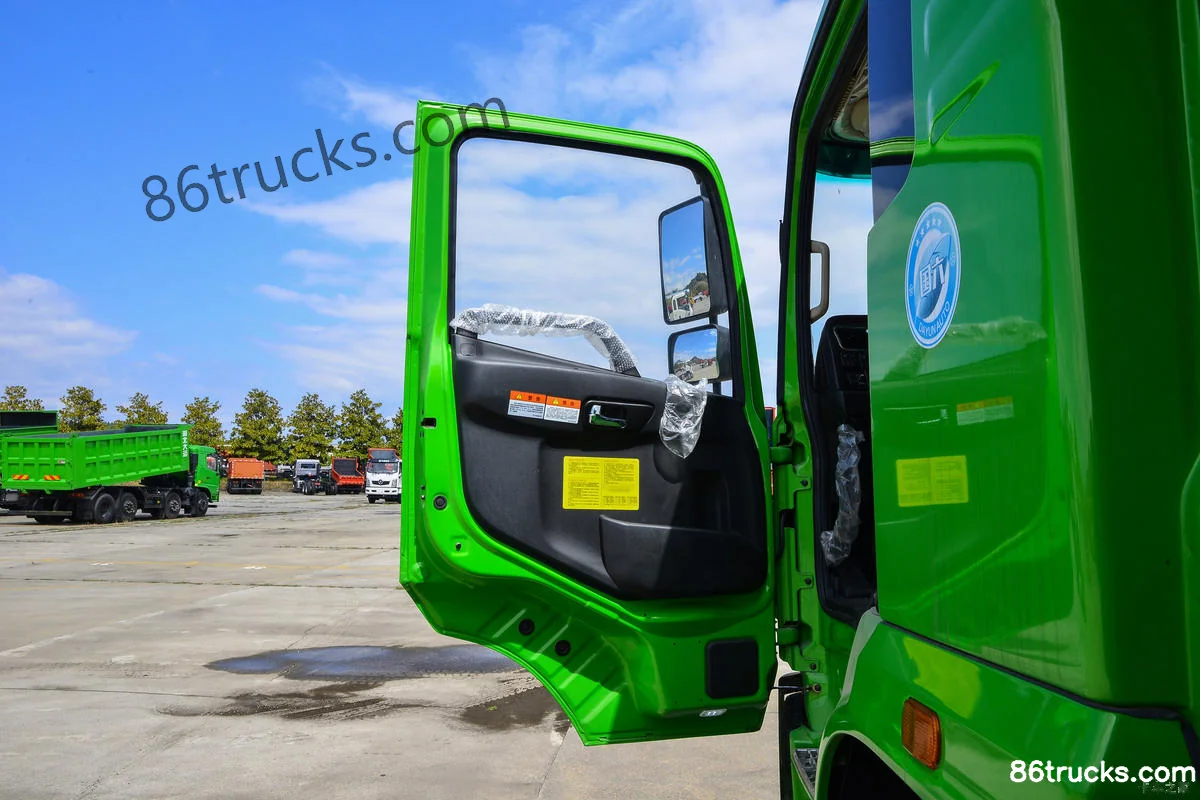

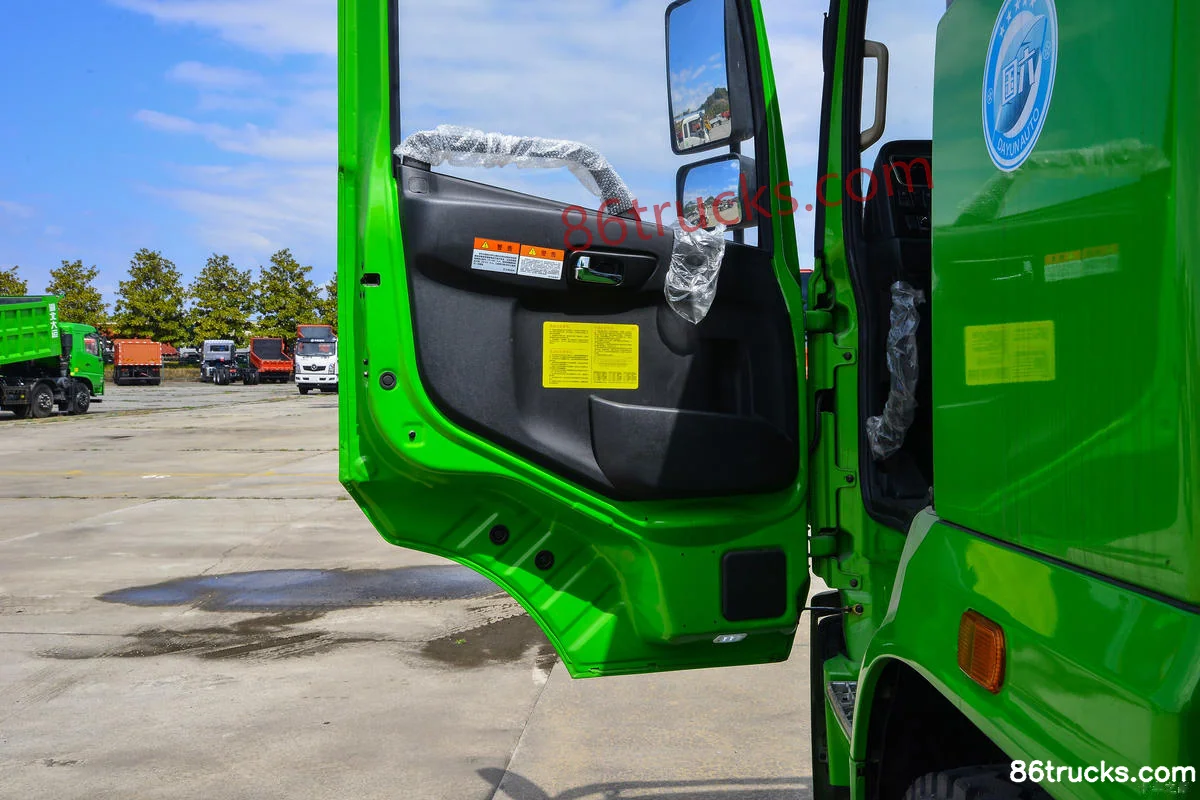

Cab3

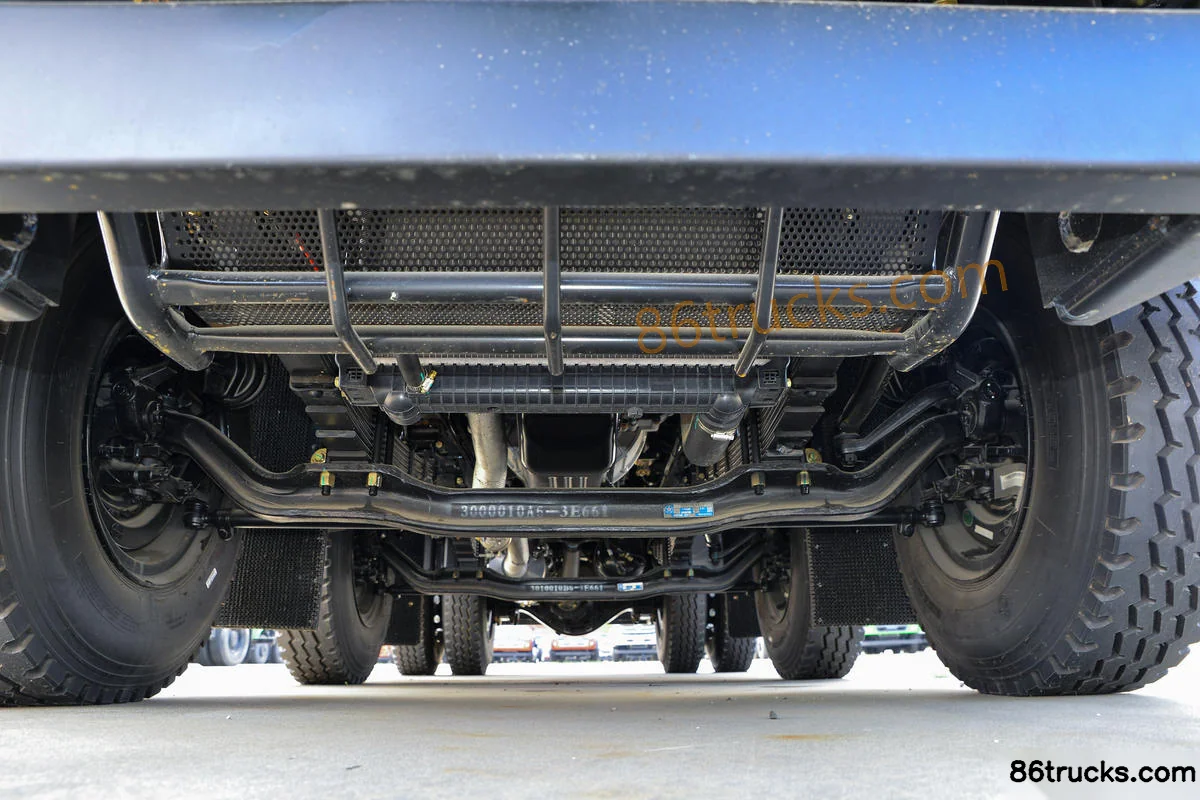

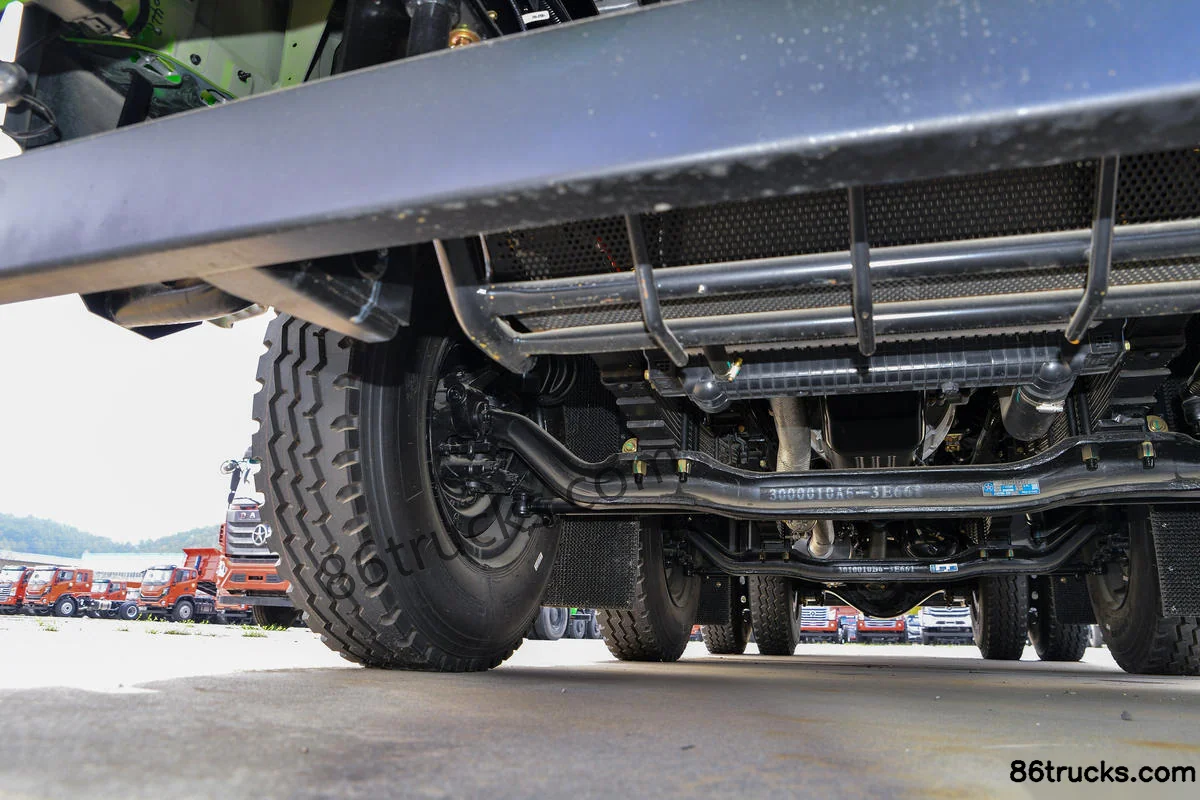

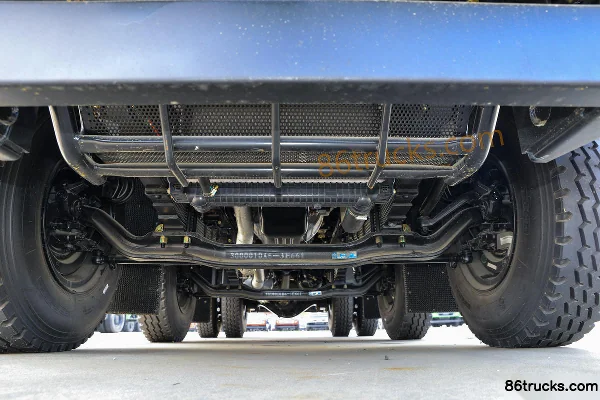

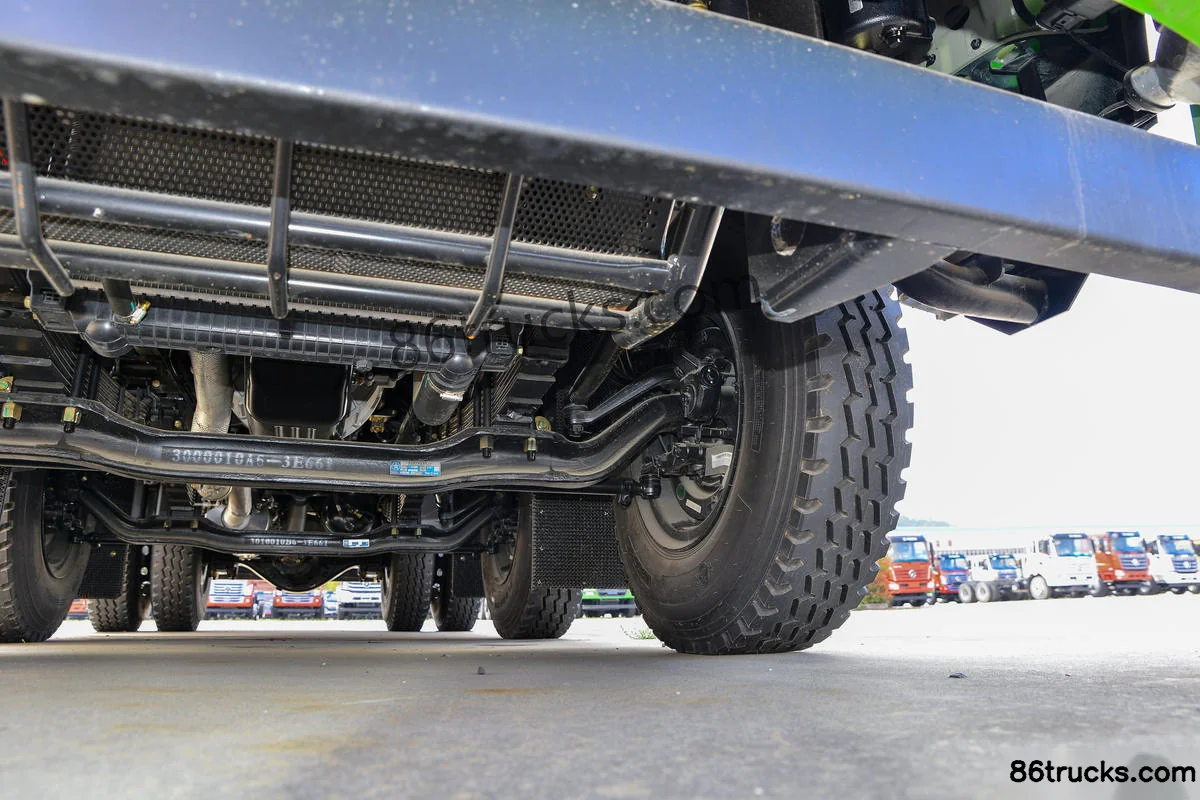

Chassis3

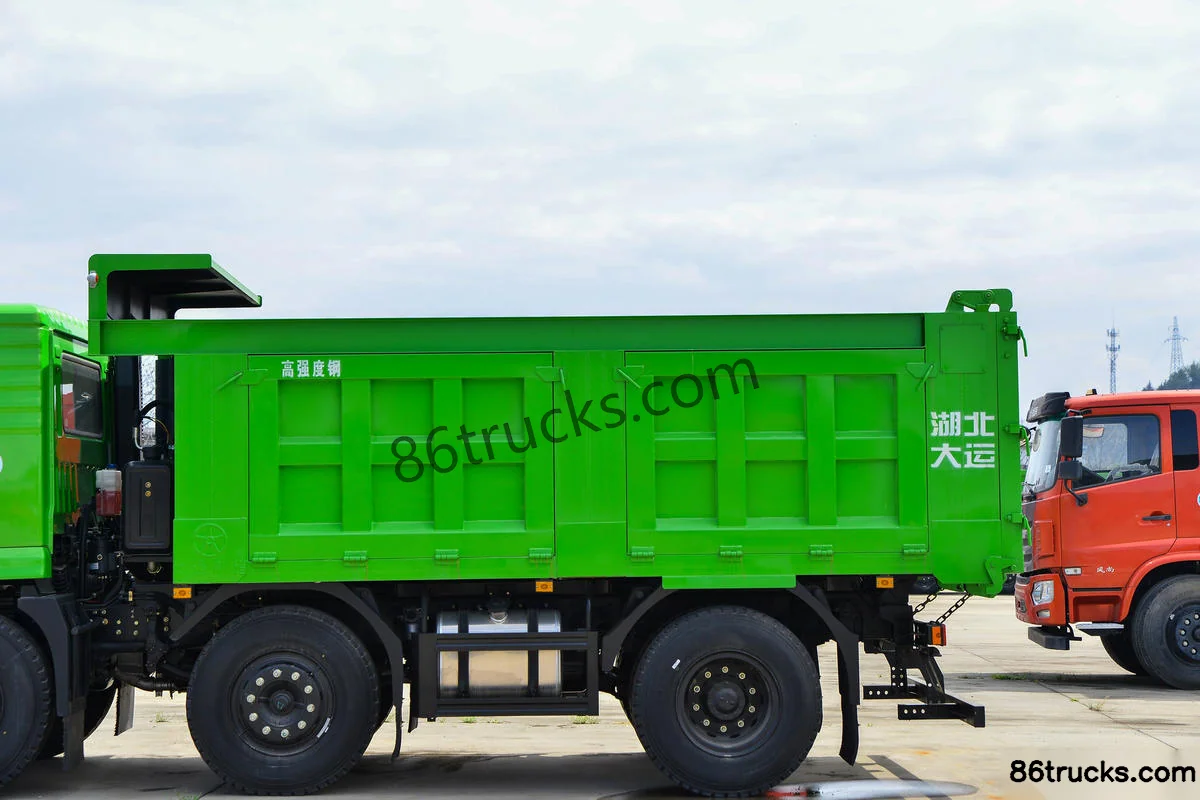

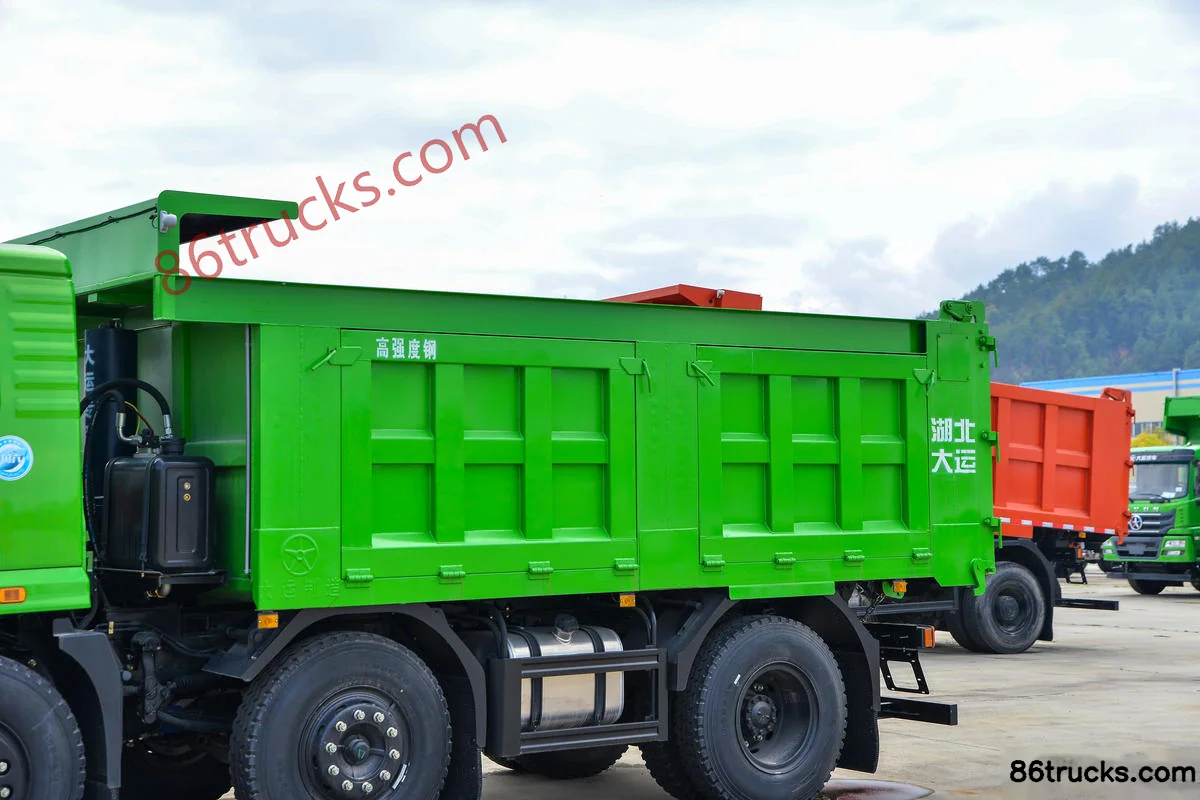

Body3

12 photos

FAQ

What is the export price of Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck, and what does it include?

Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck export reference is about From $30,792; MSRP is ¥22.17M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck?

Key specs of Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck: Drive: 6x2; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck suited for?

Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck differ from other variants in the same series?

Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck belongs to Dayun Fengshang Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Fengshang Heavy-Duty 245hp 6X2(8 wheels) 5.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
