Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck

Export reference
MSRP N/A
Horsepower: 170
Emission: China VI
Fuel: Diesel
Engine: Weichai2.5L
Transmission: Fast Gear
Curb Weight:: 2.805ton
Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. On the powertrain side, it comes with a Weichai2.5L engine, 170 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CDW5044XXYG331DFA
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: WeichaiWP2.5NQ170E62
transmission: Fast Gear8J50TA
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.26m
Front track width: 1620mm
rear track: 1570mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 20°
Front/rear suspension: 1.22/1.41m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.5NQ170E62
Engine info: Weichai2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.493L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1400-2200rpm
Rated speed: 2900rpm
Engine Type: High-pressure common rail+Hi-SCR
Transmission Parameters
Transmission Model: Fast Gear8J50TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 2.3m
*Cargo box interior width: 2.1
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1705kg
Frame Dimensions: Single-layer high-strength frame (6/200 local reinforcement)mm
rear axle description: 5T
rear axle allowable load: 2790kg
Axle ratio: 4.875
Leaf spring count: 11/11+9
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Multimedia features
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

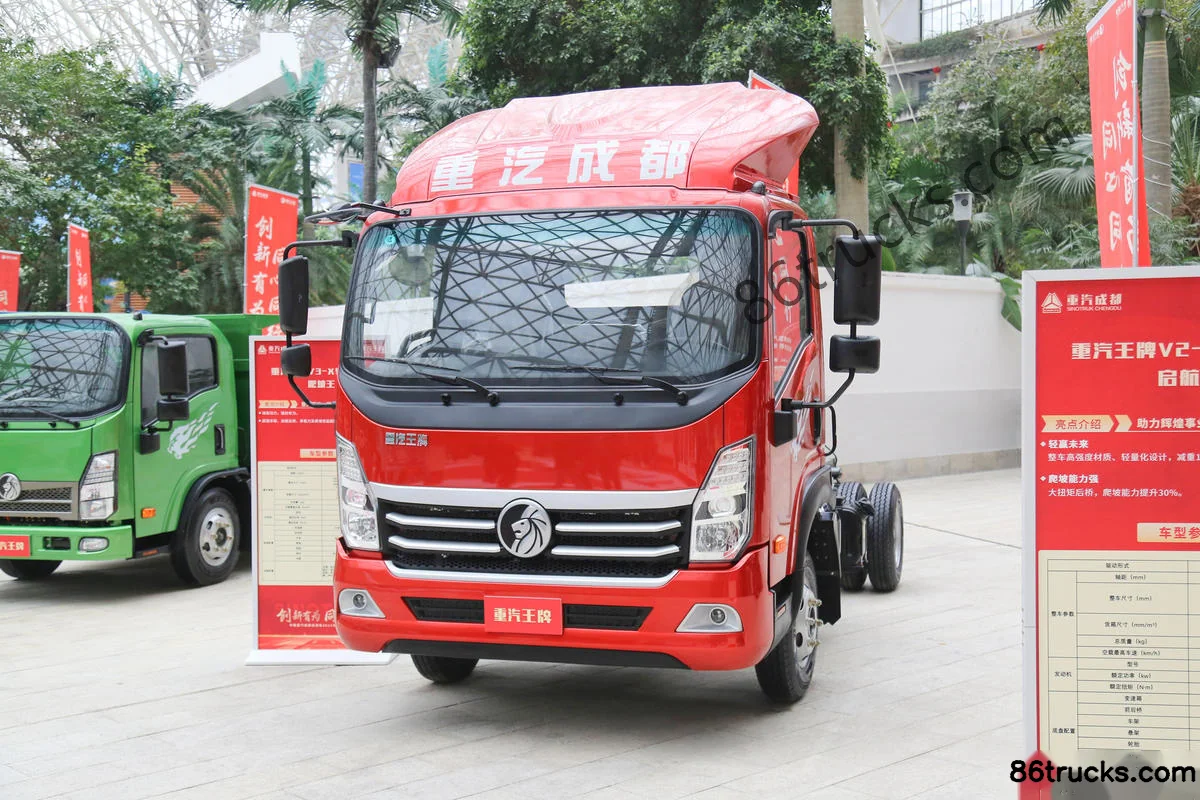

Exterior3

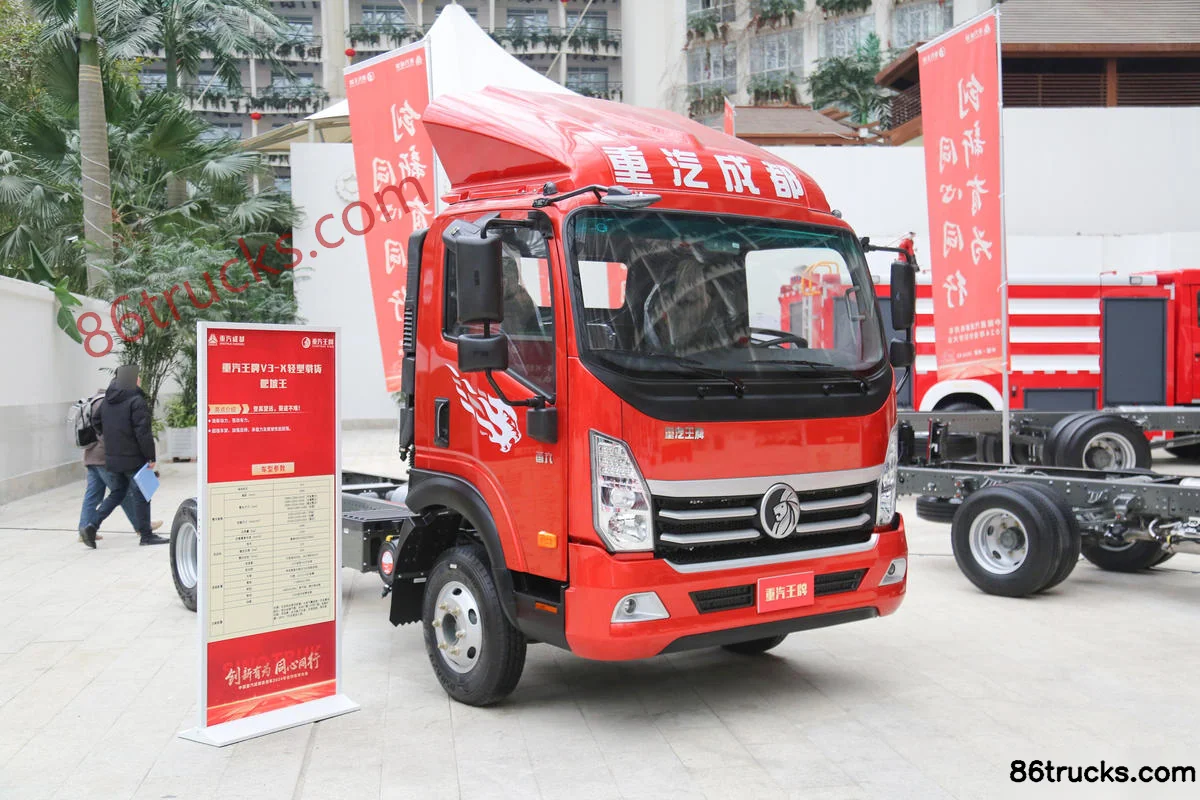

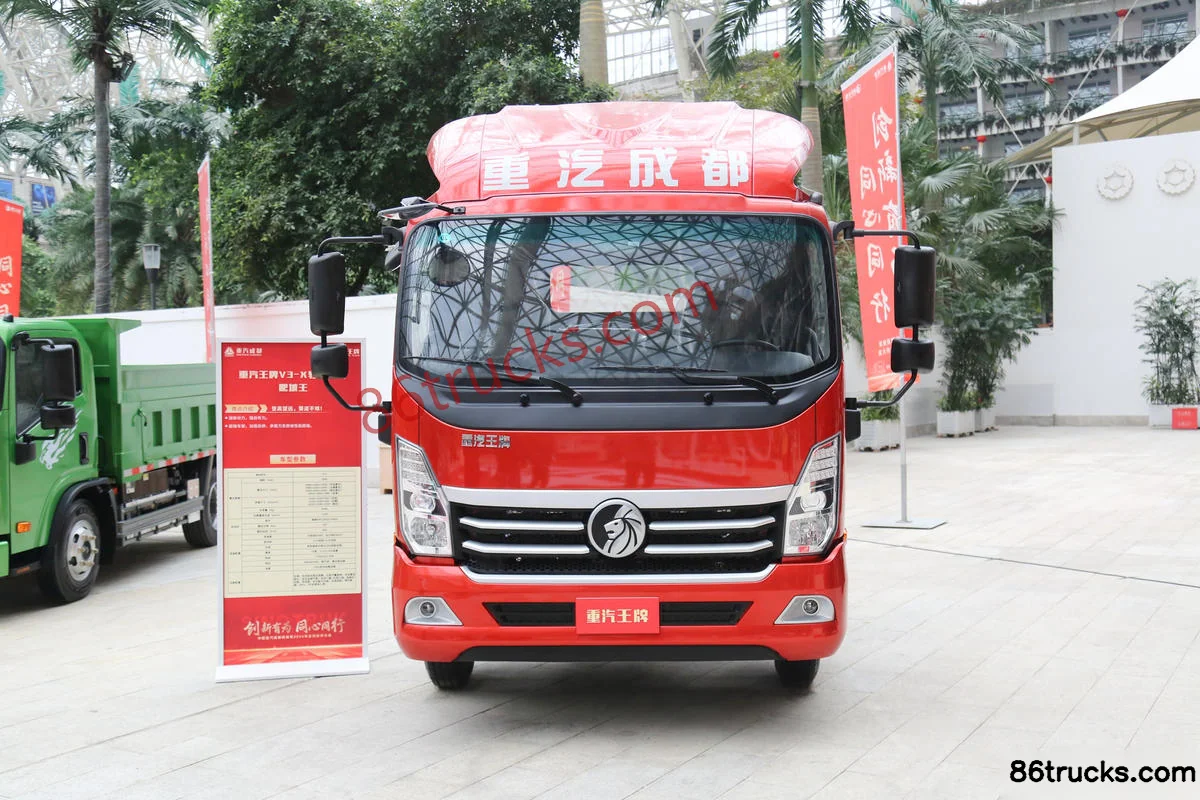

Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Exterior (1) | 86Trucks Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Exterior (2) | 86Trucks Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Exterior (3) | 86Trucks

Cab3

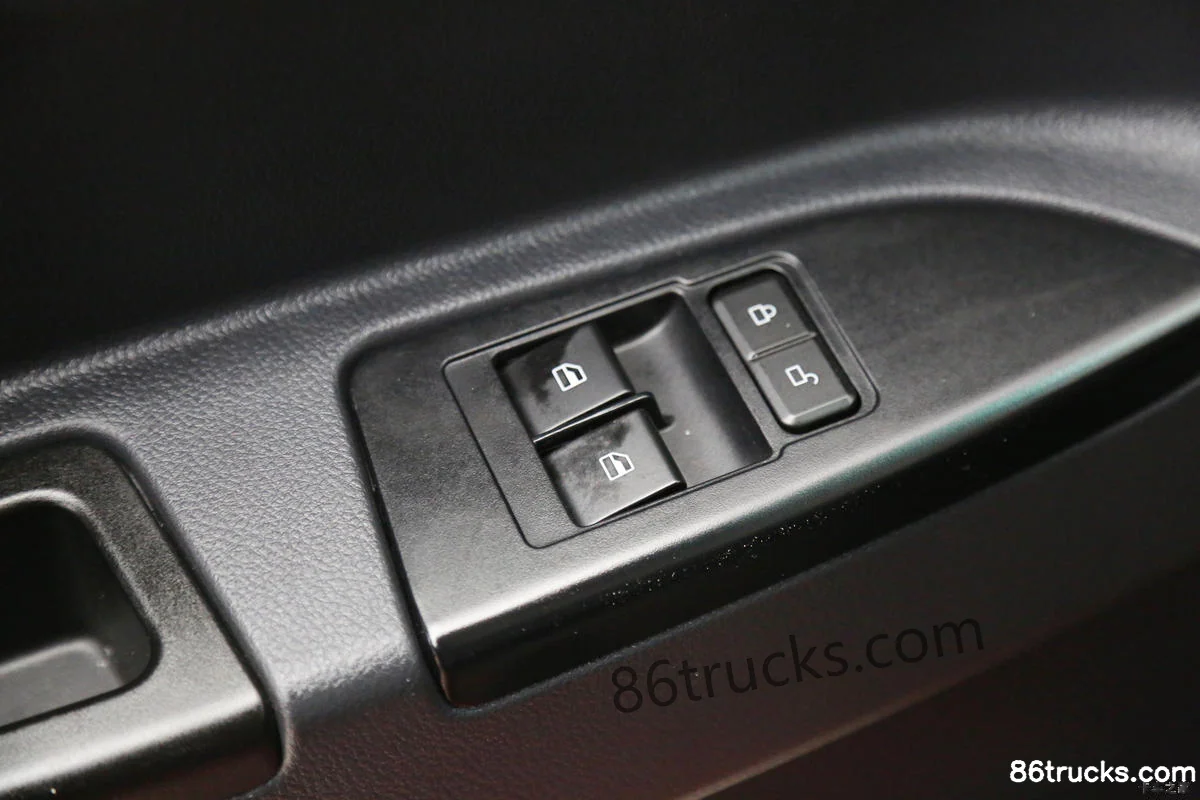

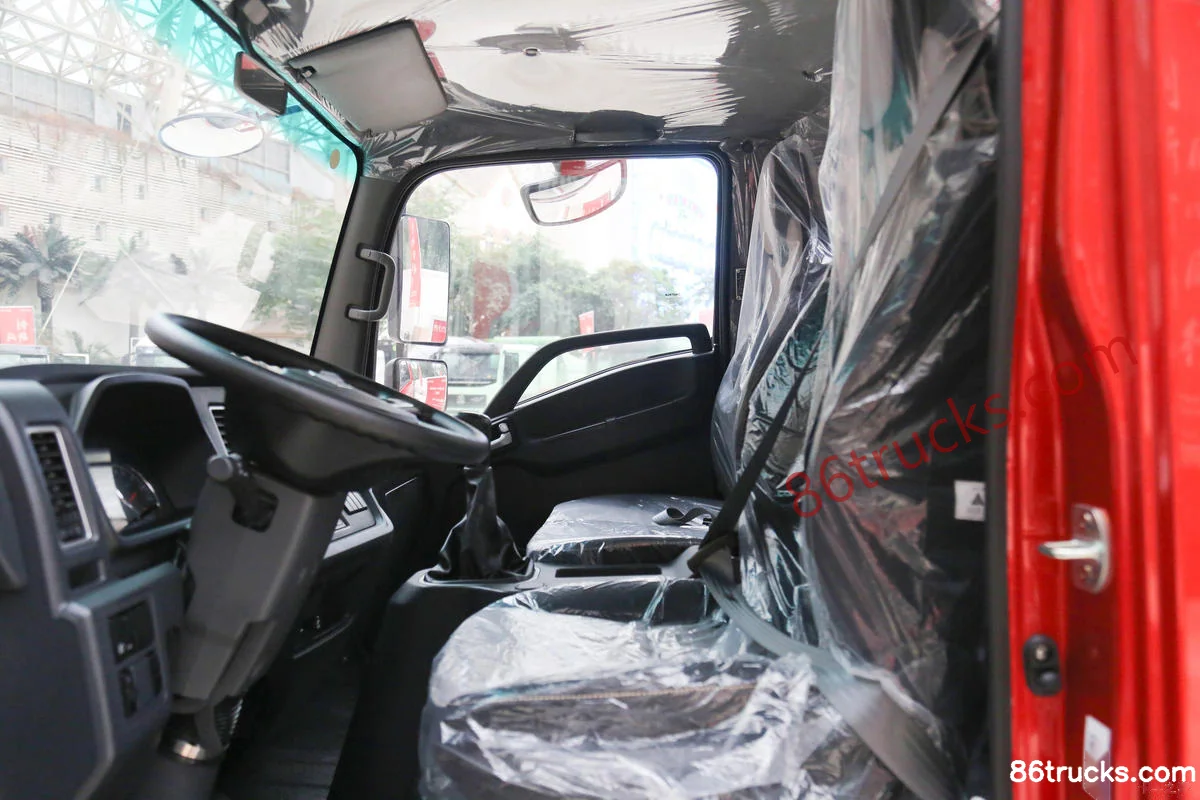

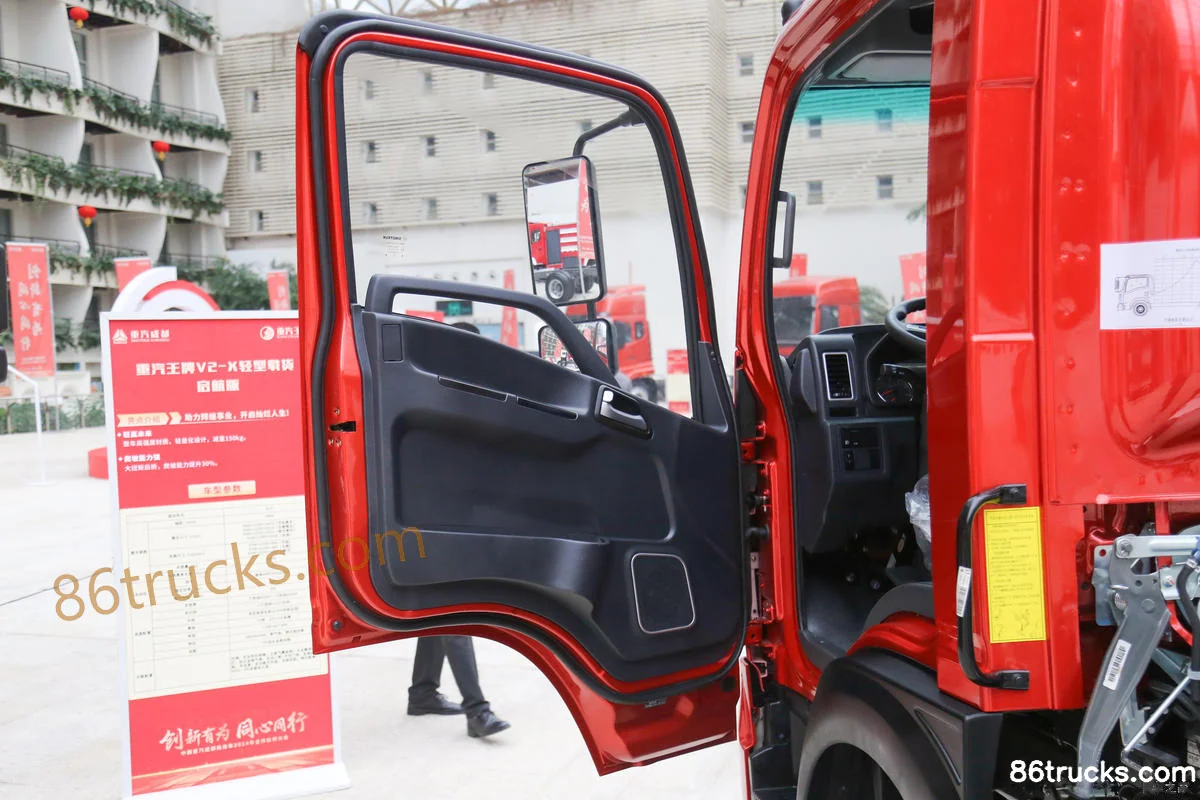

Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Cab (1) | 86Trucks Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Cab (2) | 86Trucks Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Cab (3) | 86Trucks

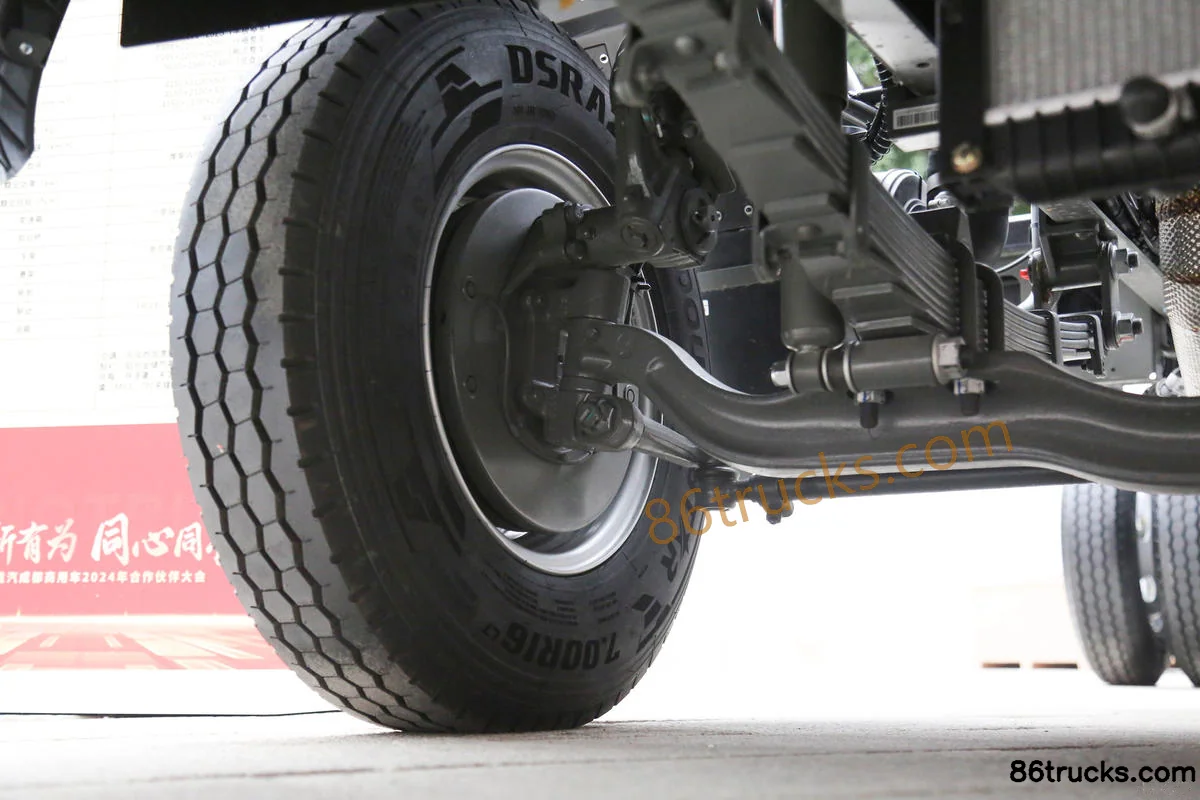

Chassis3

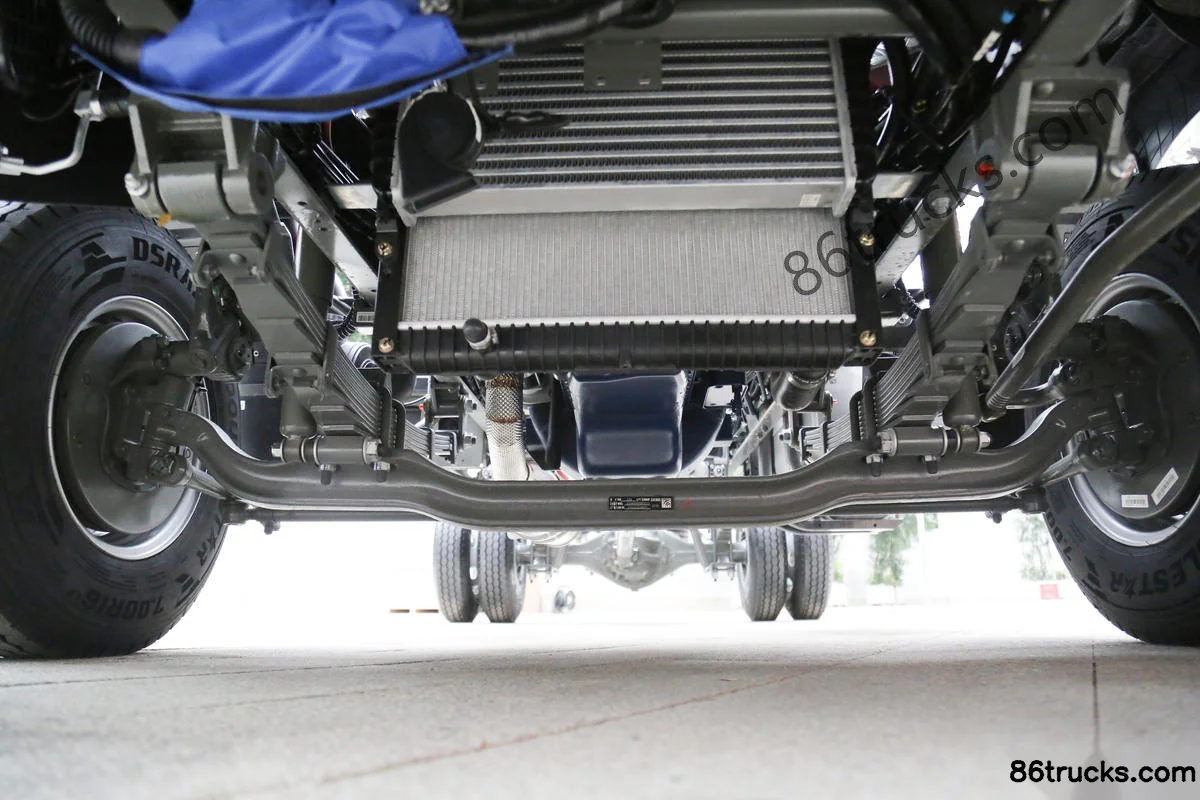

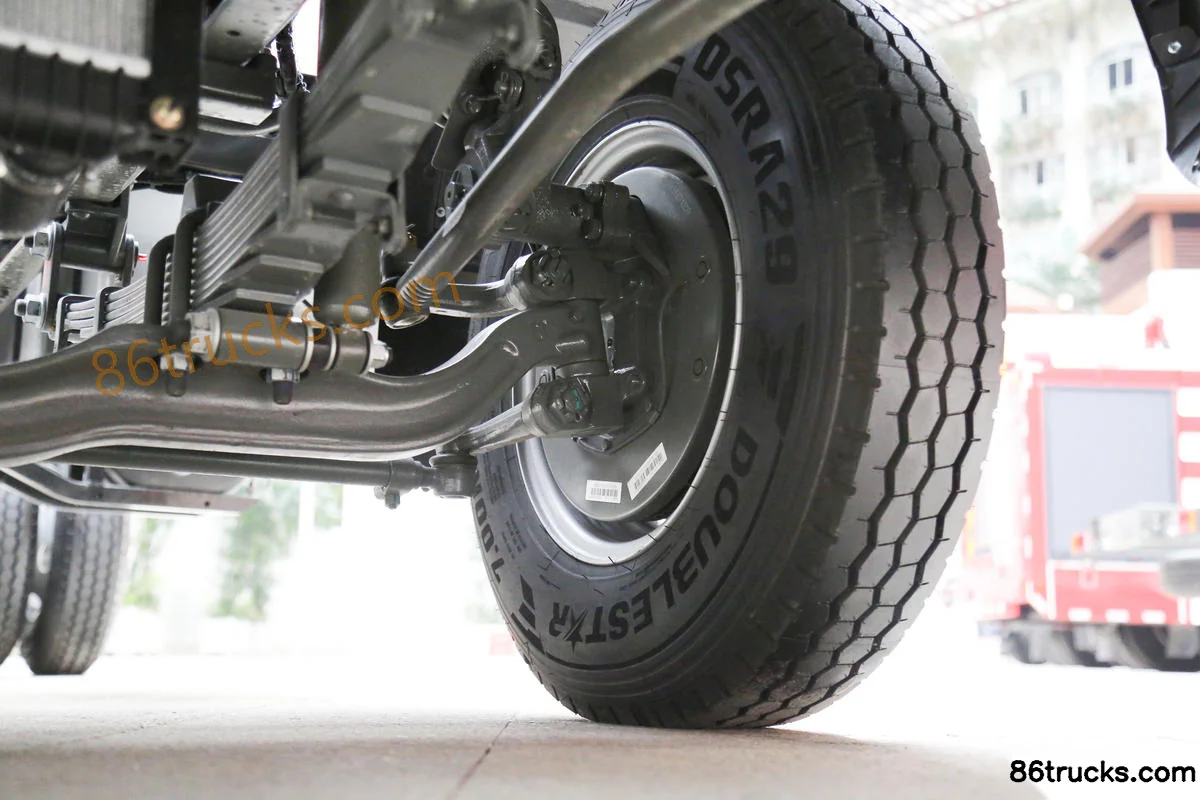

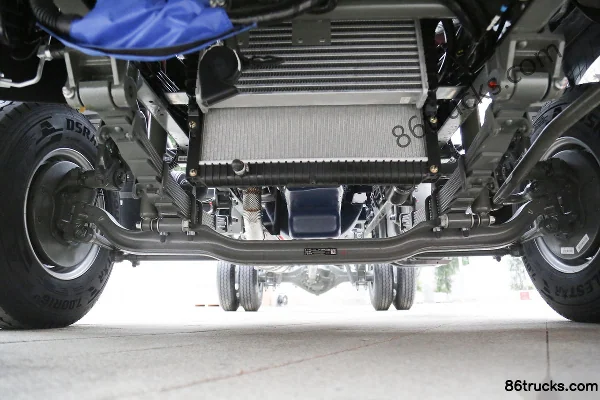

Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Chassis (1) | 86Trucks Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Chassis (2) | 86Trucks Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck?

Key specs of Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Engine: Weichai2.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck suited for?

Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck differ from other variants in the same series?

Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck belongs to Sinotruk V Series (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V3-X 170hp 4X2(6 wheels) 4.15m Single Row Box Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
