Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 2.5ton
Wheelbase:: 2850mm
Tire Size:: 185R15LT 8PR
Model code (announced):: EQ3040S6BDB
Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck exterior
View more photos (12)
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box type: Dump type

Overview

The Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck is a mini truck featuring 1.495t payload, 4.125t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD19TCIE1 engine, 102 hp, China V emissions and 5-speed transmission transmission.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): EQ3040S6BDB
Drive type: 4X2
Wheelbase: 2850mm
engine: Yunnei PowerD19TCIE1
transmission: 5-speed transmission
Cab length: 5.17m
Cab width: 1.95m
Cab height: 2.1m
Front track width: 1420mm
rear track: 1375mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Origin: Wuhan, Hubei
tonnage class: mini truck
Approach angle: 19°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.3m
Cargo box width: 1.75m
Cargo box height: 0.4m
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2475kg
Leaf spring count: 3/4+3
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

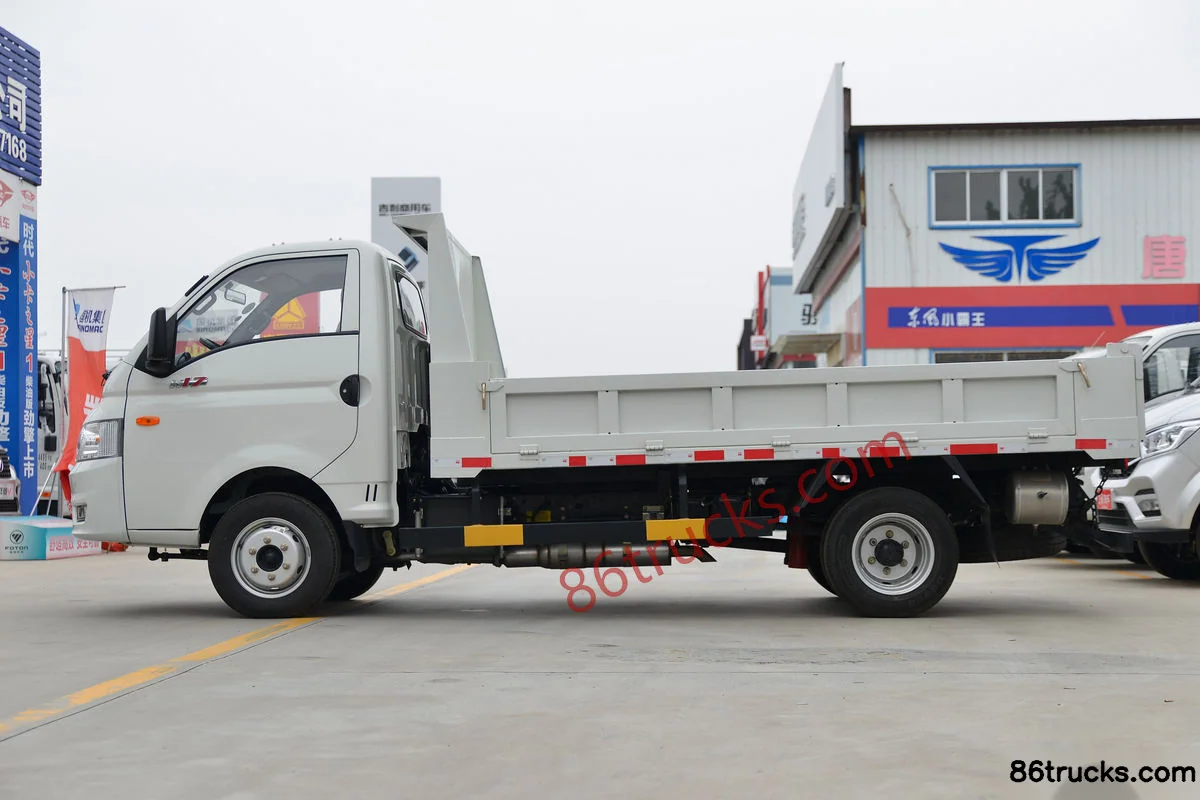

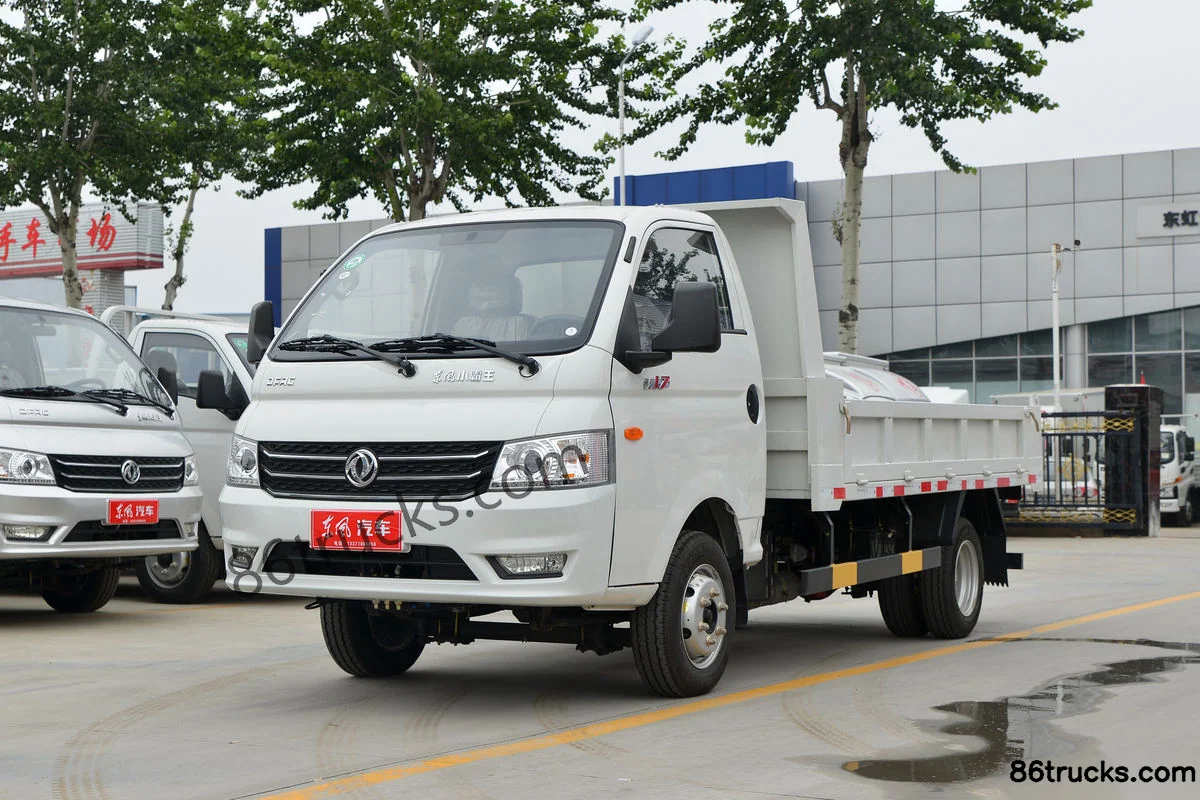

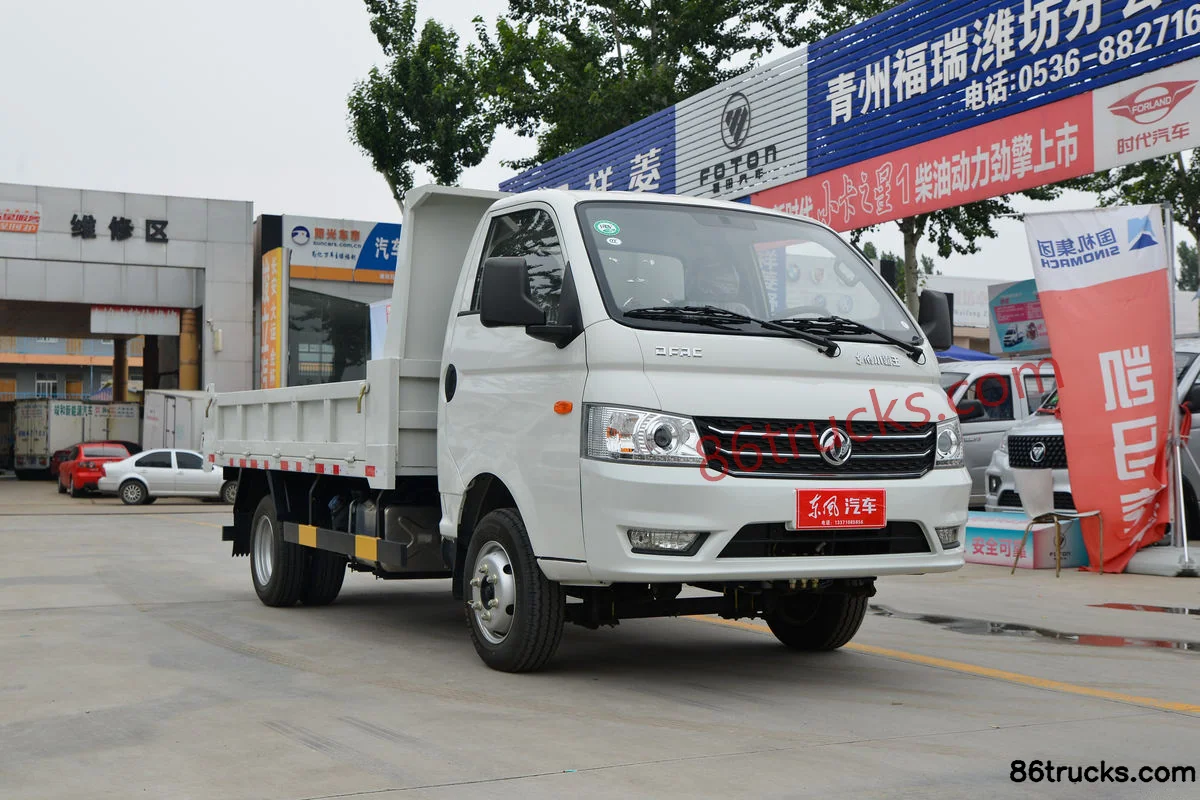

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Exterior (1) | 86Trucks Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Exterior (2) | 86Trucks Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Exterior (3) | 86Trucks

Cab3

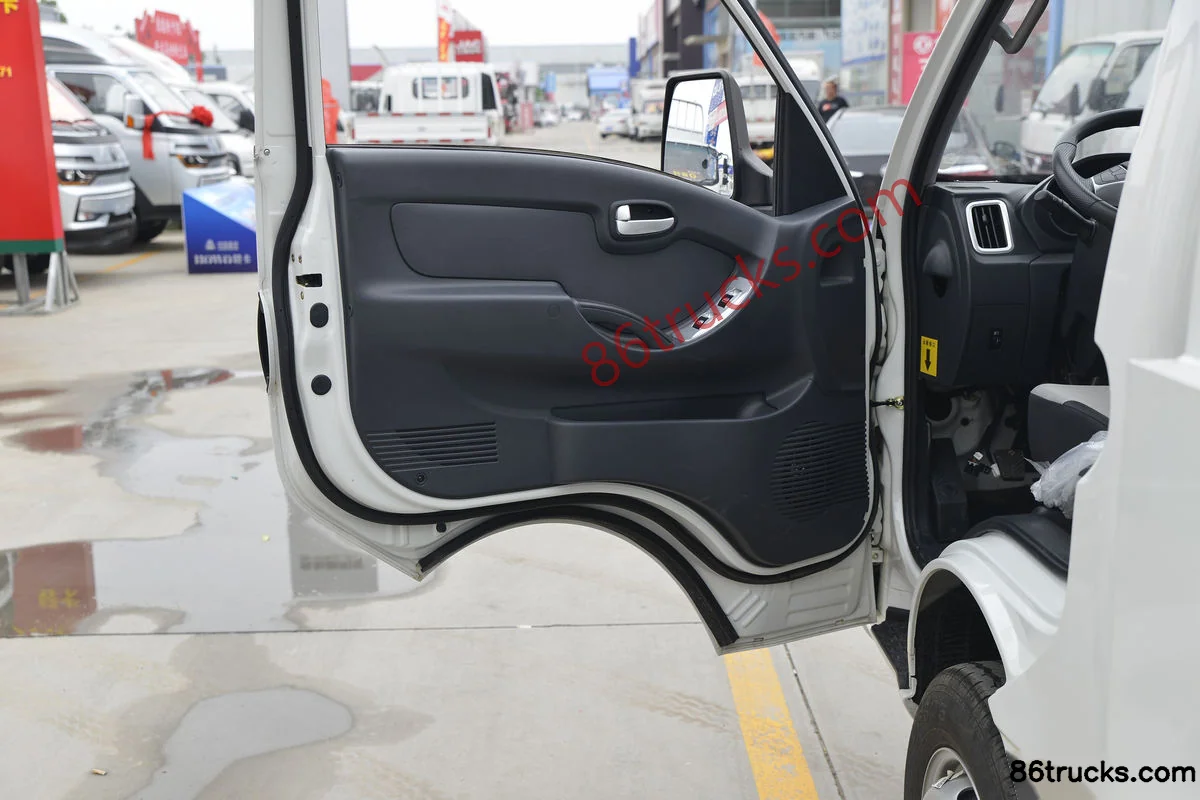

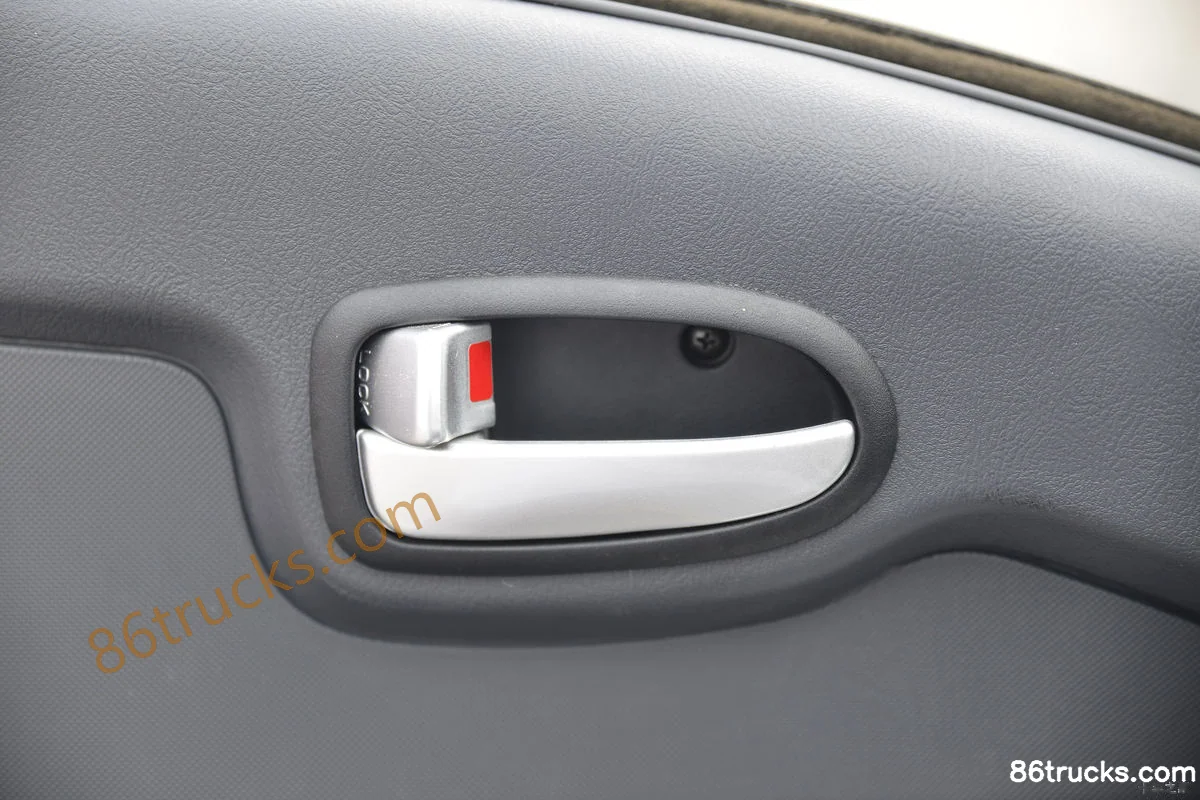

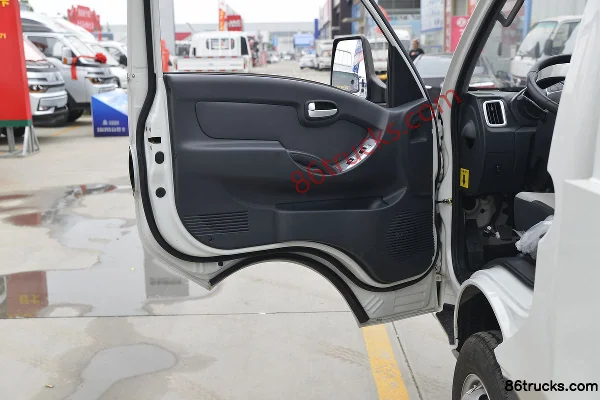

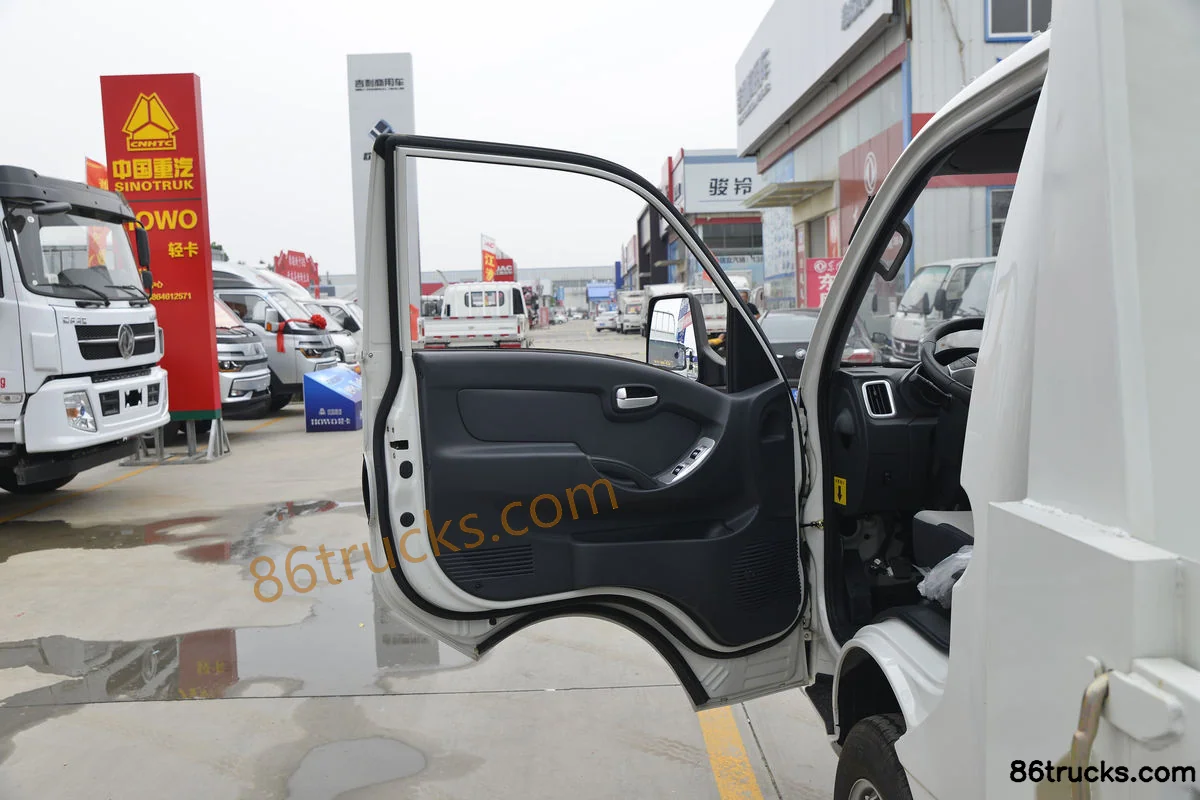

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Cab (1) | 86Trucks Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Cab (2) | 86Trucks Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Cab (3) | 86Trucks

Chassis3

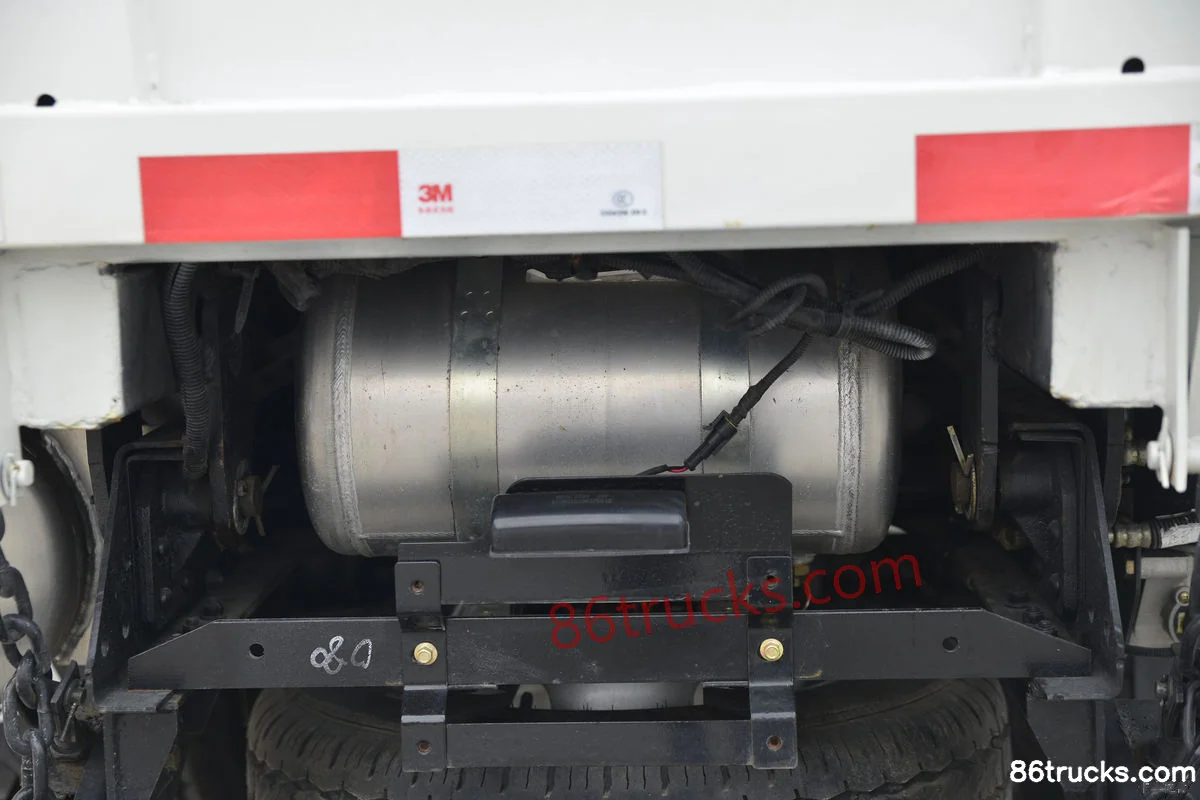

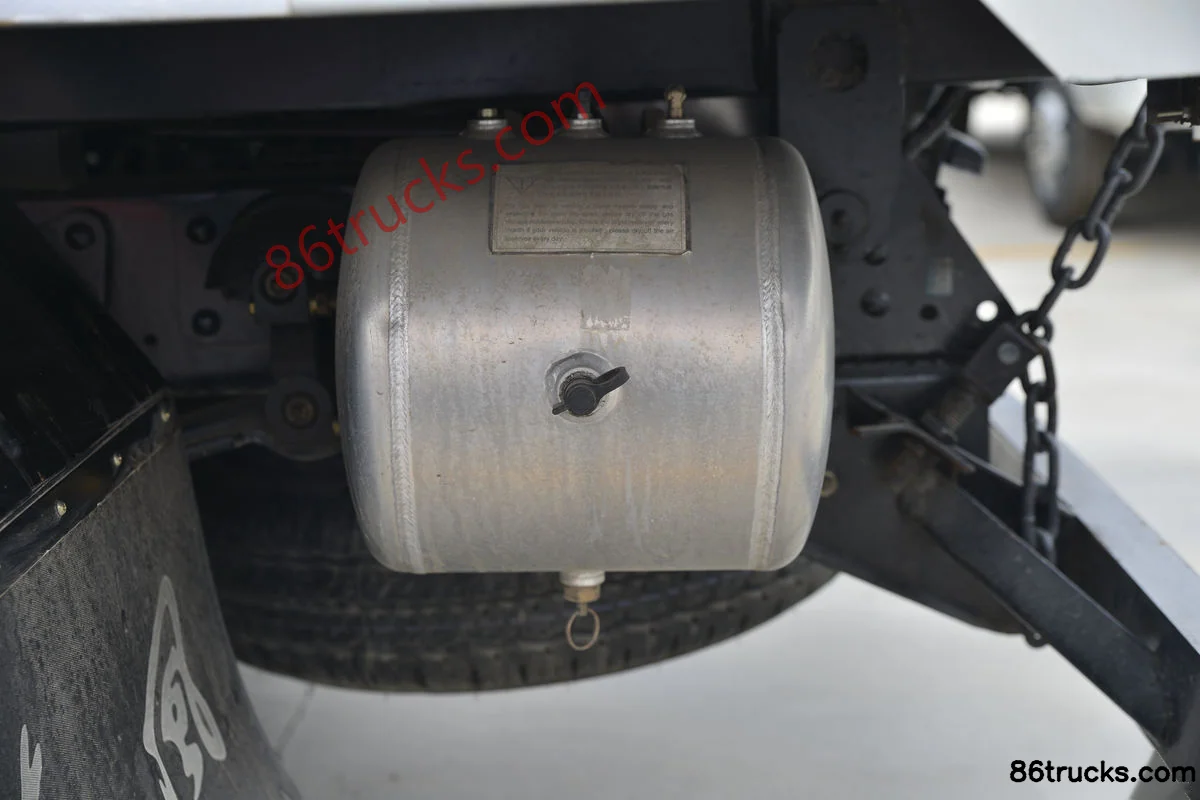

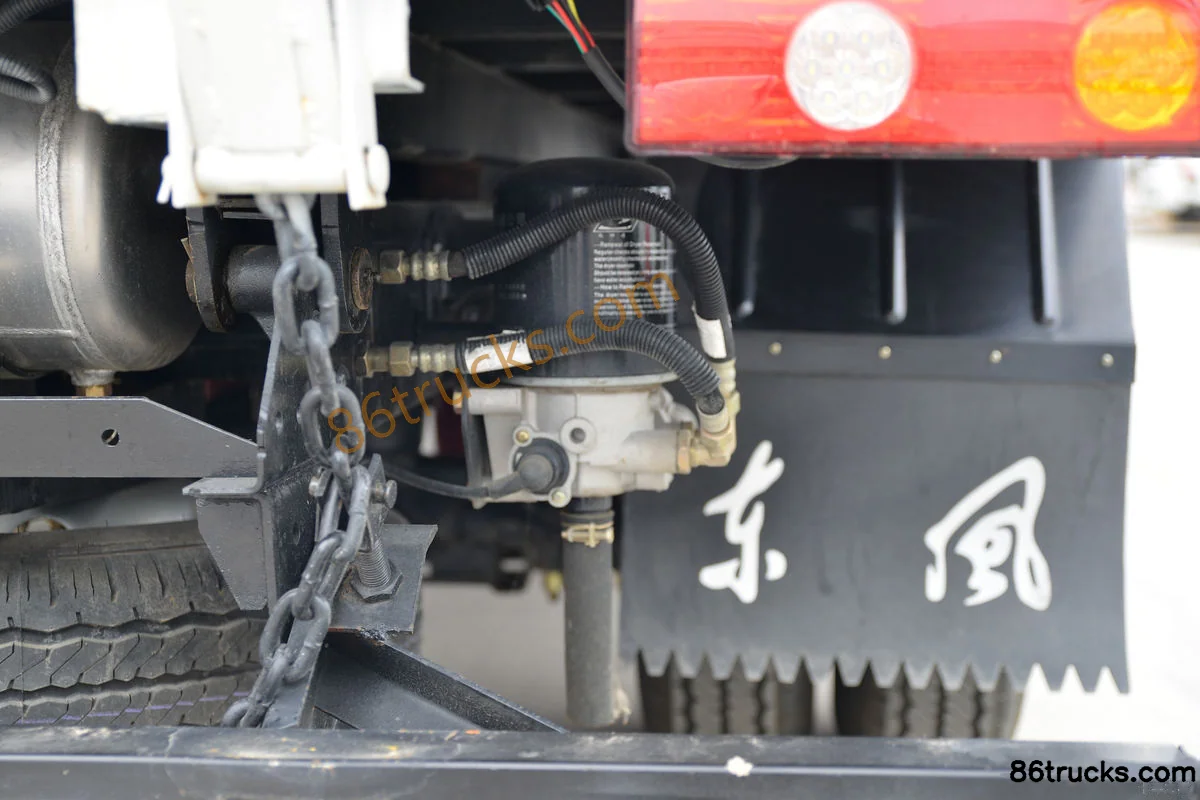

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Chassis (1) | 86Trucks Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Chassis (2) | 86Trucks Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Chassis (3) | 86Trucks

Body3

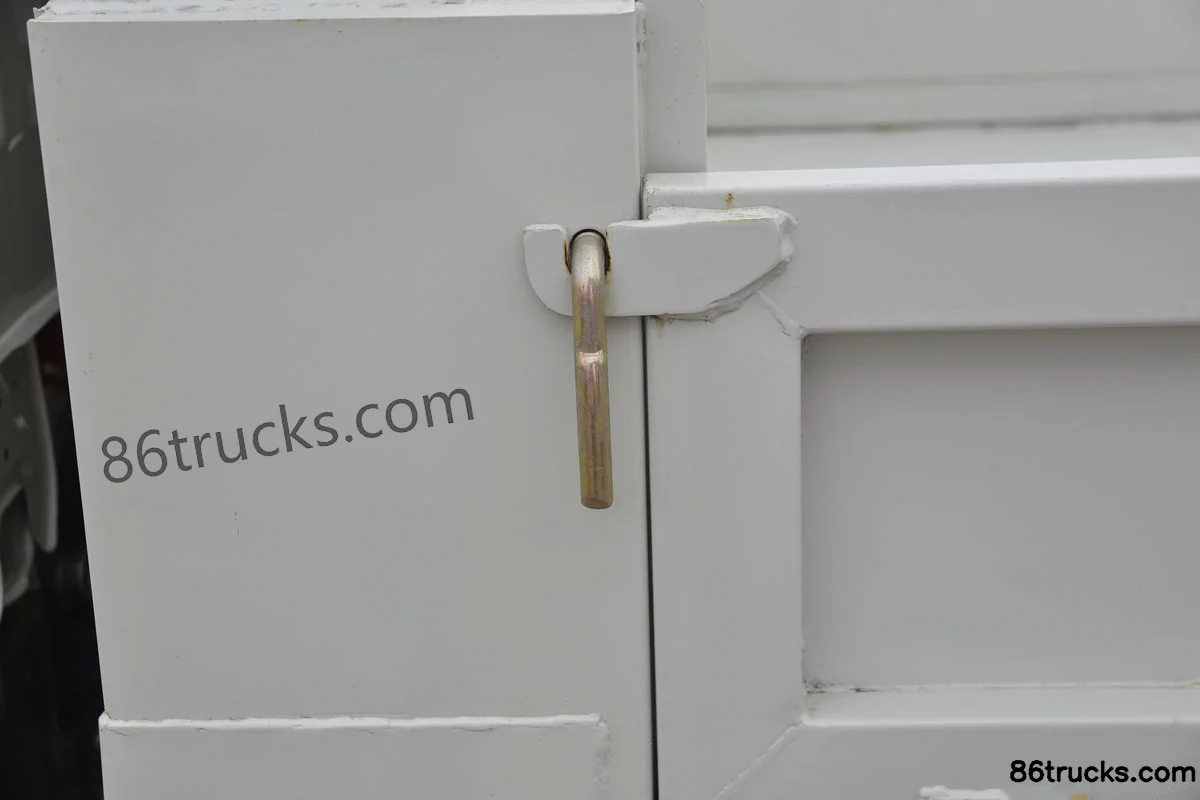

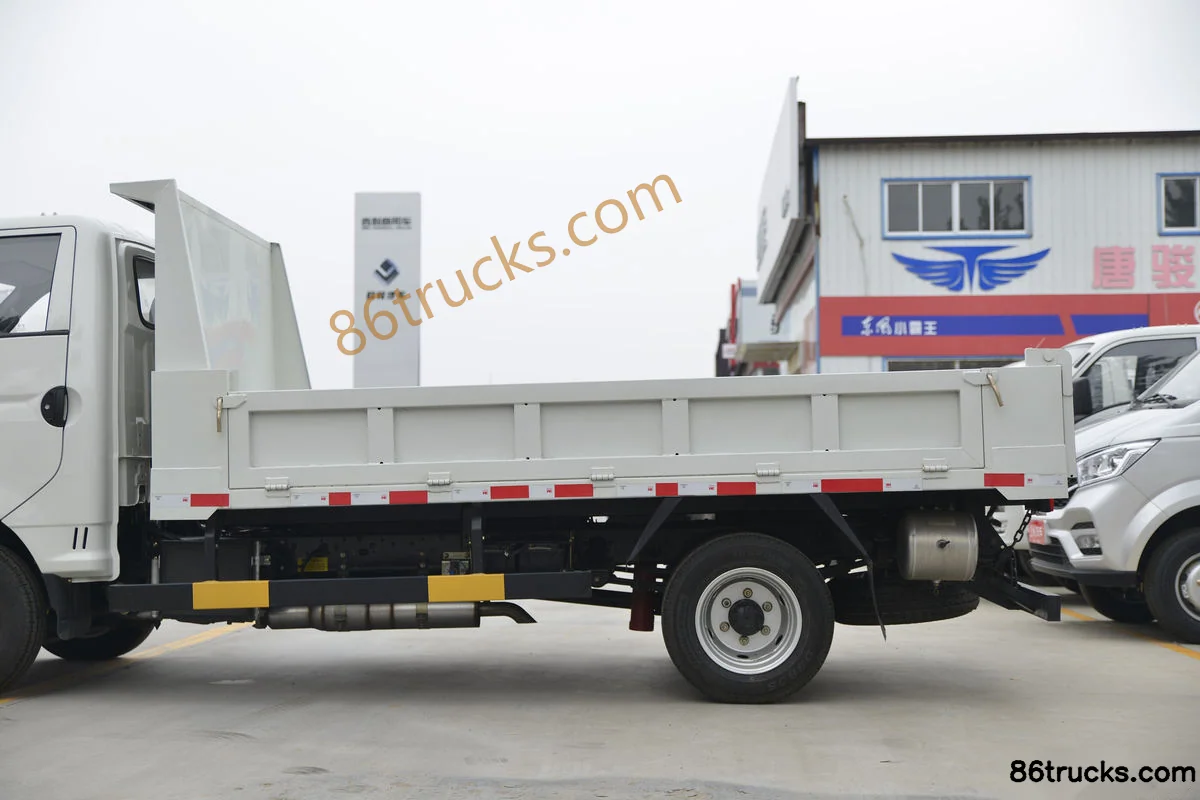

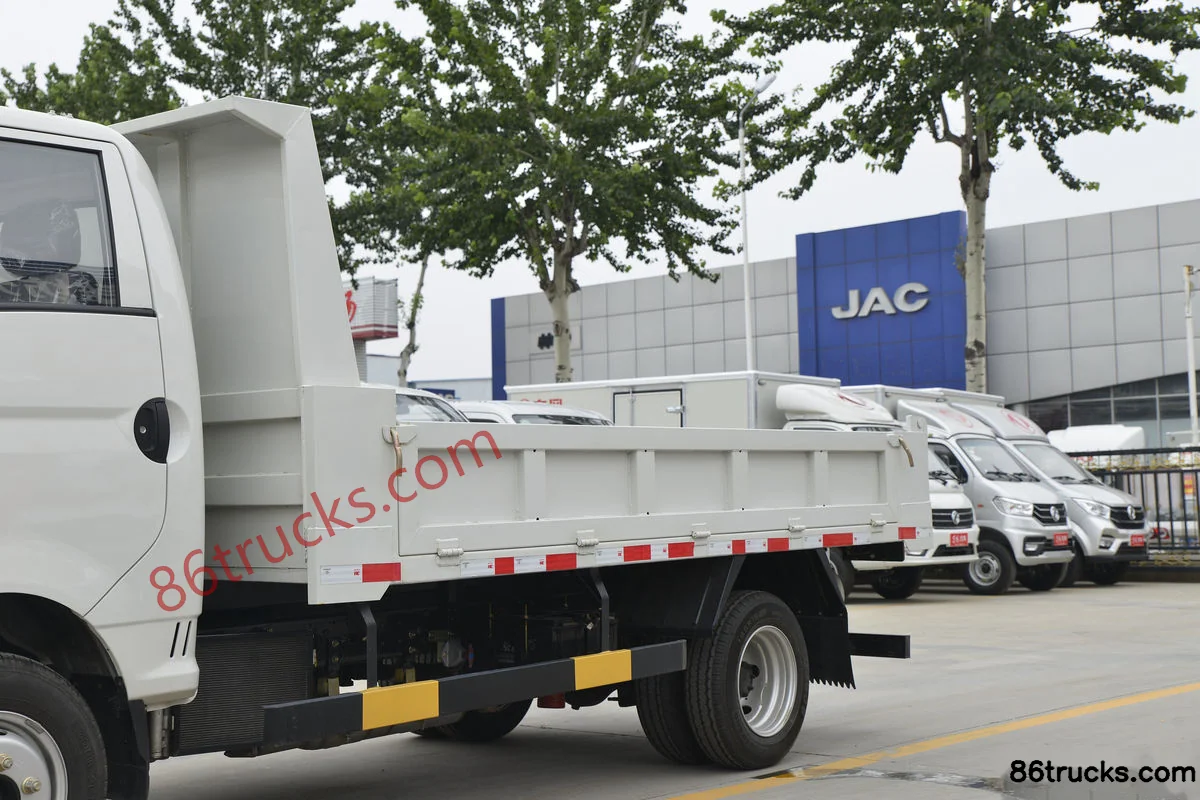

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Body (1) | 86Trucks Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Body (2) | 86Trucks Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck?

Key specs of Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck suited for?

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck differ from other variants in the same series?

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck belongs to Dongfeng W17 micro truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.3 m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
