Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck

Export reference
From $60,000
MSRP ¥43.2M CNY
Horsepower: 380
Emission: China VI
Fuel: LNG (liquefied natural gas)
Engine: Yuchai11L
Transmission: Sinotruk
Curb Weight:: 13.27ton
seating capacity: 3Personnel
Rated payload: 17.535ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck is a Heavy truck featuring 9.4m cargo length, Stake type cargo body, 3Personnel volume and 17.535t payload. Its segment focus covers Agricultural and sideline product transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai11L engine, 380 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 380 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFV5318CCYGP6N
Type: stake truck
Drive type: 8X4
Wheelbase: 1850+4600+1350mm
Box length class: 9.4m
engine: YuchaiYCK11380N-60
transmission: SinotrukHW19712C
Rear Axle Ratio: 3.909
Cab length: 12m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 1940/1940mm
rear track: 1860/1860mm
Curb Weight: 13.27ton
Rated payload: 17.535ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 17°
market segment: Agricultural and sideline product transport
Front/rear suspension: 1.5/2.25m
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK11380N-60
Engine info: Yuchai11L
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 10.98L
Emission standard: China VI
Max output power: 280kW
Max hp: 380Horsepower
Max torque: 1800N·m
Max torque speed: 1000-1400rpm
Rated speed: 1700rpm
Engine Type: Theoretical air-fuel ratio + EGR + TWC + ASC
Transmission Parameters
Transmission Model: SinotrukHW19712C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.4m
Cargo box width: 2.45m
*Cargo box interior width: 2.45
Cab parameters
Cab: KL
seating capacity: 3Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 1120L
Chassis Specs
Front axle description: 5T×2
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300*8+4mm
rear axle description: 10T×2
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.909
Leaf spring count: 3/3/4
Tire
Tire Size: 295/80R22.5
Tire Type: 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

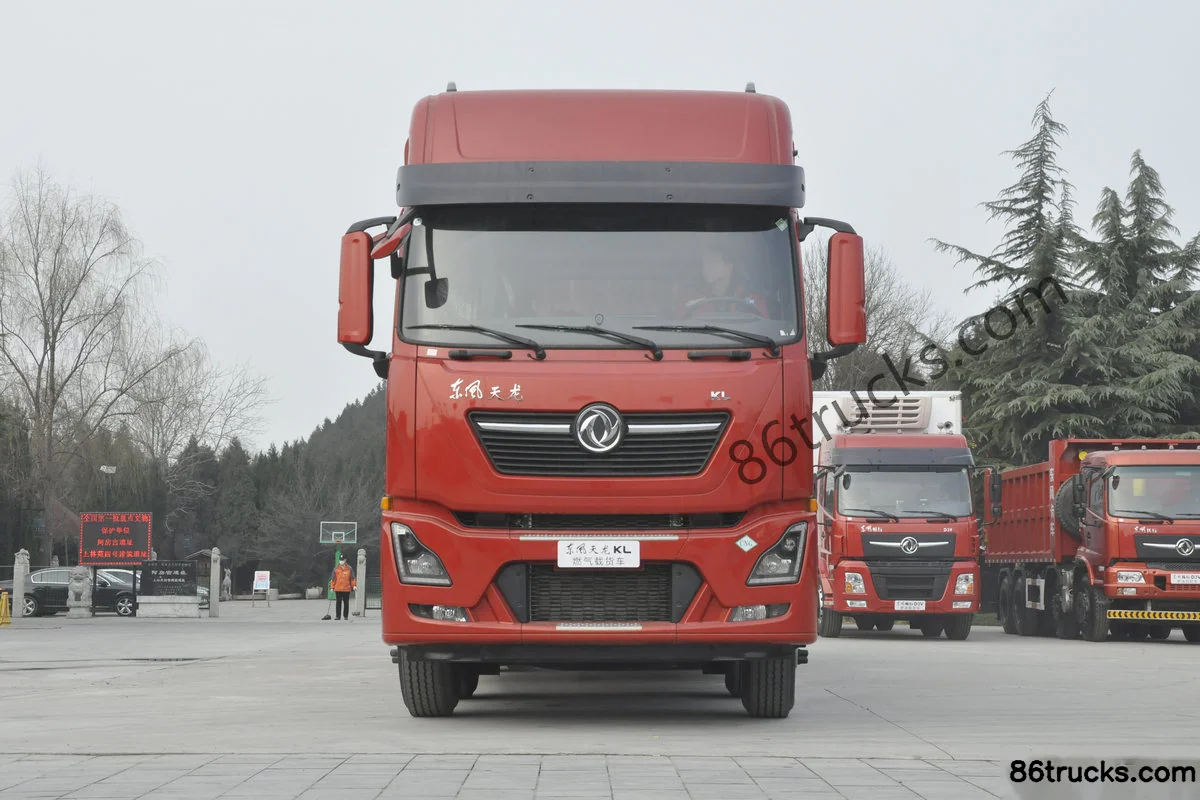

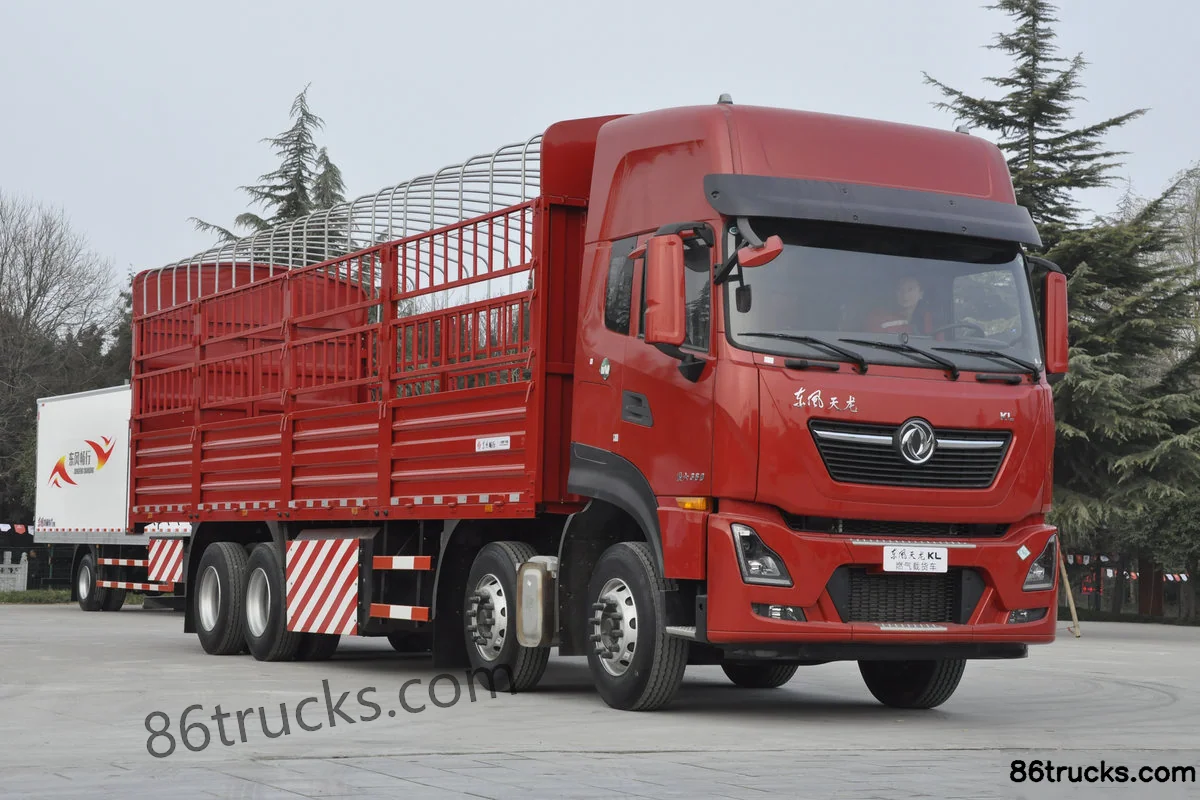

Exterior2

2 photos

FAQ

What is the export price of Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck, and what does it include?

Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck export reference is about From $60,000; MSRP is ¥43.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck?

Key specs of Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck: Drive: 8x4; Horsepower: 380 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Engine: Yuchai11L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck suited for?

Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck differ from other variants in the same series?

Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck belongs to Dongfeng Tianlong KL Gas Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianlong KL Gas 380 hp 8X4(12 wheels) 9.4m LNG Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
