FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh

Export reference

MSRP N/A

Wheelbase:: 2925mm

Cargo box volume:: 5.28

Model code (announced):: JHC5037XXYBEVL1

Cab length:: 4.495m

GVWR:: 2.51ton

Max. speed:: 90km/h

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh exterior

View more photos (7)

CLTC range: 280km

Motor 1 Brand: Inovance

Curb Weight: 1.415ton

Rated payload: 0.965ton

Overview

The FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh is a Electric Panel Van featuring 280km battery/range, Inovance motor, 0.965t payload and 5.28 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): JHC5037XXYBEVL1

Wheelbase: 2925mm

Cab length: 4.495m

Cab width: 1.68m

Cab height: 1.99m

CLTC range: 280km

Curb Weight: 1.415ton

Rated payload: 0.965ton

GVWR: 2.51ton

Max. speed: 90km/h

Energy Type: Electric

electric motor

Motor 1 Brand: Inovance

Motor 1 Model: TZ180XSIN101

Max torque: 200N·m

Motor Type: Permanent magnet synchronous motor

Fuel Type: Electric

total rated power: 30kW

Peak power: 60kW

total rated torque: 90N·m

Battery/Charging

Battery Brand: CATL

Charging method: Fast charge, slow charge

Battery type: Lithium Iron Phosphate Battery

Battery capacity: 41.86kWh

fast charge time: 1.5h

Body parameters

Cargo box volume: 5.28

Max body depth: 2.5

Max body width: 1.48

Cargo Box Height: 1.33

Chassis Specs

steering assist type: Electric power steering

Front suspension type: Independent suspension

rear suspension type: Leaf spring

Body Parameters

Seat count: 2Seats

Wheel brake

Front brake type: Disc brake

rear brake type: drum brake

Front tire specification: 175/70R14C

Rear Wheel Specification: 175/70R14C

Cab parameters

Seat rows:

Safety features

Remote key:

Control configuration

ABS:

Stability control (ESP/DSC/VSC etc.):

interior configuration

AC control type: Manual

Power Windows:

Reverse Camera: -/●

Multimedia features

External audio input (AUX/USB/iPod etc.):

Radio:

lighting configuration

Front fog lamp:

daytime running lights:

Headlight height adjustment:

Photos

Exterior3

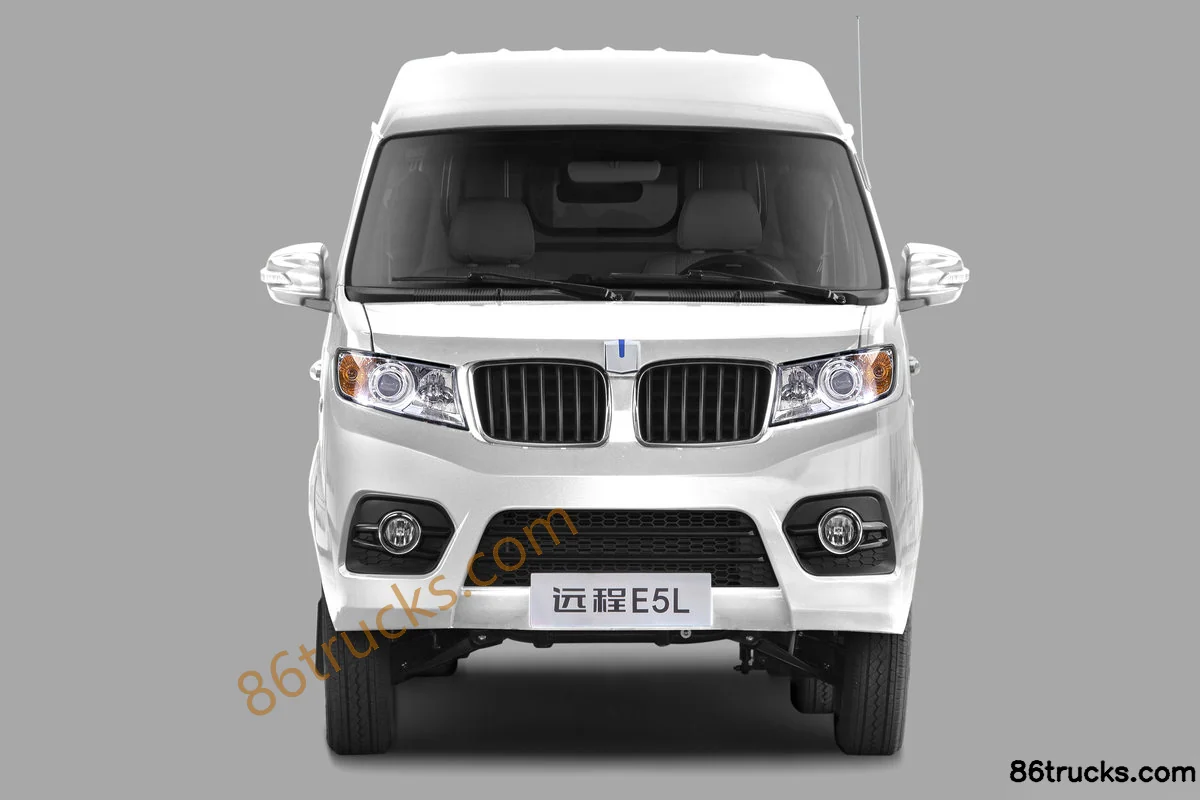

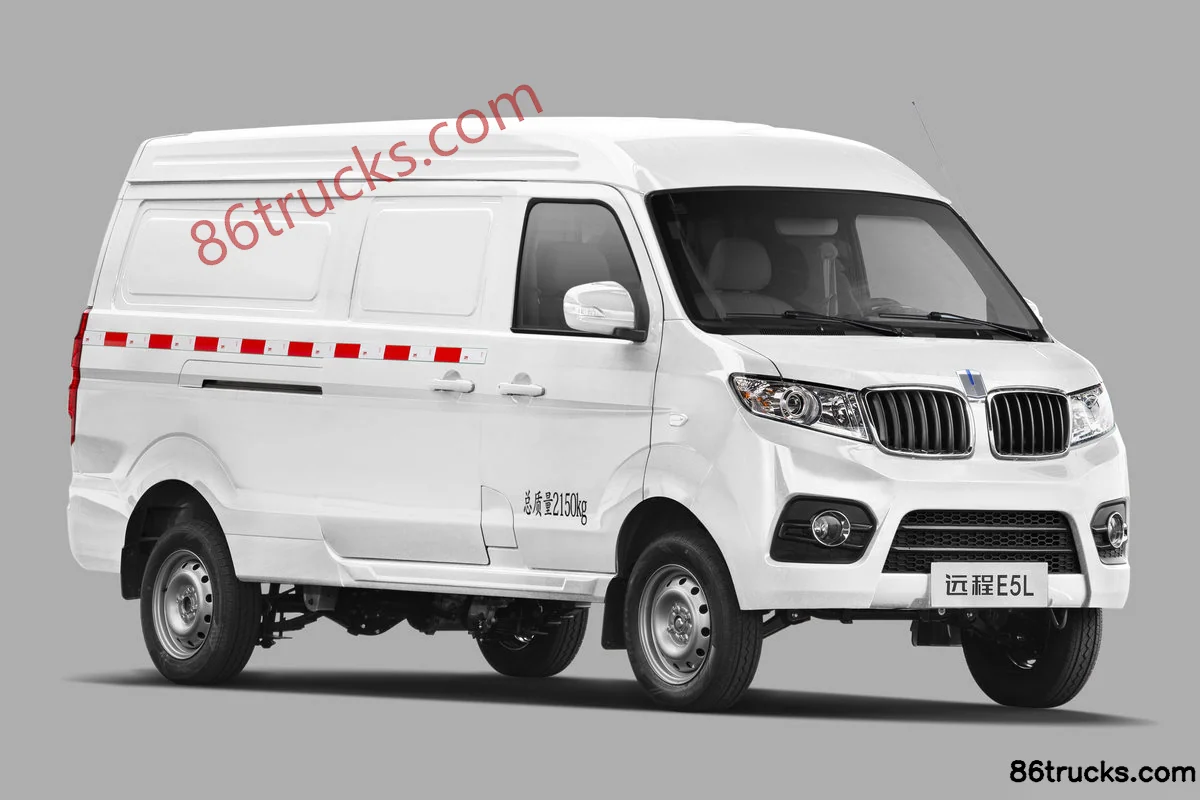

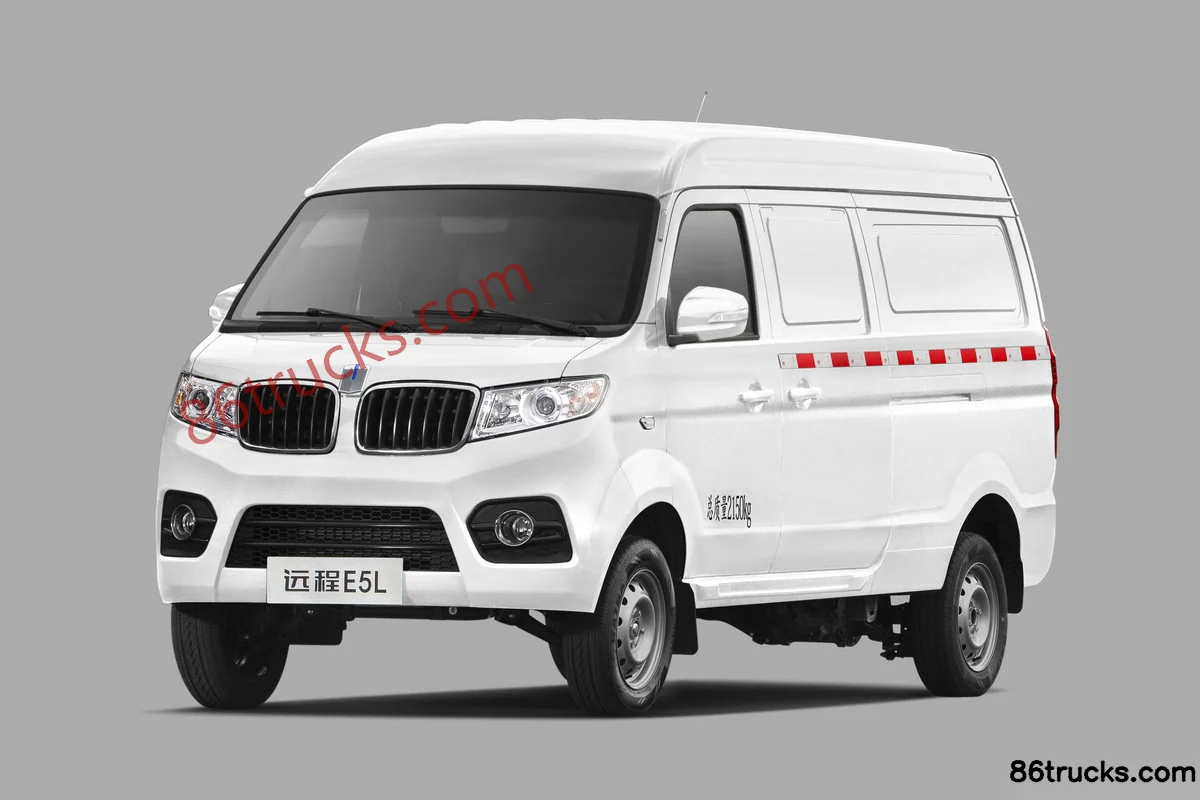

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh Exterior (1) | 86Trucks

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh Exterior (2) | 86Trucks

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh Exterior (3) | 86Trucks

Cab3

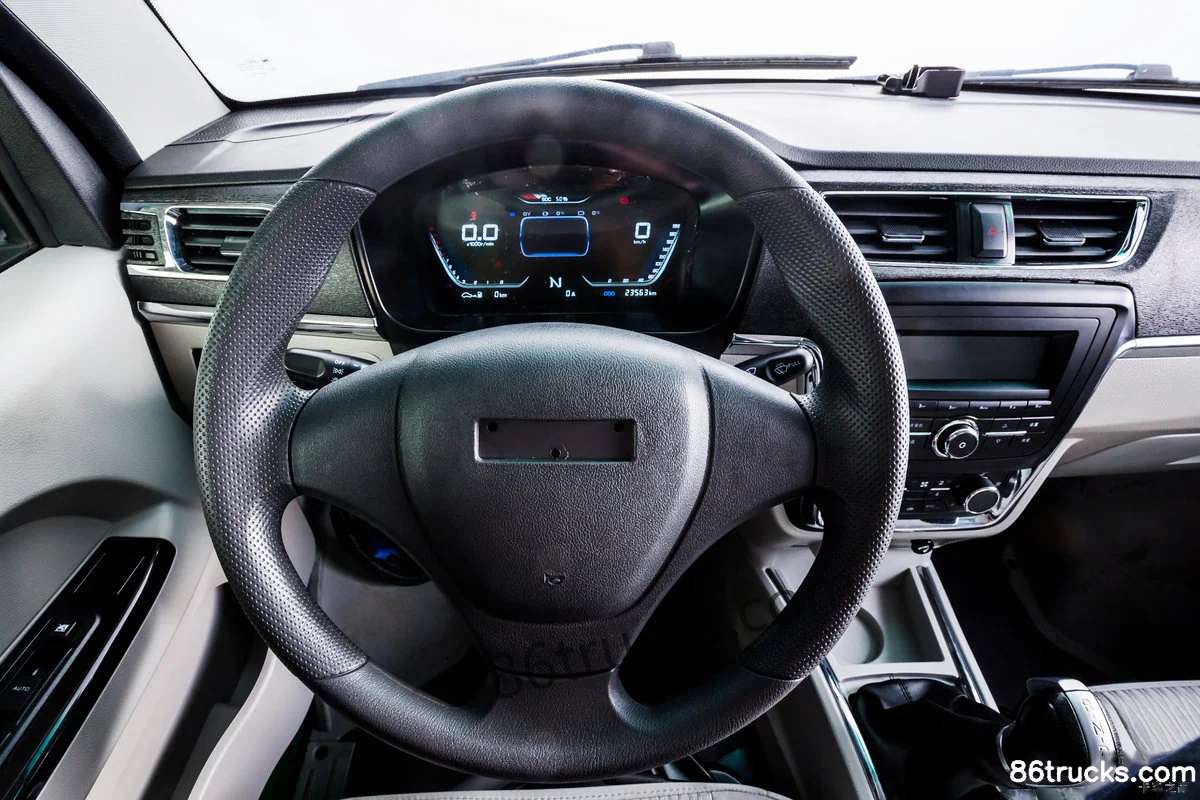

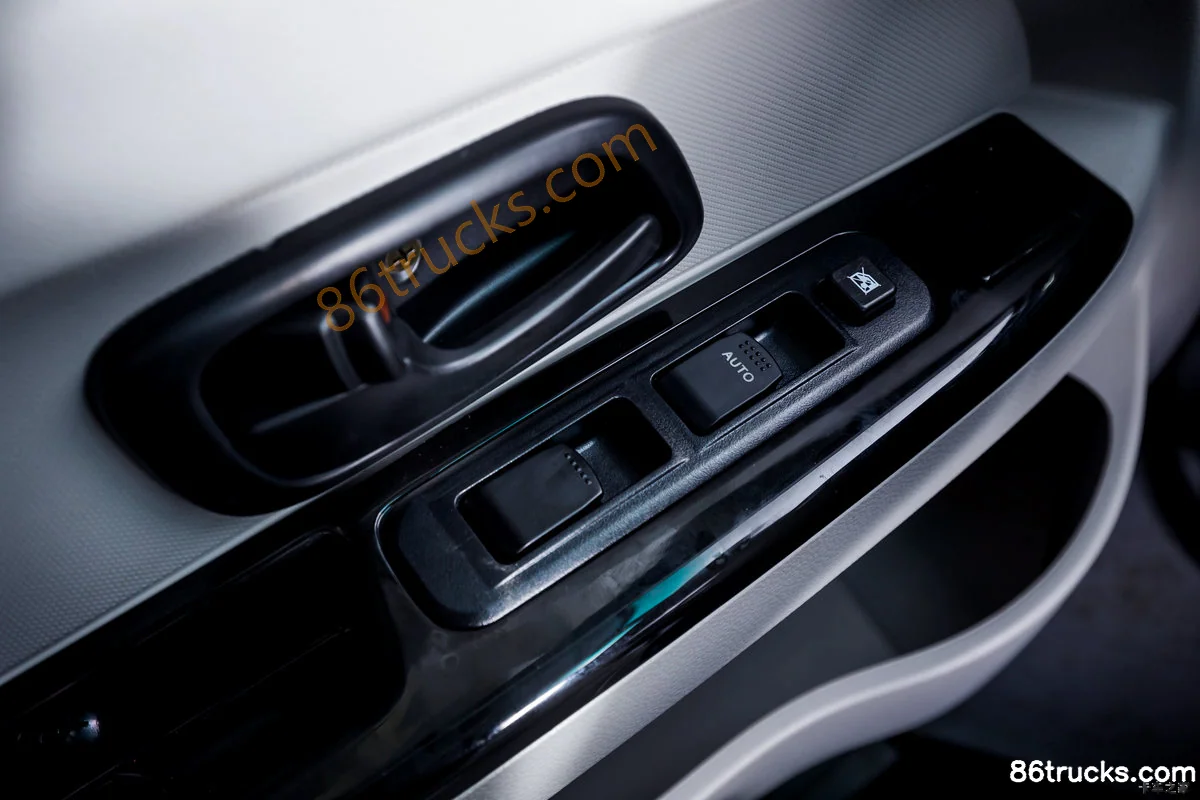

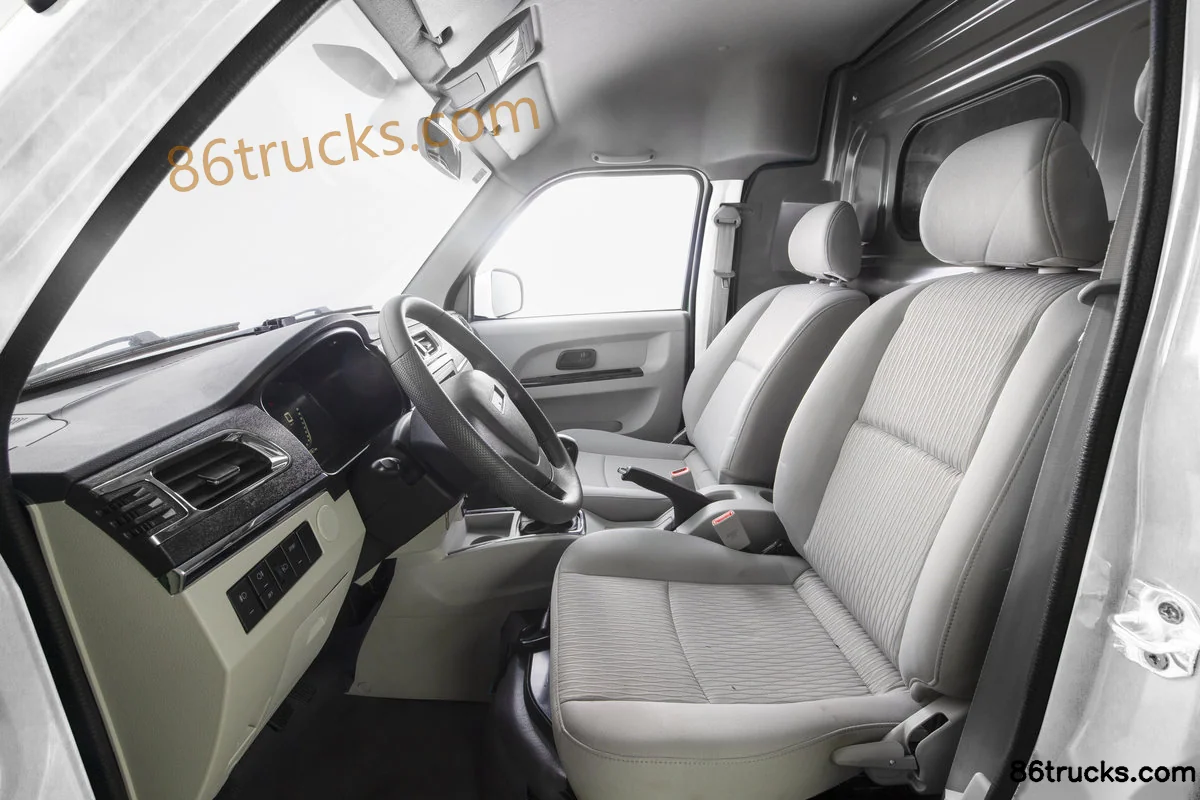

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh Cab (1) | 86Trucks

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh Cab (2) | 86Trucks

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh Cab (3) | 86Trucks

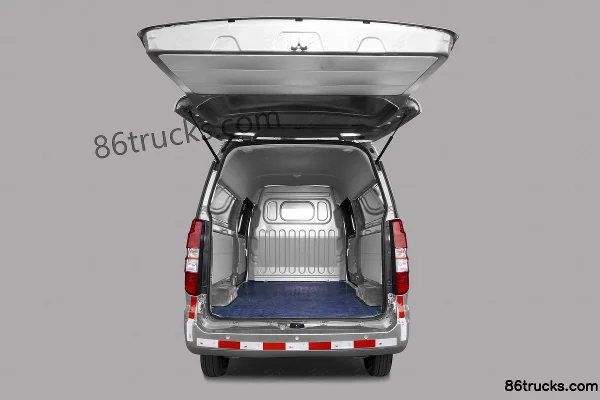

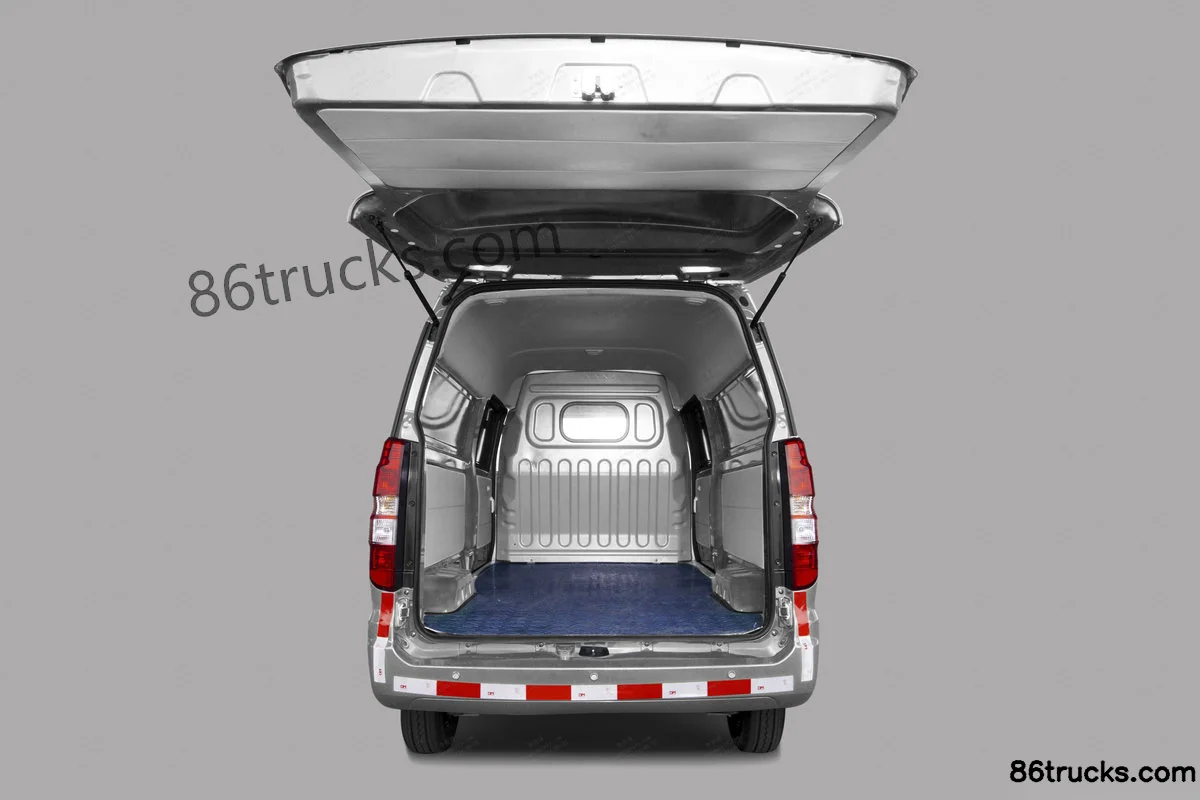

Chassis1

7 photos

FAQ

What transport jobs is FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh suited for?

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh differ from other variants in the same series?

FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh belongs to FARIZON E5L (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON E5L 2.51T 4.5m electric panel van 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
