FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck

Export reference
From $40,111
MSRP ¥28.88M CNY
Horsepower: 260
Emission: China V
Fuel: Diesel
Engine: Dachai7.1L
Transmission: FAW Jiefang
Curb Weight:: 12.8ton
seating capacity: 2Personnel
Rated payload: 18.005ton
Drive 8X4 (12 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck is a Heavy truck featuring 9.5m cargo length, Van body cargo body, 2Personnel volume and 18.005t payload. On the powertrain side, it comes with a Dachai7.1L engine, 260 hp, 8X4 (12 wheels) drive and China V emissions.

China V 260 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5313XXYP2K2L7T4E5A80-3
Type: enclosed cargo truck
Drive type: 8X4
Wheelbase: 1860+4660+1350mm
Box length class: 9.5m
engine: XichaiCA6DL2-35E5
transmission: FAW JiefangCA10TAX160M
Rear Axle Ratio: 4.444
Cab length: 11.993m
Cab width: 2.55m
Cab height: 4m
Front track width: 2020/2020mm
rear track: 1847/1847mm
Curb Weight: 12.8ton
Rated payload: 18.005ton
GVWR: 31ton
Max. speed: 102km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 10°
Front/rear suspension: 1.515/2.608m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DK1-26E5
Engine info: Dachai7.1L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.146L
Emission standard: China V
Max output power: 195kW
Max hp: 260Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX160M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.5m
Cargo box width: 2.45m
Cargo box height: 2.6m
*Cargo box interior width: 2.45
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Reinforced 435 stamped-welded axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.444
Leaf spring count: 11/11/12
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

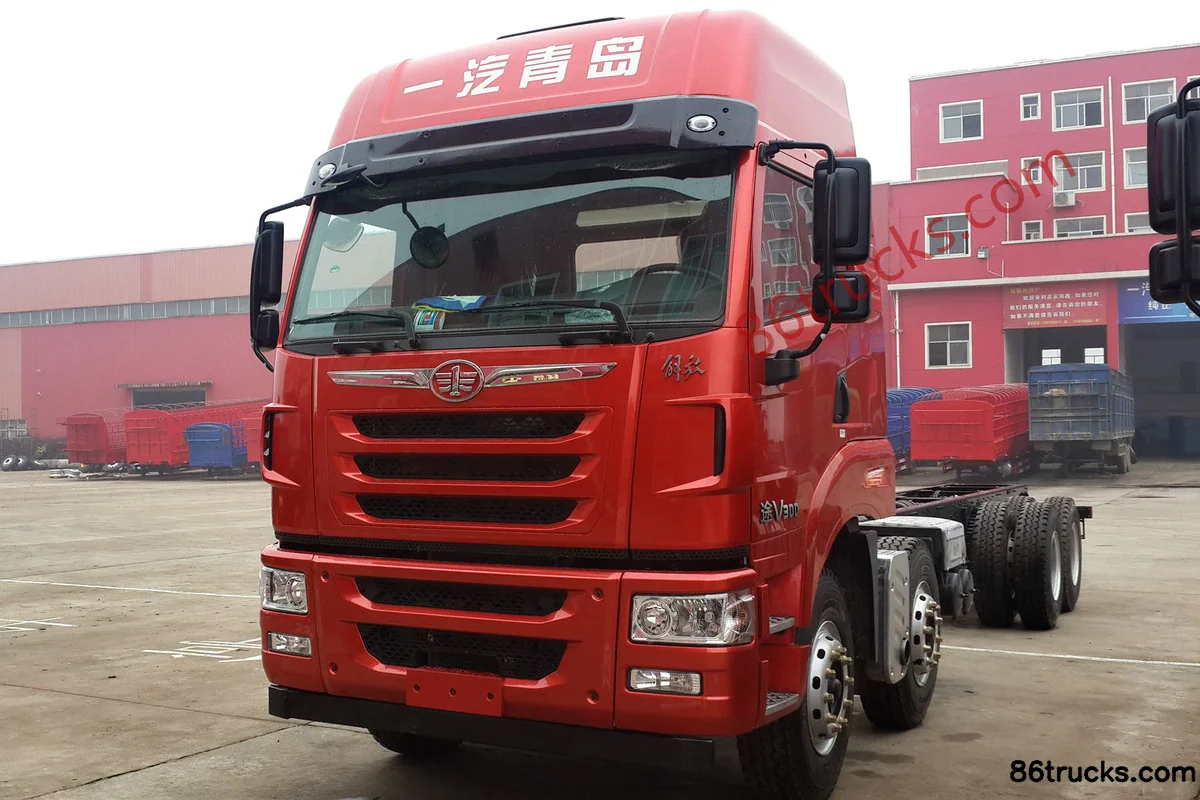

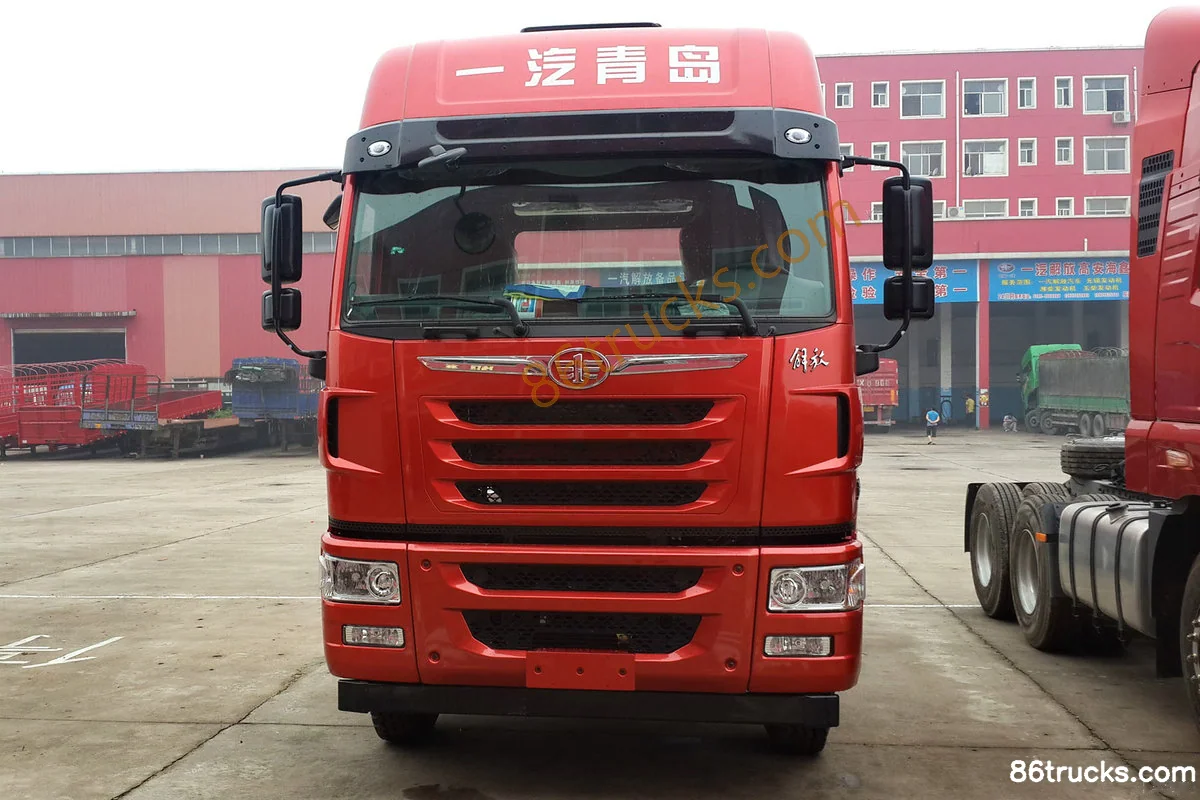

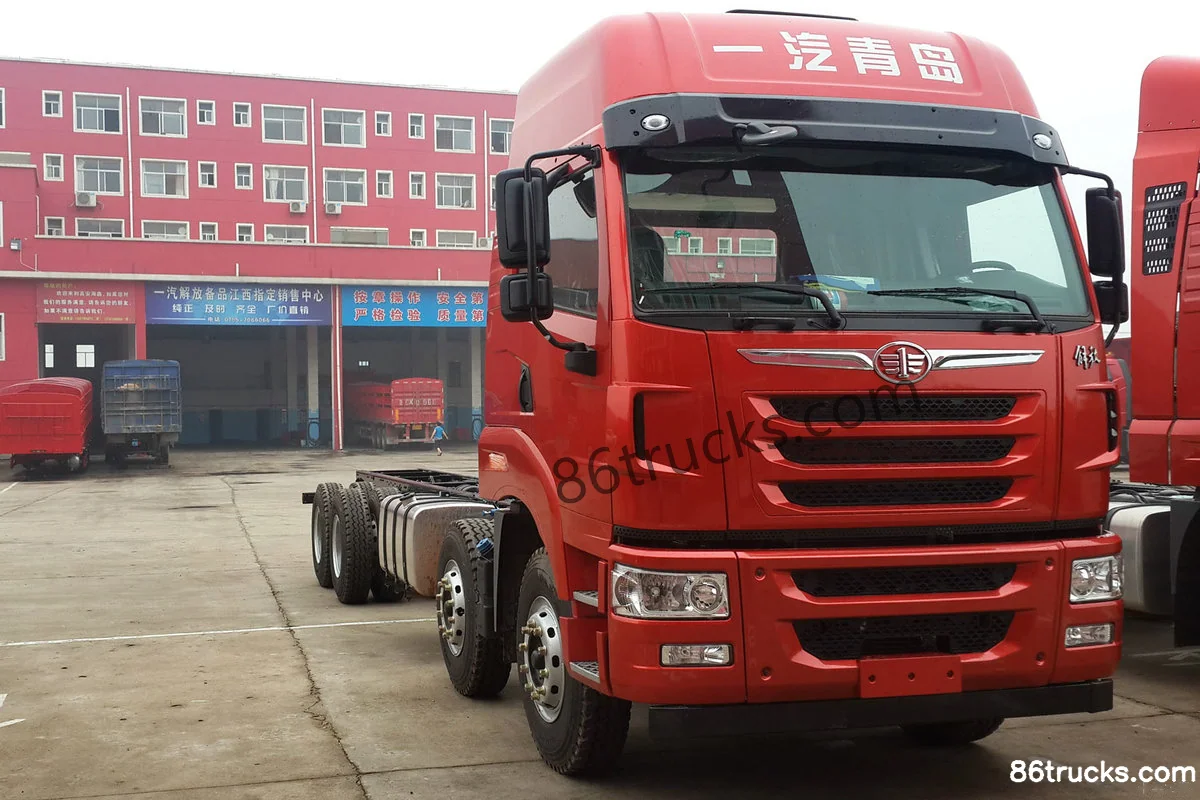

Exterior3

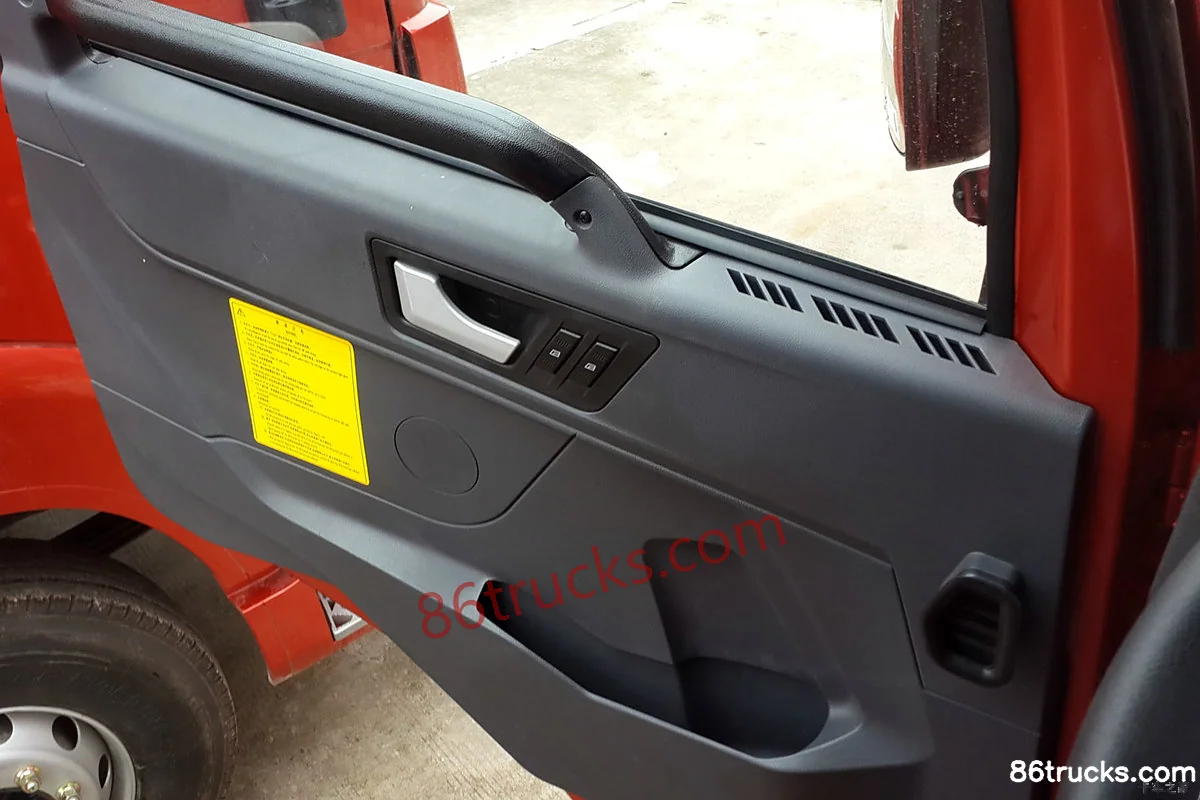

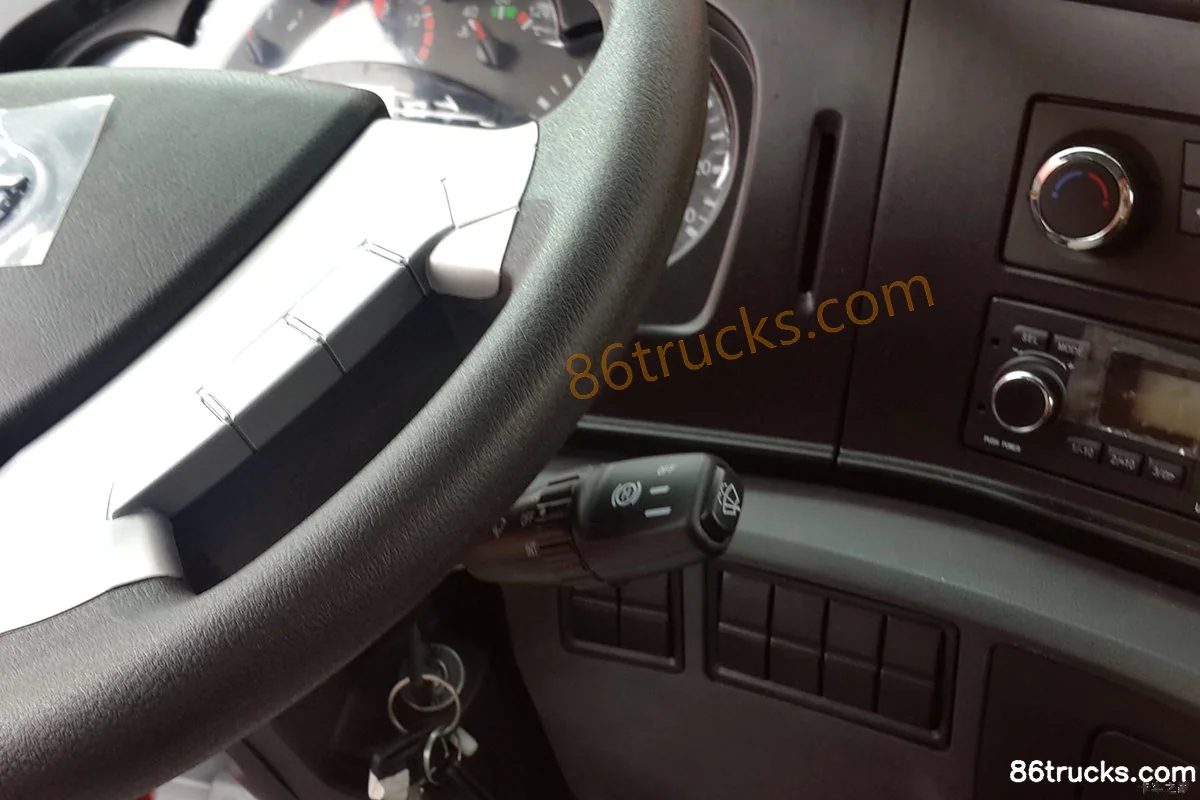

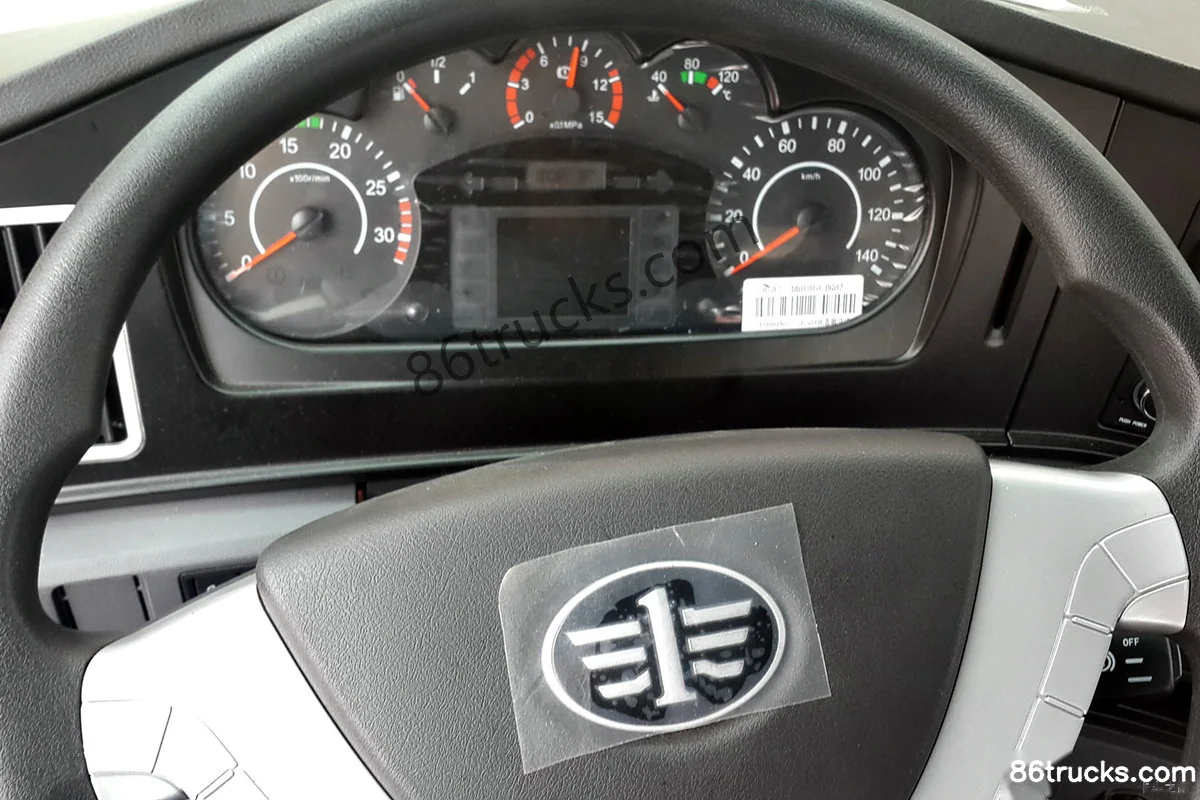

Cab3

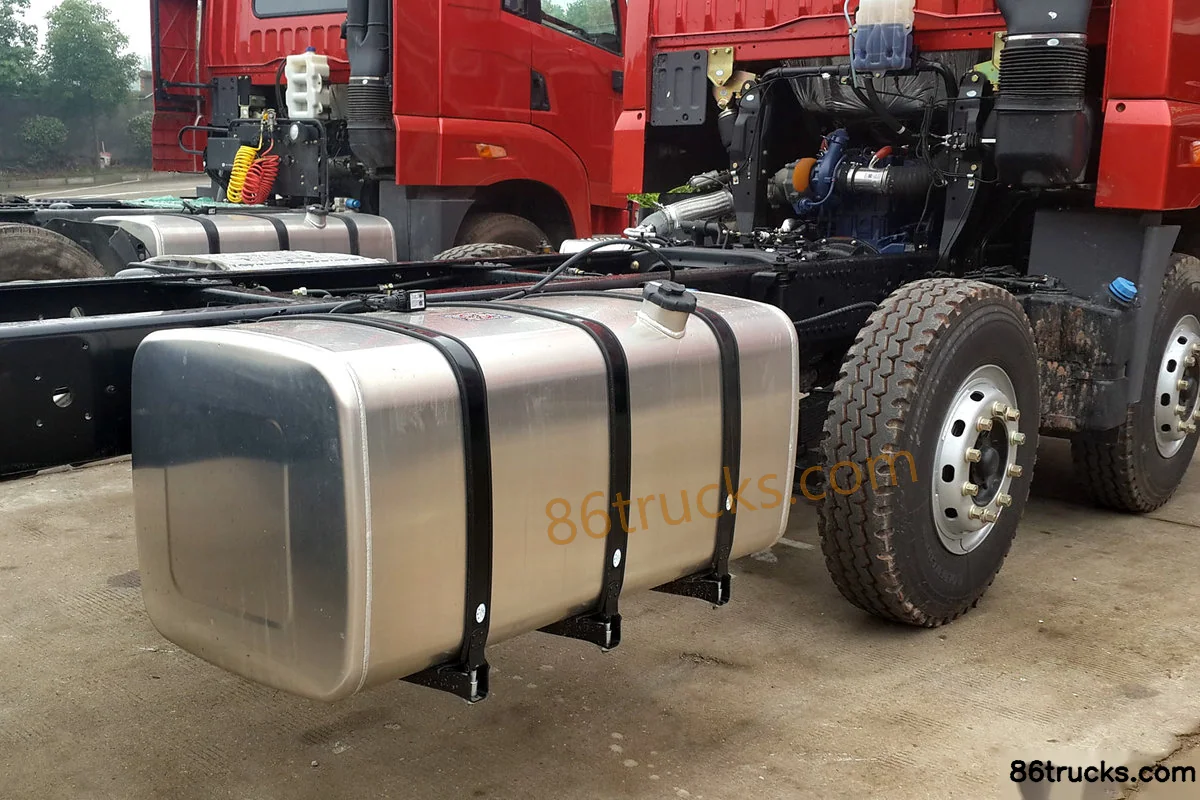

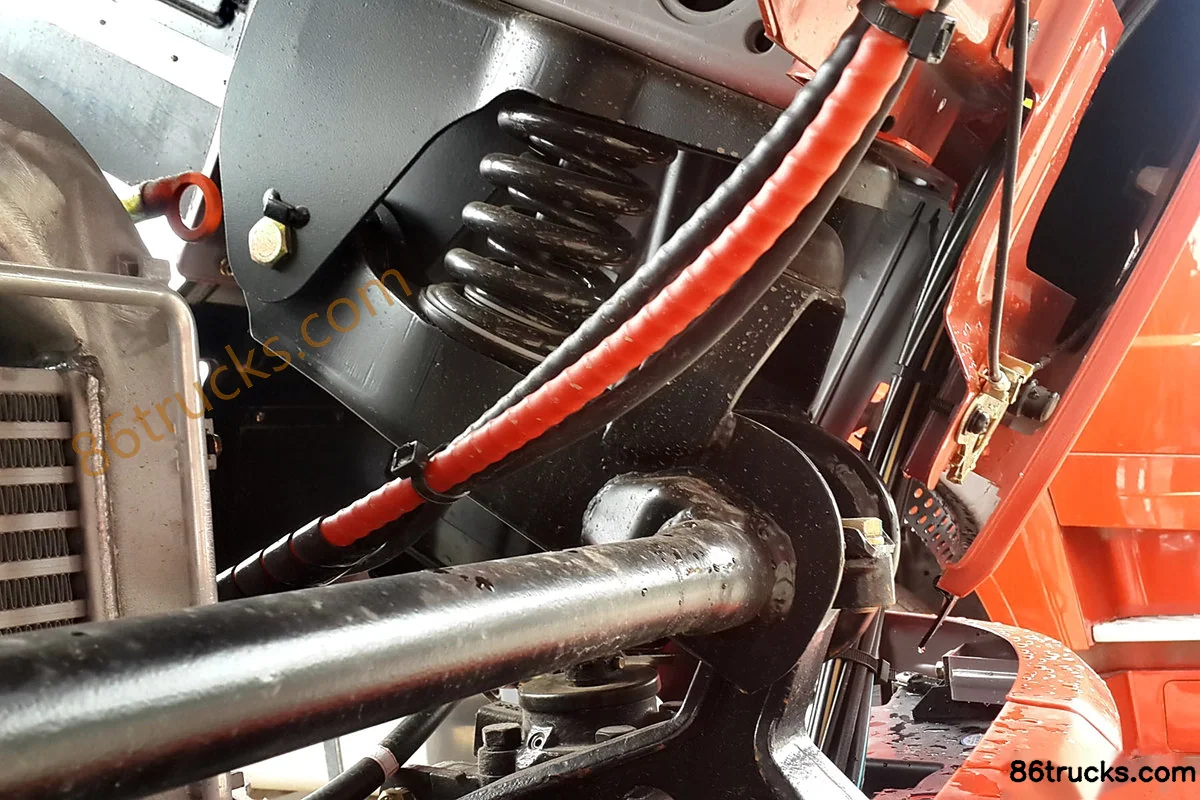

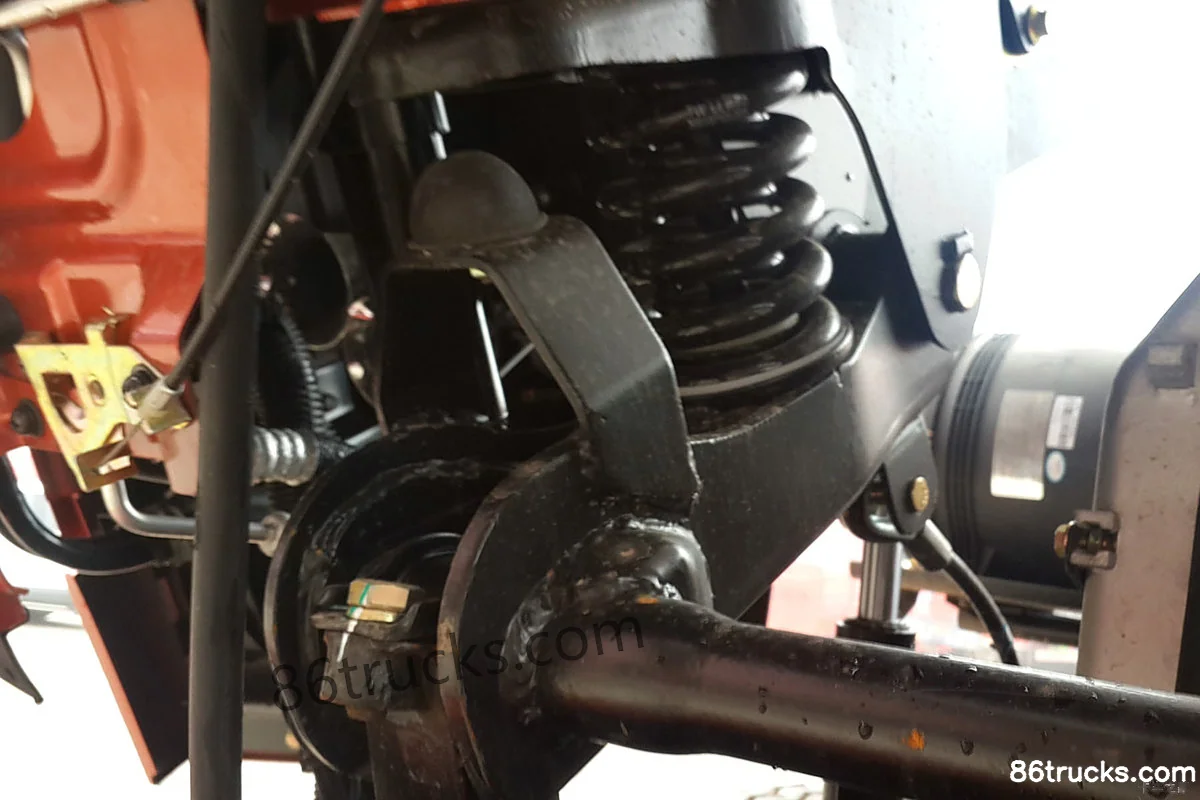

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck, and what does it include?

FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck export reference is about From $40,111; MSRP is ¥28.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck?

Key specs of FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck: Drive: 8x4; Horsepower: 260 hp; Emission: China V; Fuel: Diesel; Engine: Dachai7.1L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck suited for?

FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck differ from other variants in the same series?

FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck belongs to FAW Jiefang Qingdao Tu V Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Tu V Heavy Truck 350 hp 8X4(12 wheels) 9.5 m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
