CIMC Huajun 9m Flatbed Rear Dump Semi-Trailer

Export reference
MSRP N/A
Axle Brand:: 13 FWB
suspension:: -/10/10/10
Wheel Material:: Steel
Outrigger:: 8T aluminum alloy single-acting
ABS:: 4S/2M; with low-pressure alarm
Design load capacity: 31.7ton
Curb Weight: 8.3ton
Tire brand: Linglong
Cab length: 9m

Overview

The CIMC Huajun 9m Flatbed Rear Dump Semi-Trailer is a dump semi-trailer featuring 31.7ton payload, 8.3ton GVW and 9m cab.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 31.7ton
Cab length: 9m
Cab width: 2.55m
Cab height: 3.6m
Curb Weight: 8.3ton
Chassis Specs
Axle Brand: 13 FWB
Number of Axles: 3
Axle Load Rating: 24000 (tri-axle group)
suspension: -/10/10/10
Wheel Material: Steel
Parts & accessories
Outrigger: 8T aluminum alloy single-acting
ABS: 4S/2M; with low-pressure alarm

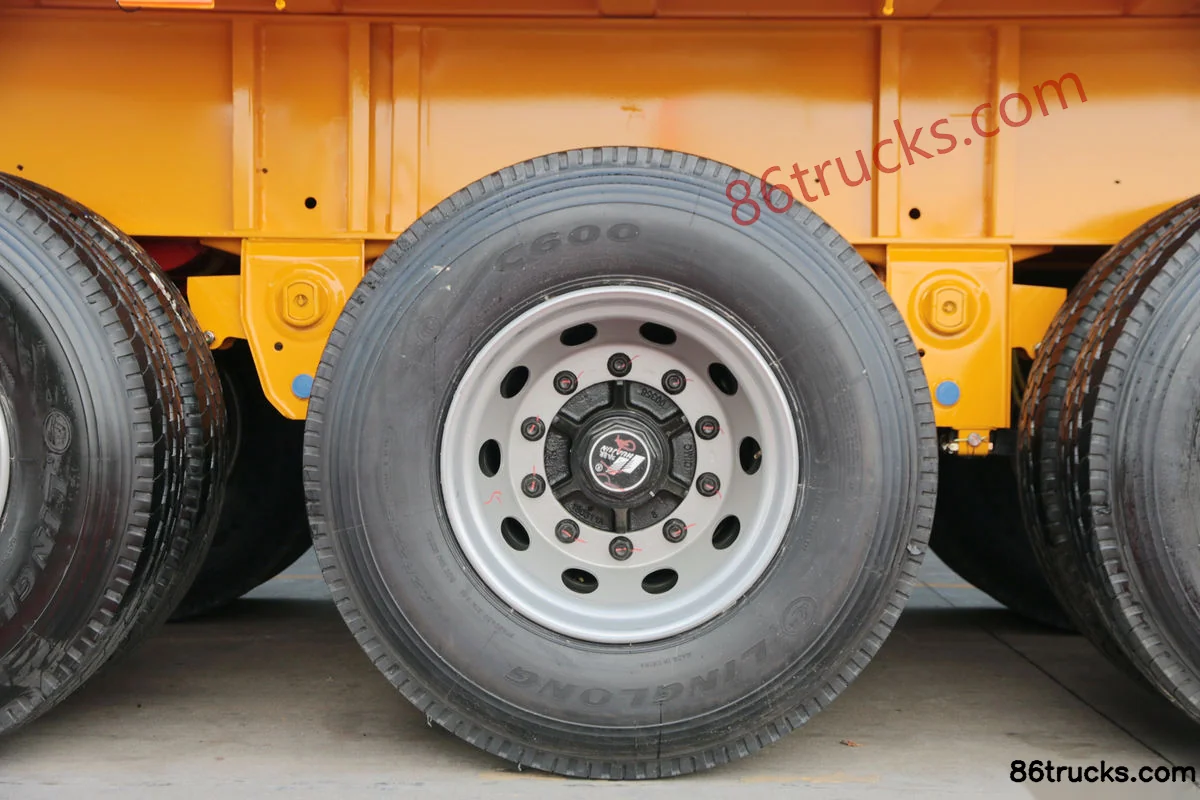

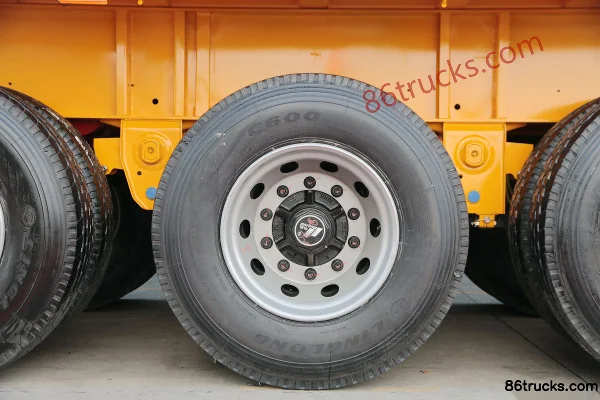

Tire
Tire brand: Linglong
Tire Size: 12R22.5
Number of tires: 12pcs

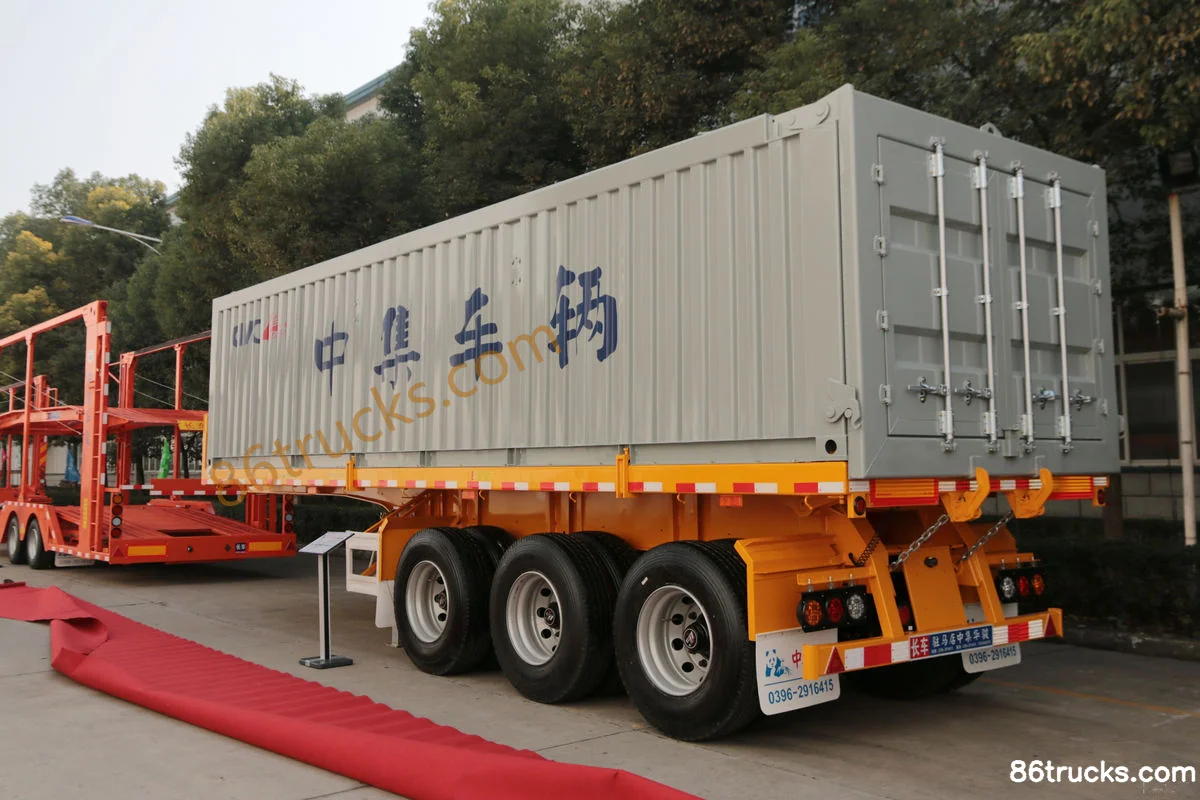

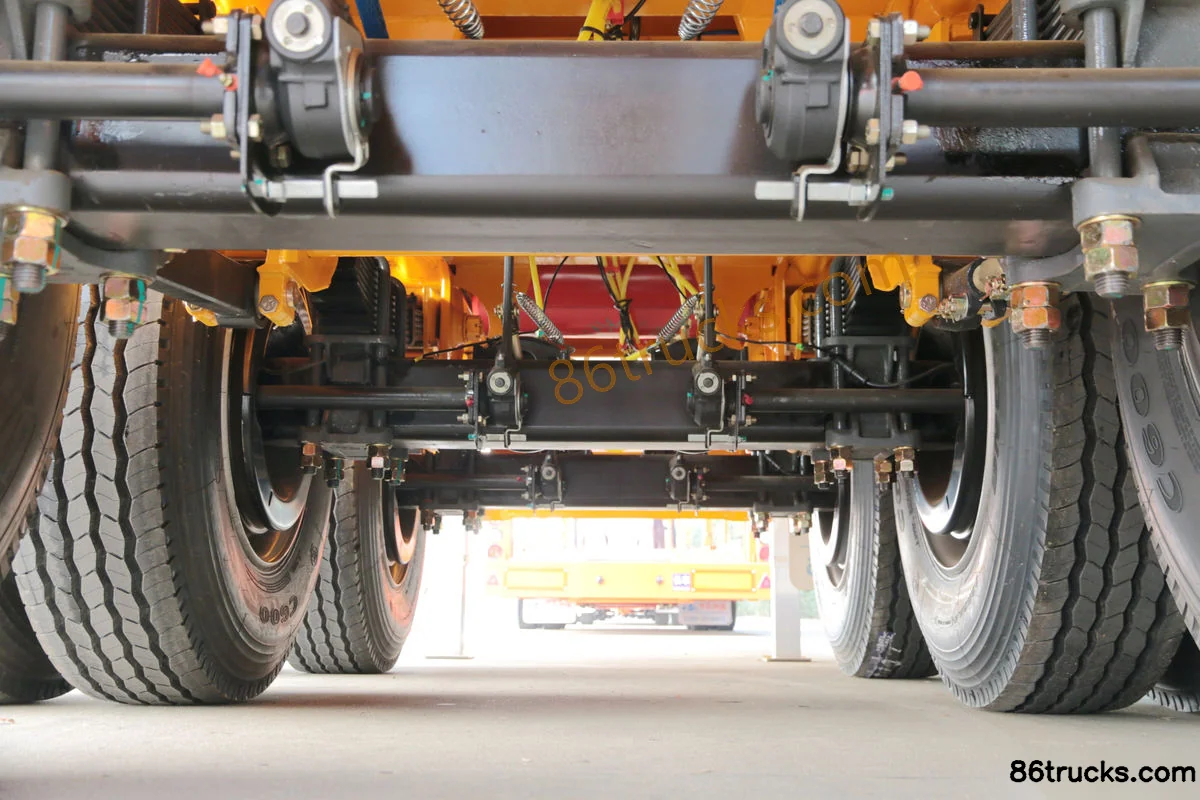

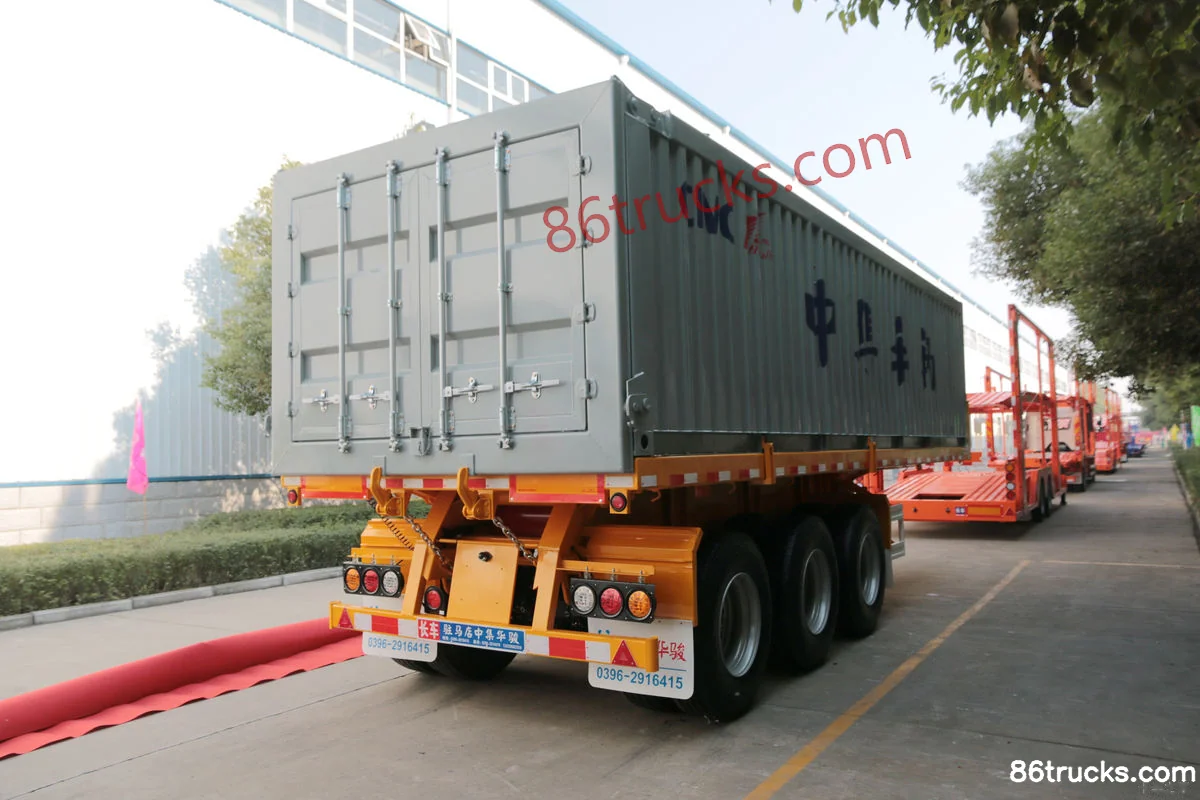

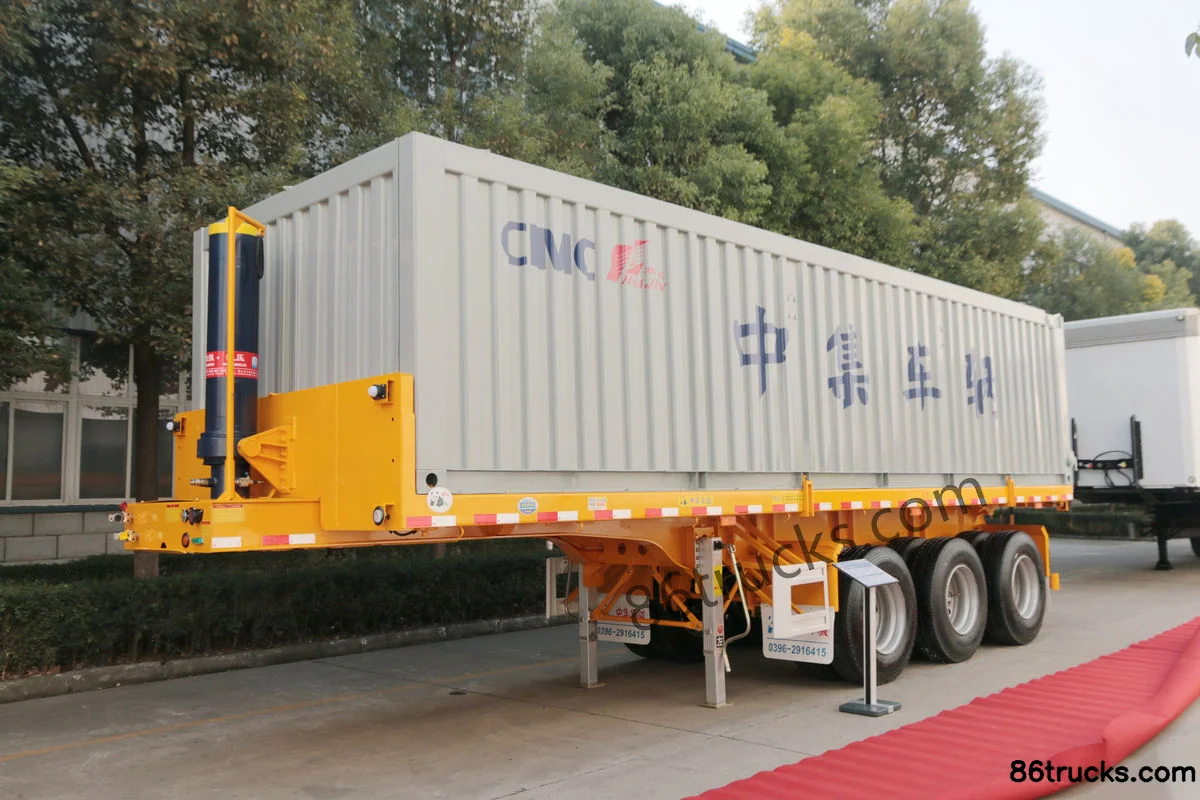

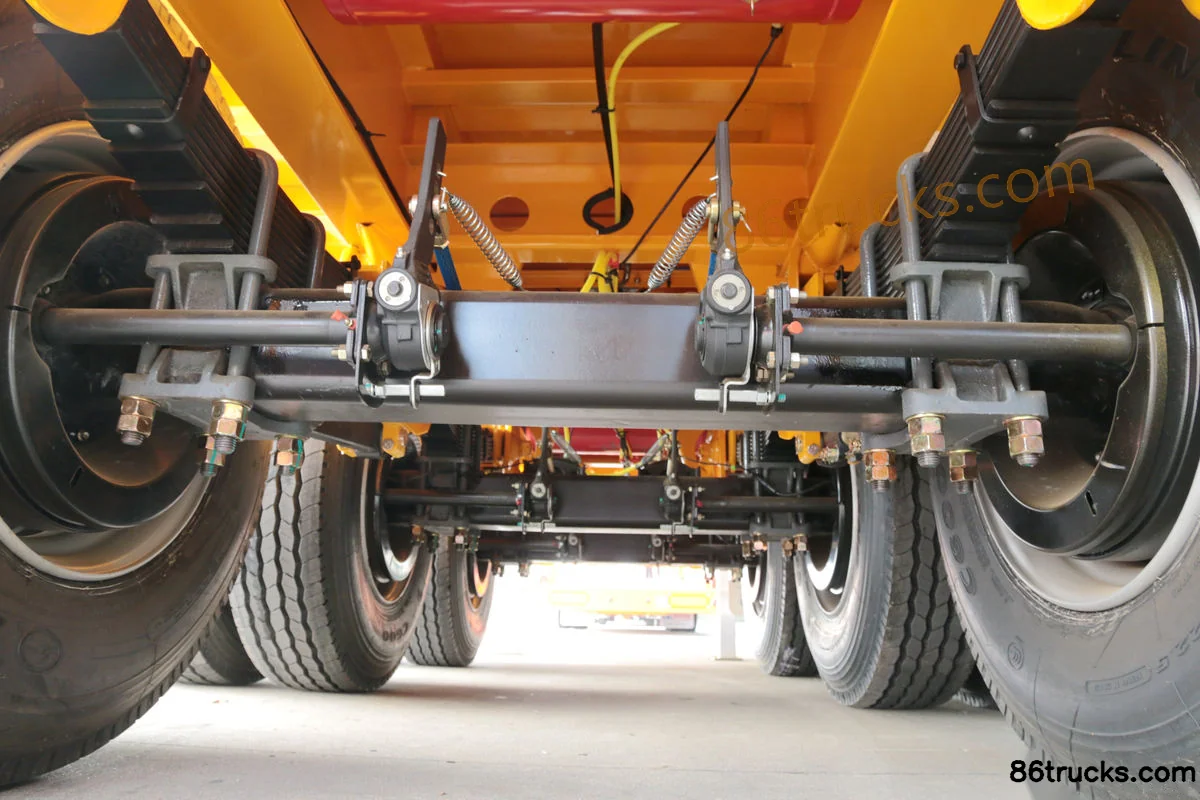

Photos

Exterior3

Cab3

6 photos

FAQ

What transport jobs is CIMC Huajun 9m Flatbed Rear Dump Semi-Trailer suited for?

CIMC Huajun 9m Flatbed Rear Dump Semi-Trailer is a dump semi-trailer model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does CIMC Huajun 9m Flatbed Rear Dump Semi-Trailer differ from other variants in the same series?

CIMC Huajun 9m Flatbed Rear Dump Semi-Trailer belongs to CIMC Huajun 9m Series (dump semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CIMC Huajun 9m Flatbed Rear Dump Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CIMC Huajun 9m Flatbed Rear Dump Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
