Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck

Export reference
From $7,764
MSRP ¥5.59M CNY
Horsepower: 123
Emission: China VI
Fuel: gasoline
Engine: Brilliance Xinyuan 1.6L
Curb Weight:: 1.61ton
Wheelbase:: 3600mm
seating capacity: 5Personnel
Rated payload: 0.745ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Xinyuan Jinbei Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck is a mini truck featuring 2.85m cargo length, stake body cargo body, 5Personnel volume and 0.745t payload. On the powertrain side, it comes with a Brilliance Xinyuan 1.6L engine, 123 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 123 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC1034S6L3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3600mm
Box length class: 2.8m
engine: Xinyuan JinbeiSWD16MS
transmission: 5-speed gearbox
Rear Axle Ratio: 5.375
Cab length: 5.79m
Cab width: 1.77m
Cab height: 2.11m
Front track width: 1480mm
rear track: 1360mm
Curb Weight: 1.61ton
Rated payload: 0.745ton
GVWR: 2.68ton
Max. speed: 120km/h
Origin: Chongqing
tonnage class: mini truck
Approach angle: 38°
departure angle: 22°
Front/rear suspension: 0.675/1.515m
Version: 2024 Comfort Type
Energy Type: gasoline
Engine parameters
Engine Brand: Xinyuan Jinbei
Engine Model: Xinyuan JinbeiSWD16MS
Engine info: Brilliance Xinyuan 1.6L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.599L
Emission standard: China VI
Max output power: 85kW
Max hp: 123Horsepower
Transmission Parameters
Transmission Model: 5-speed gearbox
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.85m
Cargo box width: 1.68m
Cargo box height: 0.37m
Cargo box material: Corrugated floor
*Cargo box interior width: 1.68
Cab parameters
Cab width: 1680mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 805kg
rear axle allowable load: 1875kg
Axle ratio: 5.375
Leaf spring count: 5/7+4
Suspension (front/rear): Leaf spring
Tire
Tire Size: 185/65R15LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Optional manual.
Power Windows:
Reverse Camera:
Remote key:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
Halogen Headlights:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

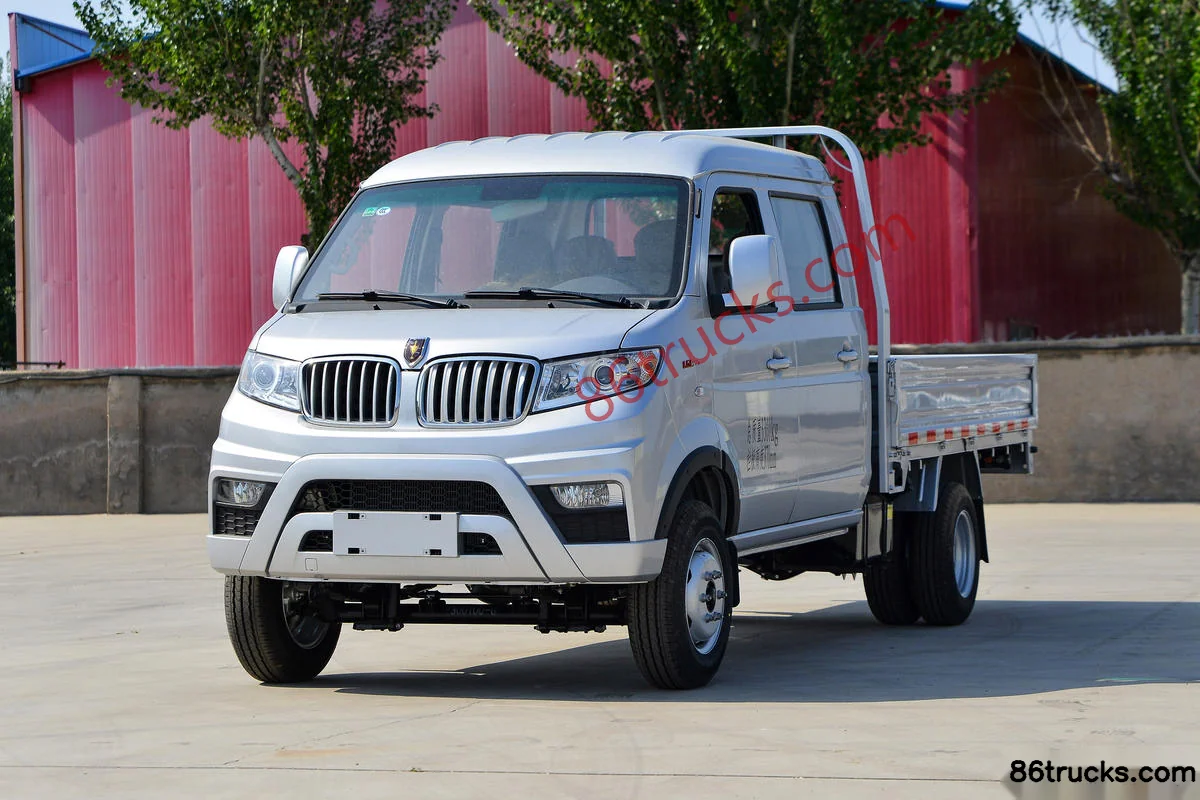

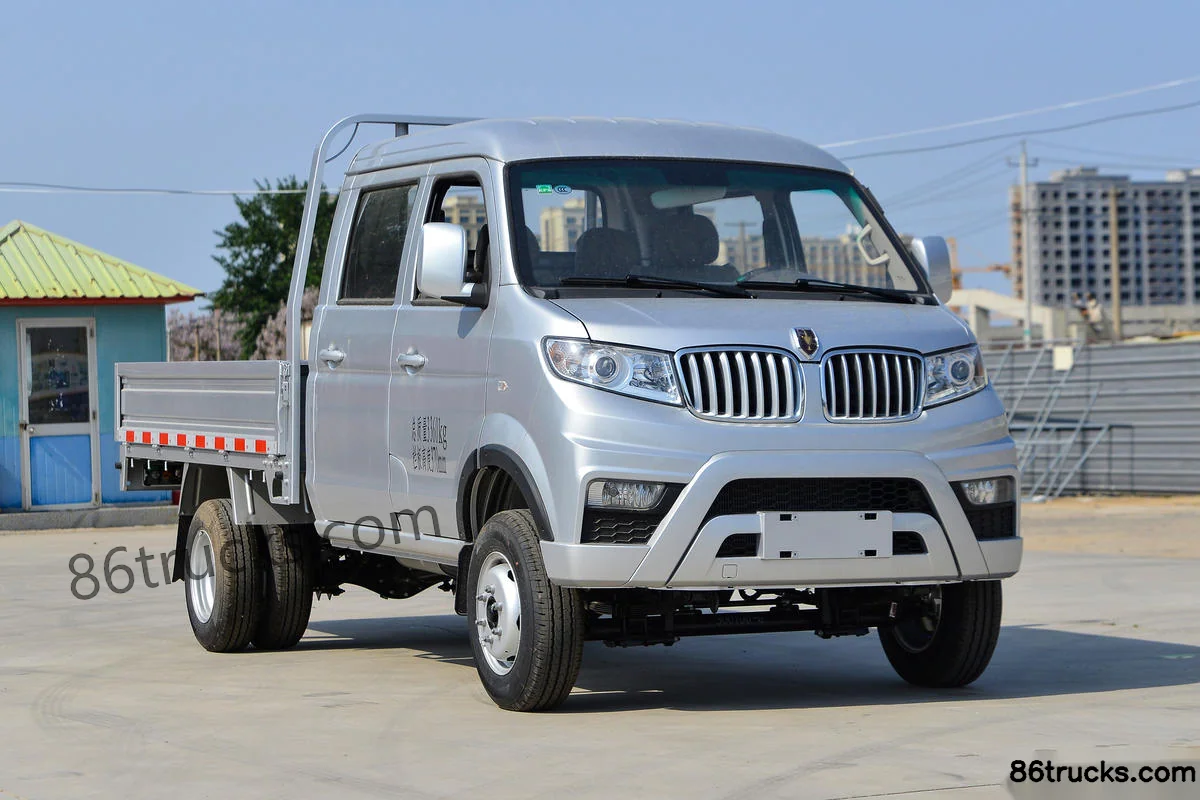

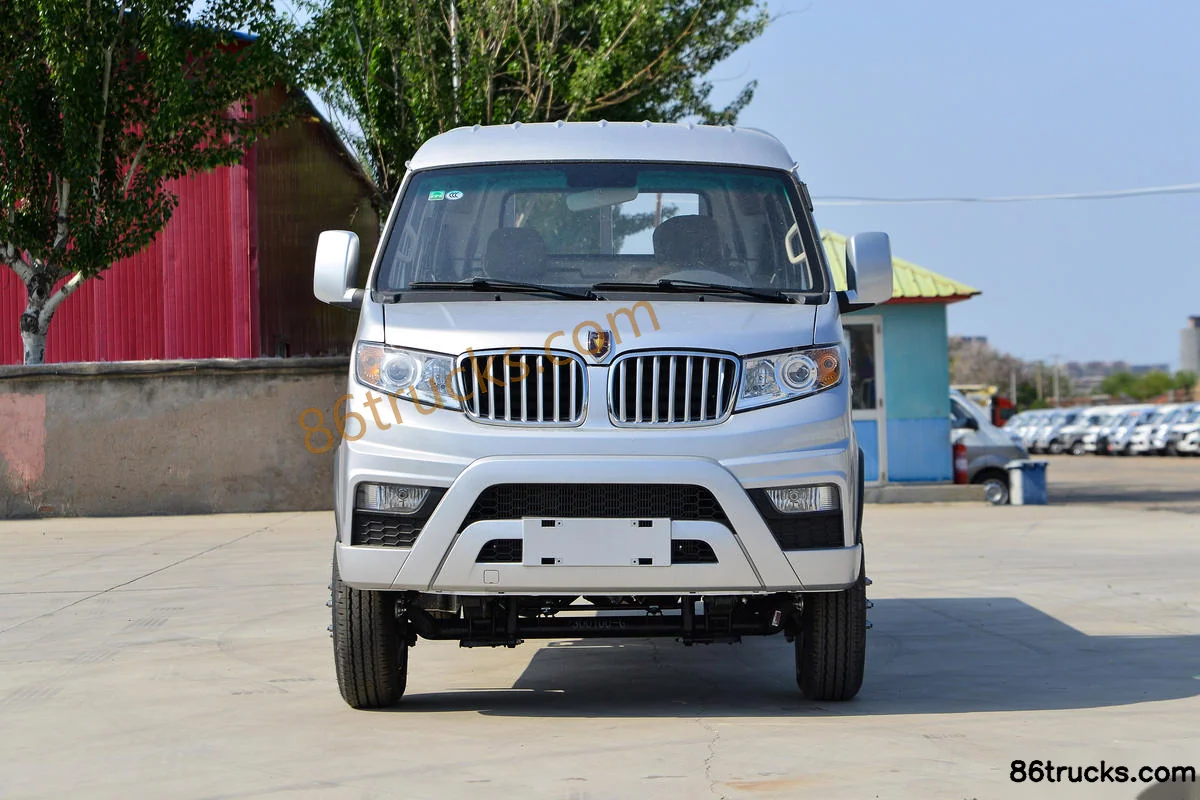

Exterior3

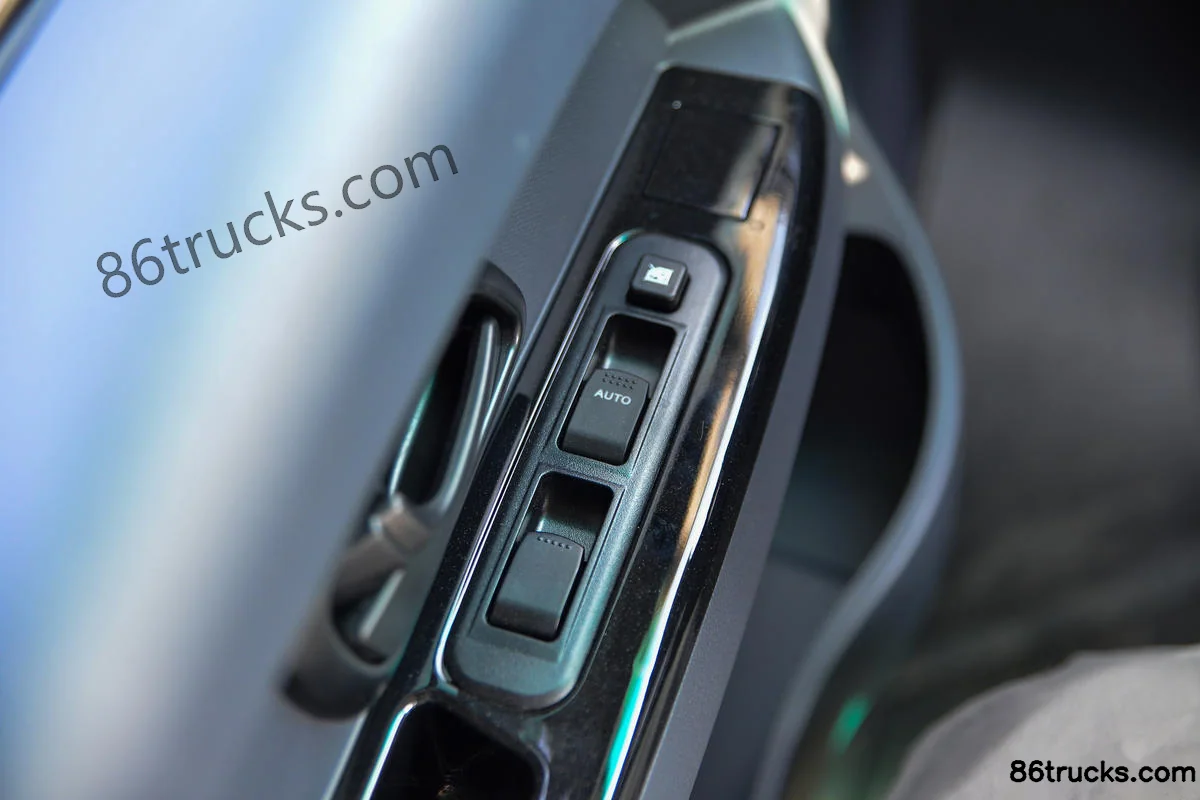

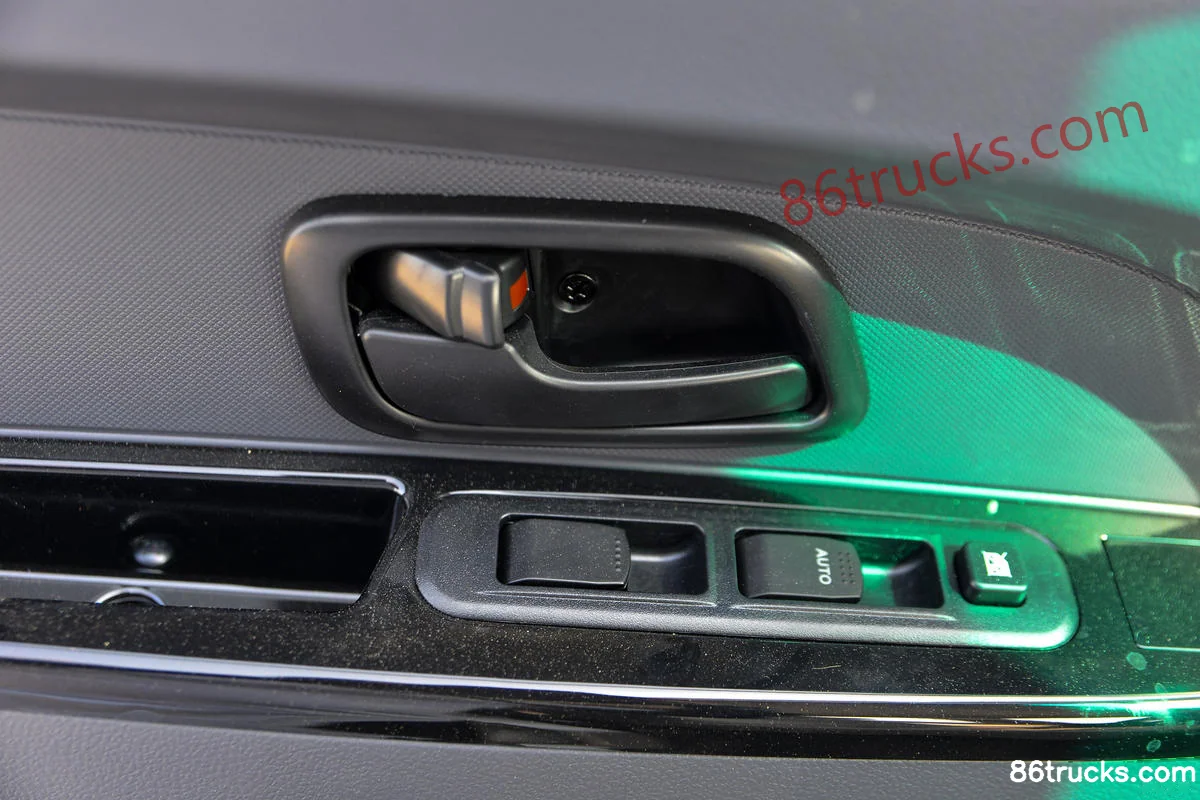

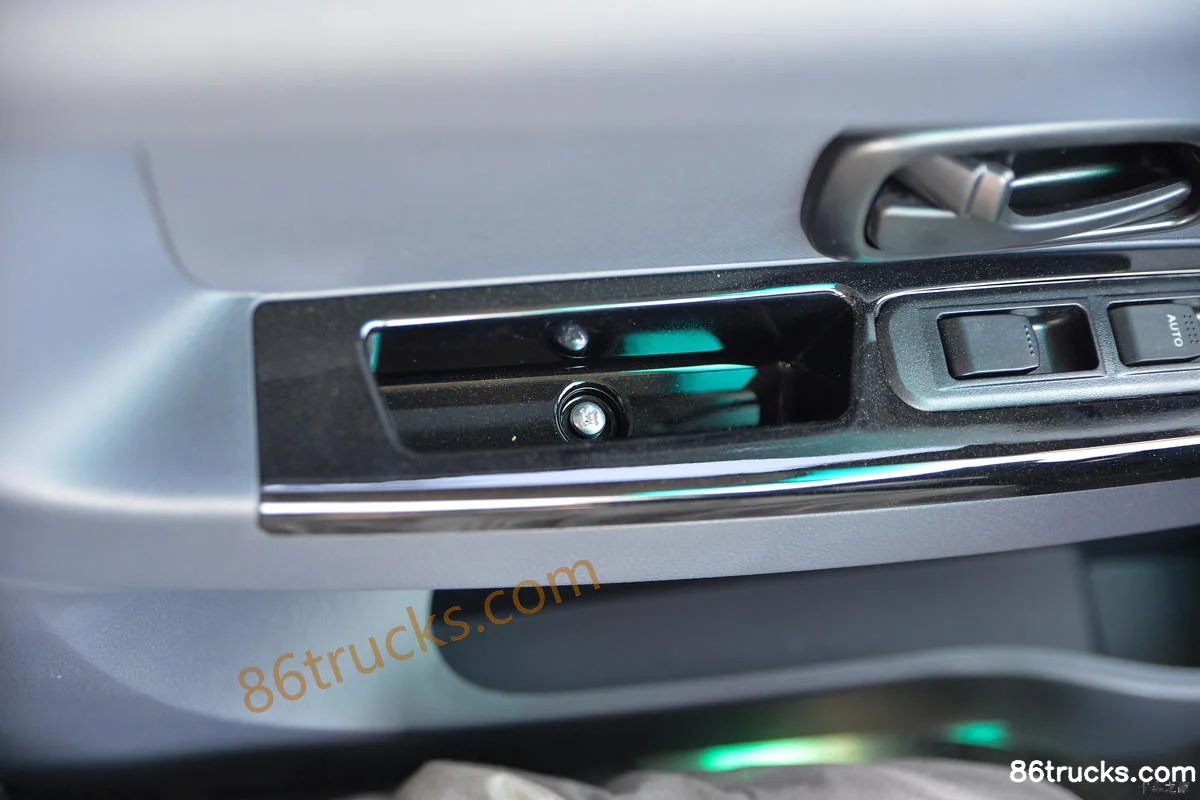

Cab3

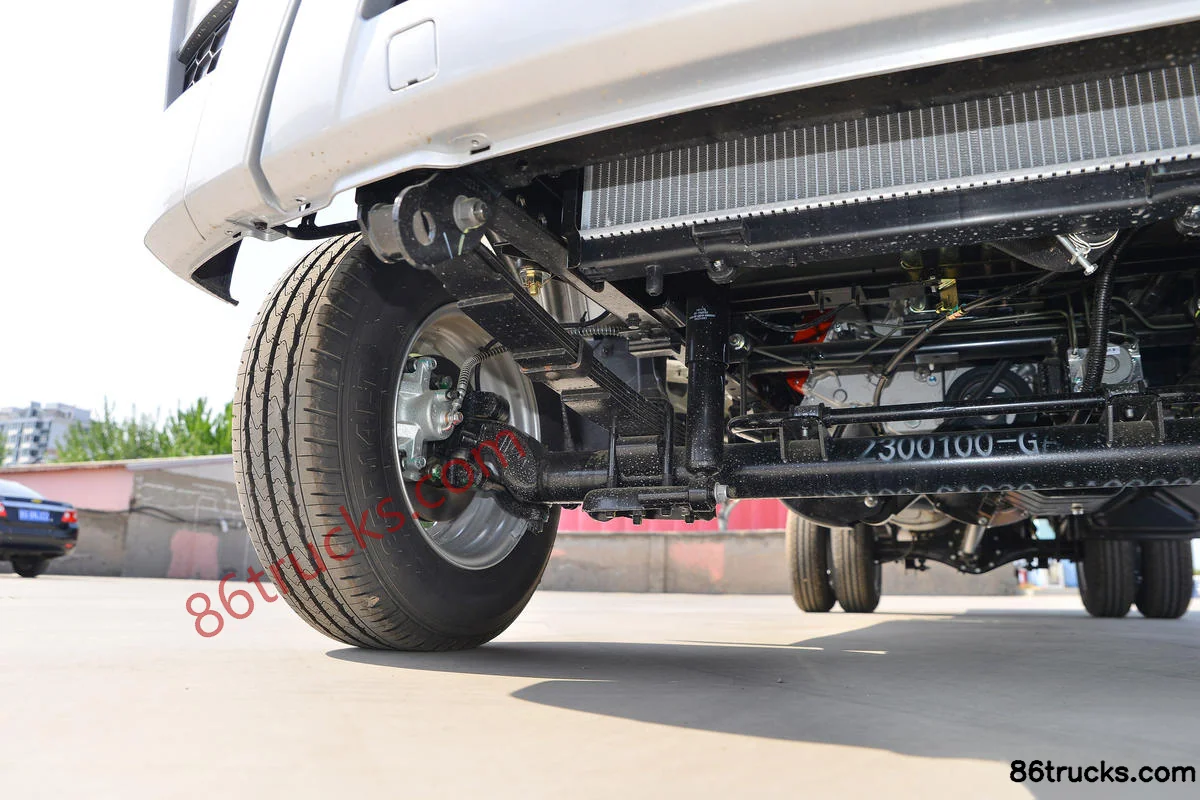

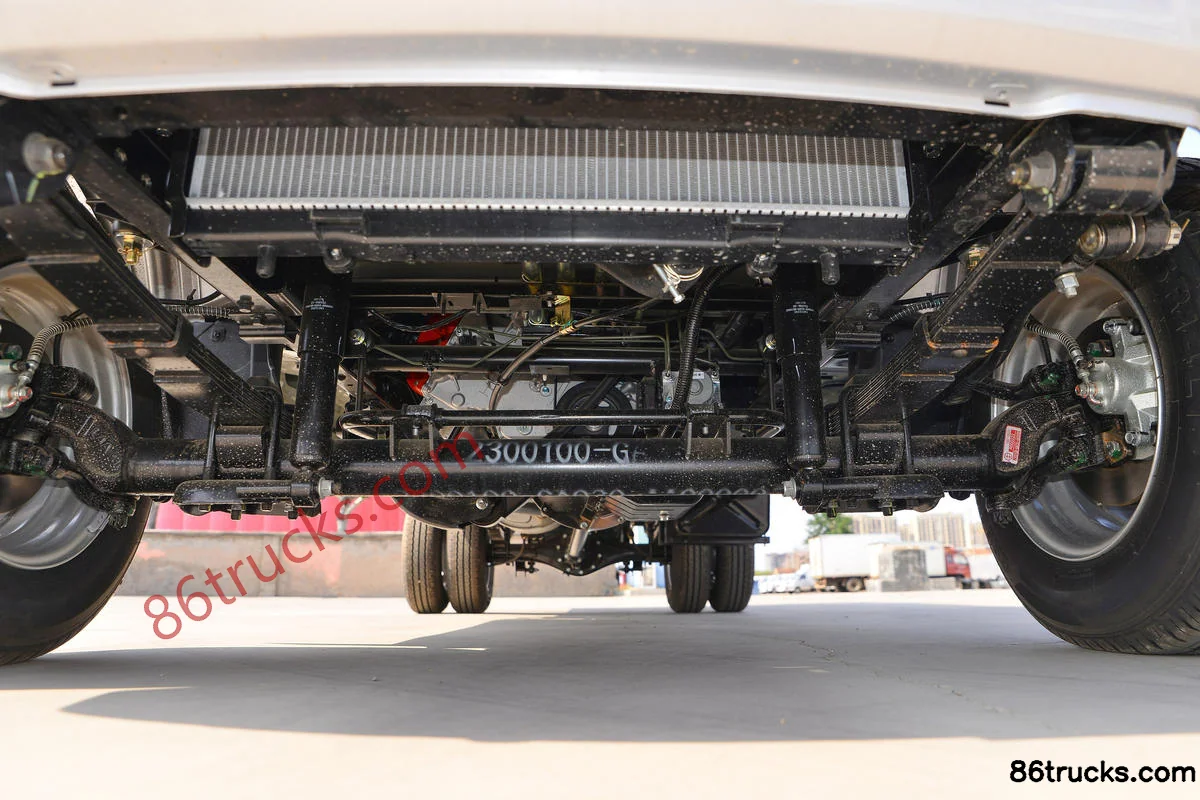

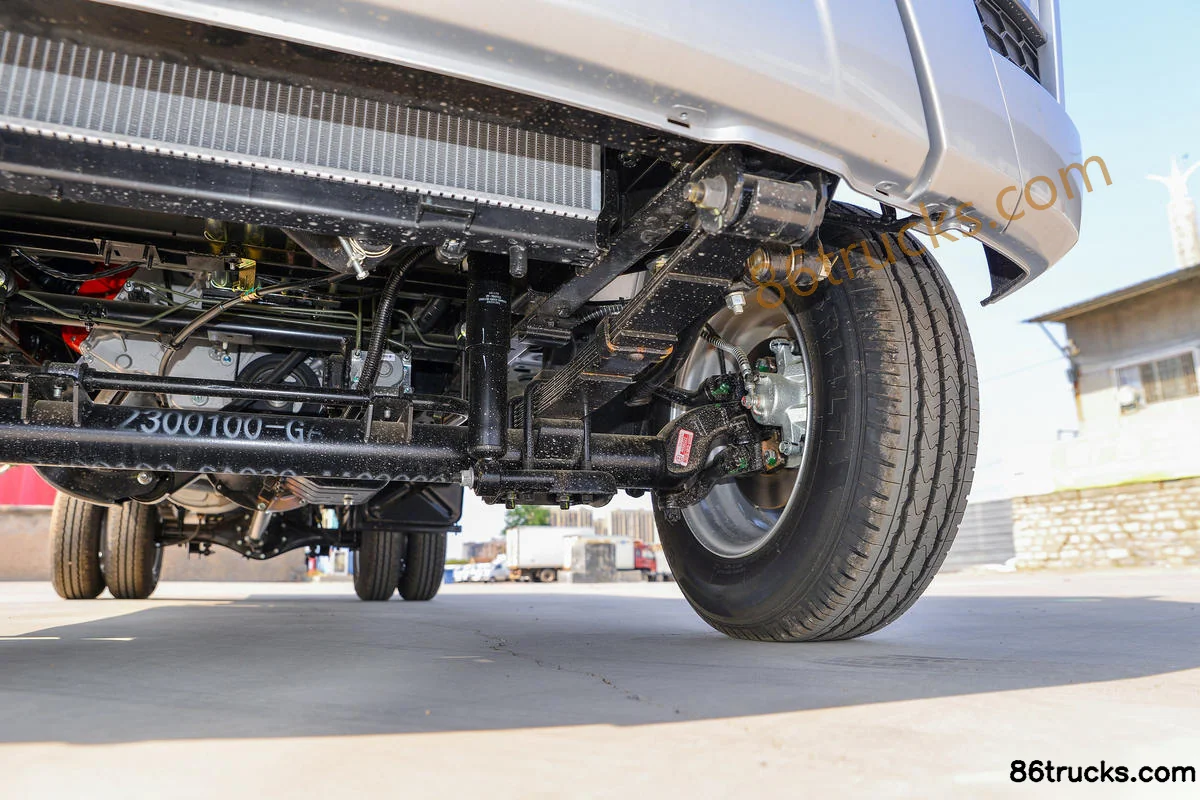

Chassis3

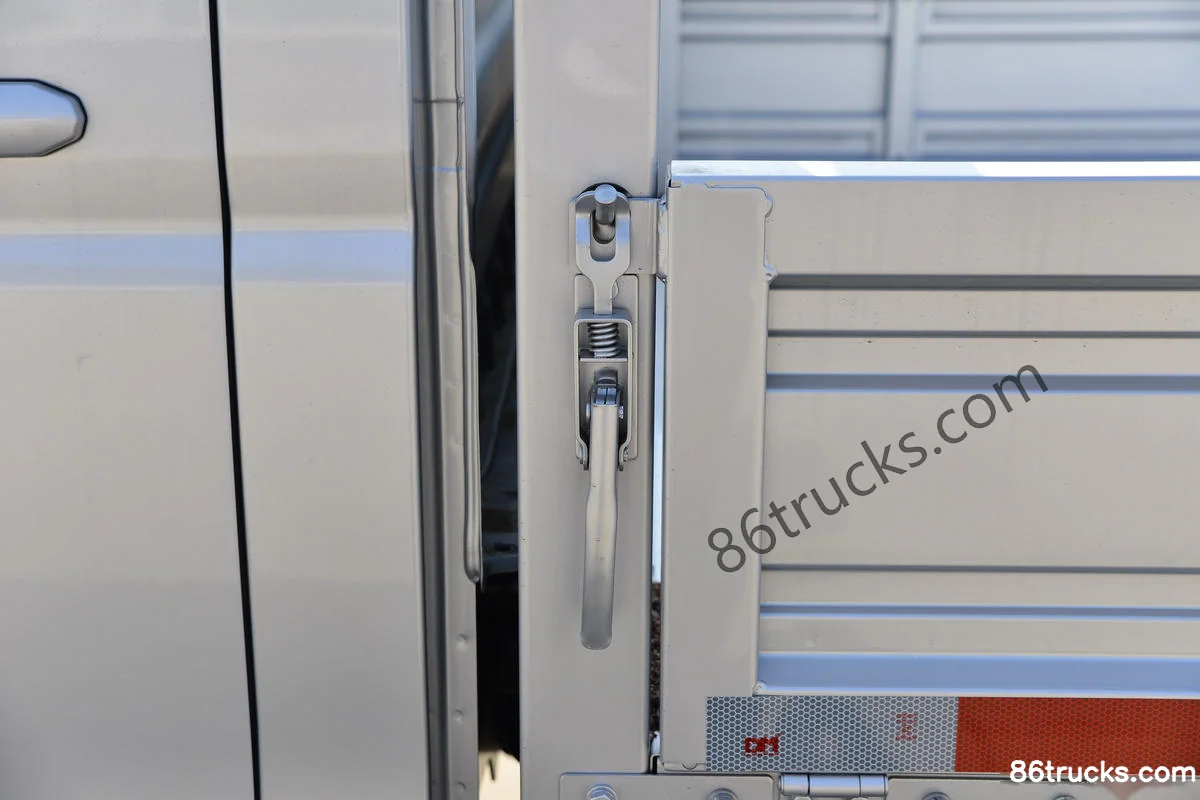

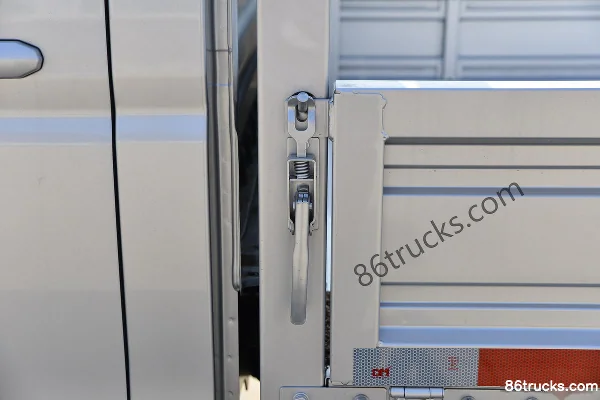

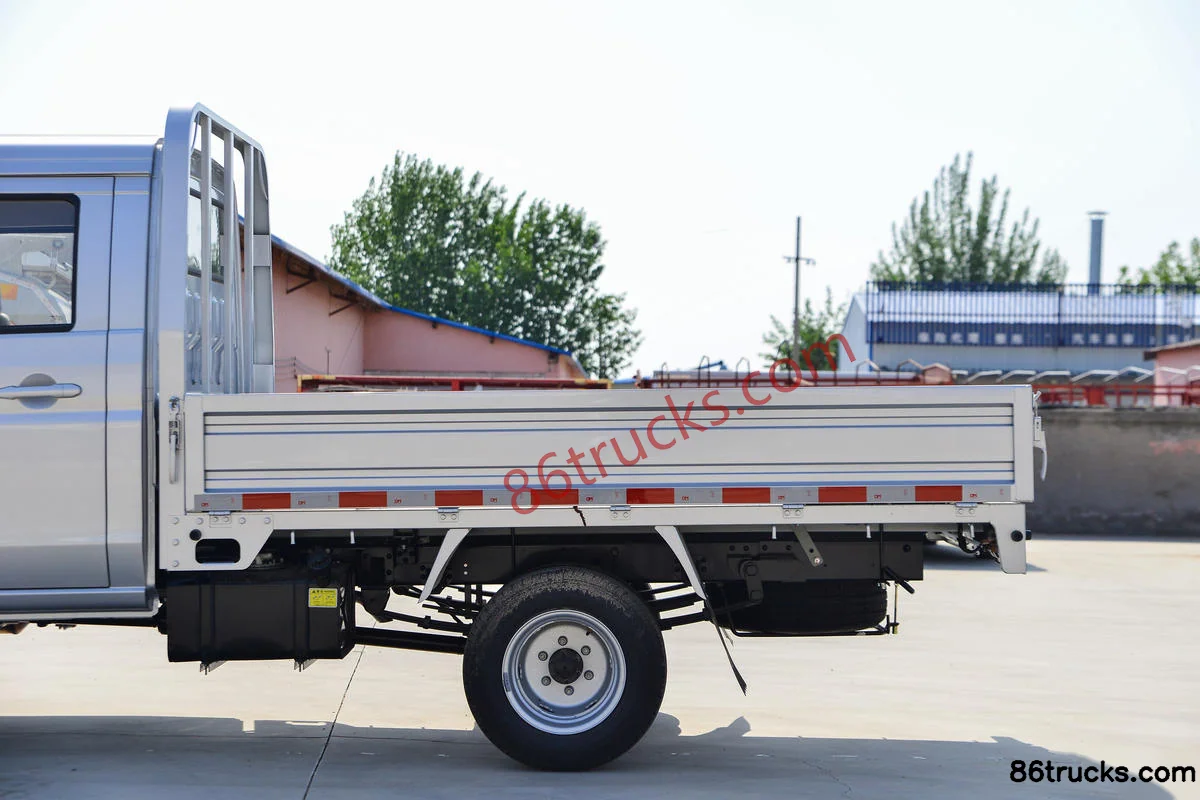

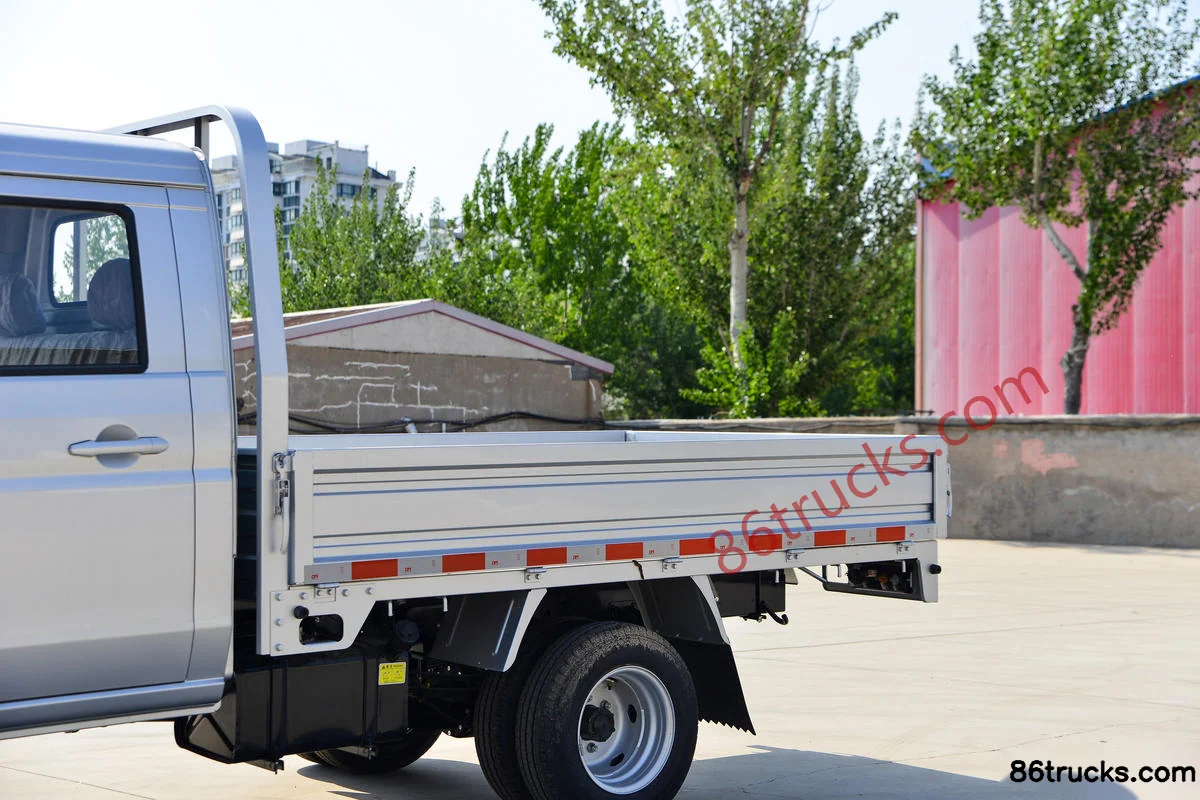

Body3

12 photos

FAQ

What is the export price of Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck, and what does it include?

Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck export reference is about From $7,764; MSRP is ¥5.59M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck?

Key specs of Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck: Drive: 4x2; Horsepower: 123 hp; Emission: China VI; Fuel: gasoline; Engine: Brilliance Xinyuan 1.6L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck suited for?

Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck differ from other variants in the same series?

Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck belongs to Jinbei T5 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinbei T5L 2024 Comfort 1.6L 123hp 4X2(6 wheels) Gasoline 2.85m Double-row Flatbed Micro Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
