JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI)

Export reference
From $14,944
MSRP ¥10.76M CNY
Horsepower: 116
Emission: China VI
Fuel: Diesel
Engine: JMC4D30
Transmission: JMC
Curb Weight:: 2.69ton
seating capacity: 2Personnel
Rated payload: 3.11ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI) is a Light Truck featuring 4.1m cargo length, stake body cargo body, 2Personnel volume and 3.11t payload. Its segment focus covers Building materials and LTL transport, matching those duty cycles. On the powertrain side, it comes with a JMC4D30 engine, 116 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1062TG26
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.1m
engine: JMCJX4D30B6H
transmission: JMC5MTI280S
Cab length: 5.995m
Cab width: 2.19m
Cab height: 2.42m
Front track width: 1680mm
rear track: 1570mm
Curb Weight: 2.69ton
Rated payload: 3.11ton
GVWR: 5.995ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18°
departure angle: 15°
market segment: Building materials, LTL transport
Front/rear suspension: 1.14/1.495m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX4D30B6H
Engine info: JMC4D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.892L
Emission standard: China VI
Max output power: 85kW
Max hp: 116Horsepower
Transmission Parameters
Transmission Model: JMC5MTI280S
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.1m
Cargo box width: 1.94m
Cargo box height: 0.44m
*Cargo box interior width: 1.9400000572205
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2175kg
rear axle allowable load: 3820kg
Leaf spring count: 7/5+6
Tire
Tire Size: 7.00R16LT 12PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Manual

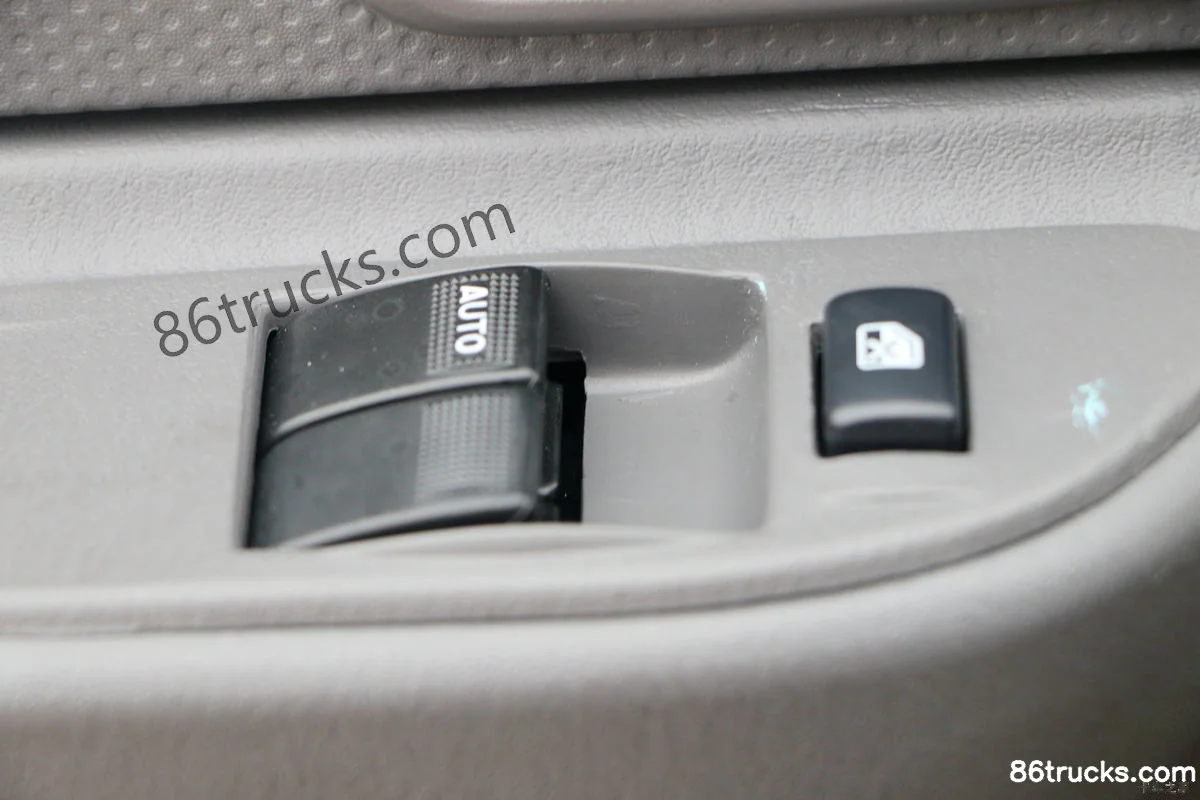

Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Air brake

Photos

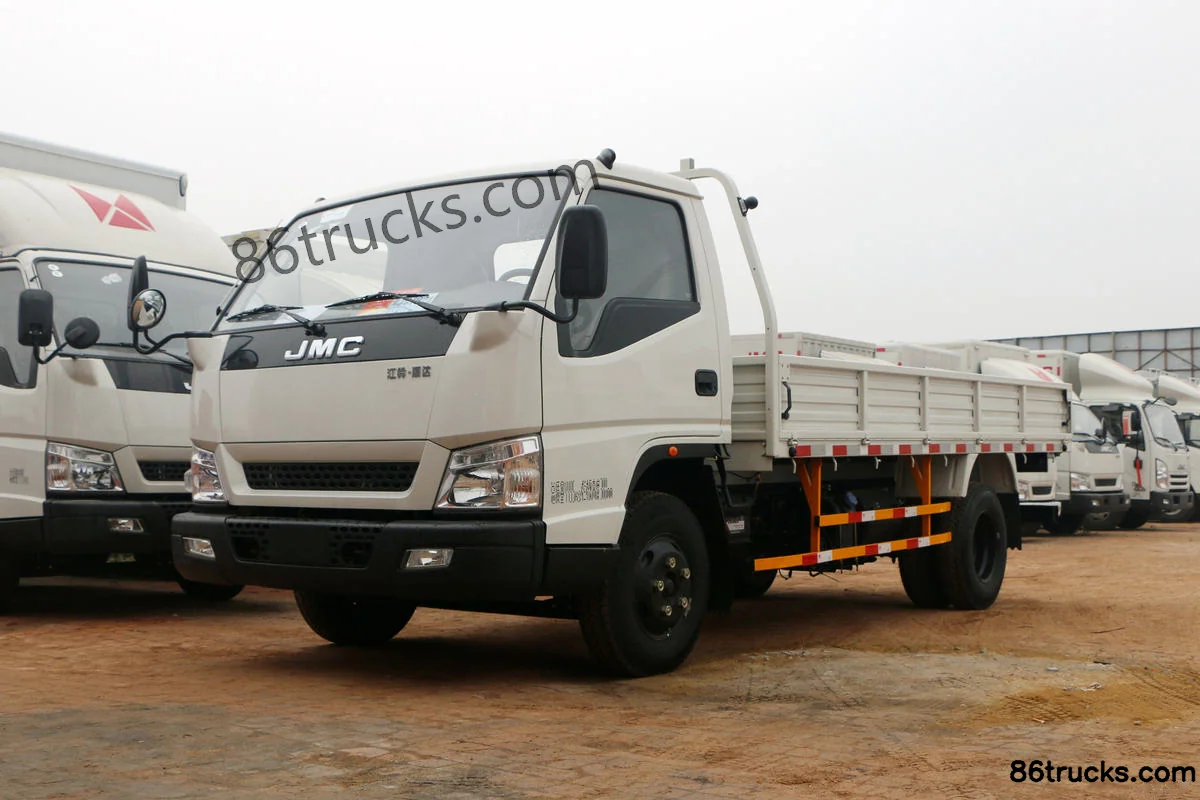

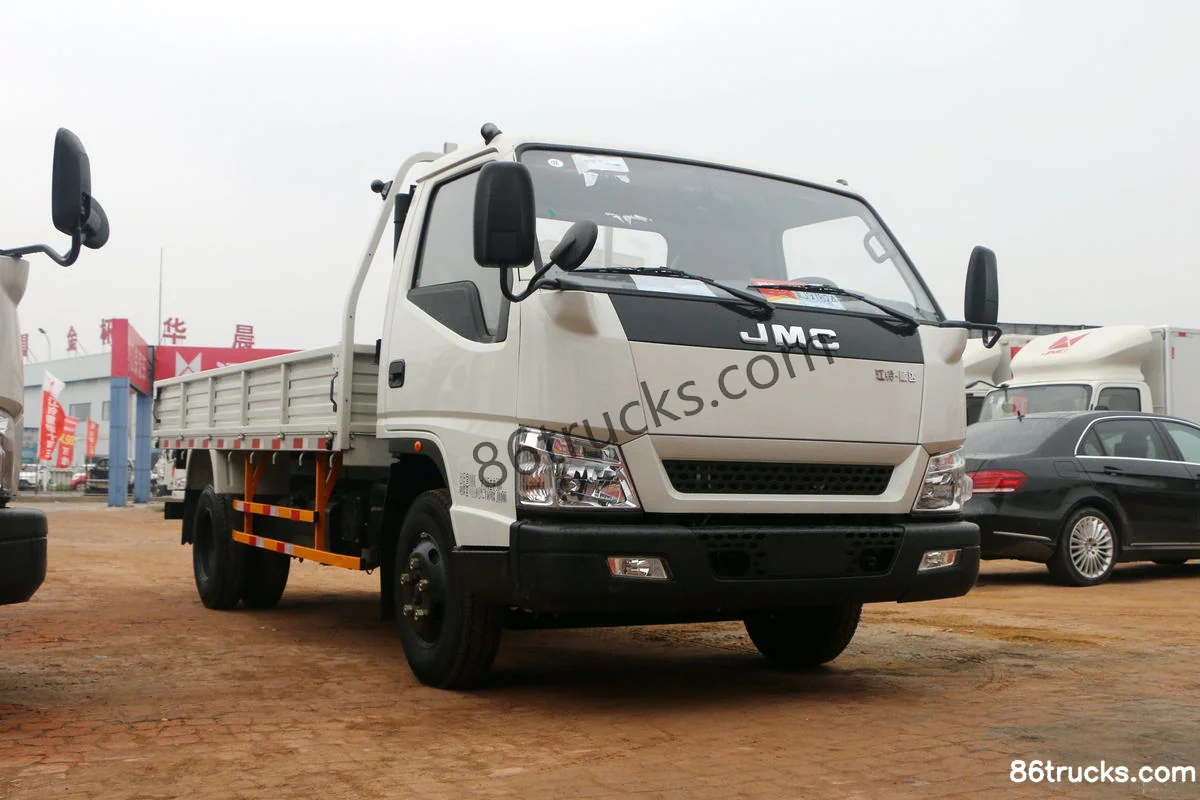

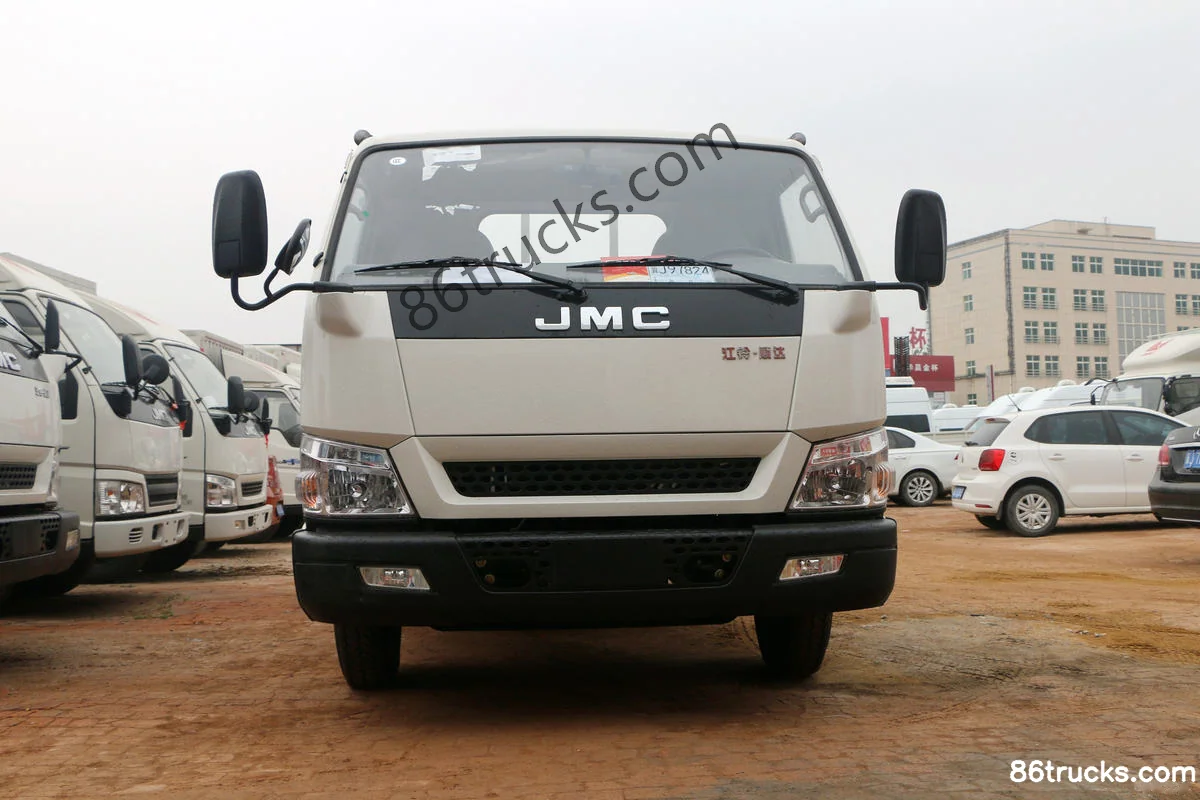

Exterior3

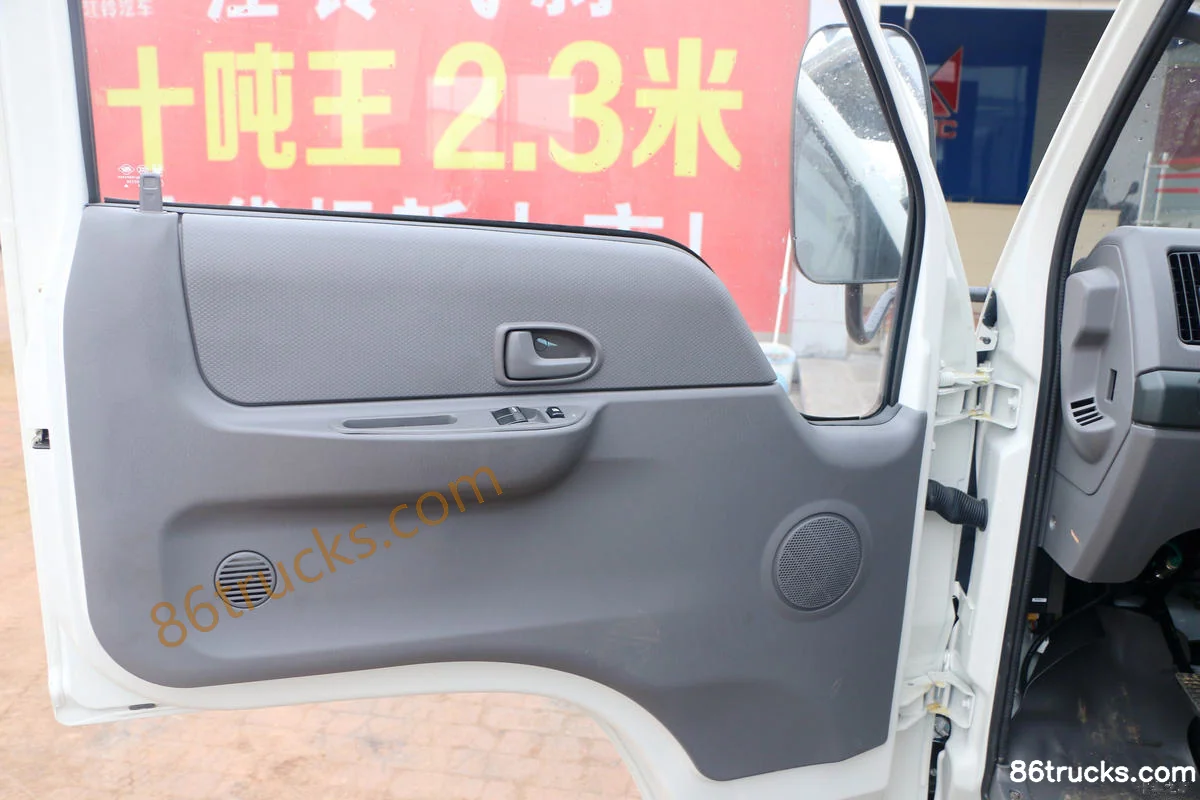

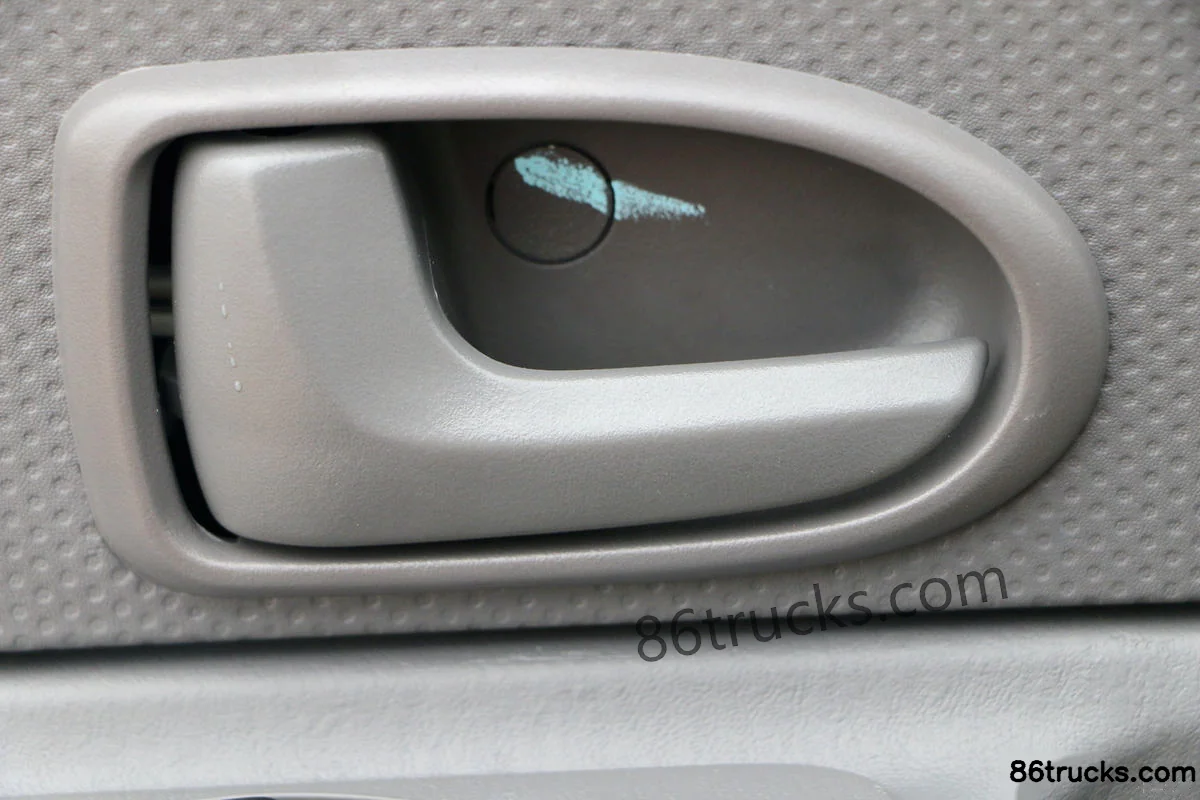

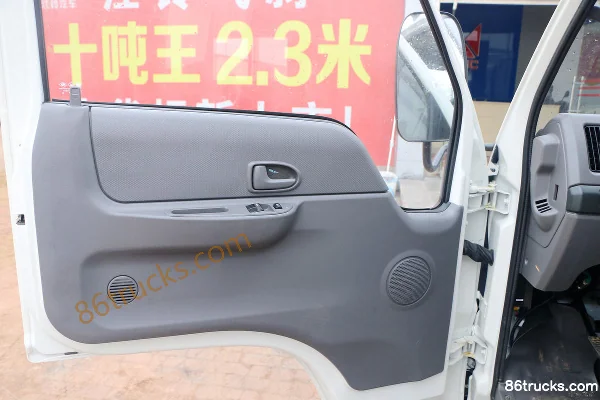

Cab3

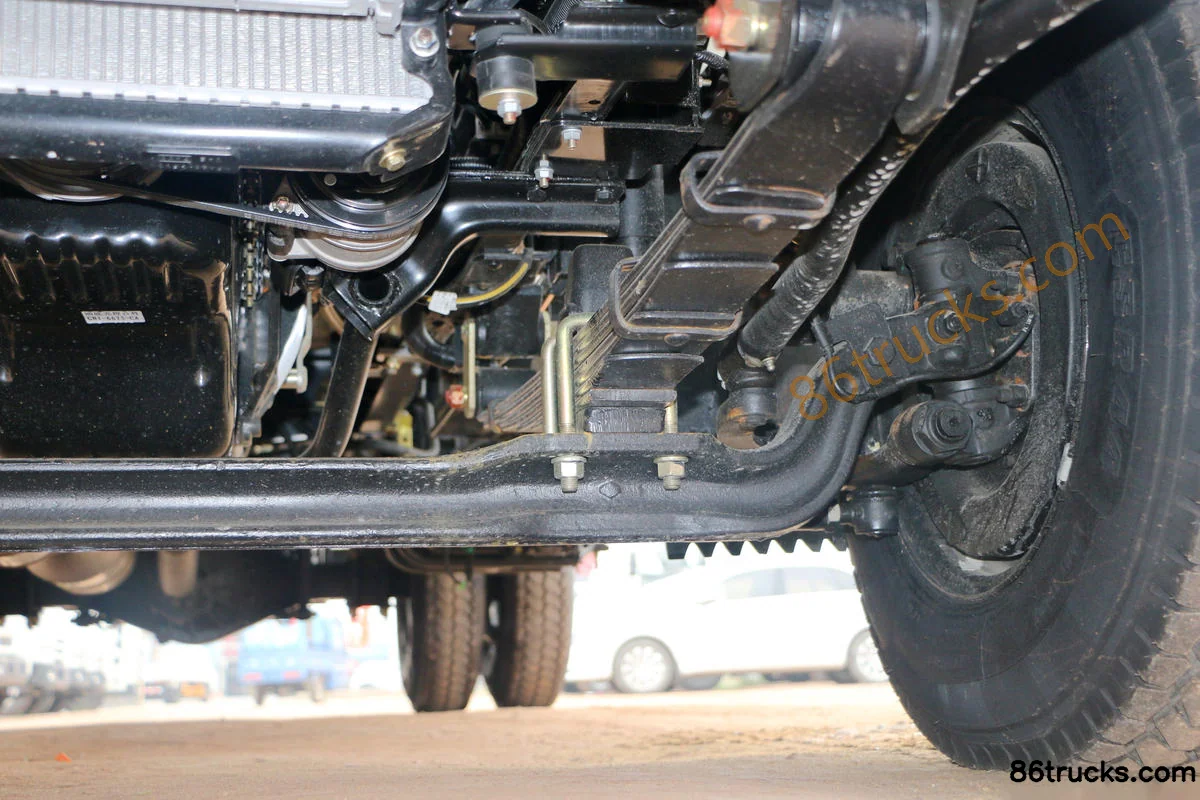

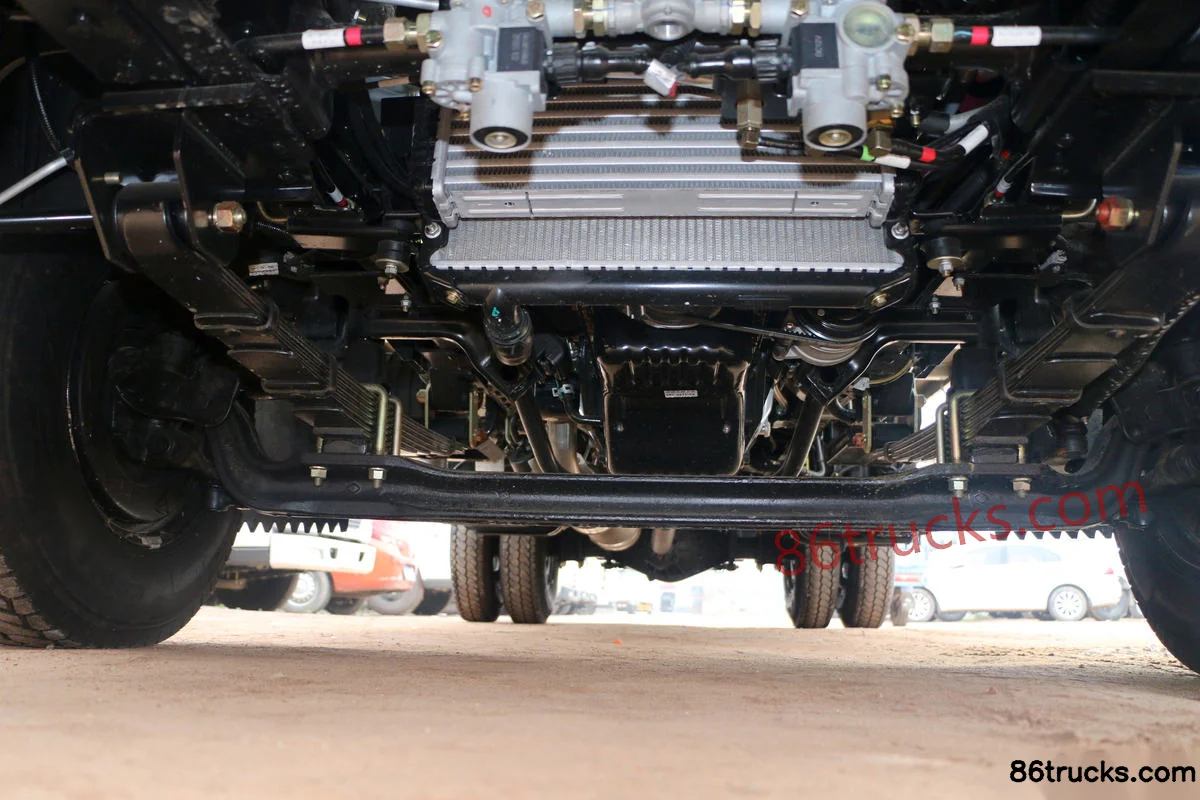

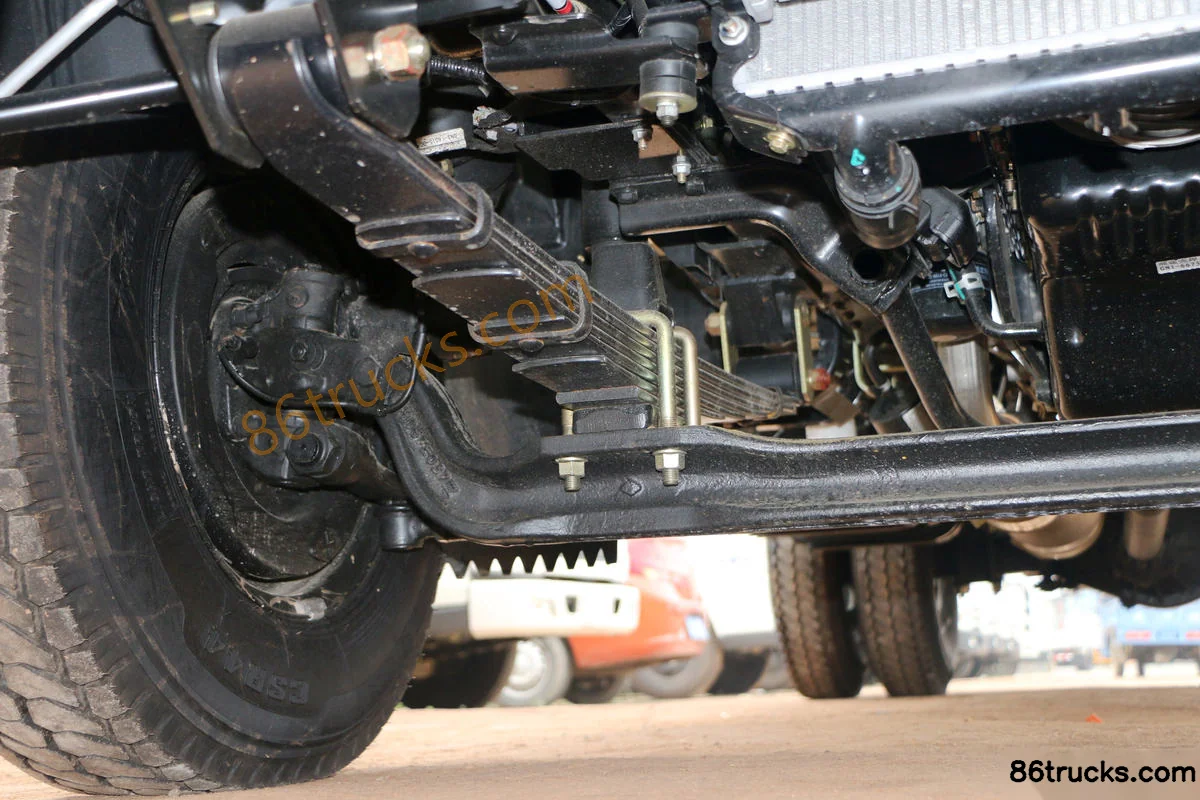

Chassis3

9 photos

FAQ

What is the export price of JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI), and what does it include?

JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI) export reference is about From $14,944; MSRP is ¥10.76M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI)?

Key specs of JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI): Drive: 4x2; Horsepower: 116 hp; Emission: China VI; Fuel: Diesel; Engine: JMC4D30; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI) suited for?

JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI) differ from other variants in the same series?

JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI) belongs to JMC Shunda wide-body light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda wide body 116hp 4X2(6 wheels) 4.1m single-row flatbed light truck (air brake) (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
