Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI)

Export reference
From $19,306
MSRP ¥13.9M CNY
Horsepower: 120
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.805ton
Wheelbase:: 3360mm
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI) is a Light Truck featuring 4.14m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Logistics Freight and City Distribution, matching those duty cycles. On the powertrain side, it comes with 120 hp, 4X2 (6 wheels) drive, China VI emissions and WLY transmission.

China VI 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5048XXY8JDA-AB2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Foton4J28TC6
transmission: WLYWLY5G32
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.14m
Front track width: 1730mm
rear track: 1615mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 19°
departure angle: 16°
market segment: Logistics Freight, City Distribution
Remarks: Optional: radial tires, manual A/C
Front/rear suspension: 1.11/1.515m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4J28TC6
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China VI
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 324N·m
Max torque speed: 1800-2400rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.14m
Cargo box width: 2.1m
Cargo box height: 2.1m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 1880mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1575kg
rear axle description: 4.5T
rear axle allowable load: 2920kg
Axle ratio: 4.875
Leaf spring count: 3/5+2
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

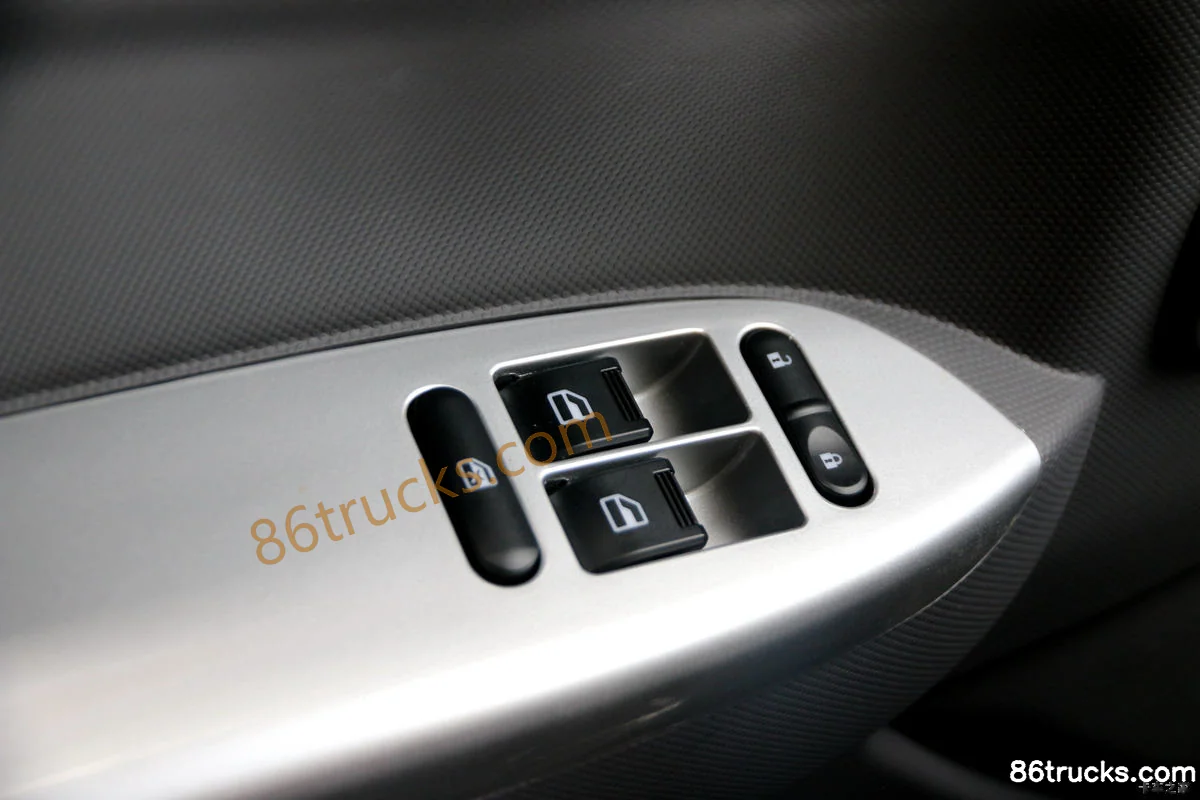

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
lighting configuration
daytime running lights:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

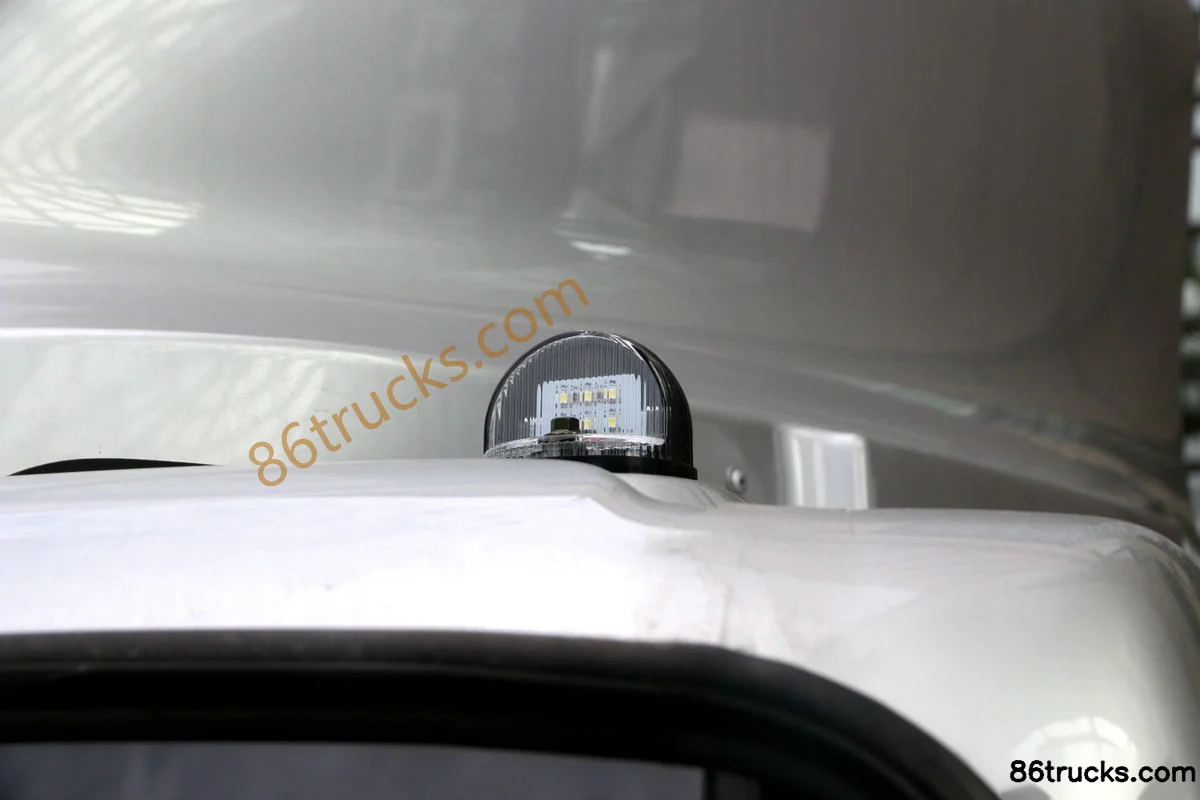

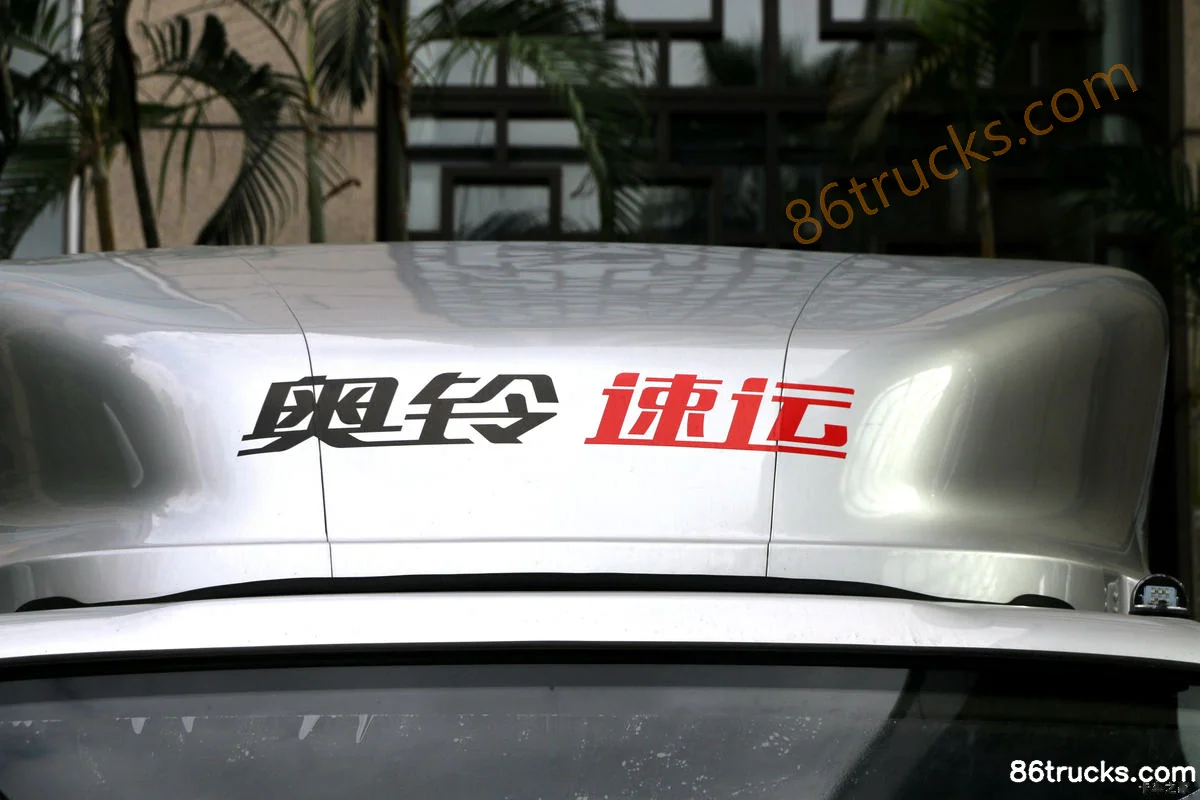

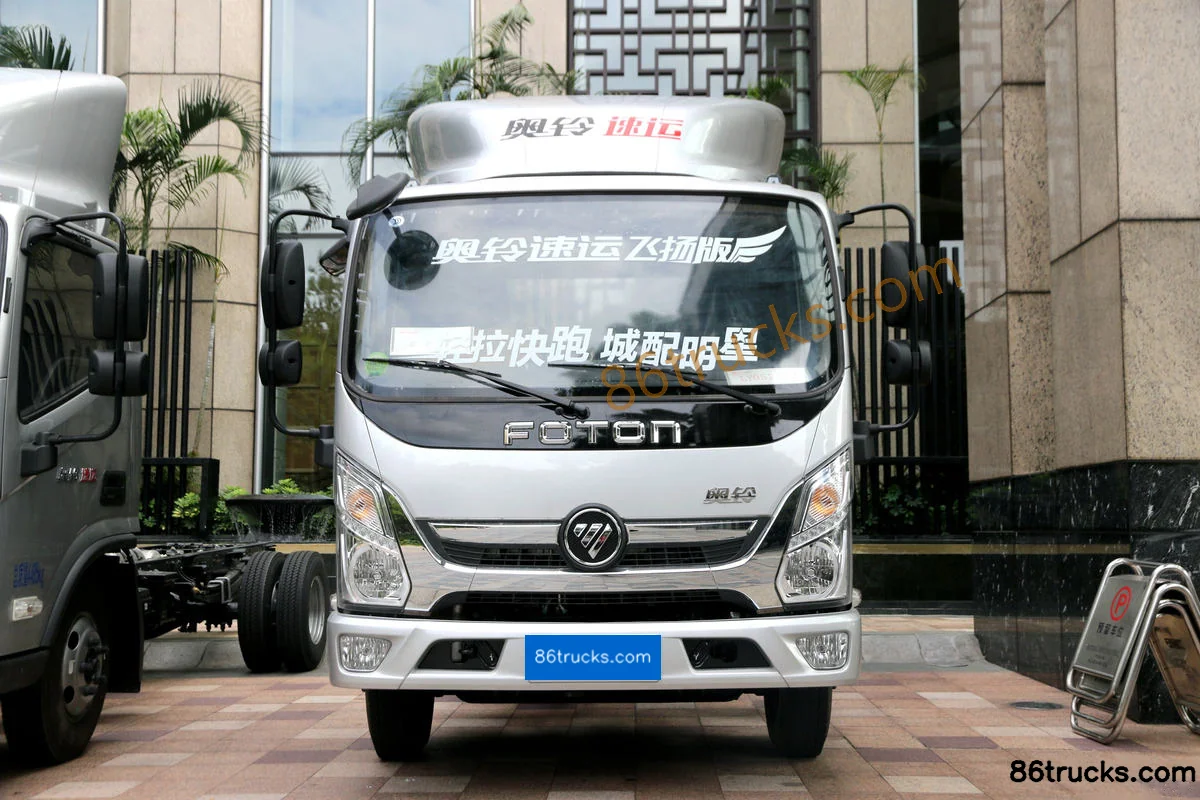

Exterior3

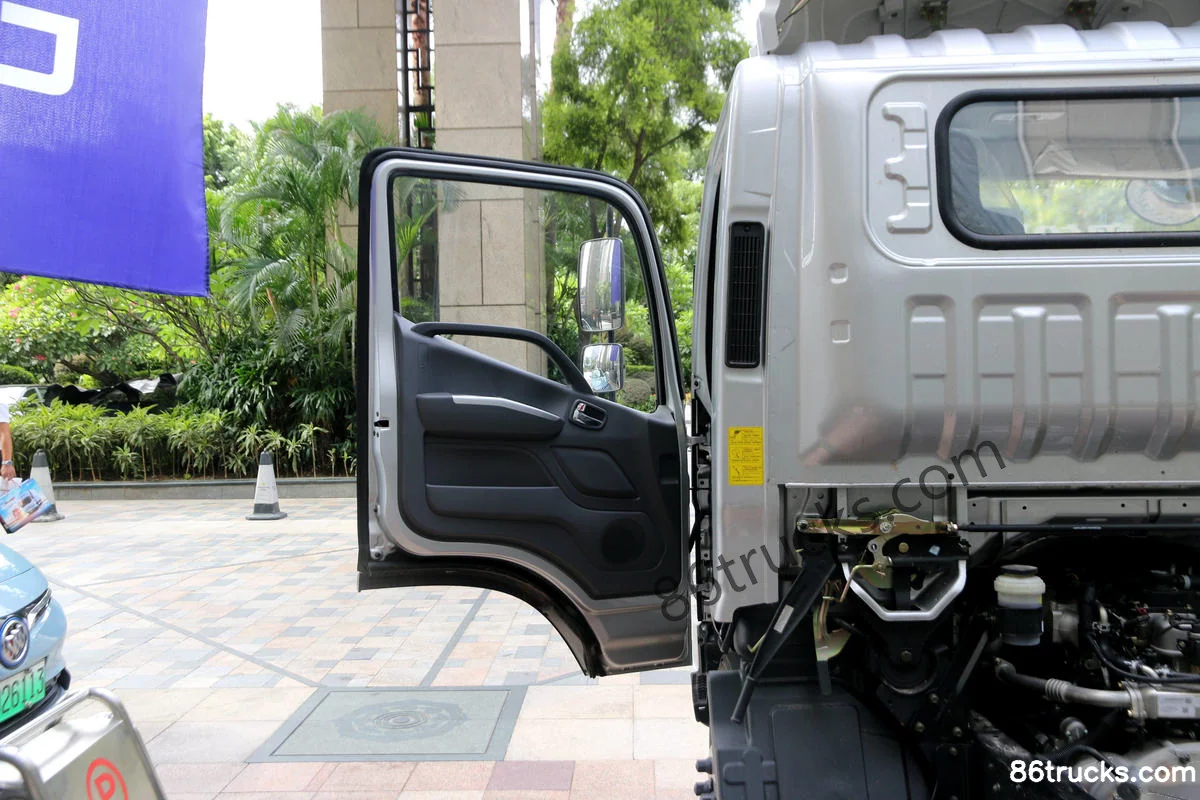

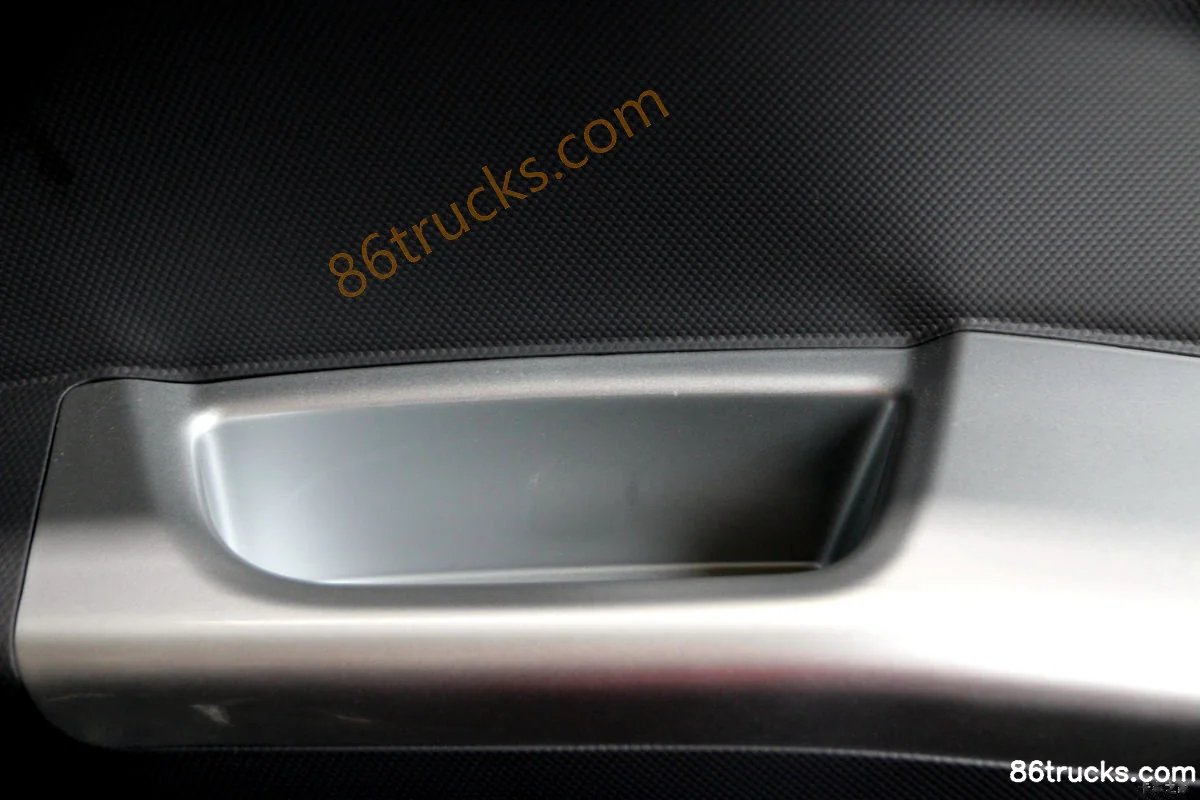

Cab3

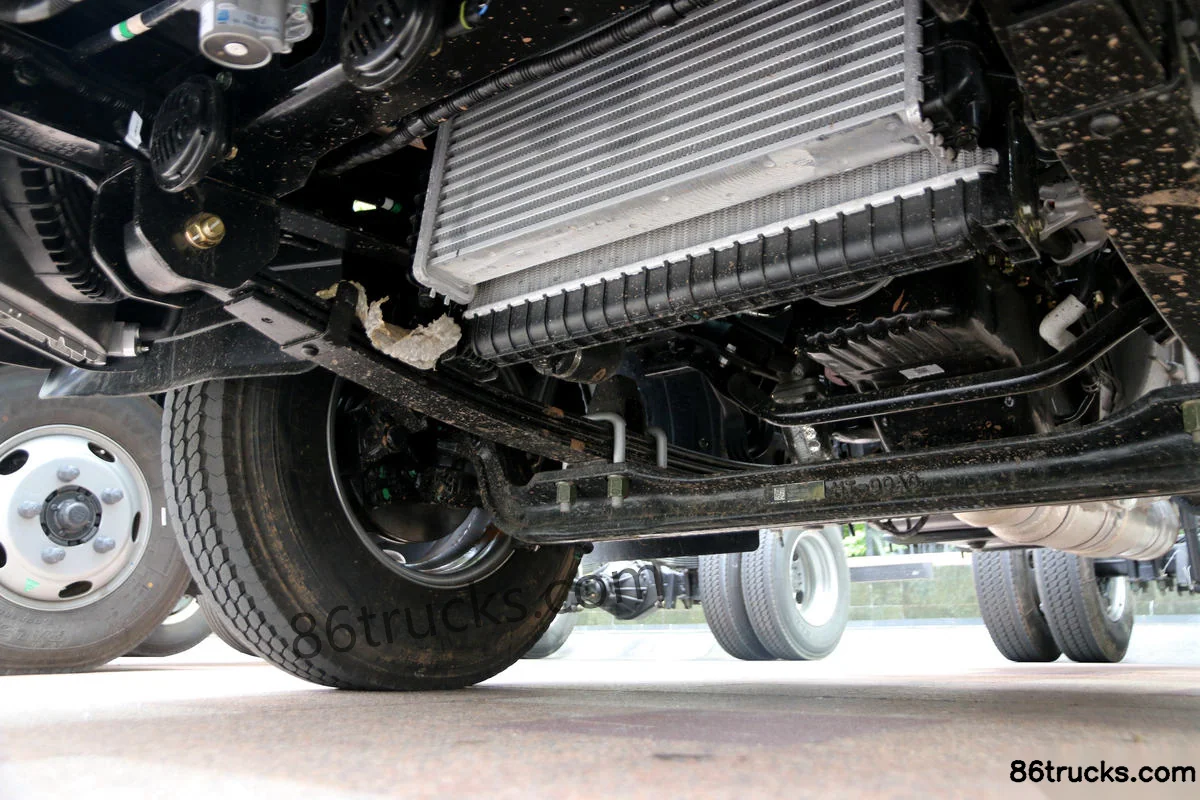

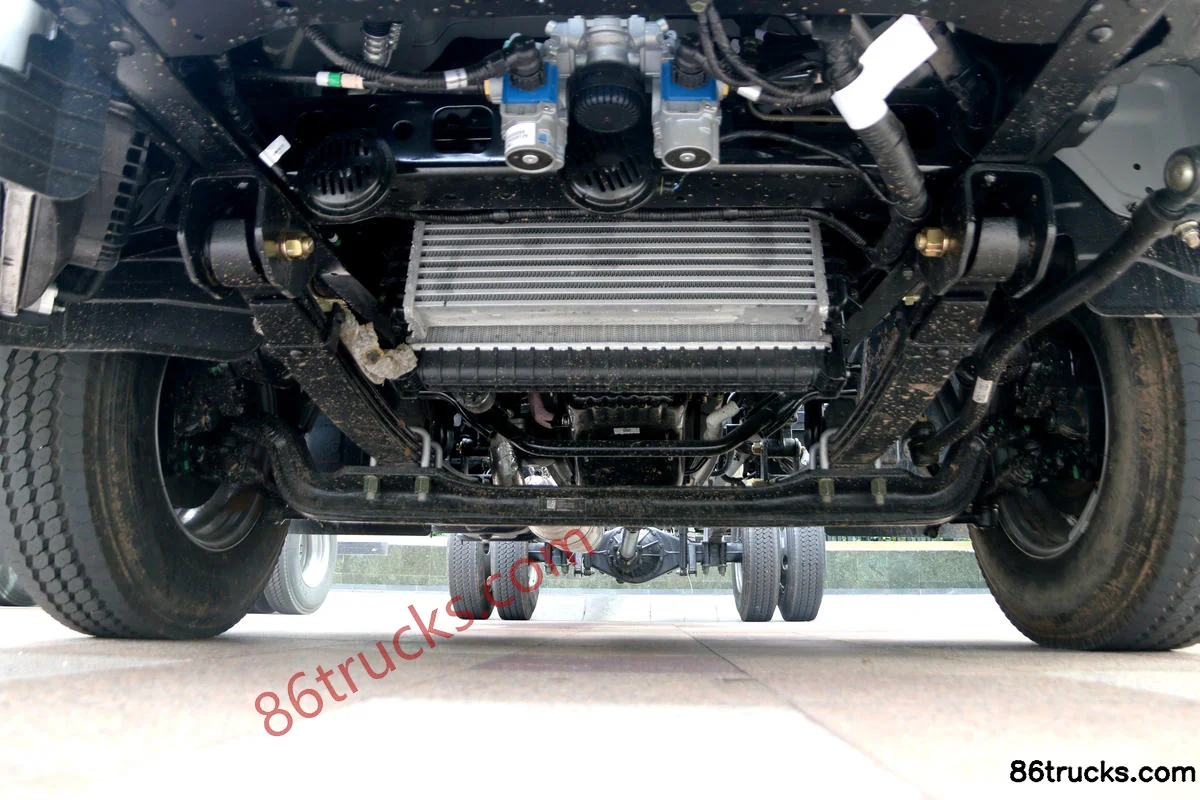

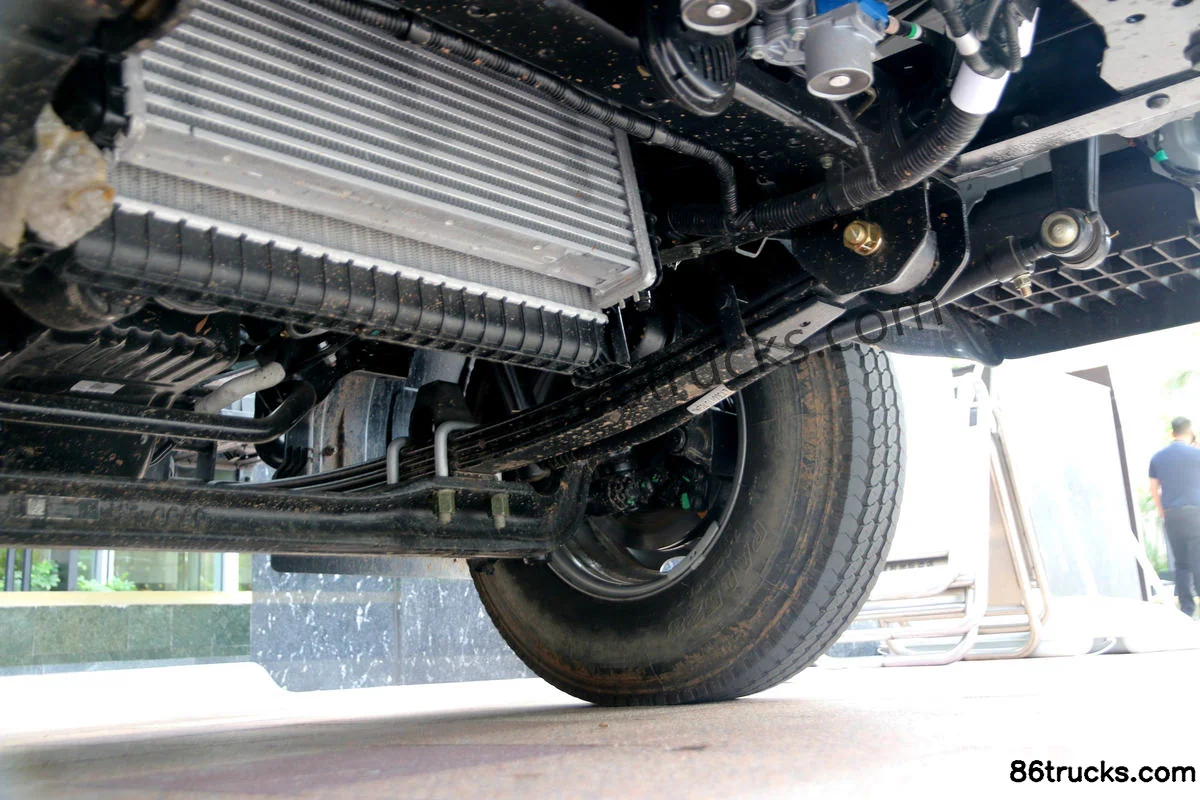

Chassis3

9 photos

FAQ

What is the export price of Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI), and what does it include?

Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI) export reference is about From $19,306; MSRP is ¥13.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI)?

Key specs of Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI): Drive: 4x2; Horsepower: 120 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI) suited for?

Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI) differ from other variants in the same series?

Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI) belongs to Foton Suyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling Supu 120hp 4X2(6 wheels) 4.14m single-row box light truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
