JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck

Export reference
From $19,167
MSRP ¥13.8M CNY
Horsepower: 150
Emission: China V
Fuel: Diesel
Engine: WeichaiWP3
Transmission: Lu'an
Curb Weight:: 3.95ton
seating capacity: 3Personnel
Rated payload: 7.775ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 3Personnel volume and 7.775t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP3 engine, 150 hp, 4X2 (6 wheels) drive and China V emissions.

China V 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5120CCYP71K8C2V
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: WeichaiWP3NQ150E50
transmission: Lu'an LC6T450
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.4m
Cab height: 3.4m
Front track width: 1720mm
rear track: 1785mm
Curb Weight: 3.95ton
Rated payload: 7.775ton
GVWR: 11.92ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 16°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.11/1.577m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ150E50
Engine info: WeichaiWP3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China V
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 430N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Lu'an LC6T450
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 130L
Chassis Specs
Front axle allowable load: 4120kg
rear axle allowable load: 7800kg
Axle ratio: 4.875
Leaf spring count: 4/9+7,9/9+7
Tire
Tire Size: 245/70R19.5 14PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

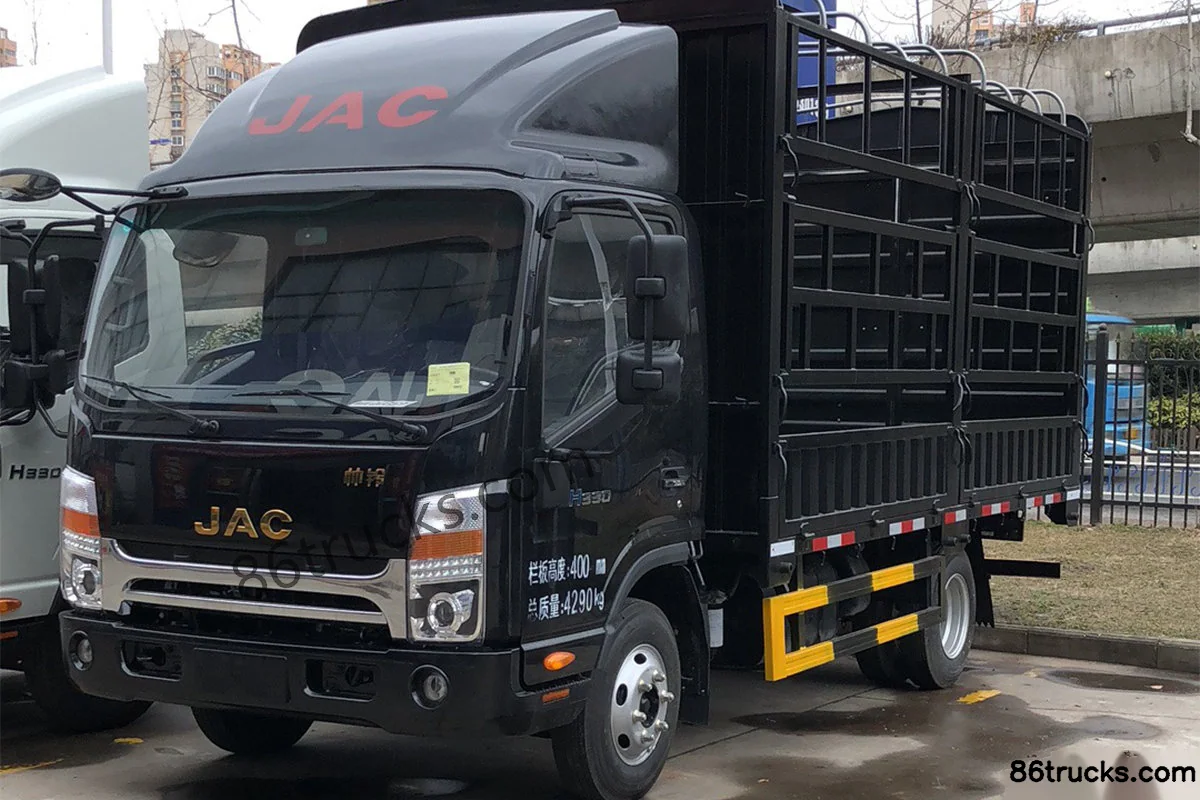

Exterior1

1 photos

FAQ

What is the export price of JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck, and what does it include?

JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck export reference is about From $19,167; MSRP is ¥13.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck?

Key specs of JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck: Drive: 4x2; Horsepower: 150 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP3; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck suited for?

JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck differ from other variants in the same series?

JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck belongs to JAC H light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing H330 150 hp 4X2(6 wheels) 4.18m Single Row Cage Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
