SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.365ton
Wheelbase:: 3850mm
Cargo box type:: Van body
Model code (announced):: SH5041XXYA9EV-6F
Type:: enclosed cargo truck
Box length class:: 3.4m
SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels) exterior
View more photos (2)
Drive 4X2 (6 wheels)
CLTC range: 330km
Motor 1 Brand: Zhonglian Nengchuang
Curb Weight: 2.6ton

Overview

The SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels) is a Light Truck featuring 330km battery/range, Zhonglian Nengchuang motor, 4X2 (6 wheels) drive and 1.365t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SH5041XXYA9EV-6F
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3850mm
Box length class: 3.4m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.23m
CLTC range: 330km
Curb Weight: 2.6ton
Rated payload: 1.365ton
GVWR: 4.16ton
Max. speed: 100km/h
Origin: Wuxi, Jiangsu
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Zhonglian Nengchuang
Motor 1 Model: TZ249XSS001
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 100kW
total peak torque: 320N·m
Battery/Charging
Battery Brand: 盟固利
Battery type: Lithium manganate battery
Battery capacity: 71kWh
Energy Density: 133.44
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.42m
Cargo box width: 2.013m
Cargo box height: 2.23m
Cab parameters
Cab: Maxus EV80
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1880kg
rear axle allowable load: 2280kg
Tire
Tire Size: 215/75R16LT
Number of tires: 4pcs
Control configuration
ABS:

Photos

Exterior2

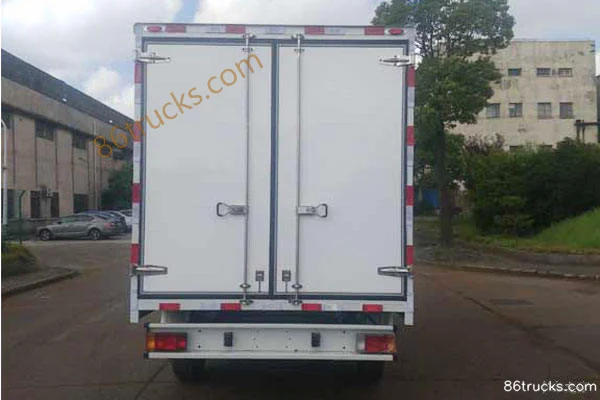

SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels) Exterior (1) | 86Trucks SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels) Exterior (2) | 86Trucks

2 photos

FAQ

What are the key specs of SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels)?

Key specs of SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels) suited for?

SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels) differ from other variants in the same series?

SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels) belongs to SAIC MAXUSEV80 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC MAXUS EV80 4.16T 3.42m Single Row Electric Box Truck 71kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
