Hongchang Tianma 10m Flatbed Dump Semi-Trailer

Export reference
MSRP N/A
Cab length:: 10m
Number of Axles:: 3
suspension:: -/4/4/4
Lifting device:: Front lift
Other:: Cargo body thickness: floor 2.5 mm, front 8 mm; wheelbase 4930+1310+1310 mm; high-strength steel body; hydraulic roof cover; domestic 224 hydraulic cylinder.
Design load capacity: 31.5ton
Cargo box side plate thickness: 8mm
Curb Weight: 8.5ton
Tire Size: 11.00R20 12PR

Overview

The Hongchang Tianma 10m Flatbed Dump Semi-Trailer is a dump semi-trailer featuring 31.5ton payload, 8.5ton GVW, 8mm cargo body and 10m cab.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 31.5ton
Cab length: 10m
Cab width: 2.5m
Cab height: 3.7m
Curb Weight: 8.5ton
Chassis Specs
Number of Axles: 3
Axle Load Rating: 24000KG (tri-axle group)
suspension: -/4/4/4
Body Parameters
Cargo box side plate thickness: 8mm
Lifting device: Front lift
Parts & accessories
ABS:
Other notes
Other: Cargo body thickness: floor 2.5 mm, front 8 mm; wheelbase 4930+1310+1310 mm; high-strength steel body; hydraulic roof cover; domestic 224 hydraulic cylinder.
Tire
Tire Size: 11.00R20 12PR
Number of tires: 12pcs

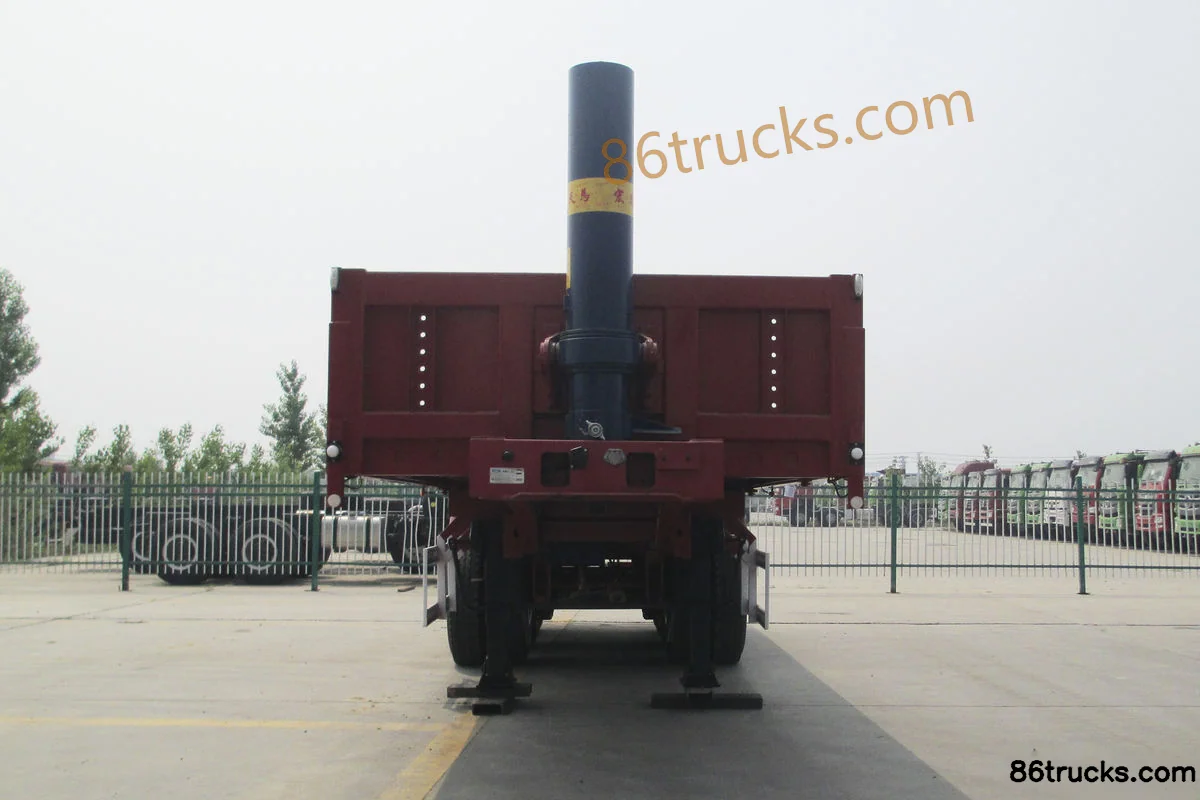

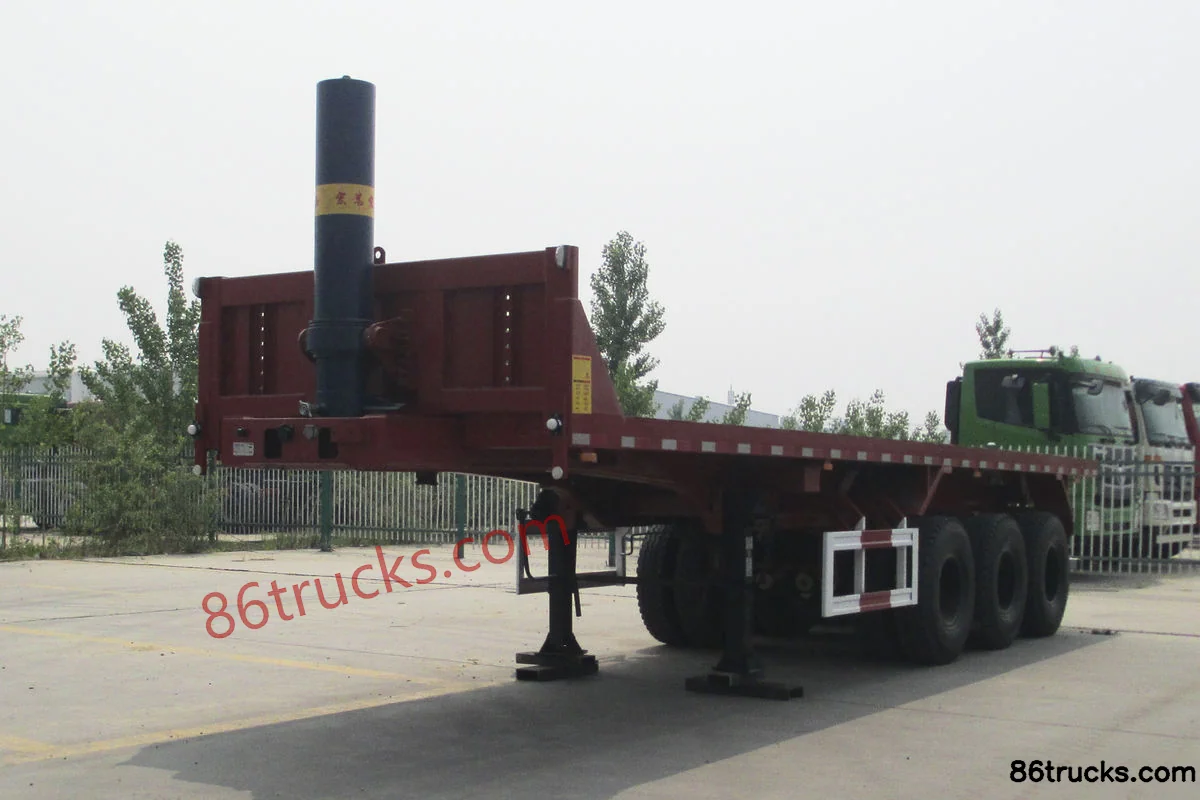

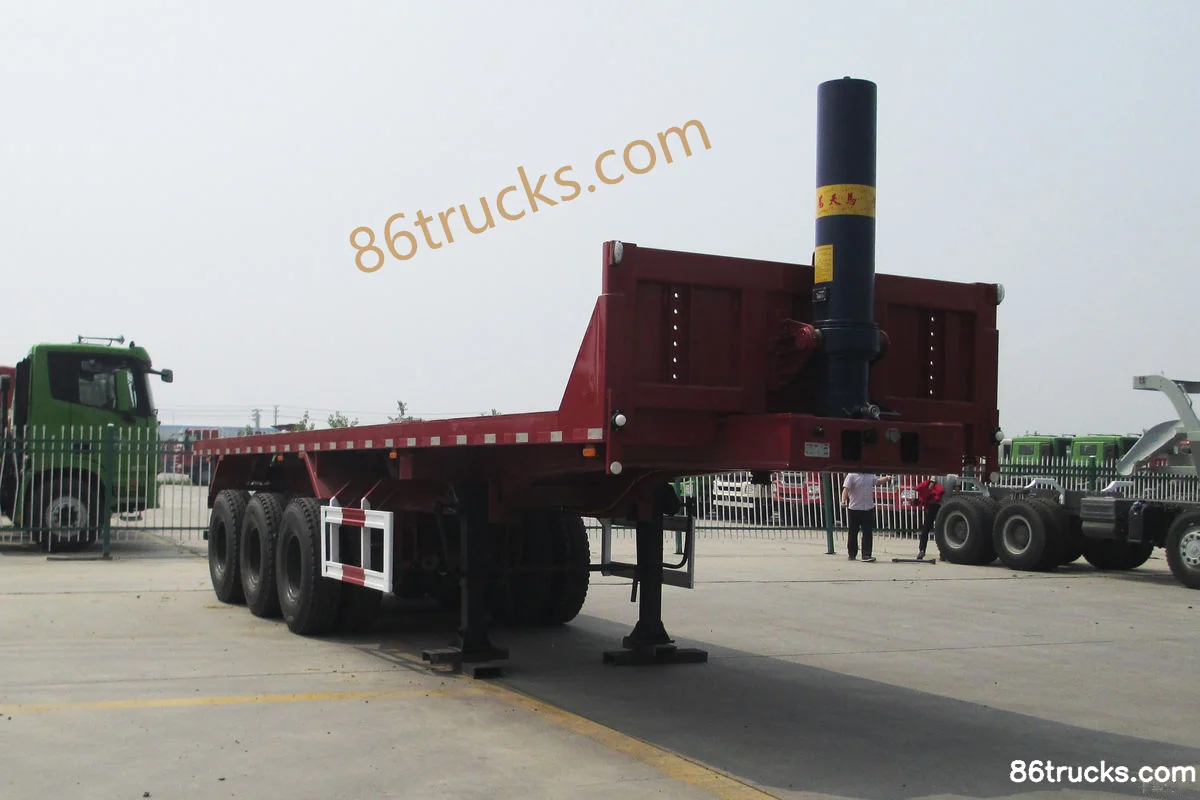

Photos

Exterior3

3 photos

FAQ

What transport jobs is Hongchang Tianma 10m Flatbed Dump Semi-Trailer suited for?

Hongchang Tianma 10m Flatbed Dump Semi-Trailer is a dump semi-trailer model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongchang Tianma 10m Flatbed Dump Semi-Trailer differ from other variants in the same series?

Hongchang Tianma 10m Flatbed Dump Semi-Trailer belongs to Hongchang Tianma 10m Flatbed Dump Semi-Trailer (dump semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongchang Tianma 10m Flatbed Dump Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongchang Tianma 10m Flatbed Dump Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
