FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 18PR
Displacement:: 11.8L
Model code (announced):: CAL4250C4GF4E5
Drive 6X2 (8 wheels)
Horsepower 490
Emission China V
Transmission Fast Gear

Overview

The FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins) is a Heavy truck featuring 6X2 (8 wheels) drive, 490 hp, 25t GVW and China V emissions. On the powertrain side, it comes with a FotonISGe5-490 engine, Fast Gear transmission and Diesel fuel.

China V 490 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CAL4250C4GF4E5
Drive type: 6X2
Wheelbase: 3300+1350mm
engine: FotonISGe5-490
transmission: Fast Gear12JSD240TA
Rear Axle Ratio: 3.42
Cab length: 6.96m
Cab width: 2.525m
Cab height: 3.77m
Front track width: 2040mm
Gross Trailer Weight: 40ton
rear track: 1820/1820mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Lingyuan, Liaoning
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISGe5-490
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China V
Max output power: 360kW
Max hp: 490Horsepower
Max torque: 2300N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD240TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 600L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab

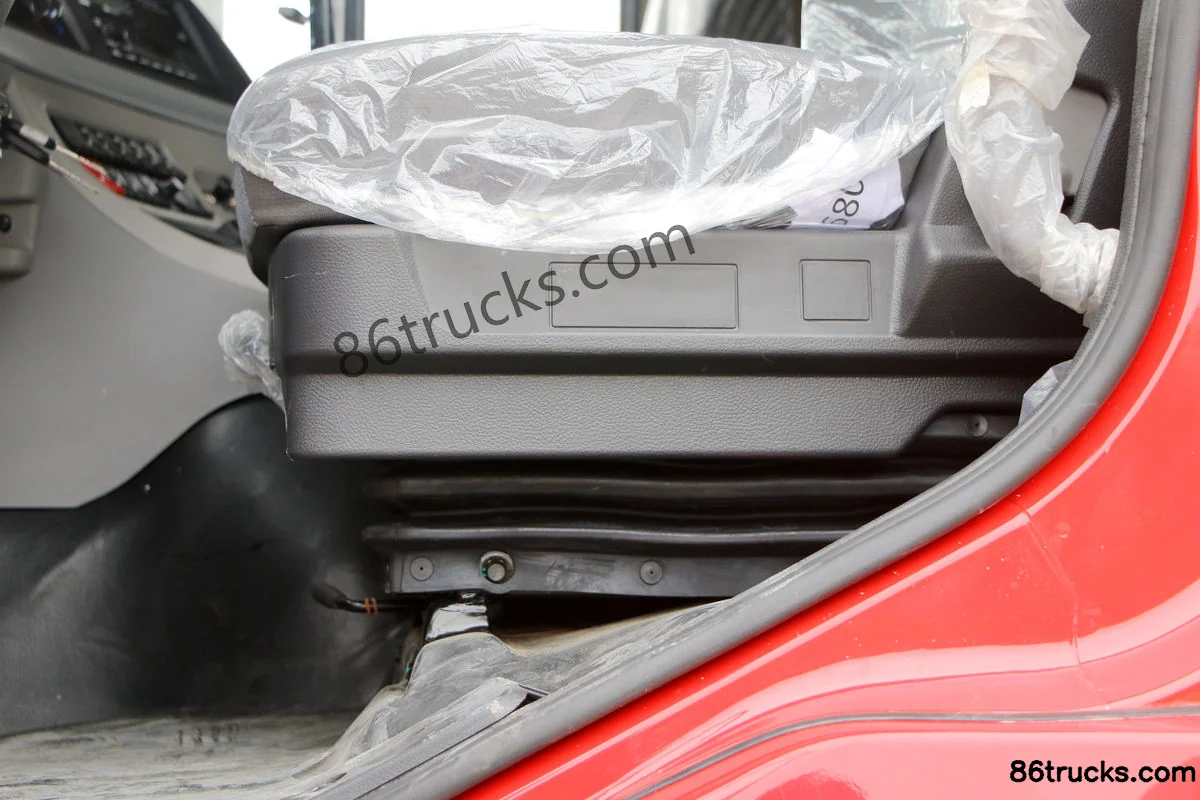

Driver seat type: air suspension seat
Chassis Specs
Fifth wheel: 50#
Frame Dimensions: 280mm
rear axle description: Dana 10T
Axle ratio: 3.42
Leaf spring count: 3/4
Tire
Tire Size: 12R22.5 18PR
Control configuration
ABS:

Photos

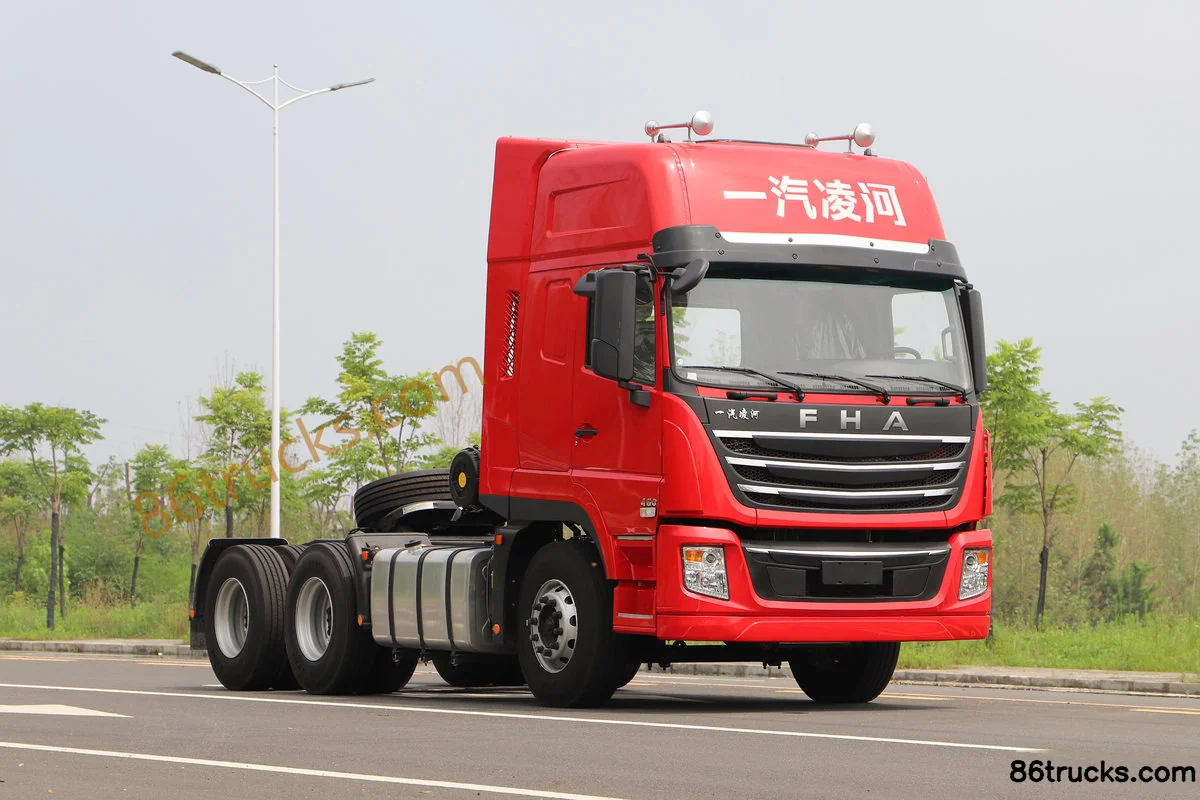

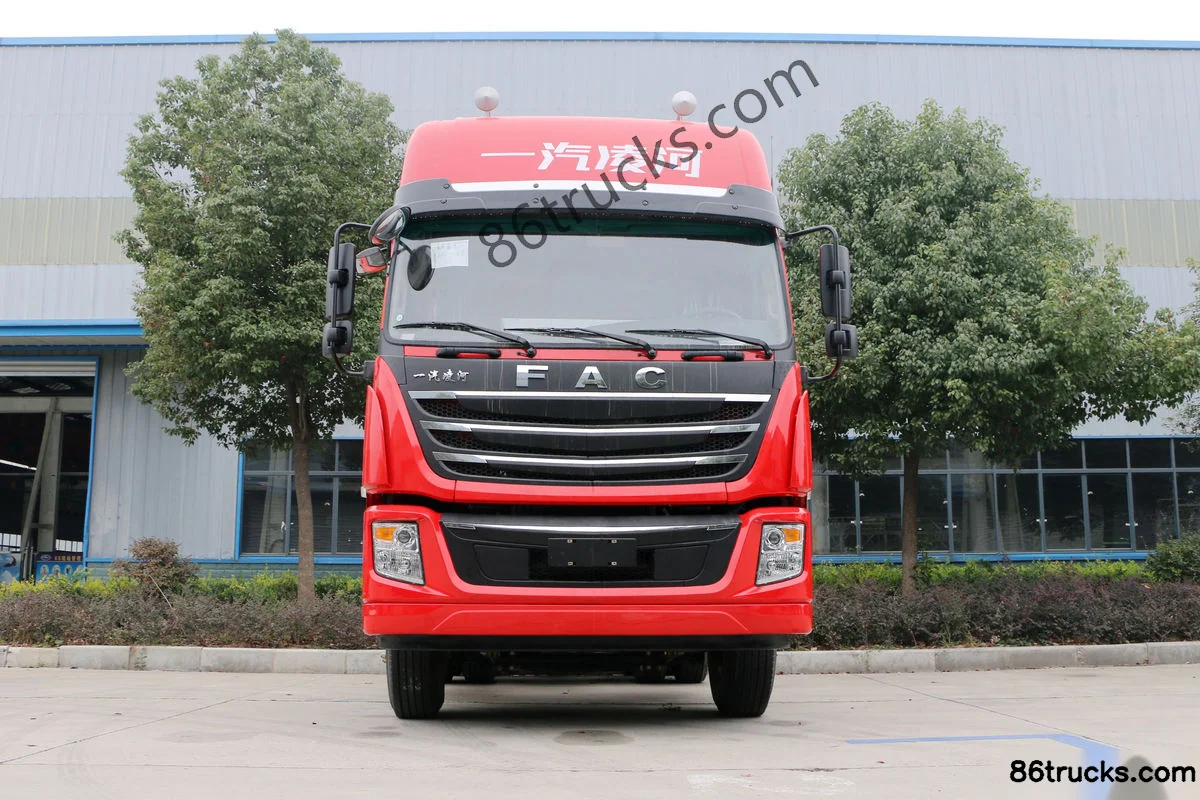

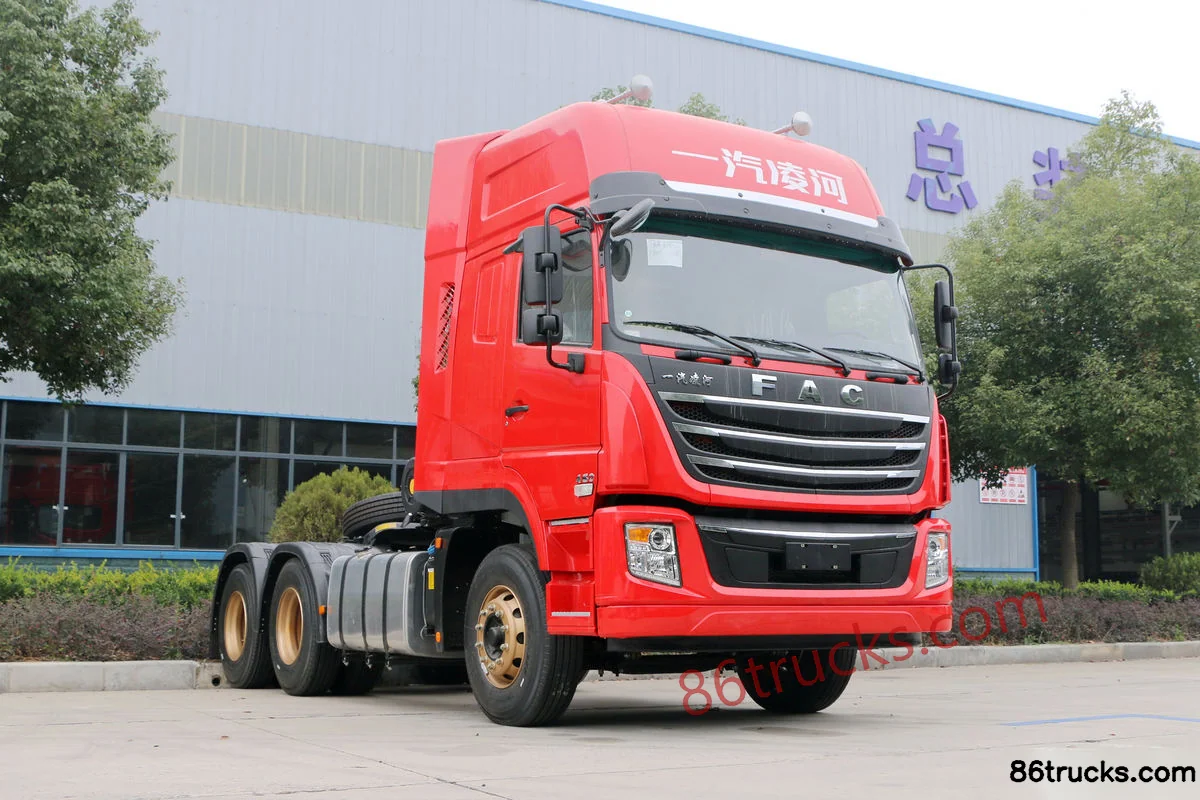

Exterior3

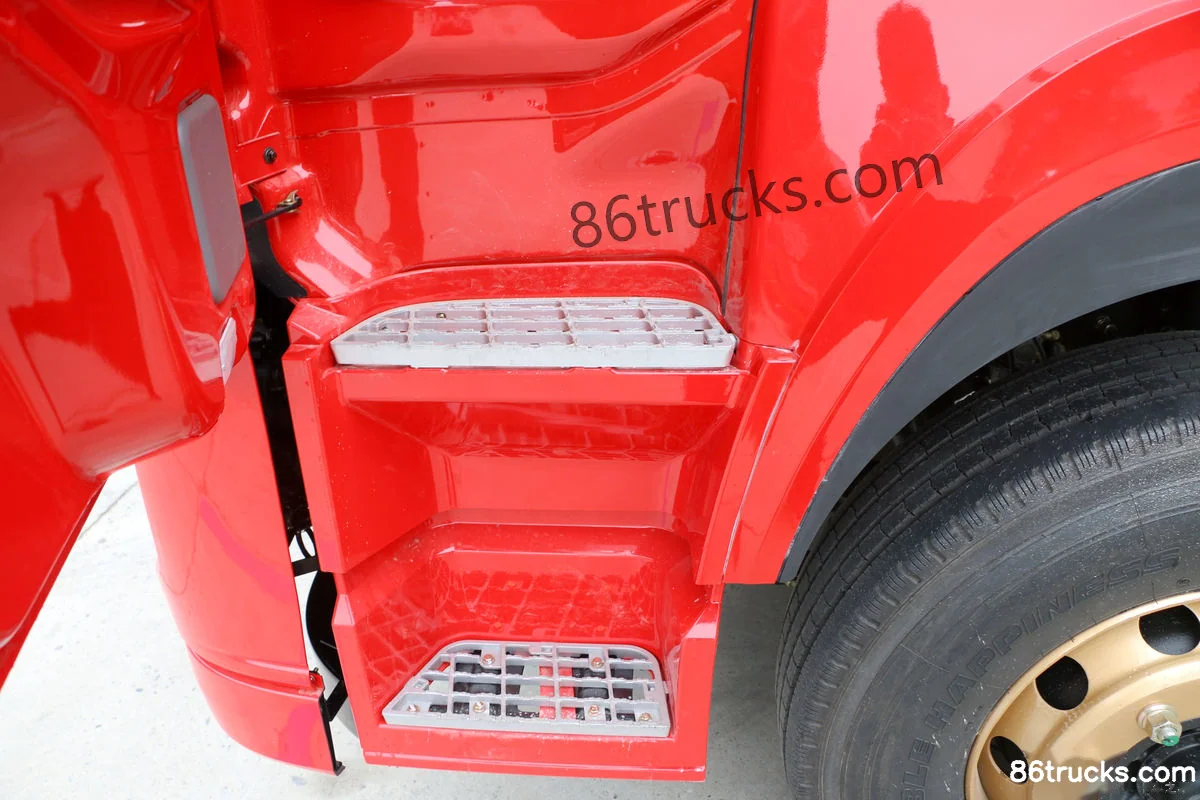

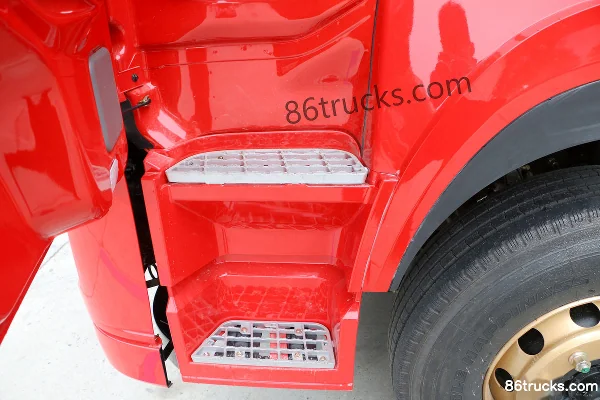

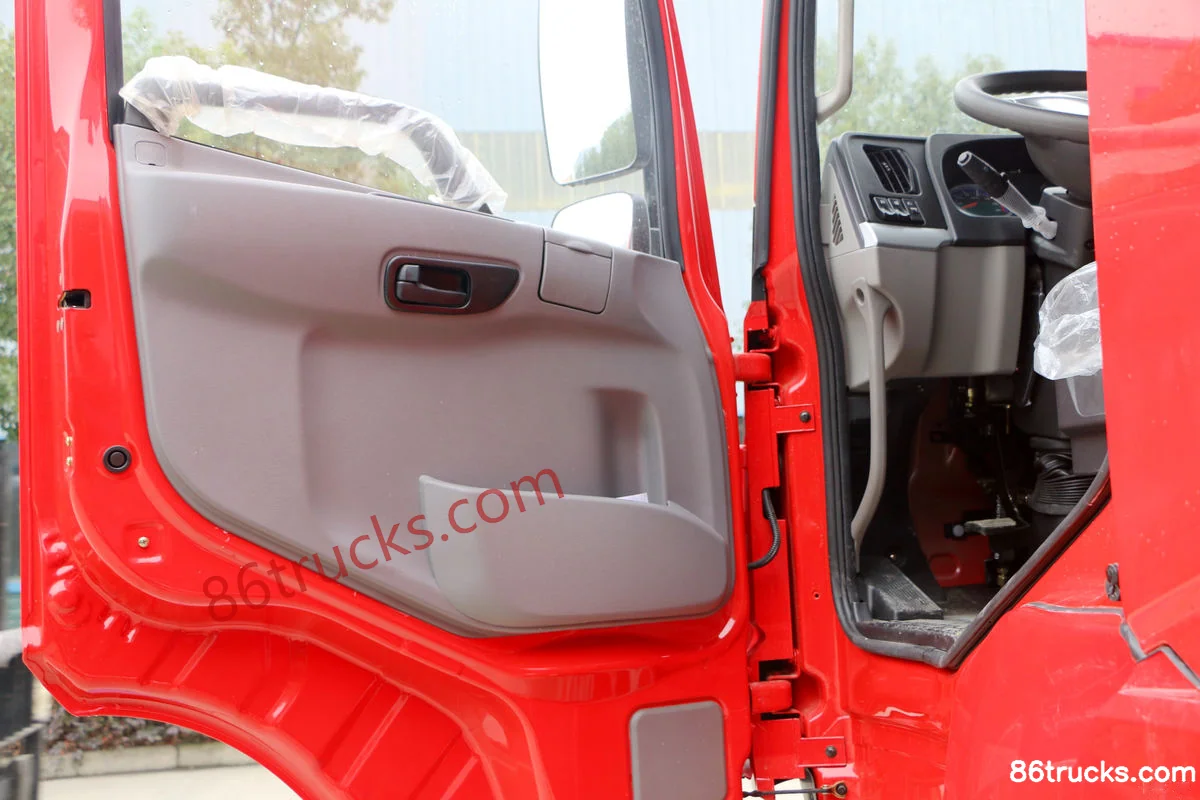

Cab3

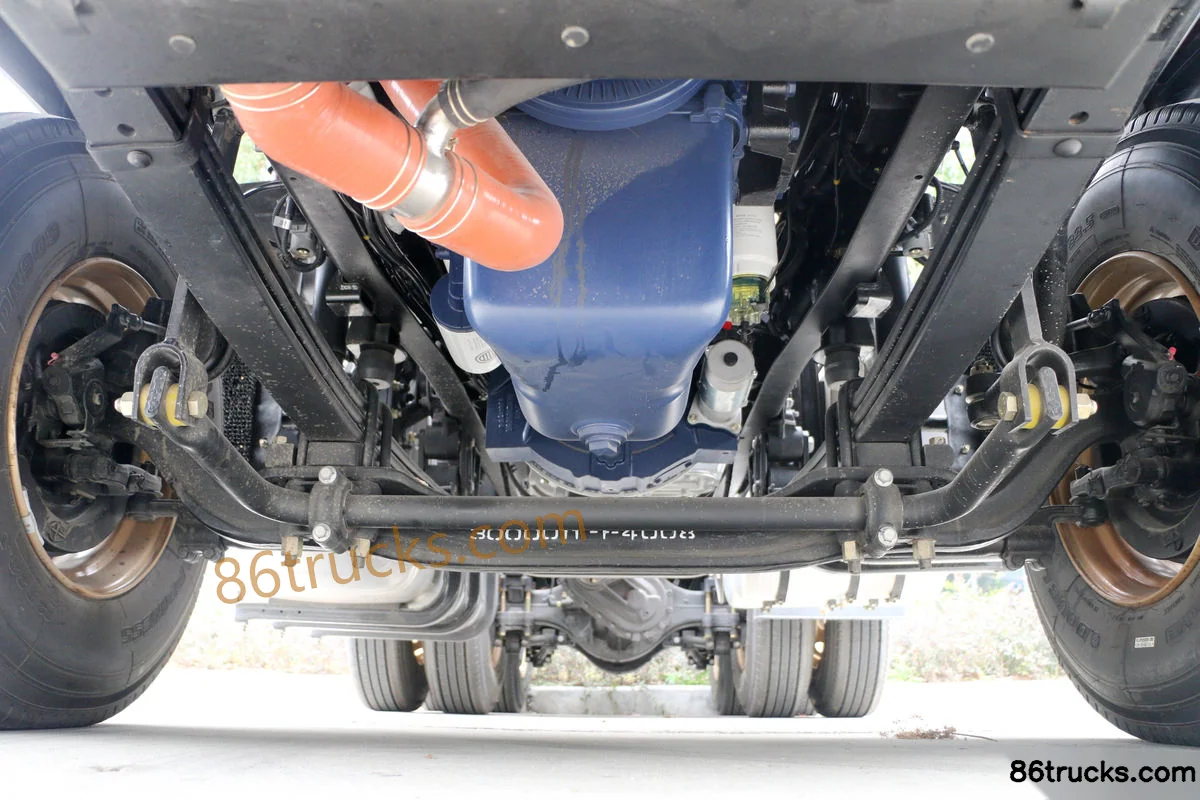

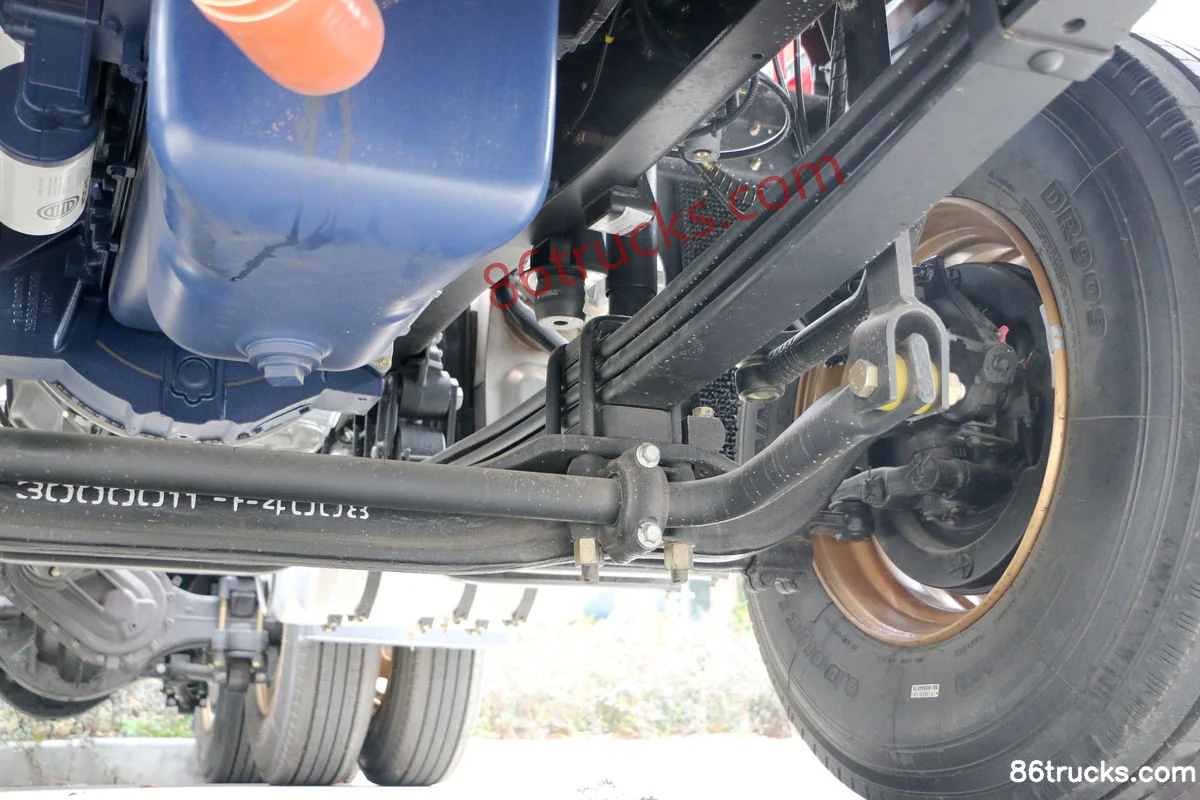

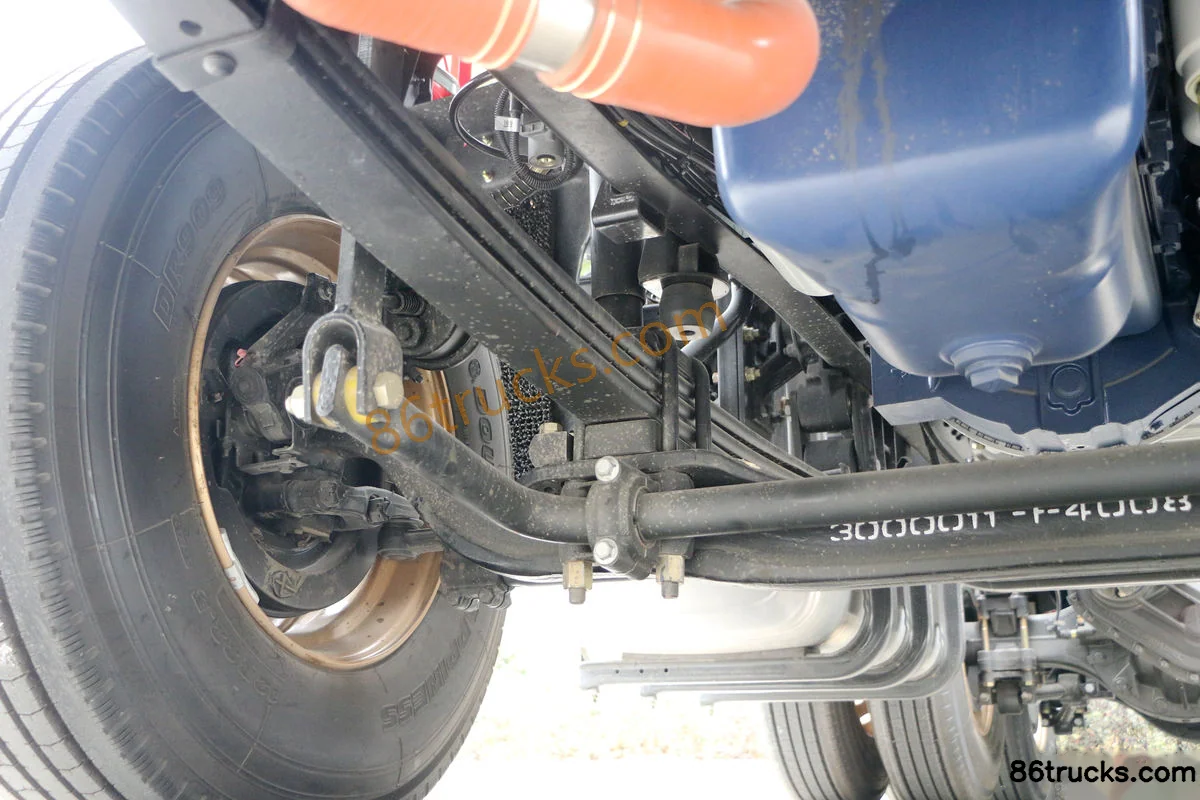

Chassis3

9 photos

FAQ

What emission standard does FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins)?

Key specs of FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins): Drive: 6x2; Horsepower: 490 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins) suited for?

FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins) differ from other variants in the same series?

FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins) belongs to FAW Linghe F200 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Linghe F200 Heavy Truck 490 hp 6X4(10 wheels) Tractor Truck (Cummins)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
