JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck

Export reference
From $13,542
MSRP ¥9.75M CNY
Horsepower: 109
Emission: China III / Euro III
Fuel: Diesel
Engine: Chaochai4102
Transmission: Lu'an
Curb Weight:: 3.05ton
seating capacity: 3Personnel
Rated payload: 4.9ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck is a Light Truck featuring 5.2m cargo length, stake body cargo body, 3Personnel volume and 4.9t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Chaochai4102 engine, 109 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1080K5T
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3815mm
Box length class: 5.2m
engine: ChaochaiCY4102-C3D
transmission: Lu'an LC5T35
Cab length: 6.95m
Cab width: 2.17m
Cab height: 2.3m
Front track width: 1665mm
rear track: 1525mm
Curb Weight: 3.05ton
Rated payload: 4.9ton
GVWR: 8.145ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
market segment: Building materials, agricultural products
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4102-C3D
Engine info: Chaochai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China III / Euro III
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 300N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical inline, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: Lu'an LC5T35
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.2m
Cargo box width: 2.01m
Cargo box height: 0.55m
*Cargo box interior width: 2.0099999904633
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 80L
Chassis Specs
rear axle allowable load: 4885kg
Leaf spring count: 9/12
Tire
Tire Size: 8.25R16
Number of tires: 6pcs

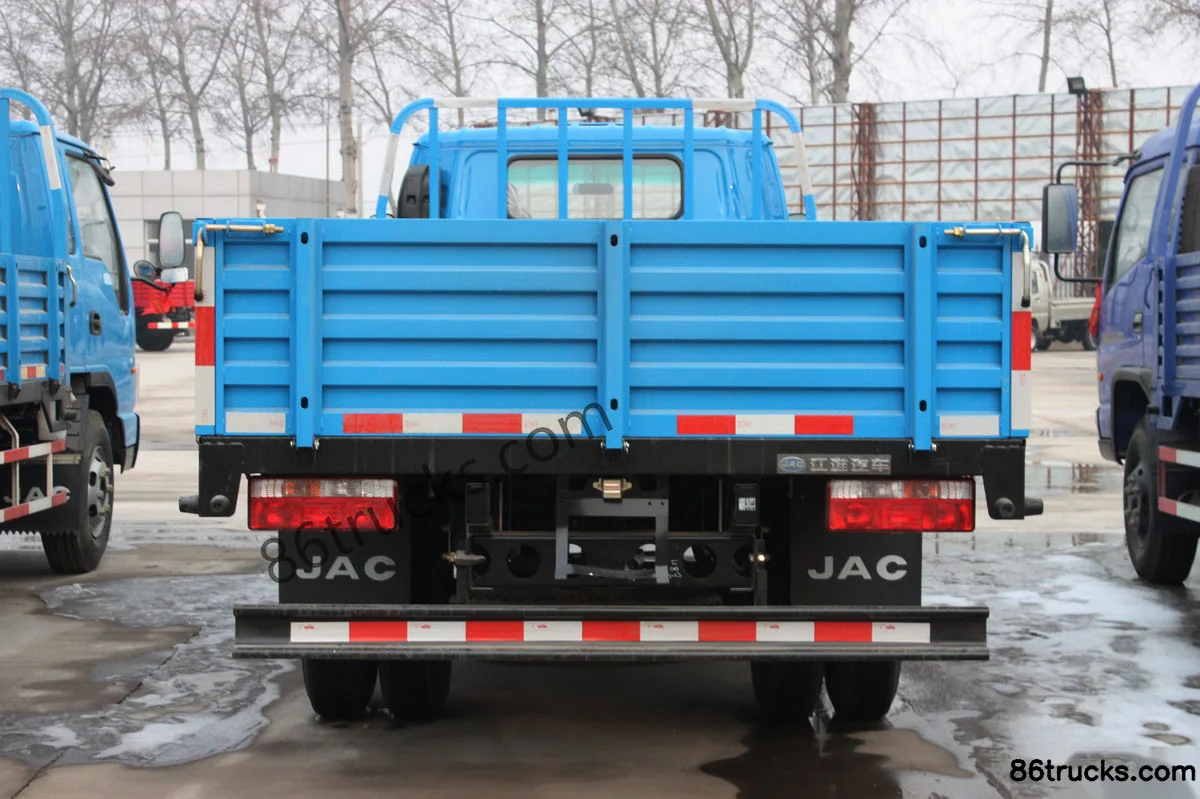

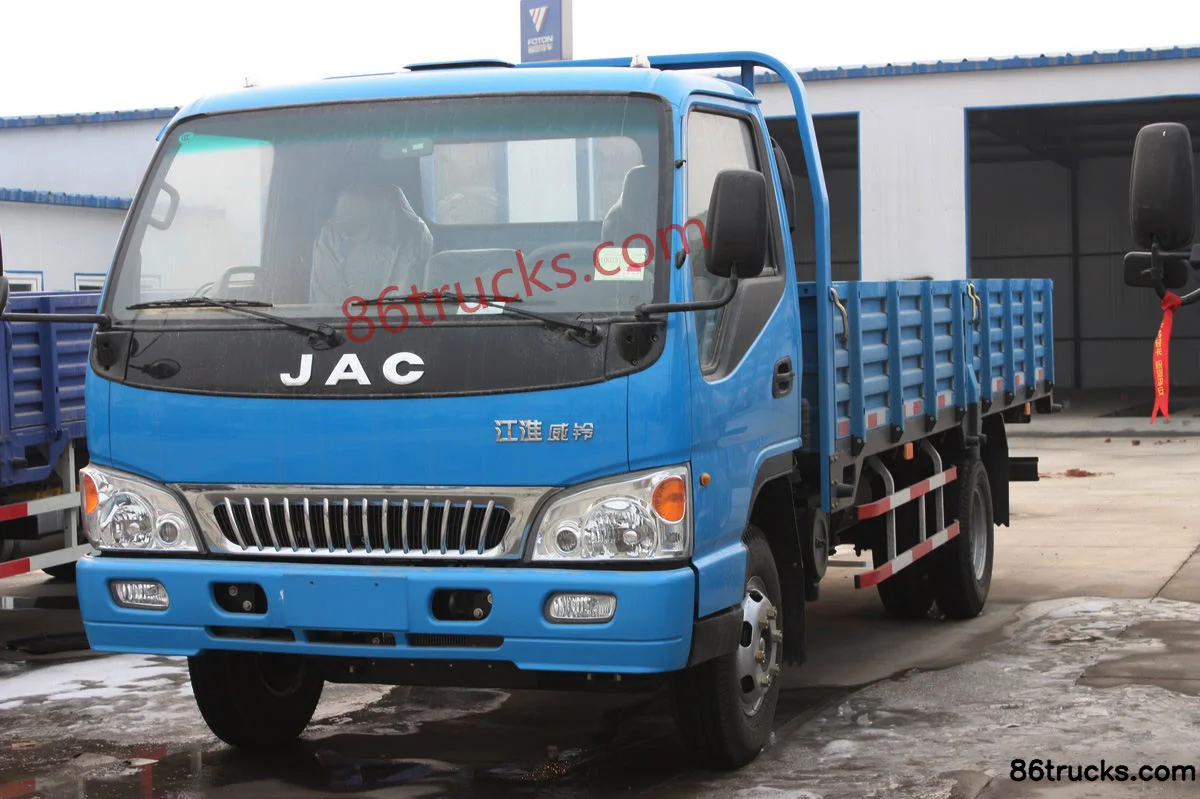

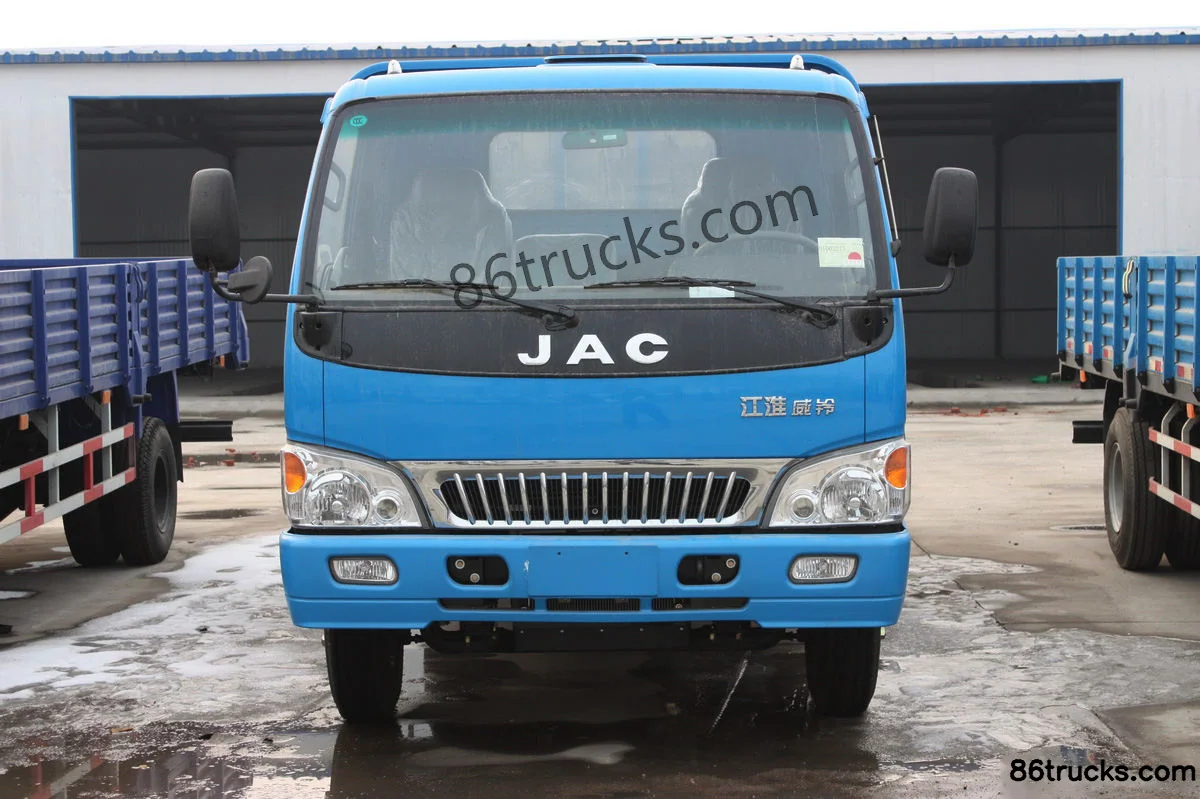

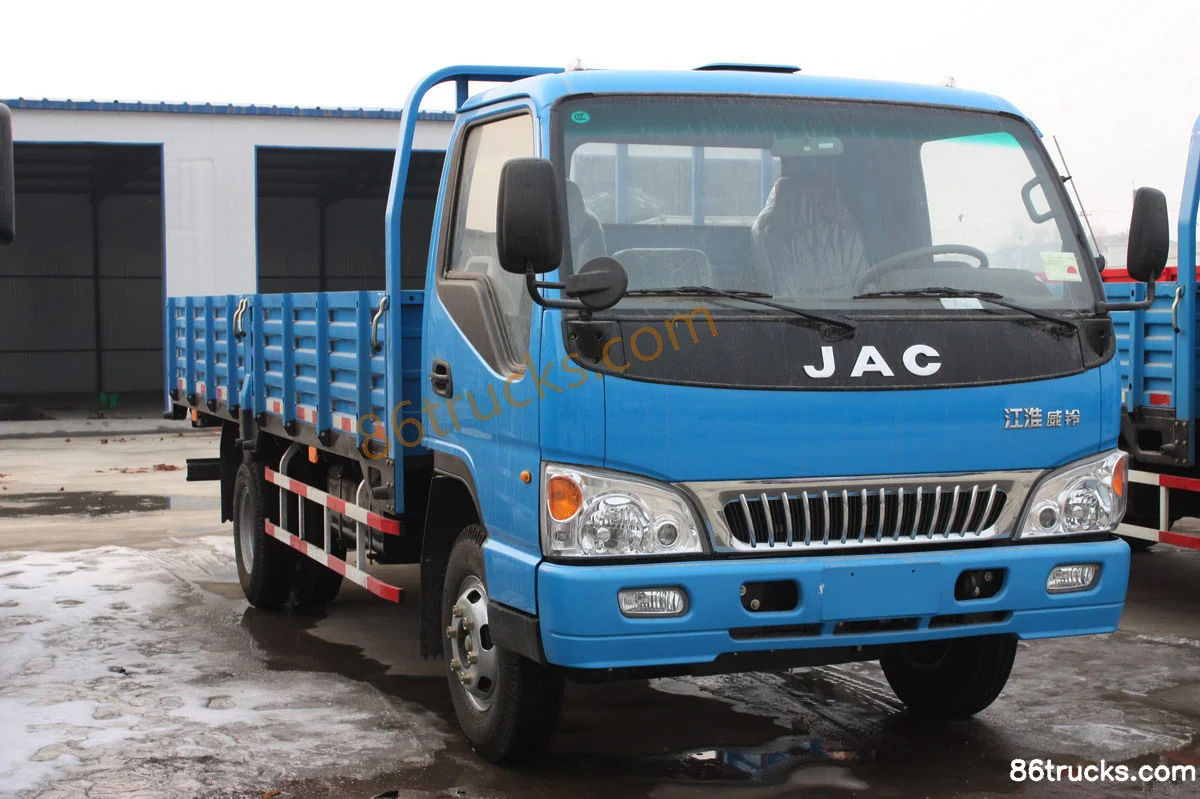

Photos

Exterior3

Cab1

4 photos

FAQ

What is the export price of JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck, and what does it include?

JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck export reference is about From $13,542; MSRP is ¥9.75M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck?

Key specs of JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck: Drive: 4x2; Horsepower: 109 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Chaochai4102; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck suited for?

JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck differ from other variants in the same series?

JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck belongs to JAC medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Weiling 109hp 4X2(6 wheels) 5.2m single-row panel cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
