Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 34.32ton
Wheelbase:: 4200mm
Tire Size:: 295/80R22.5 18PR
Front axle allowable load:: 6500kg
Displacement:: 12.9L
Drive 4X2 (6 wheels)
Horsepower 520
Emission China VI
Transmission ZF

Overview

The Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 520 hp, 18t GVW and China VI emissions. On the powertrain side, it comes with a FotonX13NS6B520 engine, ZF transmission and Diesel fuel.

China VI 520 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ4180D6AP-01
Drive type: 4X2
Wheelbase: 4200mm
engine: FotonX13NS6B520
transmission: ZF12-speed
Rear Axle Ratio: 2.643
Cab length: 6.82m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 2020mm
rear track: 1860mm
Gross Trailer Weight: 34.32ton
Curb Weight: 7.55ton
GVWR: 18ton
Max. speed: 89km/h
tonnage class: Heavy truck
Remarks: Optional 2.846 ratio.
Version: Comfort Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX13NS6B520
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.9L
Emission standard: China VI
Max output power: 382kW
Max hp: 520Horsepower
Max torque speed: 1000-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: ZF12-speed
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 1340L
Chassis Specs
Front axle description: AM5
Front axle allowable load: 6500kg
rear axle description: 485
rear axle allowable load: 11500kg
Axle ratio: 2.643
Leaf spring count: 2/-
Tire
Tire Size: 295/80R22.5 18PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera: 360° panoramic view
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Disc brake
smart configuration
Cruise control (CCS):

Photos

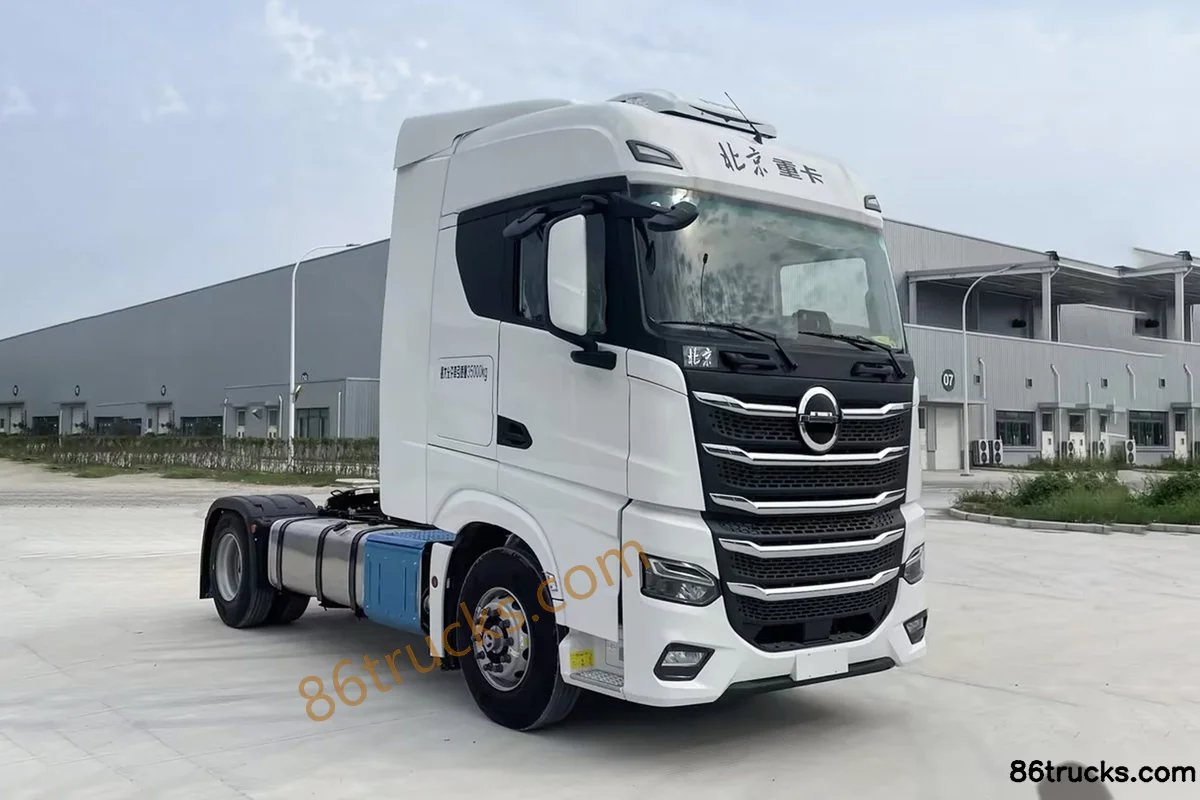

Exterior1

1 photos

FAQ

What emission standard does Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck?

Key specs of Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck: Drive: 4x2; Horsepower: 520 hp; Emission: China VI; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck suited for?

Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck differ from other variants in the same series?

Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck belongs to Beijing Trucks Dream Chaser (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beijing Trucks Dream Comfort Edition 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
