JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van

Export reference
From $23,583
MSRP ¥16.98M CNY
Curb Weight:: 2.445ton
Wheelbase:: 3570mm
Front tire specification:: 195/75R16LT
Rated payload:: 1.92ton
Displacement:: 2.5L
Model code (announced):: HFC5049XXYK4H2S
Drive Front-engine, rear-wheel drive
Horsepower 150
Emission China VI
Fuel Diesel

Overview

The JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van is a Van/Light Bus featuring Front-engine, rear-wheel drive drive, 150 hp, 4.495t GVW and China VI emissions. On the powertrain side, it comes with Diesel fuel.

China VI 150 Diesel Front-engine, rear-wheel drive

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5049XXYK4H2S
Truck Type: Enclosed Van
Drive type: Front-engine, rear-wheel drive
Min. turning diameter: 14m
Wheelbase: 3570mm
Vehicle origin: Hefei, Anhui
Brand/Series: Xingrui 6 Series
Cab length: 5.99m
Cab width: 2.098m
Cab height: 2.645m
Front track width: 1760mm
rear track: 1645mm
Curb Weight: 2.445ton
Min ground clearance: 16cm
Rated payload: 1.92ton
GVWR: 4.495ton
Max. speed: 135km/h
grade: Large van (light bus)
Driver's license: A1,A2,B1,B2,C1
Front/rear suspension: 0.99/1.43m
Version: Linghang Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.5L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 400N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Transmission Parameters
Number of gears: 6Gear
shift type: Manual
Transmission Model: 6-speed transmission
shift method: Manual
Forward gears: 6Gear
Body parameters
Cargo box volume: 13
Max body depth: 3.6
Max body width: 1.86
Cargo Box Height: 1.9
Chassis Specs
steering assist type: hydraulic power steering
Front suspension type: Front MacPherson independent suspension
rear suspension type: Standard 4-leaf springs, optional 5-leaf springs
Chassis Structure: Load-bearing
power steering type: hydraulic power steering
Body Parameters
Cab structure: Load-bearing
Seat count: 3Seats
Fuel tank volume: 80L
Door Parameters
side door type: right side center sliding door
Tailgate type: split doors
Tailgate opening angle: 270°
Wheel brake
Front brake type: Disc
rear brake type: Drum Type
Front tire specification: 195/75R16LT
Rear Wheel Specification: 195/75R16LT
Cab parameters
Seat rows:
Safety features
Driver airbag:
Seat belt reminder:
Remote key:
Control configuration
Brake force distribution (EBD/CBC etc.):
ABS:
interior configuration
Seat height adjustment:
Power-Adjustable Rearview Mirror:
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Reverse Radar:
Seat material: Fabric
Electronic Central Lock:
lighting configuration
Xenon headlights:
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
smart configuration
Cruise control (CCS):

Photos

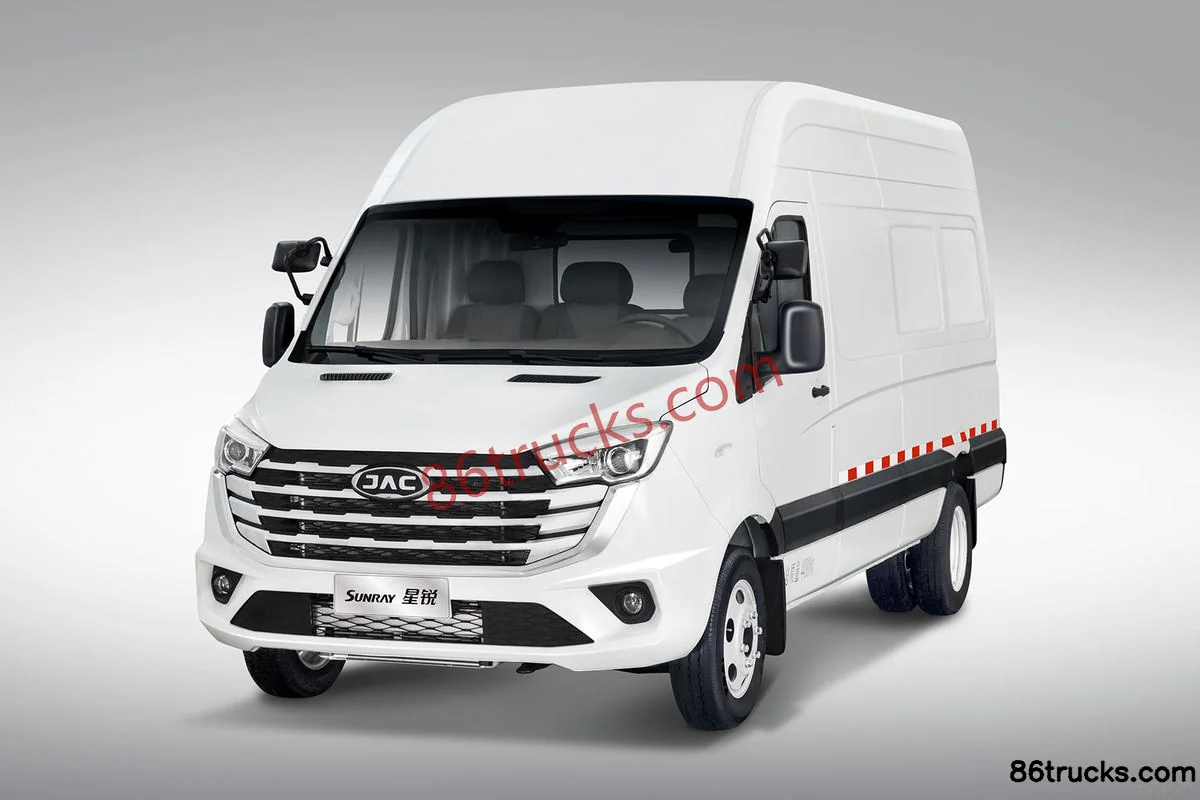

Exterior1

1 photos

FAQ

What is the export price of JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van, and what does it include?

JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van export reference is about From $23,583; MSRP is ¥16.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van?

Key specs of JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van: Drive: Front-engine, rear-wheel drive; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van suited for?

Match JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van differ from other variants in the same series?

JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van belongs to JAC 6 Series (Van/Light Bus). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Sunray 6 Series 2024 Navigator Edition 150hp 3-Seat 2.5T Diesel Extended Wheelbase Panel Van?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
