FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand)

Export reference
MSRP N/A
Wheelbase:: 1900+5650mm
Cab dimensions:: 11.2×2.5×3.08m
Type:: flatbed truck
GVWR:: 25ton
Front/rear suspension:: 1.375/3.055m
Other special notes:: This vehicle is only for transporting non-dismantlable objects. Guard material: Q235A carbon steel. Connection method: left/right sides and rear lower guard are all welded. Rear guard section dimensions (mm): 100×50×5. Rear guard ground clearance (mm): 520.
FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) exterior
View more photos (6)
Drive 6X2 (8 wheels)
Horsepower 240
Rated mass: 15.7ton
Emission China III / Euro III

Overview

The FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) is a flatbed truck featuring 25t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with 240 hp and China III / Euro III emissions.

China III / Euro III 240 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 11.2×2.5×3.08m
Type: flatbed truck
Drive type: 6X2
Wheelbase: 1900+5650mm
Rated mass: 15.7ton
GVWR: 25ton
Front/rear suspension: 1.375/3.055m
Body Parameters
Other special notes: This vehicle is only for transporting non-dismantlable objects. Guard material: Q235A carbon steel. Connection method: left/right sides and rear lower guard are all welded. Rear guard section dimensions (mm): 100×50×5. Rear guard ground clearance (mm): 520.
Vehicle certification code: CLW5250TPBC3
Body Brand: Chengliwei
Engine parameters
Engine Model: Xichai CA6DF3-24E3
Displacement: 6.74L
Emission standard: China III / Euro III
Max output power: 188kW
Max hp: 240Horsepower
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Hanwei
Chassis Model: CA1251P1K2L7T3EA80
Leaf spring count: 12/12/10+9,12/3+-/10+9
Tire
Tire Size: 10.00-20,10.00R20,11.00-20,11.00R20
Number of tires: 8pcs

Photos

Exterior3

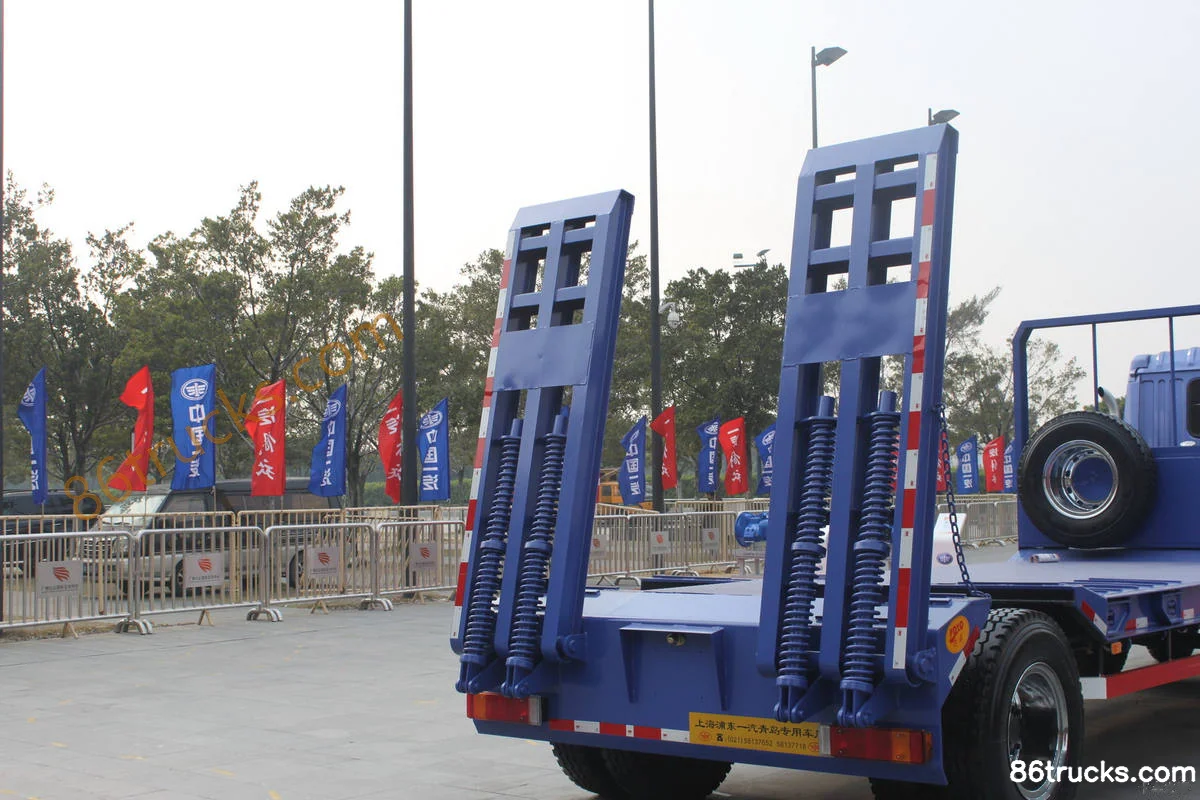

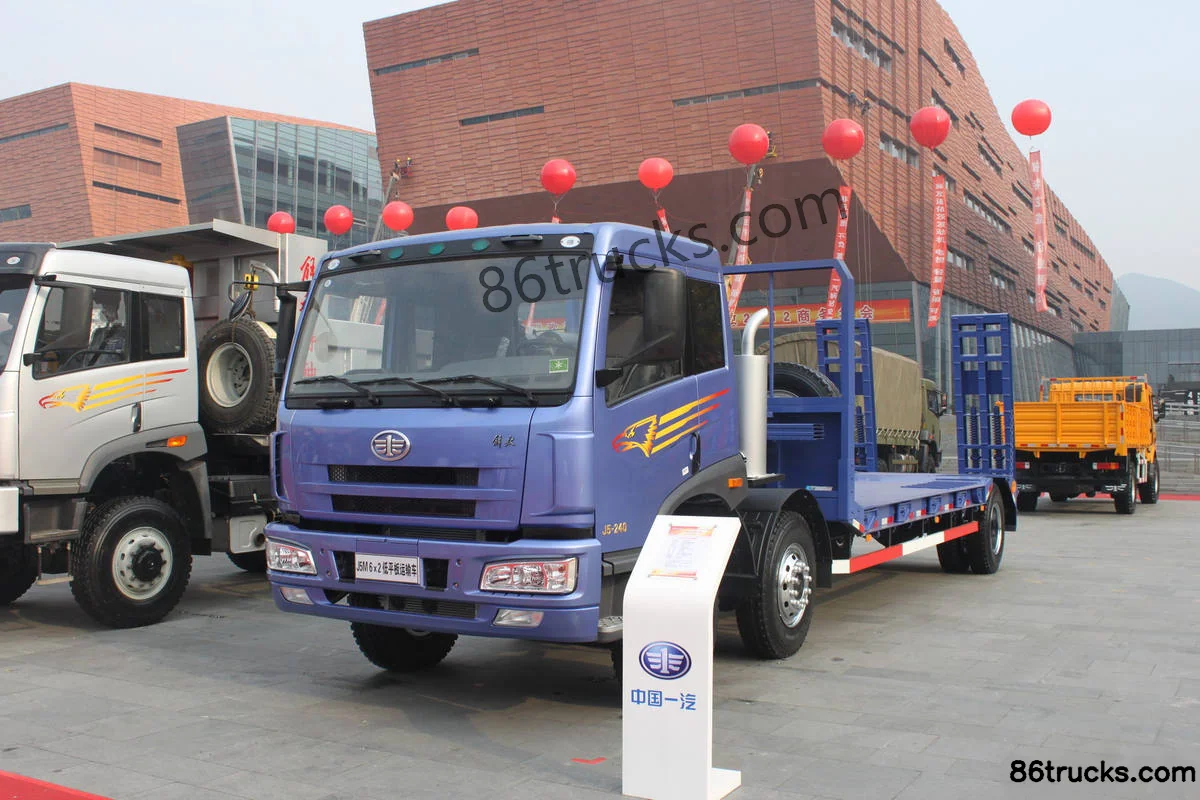

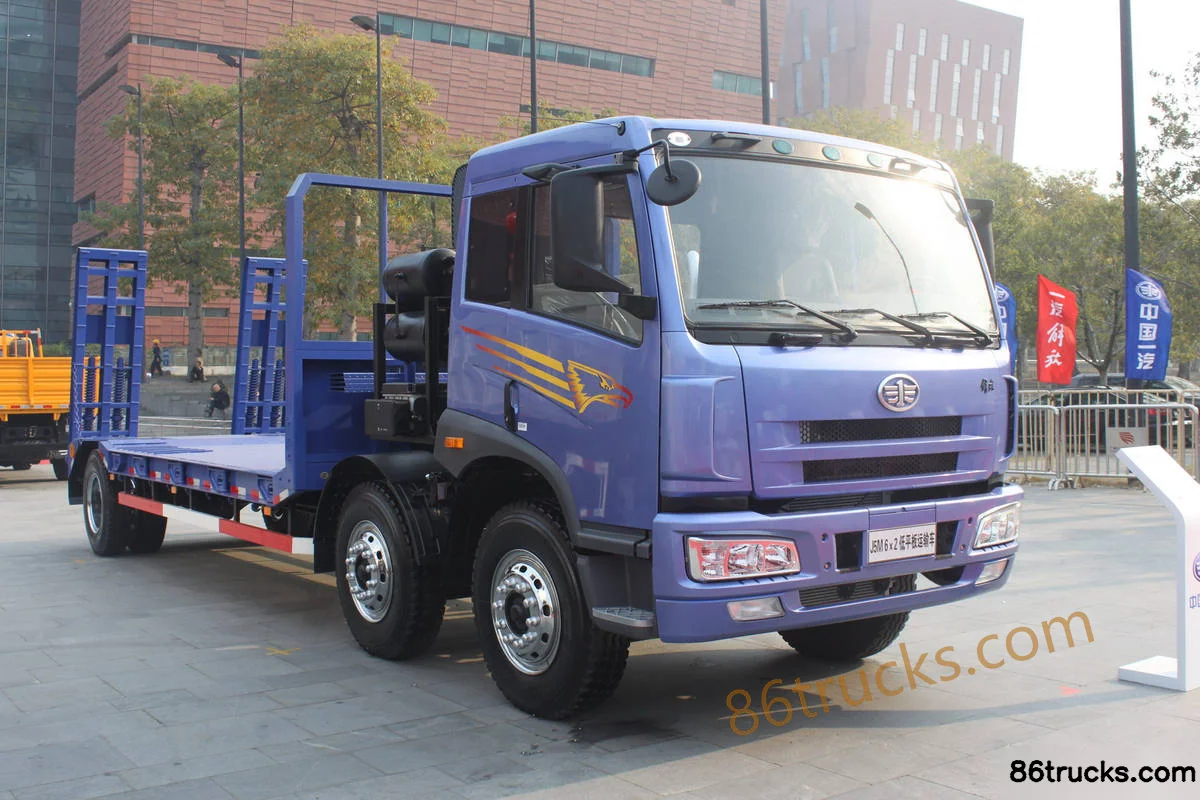

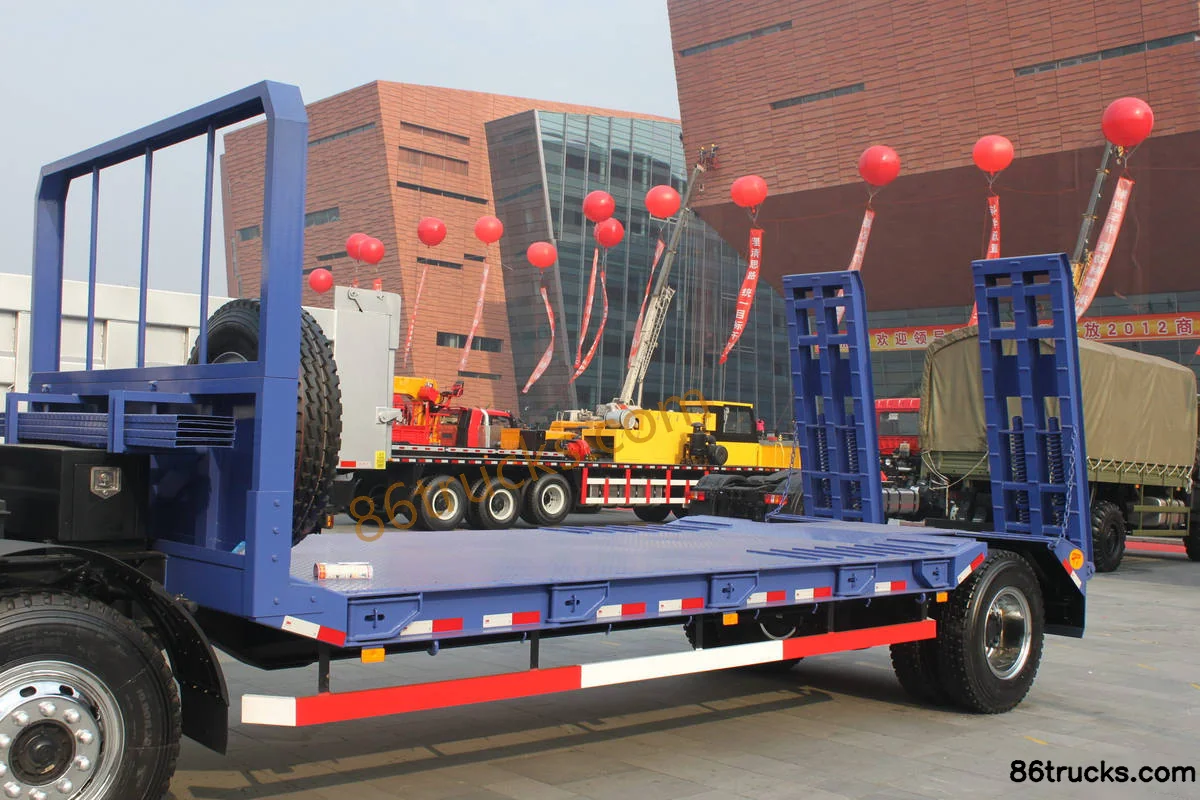

FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) Exterior (1) | 86Trucks FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) Exterior (2) | 86Trucks FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) Exterior (3) | 86Trucks

Cab3

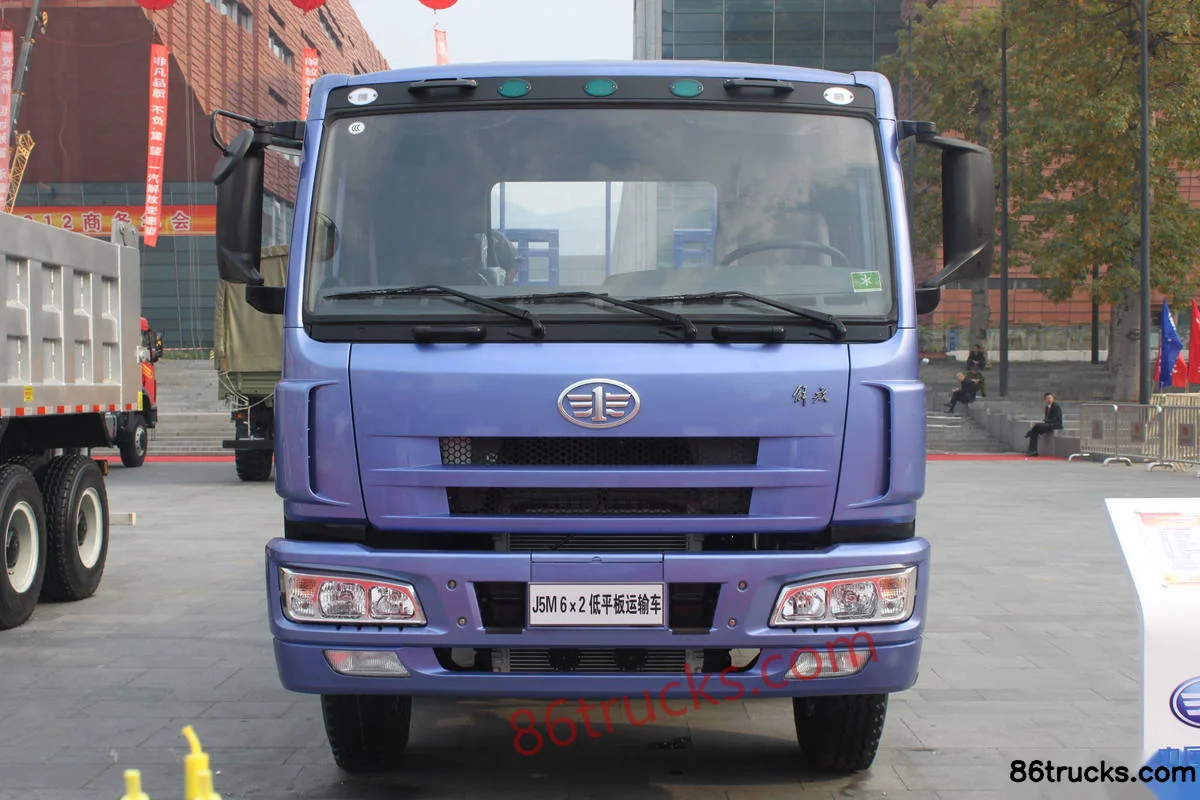

FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) Cab (1) | 86Trucks FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) Cab (2) | 86Trucks FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) Cab (3) | 86Trucks

6 photos

FAQ

What emission standard does FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand)?

Key specs of FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand): Drive: 6x2; Horsepower: 240 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) suited for?

FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) is a flatbed truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) differ from other variants in the same series?

FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand) belongs to Chengliwei FAW Jiefang Qingdao chassis (flatbed truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hanwei (J5M) 240hp 6X2(8 wheels) Flatbed Truck (Chengliwei Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
