FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dachai4DK
Transmission: Fast Gear
Curb Weight:: 6.8ton
seating capacity: 3Personnel
Rated payload: 8.8ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis is a Medium-duty truck featuring 7.7m cargo length, Van body cargo body, 3Personnel volume and 8.8t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Dachai4DK engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5160XXYP62K1L5A2E5
Type: Chassis
Drive type: 4X2
Wheelbase: 5800mm
Box length class: 7.7m
engine: DachaiCA4DK1-18E5
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.333
Cab length: 10m
Cab width: 2.495m
Cab height: 3.85m
Front track width: 1900mm
rear track: 1800mm
Curb Weight: 6.8ton
Rated payload: 8.8ton
GVWR: 15.795ton
Max. speed: 96km/h
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Front/rear suspension: 1.4/2.8m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-18E5
Engine info: Dachai4DK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.76L
Emission standard: China V
Max output power: 139kW
Max hp: 180Horsepower
Max torque: 720N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.7m
Cargo box width: 2.3m
Cargo box height: 2.4m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 5800kg
rear axle allowable load: 9995kg
Axle ratio: 4.333
Leaf spring count: 7/7+6
Suspension (front/rear): Leaf spring
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

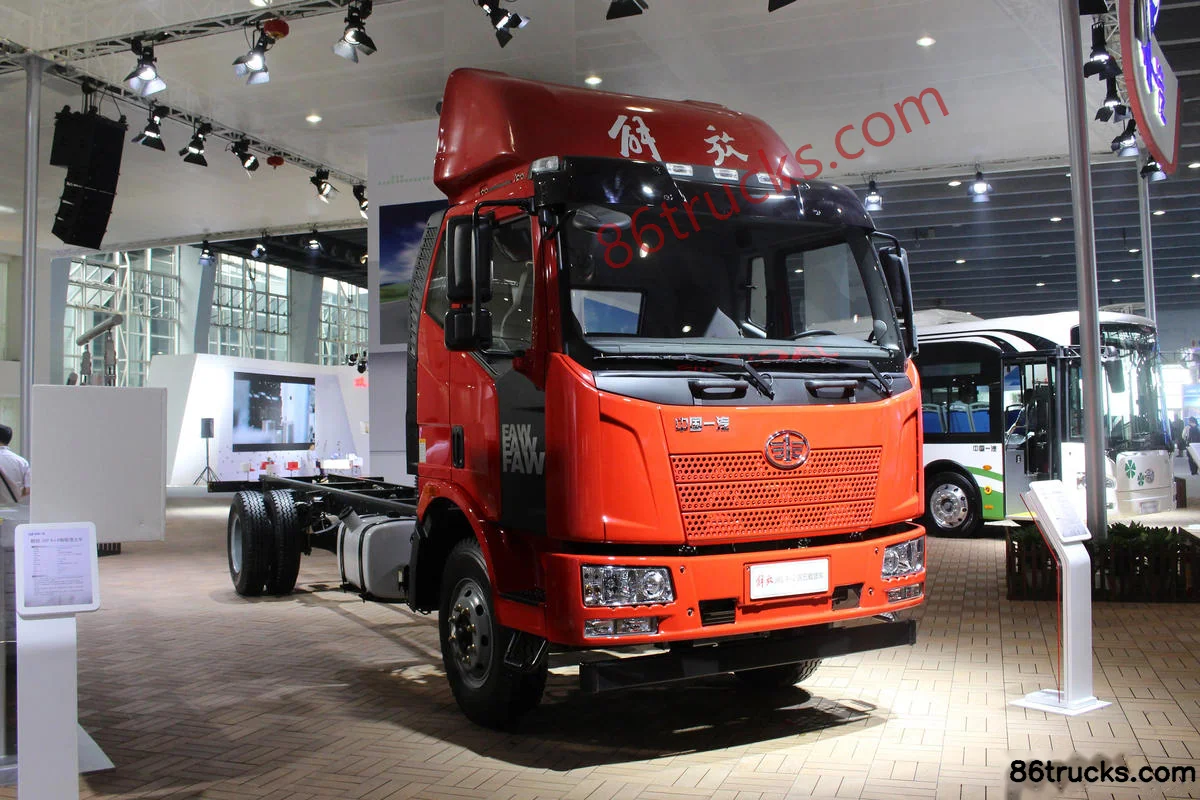

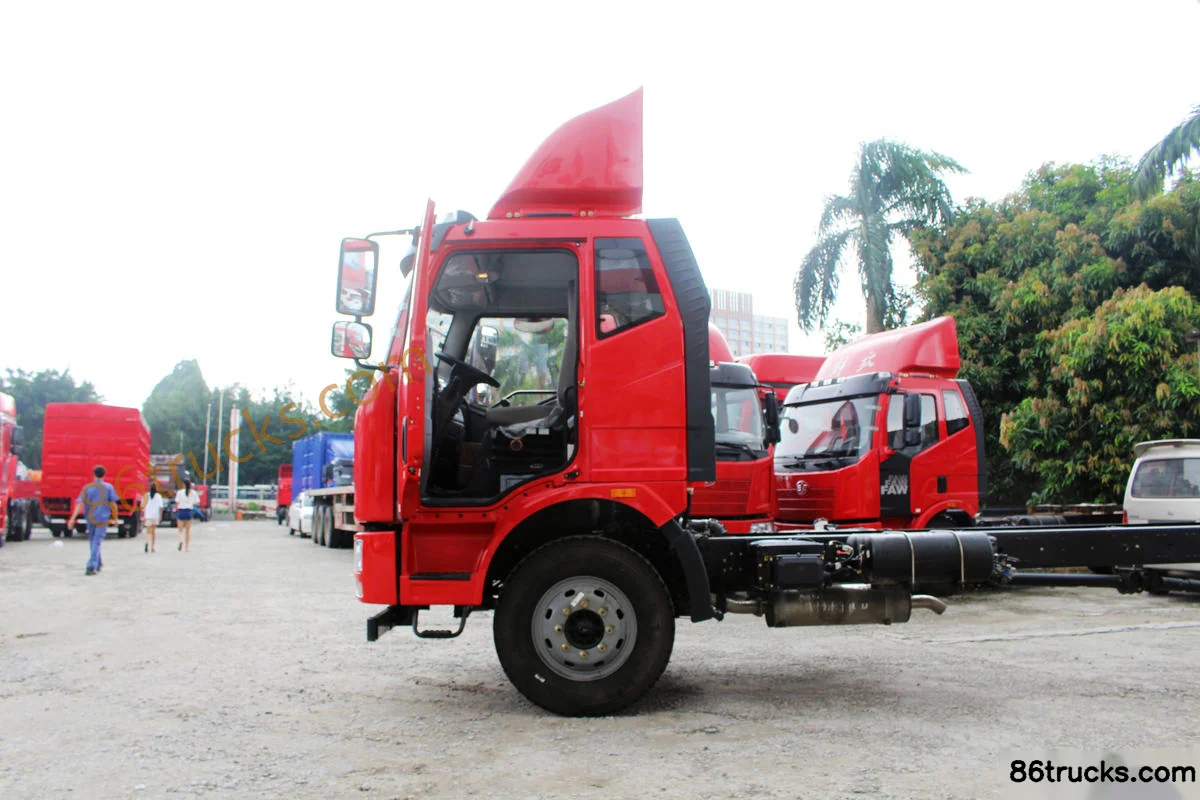

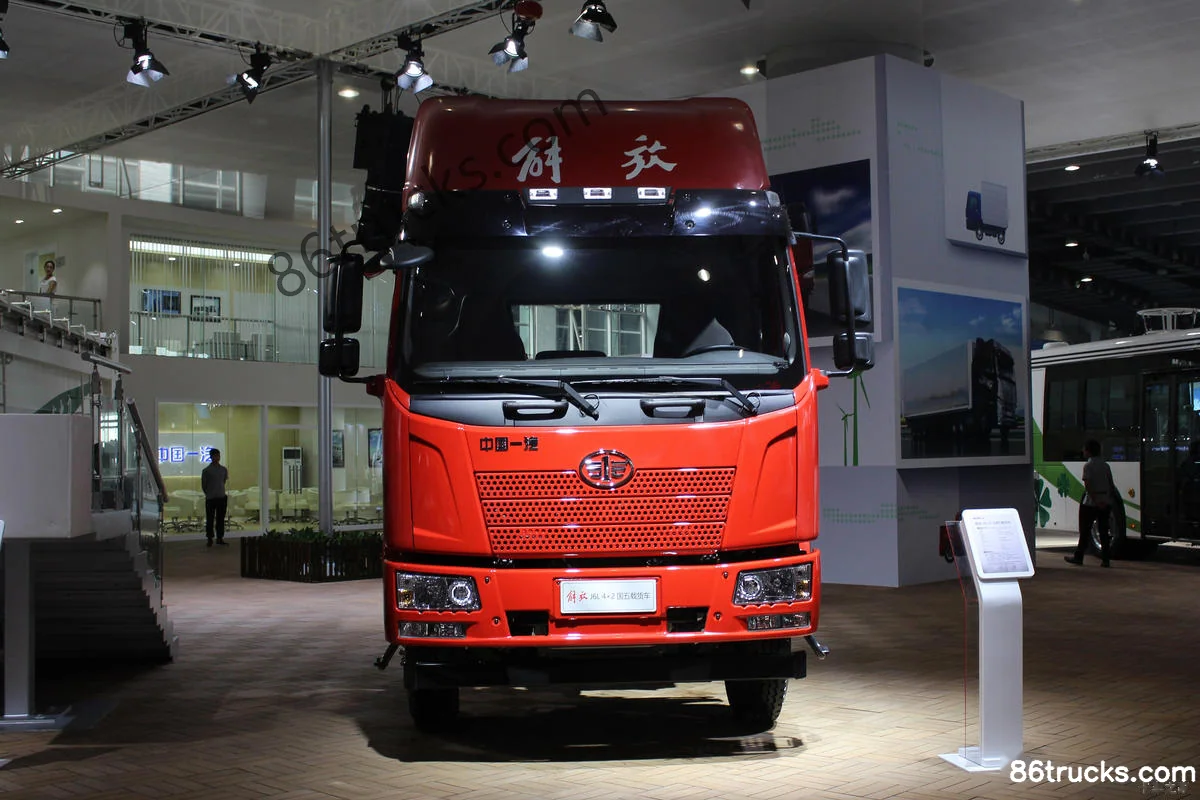

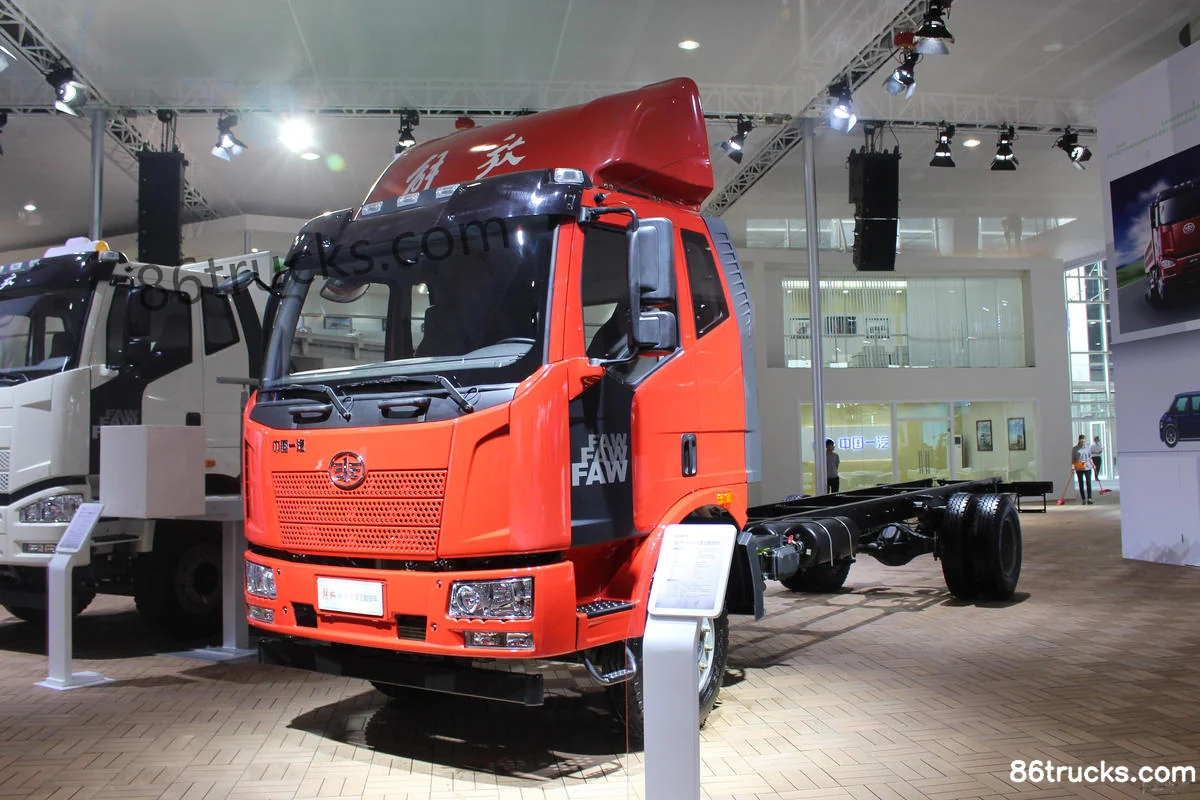

Exterior3

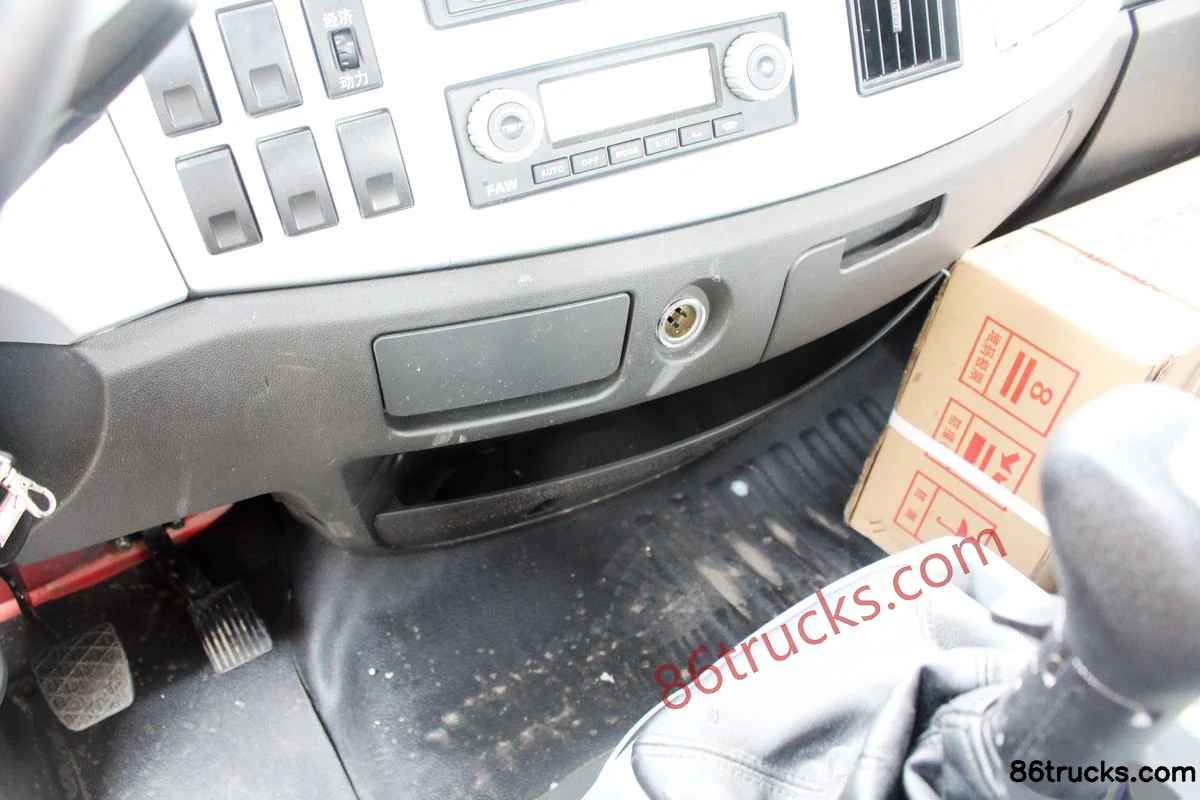

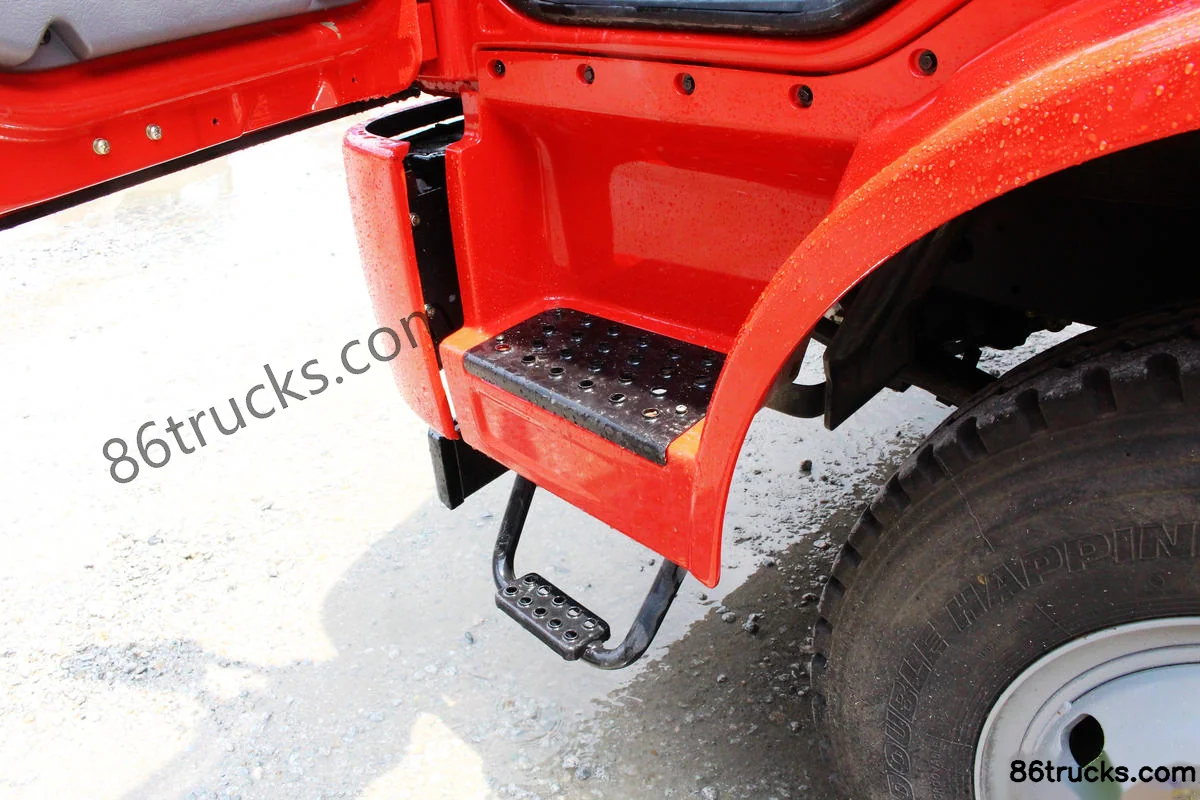

Cab3

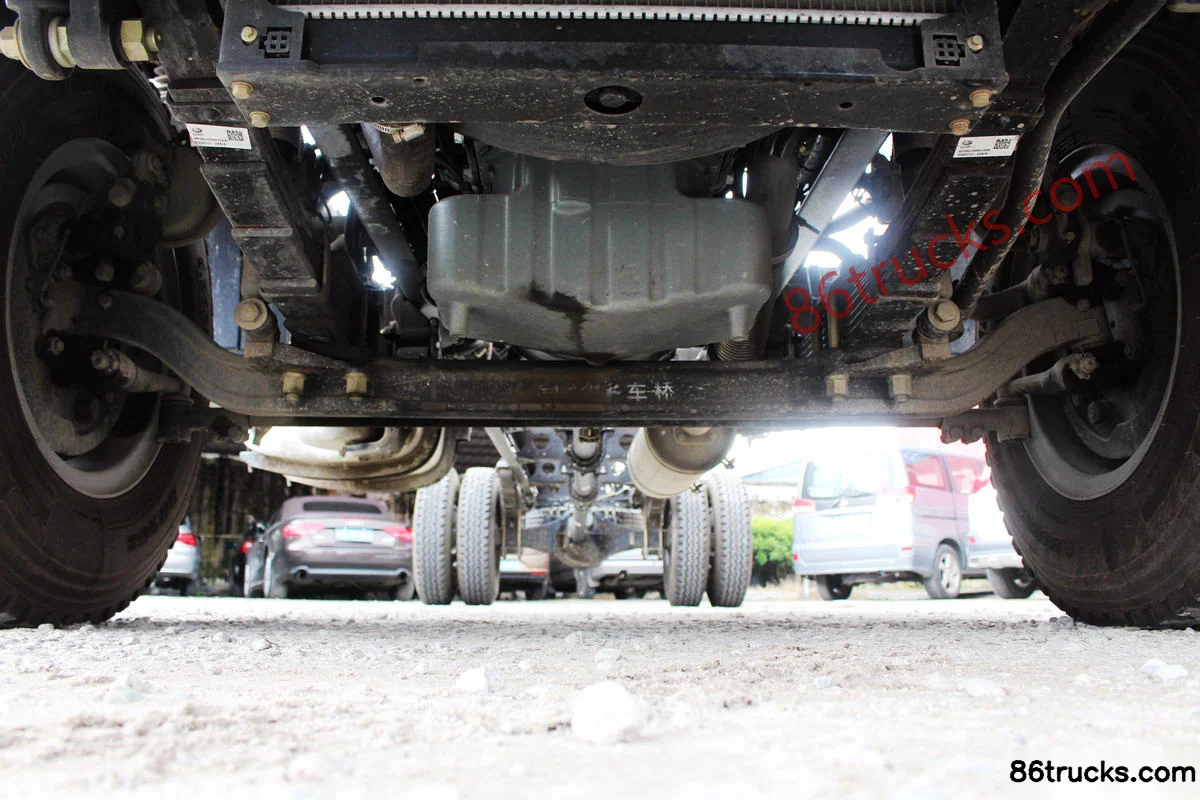

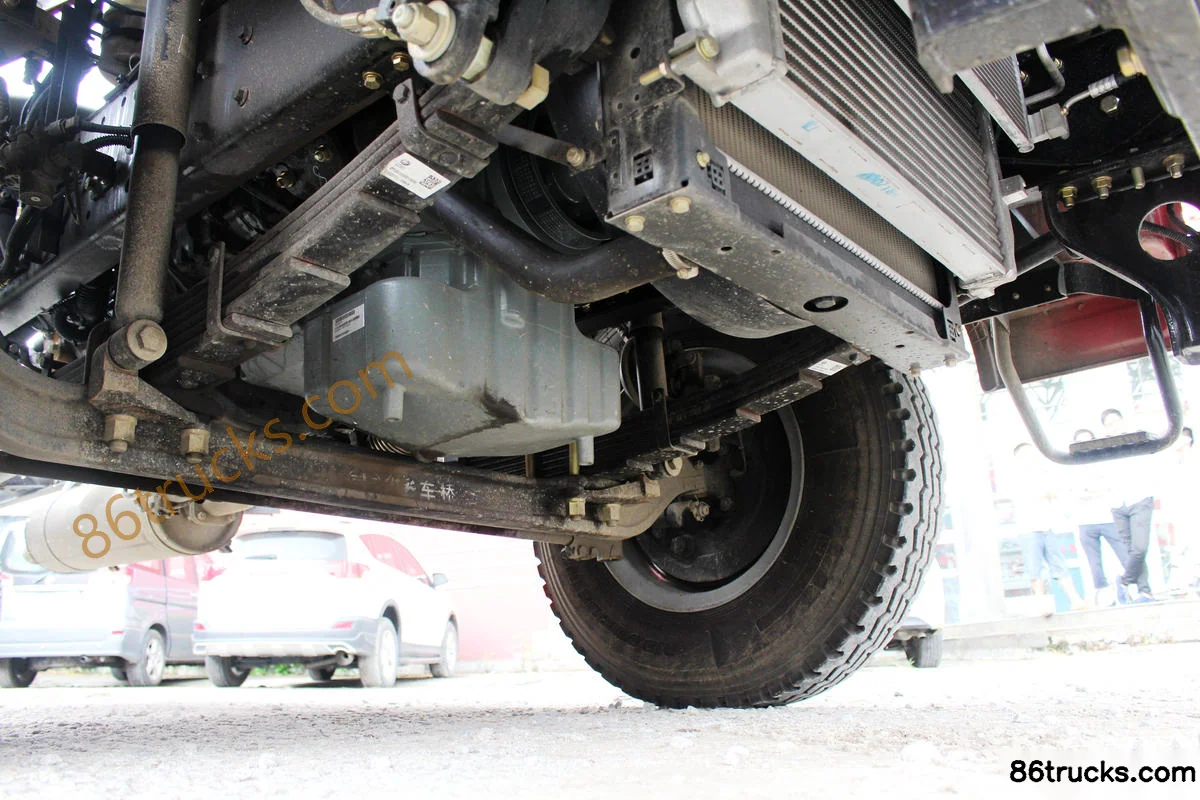

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis?

Key specs of FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DK; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis suited for?

FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis differ from other variants in the same series?

FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
