Lingshi Auto G105-3-NEV VAN 41.86kWh

Export reference
MSRP N/A
Cargo box volume:: 5.11
Cab length:: 4.525m
total rated power:: 30kW
Peak power:: 60kW
total rated torque:: 90N·m
total peak torque:: 220N·m
Lingshi Auto G105-3-NEV VAN 41.86kWh exterior
View more photos (7)
CLTC range: 270km
Curb Weight: 2.51ton
Rated payload: 1.39ton
Wheelbase: 3050mm

Overview

The Wuling New Energy Lingshi Auto G105-3-NEV VAN 41.86kWh is a Electric Panel Van featuring 270km battery/range, 1.39t payload, 5.11 cargo length and 2.51ton GVW.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Wheelbase: 3050mm
Cab length: 4.525m
Cab width: 1.61m
Cab height: 1.9m
CLTC range: 270km
Curb Weight: 2.51ton
Rated payload: 1.39ton
electric motor
total rated power: 30kW
Peak power: 60kW
total rated torque: 90N·m
total peak torque: 220N·m
Battery/Charging
fast charge time: 1.5h
Battery capacity: 41.86kWh
Body parameters
Cargo box volume: 5.11
Max body depth: 2.622
Max body width: 1.457
Cargo Box Height: 1.34
Body Parameters
Seat count: 2Seats
Control configuration
ABS:

Photos

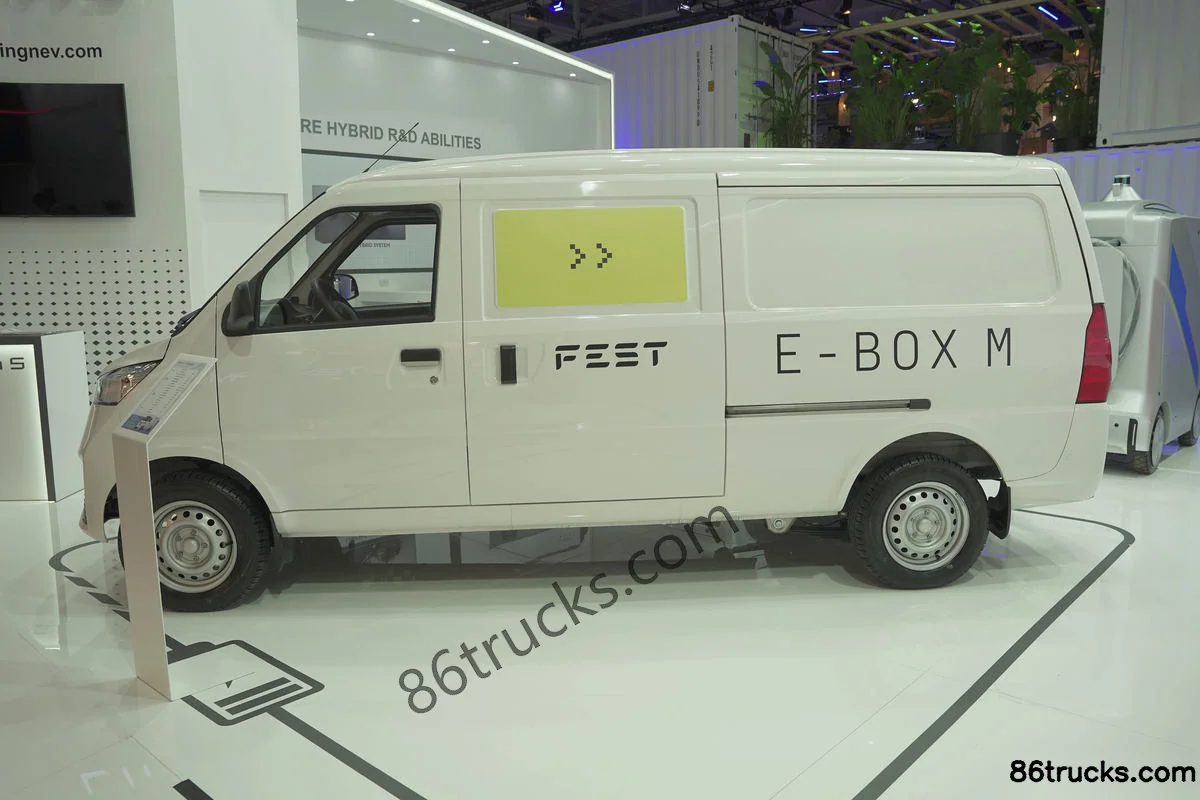

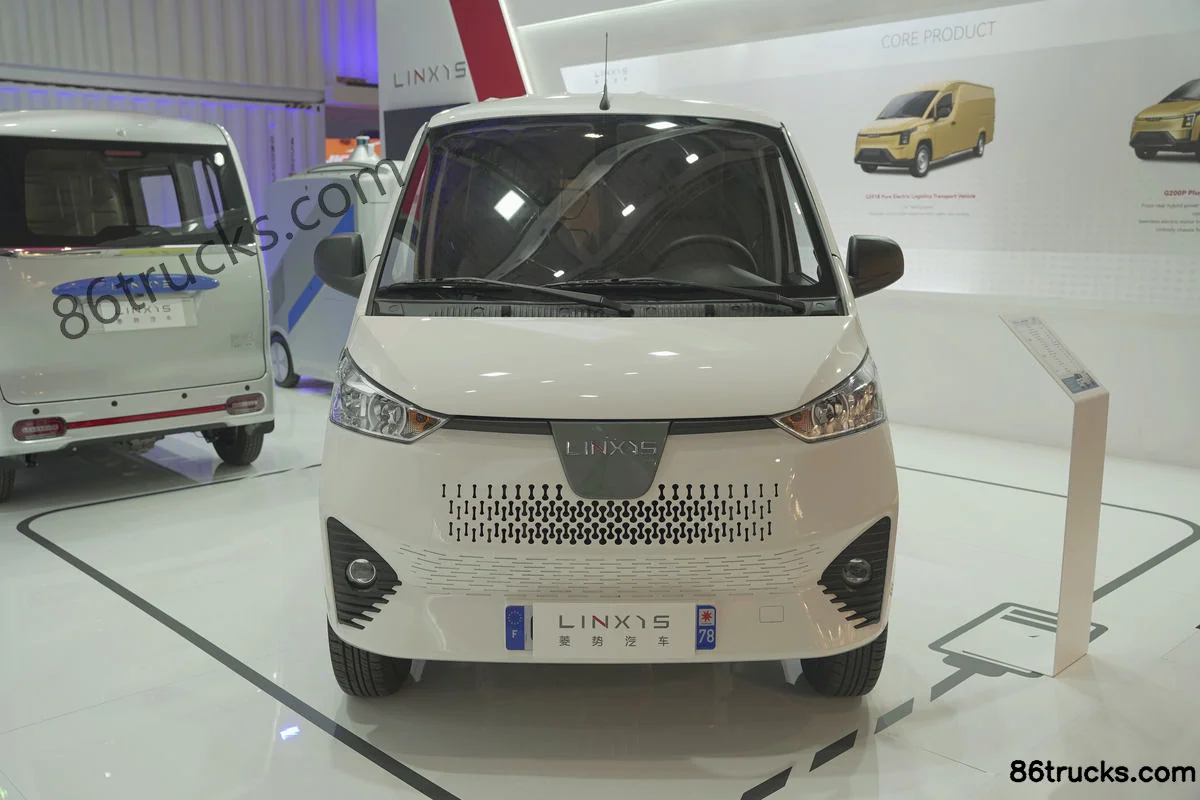

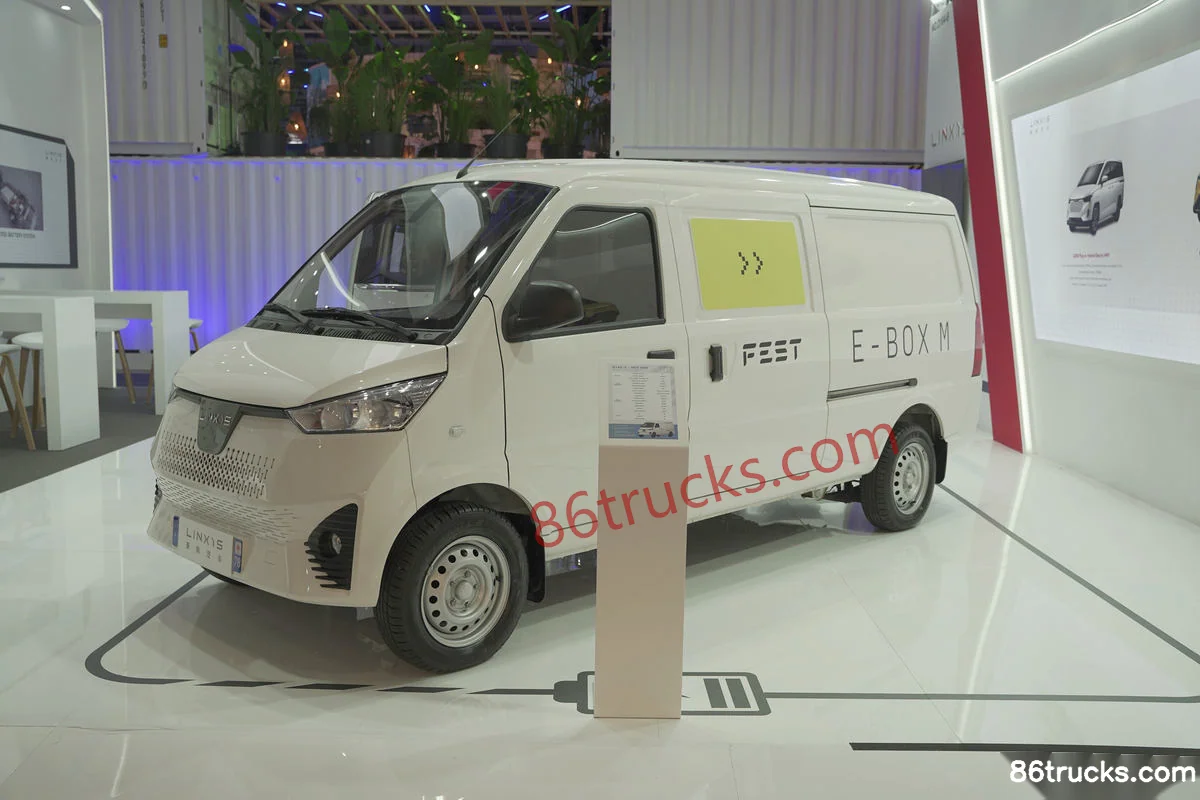

Exterior3

Lingshi Auto G105-3-NEV VAN 41.86kWh Exterior (1) | 86Trucks Lingshi Auto G105-3-NEV VAN 41.86kWh Exterior (2) | 86Trucks Lingshi Auto G105-3-NEV VAN 41.86kWh Exterior (3) | 86Trucks

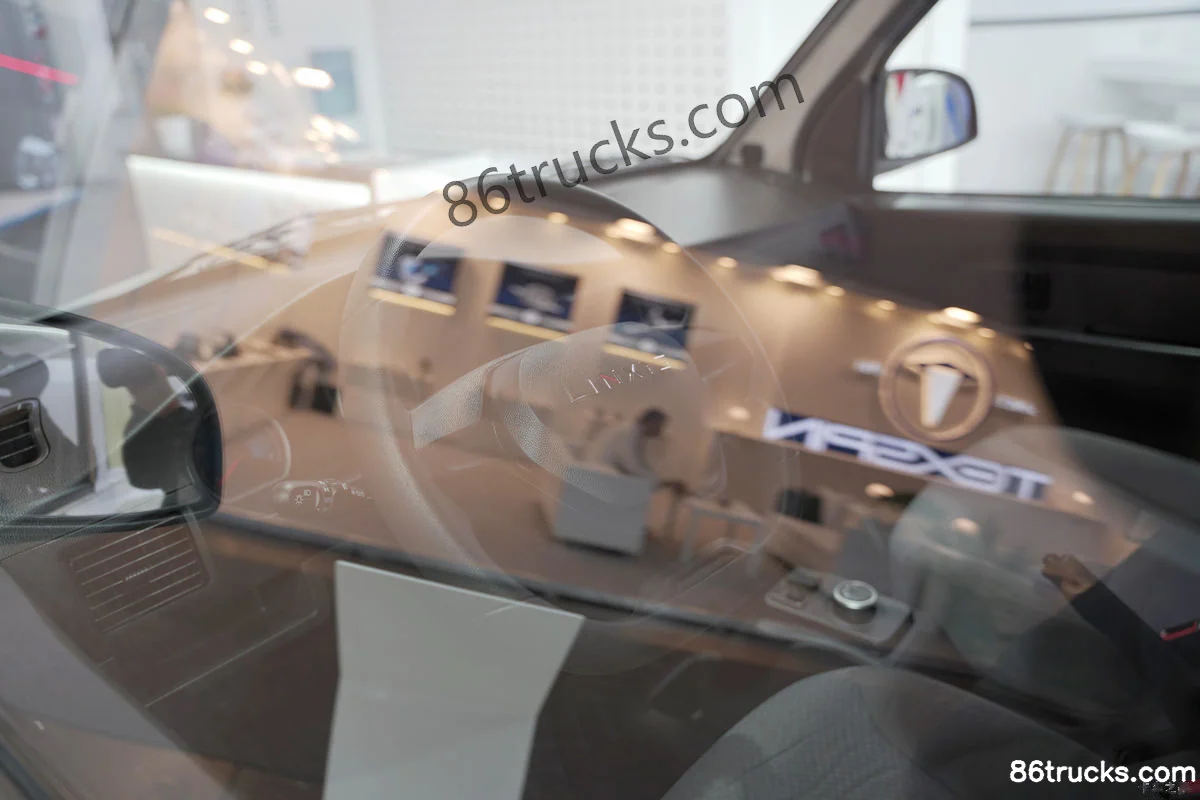

Cab1

Lingshi Auto G105-3-NEV VAN 41.86kWh Cab (1) | 86Trucks

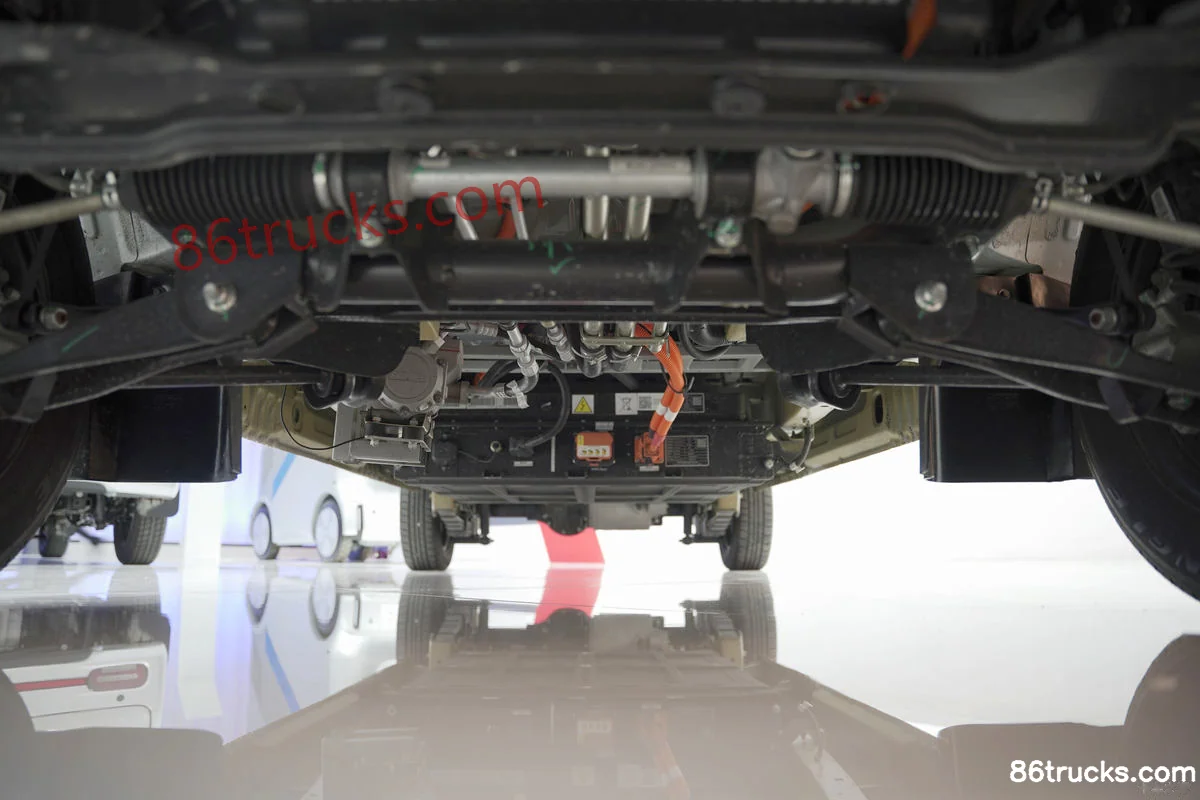

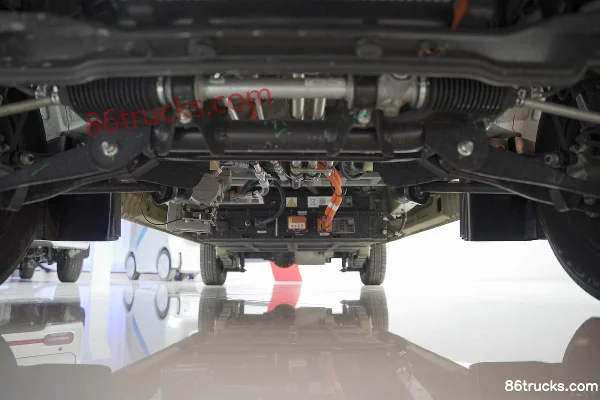

Chassis3

Lingshi Auto G105-3-NEV VAN 41.86kWh Chassis (1) | 86Trucks Lingshi Auto G105-3-NEV VAN 41.86kWh Chassis (2) | 86Trucks Lingshi Auto G105-3-NEV VAN 41.86kWh Chassis (3) | 86Trucks

7 photos

FAQ

What transport jobs is Lingshi Auto G105-3-NEV VAN 41.86kWh suited for?

Lingshi Auto G105-3-NEV VAN 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Lingshi Auto G105-3-NEV VAN 41.86kWh differ from other variants in the same series?

Lingshi Auto G105-3-NEV VAN 41.86kWh belongs to Wuling New Energy Lingzhi G105 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Lingshi Auto G105-3-NEV VAN 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Lingshi Auto G105-3-NEV VAN 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
