JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck

Export reference
From $12,750
MSRP ¥9.18M CNY
Horsepower: 102
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D19
Transmission: Xingrui
Curb Weight:: 2.65ton
seating capacity: 2Personnel
Rated payload: 1.715ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck is a Light Truck featuring 3.8m cargo length, Van body cargo body, 2Personnel volume and 1.715t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D19 engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XXYPV3K1C1V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3000mm
Box length class: 3.8m
engine: Yunnei PowerD19TCIE1
transmission: Xingrui LC5T28
Rear Axle Ratio: 4.875
Cab length: 5.83m
Cab width: 1.96m
Cab height: 2.9m
Front track width: 1420,1440,1470mm
rear track: 1395mm
Curb Weight: 2.65ton
Rated payload: 1.715ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 20.6°
departure angle: 16.1°
market segment: Urban Distribution
Front/rear suspension: 1.185/1.65m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Engine info: Yunnei Dewei D19
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.8m
Cargo box width: 1.9m
Cargo box height: 1.85m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab: Junling K5
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 90L
Chassis Specs
Front axle allowable load: 1575kg
rear axle allowable load: 2920kg
Axle ratio: 4.875
Leaf spring count: 8/5+3,3/3+4,3/5+6
Tire
Tire Size: 6.50-15LT,6.50R15LT,6.50-16LT 10PR,6.50R16LT 10PR,6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

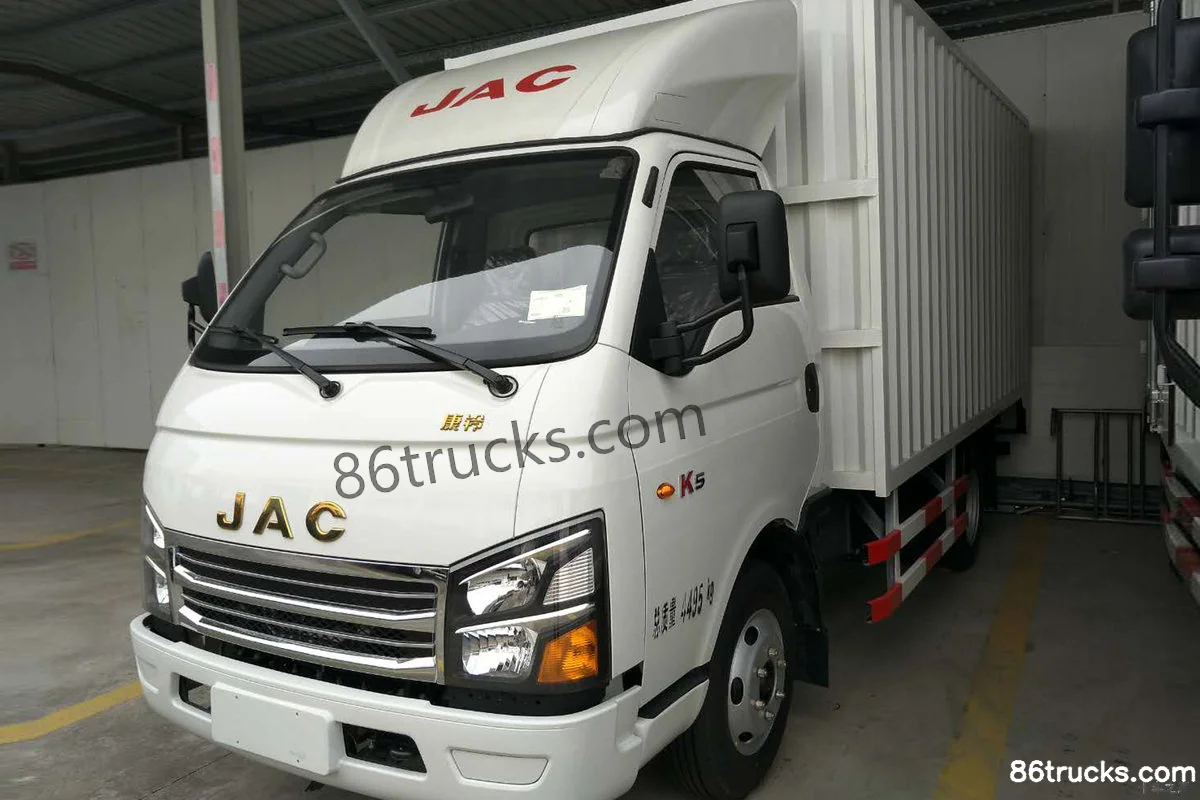

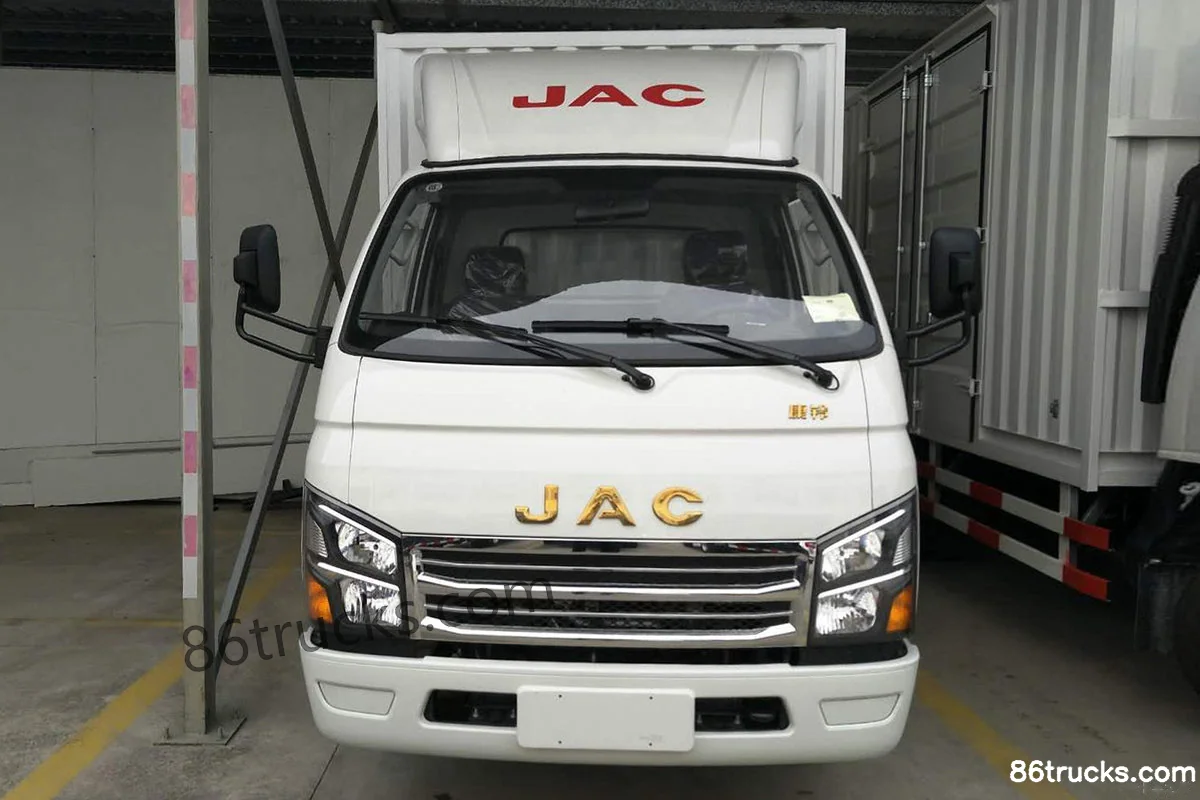

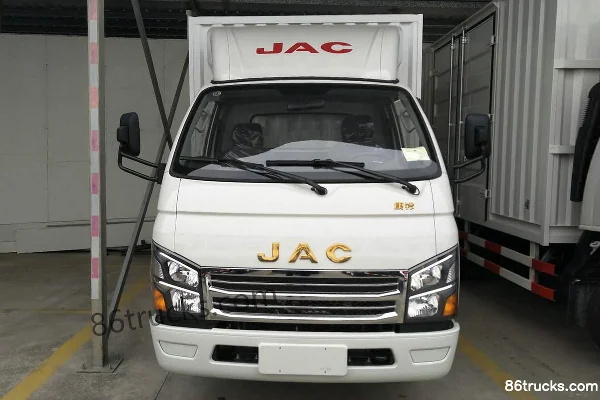

Photos

Exterior2

2 photos

FAQ

What is the export price of JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck, and what does it include?

JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck export reference is about From $12,750; MSRP is ¥9.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck?

Key specs of JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D19; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck suited for?

JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck differ from other variants in the same series?

JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck belongs to JACX7 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling K5 102 hp 4X2(6 wheels) 3.8m semi-sleeper light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
