SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh

Export reference

MSRP N/A

Rated payload:: 6.37ton

Wheelbase:: 2000+4400+1400mm

Cargo box type:: Rear dump type

Model code (announced):: SYM3312ZH6BEV2

Cab length:: 11.08m

GVWR:: 31ton

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh exterior

View more photos (12)

Drive 8X4 (12 wheels)

Battery Brand: CATL

Motor 1 Brand: SANY

Curb Weight: 24.5ton

Overview

The SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh is a Heavy truck featuring CATL battery/range, SANY motor, 8X4 (12 wheels) drive and 6.37t payload.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): SYM3312ZH6BEV2

Drive type: 8X4

Wheelbase: 2000+4400+1400mm

Cab length: 11.08m

Cab width: 2.54m

Cab height: 3.6m

Curb Weight: 24.5ton

Rated payload: 6.37ton

GVWR: 31ton

Max. speed: 85km/h

Origin: Changsha, Hunan

tonnage class: Heavy truck

Energy Type: Electric

electric motor

Motor 1 Brand: SANY

Motor 1 Model: TZ460XS-SYM2904

Motor Type: Permanent magnet synchronous motor

total rated power: 450kW

Peak power: 588kW

total rated torque: 2100N·m

total peak torque: 3200N·m

Motor 1 Peak Power: 588kW

Battery/Charging

Battery Brand: CATL

Battery type: Lithium Iron Phosphate Battery

Battery capacity: 600kWh

Cargo box parameters

Cargo box type: Rear dump type

Cargo box length: 8m

Cargo box width: 2.45m

Cargo box height: 1.5m

Cab parameters

Cab: Flat roof, flat floor

seating capacity: 2Personnel

Seat rows: Sleeper cab

Chassis Specs

Front axle allowable load: 6500/6500kg

rear axle description: 31T

rear axle allowable load: 18000 (tandem axle group)kg

Tire

Tire Size: 12.00R20 18PR

Number of tires: 12pcs

Control configuration

ABS:

interior configuration

Multifunction steering wheel:

AC control type: Automatic

Power Windows:

Power Mirrors:

Reverse Camera:

Electronic Central Lock:

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

Bluetooth / hands-free calling:

Service brake

Brake Type: Air brake

Parking brake: Spring brake

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

Photos

Exterior3

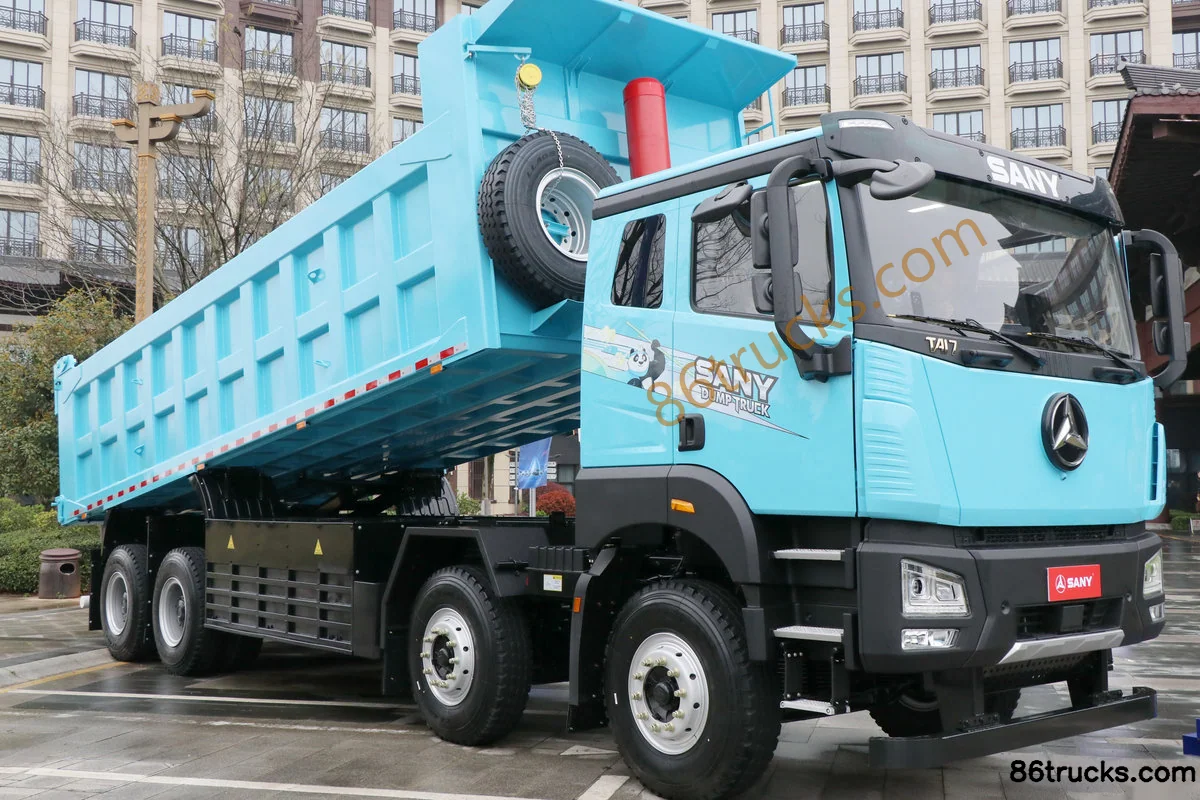

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Exterior (1) | 86Trucks

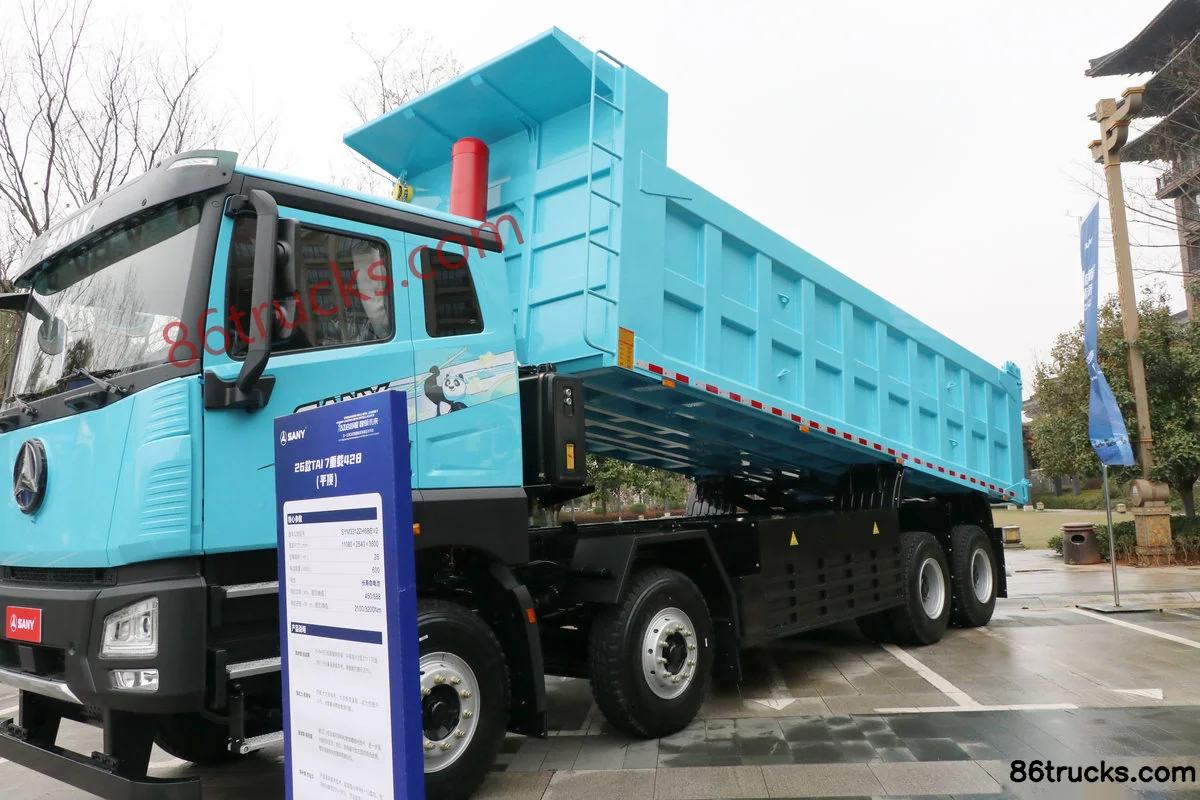

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Exterior (2) | 86Trucks

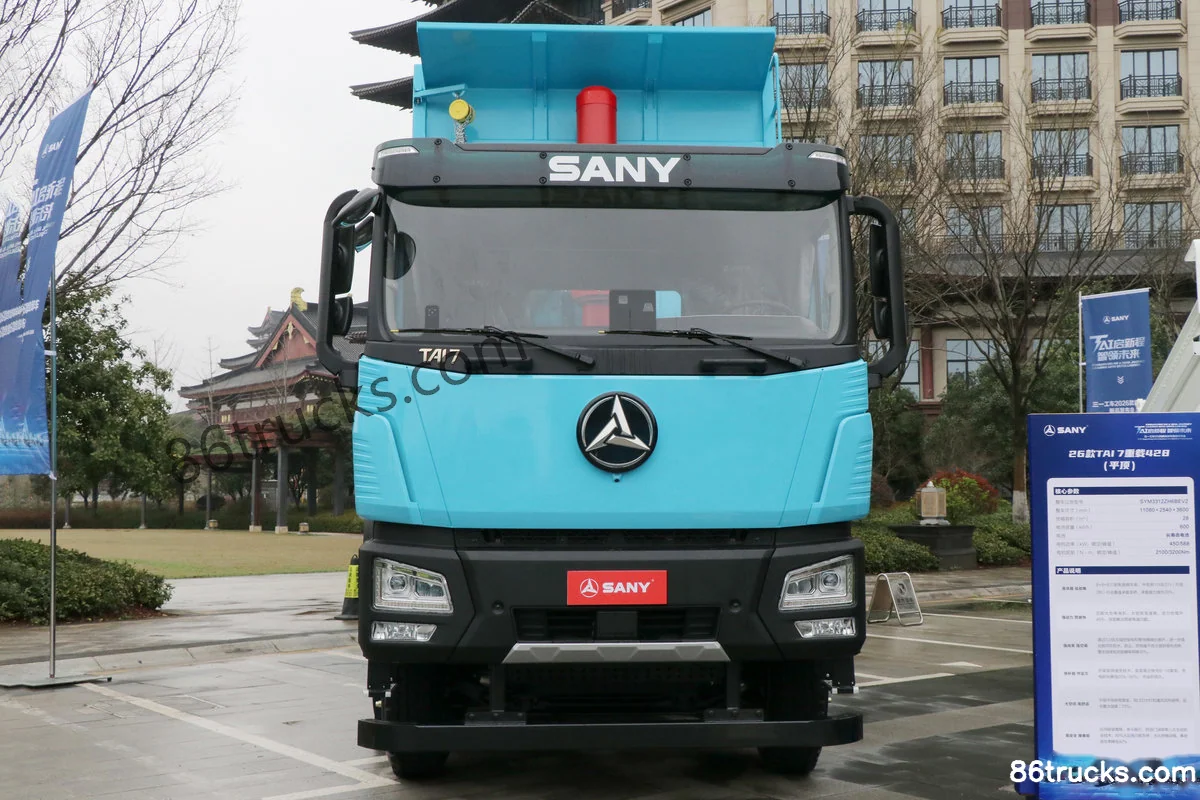

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Exterior (3) | 86Trucks

Cab3

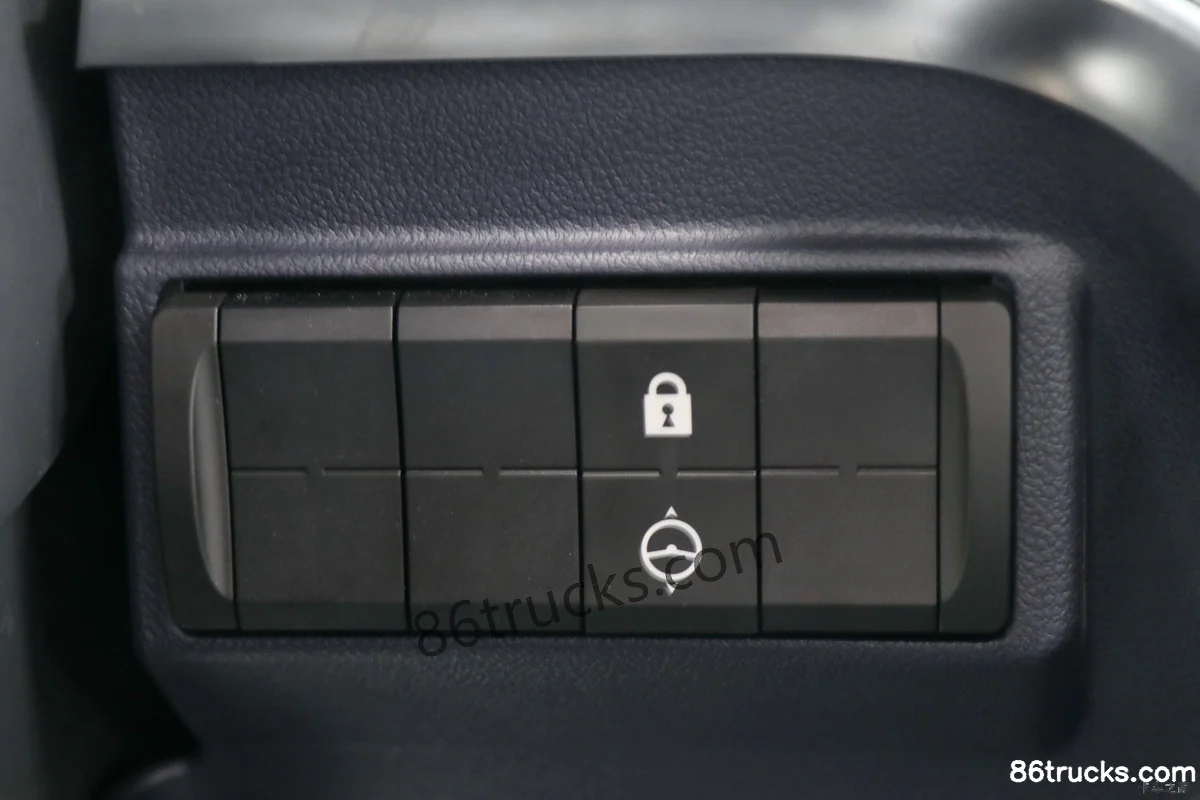

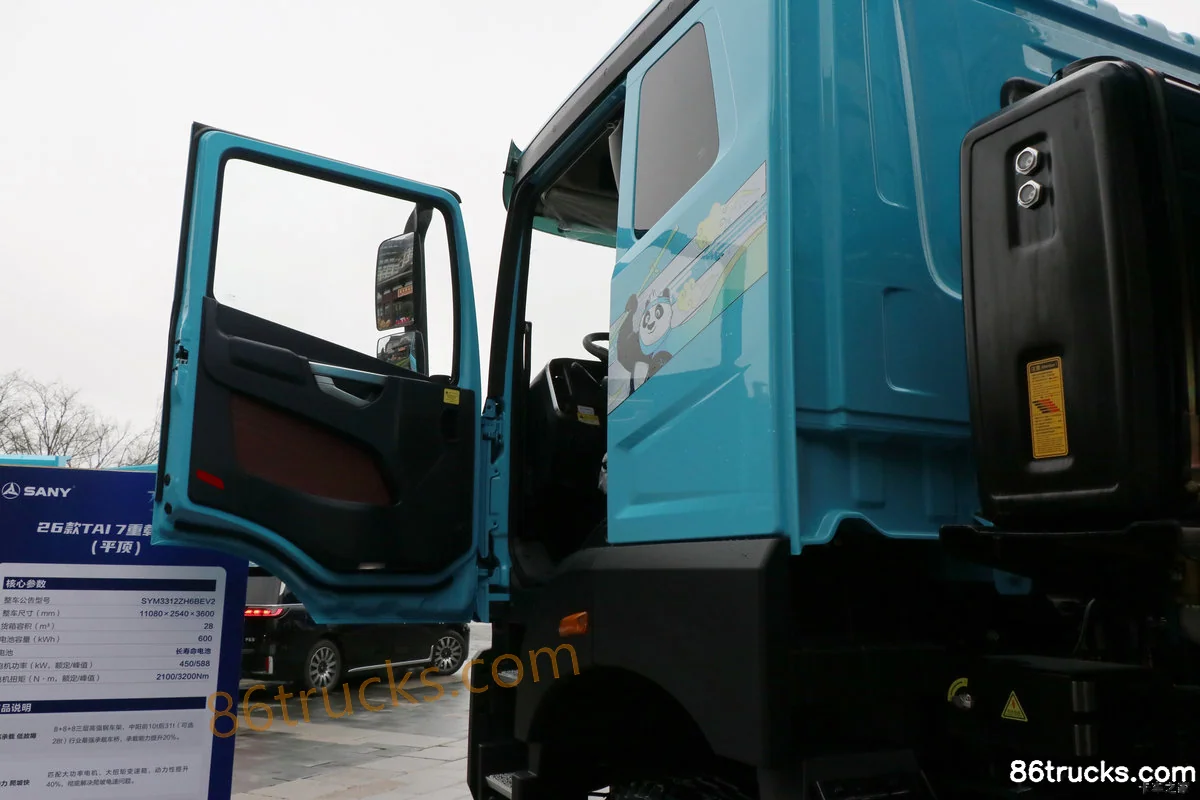

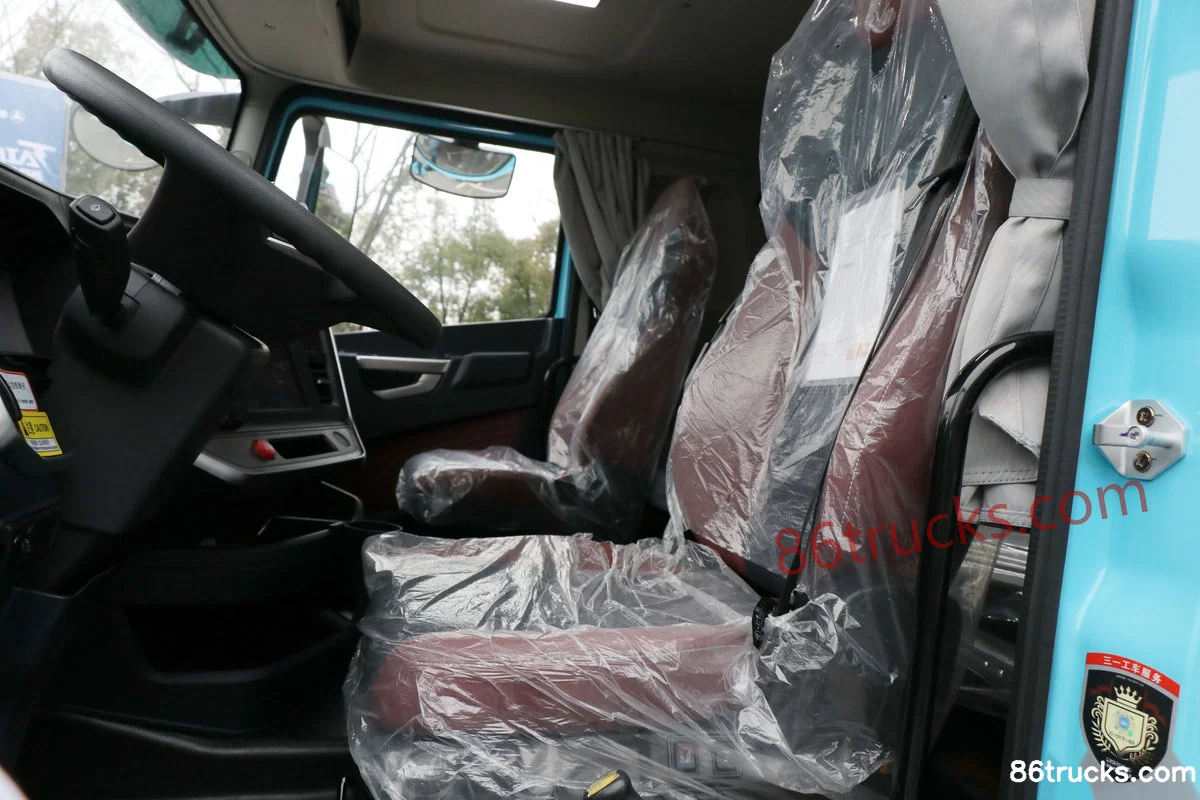

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh (1) | 86Trucks

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh (2) | 86Trucks

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh (3) | 86Trucks

Chassis3

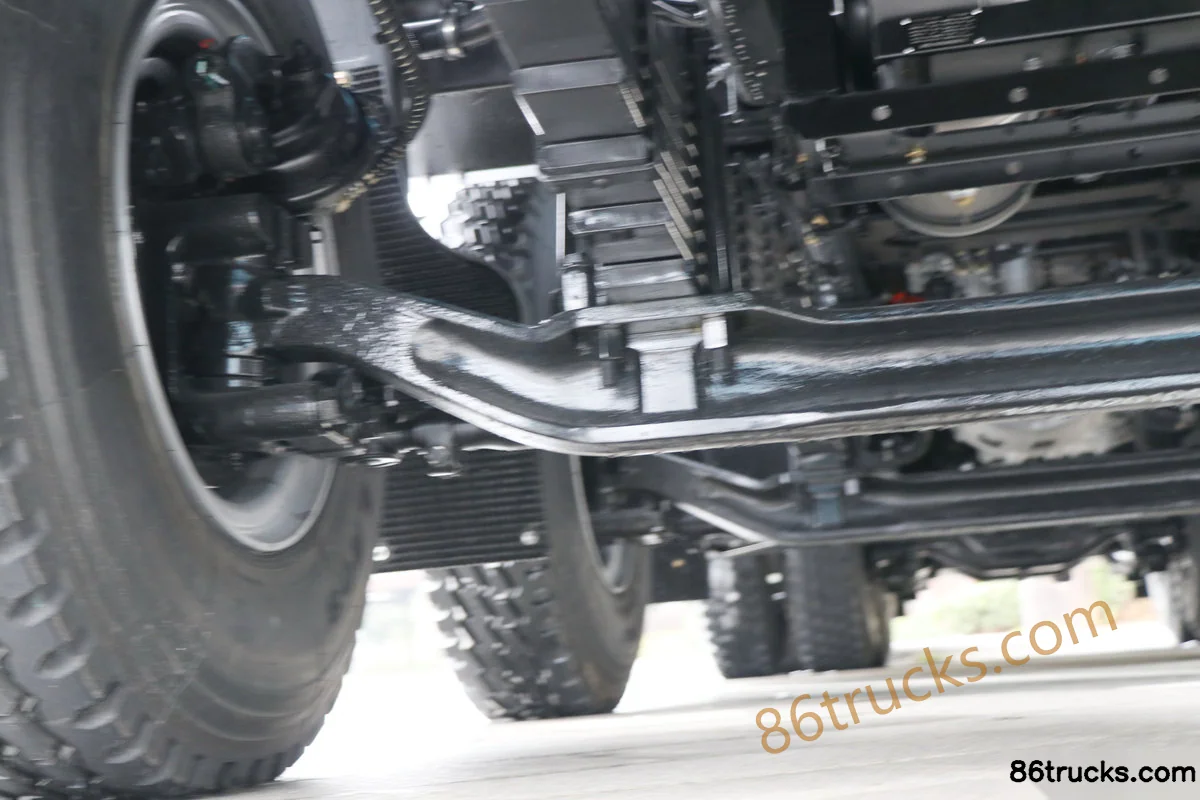

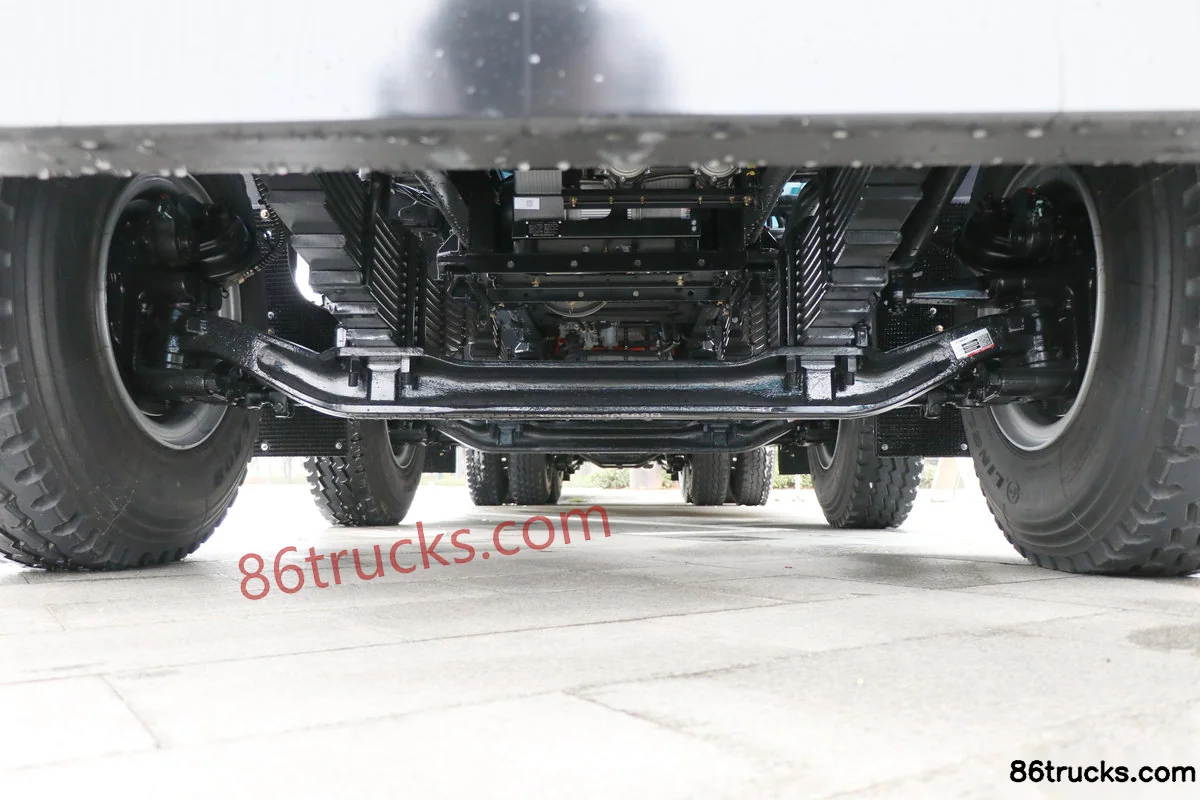

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Chassis (1) | 86Trucks

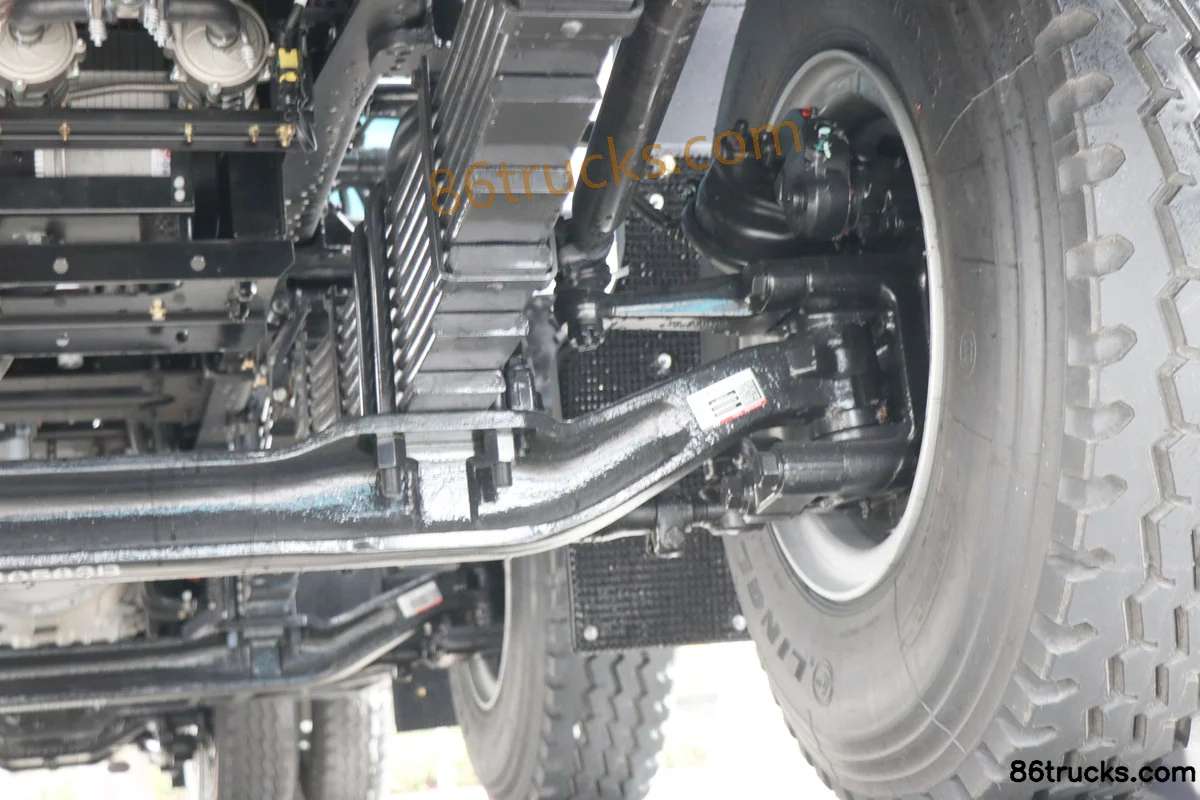

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Chassis (2) | 86Trucks

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Chassis (3) | 86Trucks

Body3

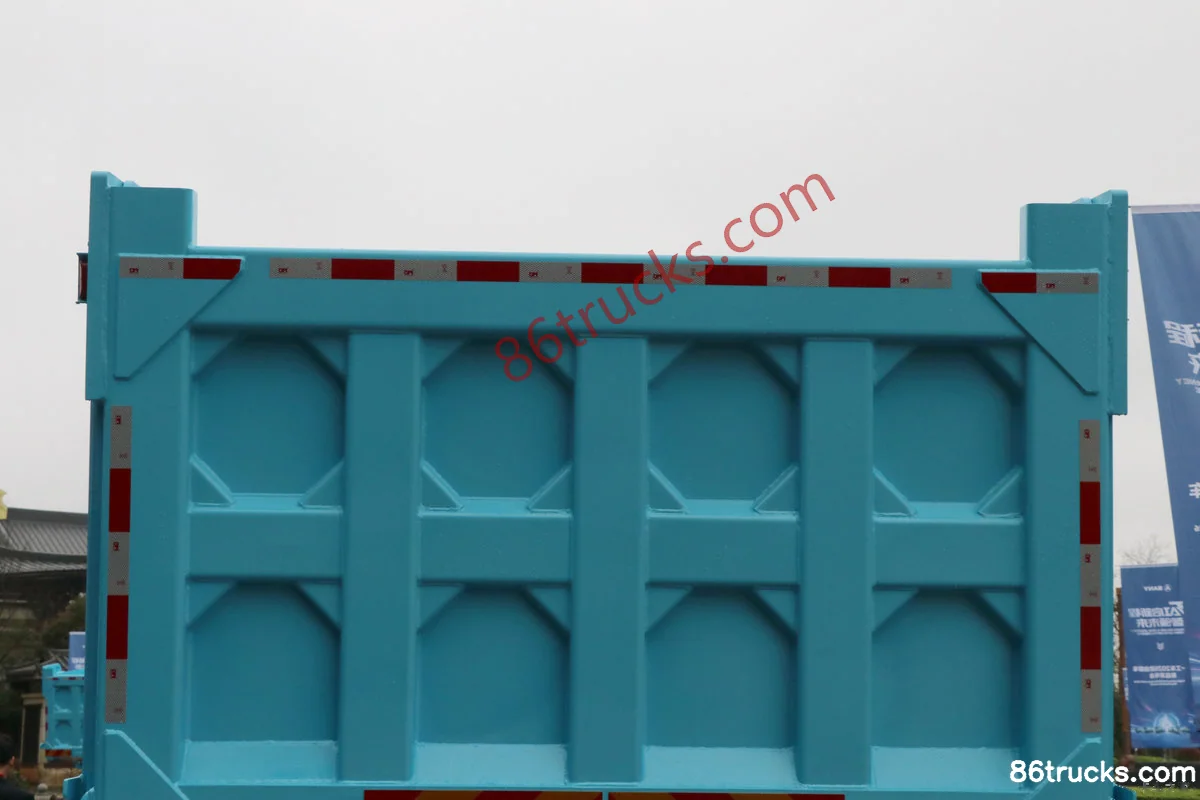

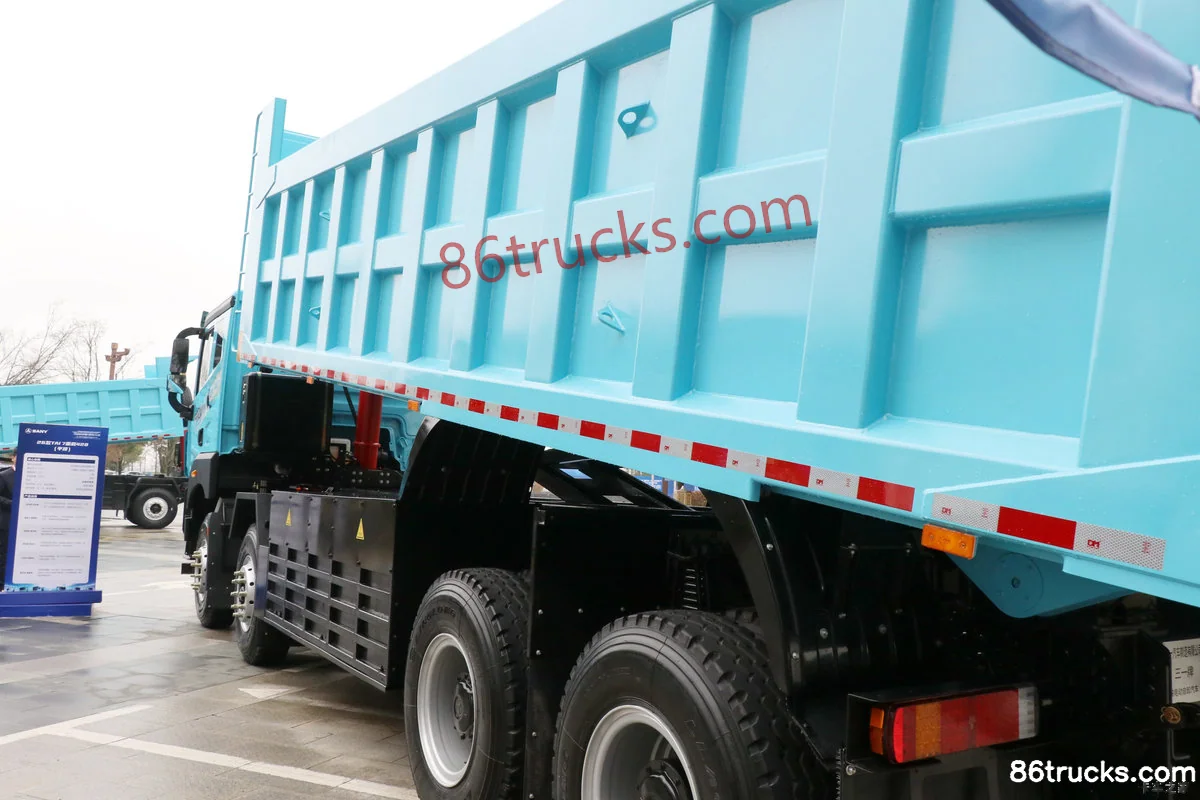

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Body (1) | 86Trucks

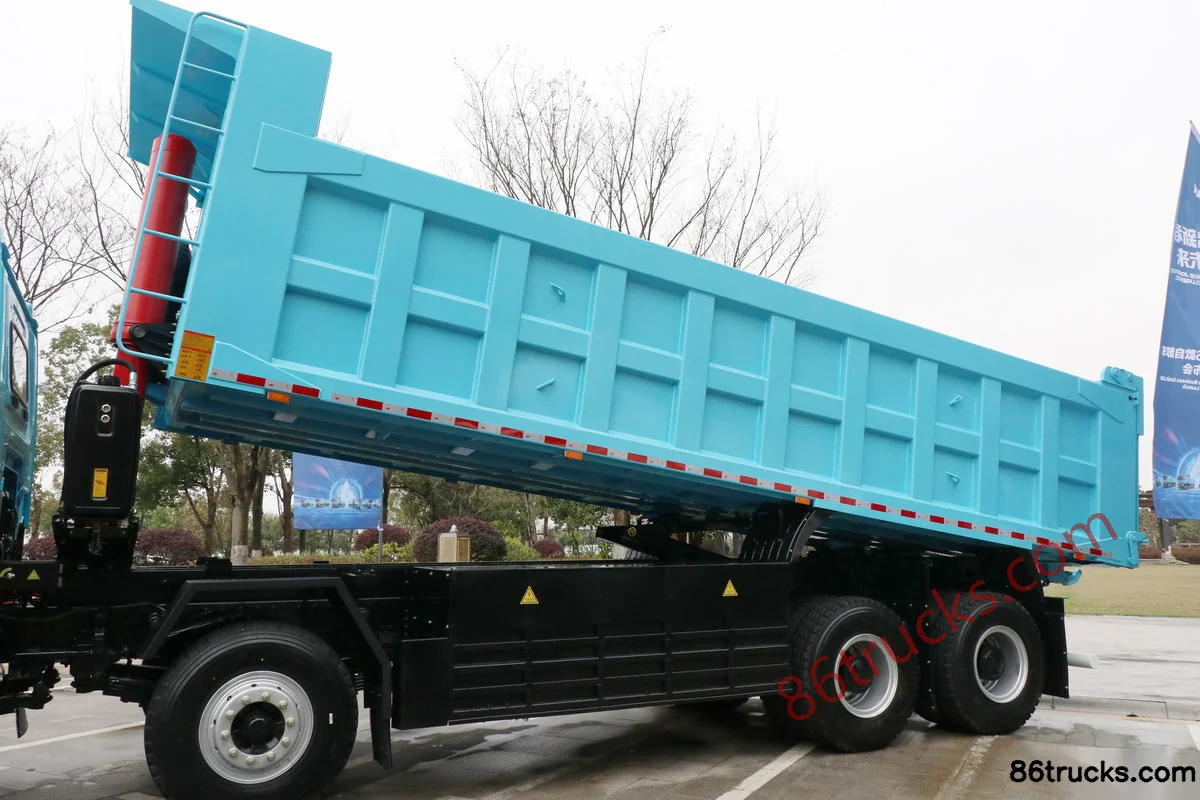

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Body (2) | 86Trucks

SANY 26 TAI 7 Heavy-Duty 428 8X4(12 wheels) Flat Top 8m Crew Cab Pure Electric Dump Truck CATL 600kWh Body (3) | 86Trucks

12 photos
