Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels)

Export reference
From $29,264
MSRP ¥21.07M CNY
Rated payload:: 1.32ton
Wheelbase:: 3360mm
Cargo box type:: Stake type
Model code (announced):: BJ5045CCYEV5
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: Foton
Curb Weight: 2.98ton

Overview

The Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) is a Light Truck featuring 300km battery/range, Foton motor, 4X2 (6 wheels) drive and 1.32t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5045CCYEV5
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.14m
CLTC range: 300km
Curb Weight: 2.98ton
Rated payload: 1.32ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTB065B
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 120kW
Battery/Charging
Charging method: Standard fast charging, optional fast/slow charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.46kWh
fast charge time: 0.75h
Slow charge time: 16.4h
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.17m
Cargo box width: 2.1m
Cab parameters
Cab width: 1880mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2645kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual

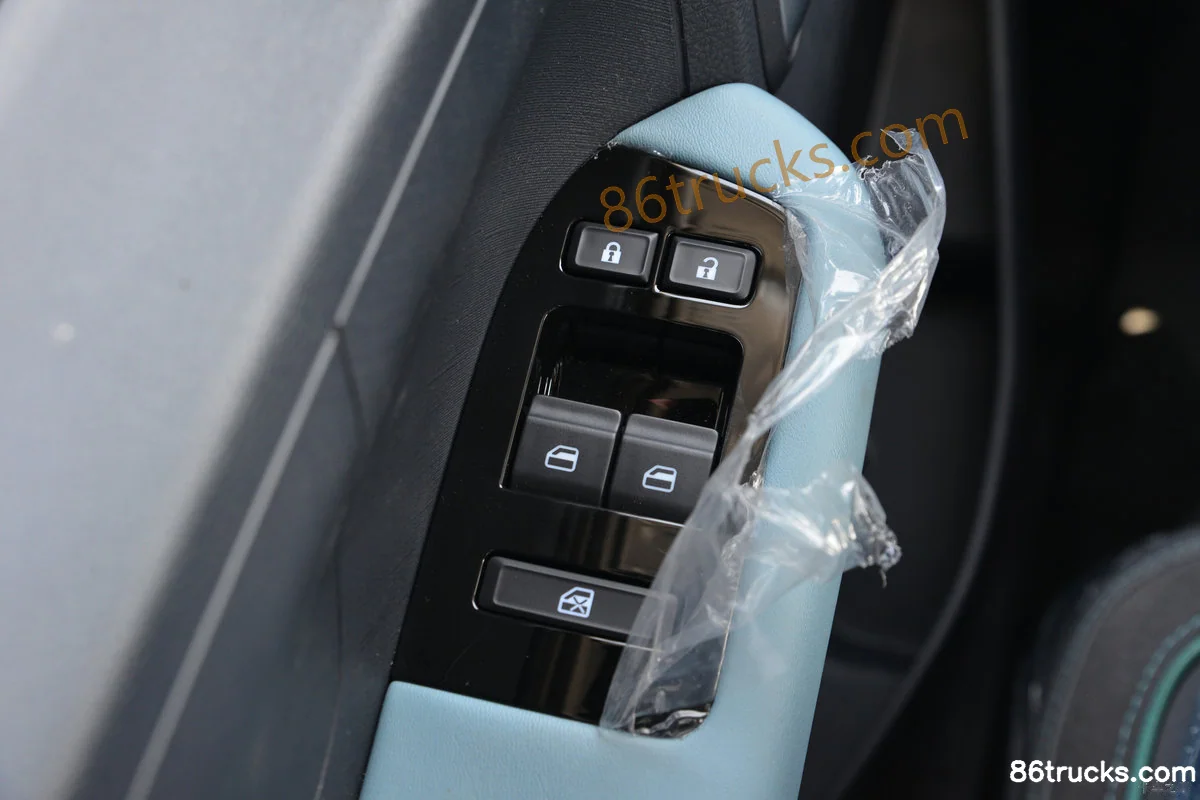

Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Brake Type: Air brake
smart configuration
Cruise control (CCS):

Photos

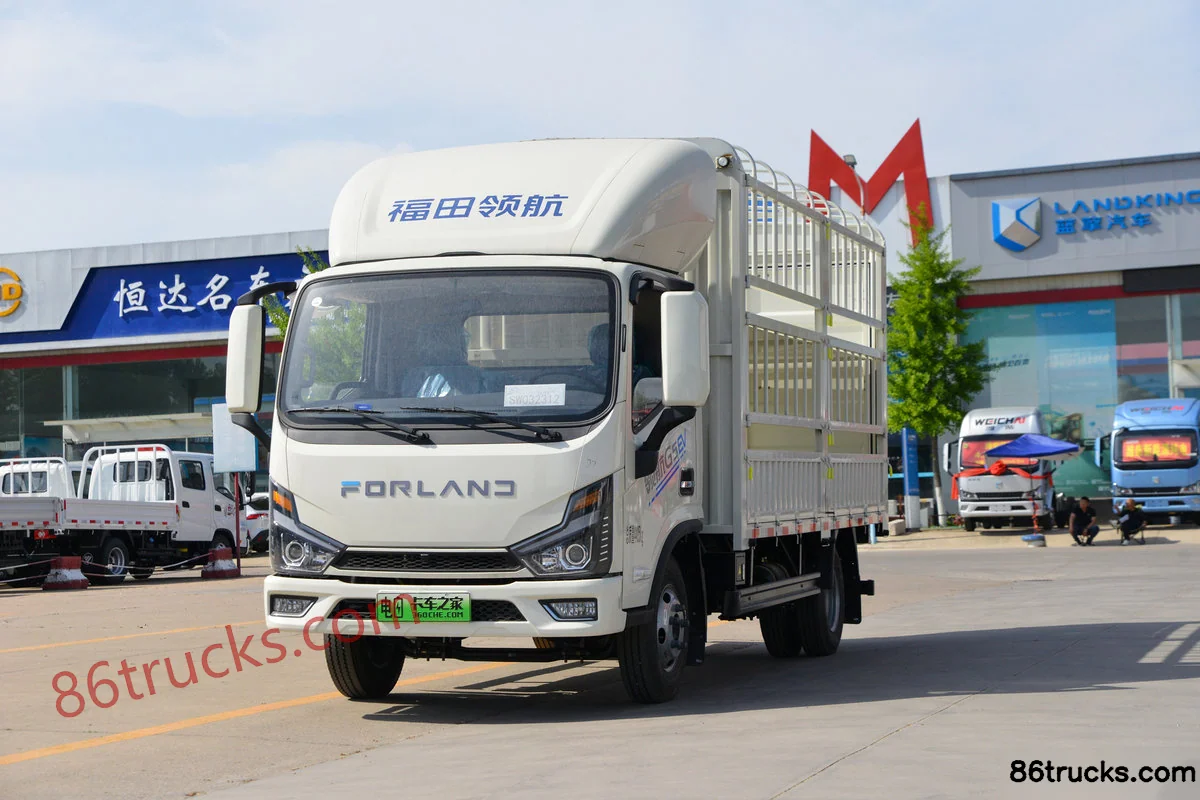

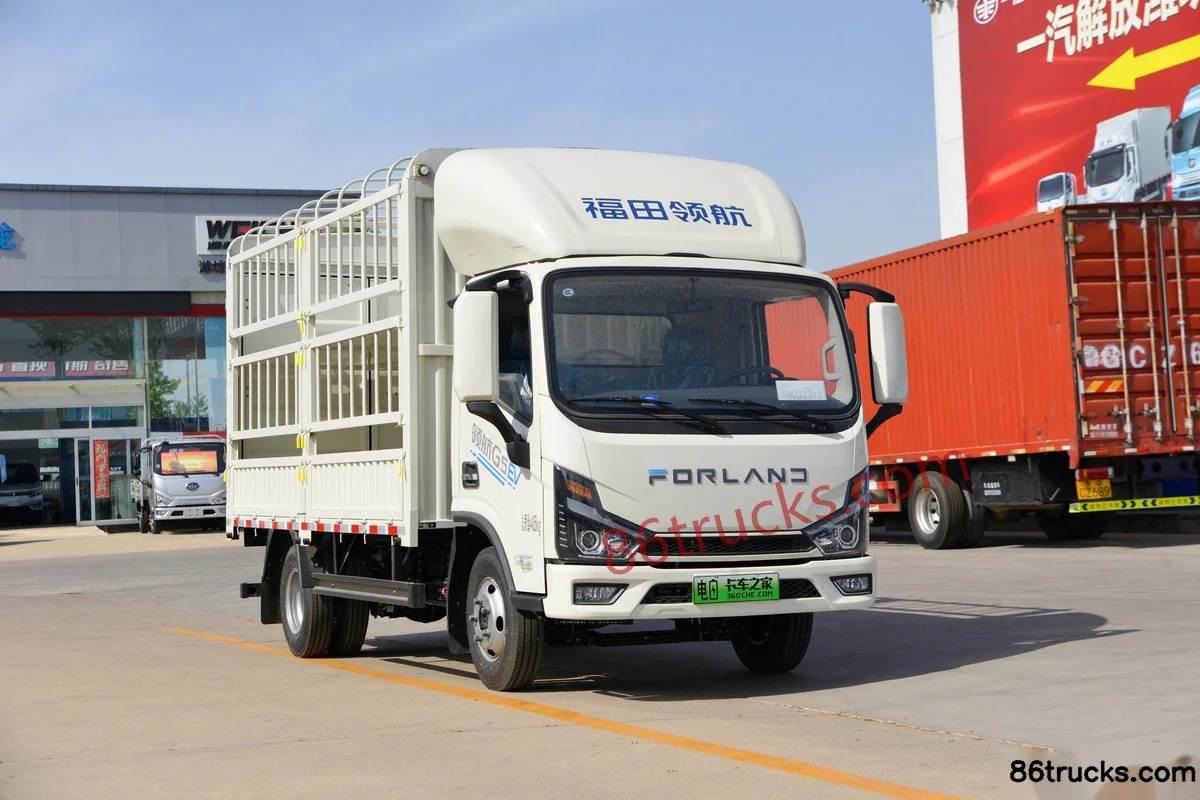

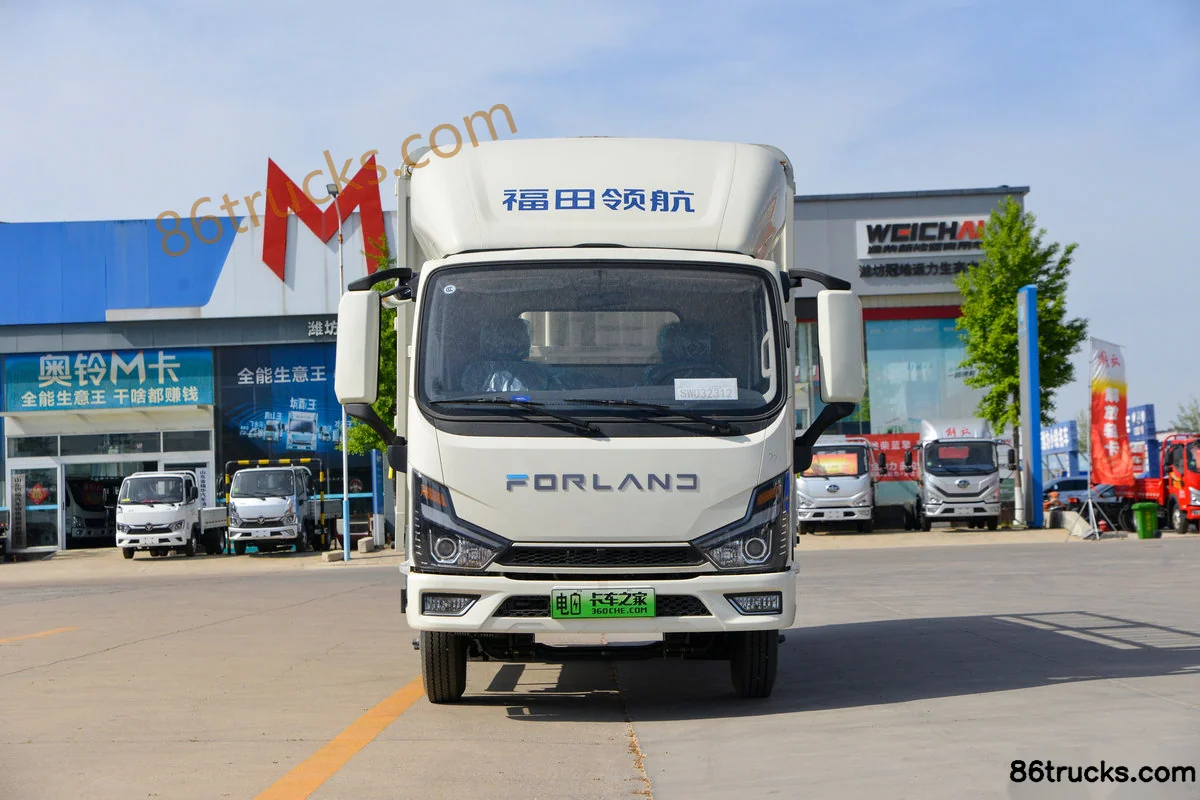

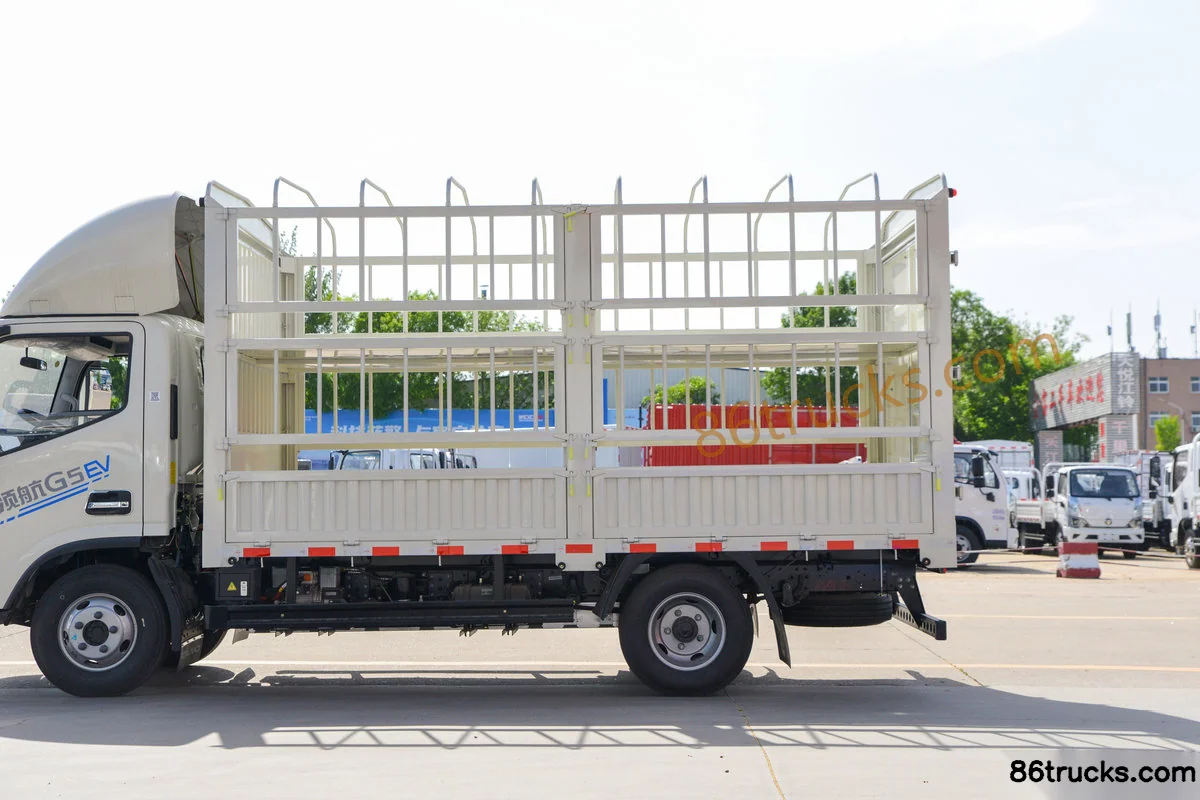

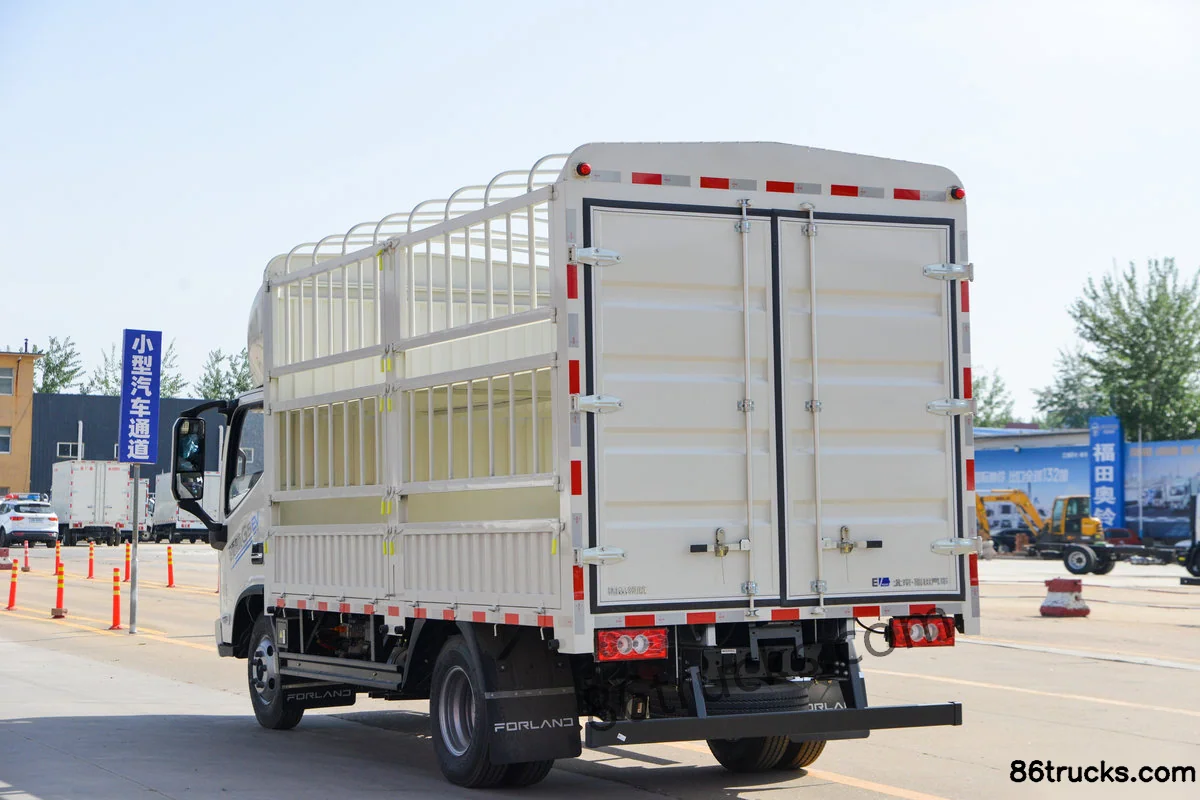

Exterior3

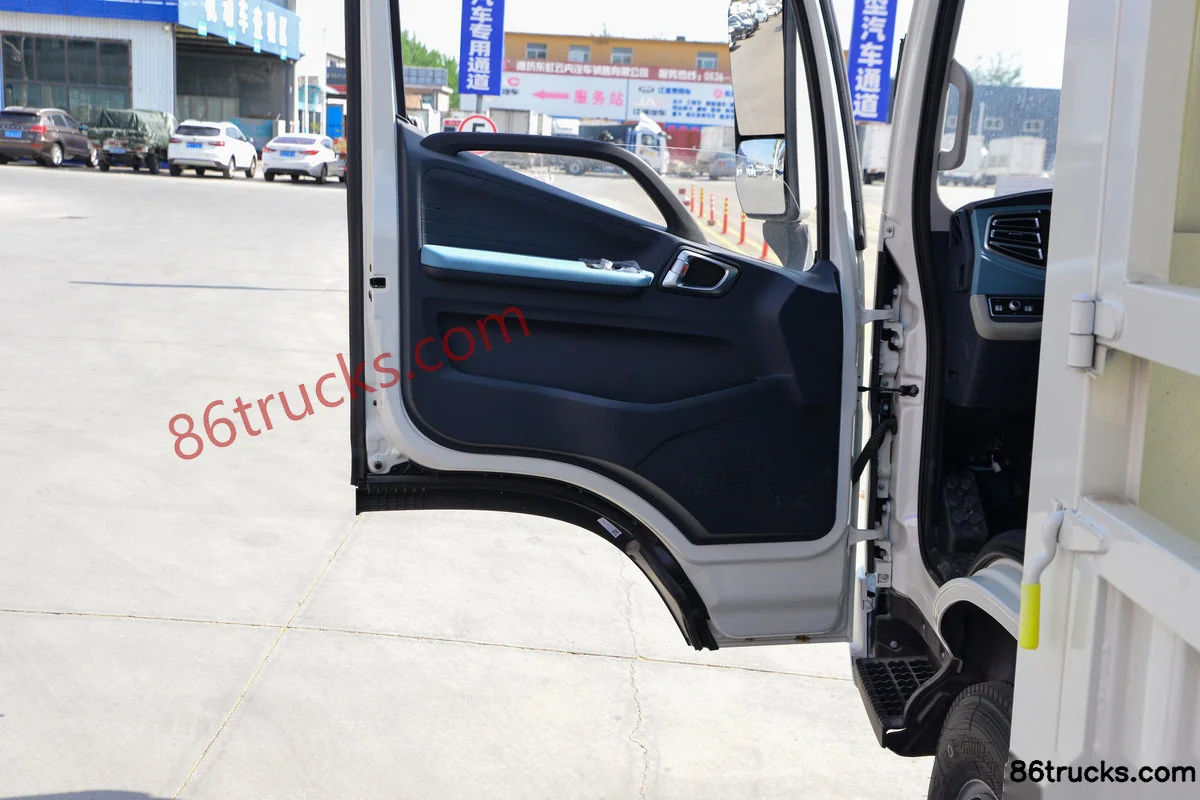

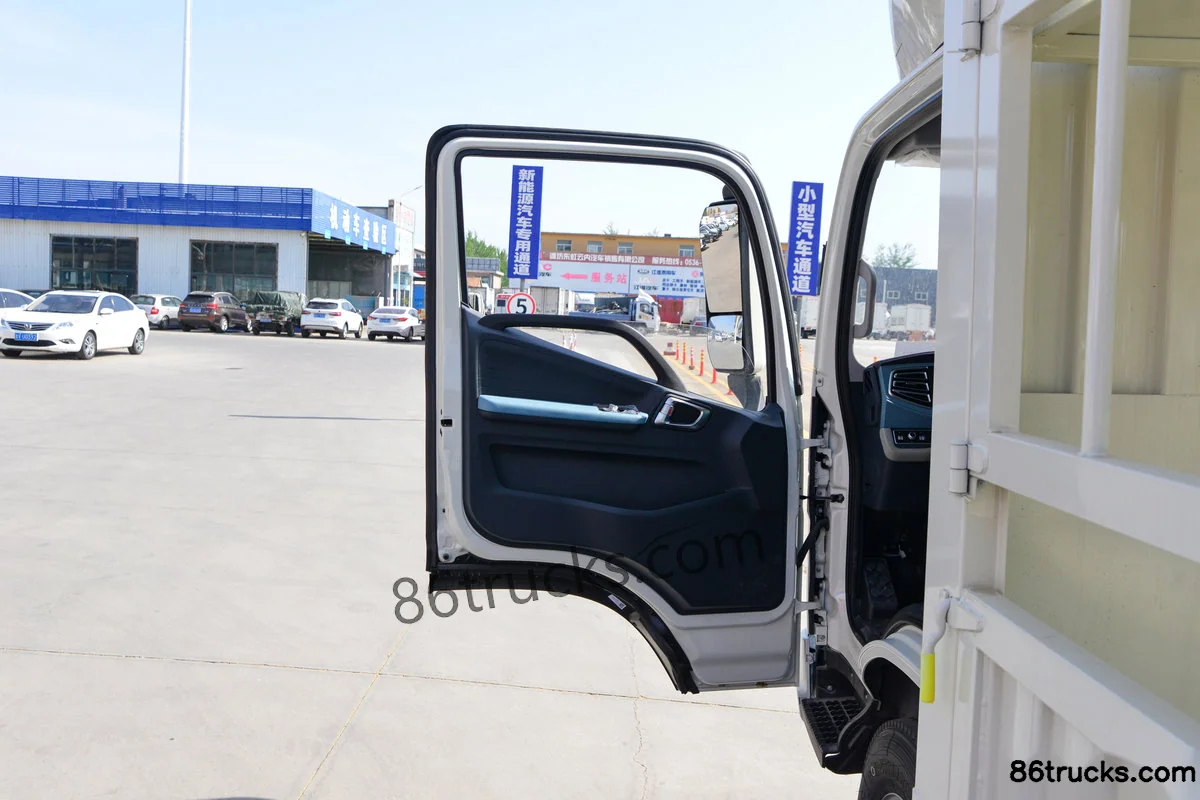

Cab3

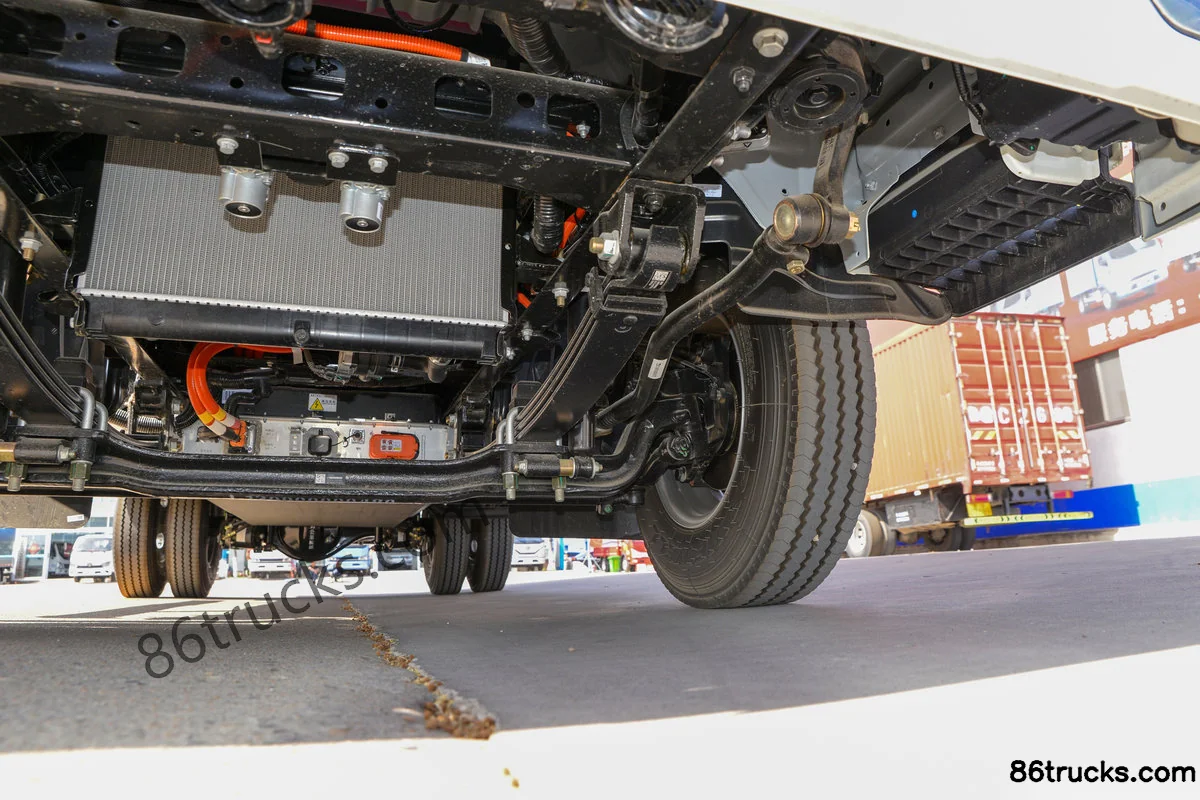

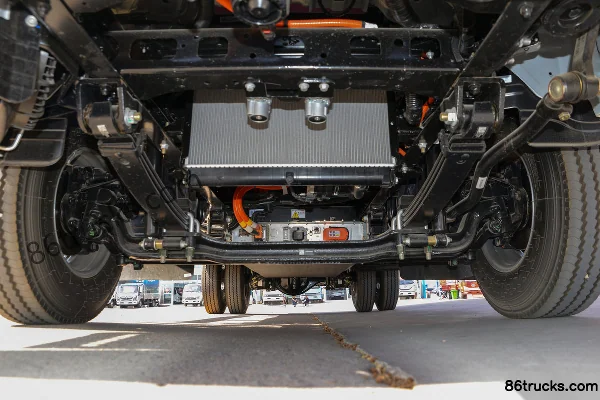

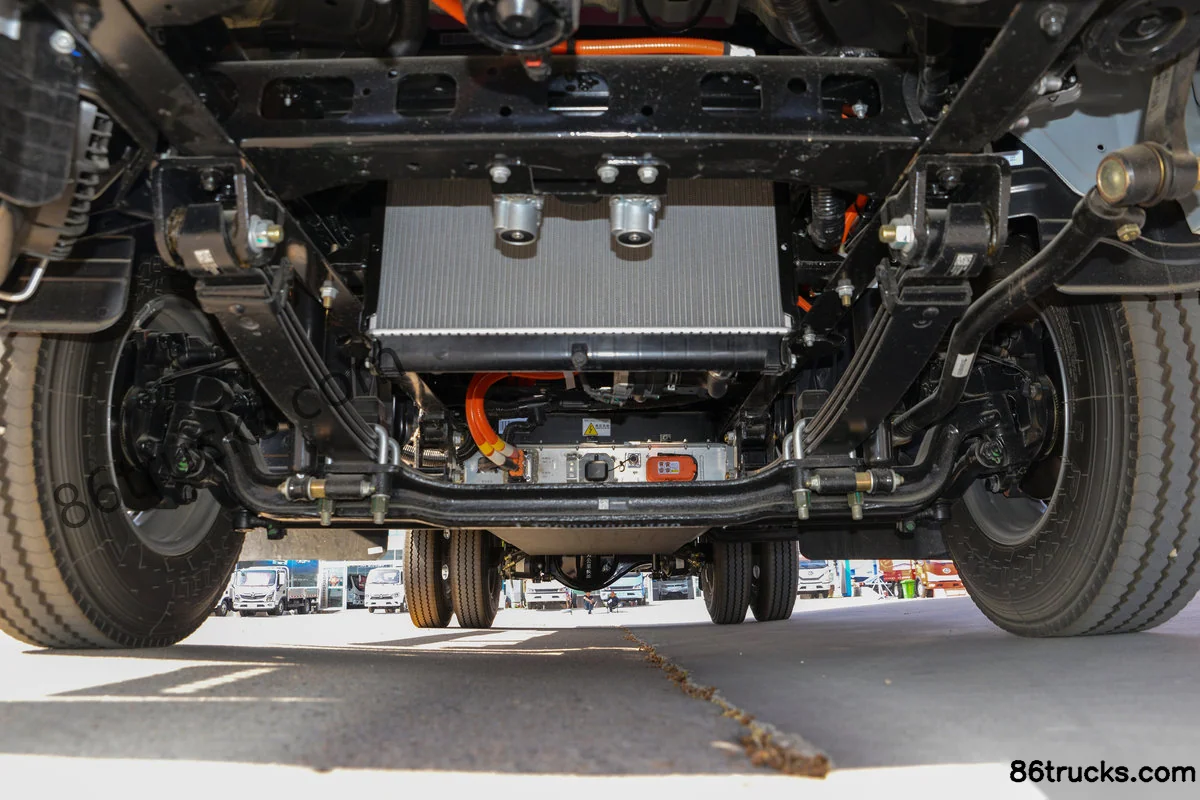

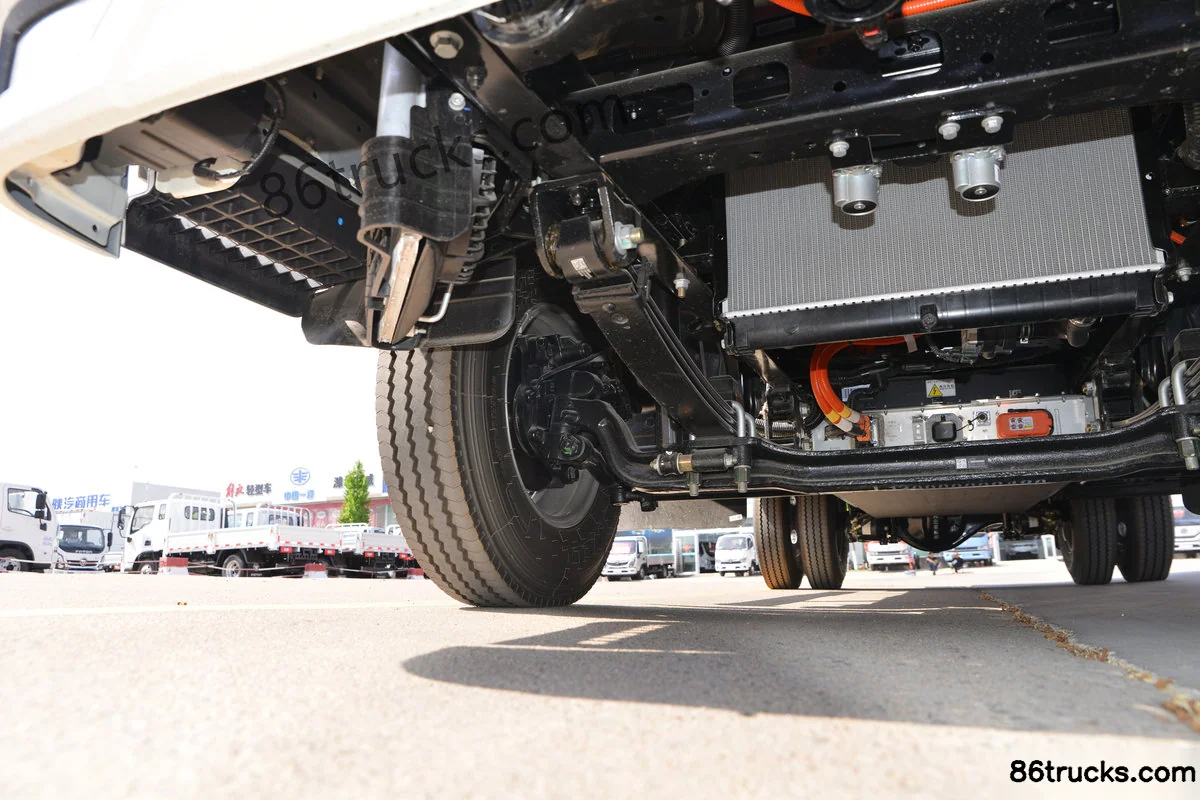

Chassis3

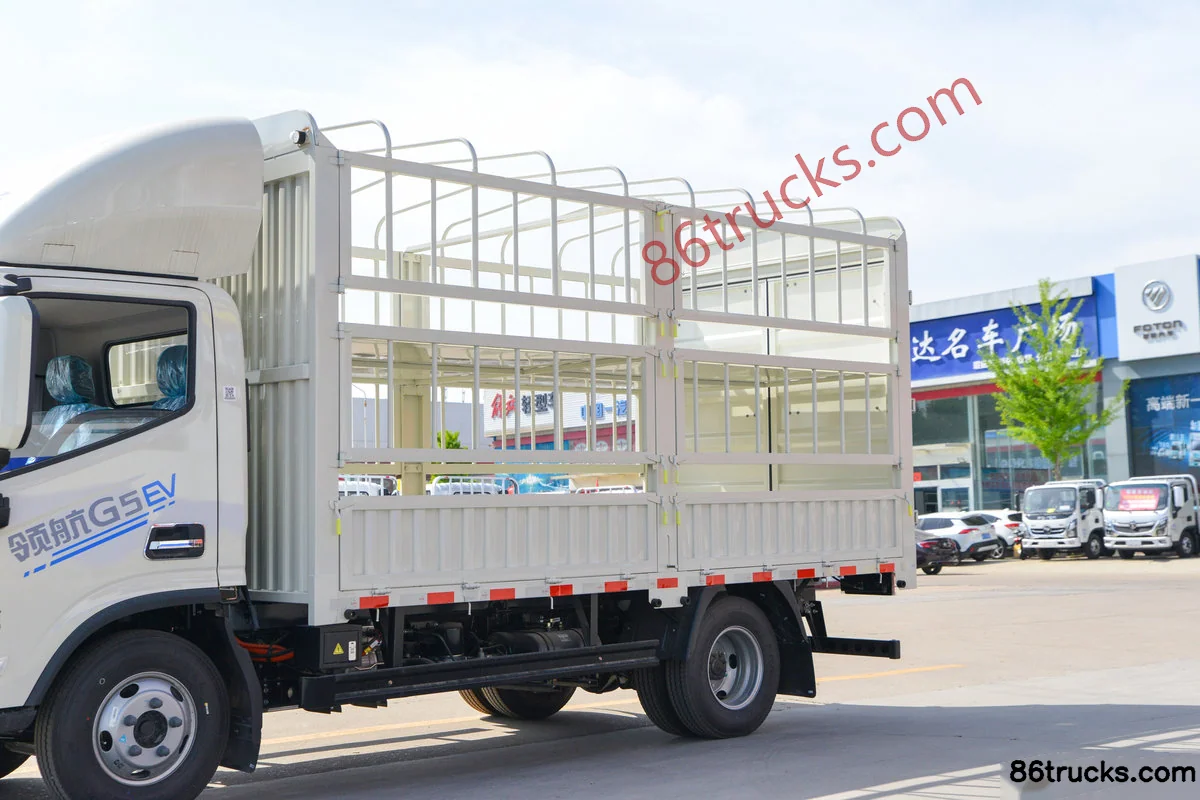

Body3

12 photos

FAQ

What is the export price of Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels), and what does it include?

Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) export reference is about From $29,264; MSRP is ¥21.07M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels)?

Key specs of Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) suited for?

Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) differ from other variants in the same series?

Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) belongs to Foton Forland Linghang G5 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Forland Linghang G5 Air Brake 4.17m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
