Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI)

Export reference
MSRP N/A
Horsepower: 130
Emission: China VI
Fuel: Diesel
Engine: Weichai2.5L
Transmission: WLY
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI) is a Light Truck featuring 4.15m cargo length, Stake type cargo body, 3Personnel volume and 1.645t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Weichai2.5L engine, 130 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5048CCYG17FB7
Type: stake truck
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 4.2m
engine: WeichaiWP2.3NQ130E61
transmission: WLY 6-speed
Cab length: 5.998m
Cab width: 2.4m
Cab height: 3.38m
Front track width: 1605mm
rear track: 1595mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Urban Distribution
Front/rear suspension: 1.175/1.543m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E61
Engine info: Weichai2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: WLY 6-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 1785kg
rear axle allowable load: 2710kg
Leaf spring count: 8/9+6
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Reverse Camera:
Electronic Central Lock:
smart configuration
Cruise control (CCS):

Photos

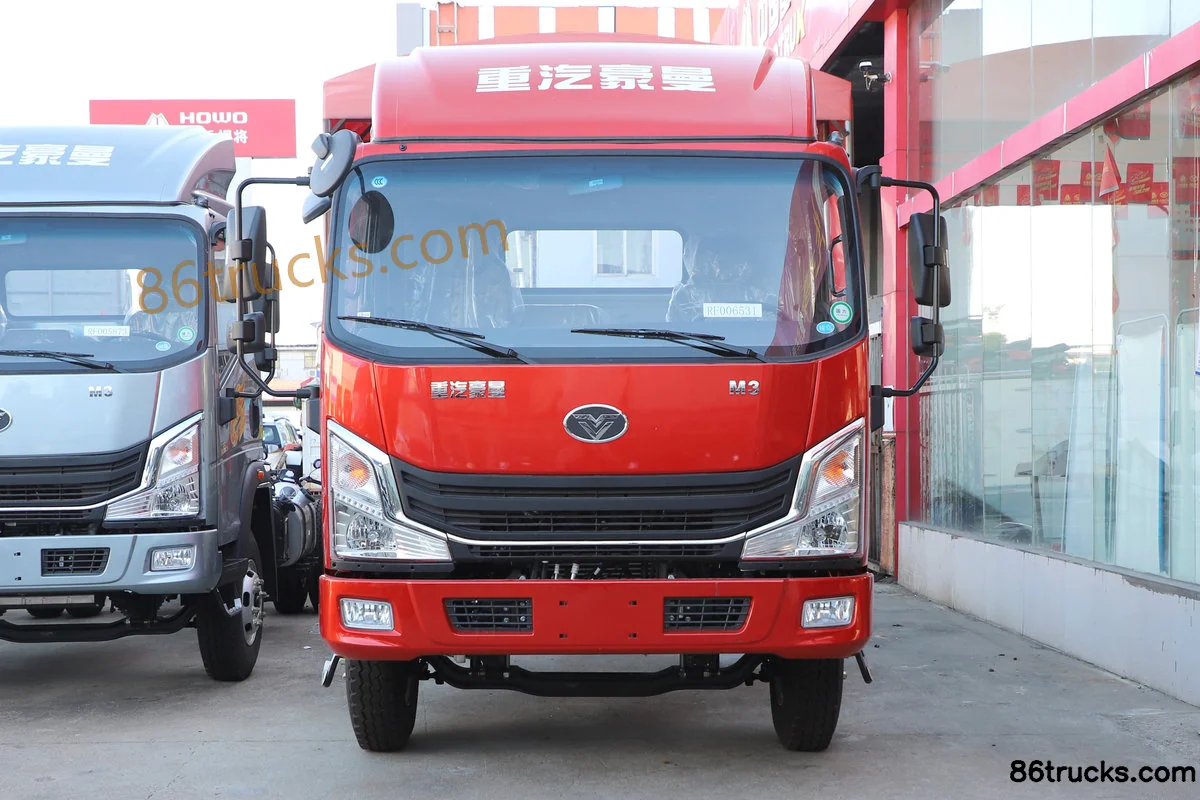

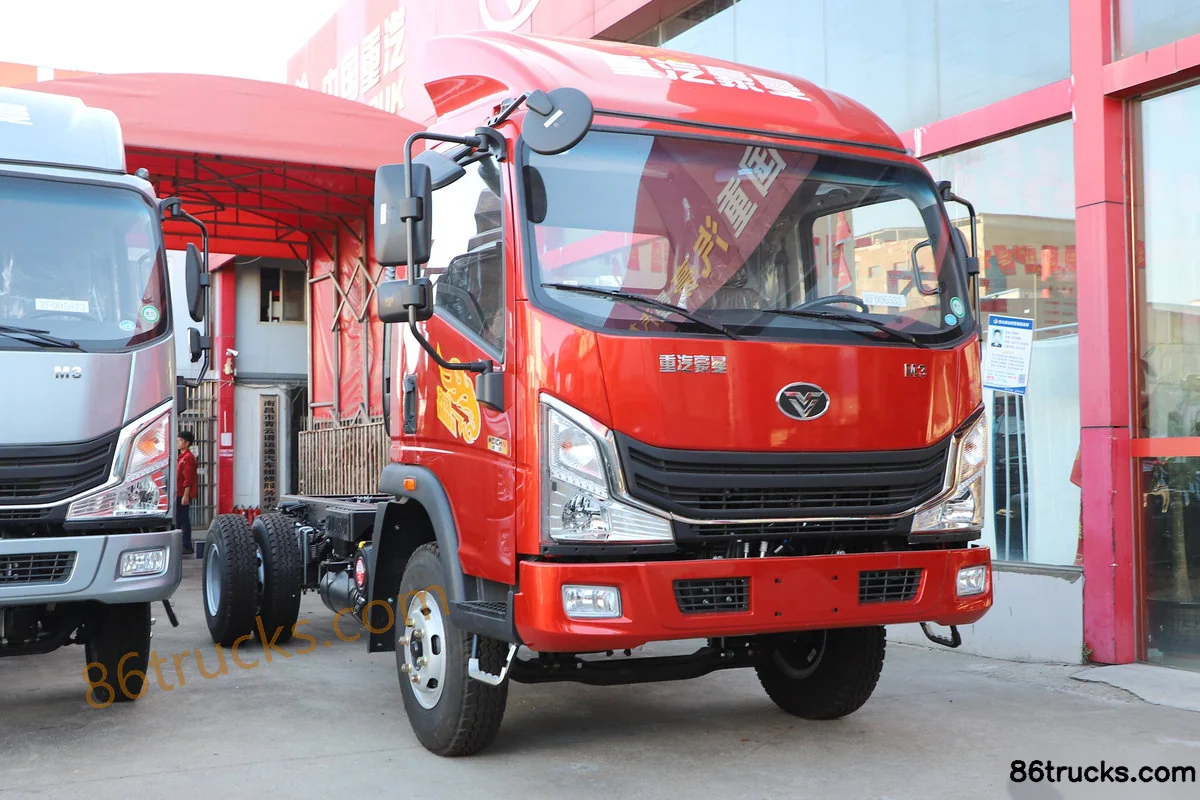

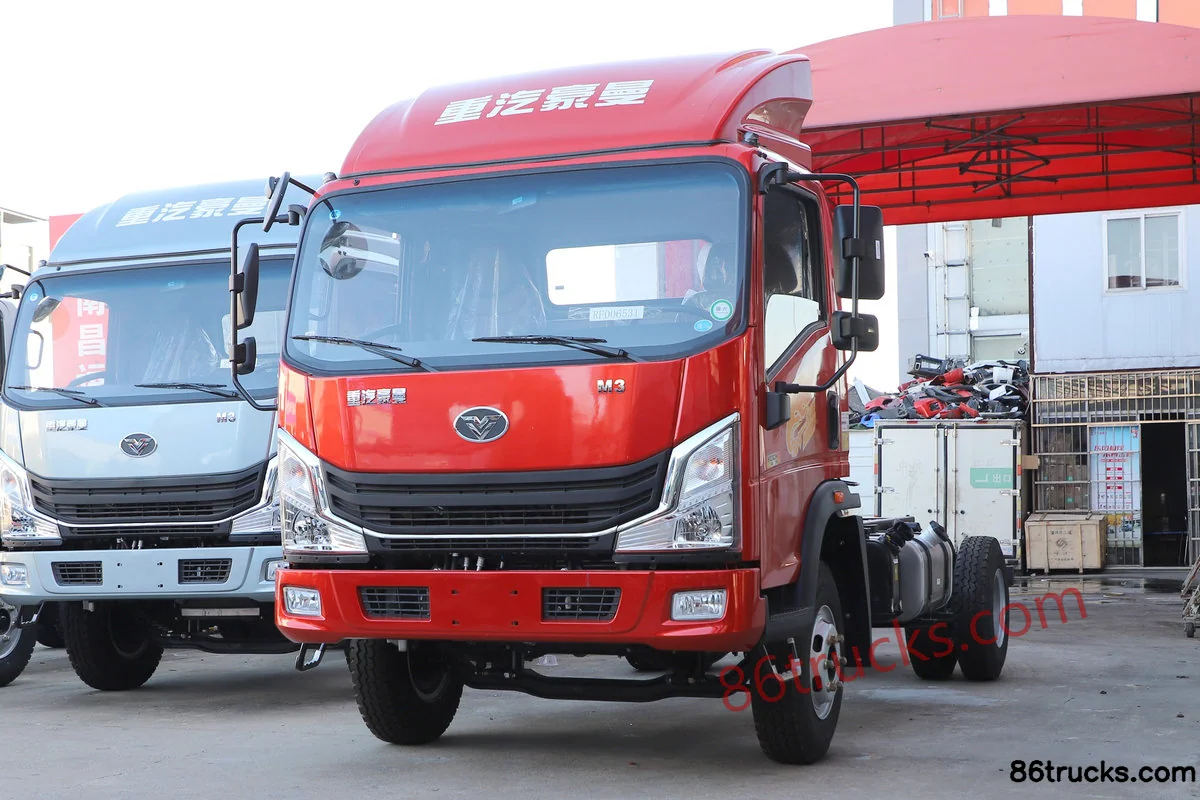

Exterior3

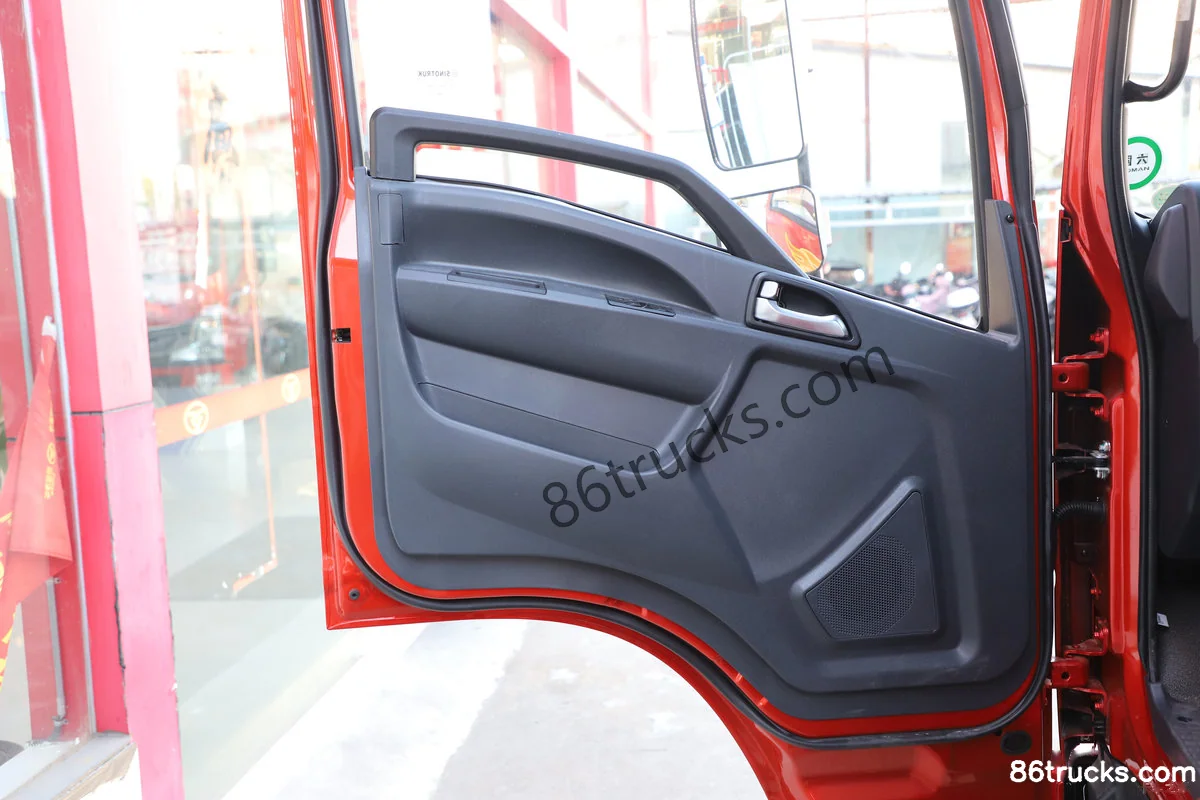

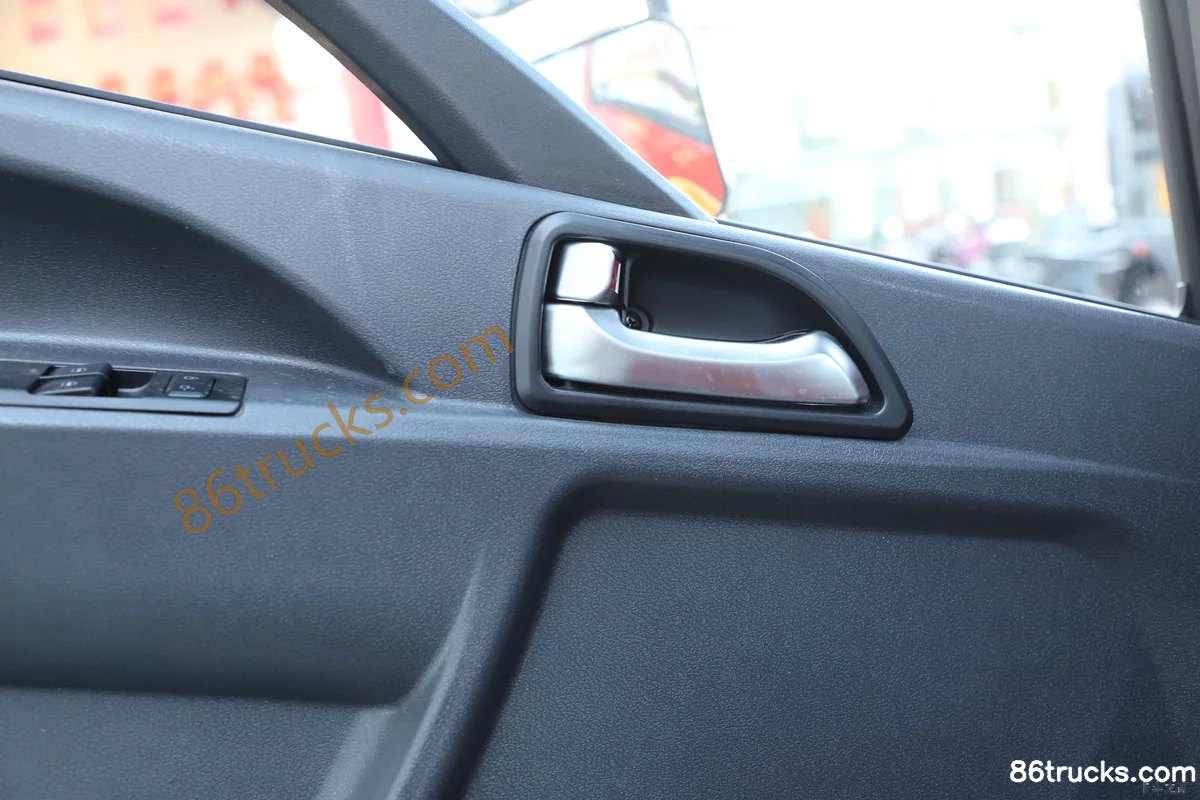

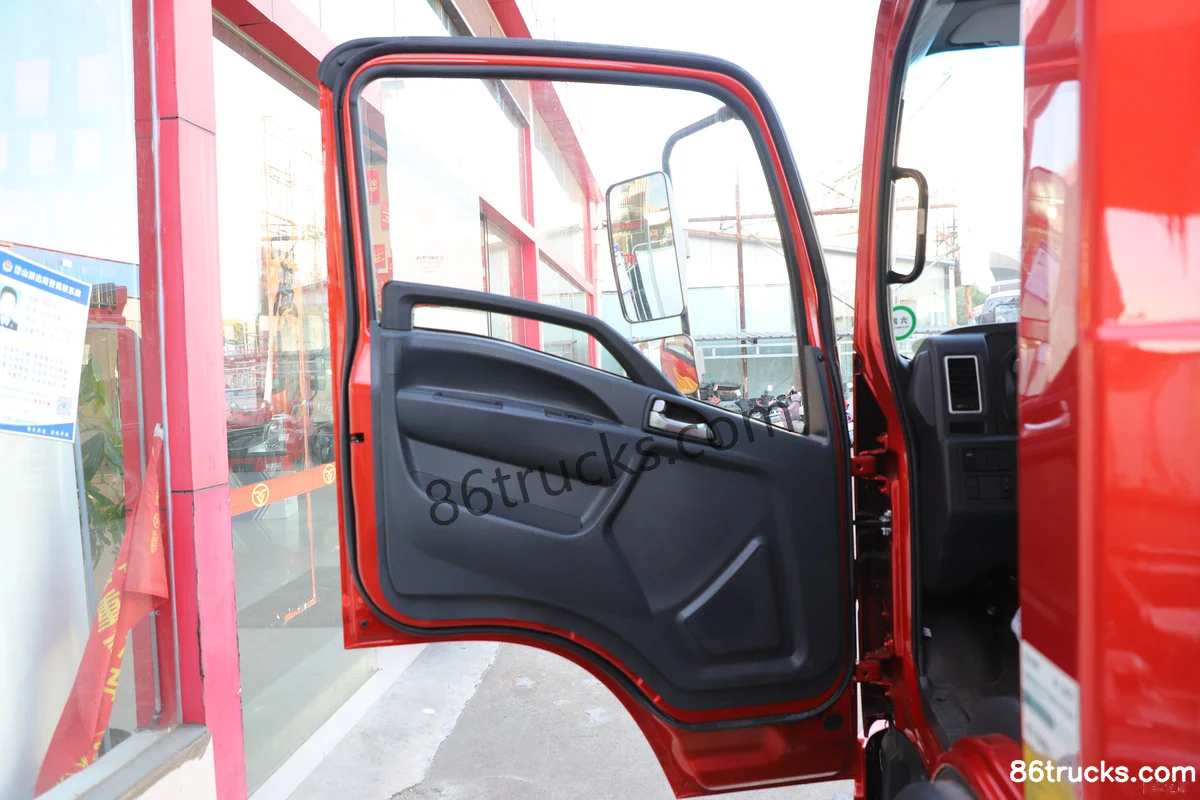

Cab3

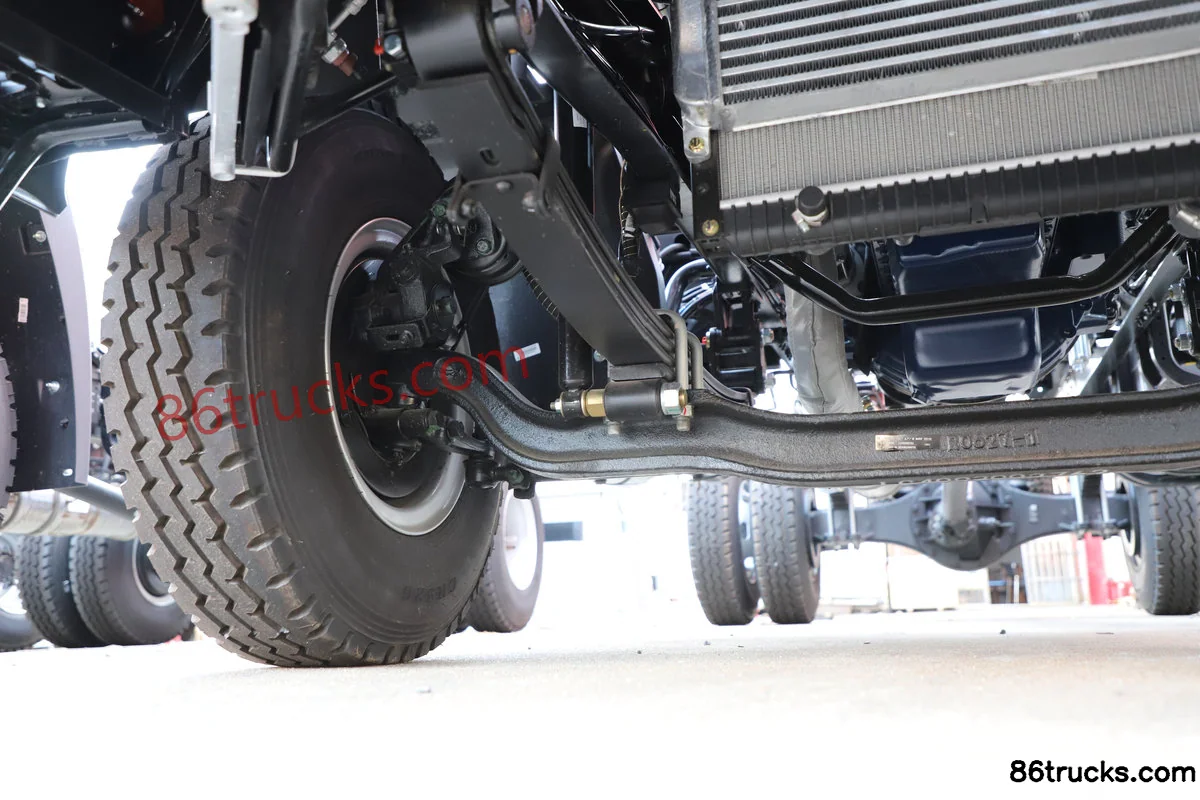

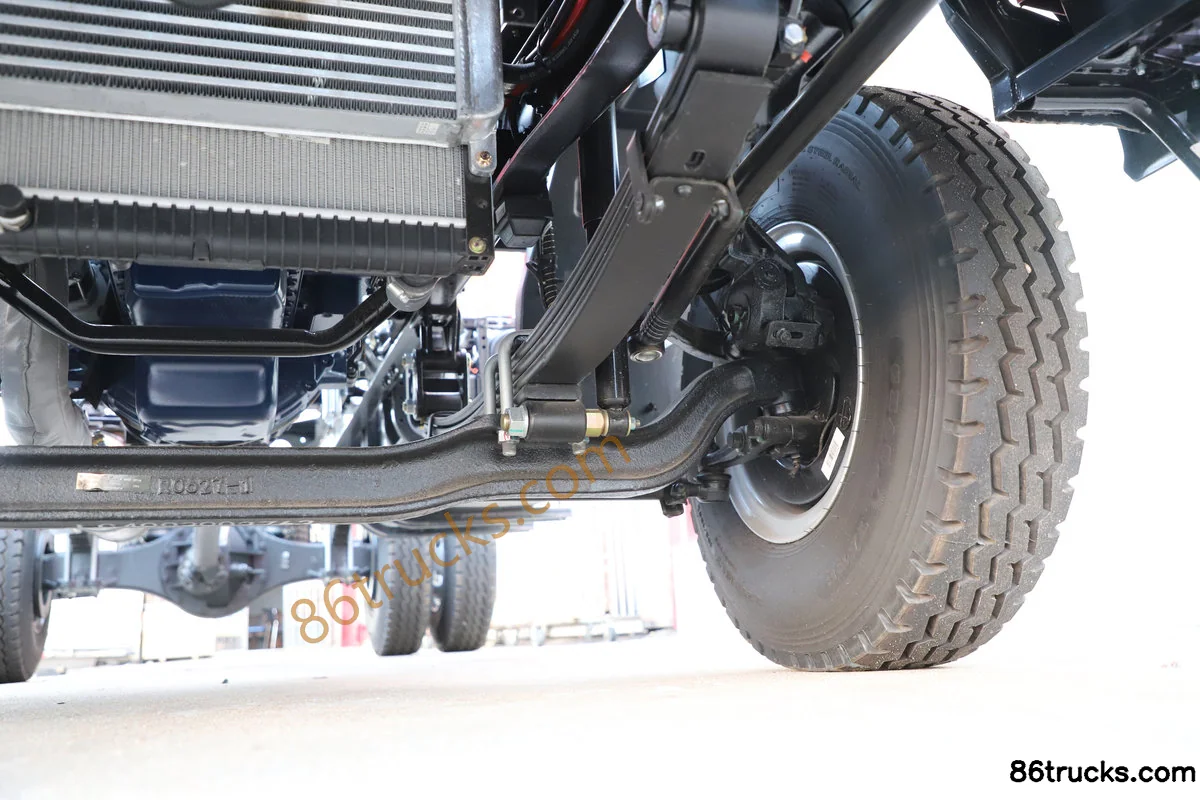

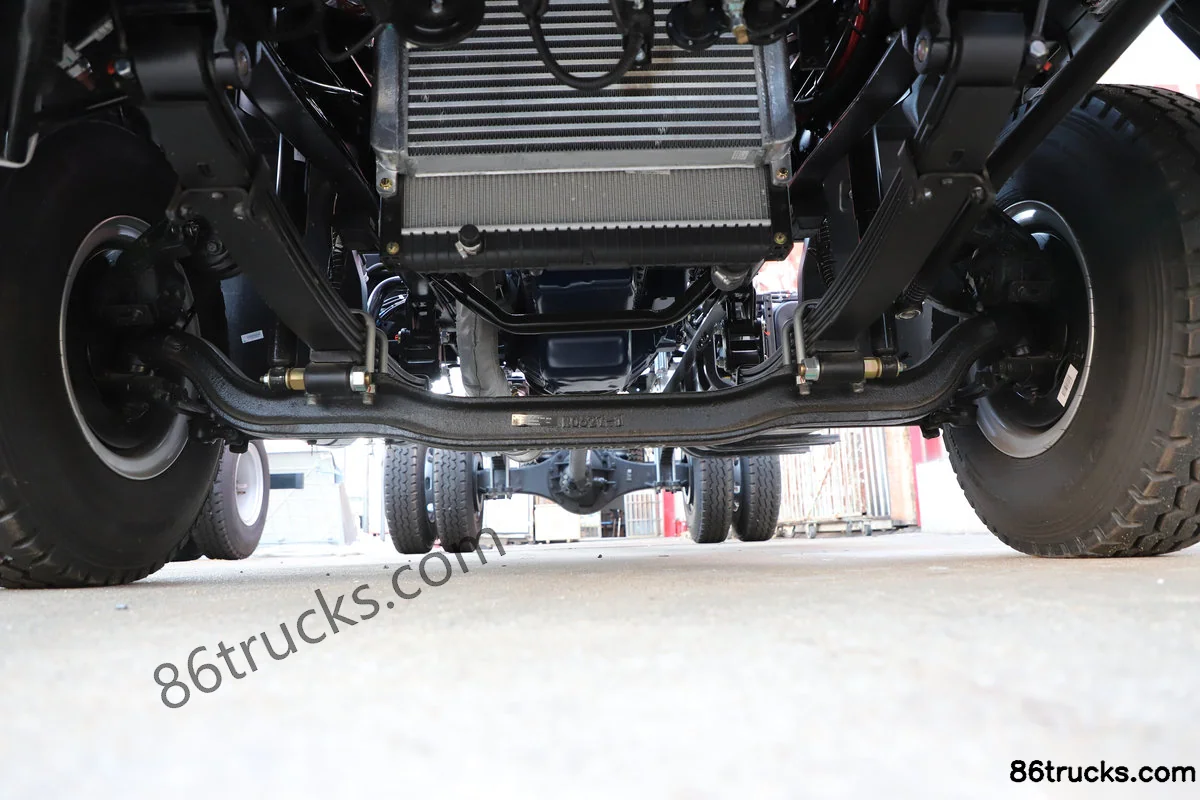

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI)?

Key specs of Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Engine: Weichai2.5L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI) suited for?

Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI) differ from other variants in the same series?

Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI) belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO H3 130 hp 4X2(6 wheels) 4.15m single-row stake truck with cargo cage (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
