Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI)

Export reference
MSRP N/A
Horsepower: 127
Emission: China VI
Fuel: Diesel
Engine: Yunnei Dewei D20
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 2Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI) is a Light Truck featuring 3.7m cargo length, stake body cargo body, 2Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D20 engine, 127 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 127 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1040KDD6L
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.7m
engine: Yunnei PowerD20TCIF1
transmission: WLYWLY5TS40
Cab length: 5.535m
Cab width: 1.995m
Cab height: 2.37m
Front track width: 1509,1500mm
rear track: 1425,1395mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 125km/h
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
market segment: Building materials, agricultural products
Front/rear suspension: 1.153/1.484m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF1
Engine info: Yunnei Dewei D20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2L
Emission standard: China VI
Max output power: 93kW
Max hp: 127Horsepower
Max torque: 350N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: WLYWLY5TS40
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.7m
Cargo box width: 1.82m
Cargo box height: 0.36m
*Cargo box interior width: 1.8200000524521
Cab parameters
Cab: K1
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Chassis Specs
Front axle allowable load: 1700kg
Frame Dimensions: 170X55X5mm
rear axle allowable load: 2795kg
Leaf spring count: 3/5+5
Tire
Tire Size: 6.50R16
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Center Console Color Screen:
Service brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

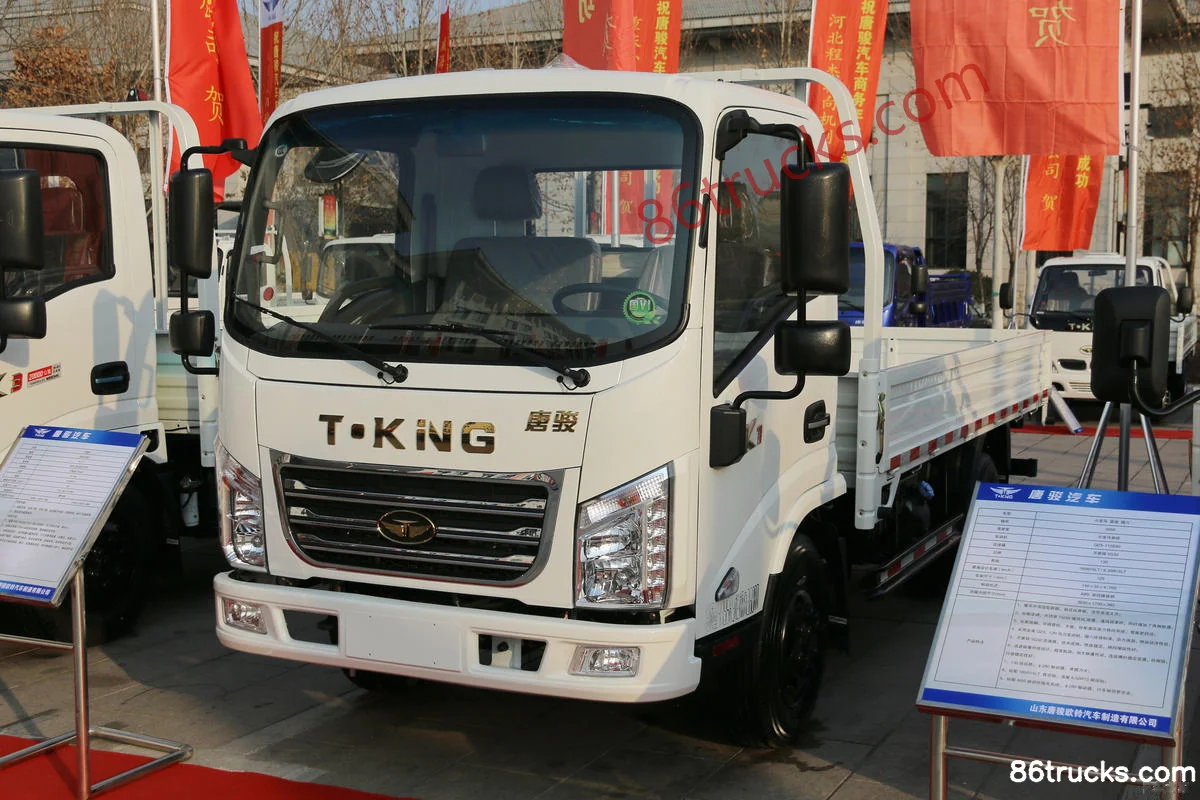

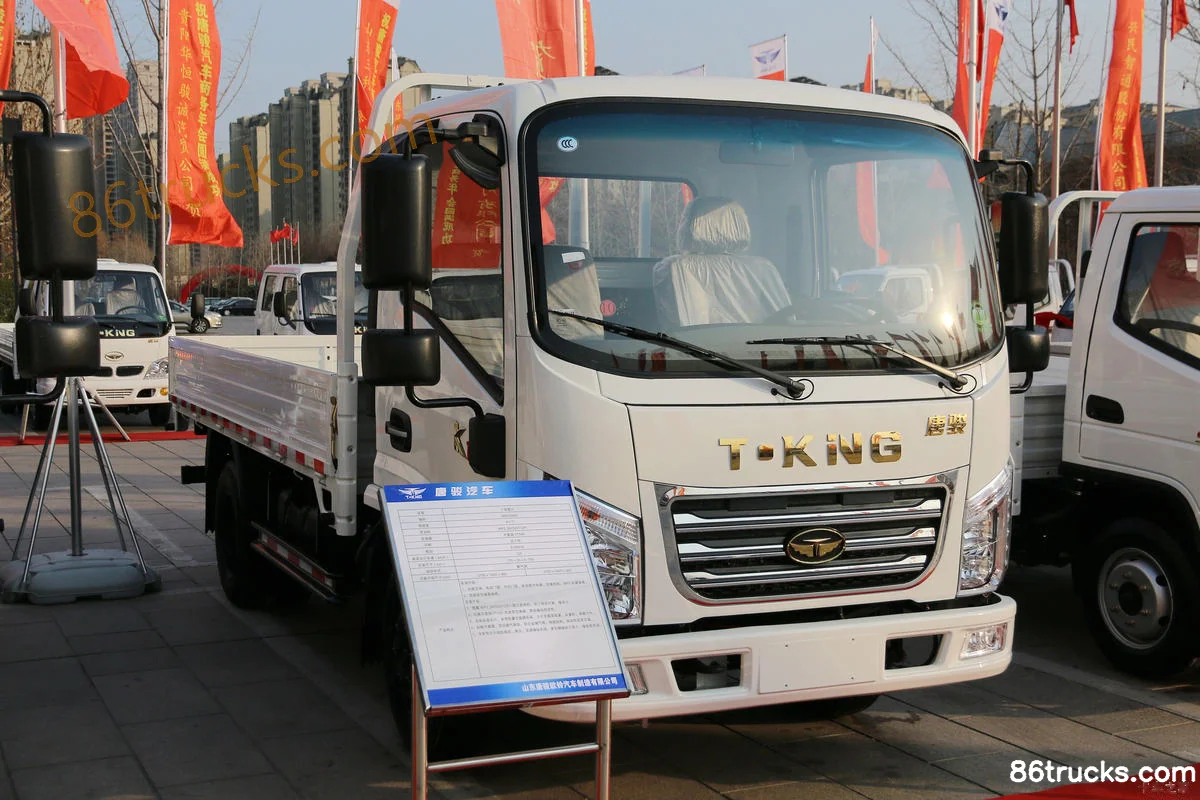

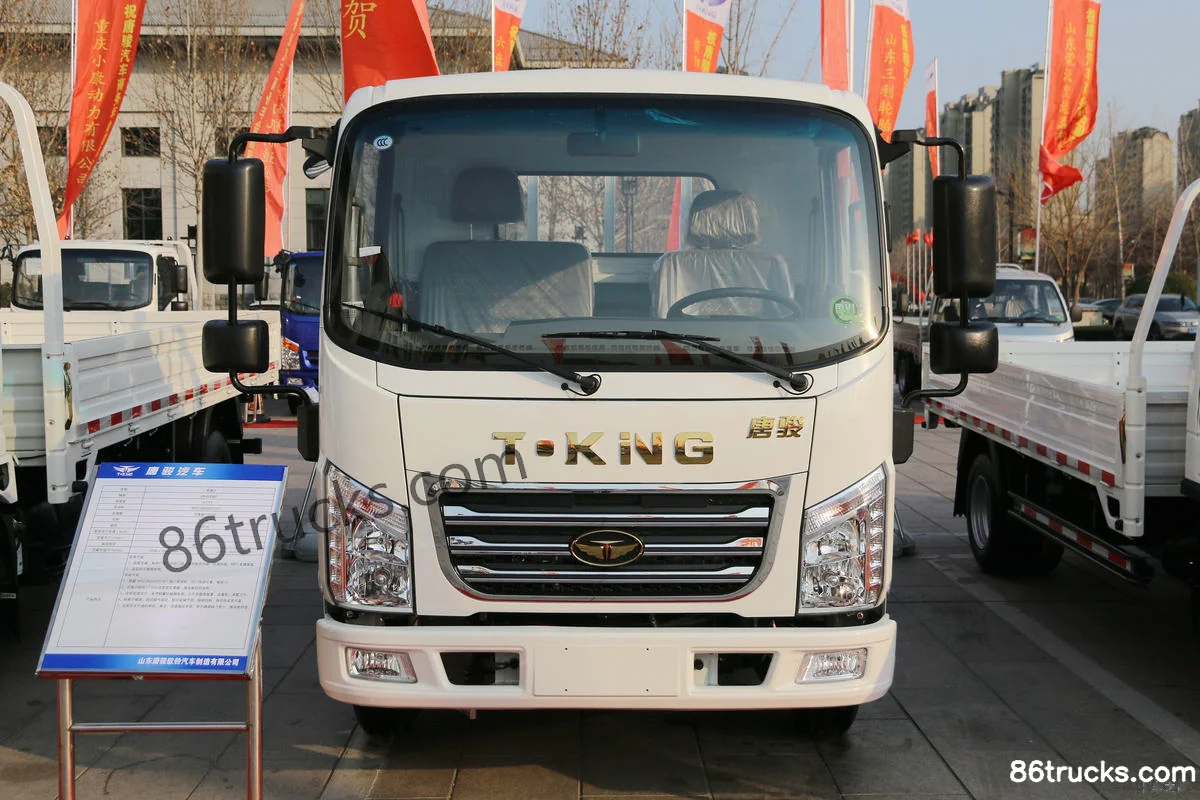

Exterior3

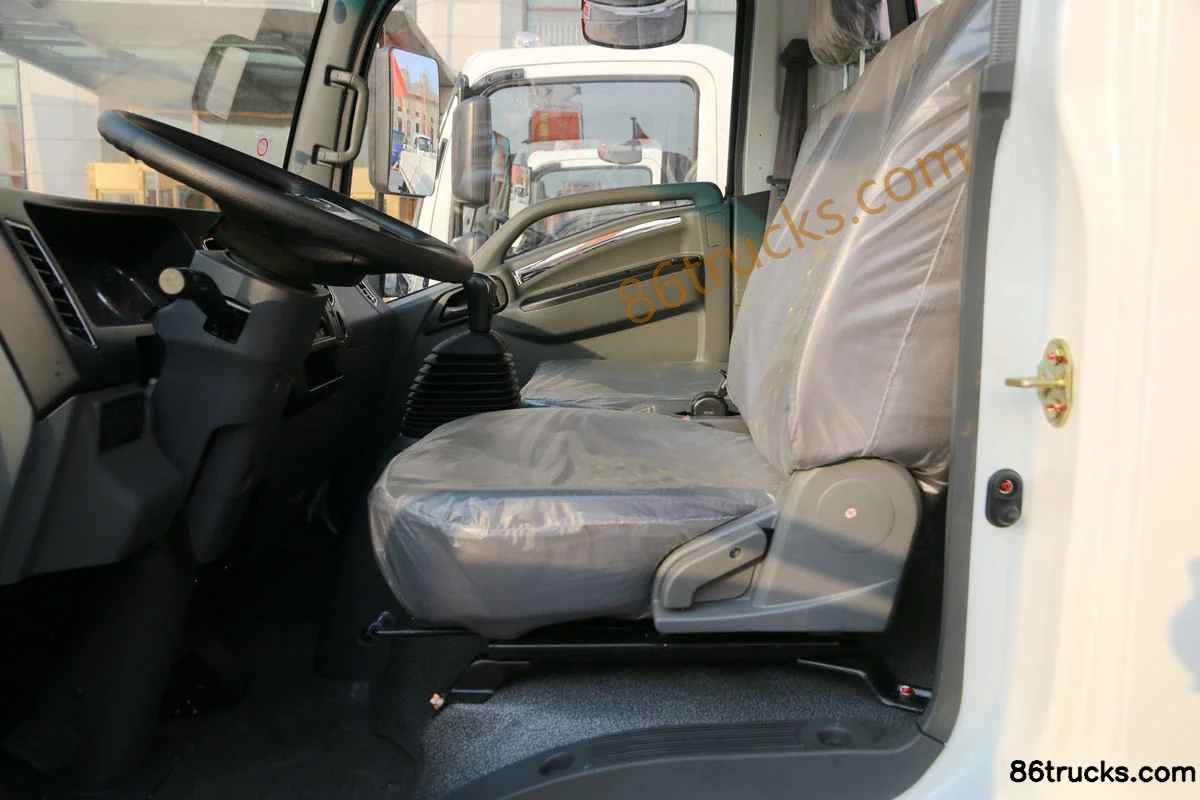

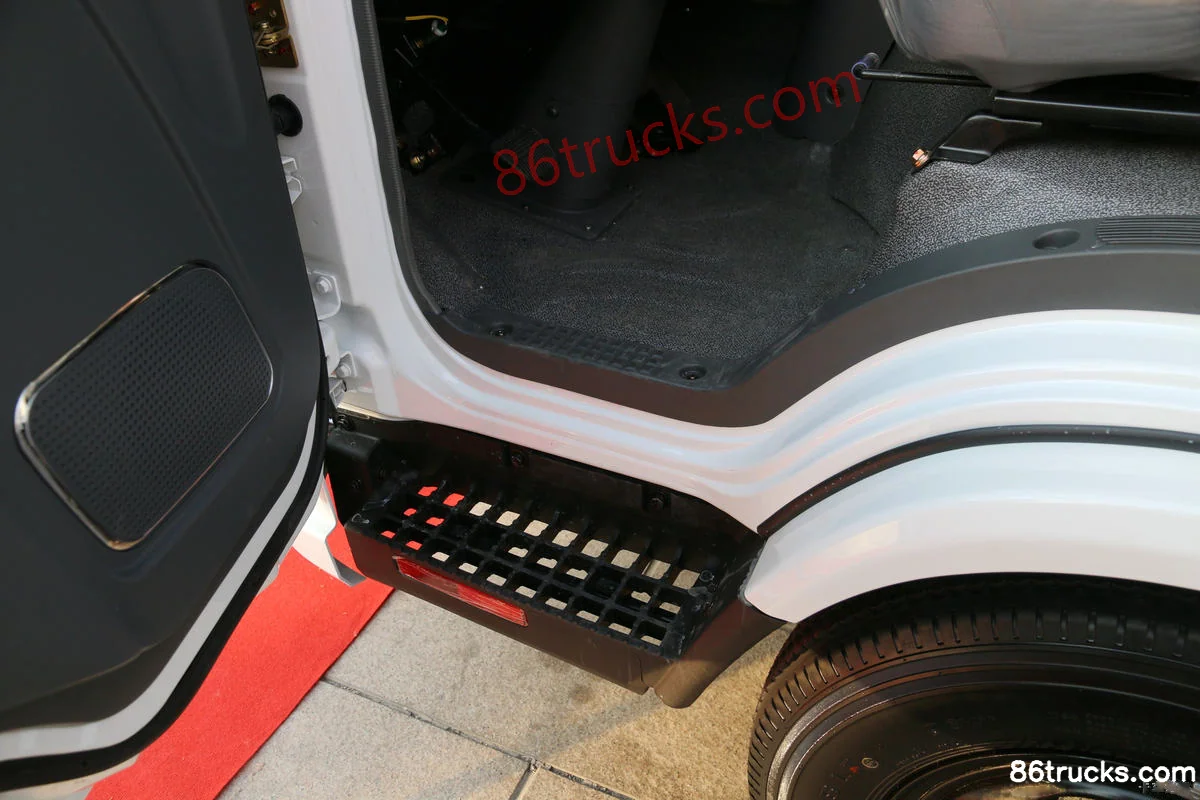

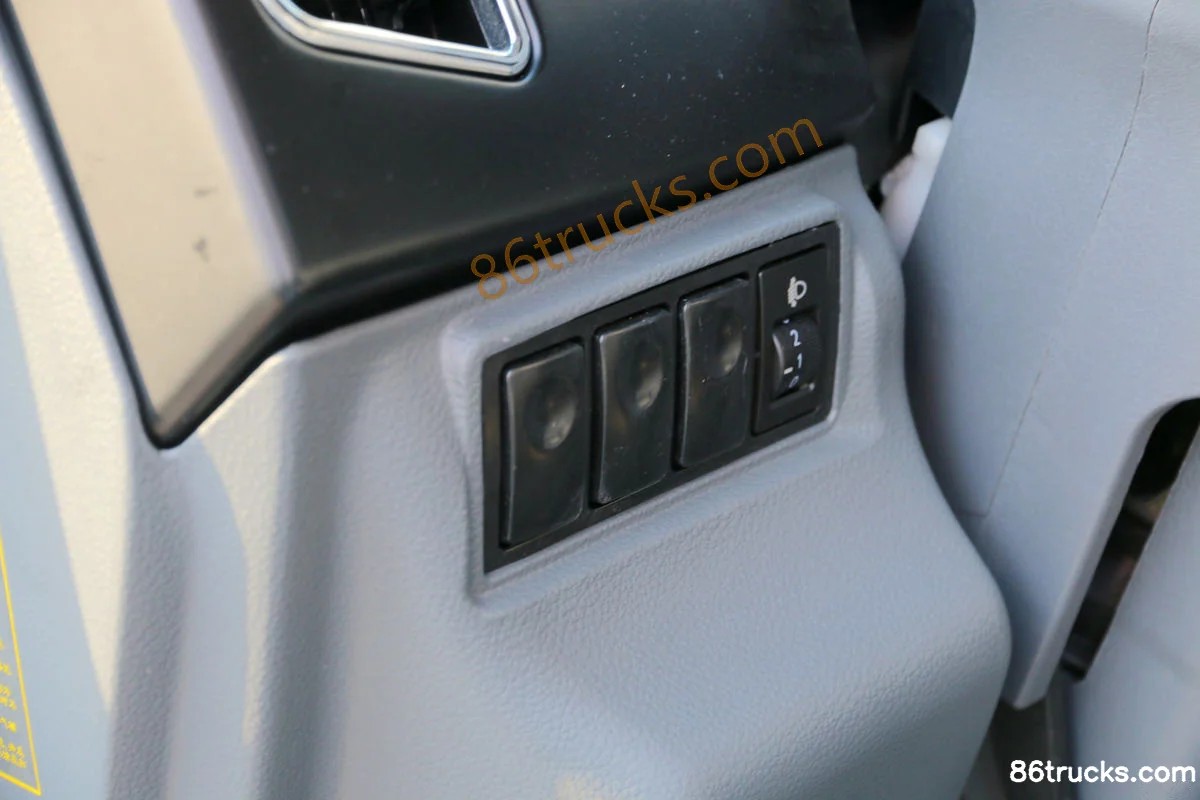

Cab3

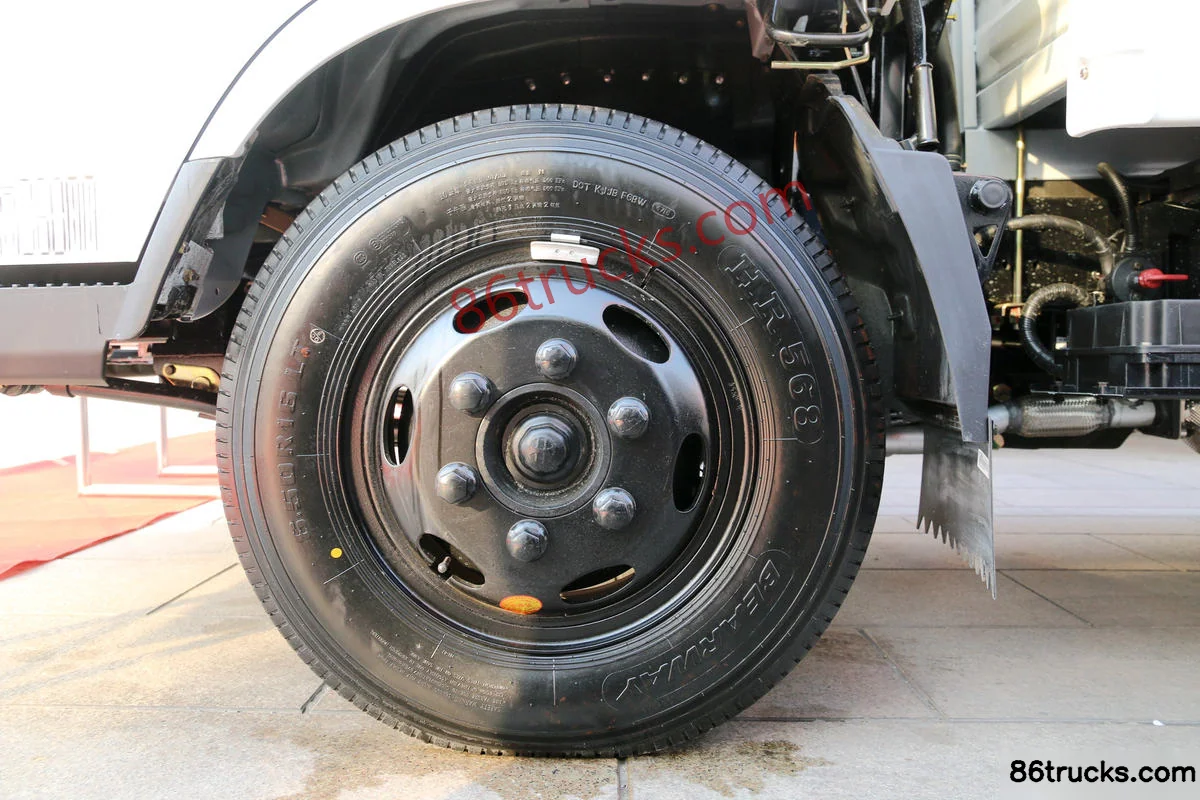

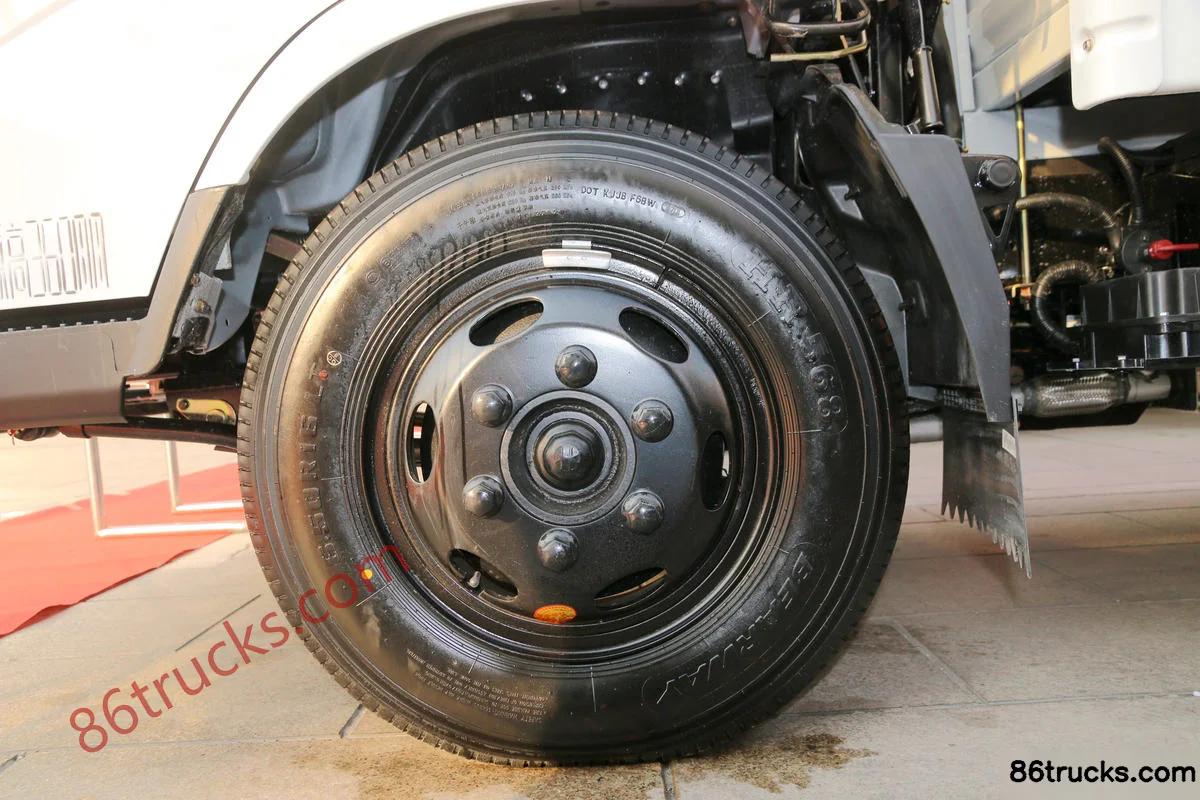

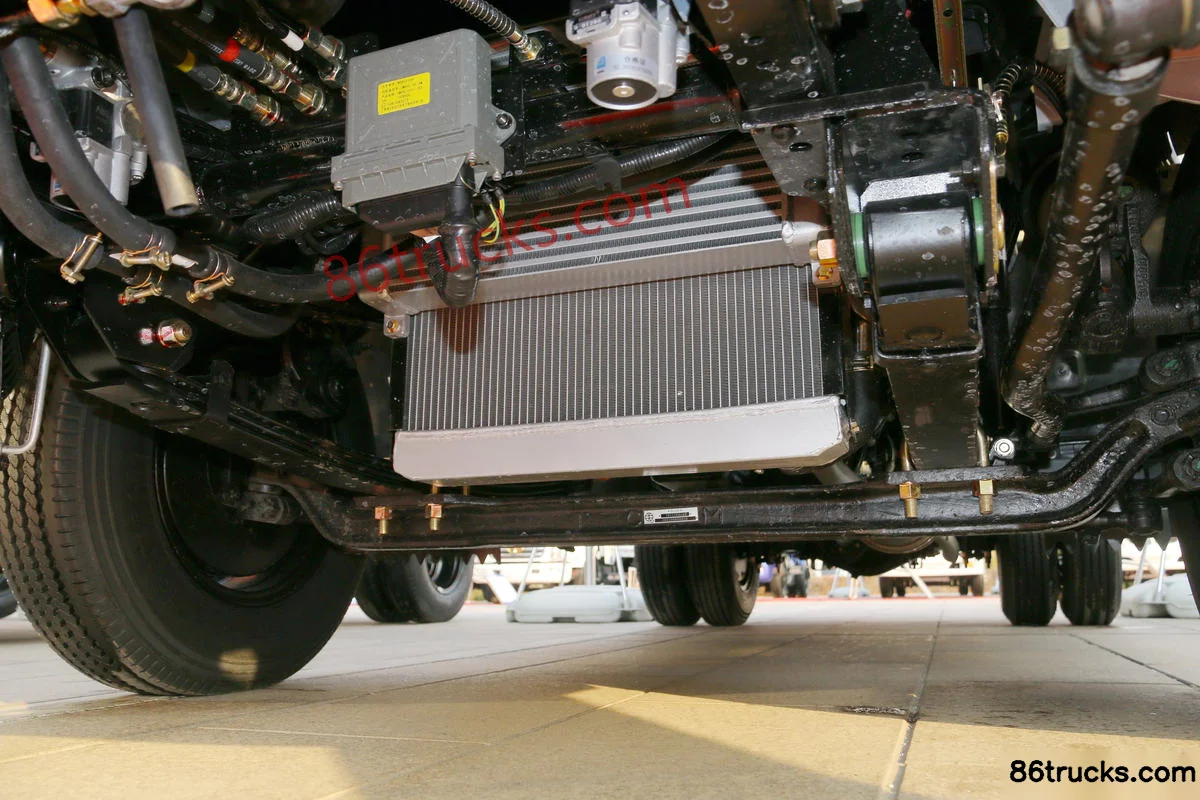

Chassis3

9 photos

FAQ

What emission standard does Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI)?

Key specs of Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI): Drive: 4x2; Horsepower: 127 hp; Emission: China VI; Fuel: Diesel; Engine: Yunnei Dewei D20; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI) suited for?

Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI) differ from other variants in the same series?

Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI) belongs to Tangjun K1 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling K1 Series 127 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
