Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 200
Emission: China V
Fuel: Diesel
Engine: Dongkang 4-cylinder
Transmission: Fast Gear
Curb Weight:: 8.105ton
seating capacity: 2Personnel
Rated payload: 10.055ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis is a Medium-duty truck featuring 8.3m cargo length, Chassis cargo body, 2Personnel volume and 10.055t payload. Its segment focus covers General dry cargo, matching those duty cycles. On the powertrain side, it comes with a Dongkang 4-cylinder engine, 200 hp, 4X2 (6 wheels) drive and China V emissions.

China V 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5180XXYM3AB
Type: Chassis
Drive type: 4X2
Wheelbase: 6300mm
Box length class: 8.3m
engine: DongfengISD200 50
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.33
Cab length: 10.6m
Cab width: 2.55m
Cab height: 4m
Front track width: 1916,1940mm
rear track: 1800mm
Curb Weight: 8.105ton
Rated payload: 10.055ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 11°
market segment: General dry cargo
Front/rear suspension: 1.445/2.855m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISD200 50
Engine info: Dongkang 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China V
Max output power: 140kW
Max hp: 200Horsepower
Max torque speed: 1200-1600rpm
Rated speed: 2500rpm
Engine Type: 4-cylinder, inline, 4-stroke, electronically controlled common rail direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 8.3m
Cargo box width: 2.5m
Cargo box height: 2.65m
*Cargo box interior width: 2.5
Cab parameters
Cab: H53S Cab
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
Chassis Specs
rear axle description: 8-ton rear axle
Axle ratio: 4.33
clutch: Φ395

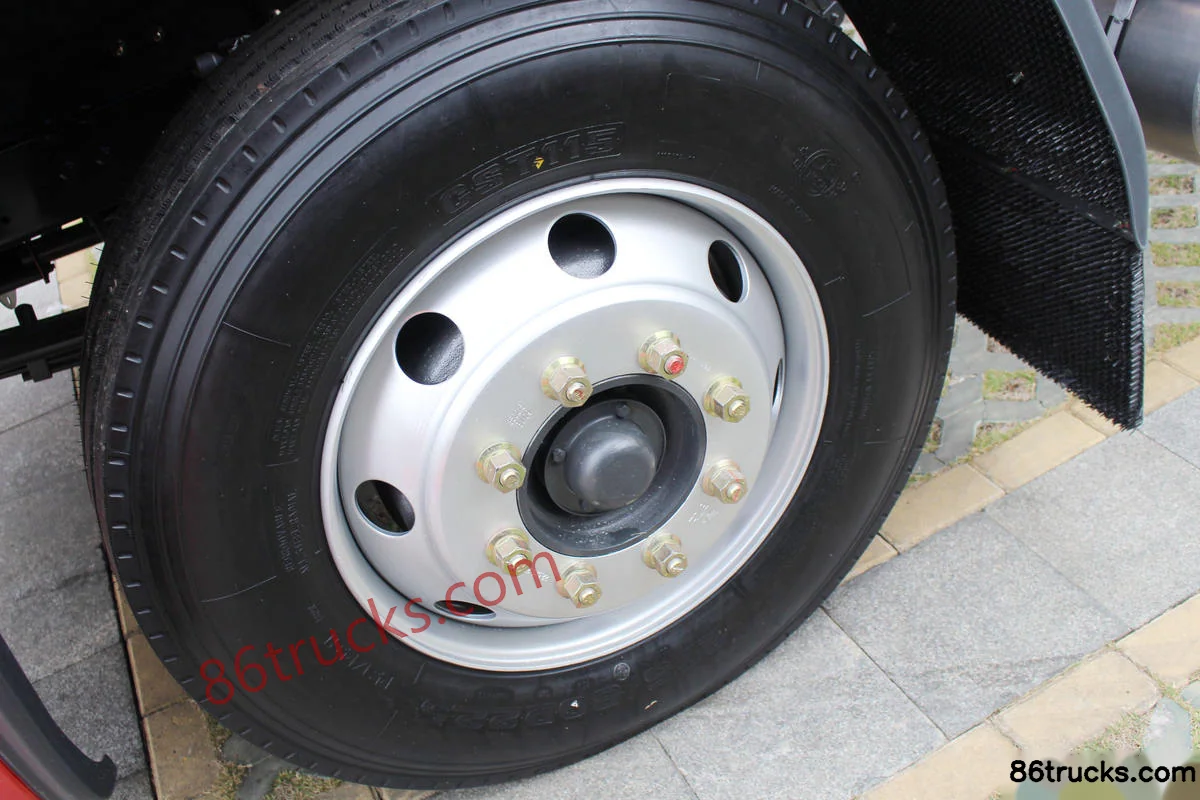

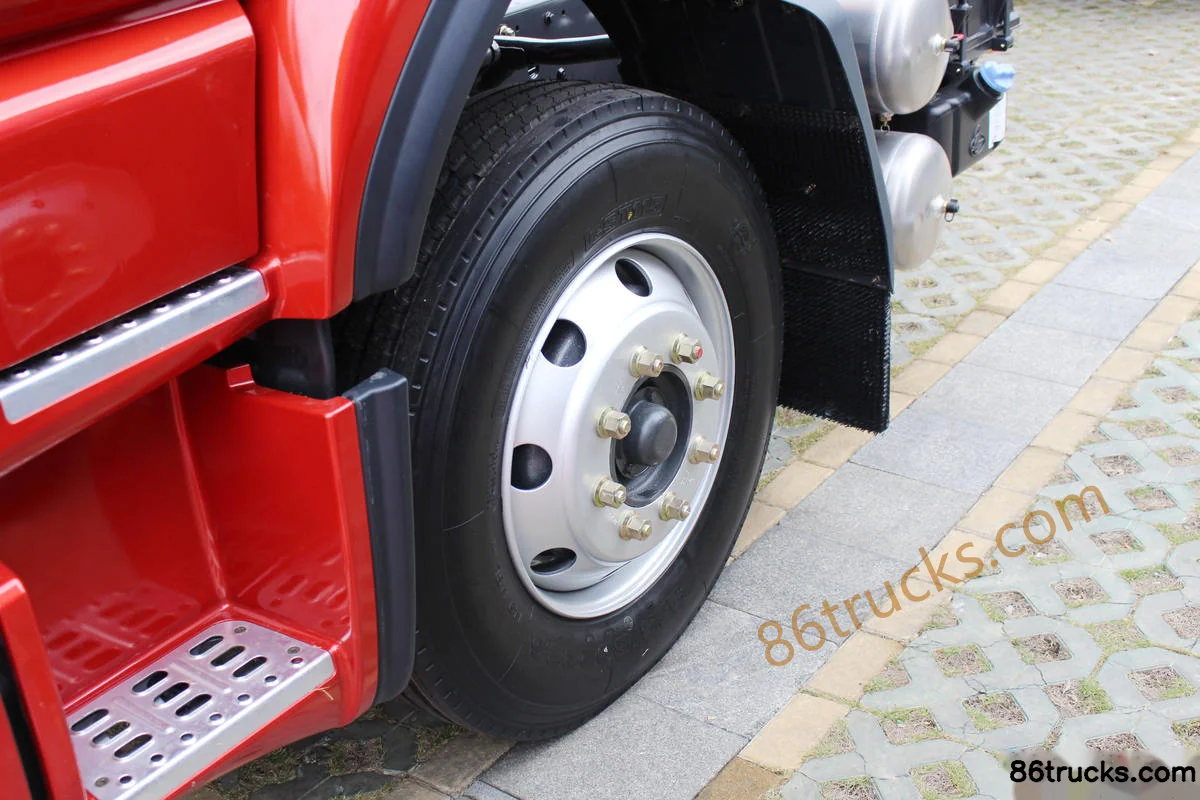

Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Multimedia features
GPS/Beidou driving recorder:
Radio:
smart configuration
Cruise control (CCS):

Photos

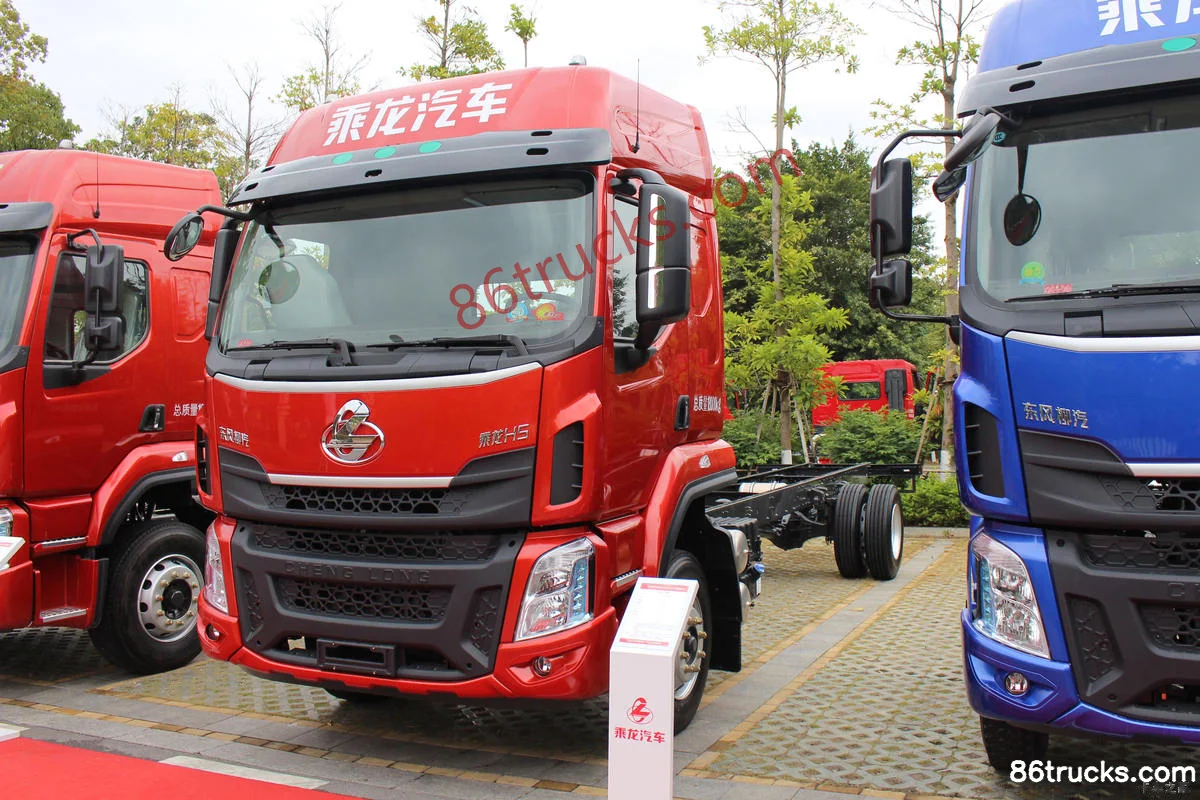

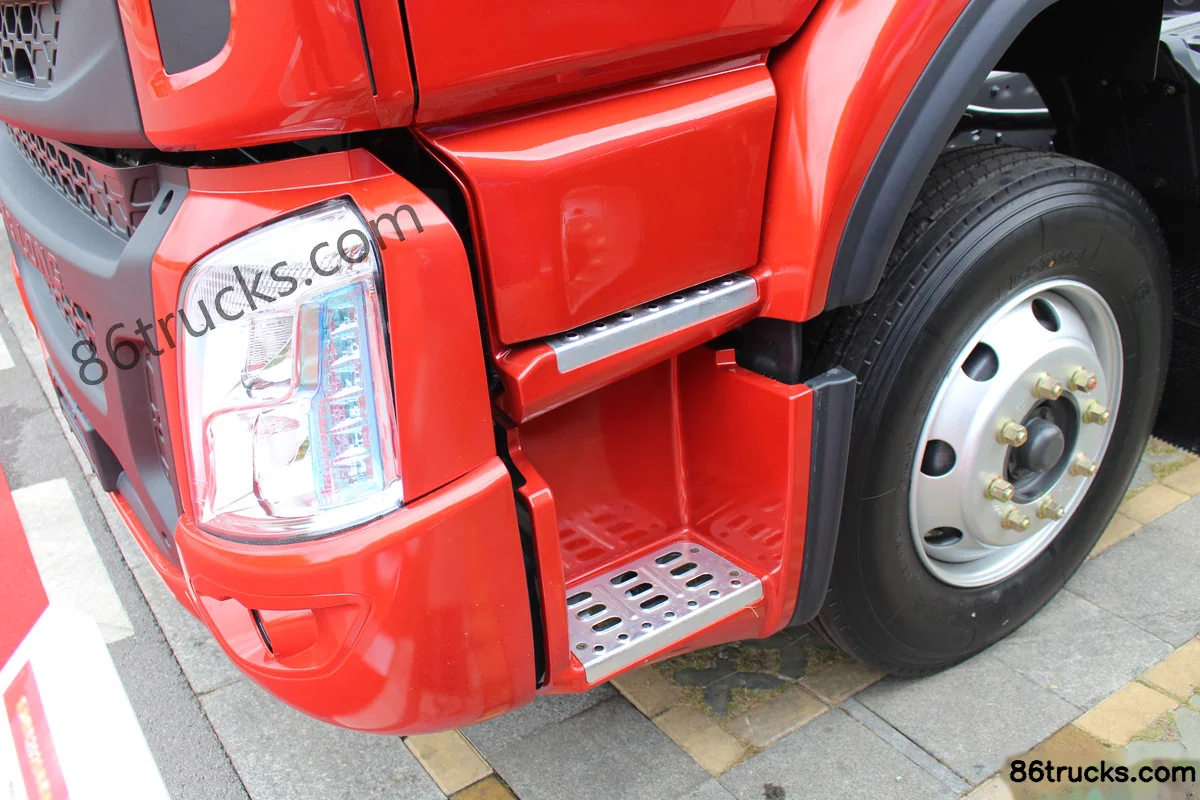

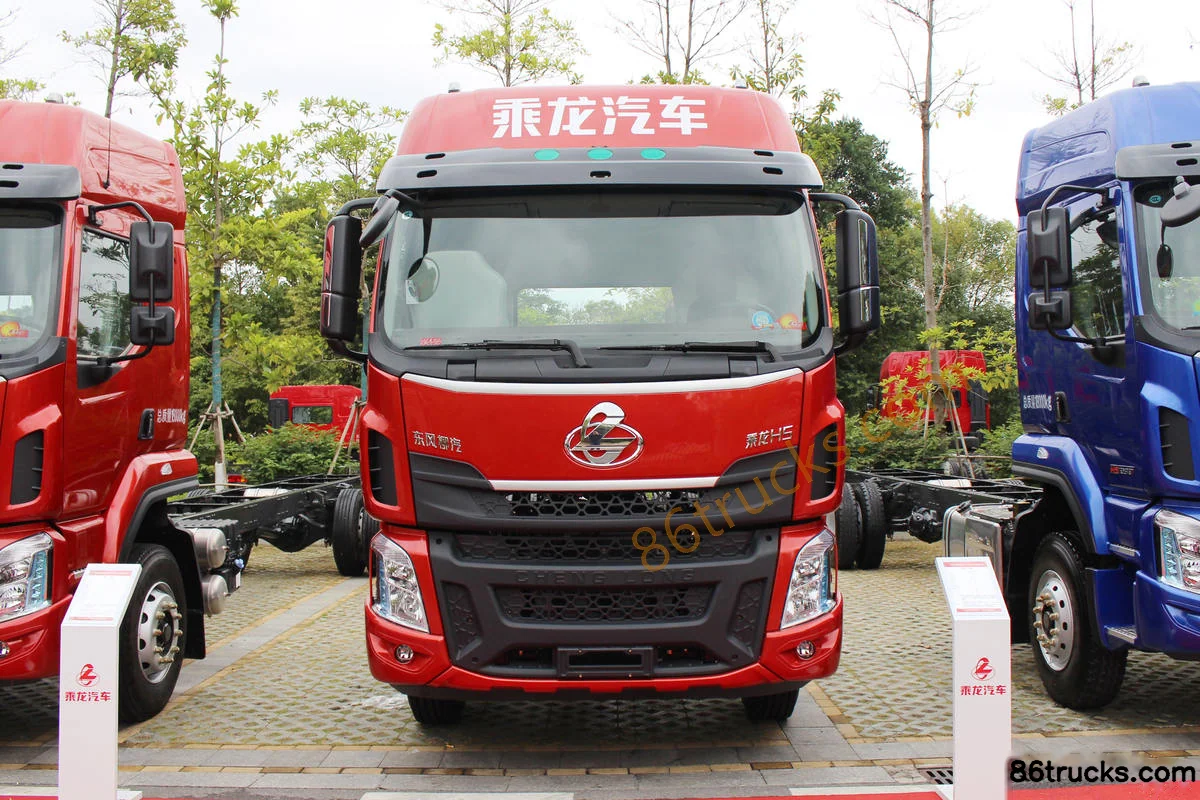

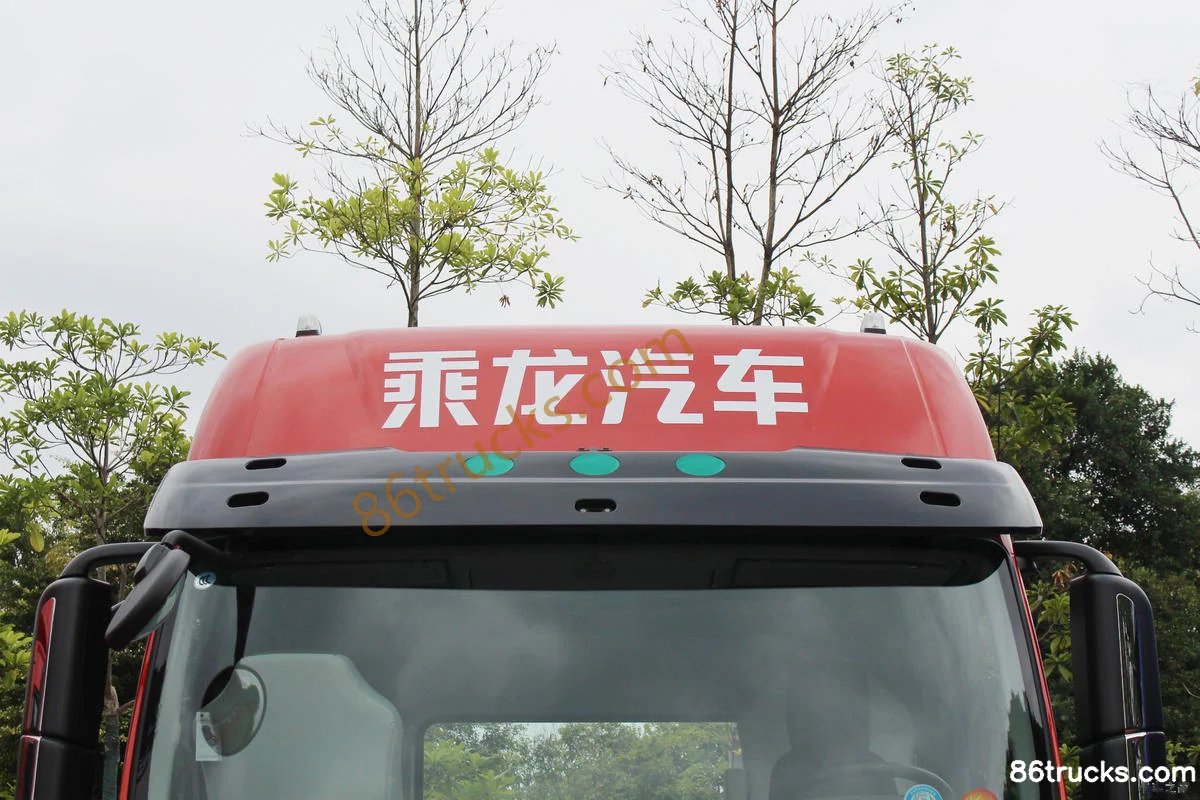

Exterior3

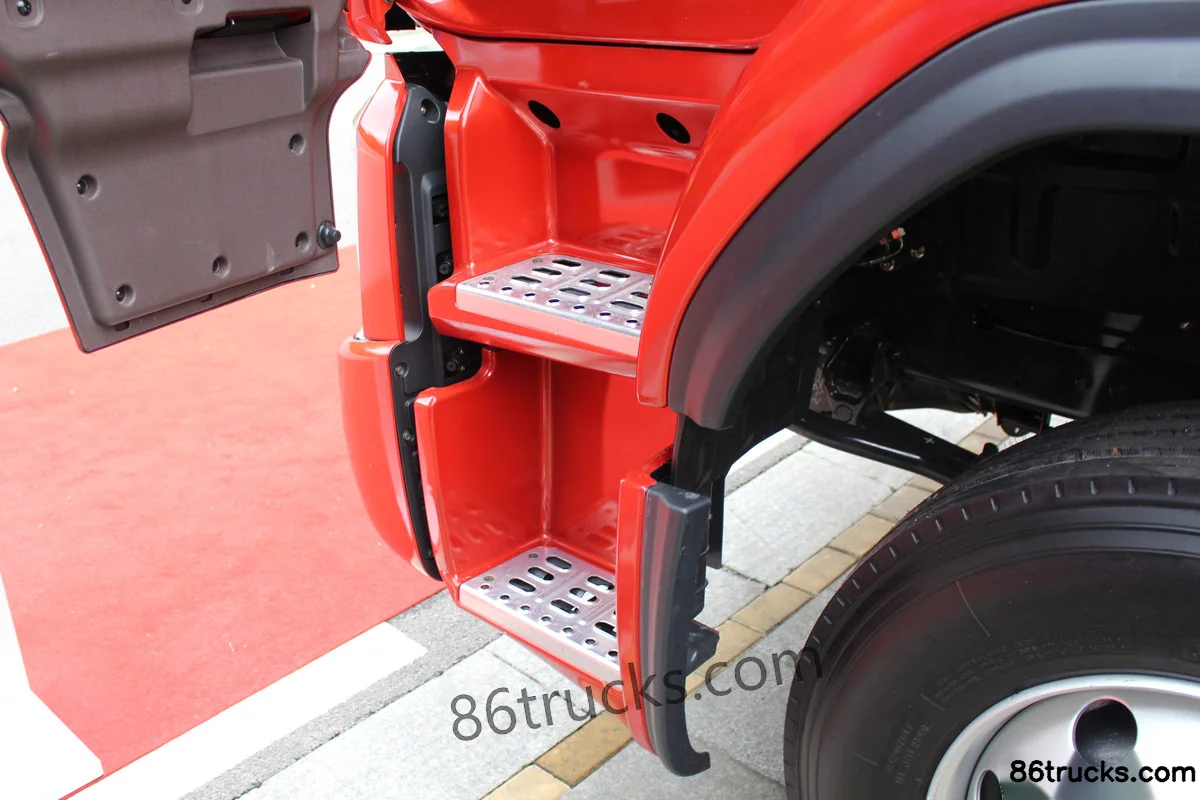

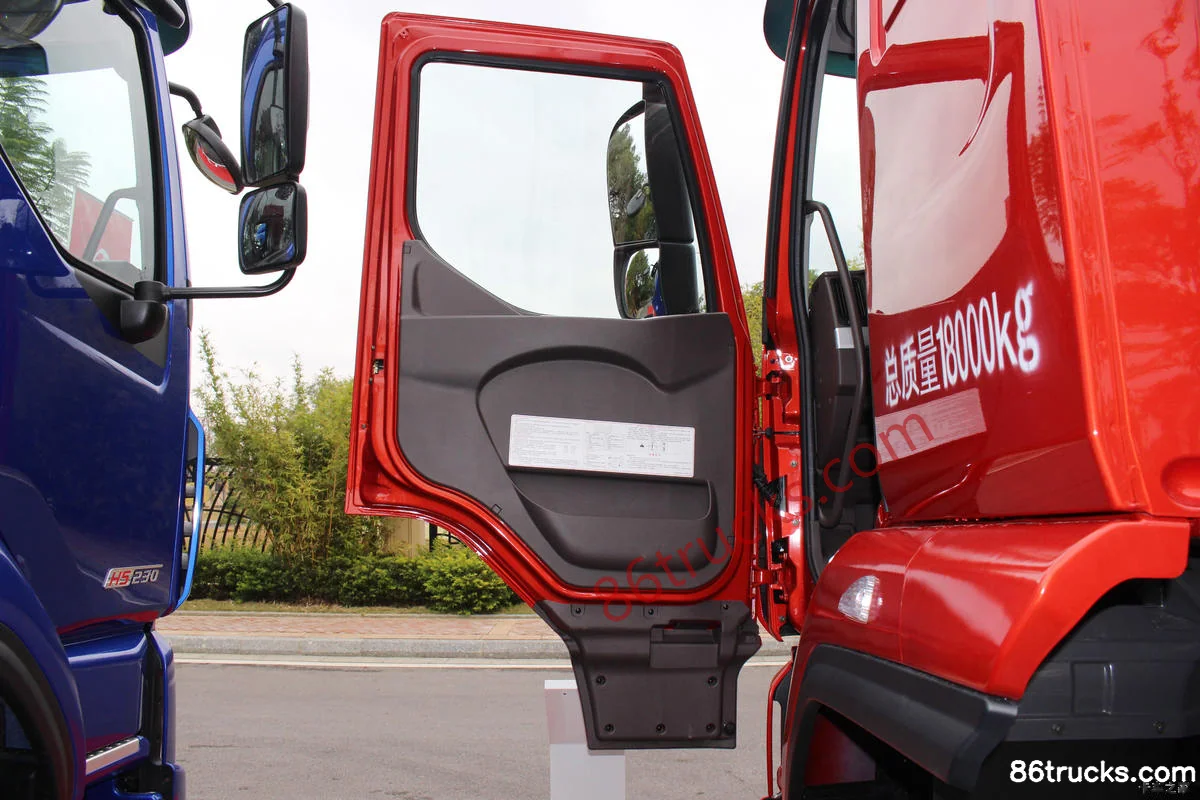

Cab3

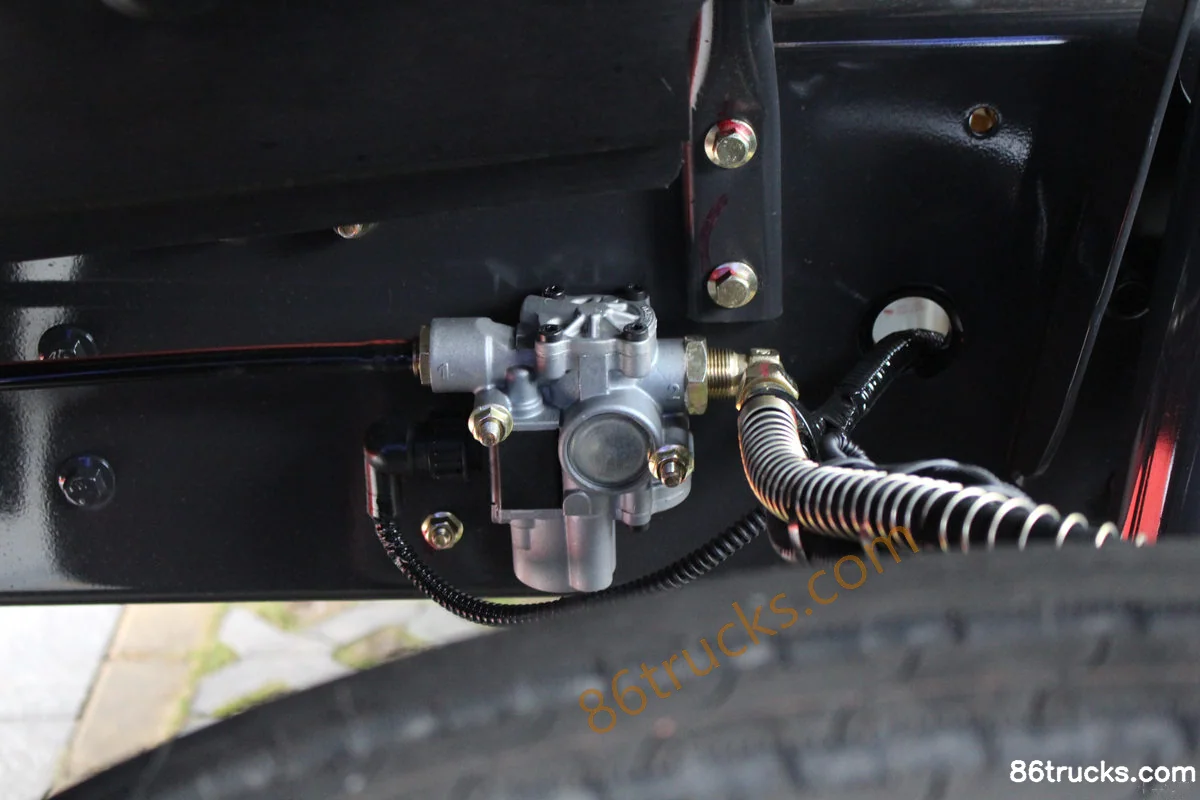

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis?

Key specs of Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis: Drive: 4x2; Horsepower: 200 hp; Emission: China V; Fuel: Diesel; Engine: Dongkang 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis suited for?

Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis belongs to Dongfeng H5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 Medium Truck 200hp 4X2(6 wheels) Sleeper Cab Van Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
