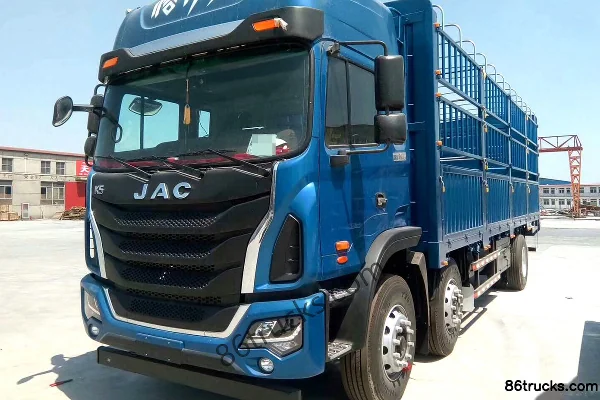

JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck

Export reference
From $30,556
MSRP ¥22M CNY
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D45
Transmission: Fast Gear
Curb Weight:: 8.9ton
seating capacity: 3Personnel
Rated payload: 15.405ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck is a Medium-duty truck featuring 7.2m cargo length, Stake type cargo body, 3Personnel volume and 15.405t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D45 engine, 220 hp, 6X2 (8 wheels) drive and China V emissions.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5241CCYP3K1D38S6V
Type: stake truck
Drive type: 6X2
Wheelbase: 1700+3800mm
Box length class: 7.2m
engine: Yunnei PowerD45TCIE1
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.875
Cab length: 9.68m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 1920/1920mm
rear track: 1830mm
Curb Weight: 8.9ton
Rated payload: 15.405ton
GVWR: 24.5ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 10°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.475/2.305m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD45TCIE1
Engine info: Yunnei Dewei D45
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.46L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1200-2800rpm
Rated speed: 2400rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7.2m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: K5L semi-high roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 3/3/9+7,9/9/9+7
Tire
Tire Size: 10.00R20,11R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck, and what does it include?

JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck?

Key specs of JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D45; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck suited for?

JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck differ from other variants in the same series?

JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5L Medium Truck 220 hp 6X2(8 wheels) 7.2m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
