Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track)

Export reference
From $14,917
MSRP ¥10.74M CNY
Horsepower: 158
Emission: China VI
Fuel: Diesel
Engine: Foton2.5
Transmission: ZF
Curb Weight:: 2.64ton
seating capacity: 2Personnel
Rated payload: 1.715ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track) is a mini truck featuring 3.815m cargo length, Van body cargo body, 2Personnel volume and 1.715t payload. On the powertrain side, it comes with a Foton2.5 engine, 158 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 158 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5044XXY9JBA-AB1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3000mm
Box length class: 3.8m
engine: Foton4F25TC4
transmission: ZFZF5S408
Rear Axle Ratio: 4.33
Cab length: 5.63m
Cab width: 2m
Cab height: 2.865m
Front track width: 1500mm
rear track: 1495mm
Curb Weight: 2.64ton
Rated payload: 1.715ton
GVWR: 4.485ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 18°
departure angle: 17°
Front/rear suspension: 1.115/1.495m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4F25TC4
Engine info: Foton2.5
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China VI
Max output power: 116kW
Max hp: 158Horsepower
Transmission Parameters
Transmission Model: ZFZF5S408
Transmission Brand: ZF
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.815m
Cargo box width: 1.85m
Cargo box height: 1.9m
*Cargo box interior width: 1.85
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1800kg
Frame Dimensions: 760-160×50×4mm
rear axle description: 5.0T/BJ130 single reduction drive axle
rear axle allowable load: 2685kg
Axle ratio: 4.33
Leaf spring count: 3/5+3
Frame Type: Straight-through frame
Aluminum wheels:
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

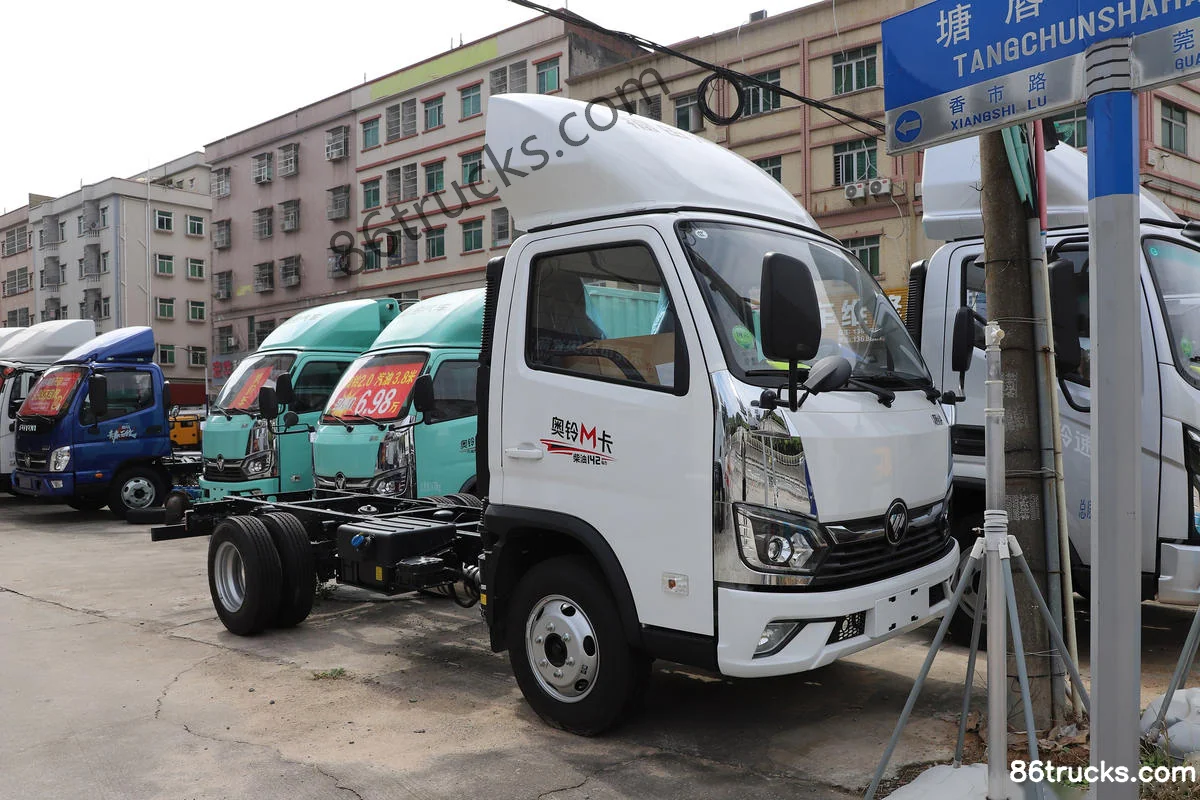

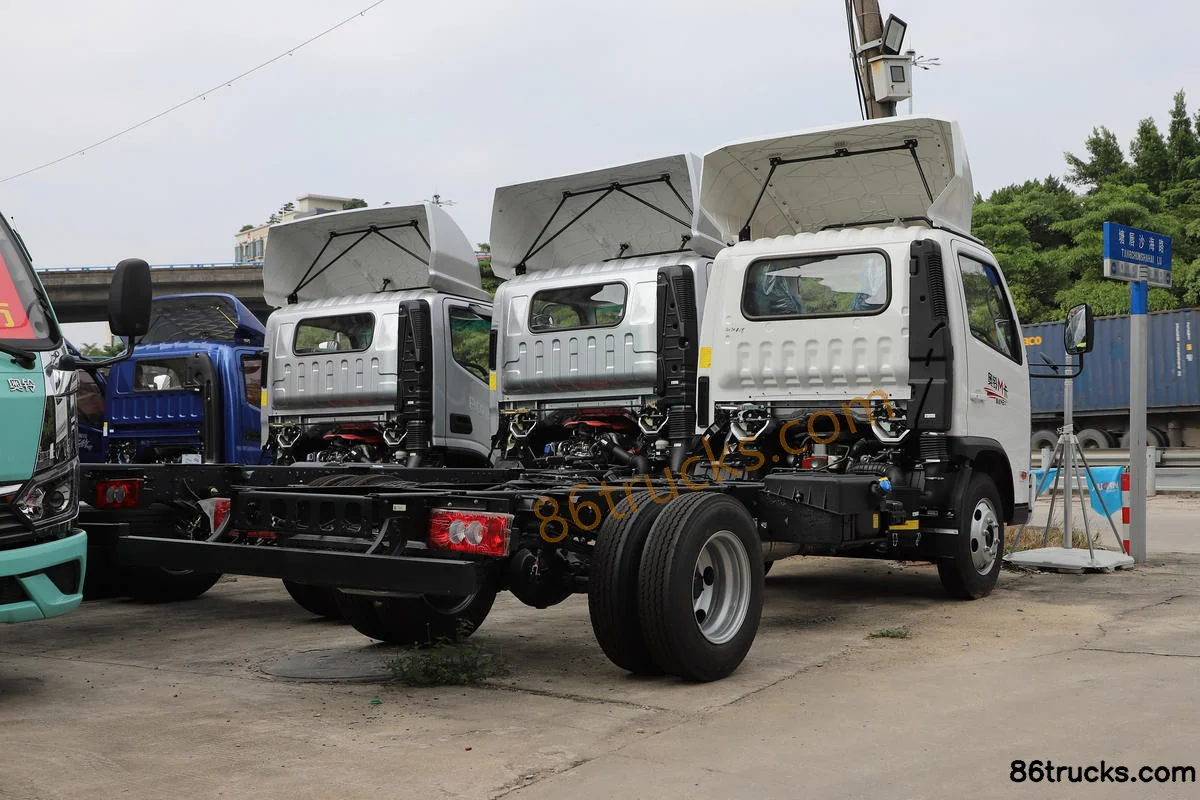

Exterior3

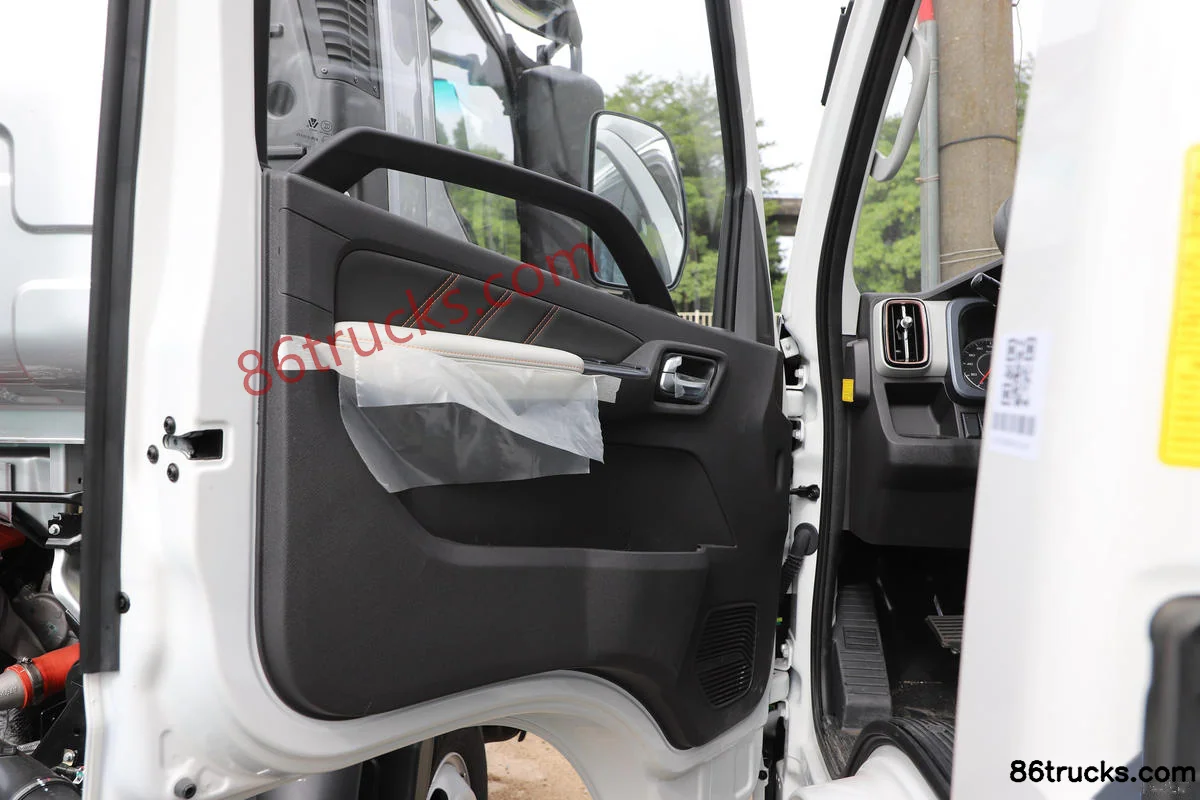

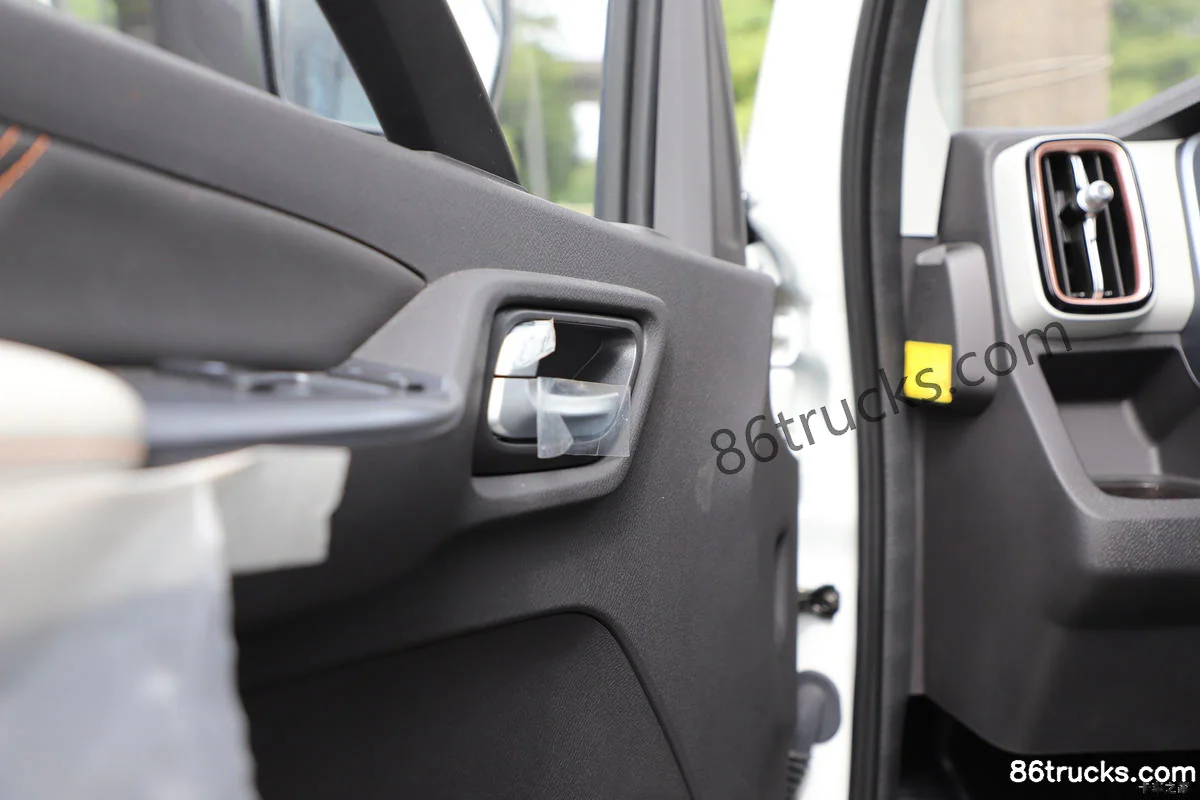

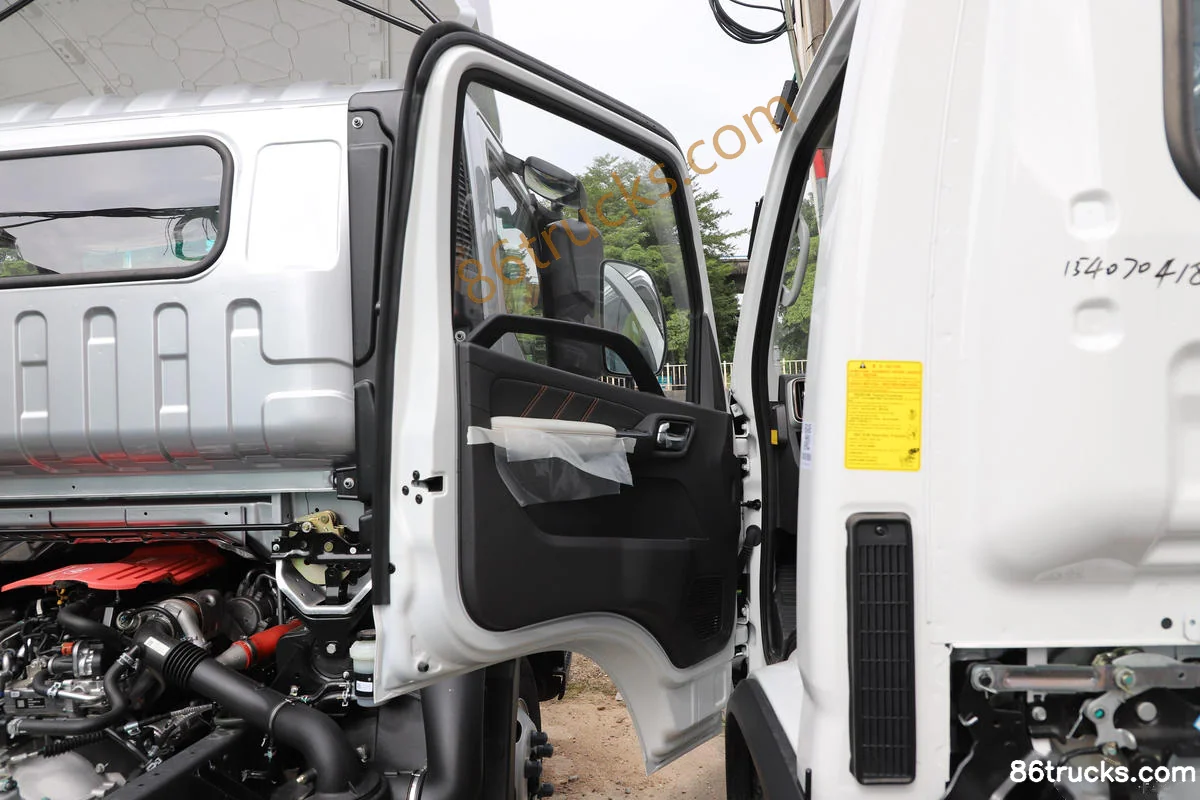

Cab3

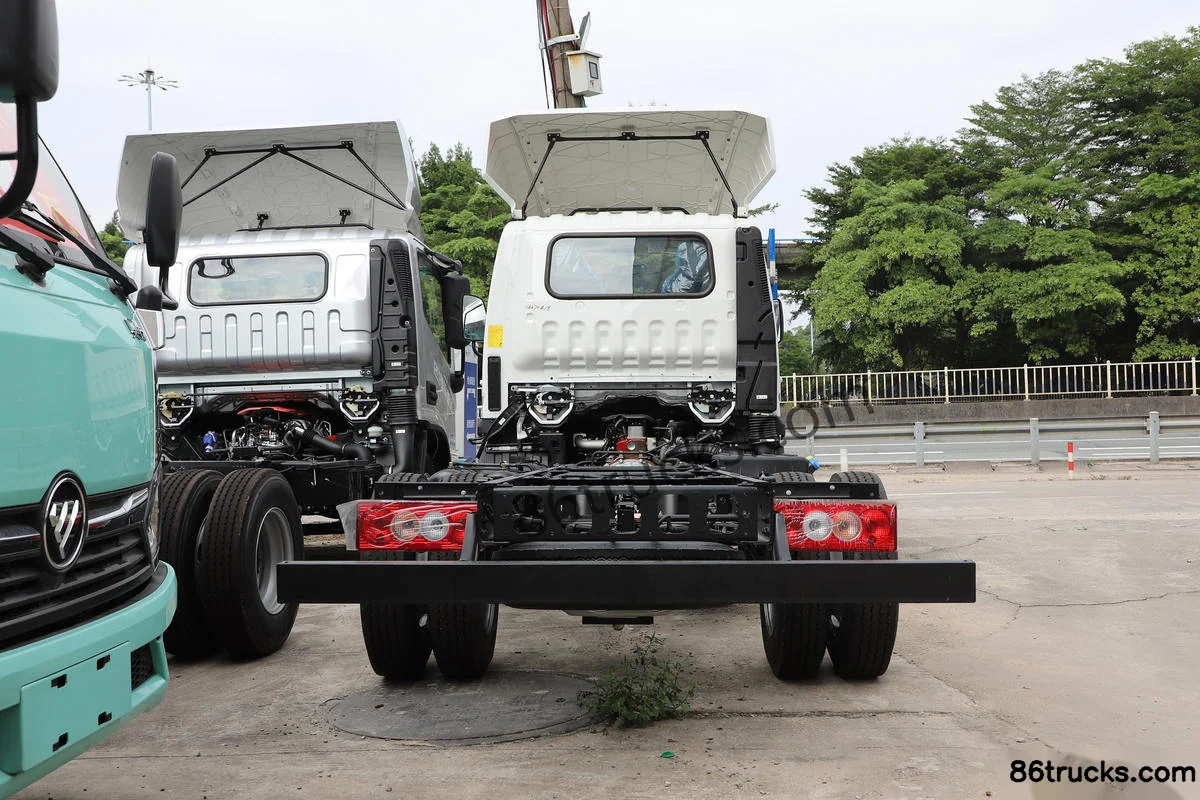

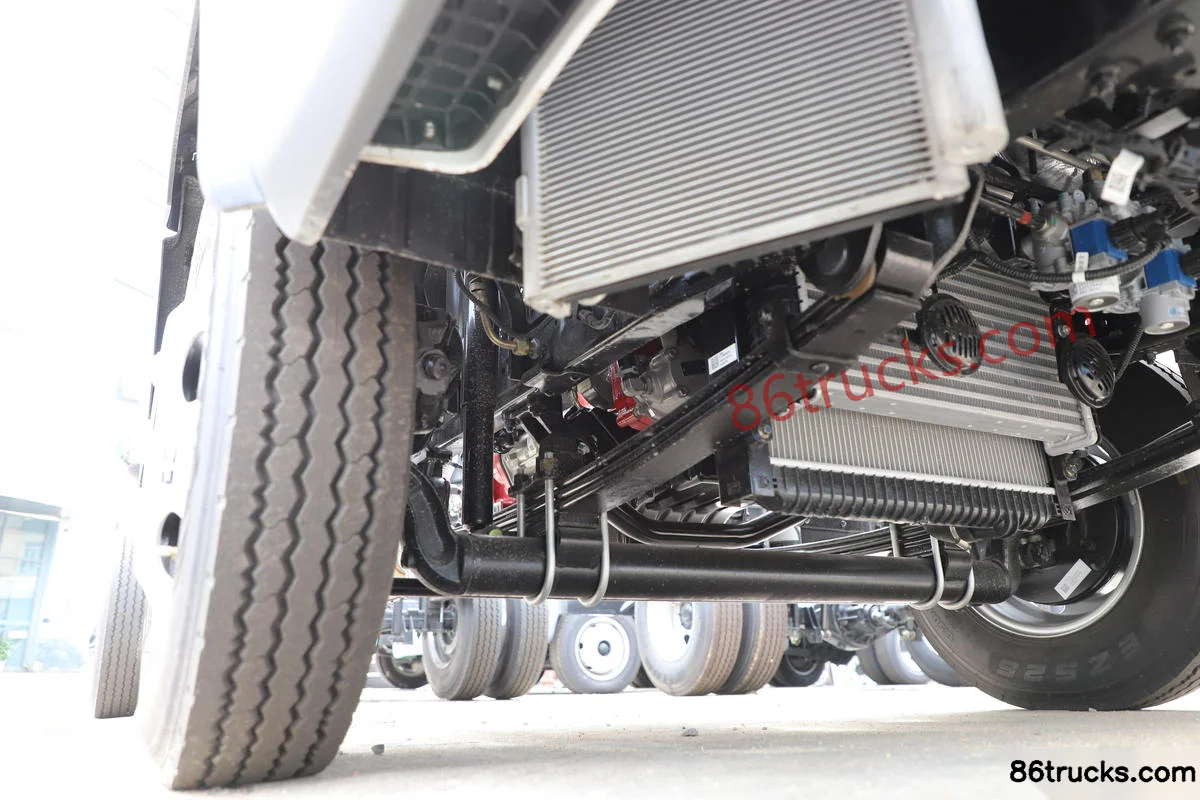

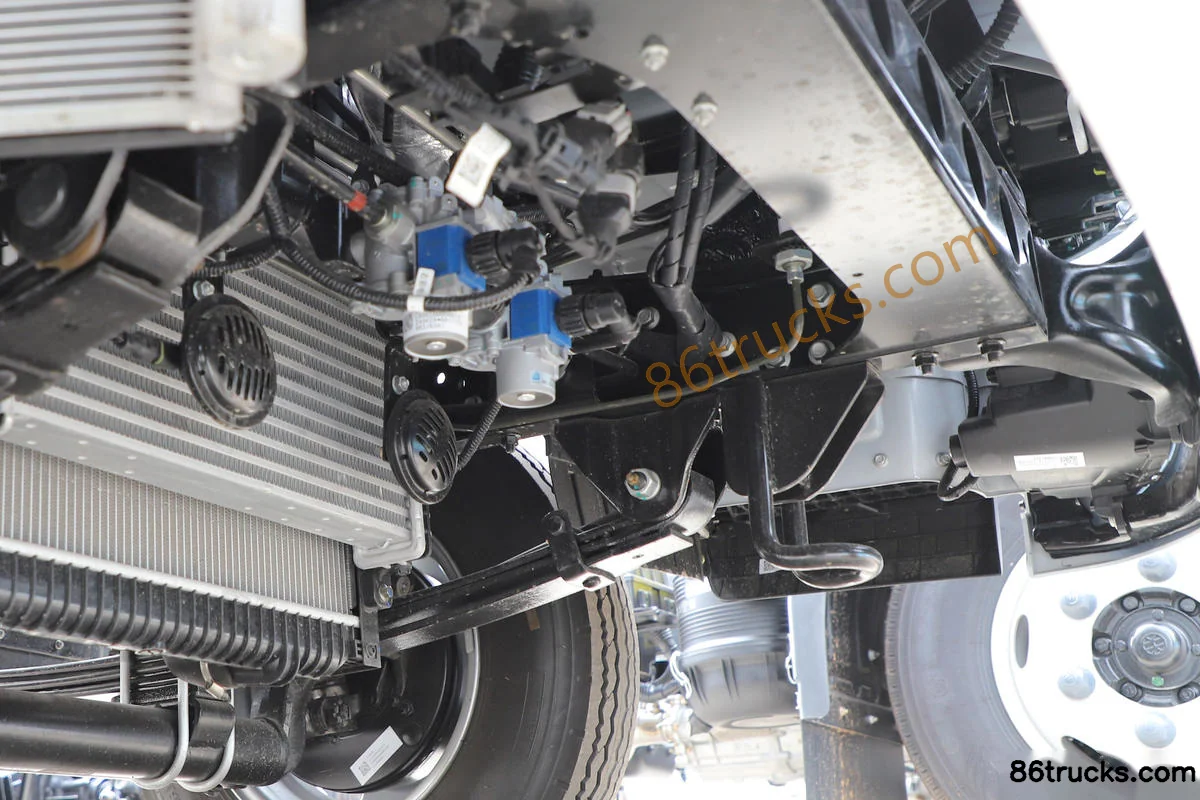

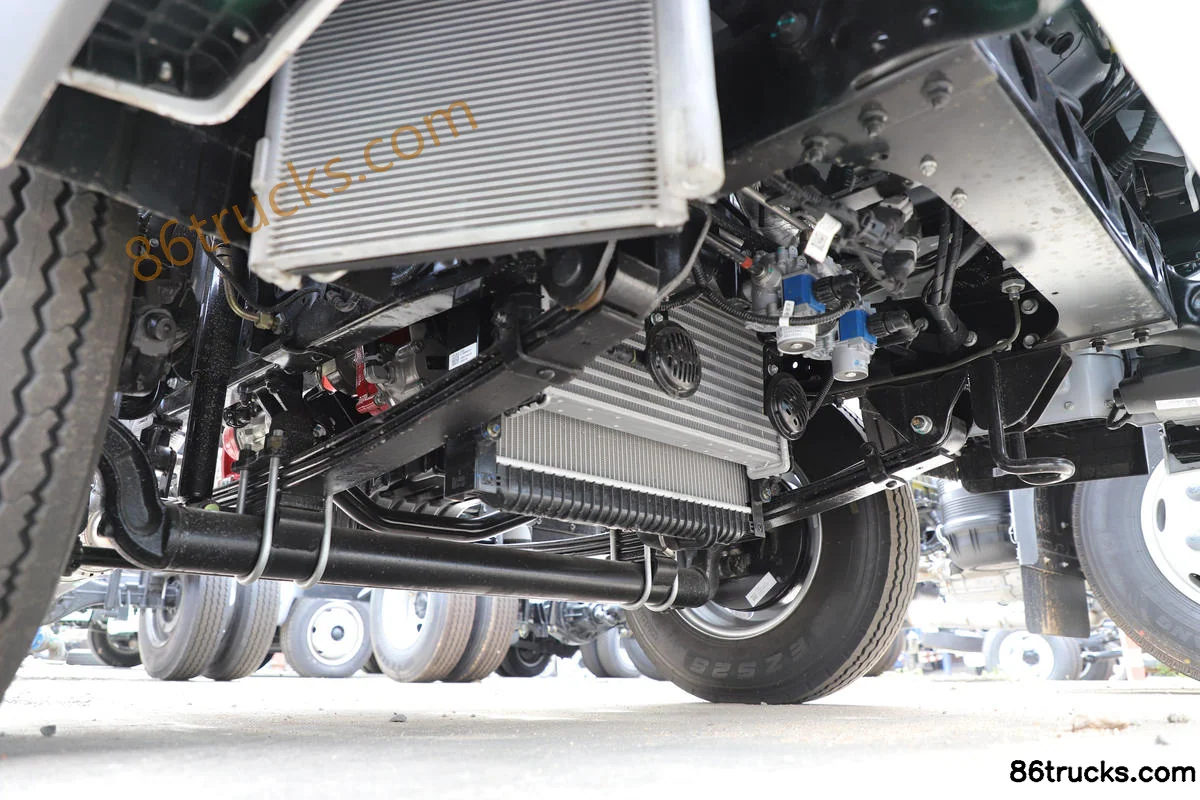

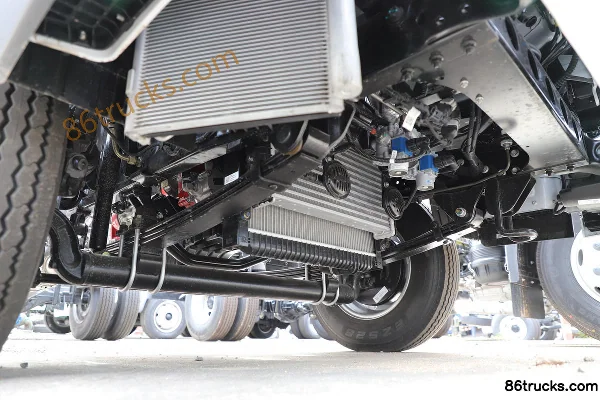

Chassis3

9 photos

FAQ

What is the export price of Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track), and what does it include?

Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track) export reference is about From $14,917; MSRP is ¥10.74M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track)?

Key specs of Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track): Drive: 4x2; Horsepower: 158 hp; Emission: China VI; Fuel: Diesel; Engine: Foton2.5; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track) suited for?

Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track) differ from other variants in the same series?

Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track) belongs to Foton M Card Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman M Card 158hp 4X2(6 wheels) 3.815m single-row van mini truck (wide track)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
