FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY)

Export reference
MSRP N/A
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Weichai3L
Transmission: WLY
Curb Weight:: 4.05ton
FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 4.035ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) is a Light Truck featuring 3.82m cargo length, Stake type cargo body, 3Personnel volume and 4.035t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Weichai3L engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5080CCYP40K59L2E5A84
Type: stake truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 3.8m
engine: WeichaiWP3NQ160E50
transmission: WLYWLY6G55
Cab length: 5.995m
Cab width: 2.42m
Cab height: 2.78m
Front track width: 1808mm
rear track: 1740mm
Curb Weight: 4.05ton
Rated payload: 4.035ton
GVWR: 8.28ton
Max. speed: 95km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 15°
market segment: Agricultural product transport, green channel
Remarks: Front brake: optional disc brake, King Arrives, air dryer, front underrun protection, maintenance-free battery, optional 200L aluminum fuel tank + double bunk + air horn
Front/rear suspension: 1.155/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ160E50
Engine info: Weichai3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 480N·m
Technology route: DOC+SCR
Transmission Parameters
Transmission Model: WLYWLY6G55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.82m
Cargo box width: 2.3m
*Cargo box interior width: 2.3
Cab parameters
Cab width: 2010mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 3000kg
Frame Dimensions: 865*216mm
rear axle description: 6T
rear axle allowable load: 5280kg
Leaf spring count: 3/3+3,3/4+4,7/10+3,3/7+9,3/10+4,7/10+4
Aluminum wheels:
Tire
Tire Size: 7.50R16
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster: none
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

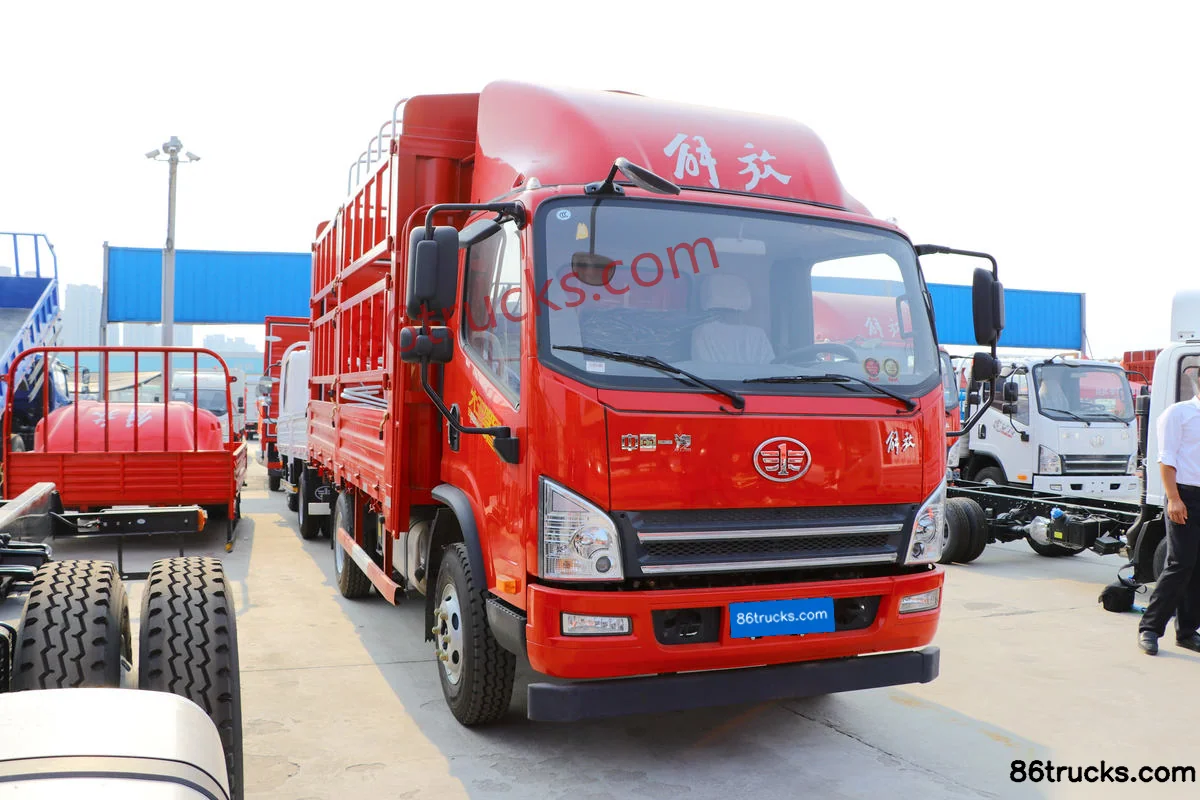

Exterior3

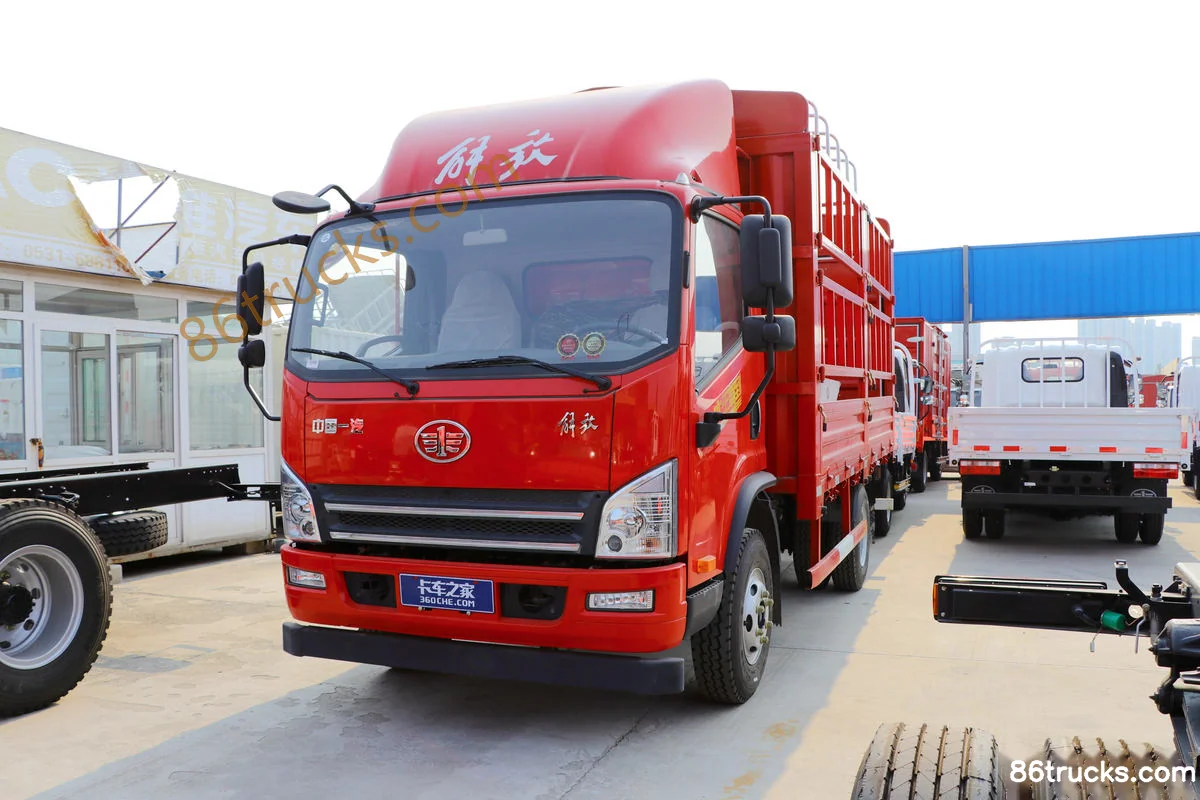

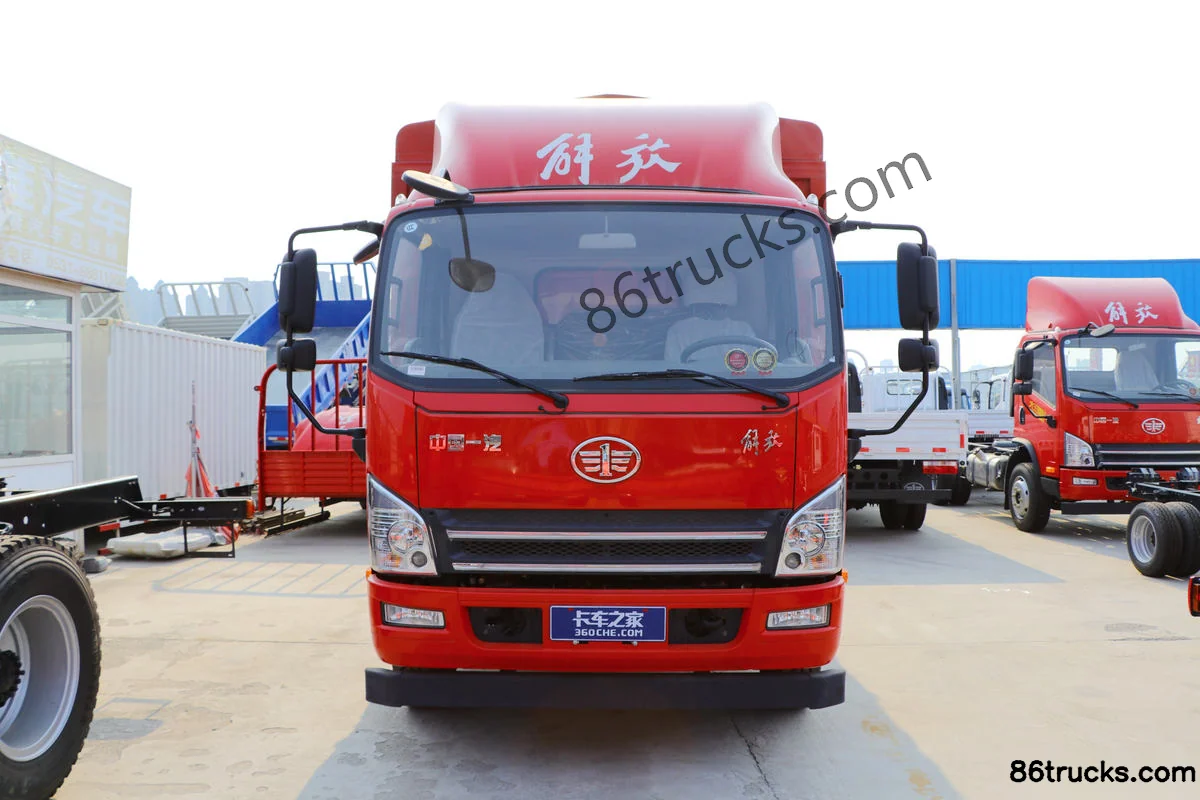

FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Exterior (1) | 86Trucks FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Exterior (2) | 86Trucks FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Exterior (3) | 86Trucks

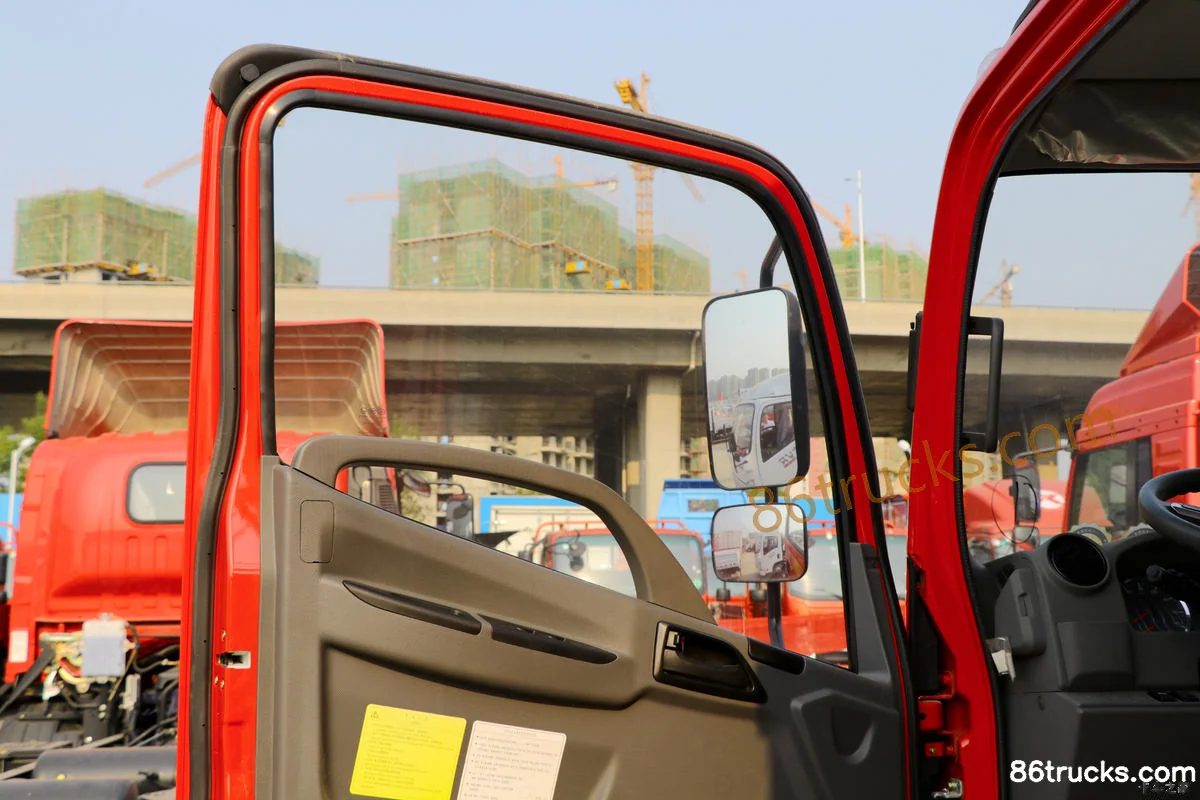

Cab3

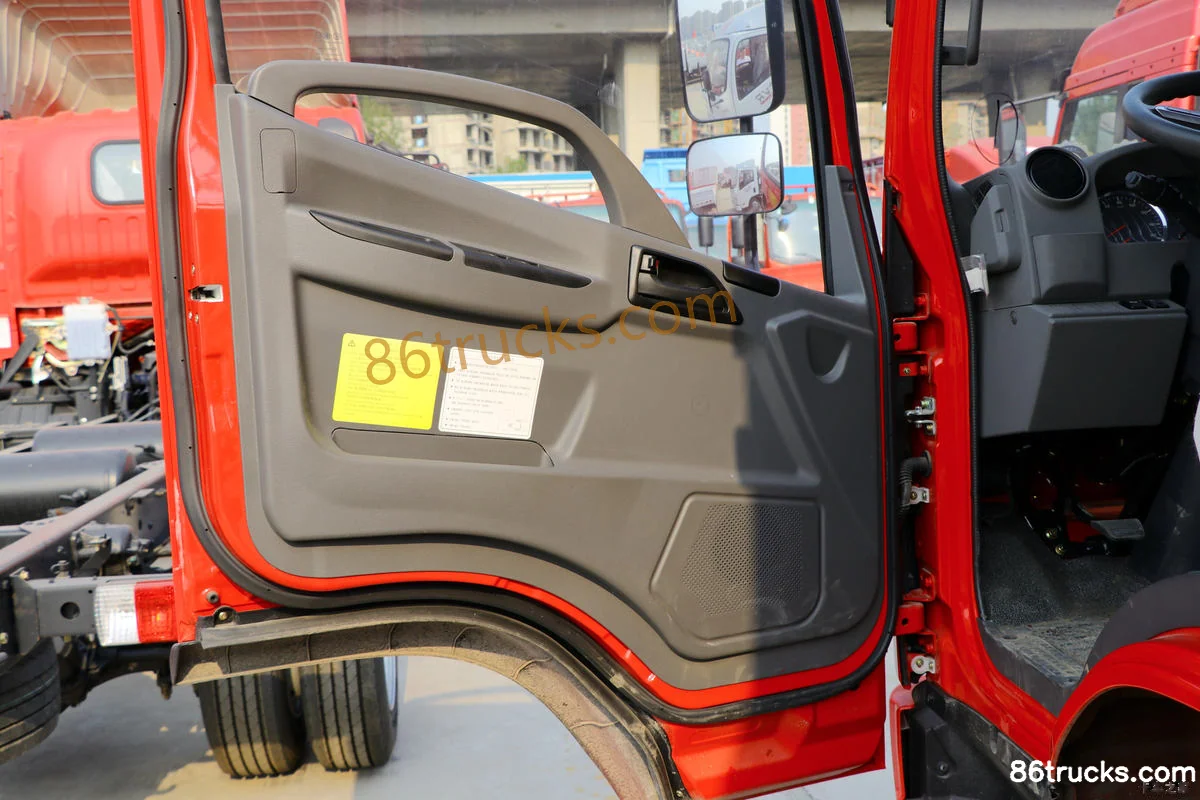

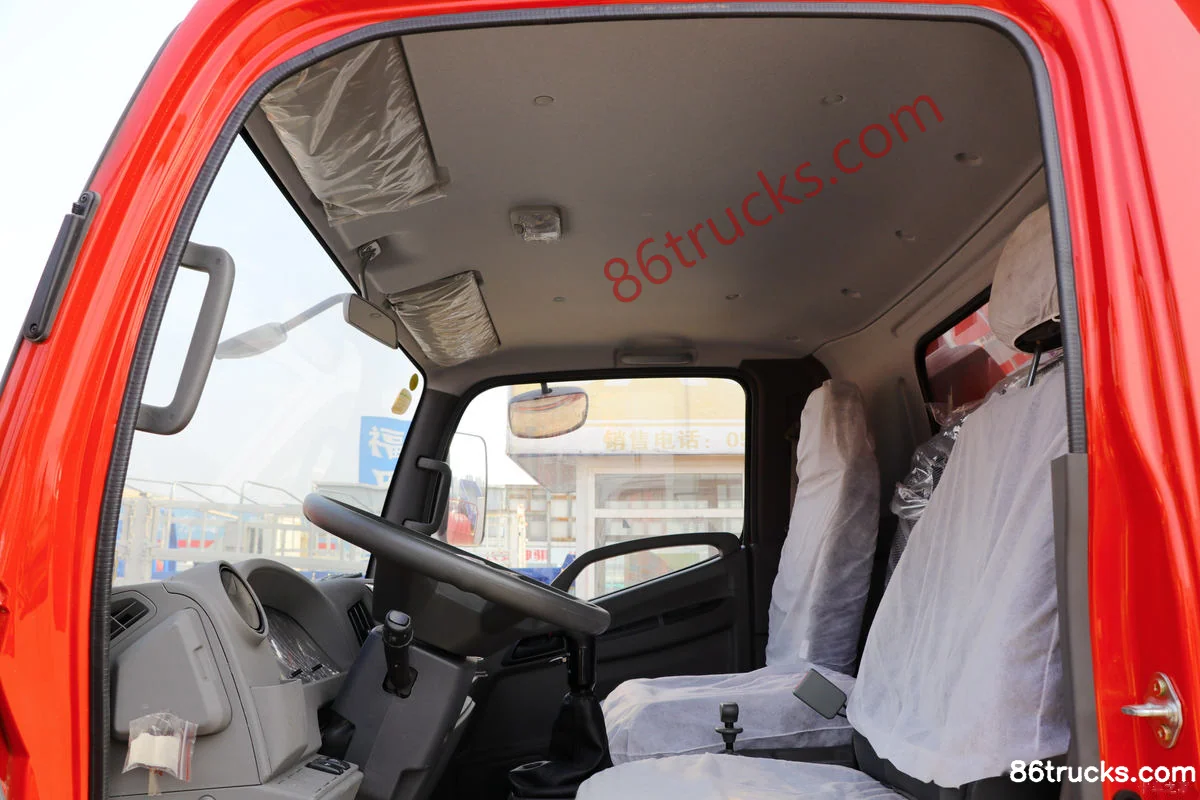

FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) (1) | 86Trucks FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) (2) | 86Trucks FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) (3) | 86Trucks

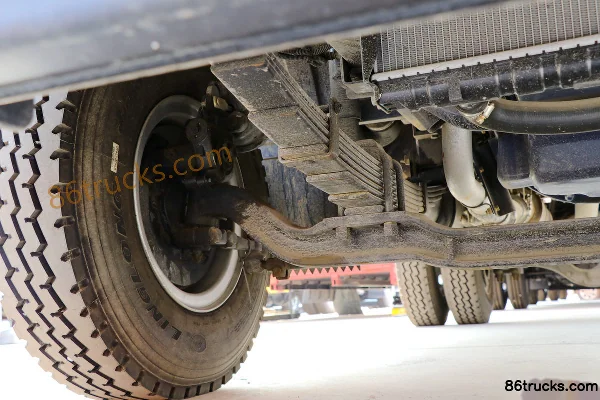

Chassis3

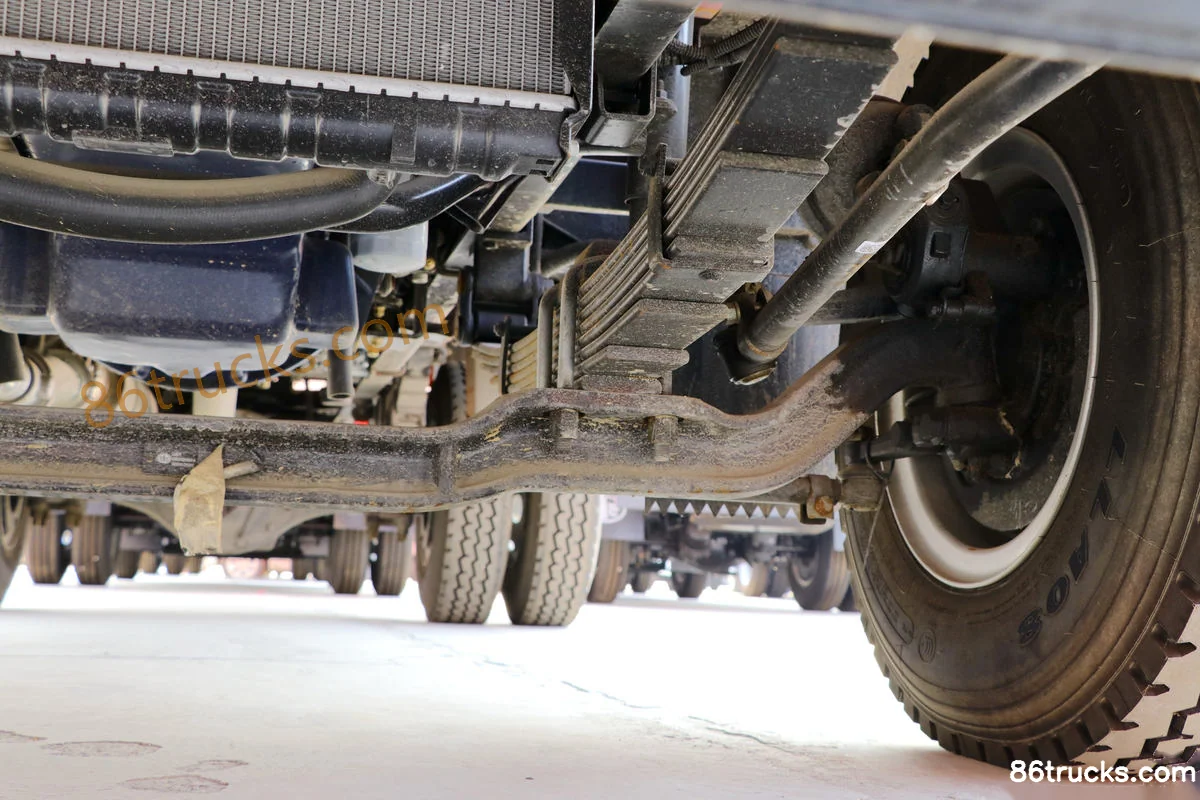

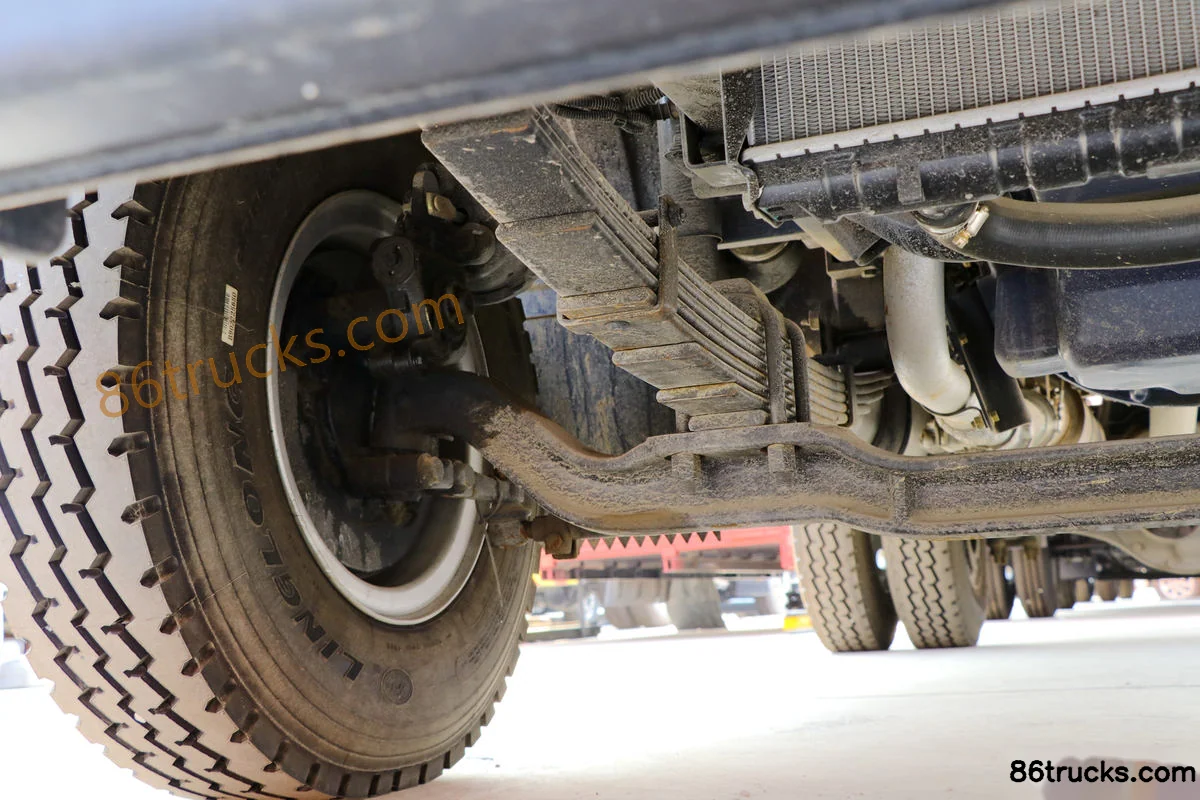

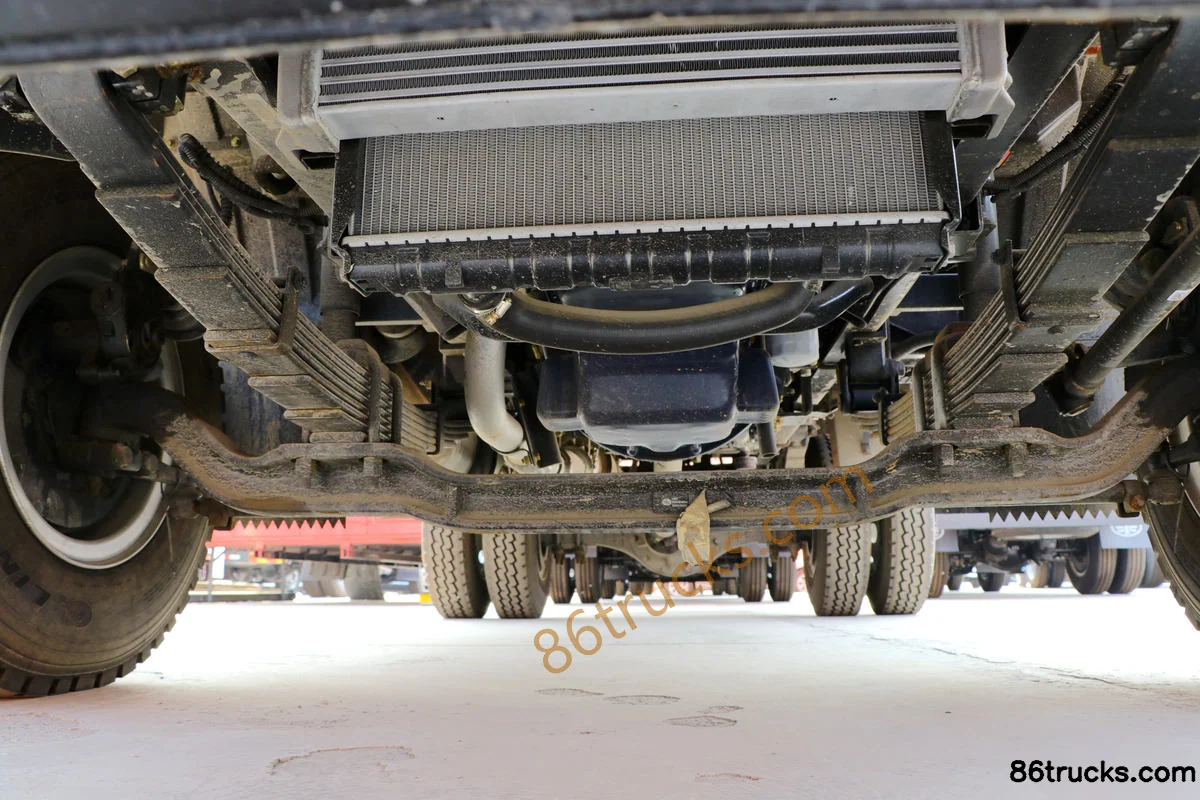

FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Chassis (1) | 86Trucks FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Chassis (2) | 86Trucks FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Chassis (3) | 86Trucks

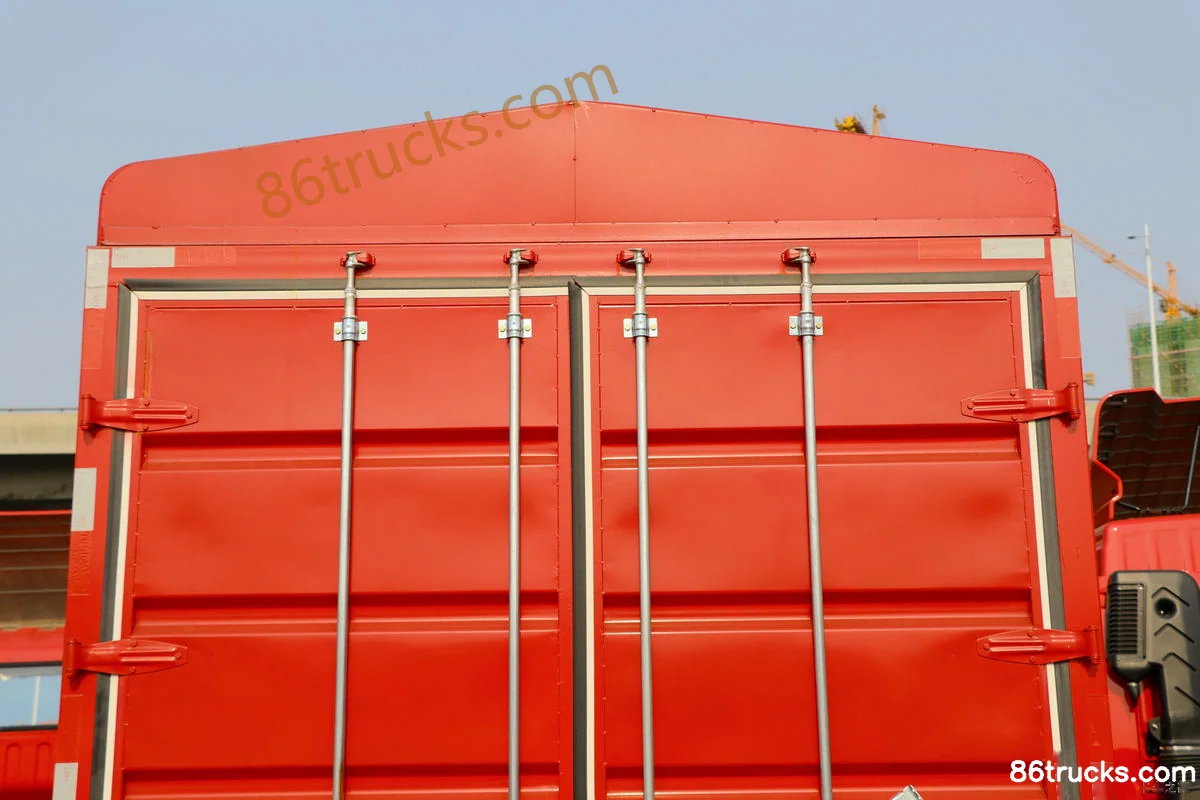

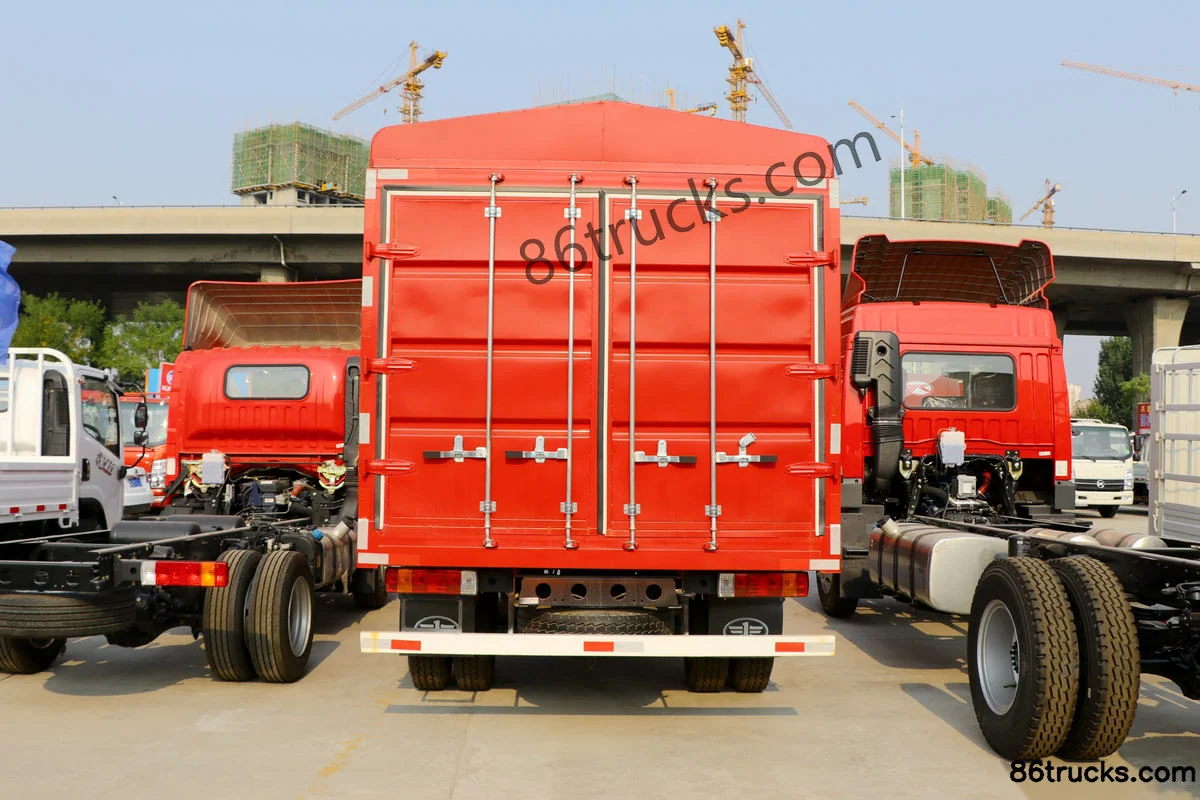

Body3

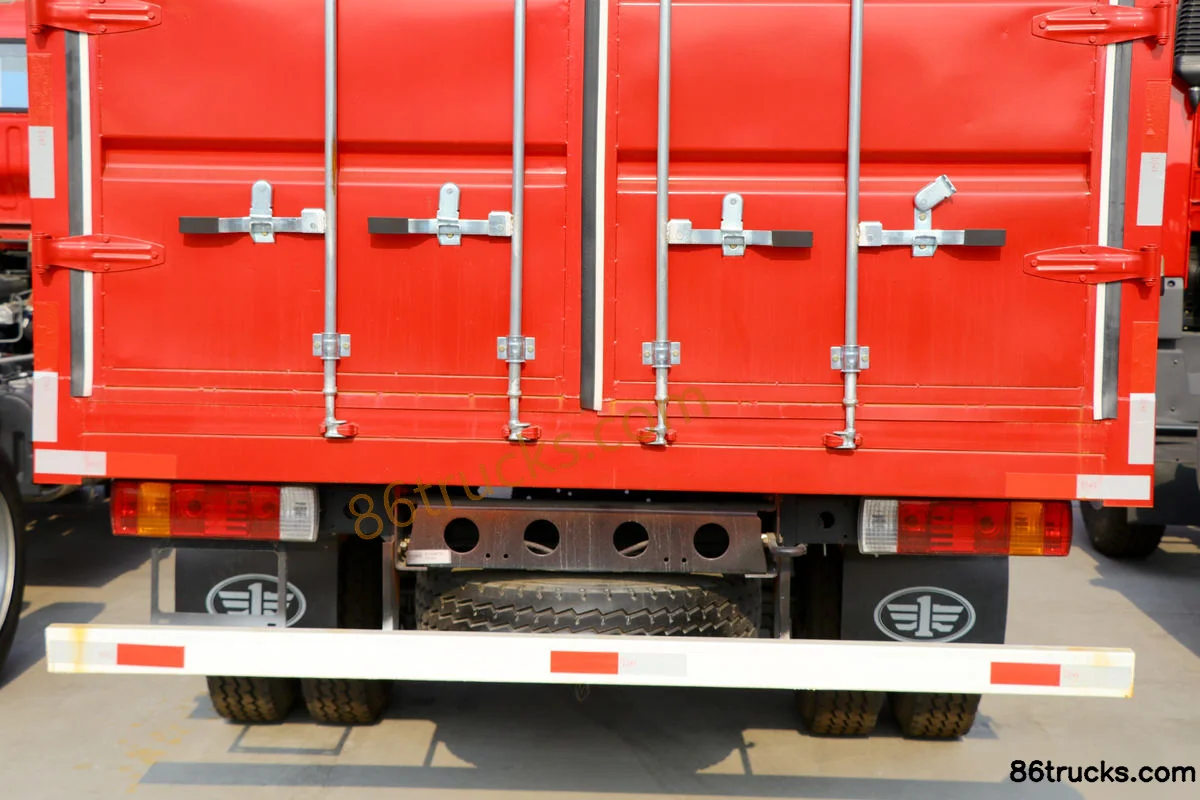

FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Body (1) | 86Trucks FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Body (2) | 86Trucks FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY)?

Key specs of FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Weichai3L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) suited for?

FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) differ from other variants in the same series?

FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY) belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 3.82m Crew Cab Stake Light Truck (WLY)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
