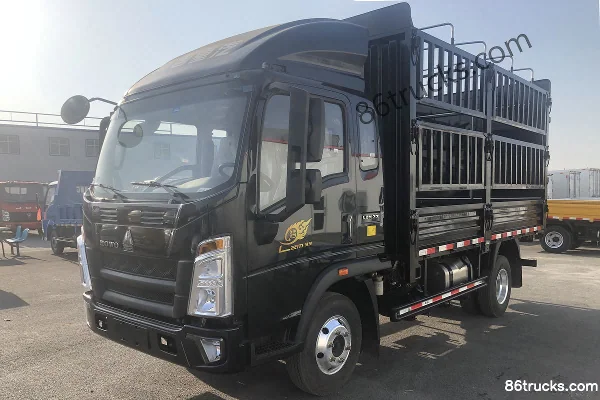

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck

Export reference
From $24,722
MSRP ¥17.8M CNY
Horsepower: 170
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei F40E
Transmission: Sinotruk
Curb Weight:: 6ton
seating capacity: 2Personnel
Rated payload: 9.6ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck is a Light Truck featuring 5.75m cargo length, Stake type cargo body, 2Personnel volume and 9.6t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei F40E engine, 170 hp, 4X2 (6 wheels) drive and China V emissions.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5167CCYG451CE1
Type: stake truck
Drive type: 4X2
Wheelbase: 4500mm
Box length class: 5.8m
engine: Yunnei PowerYNF40E1
transmission: SinotrukHW90510C
Cab length: 7.995m
Cab width: 2.55m
Cab height: 3.8m
Front track width: 1870mm
rear track: 1800mm
Curb Weight: 6ton
Rated payload: 9.6ton
GVWR: 15.795ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 17°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.16/2.335m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E1
Engine info: Yunnei Dewei F40E
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.92L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.75m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10195kg
Leaf spring count: 9/12+9
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck, and what does it include?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck export reference is about From $24,722; MSRP is ¥17.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck?

Key specs of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei F40E; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck suited for?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck differ from other variants in the same series?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck belongs to Sinotruk Hanjiang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
