FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck

Export reference
From $34,167
MSRP ¥24.6M CNY
Fuel: Diesel
Gross Trailer Weight:: 37.415ton
Wheelbase:: 3350+1350mm
Tire Size:: 11.00-20,11.00R20
rear axle allowable load:: 18000kg
Displacement:: 9.726L
Drive 6X4 (10 wheels)
Horsepower 336
Emission China III / Euro III
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 336 hp, 25t GVW and China III / Euro III emissions. On the powertrain side, it comes with Fast Gear transmission and Diesel fuel.

China III / Euro III 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4256P1K2T1EA80
Drive type: 6X4
Wheelbase: 3350+1350mm
Rear Axle Ratio: 4.111
Cab length: 6.875m
Cab width: 2.493m
Cab height: 3.305m
Front track width: 1914mm
rear track: 1847/1847mm
Gross Trailer Weight: 37.415ton
Curb Weight: 7.99ton
GVWR: 25ton
Max. speed: 93km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Remarks: Optional flat-top cab. Engine model/net power/maximum trailer gross weight correspondence: CA6DL1-31E3F/228kw/37415kg; CA6DL2-33E3F/246kw/40000kg; WP10.336NE31/243kw/40000kg. Flat-top cab with deflector, overall height 3305mm
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336NE31
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1390N·m
Max torque speed: 1350-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JS160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Lower Bunk Width: 800mm
Chassis Specs
Suspension type: Leaf spring or front leaf + rear air suspension
rear axle description: 457 stamped-welded axle
rear axle allowable load: 18000kg
Axle ratio: 4.111
Leaf spring count: 4/4
Tire
Tire Size: 11.00-20,11.00R20
Number of tires: 10pcs

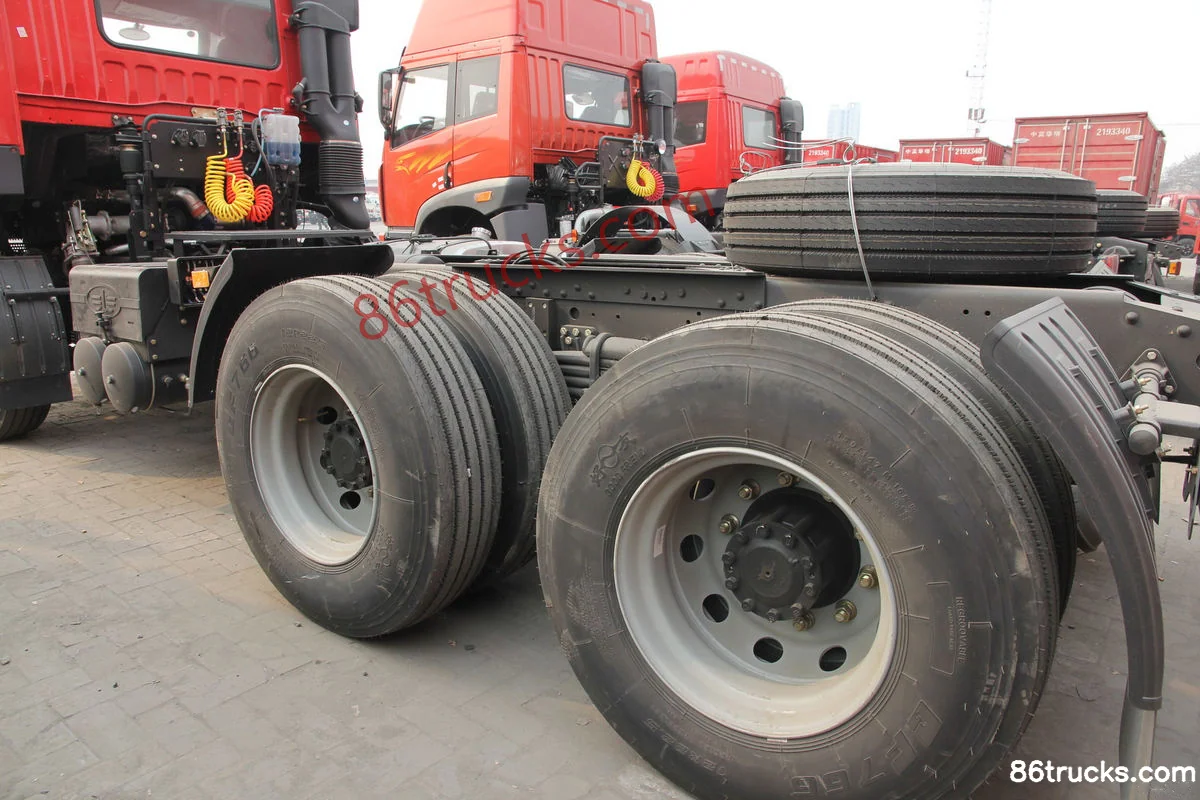

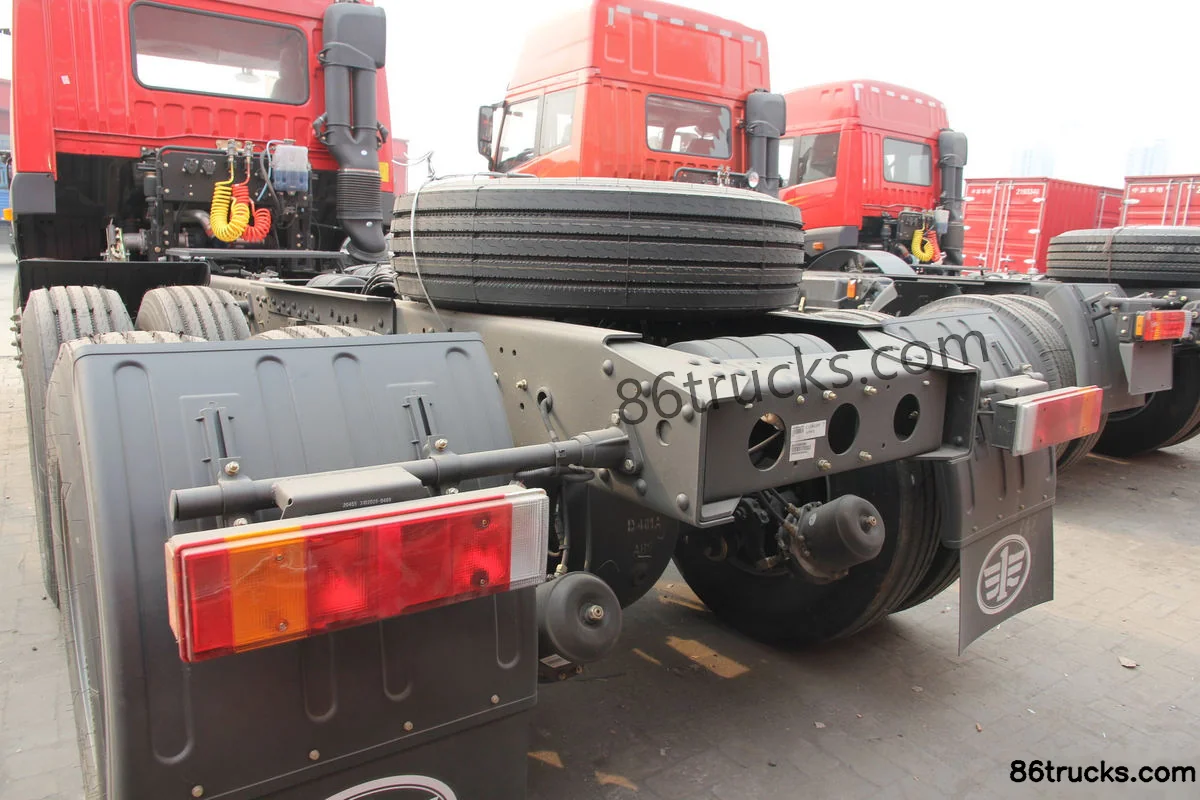

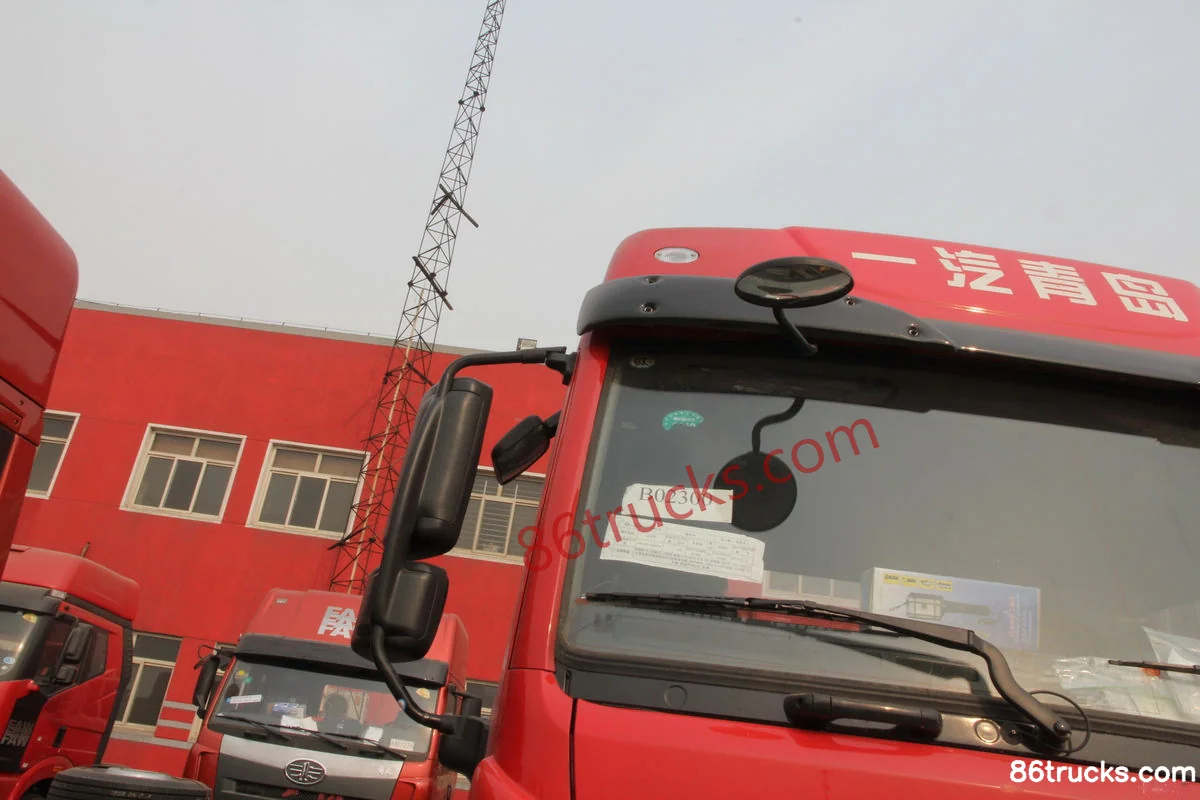

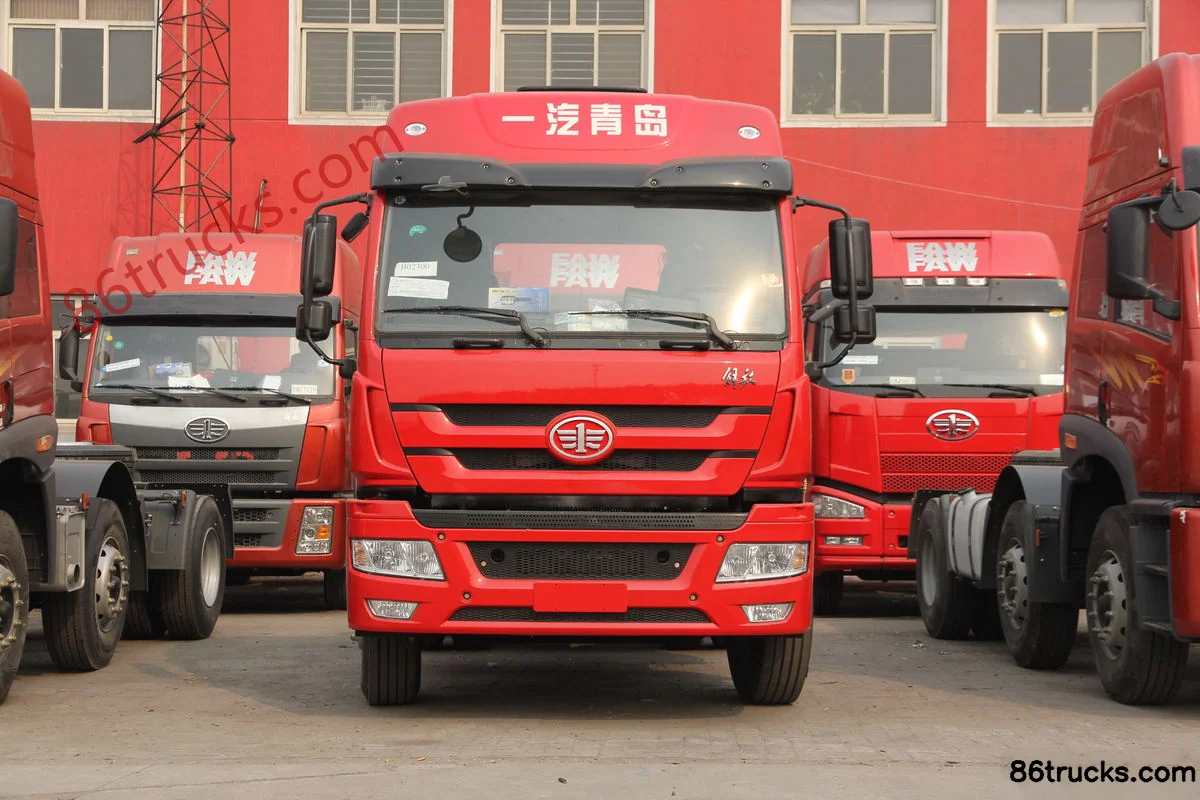

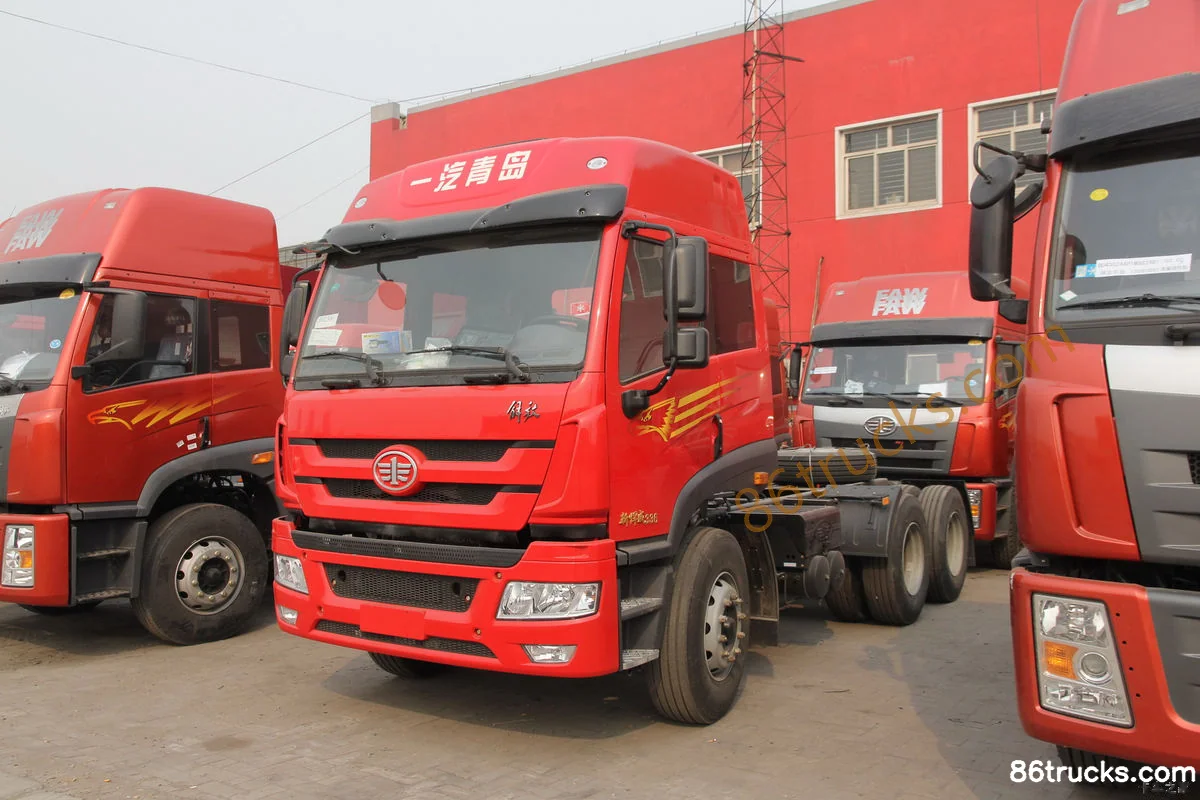

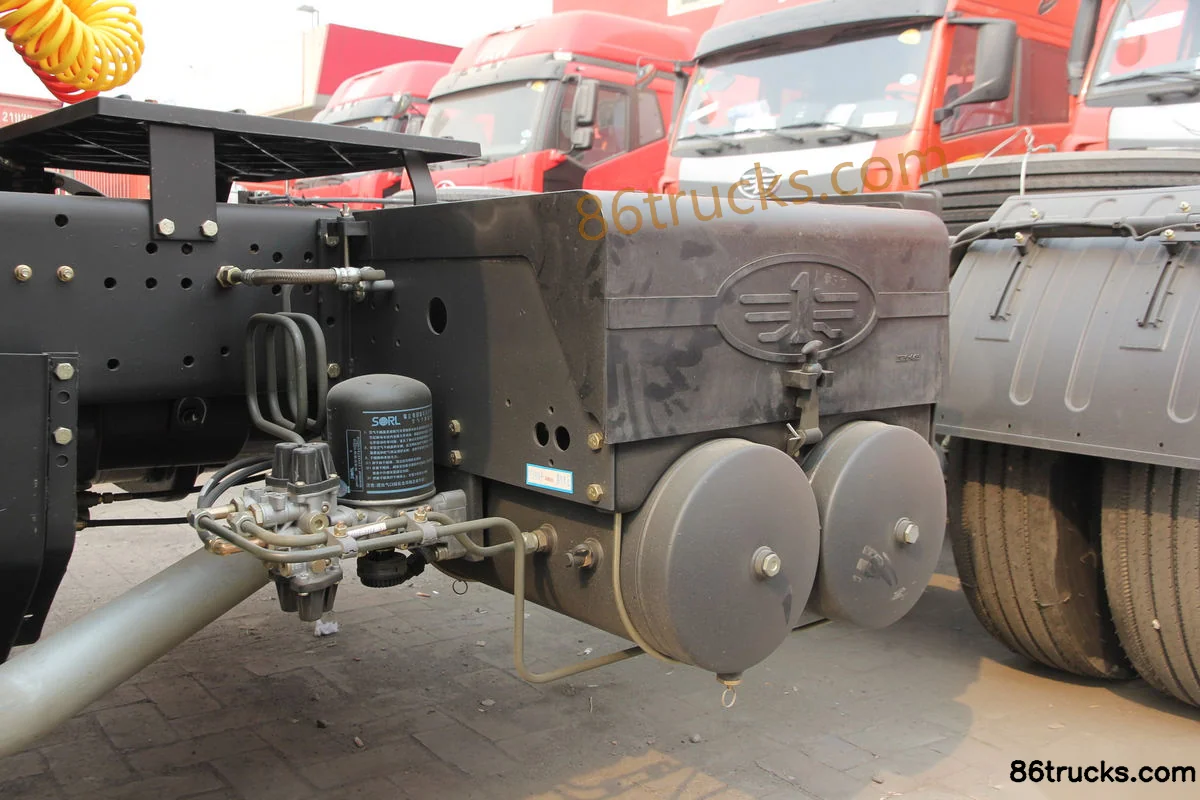

Photos

Exterior3

Chassis3

6 photos

FAQ

What is the export price of FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck, and what does it include?

FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck export reference is about From $34,167; MSRP is ¥24.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck?

Key specs of FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck: Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck suited for?

FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck differ from other variants in the same series?

FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck belongs to FAW Jiefang Qingdao New Hanwei J5M Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 6X4(10 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
