Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis

Export reference
From $20,556
MSRP ¥14.8M CNY
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 7.505ton
seating capacity: 3Personnel
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis is a Medium-duty truck featuring 6.75m cargo length, stake body cargo body, 3Personnel volume and 7.99t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ1163RAPA
Type: Chassis
Drive type: 4X2
Wheelbase: 5100mm
Box length class: 6.8m
engine: YuchaiYC6J160-46
transmission: Fast Gear8JS75C
Rear Axle Ratio: 5.286
Cab length: 6.75m
Cab width: 2.294m
Cab height: 0.55m
Front track width: 1940mm
rear track: 1830mm
Curb Weight: 7.505ton
Rated payload: 7.99ton
GVWR: 15.69ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 25°
departure angle: 12°
market segment: Building materials, agricultural products
Front/rear suspension: 1.445/2.455m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J160-46
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.494L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1400-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.75m
Cargo box width: 2.294m
Cargo box height: 0.55m
*Cargo box interior width: 2.2939999103546
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
Chassis Specs
Front axle allowable load: 5720kg
rear axle allowable load: 9970kg
Axle ratio: 5.286
Leaf spring count: 11/12+9
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

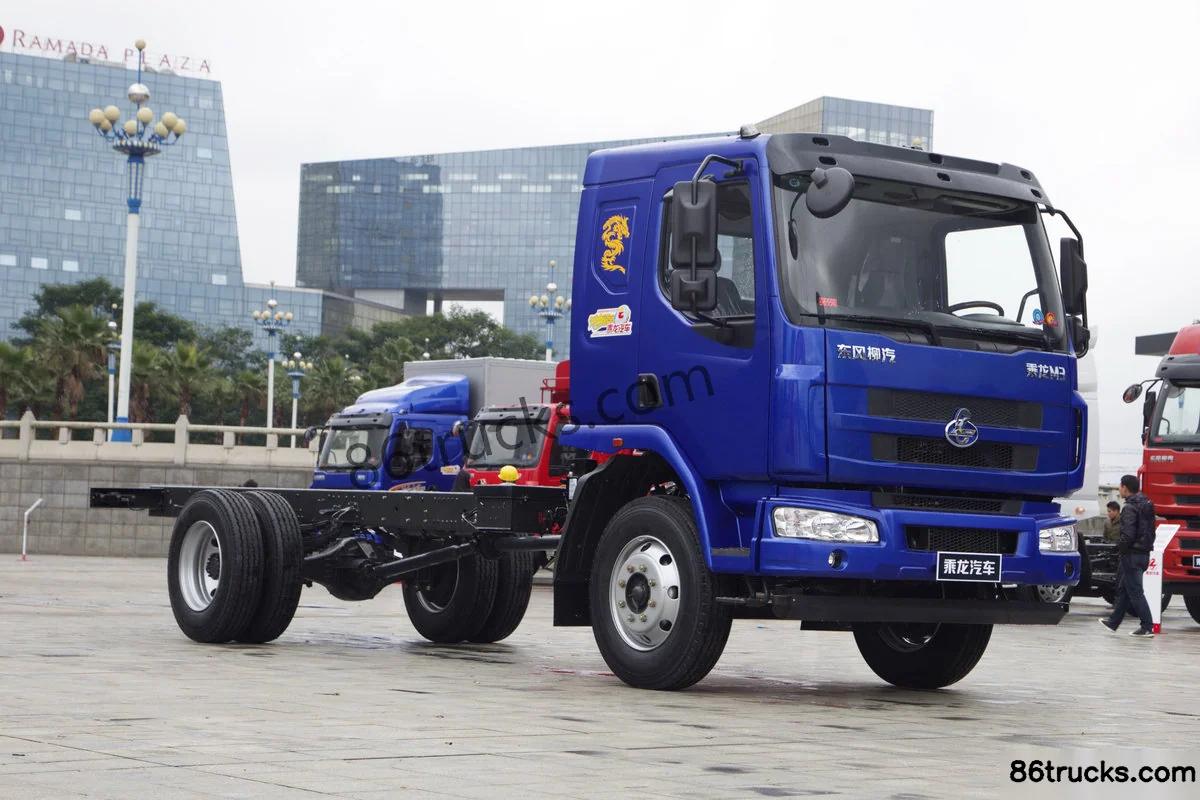

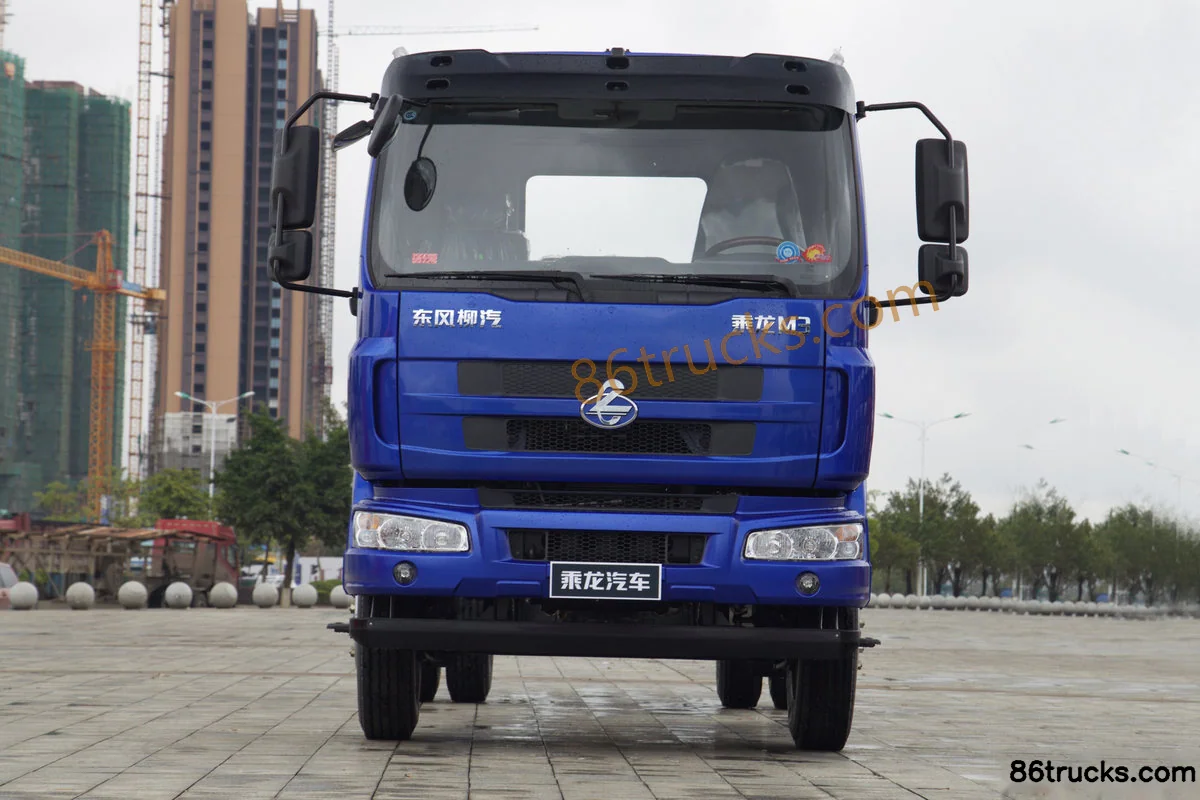

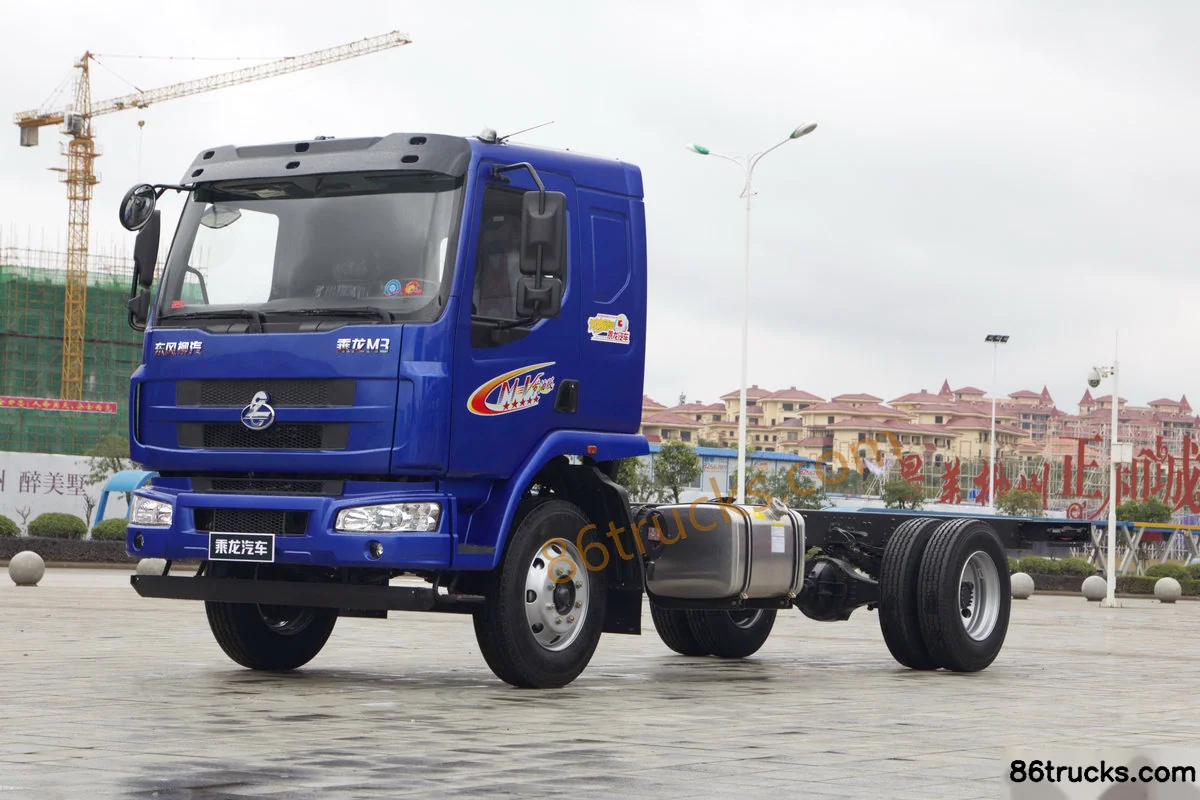

Photos

Exterior3

3 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis, and what does it include?

Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis export reference is about From $20,556; MSRP is ¥14.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis?

Key specs of Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis: Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis suited for?

Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis differ from other variants in the same series?

Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis belongs to Dongfeng M3 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong M3 Medium Truck 160hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
