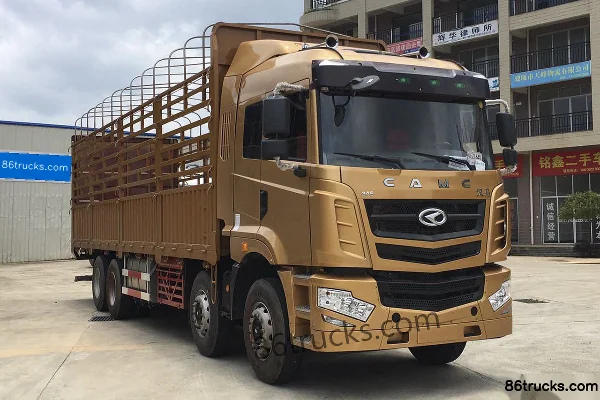

Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck

Export reference
MSRP N/A
Horsepower: 375
Emission: China V
Fuel: Diesel
Engine: Hanma10L
Transmission: Hanma
Curb Weight:: 11.8ton
seating capacity: 3Personnel
Rated payload: 19.07ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 19.07t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Hanma10L engine, 375 hp, 8X4 (12 wheels) drive and China V emissions.

China V 375 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN5310CCYX34D6M5
Type: stake truck
Drive type: 8X4
Wheelbase: 1850+4605+1350mm
Box length class: 9.6m
engine: HanmaCM6D18.375 50
transmission: Hanma12SOB2001
Rear Axle Ratio: 4.1
Cab length: 11.98m
Cab width: 2.5m
Cab height: 3.95m
Front track width: 2065/2065mm
rear track: 1860/1860mm
Curb Weight: 11.8ton
Rated payload: 19.07ton
GVWR: 31ton
Max. speed: 98km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 15°
market segment: Daily industrial goods transport, agricultural and sideline products transport, LTL transport, green channel
Remarks: Optional fuel tank capacity: 500L
Front/rear suspension: 1.37/2.805m
Energy Type: Diesel
Engine parameters
Engine Brand: Hanma
Engine Model: HanmaCM6D18.375 50
Engine info: Hanma10L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.84L
Emission standard: China V
Max output power: 276kW
Max hp: 375Horsepower
Max torque: 1750N·m
Max torque speed: 1200-1300rpm
Rated speed: 1900rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: Hanma12SOB2001
Transmission Brand: Hanma
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: HanmaH6 high-roof all-steel cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 380L
Chassis Specs
Front axle description: 6T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 290(10)mm
rear axle description: HL436
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.1
Leaf spring count: 9/9/12
Tire
Tire Size: 12R22.5
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Radio:

Photos

0 photos

FAQ

What emission standard does Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck?

Key specs of Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck: Drive: 8x4; Horsepower: 375 hp; Emission: China V; Fuel: Diesel; Engine: Hanma10L; Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck suited for?

Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck differ from other variants in the same series?

Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck belongs to Hualing Hanma H6 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing HanmaH6 375hp 8X4(12 wheels) 9.6m grain van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
