JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck

Export reference
MSRP N/A
Horsepower: 82
Emission: China IV
Fuel: Diesel
Engine: Quanchai485
Transmission: Lu'an
Curb Weight:: 2.2ton
JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck is a Light Truck featuring 3.3m cargo length, Van body cargo body, 2Personnel volume and 1.995t payload. On the powertrain side, it comes with a Quanchai485 engine, 82 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 82 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5042XXYP93K3B3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2600mm
Box length class: 3.3m
engine: Quanchai4B1-82C40
transmission: Lu'an LC5T190
Cab length: 5.09m
Cab width: 1.91m
Cab height: 2.85m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 2.2ton
Rated payload: 1.995ton
GVWR: 4.325ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 20°
departure angle: 15°
Remarks: Optional: MP5, A/C; Standard: five-ring instrument cluster, dual ashtrays, dual sun visors, sleeper half-side window (openable), folding key, metallic paint, tube-beam dashboard, frame-type rearview mirrors, double-layer frame, spring energy storage
Front/rear suspension: 1.07/1.42m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4B1-82C40
Engine info: Quanchai485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.27L
Emission standard: China IV
Max output power: 60kW
Max hp: 82Horsepower
Max torque: 205N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: High-pressure common rail, water-cooled, vertical
Transmission Parameters
Transmission Model: Lu'an LC5T190
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.3m
Cargo box width: 1.81m
Cargo box height: 1.85m
*Cargo box interior width: 1.8099999427795
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 87L
Chassis Specs
Front axle description: 2 tons/drum type
Front axle allowable load: 1560kg
rear axle description: 3-ton drum
rear axle allowable load: 2765kg
Leaf spring count: 3/5+3,5/5+3
Suspension (front/rear): Leaf spring
Tire
Tire Size: 6.50R16//6.50R15
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Reverse Camera:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
daytime running lights:

Photos

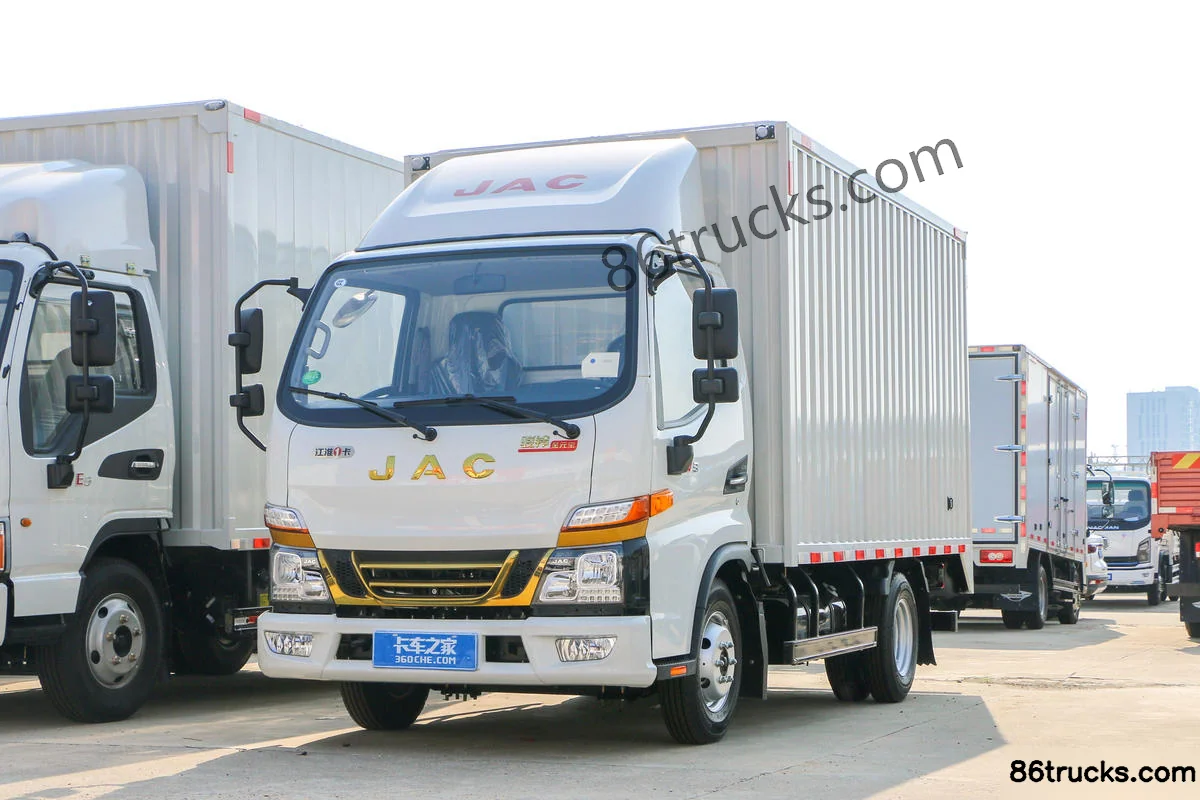

Exterior3

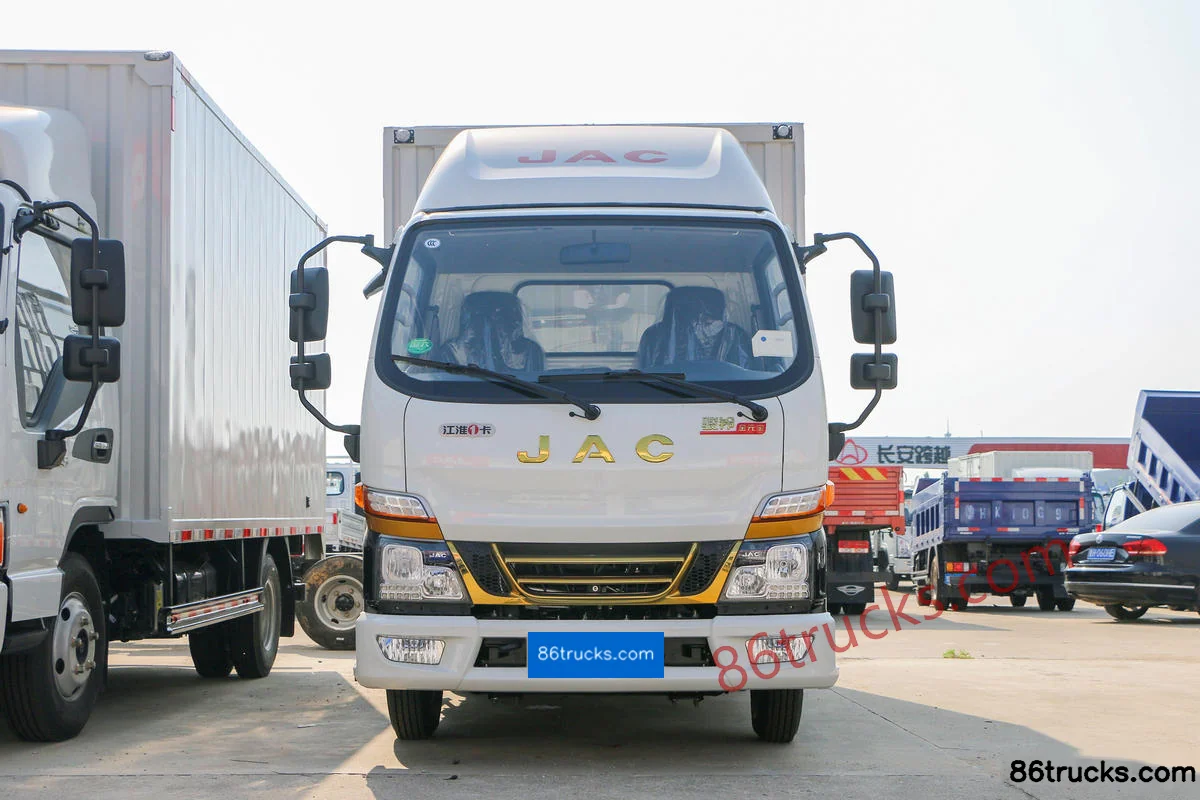

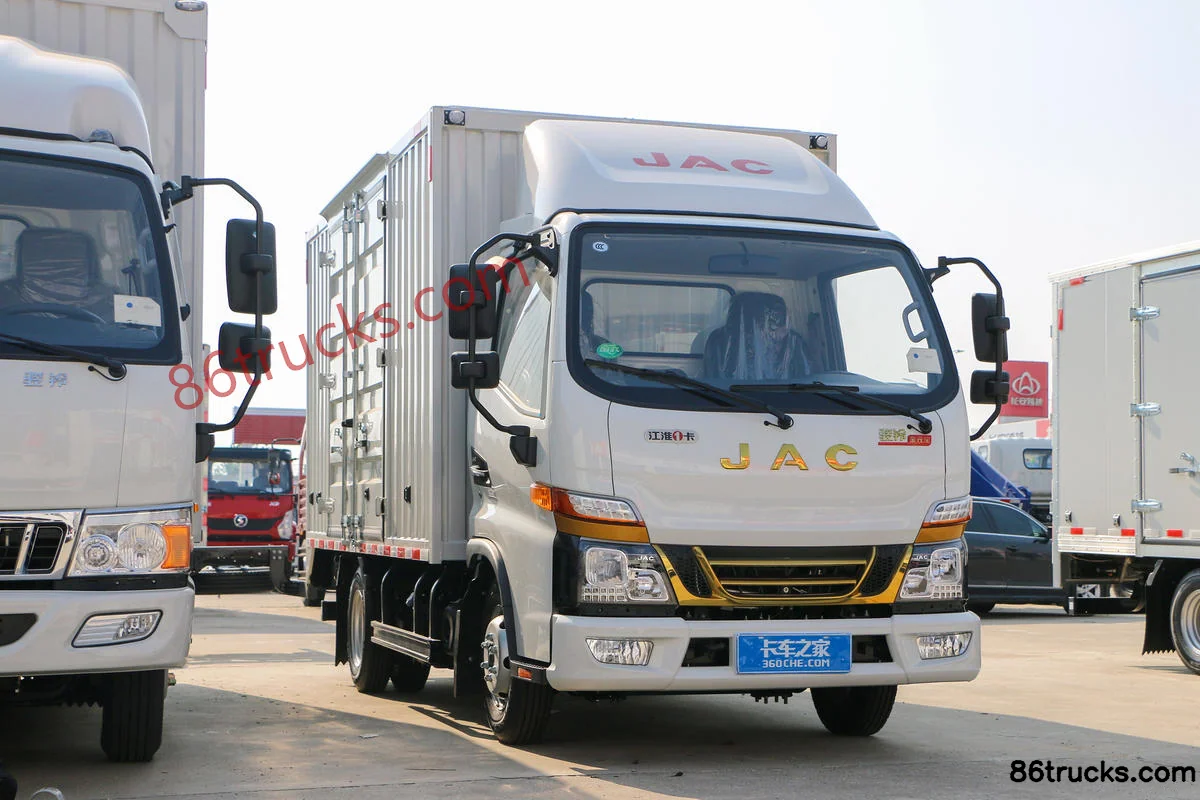

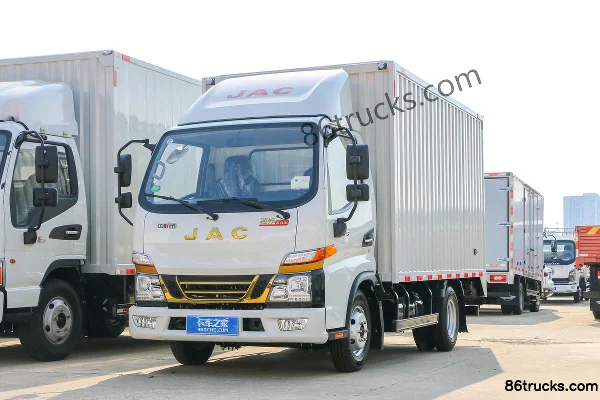

JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Exterior (1) | 86Trucks JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Exterior (2) | 86Trucks JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Exterior (3) | 86Trucks

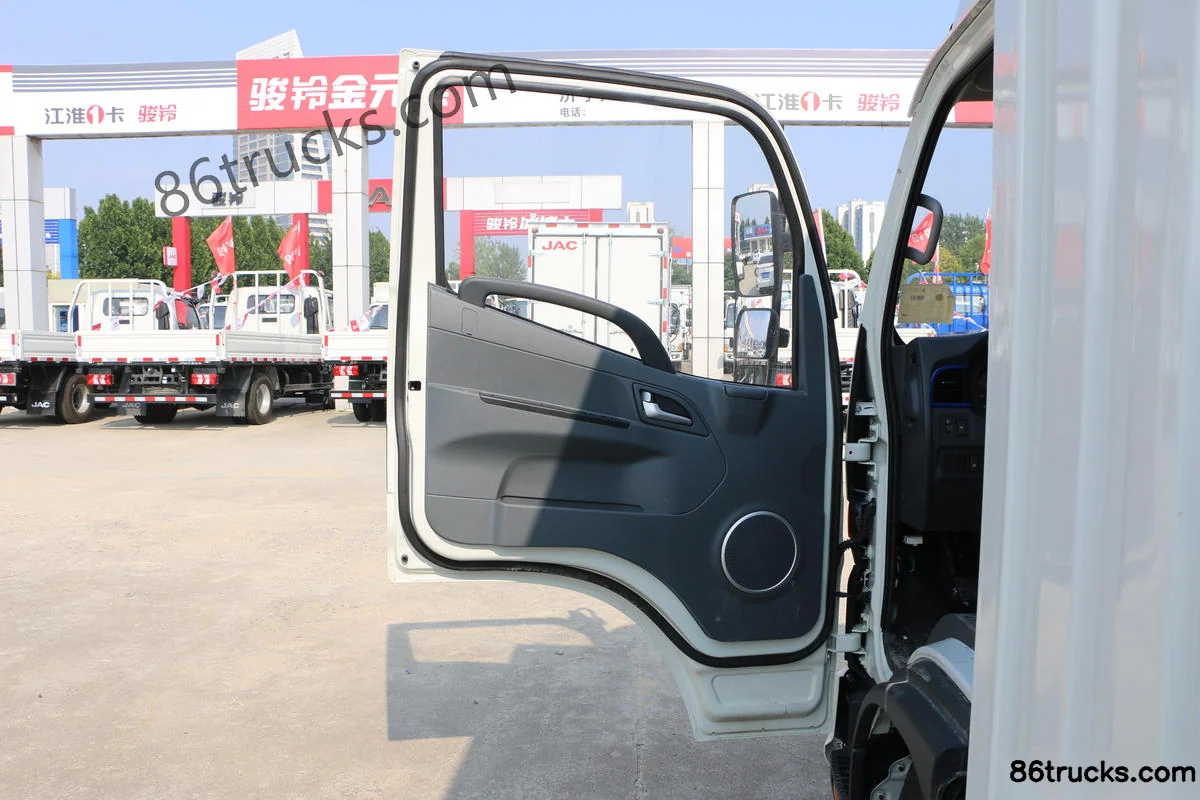

Cab3

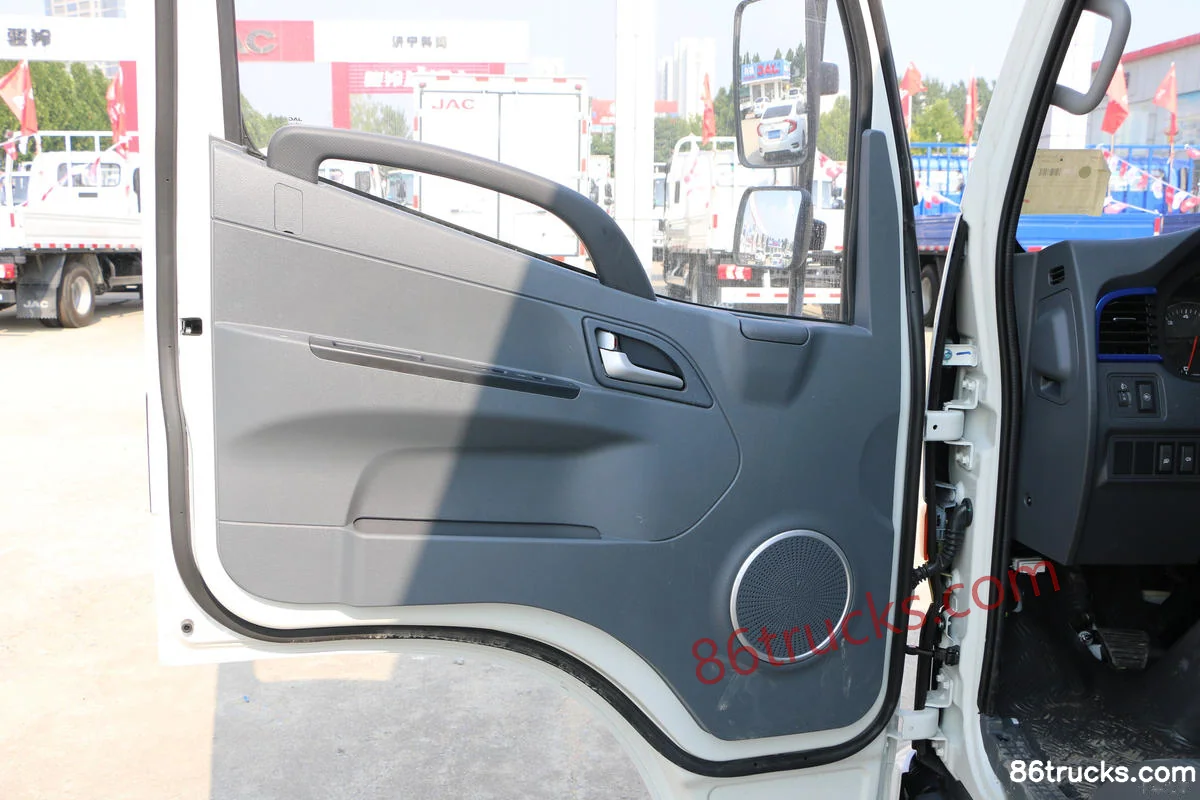

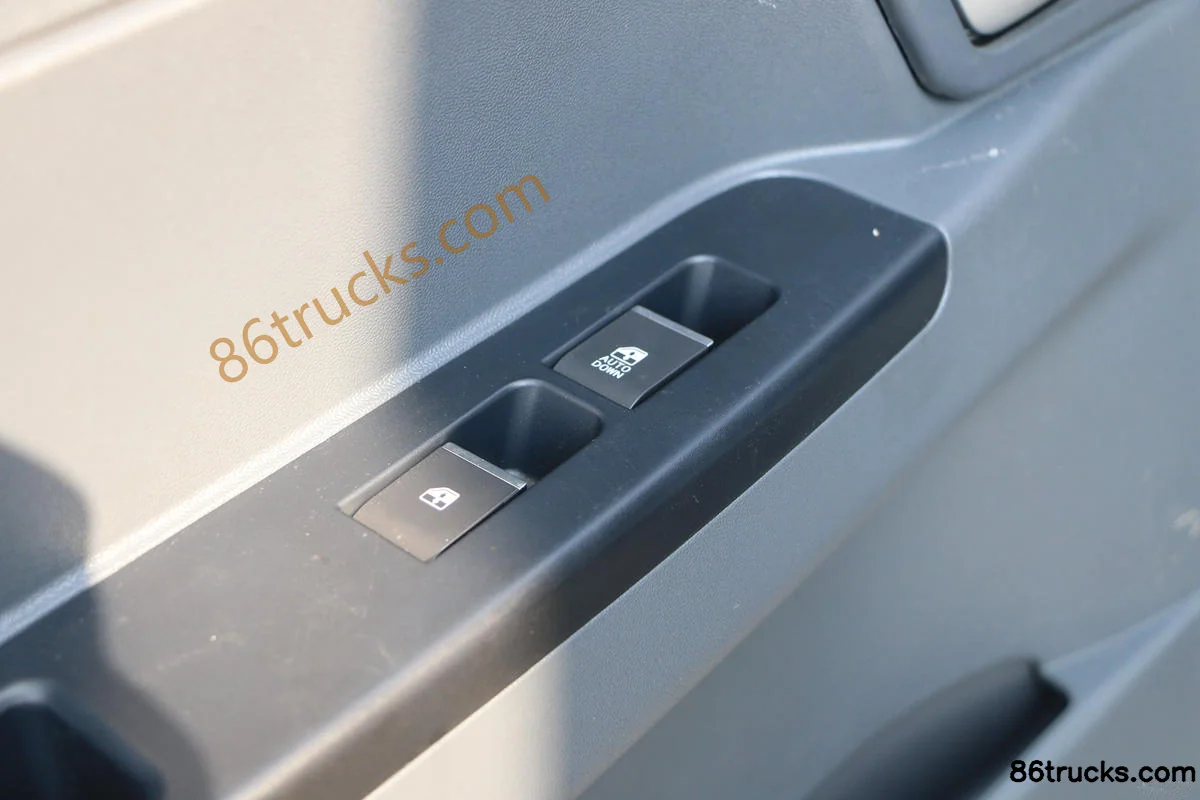

JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Cab (1) | 86Trucks JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Cab (2) | 86Trucks JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Cab (3) | 86Trucks

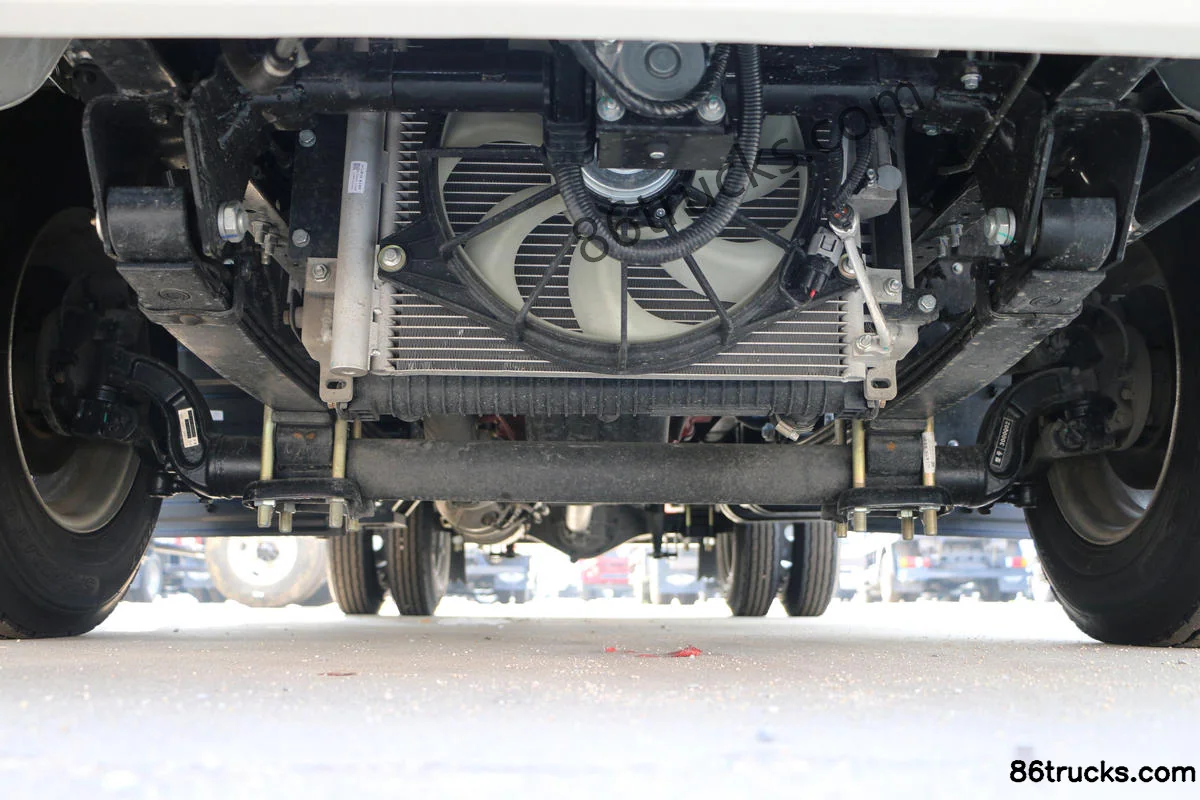

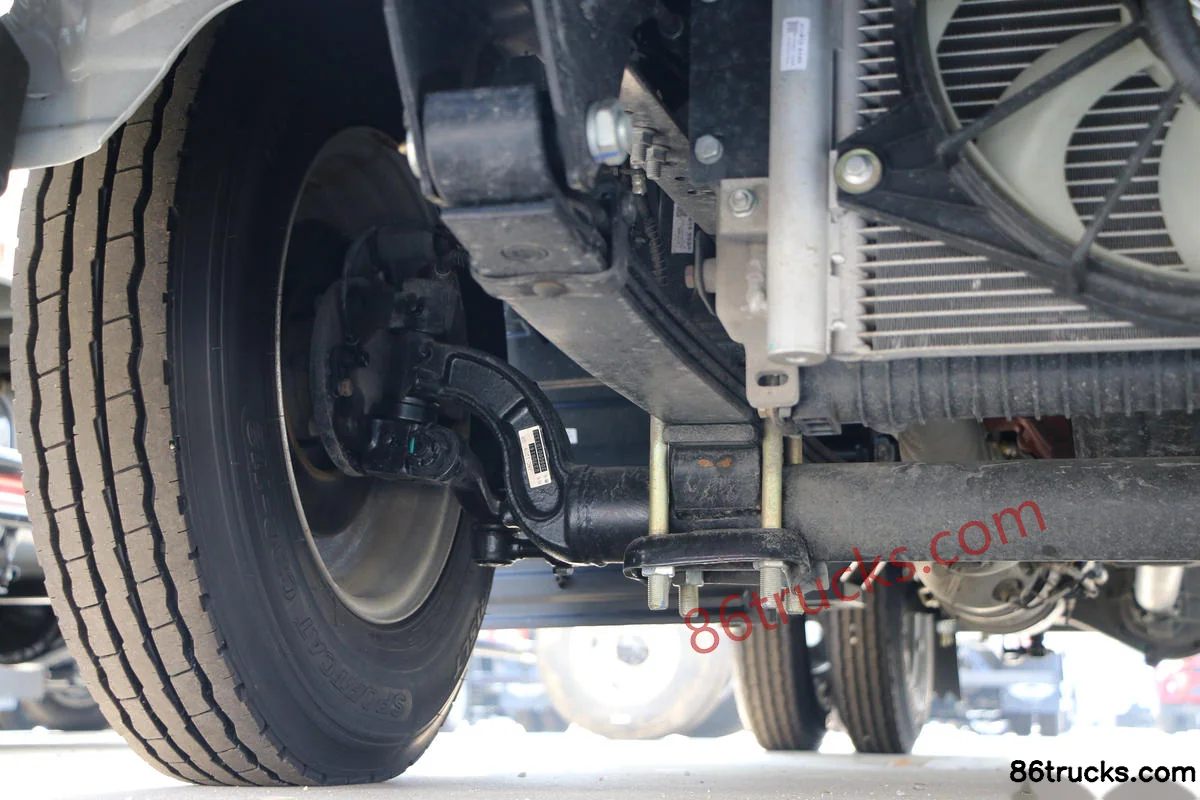

Chassis3

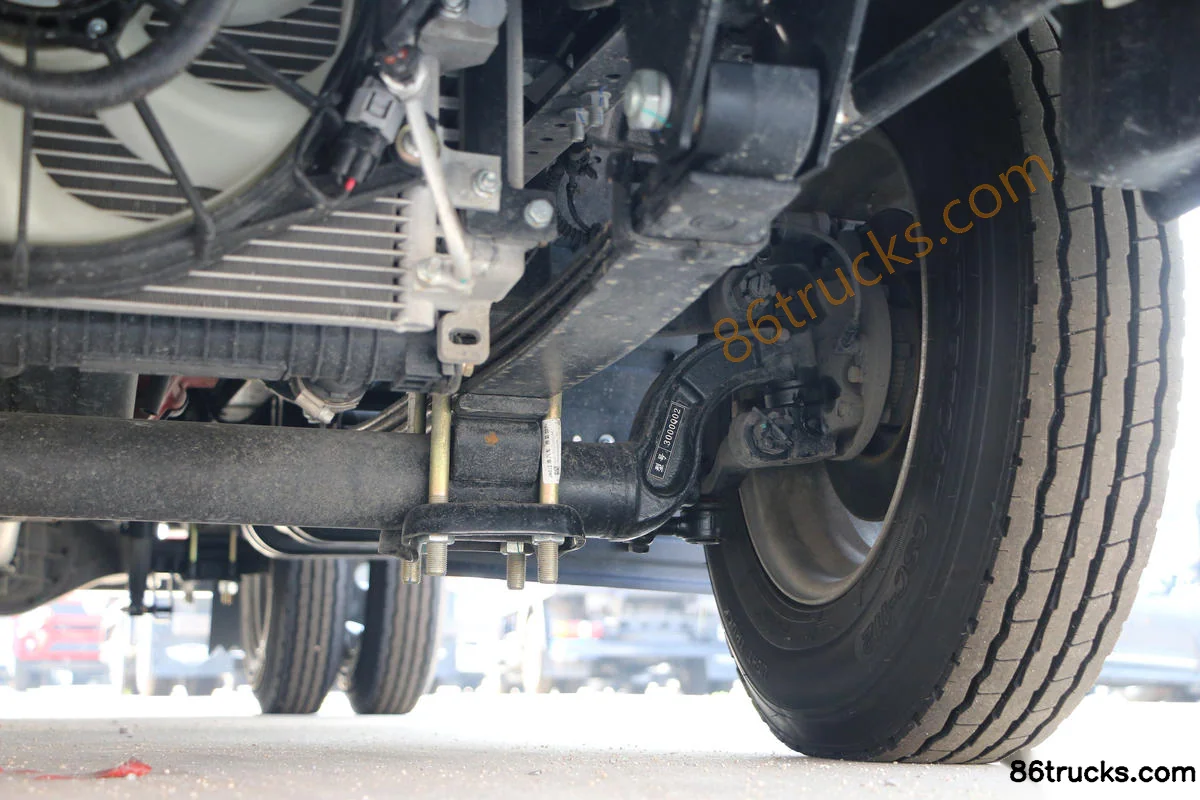

JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Chassis (1) | 86Trucks JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Chassis (2) | 86Trucks JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Chassis (3) | 86Trucks

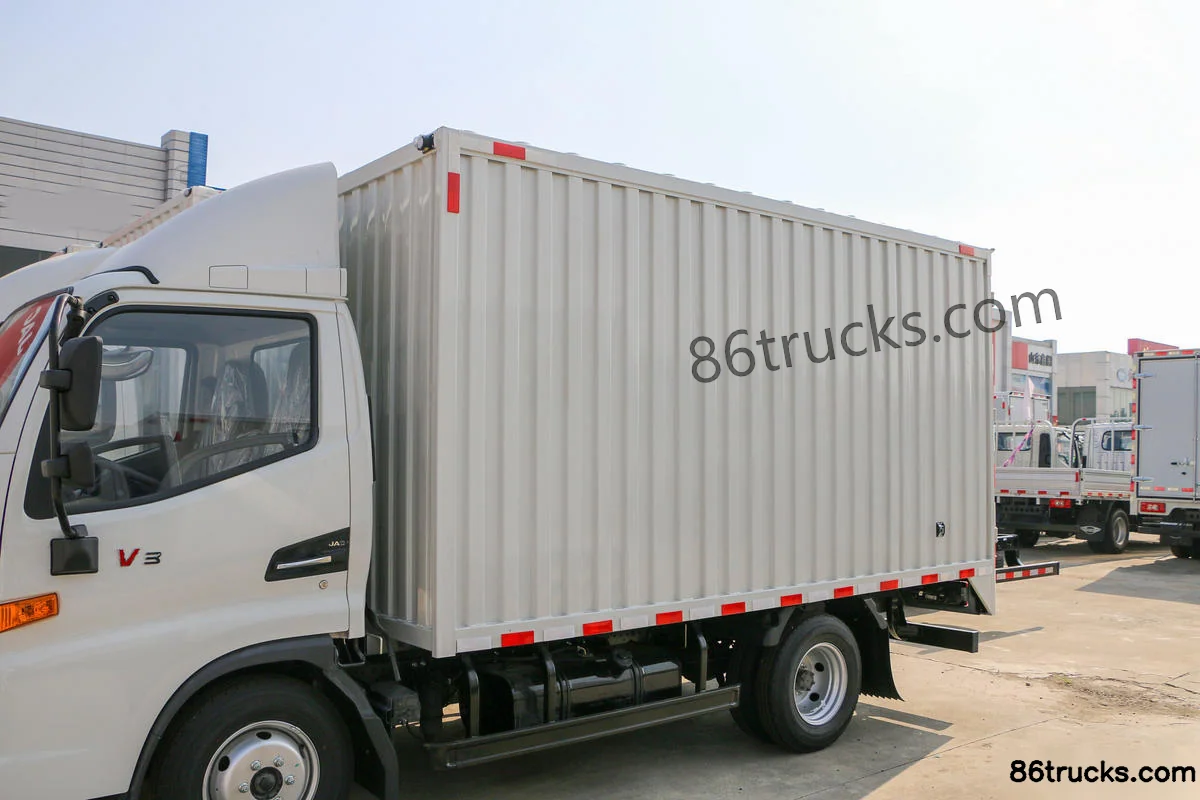

Body3

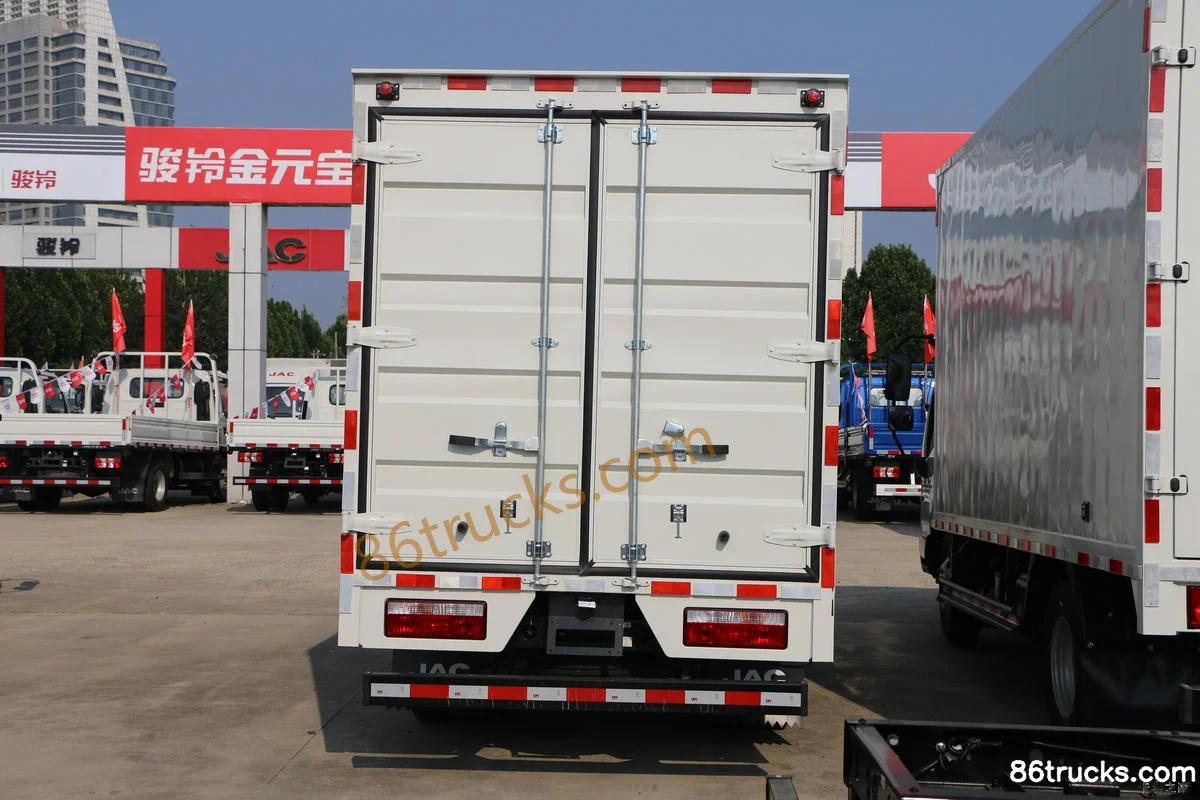

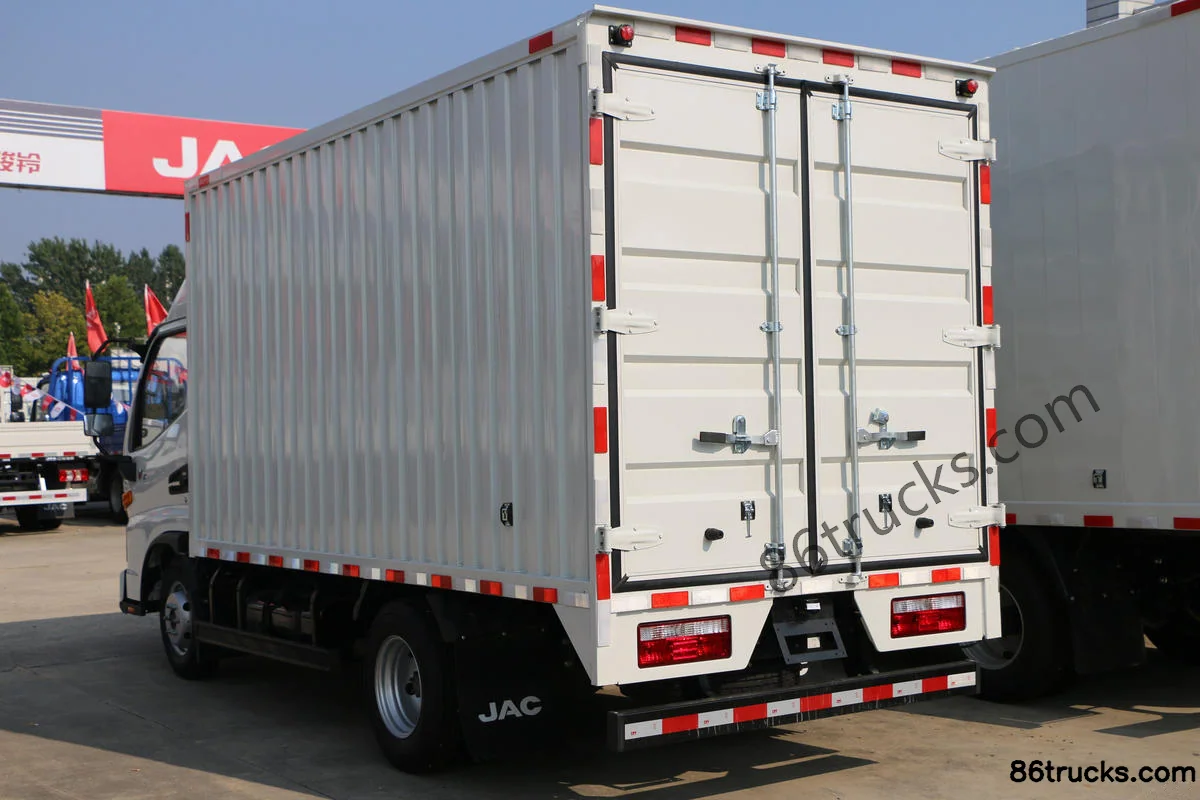

JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Body (1) | 86Trucks JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Body (2) | 86Trucks JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck?

Key specs of JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck: Drive: 4x2; Horsepower: 82 hp; Emission: China IV; Fuel: Diesel; Engine: Quanchai485; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck suited for?

JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck differ from other variants in the same series?

JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck belongs to JAC V3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V3 82 hp 4X2(6 wheels) 3.3m single row box truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
