Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake)

Export reference
From $14,000
MSRP ¥10.08M CNY
Horsepower: 129
Emission: China V
Fuel: Diesel
Engine: Fukang 2.8
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 5Personnel
Rated payload: 1.6ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake) is a Light Truck featuring 3.22m cargo length, stake body cargo body, 5Personnel volume and 1.6t payload. On the powertrain side, it comes with a Fukang 2.8 engine, 129 hp, 4X2 (6 wheels) drive and China V emissions.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1041V9AD6-FA
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: FotonISF2.8s5129T
transmission: WLYWLY5G40
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2m
Cab height: 2.32m
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 2.565ton
Rated payload: 1.6ton
GVWR: 4.49ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 22°
departure angle: 16°
Remarks: No airbag/No PTO/Basic ratio/No tilt/No stabilizer bar/MP3/Standard fabric seat
Front/rear suspension: 1.12/1.515m
Version: Tech Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF2.8s5129T
Engine info: Fukang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China V
Max output power: 96kW
Max hp: 129Horsepower
Max torque: 300N·m
Max torque speed: 1500-2900rpm
Rated speed: 2900rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY5G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.22m
Cargo box width: 1.9m
Cargo box height: 0.4m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab: Flat roof
Cab width: 1800mm
seating capacity: 5Personnel
Cab tilting: Manual
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1800kg
Frame Dimensions: 170×60×5mm
rear axle description: 5T
rear axle allowable load: 2690kg
Axle ratio: 5.375
Leaf spring count: 3+1/6+7
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.00R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

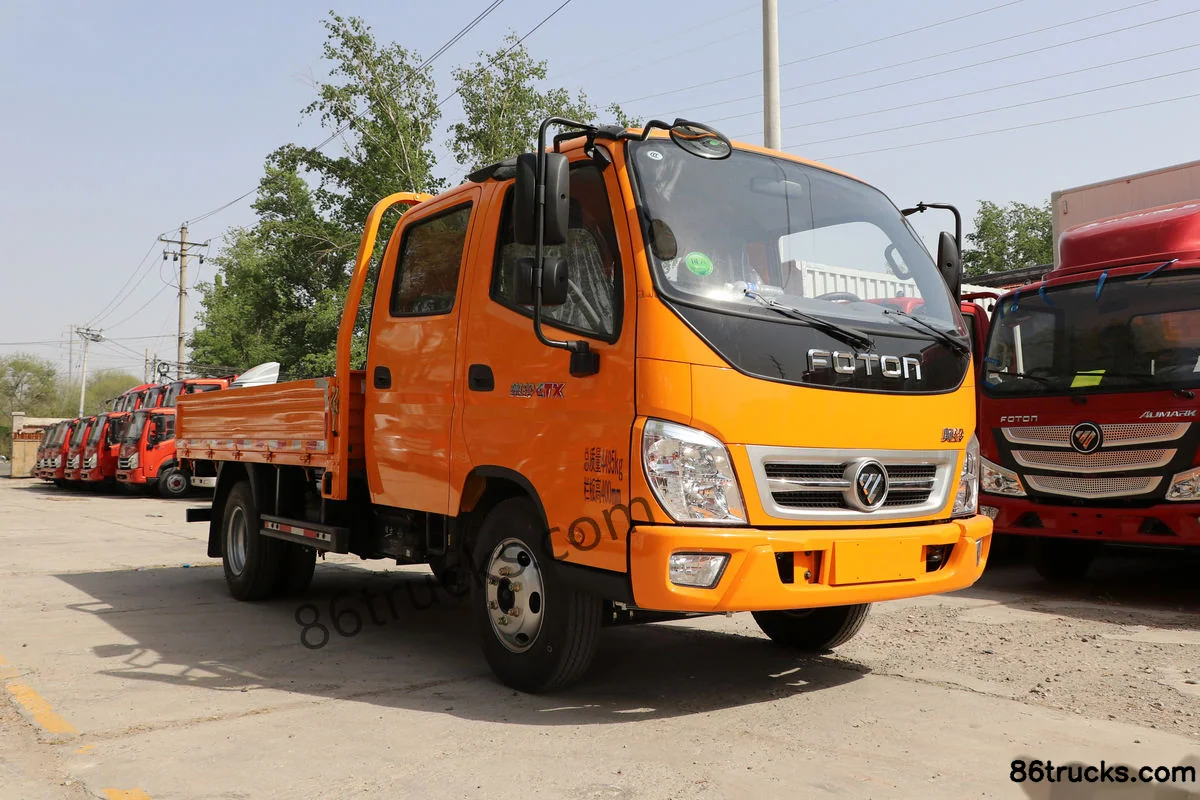

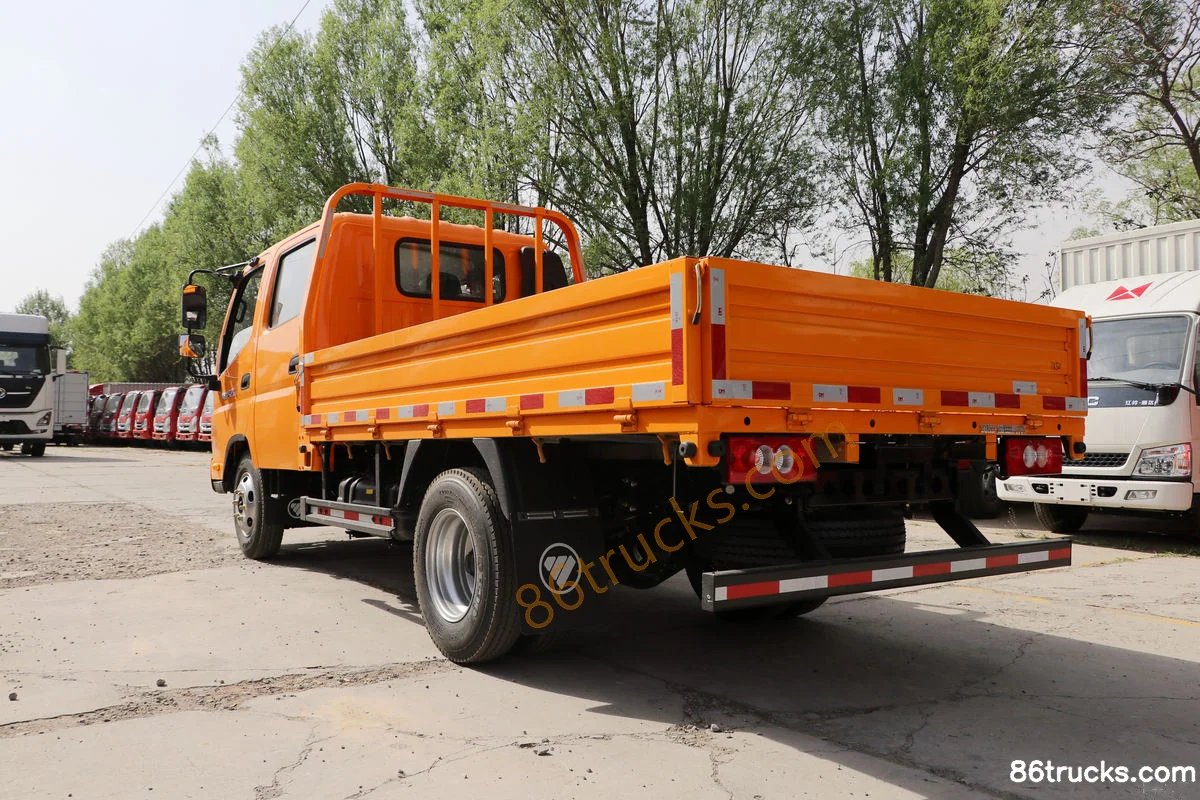

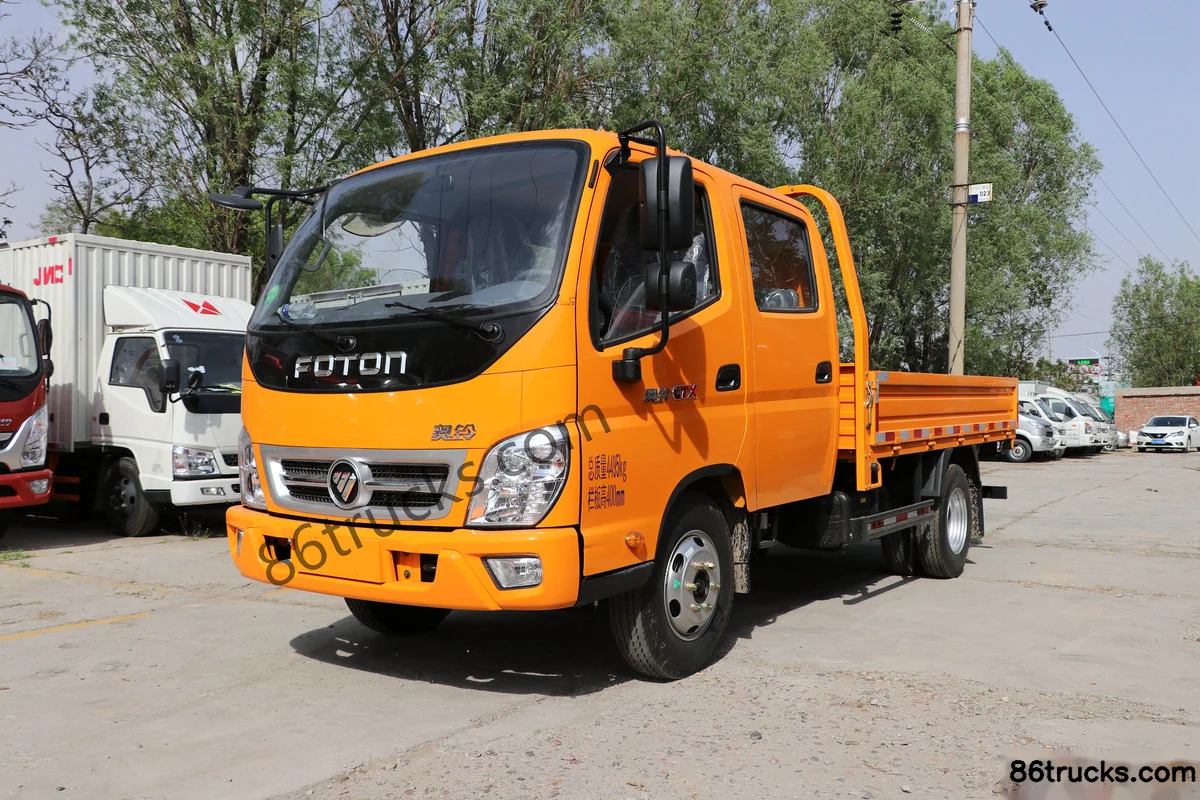

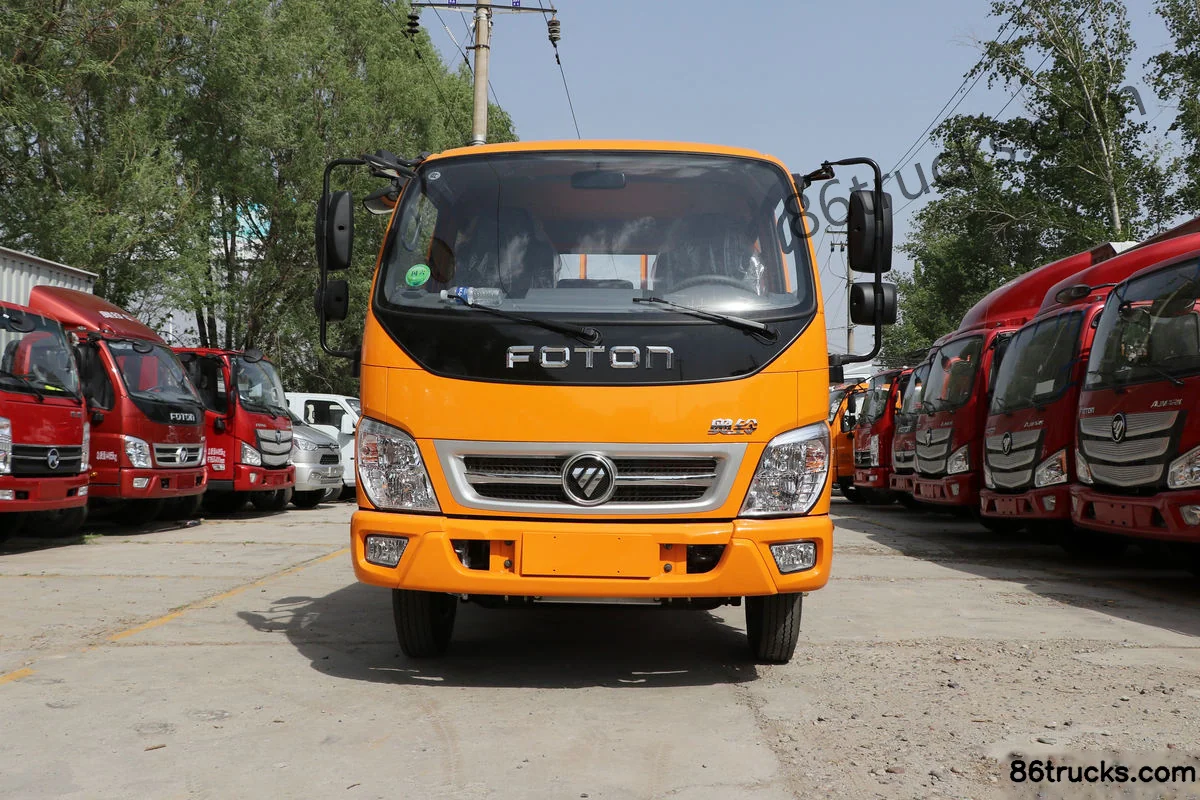

Exterior3

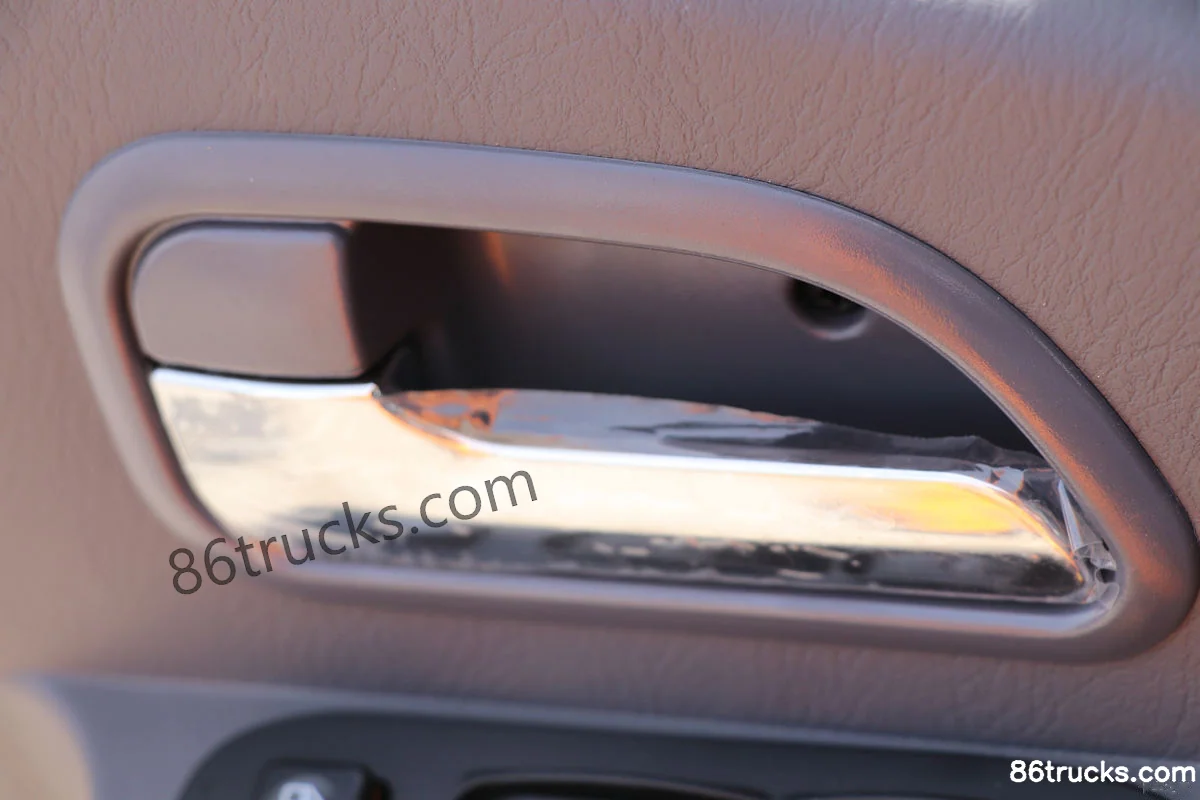

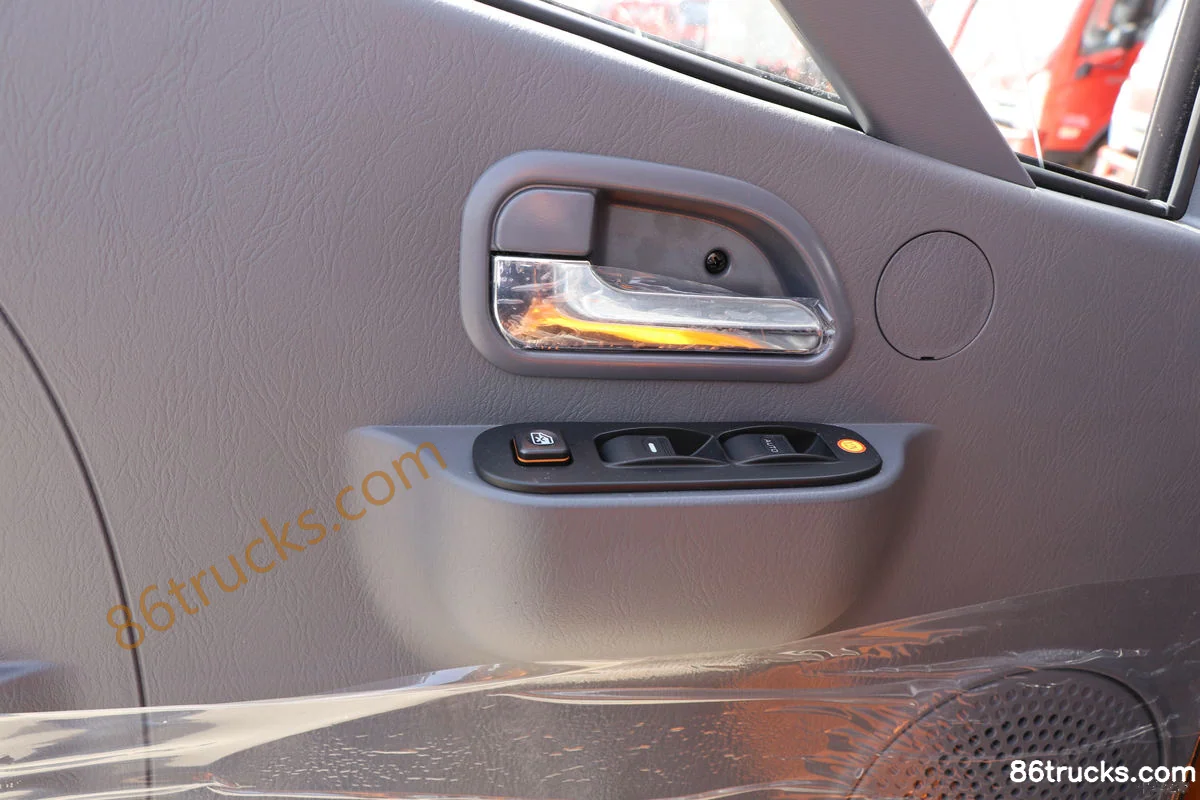

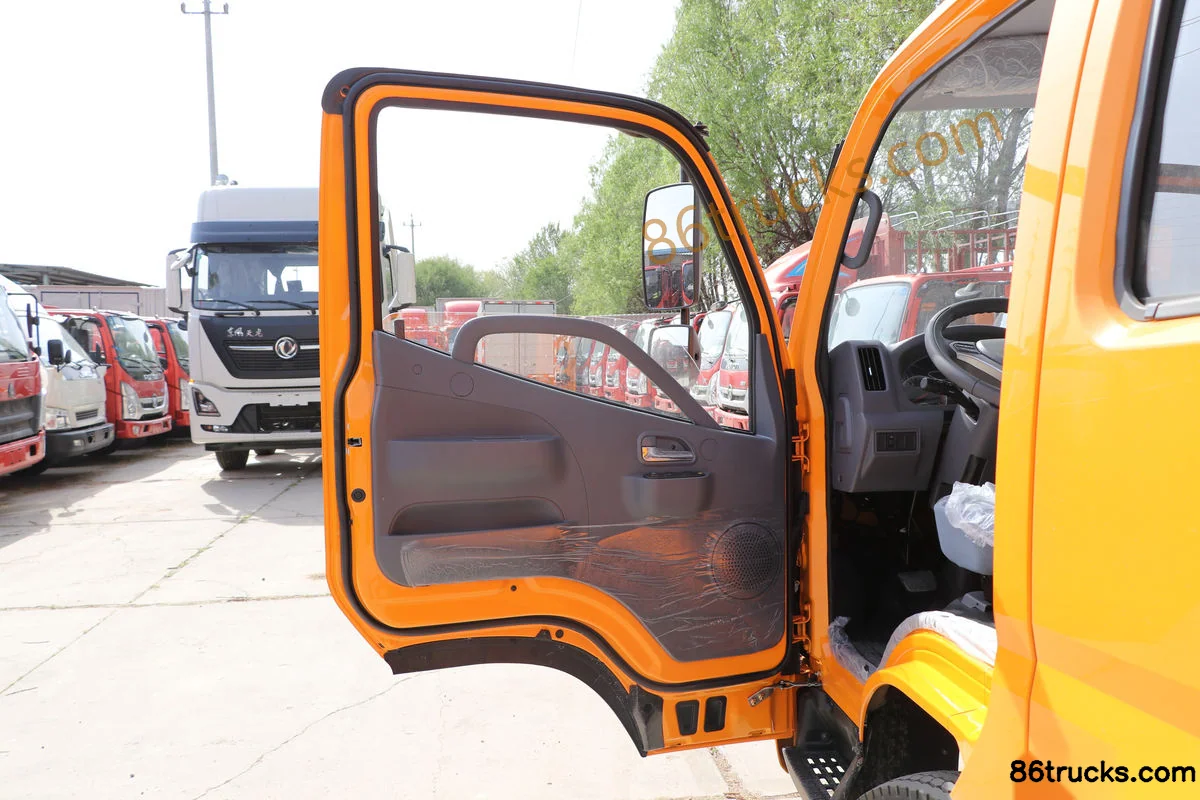

Cab3

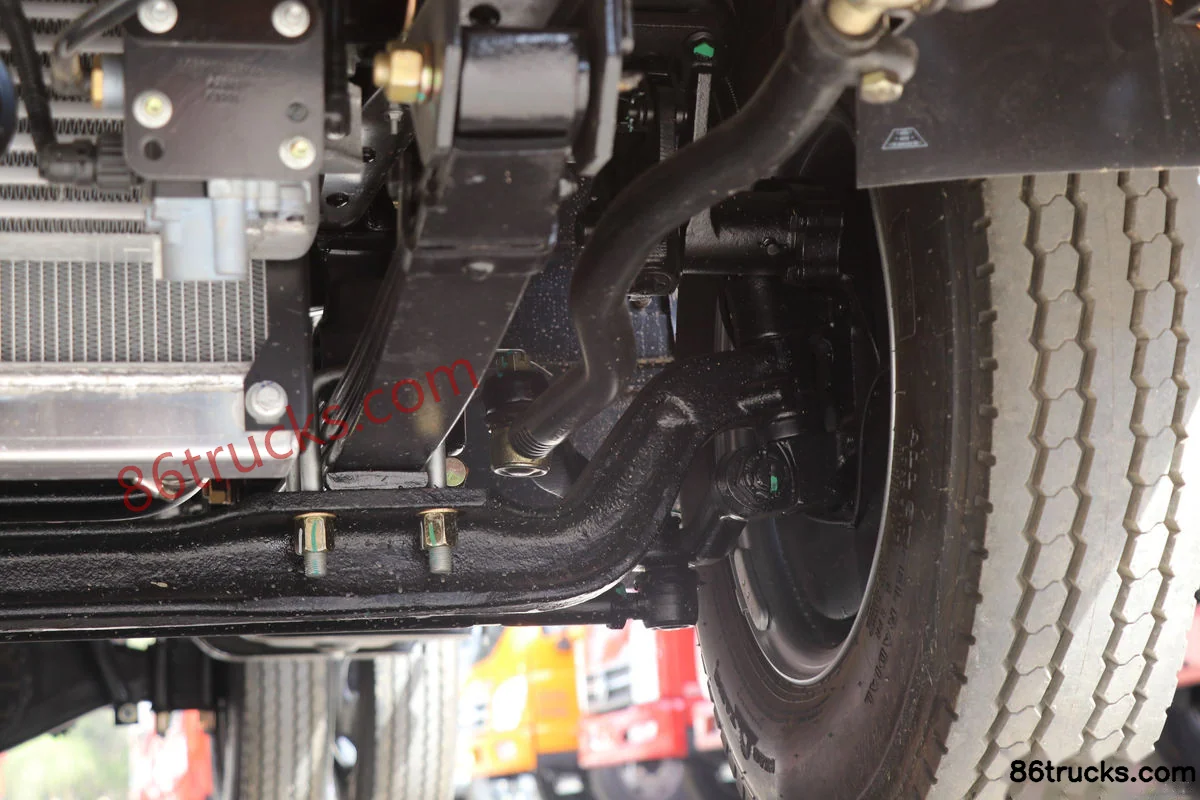

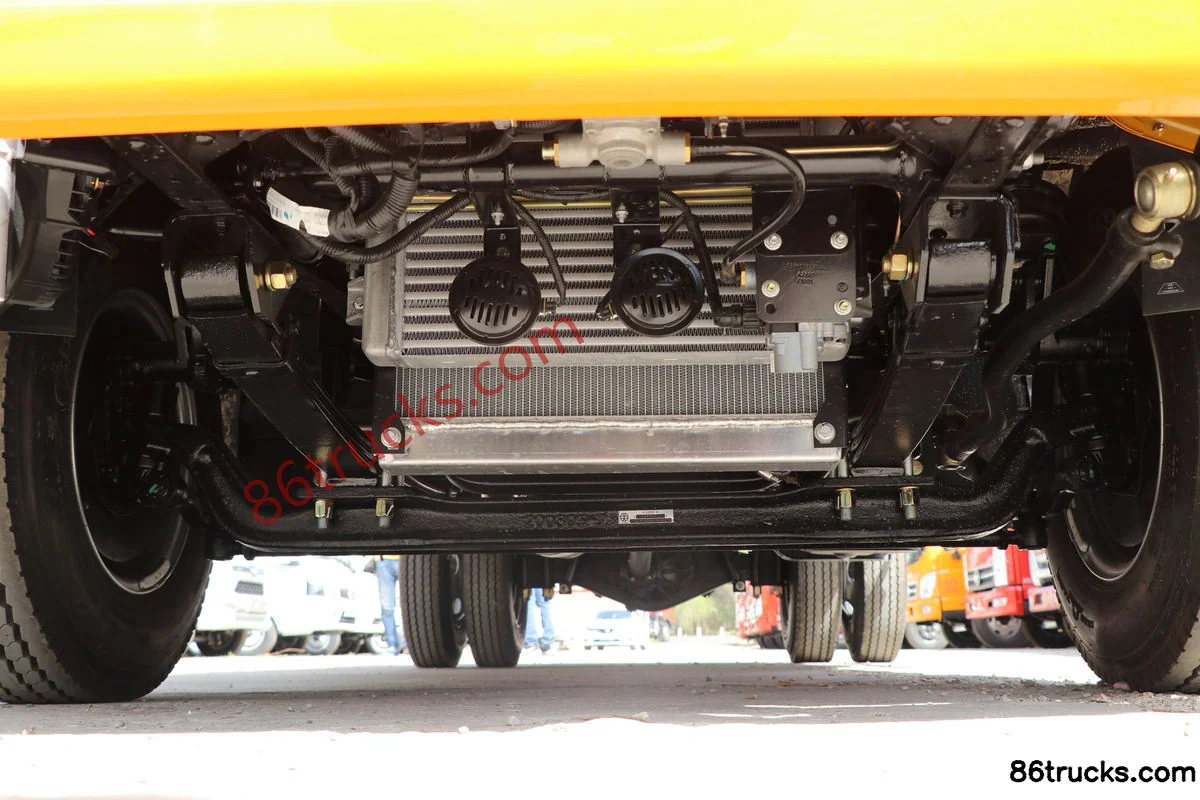

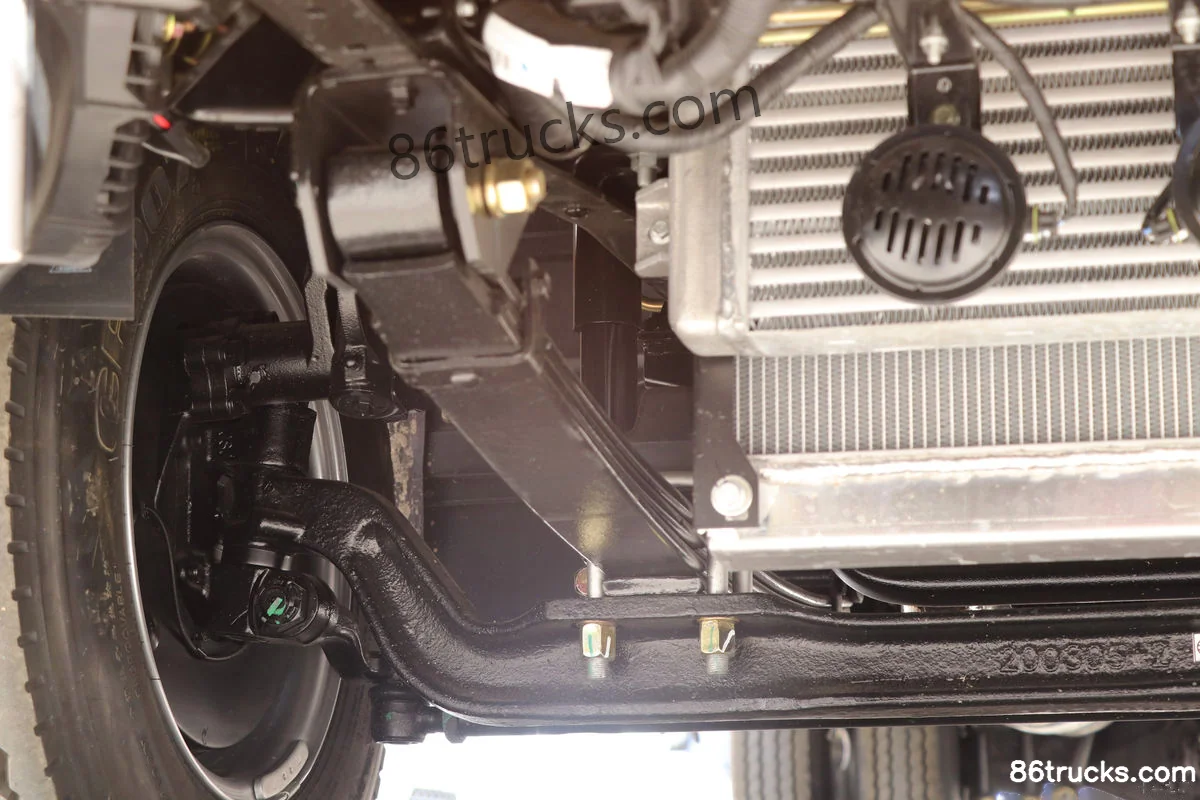

Chassis3

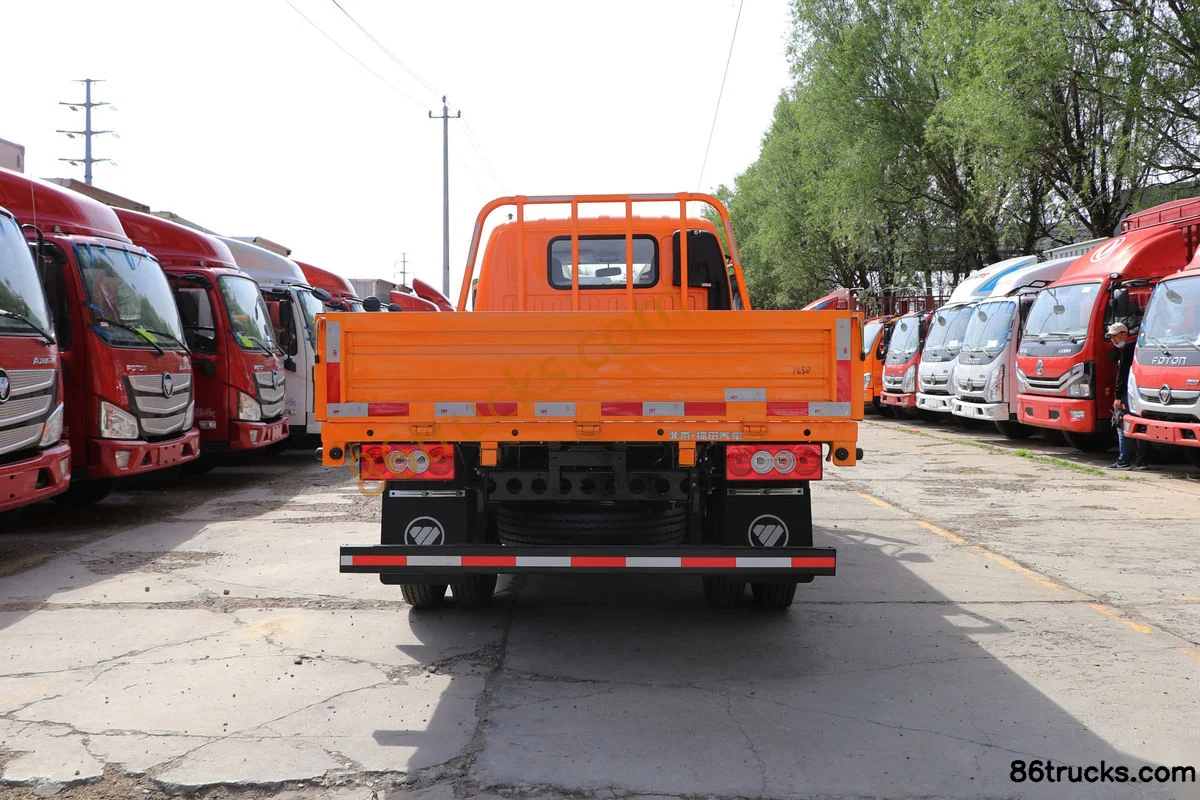

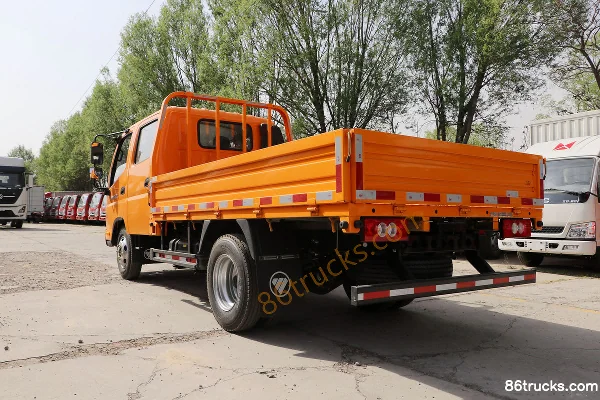

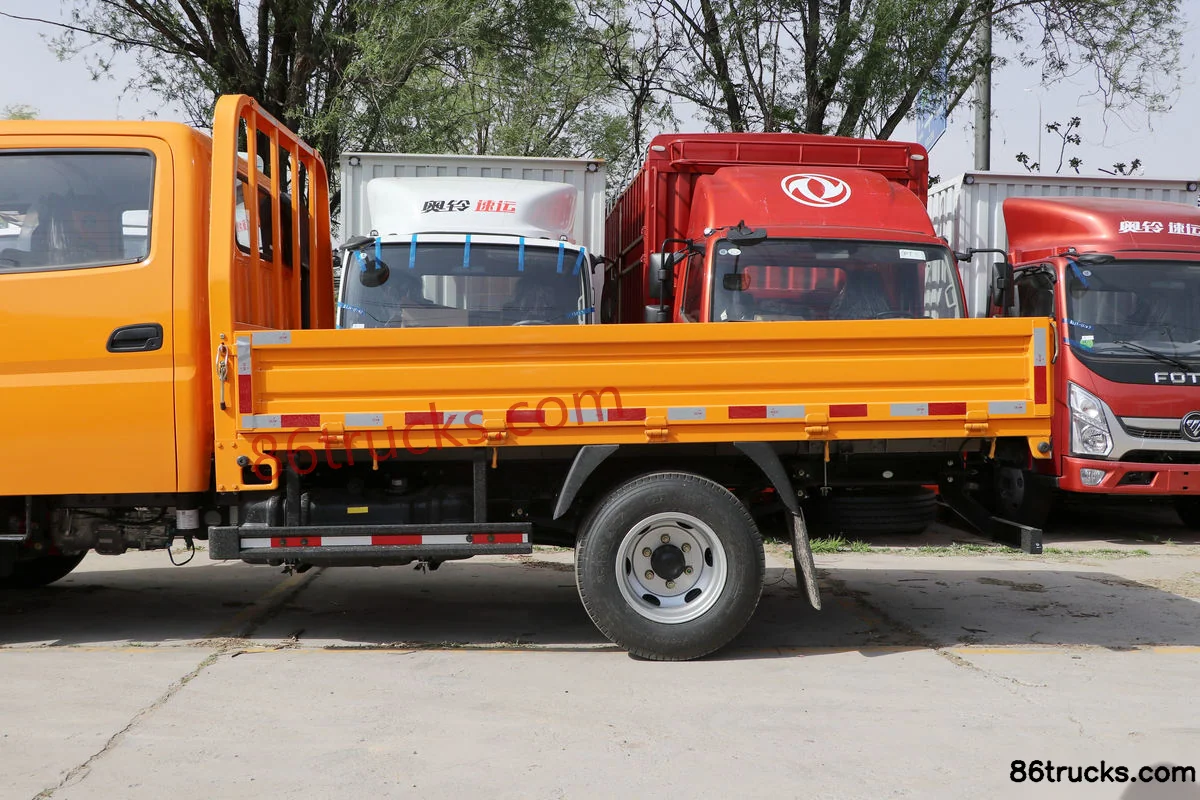

Body3

12 photos

FAQ

What is the export price of Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake), and what does it include?

Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake) export reference is about From $14,000; MSRP is ¥10.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake)?

Key specs of Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake): Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 2.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake) suited for?

Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake) differ from other variants in the same series?

Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake) belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin CTX Tech Edition 131 hp 4X2(6 wheels) 3.22m Double Row Stake Truck (Hydraulic Brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
