FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck

Export reference
From $21,528
MSRP ¥15.5M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: WeichaiWP4.1
Transmission: Fast Gear
Curb Weight:: 4.57ton
seating capacity: 3Personnel
Rated payload: 7.135ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck is a Light Truck featuring 4.85m cargo length, Van body cargo body, 3Personnel volume and 7.135t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP4.1 engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5121XXYP40K2L2E5A84
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3900mm
Box length class: 4.8m
engine: WeichaiWP4.1Q160E50
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.33
Cab length: 6.998m
Cab width: 2.3m
Cab height: 3.065m
Front track width: 1800mm
rear track: 1740mm
Curb Weight: 4.57ton
Rated payload: 7.135ton
GVWR: 11.9ton
Max. speed: 115km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
market segment: Urban Distribution
Remarks: Front brake: disc brake optional
Front/rear suspension: 1.2/1.898m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1Q160E50
Engine info: WeichaiWP4.1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.088L
Emission standard: China V
Max output power: 115kW
Max hp: 160Horsepower
Max torque: 520N·m
Max torque speed: 1400-1800rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.85m
Cargo box width: 2.3m
Cargo box height: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Hu VH flat roof cab with semi-sleeper
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 4360kg
Frame Dimensions: 216*865mm
rear axle description: 1080 modified cast axle
rear axle allowable load: 7540kg
Axle ratio: 4.33
Leaf spring count: 7/10+3,3/3+4,3/7+9
Aluminum wheels:
Tire
Tire Size: 8.25R20 14PR,8.25R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster: none
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

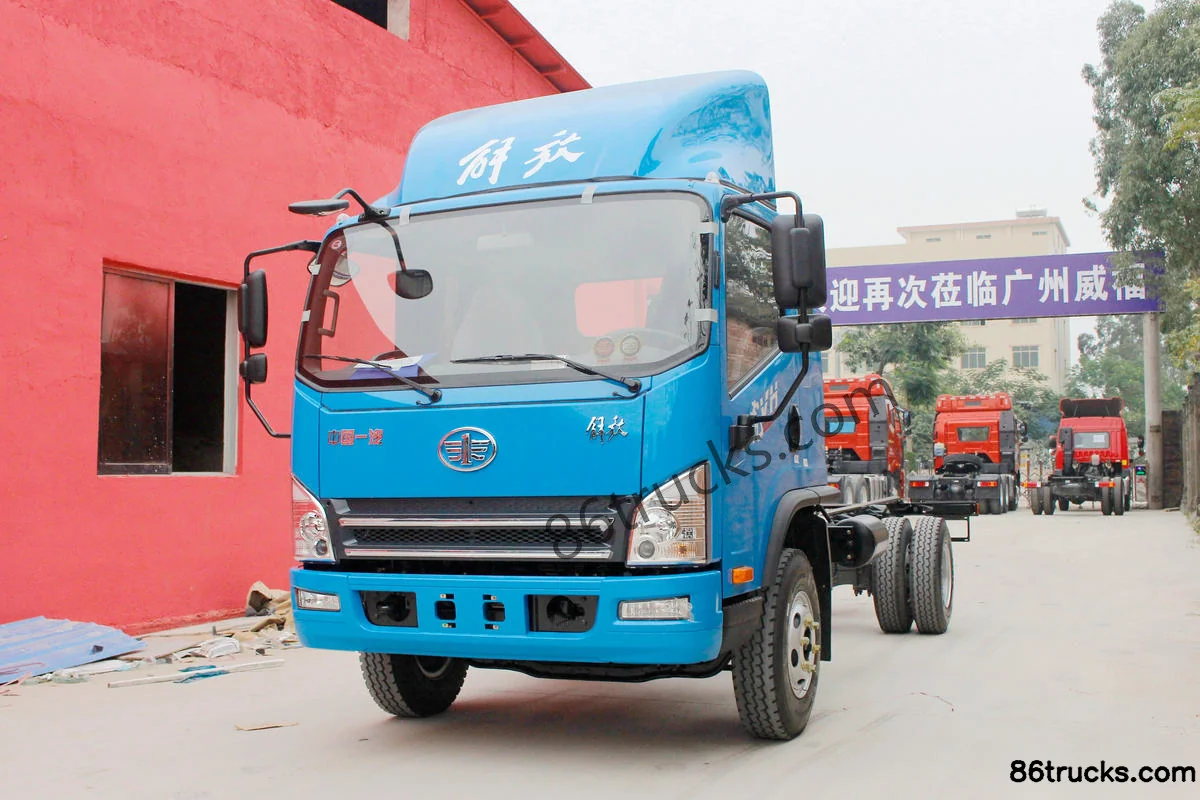

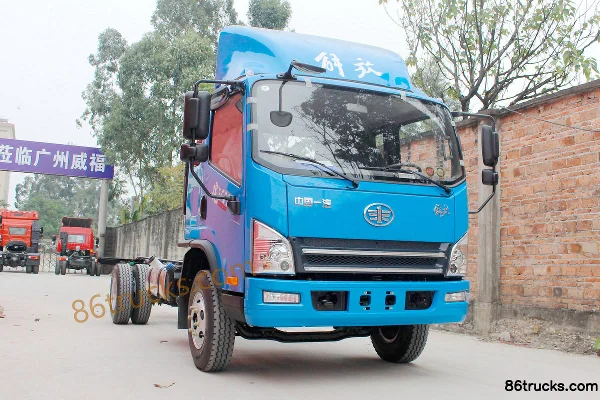

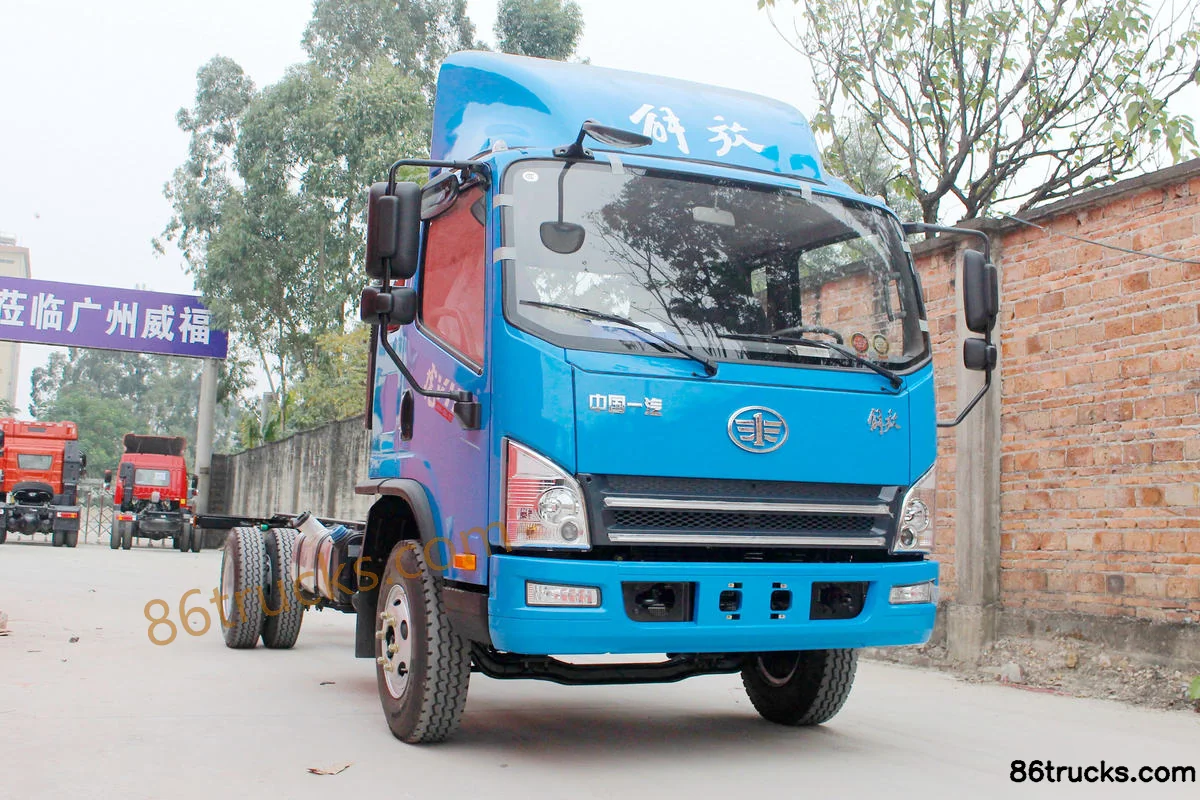

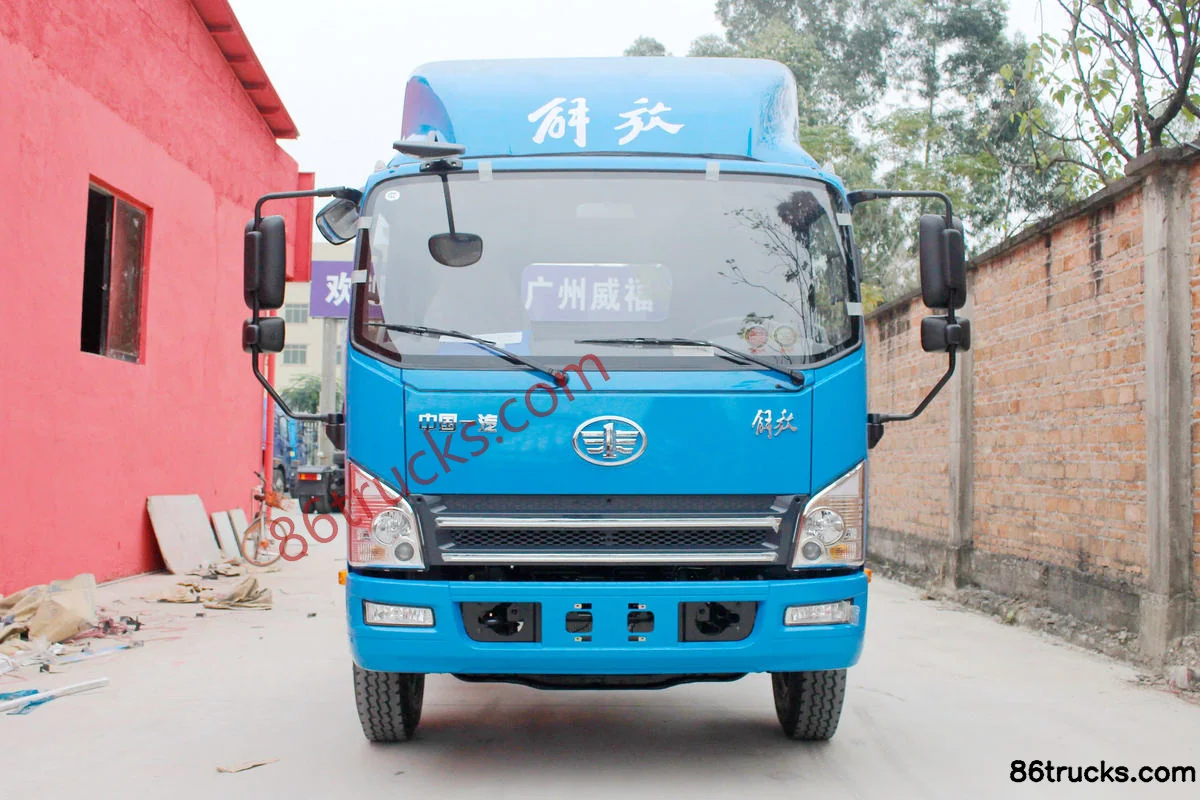

Exterior3

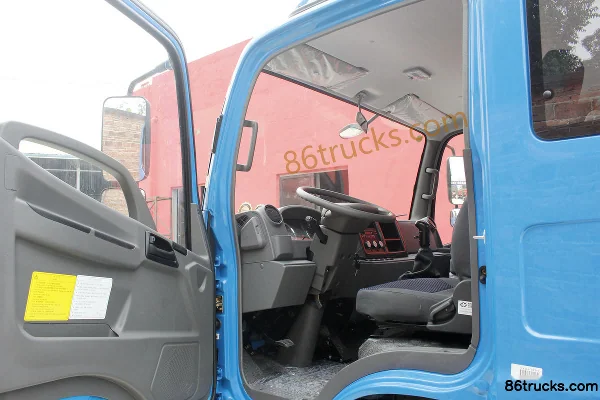

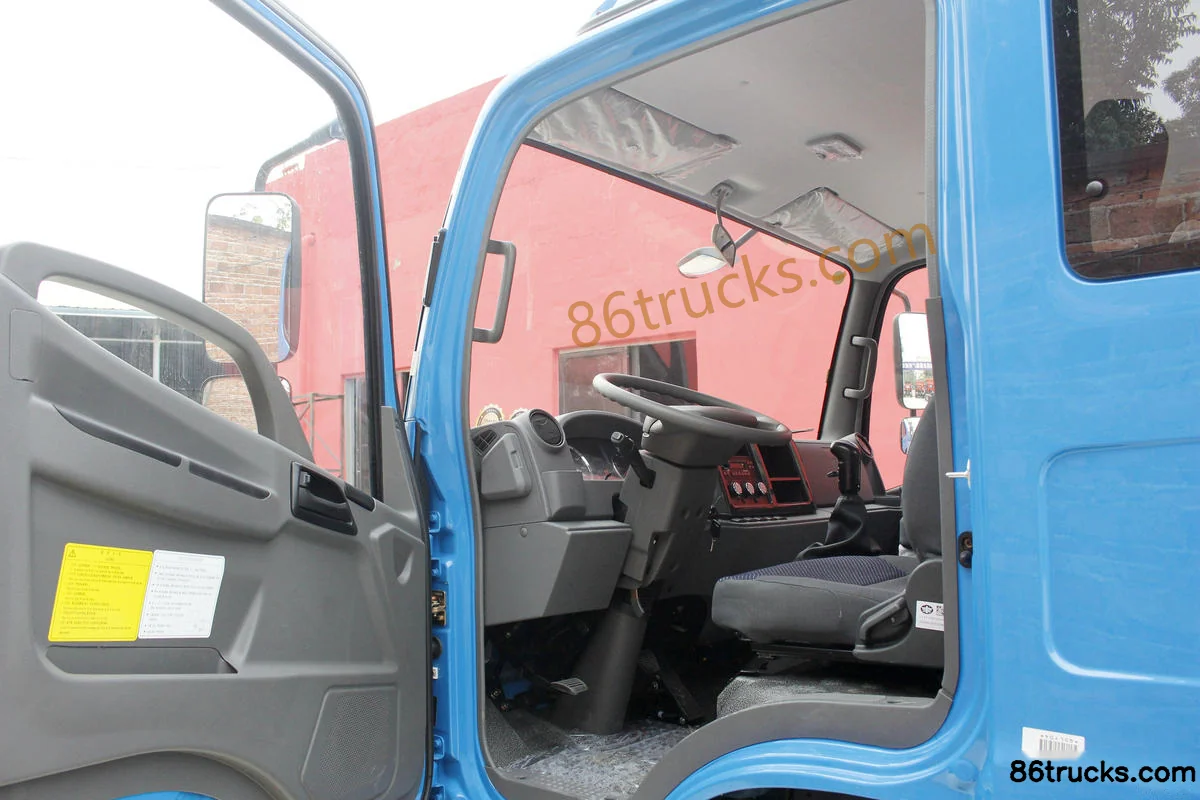

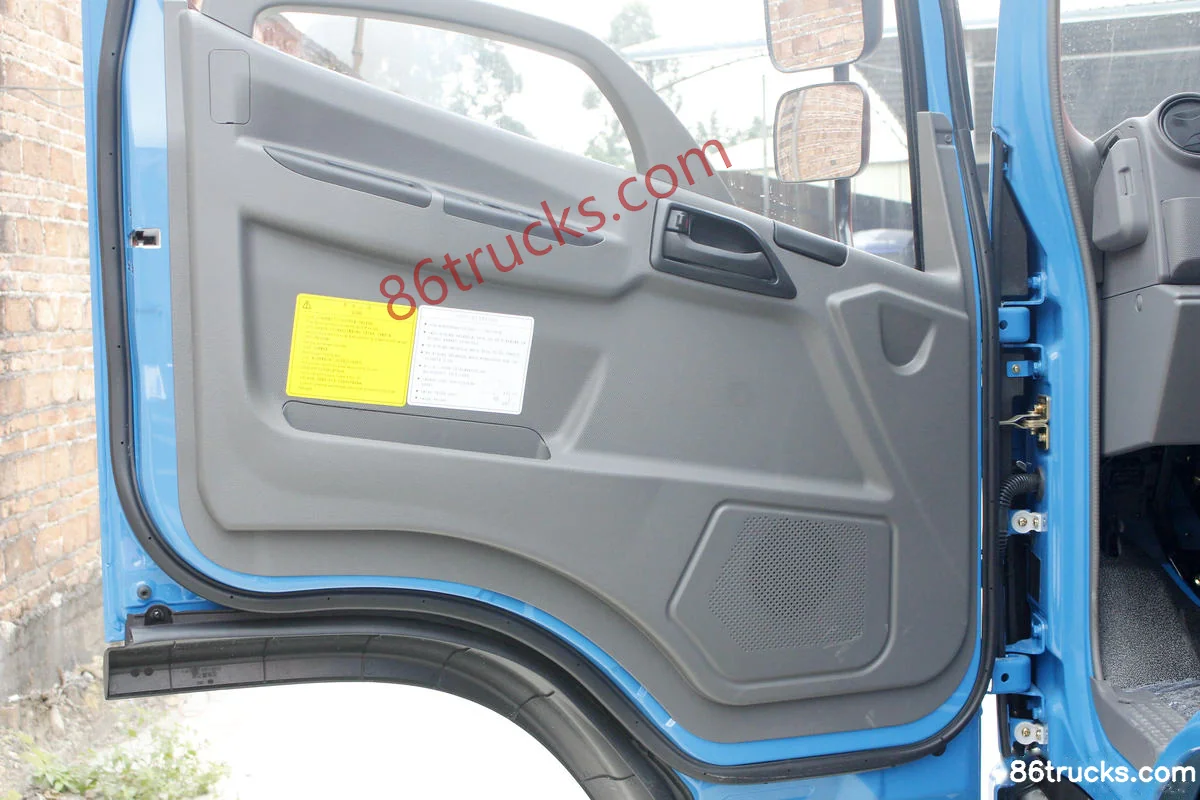

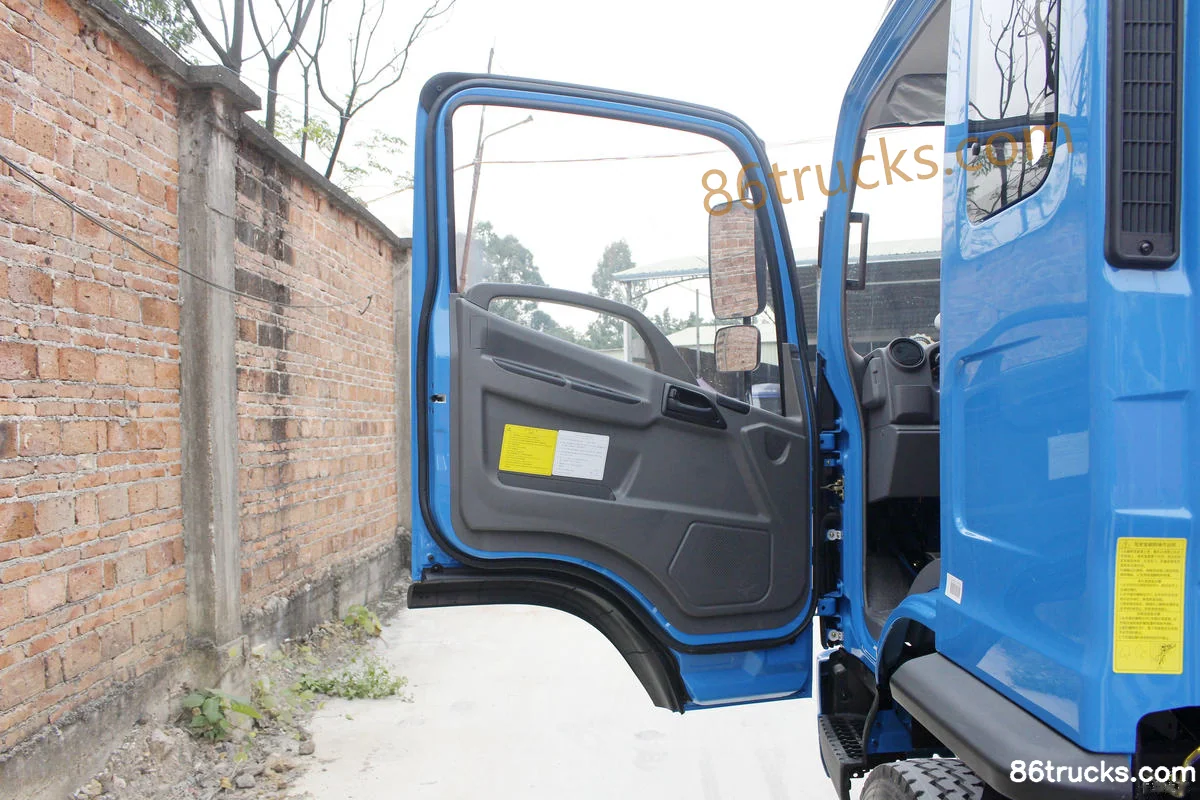

Cab3

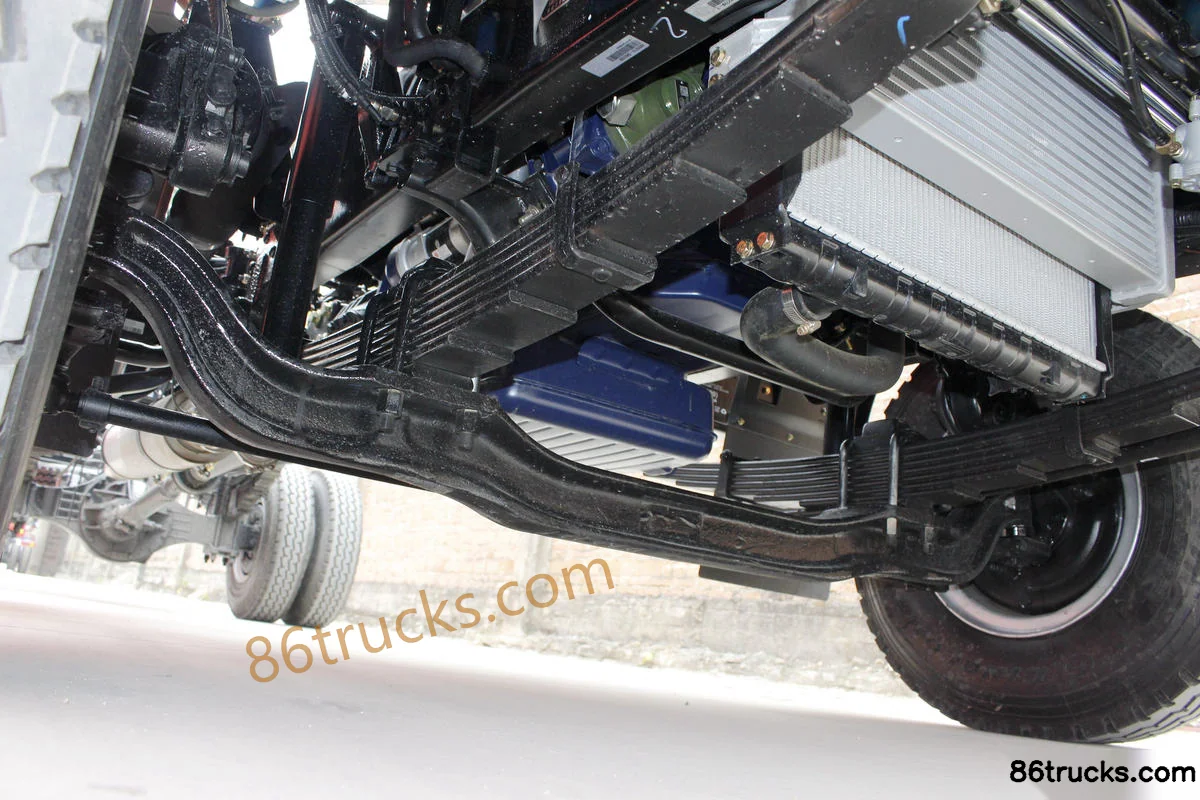

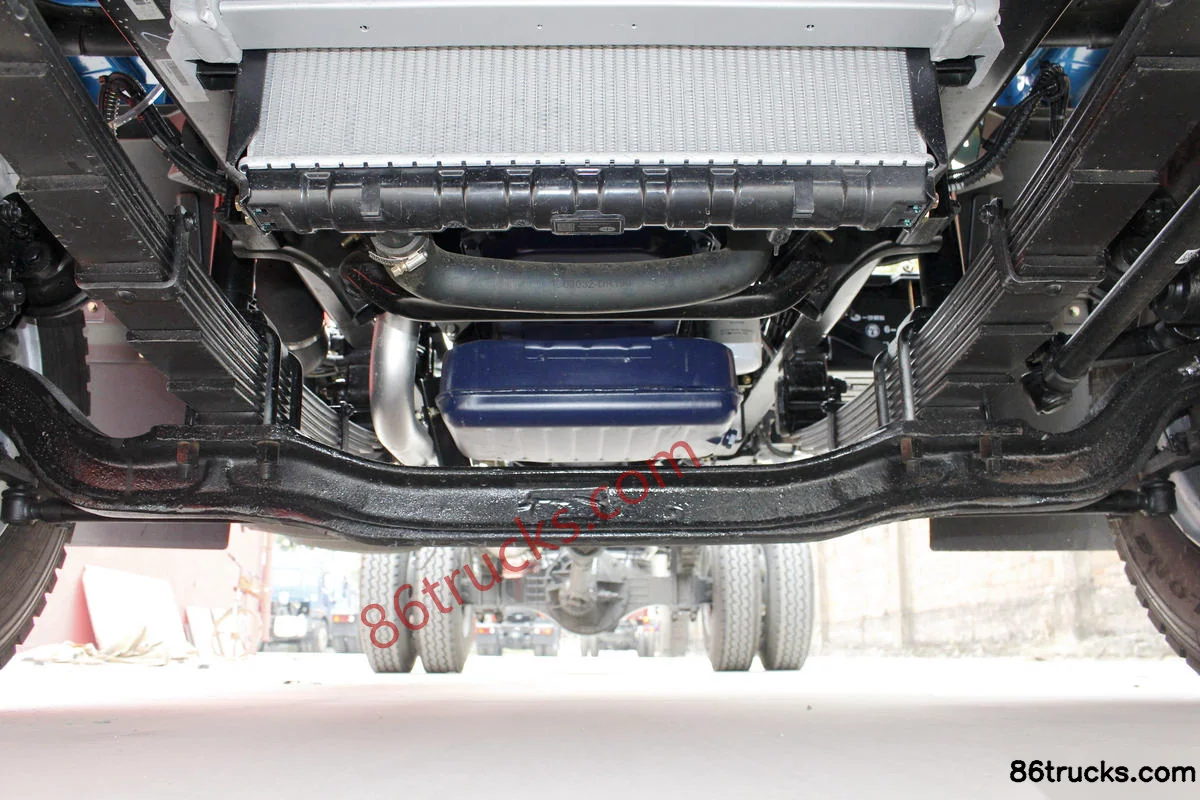

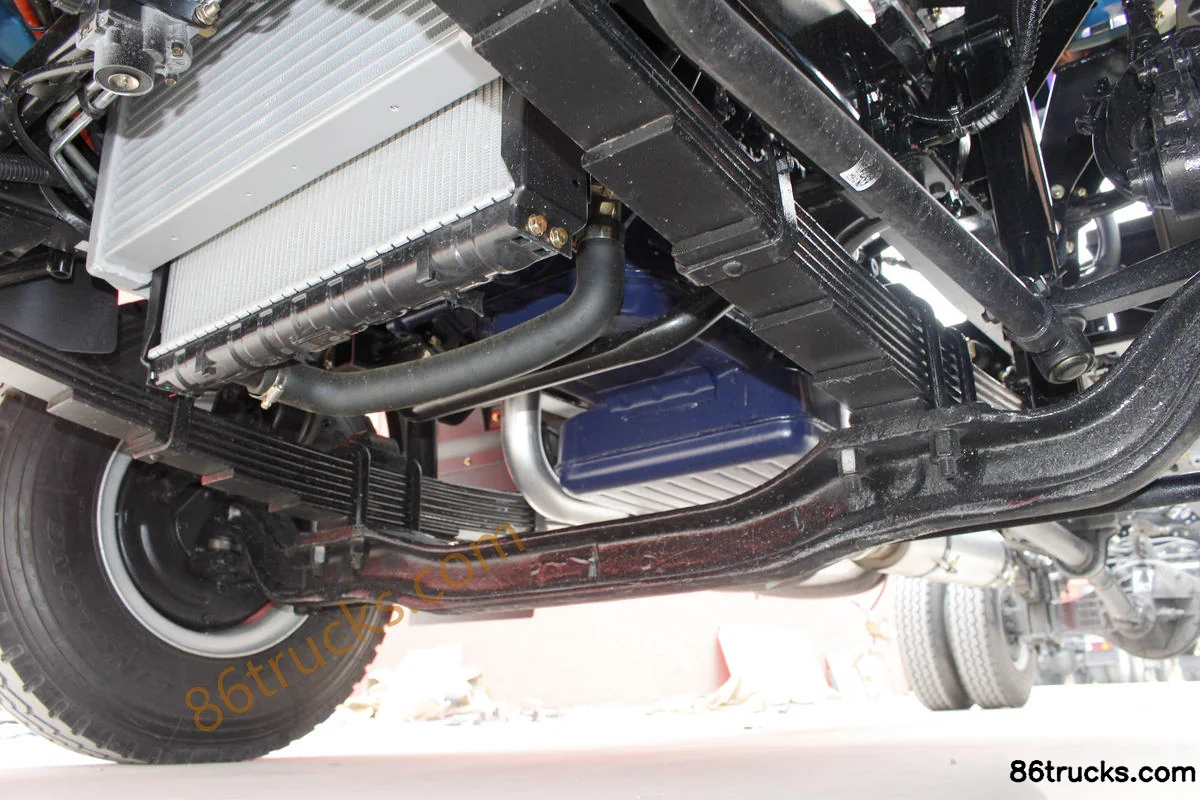

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck, and what does it include?

FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck export reference is about From $21,528; MSRP is ¥15.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck?

Key specs of FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP4.1; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck suited for?

FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck differ from other variants in the same series?

FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.85m Sleeper Cab Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
