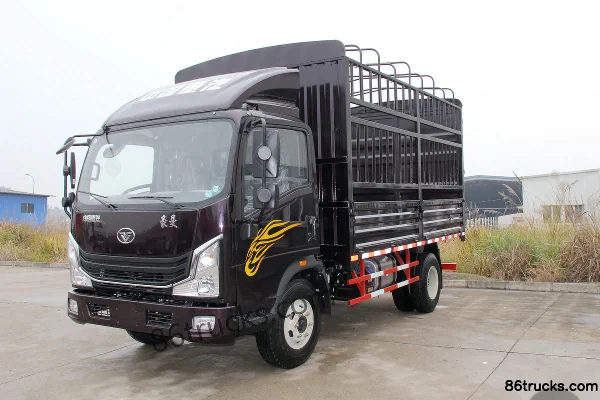

Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck

Export reference
From $17,500
MSRP ¥12.6M CNY
Horsepower: 141
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Changtai
Curb Weight:: 2.6ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck is a Light Truck featuring 3.85m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 141 hp, 4X2 (6 wheels) drive and China V emissions.

China V 141 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5048CCYD17EB0
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: FotonISF3.8s5141
transmission: Changtai SC7T60G
Cab length: 5.995m
Cab width: 2.42m
Cab height: 3.2m
Front track width: 1825mm
rear track: 1615mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Max. speed: 90km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.175/1.46m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 440N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: Changtai SC7T60G
Transmission Brand: Changtai
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.85m
Cargo box width: 2.25m
*Cargo box interior width: 2.25
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1600kg
rear axle allowable load: 2690kg
Leaf spring count: 11/11+7
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck, and what does it include?

Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck export reference is about From $17,500; MSRP is ¥12.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck?

Key specs of Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck: Drive: 4x2; Horsepower: 141 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Changtai. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck suited for?

Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck differ from other variants in the same series?

Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H3 141 hp 4X2(6 wheels) 3.85m Half-row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
