JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V)

Export reference
From $13,444
MSRP ¥9.68M CNY
Horsepower: 136
Emission: China V
Fuel: Diesel
Engine: Ruijete 483
Transmission: Lu'an
Curb Weight:: 1.76ton
seating capacity: 2Personnel
Rated payload: 1.12ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V) is a mini truck featuring 3.11m cargo length, stake body cargo body, 2Personnel volume and 1.12t payload. On the powertrain side, it comes with a Ruijete 483 engine, 136 hp, 4X2 (6 wheels) drive and China V emissions.

China V 136 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1036PV4K1B5V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2640mm
Box length class: 3.1m
engine: JACHFC4DB2-1D
transmission: Lu'an LC6T32
Rear Axle Ratio: 3.273
Cab length: 5.19m
Cab width: 1.75m
Cab height: 2.035m
Front track width: 1485mm
rear track: 1320mm
Curb Weight: 1.76ton
Rated payload: 1.12ton
GVWR: 3.01ton
Max. speed: 150km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 18.2°
departure angle: 16.9°
Front/rear suspension: 1.21/1.34m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DB2-1D
Engine info: Ruijete 483
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.999L
Emission standard: China V
Max output power: 100kW
Max hp: 136Horsepower
Max torque: 285N·m
Max torque speed: 2200-2600rpm
Rated speed: 3600rpm
Transmission Parameters
Transmission Model: Lu'an LC6T32
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.11m
Cargo box width: 1.65m
Cargo box height: 0.355m
*Cargo box interior width: 1.6499999761581
Cab parameters
Cab width: 1750mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 65L
Chassis Specs
Front axle allowable load: 1275kg
Frame Dimensions: 100×50×4mm
rear axle allowable load: 1735kg
Axle ratio: 3.273
Leaf spring count: Front independent suspension / 3+2
Suspension (front/rear): -/3+2
Tire
Tire Size: 195/70R15C-8PR/155R13C-8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

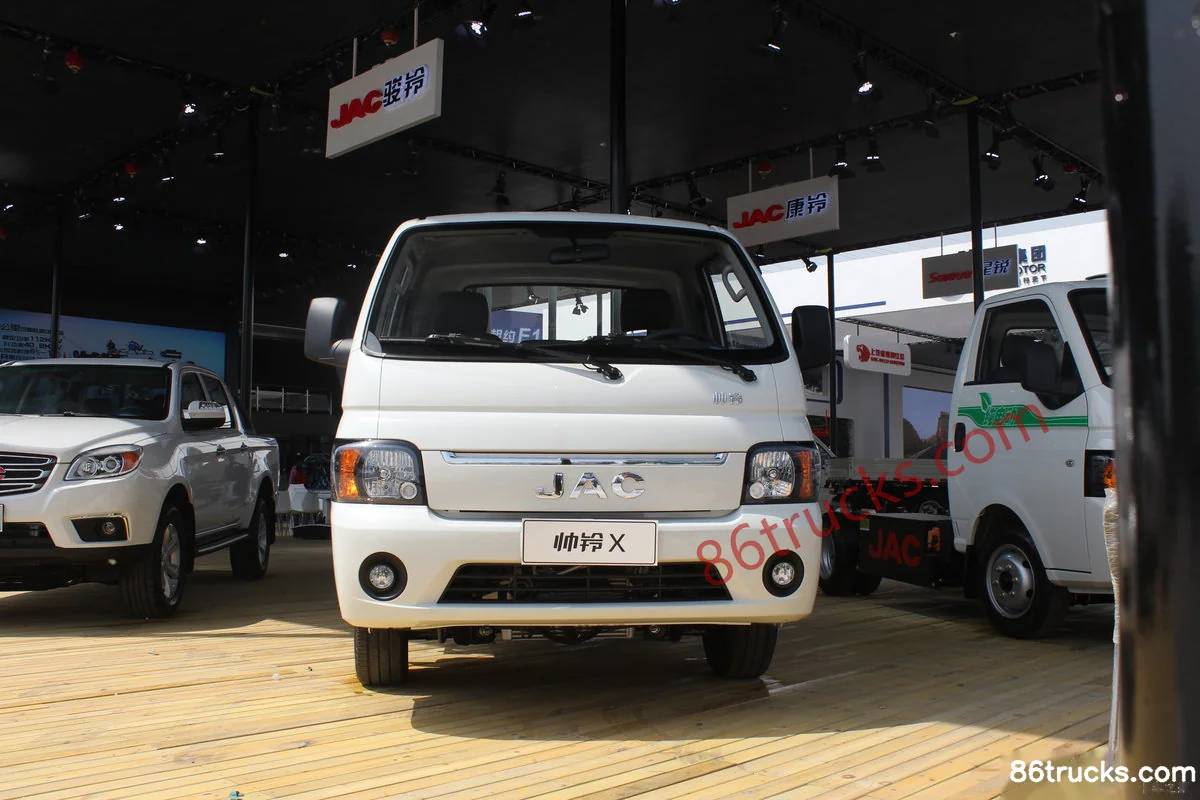

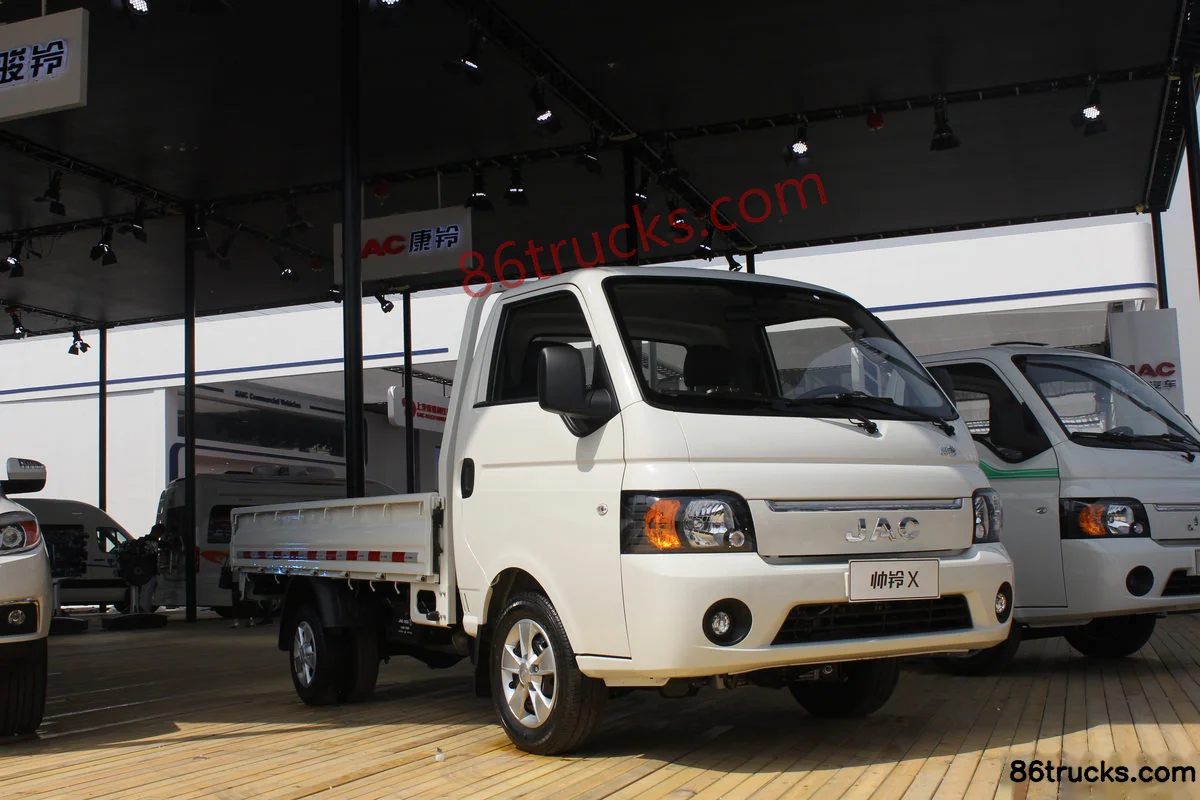

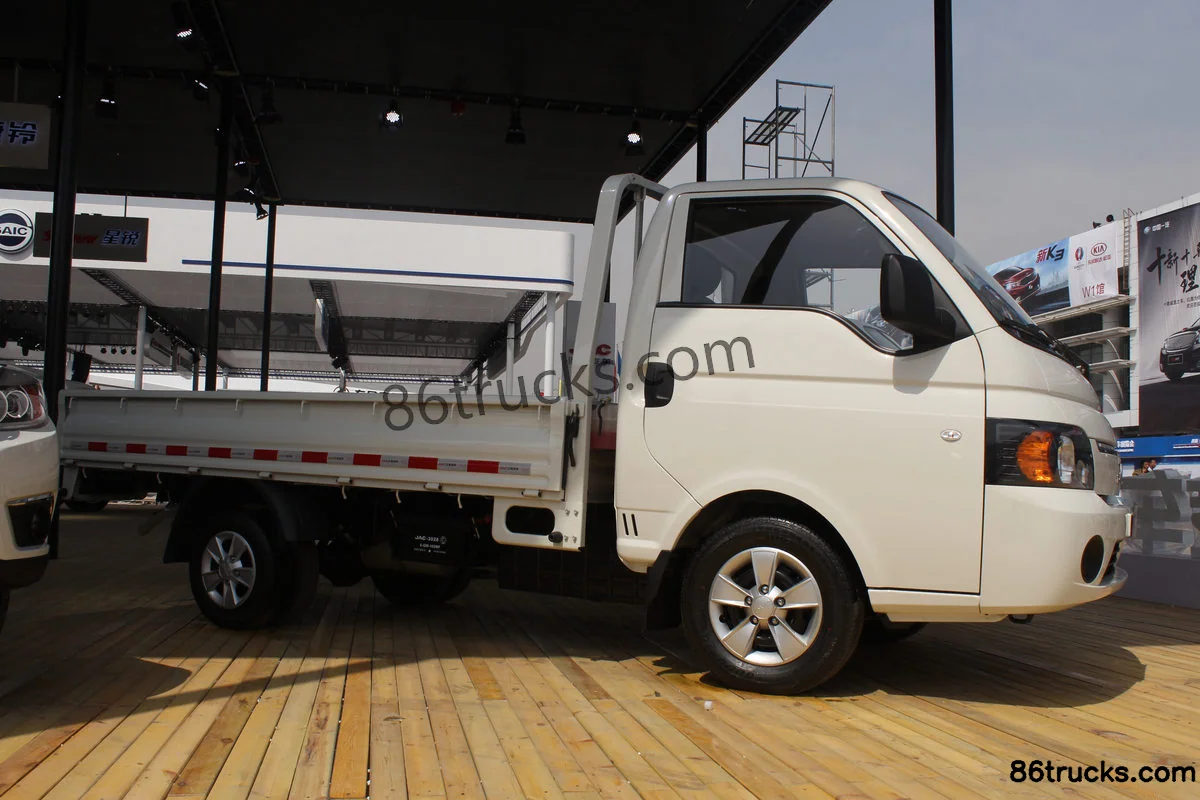

Exterior3

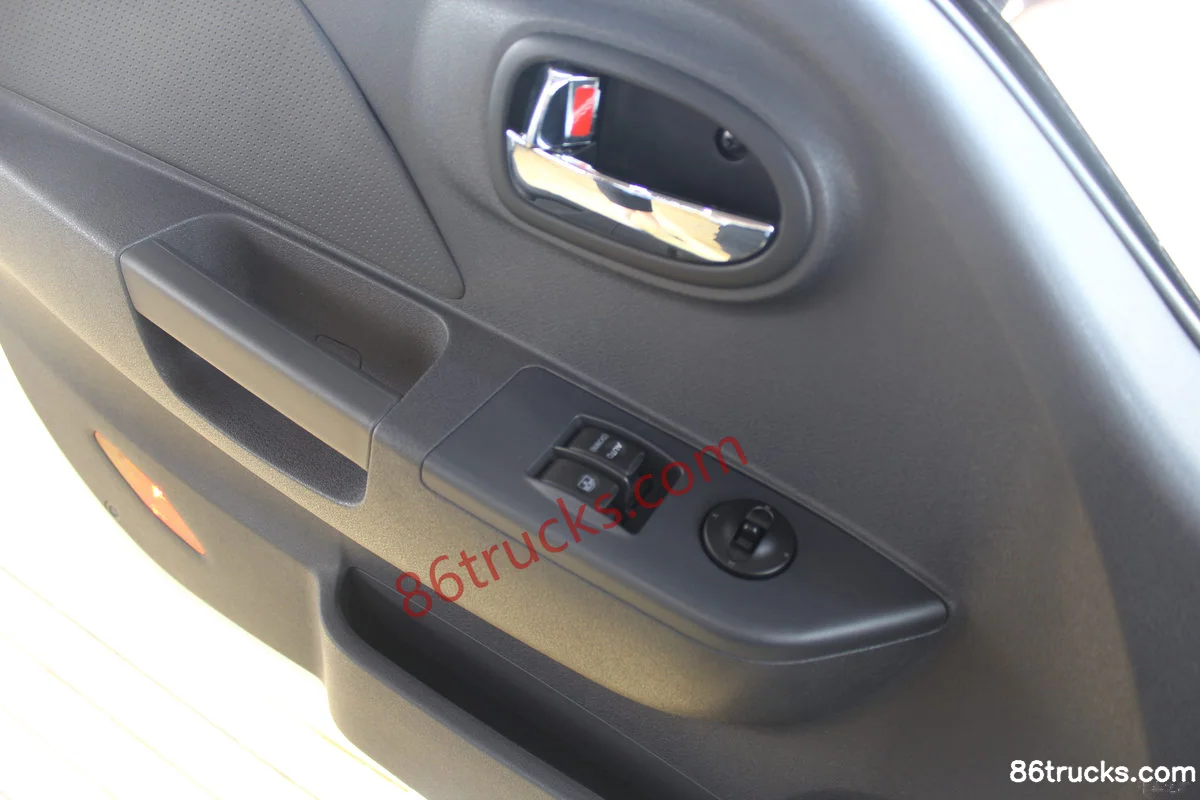

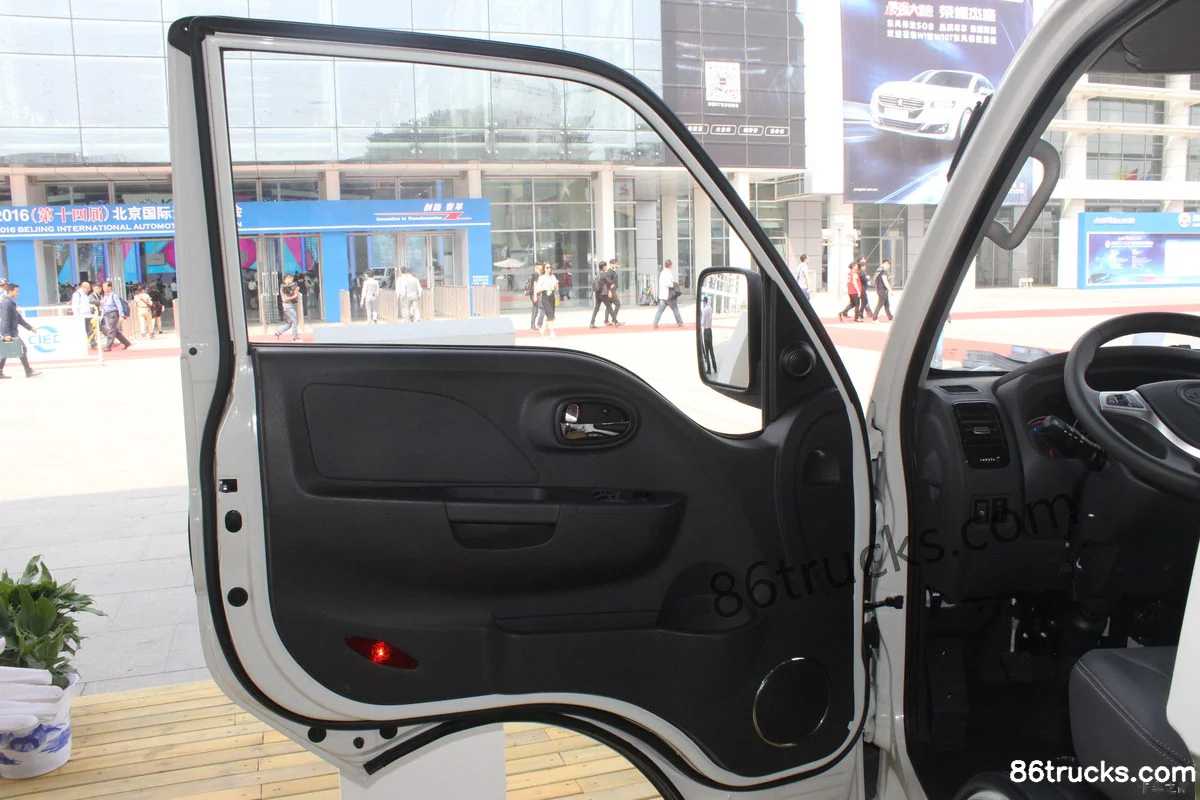

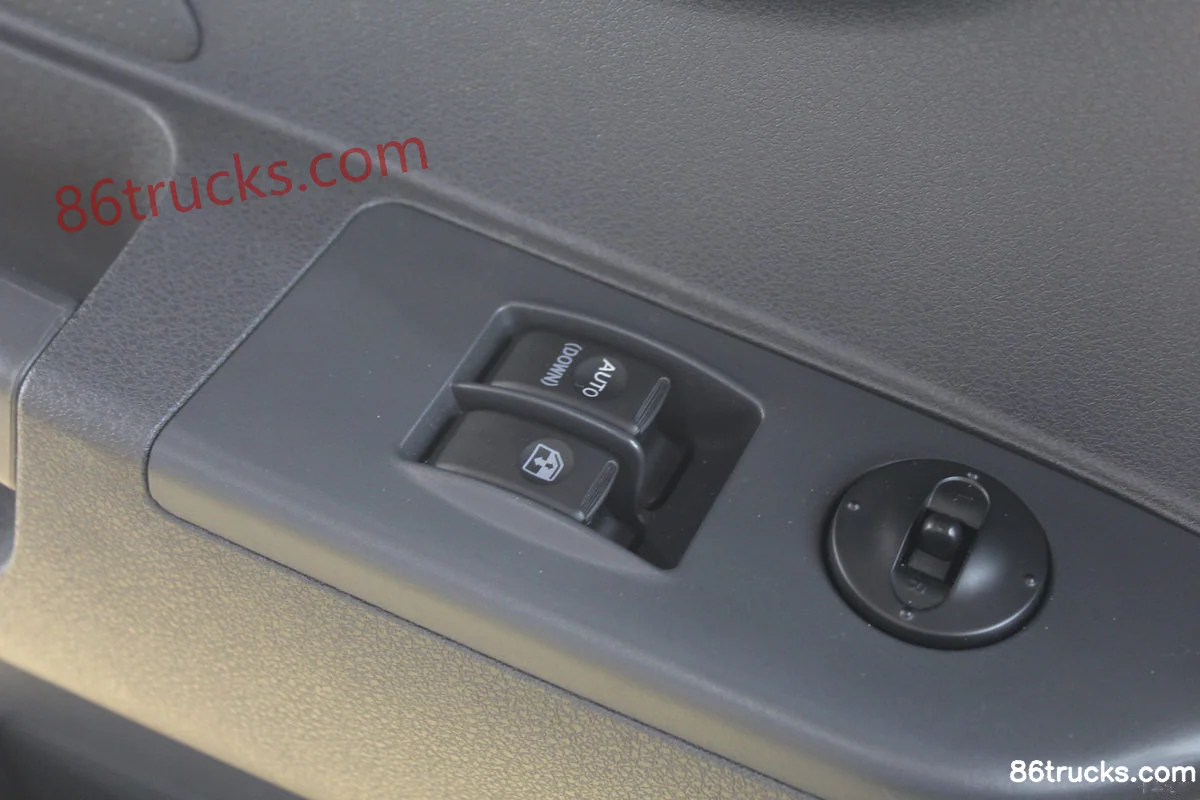

Cab3

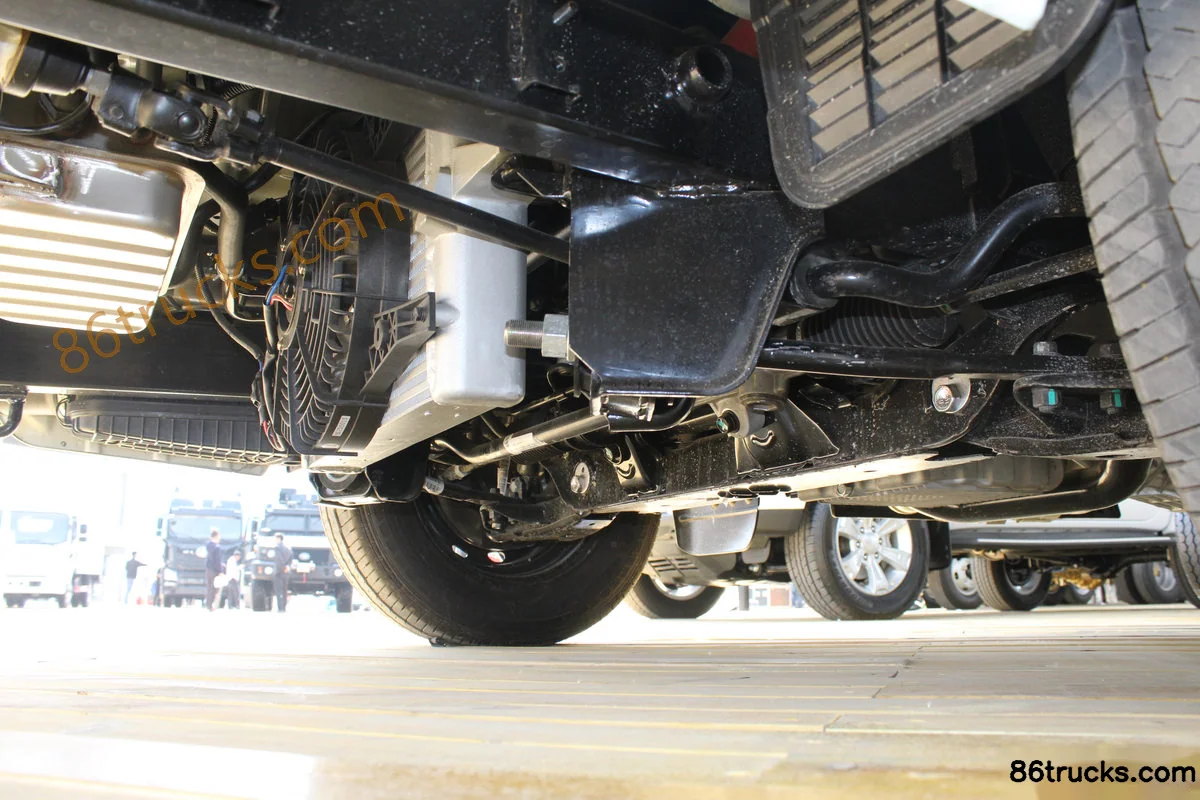

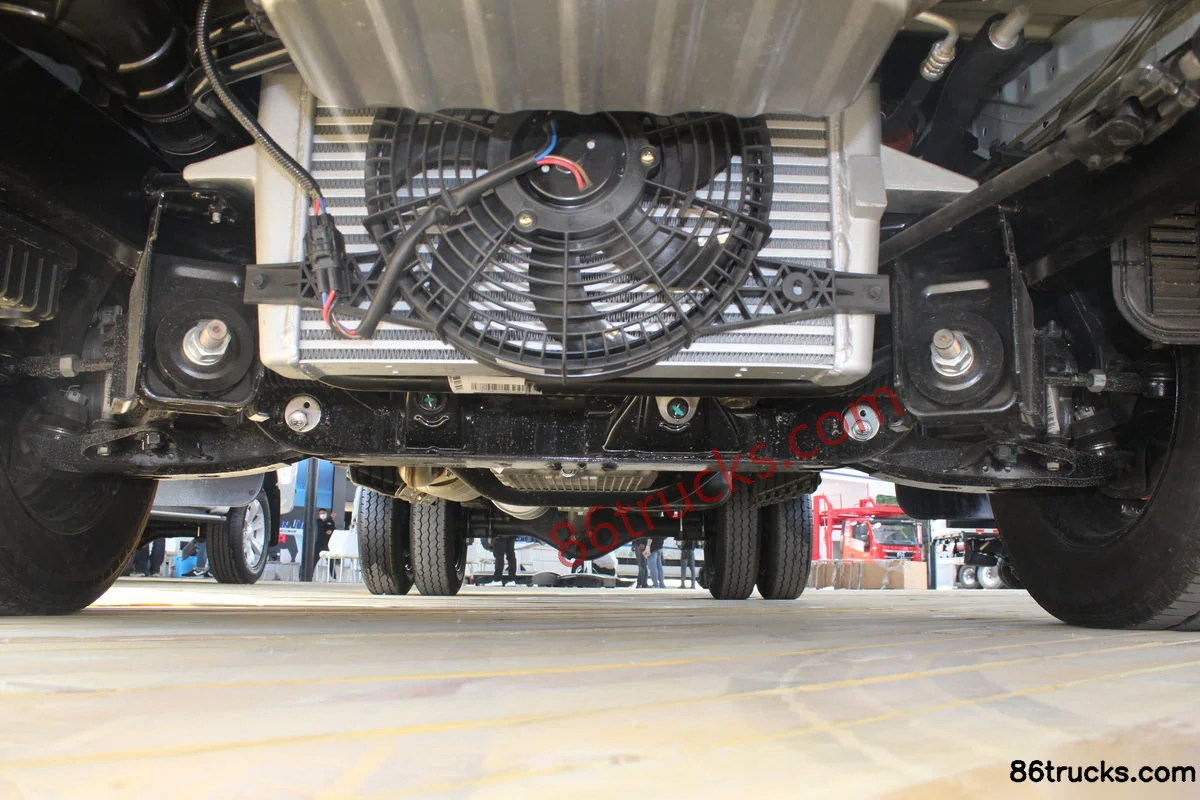

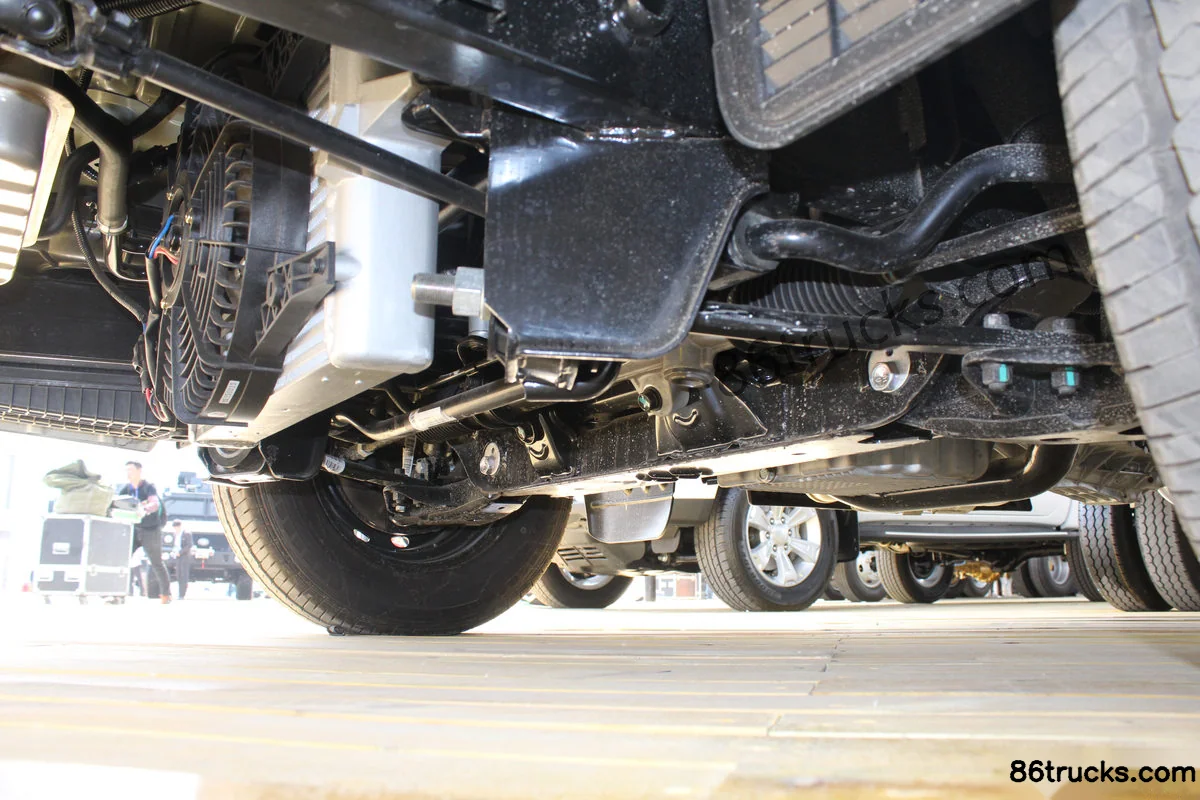

Chassis3

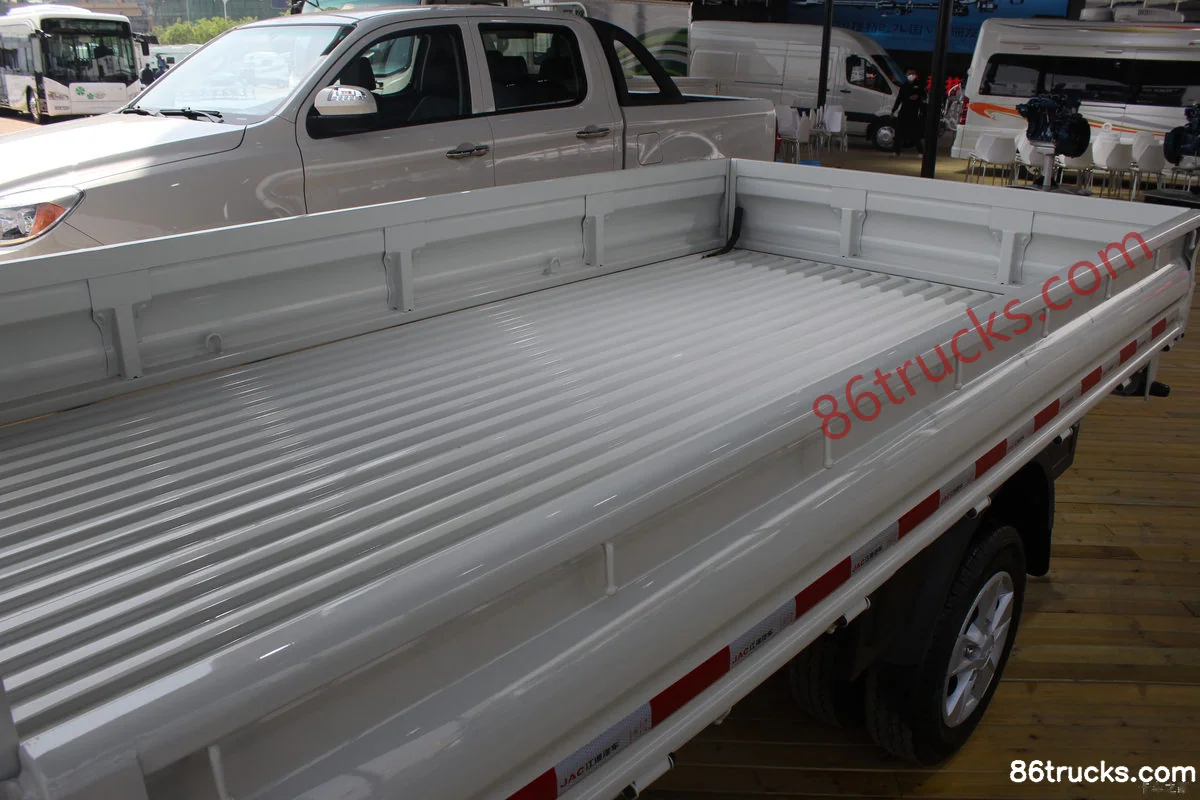

Body1

10 photos

FAQ

What is the export price of JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V), and what does it include?

JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V) export reference is about From $13,444; MSRP is ¥9.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V)?

Key specs of JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V): Drive: 4x2; Horsepower: 136 hp; Emission: China V; Fuel: Diesel; Engine: Ruijete 483; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V) suited for?

JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V) differ from other variants in the same series?

JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V) belongs to JACX6 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling X6 136hp 4X2(6 wheels) 3.11m single-row flatbed micro truck (China V)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
