SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 34.7ton
Wheelbase:: 4000mm
Tire Size:: 315/70R22.5,12R22.5
Front axle allowable load:: 6500kg
Displacement:: 12.54L
Drive 4X2 (6 wheels)
Horsepower 500
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 500 hp, 18t GVW and China V emissions. Its segment focus covers Port transport, matching those duty cycles. On the powertrain side, it comes with a WP13.500E501 engine, Fast Gear transmission and Diesel fuel.

China V 500 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4180XC13
Drive type: 4X2
Wheelbase: 4000mm
engine: WP13.500E501
transmission: Fast Gear12JSD200T
Rear Axle Ratio: 2.866
Cab length: 7.2m
Cab width: 2.49m
Cab height: 3.98m
Front track width: 2070mm
Gross Trailer Weight: 34.7ton
rear track: 1860mm
Curb Weight: 7.1ton
GVWR: 18ton
Max. speed: 105km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: Port transport
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP13.500E501
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.54L
Emission standard: China V
Max output power: 368kW
Max hp: 500Horsepower
Max torque: 2400N·m
Max torque speed: 950-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD200T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 2.846
Leaf spring count: 10/9+6
Tire
Tire Size: 315/70R22.5,12R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

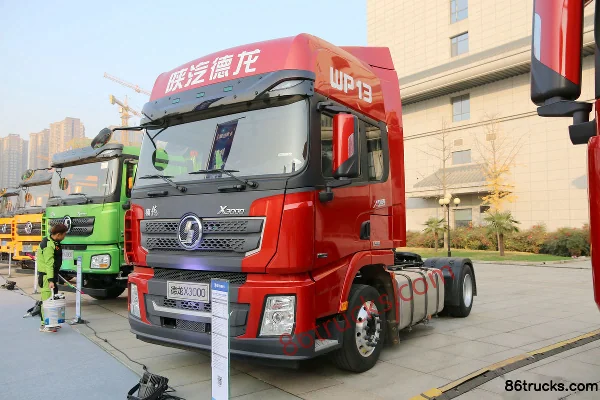

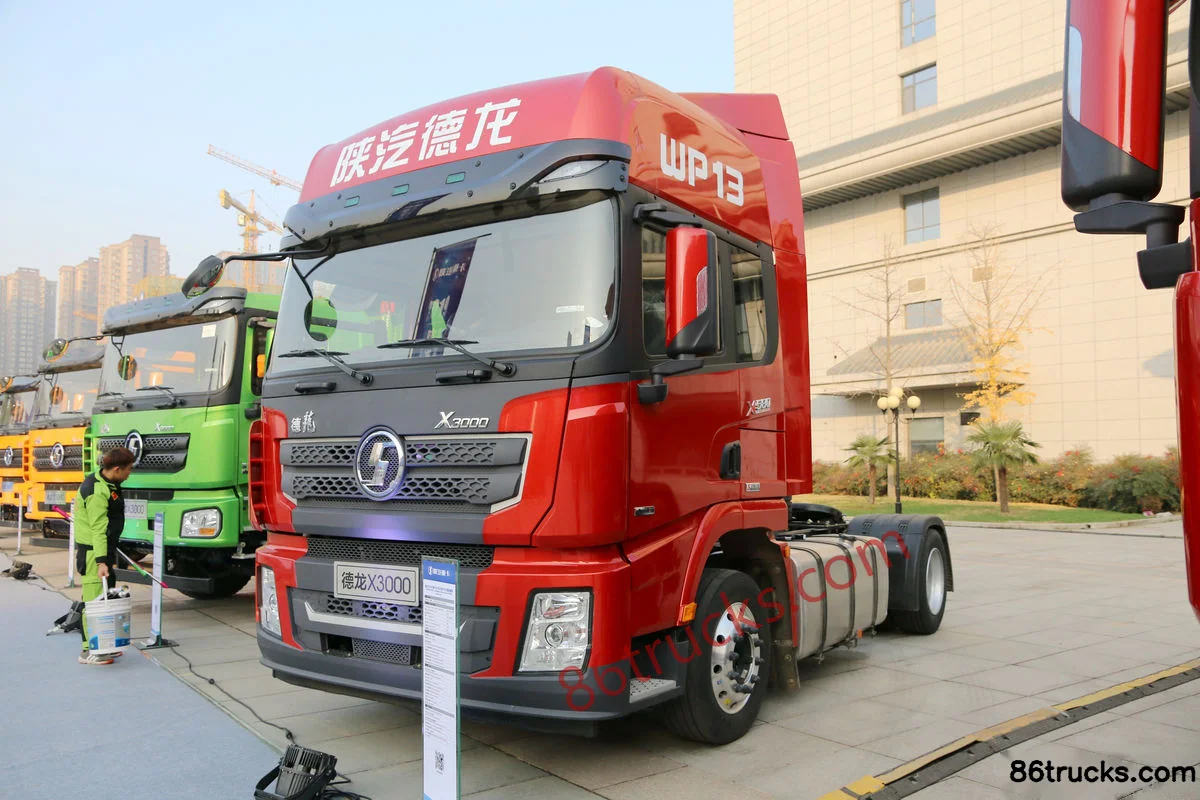

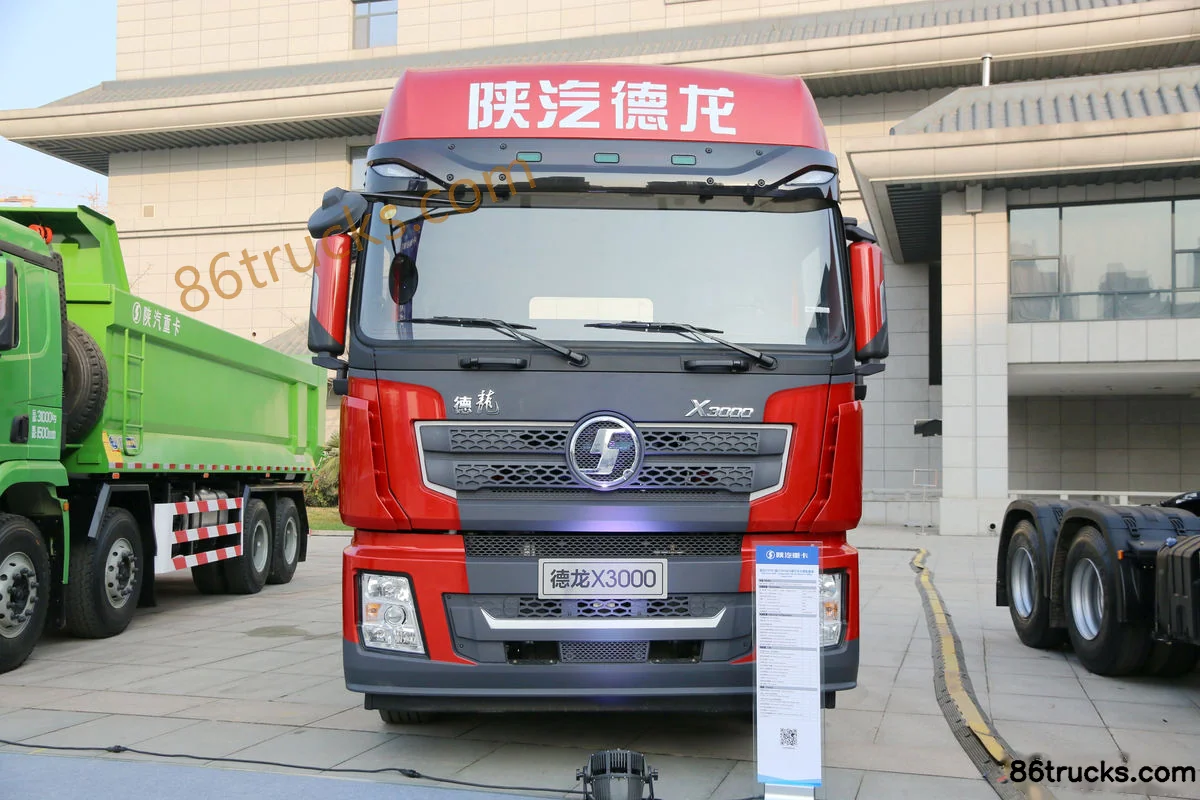

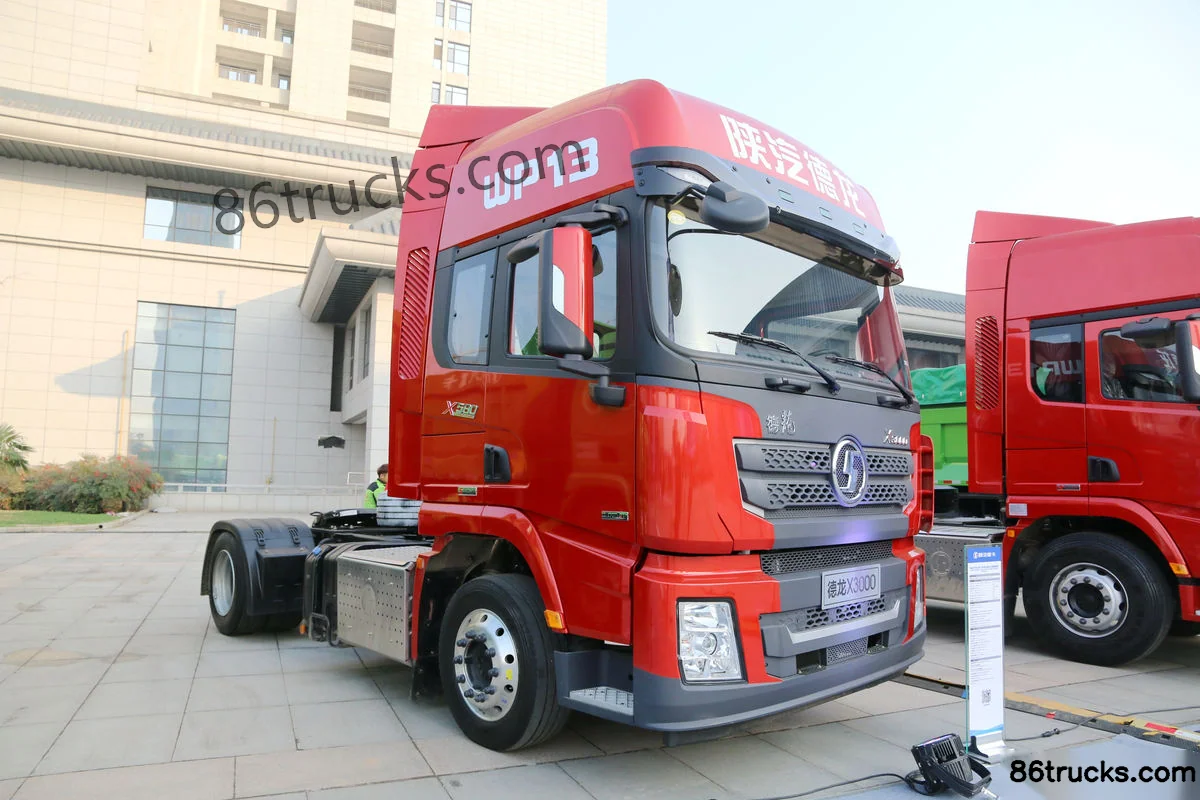

Exterior3

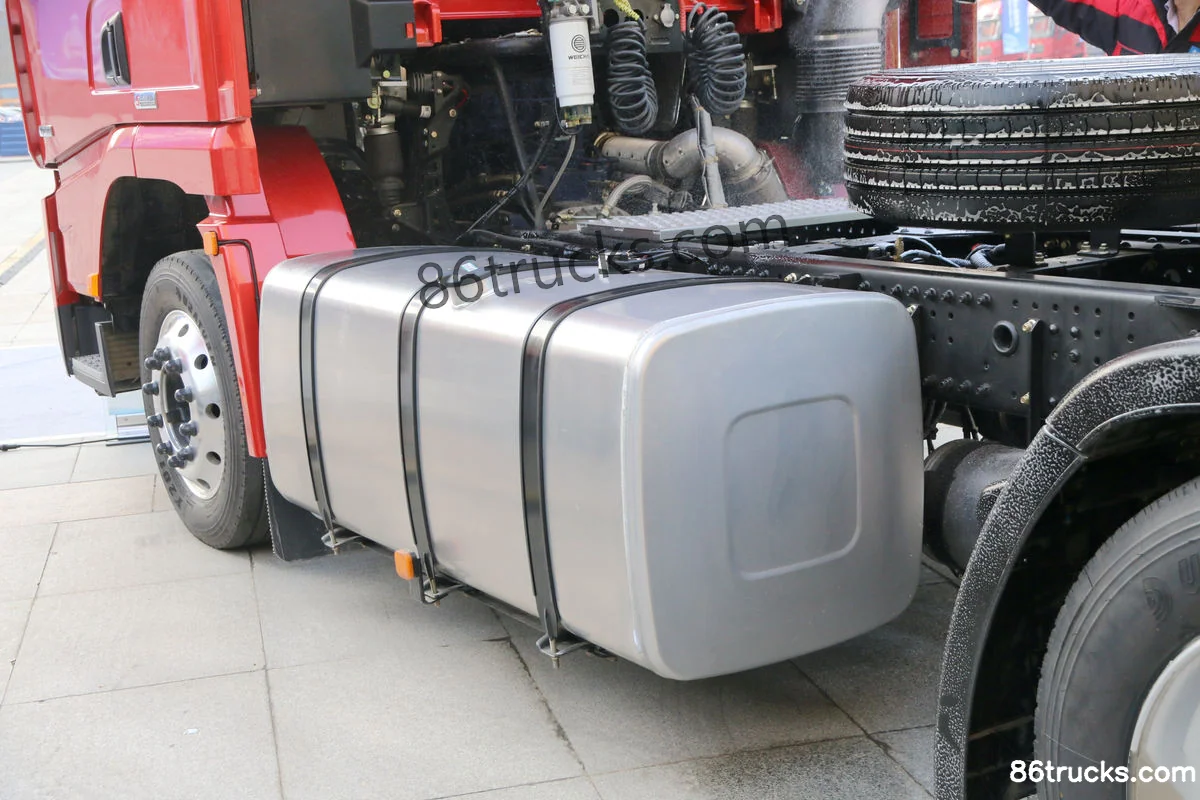

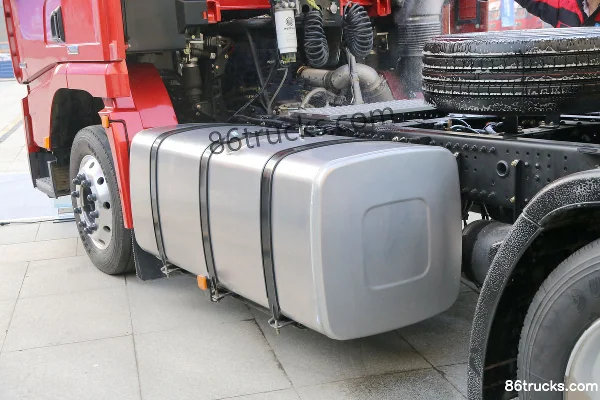

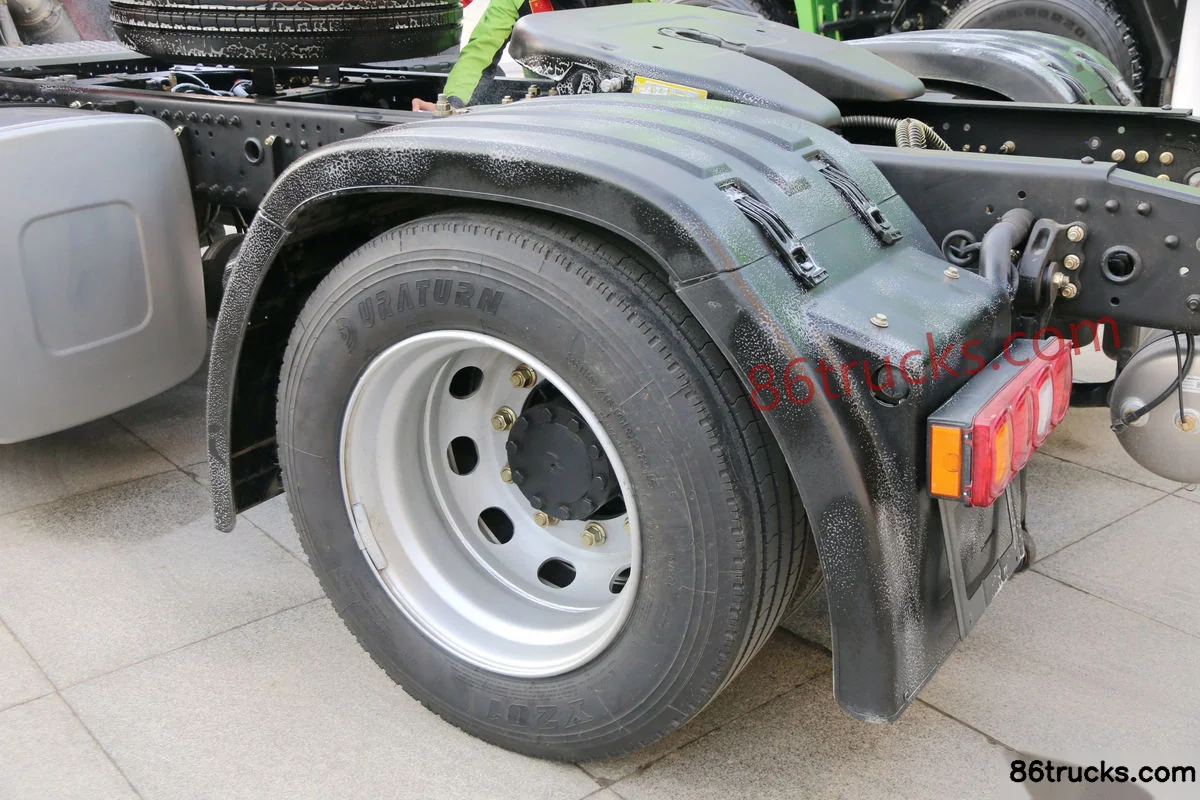

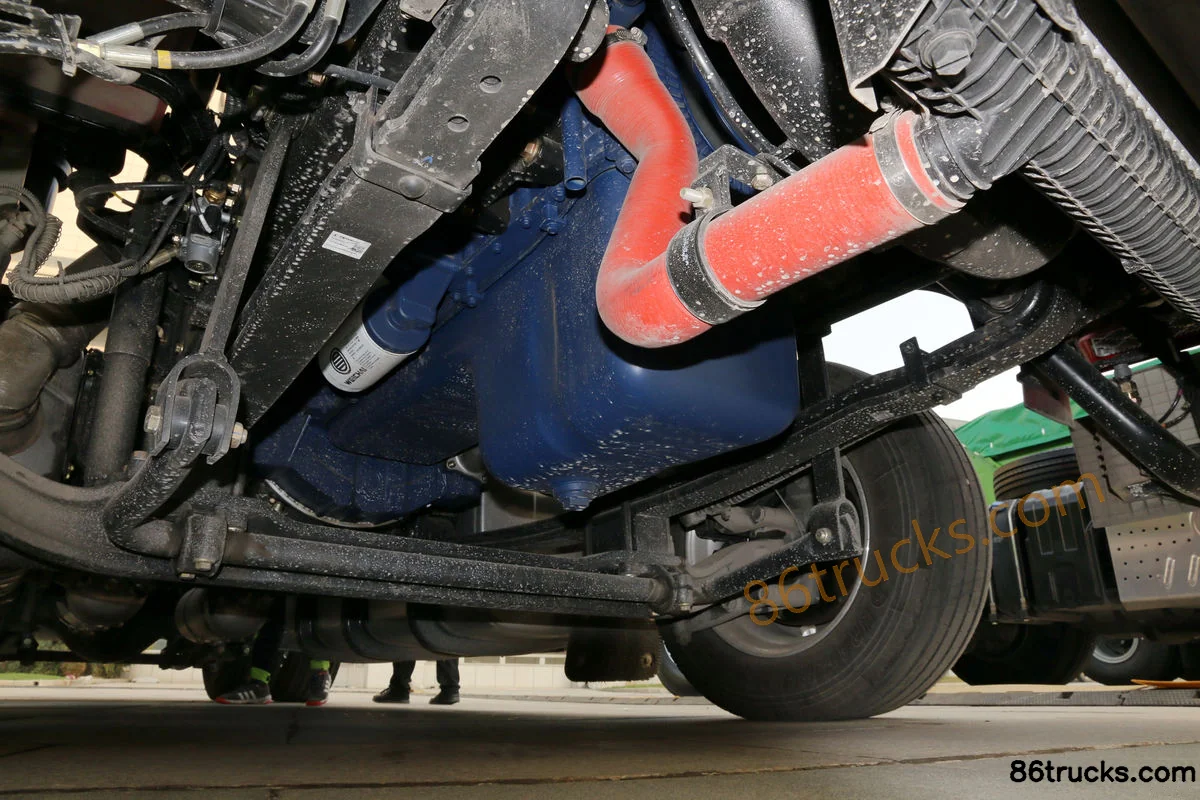

Chassis3

6 photos

FAQ

What emission standard does SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck?

Key specs of SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck: Drive: 4x2; Horsepower: 500 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck suited for?

SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck differ from other variants in the same series?

SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck belongs to SHACMAN Delong X3000 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 500 hp 4X2(6 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
