FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3800+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.52L
Drive 6X4 (10 wheels)
Horsepower 500
Emission China VI
Transmission FAW Jiefang

Overview

The FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 500 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a XichaiCA6SM6-A50E6N engine, FAW Jiefang transmission and LNG (liquefied natural gas) fuel.

China VI 500 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4250P66M25T1E6
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: XichaiCA6SM6-A50E6N
transmission: FAW JiefangCA12TAX230SRT
Rear Axle Ratio: 3.545
Cab length: 7.8m
Cab width: 2.55m
Cab height: 3.68m
Front track width: 2050mm
rear track: 1830/1830mm
Gross Trailer Weight: 40ton
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Changchun, Jilin
tonnage class: Heavy truck
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: CA6SM6-A50E6N
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 12.52L
Emission standard: China VI
Max output power: 375kW
Max hp: 500Horsepower
Max torque: 2400N·m
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: CA12TAX230SRT
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Air tank capacity: 1350L
Cab parameters
Cab: low floor
Cab suspension: Four-point air suspension
Cab width: 2500mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 5T
Fifth wheel: ф50plus
Front axle allowable load: 7000kg
Frame Dimensions: 300×80×8mm
Steering gear: Domestic
rear axle description: ф425 cast axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.545
Leaf spring count: 2/3
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
automatic slack adjuster:
interior configuration
AC control type: Automatic
Power Windows:
Electric Heated Rearview Mirror:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
smart configuration
Telematics System:
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

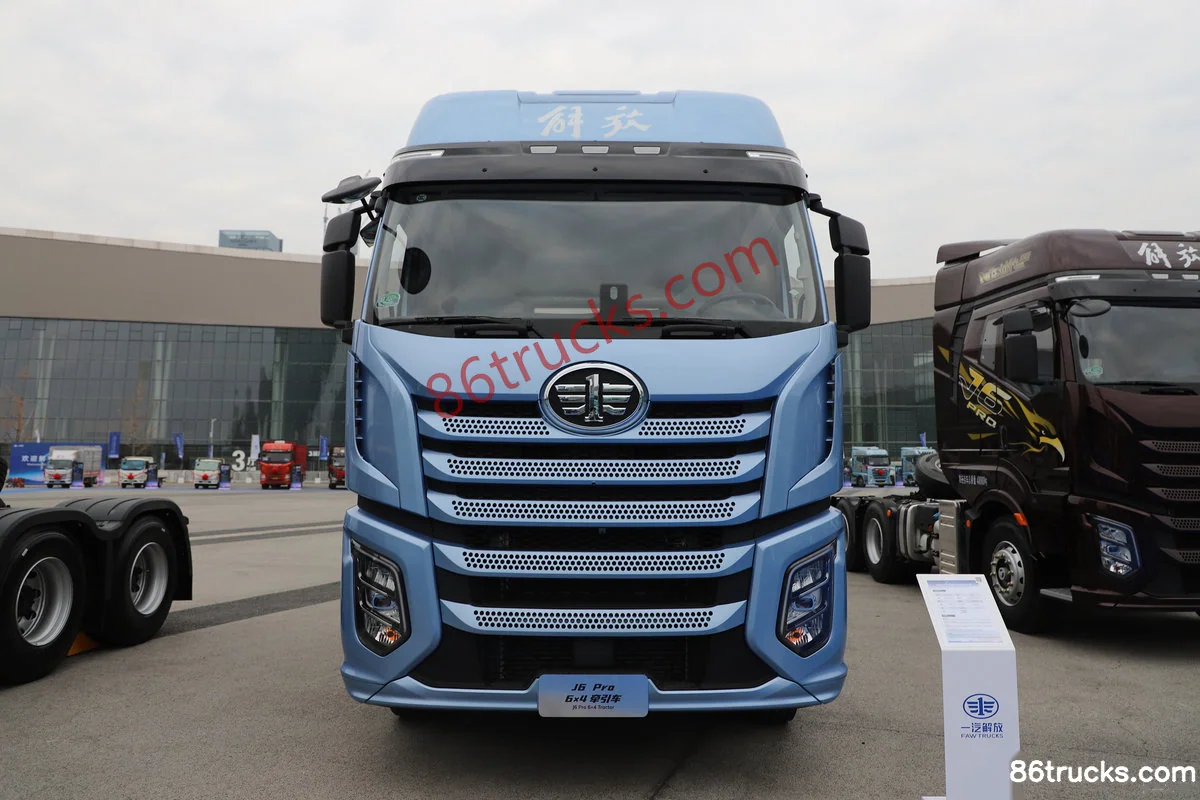

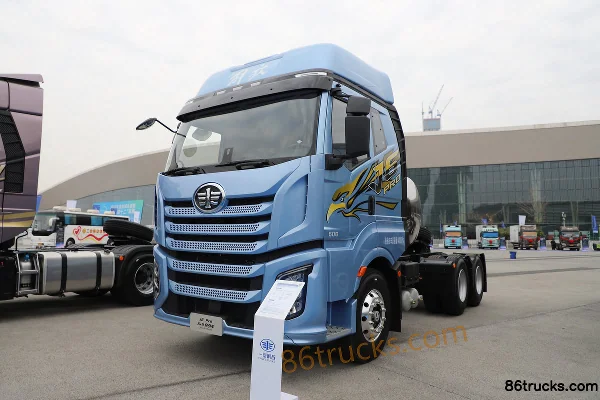

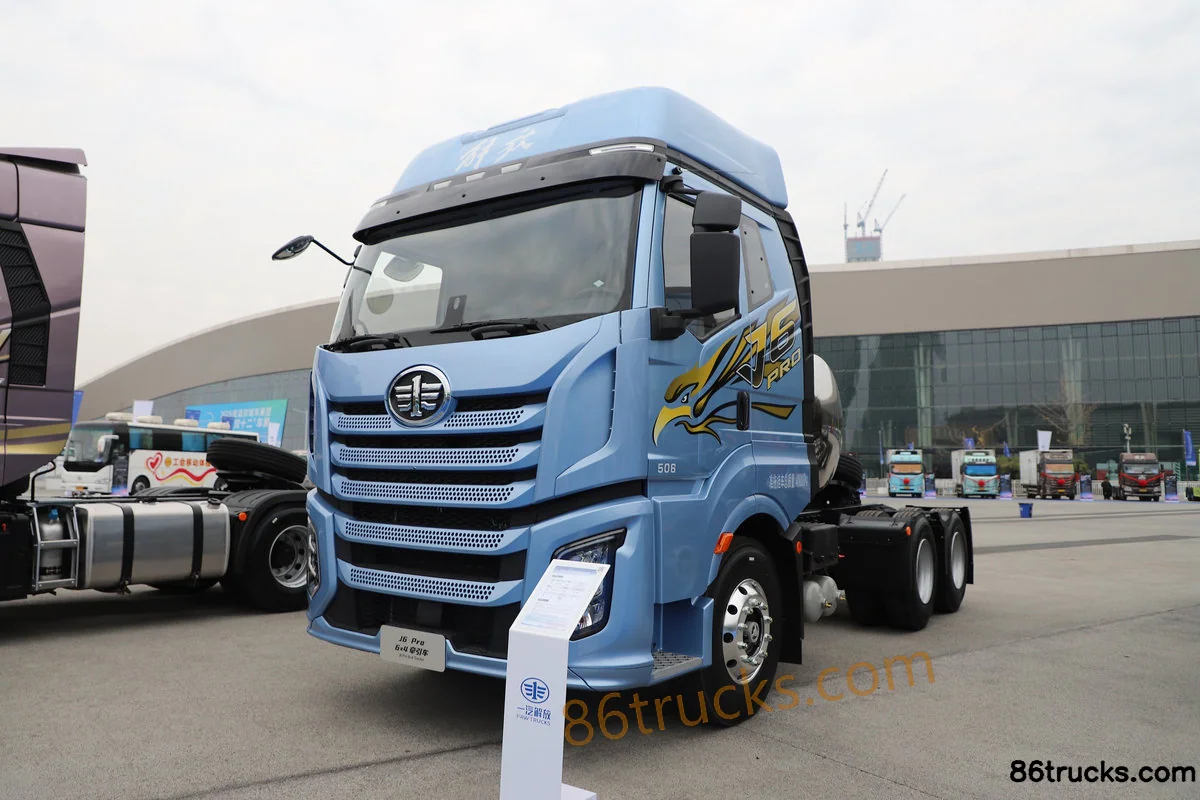

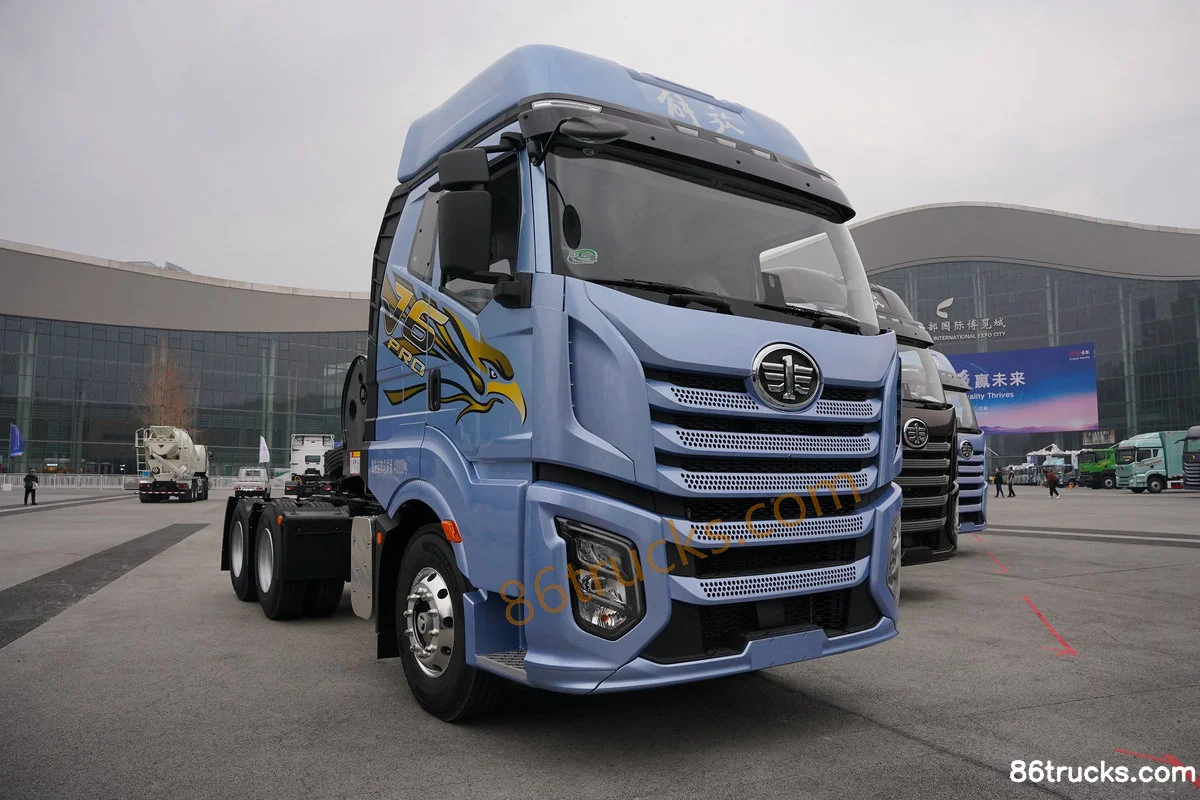

Exterior3

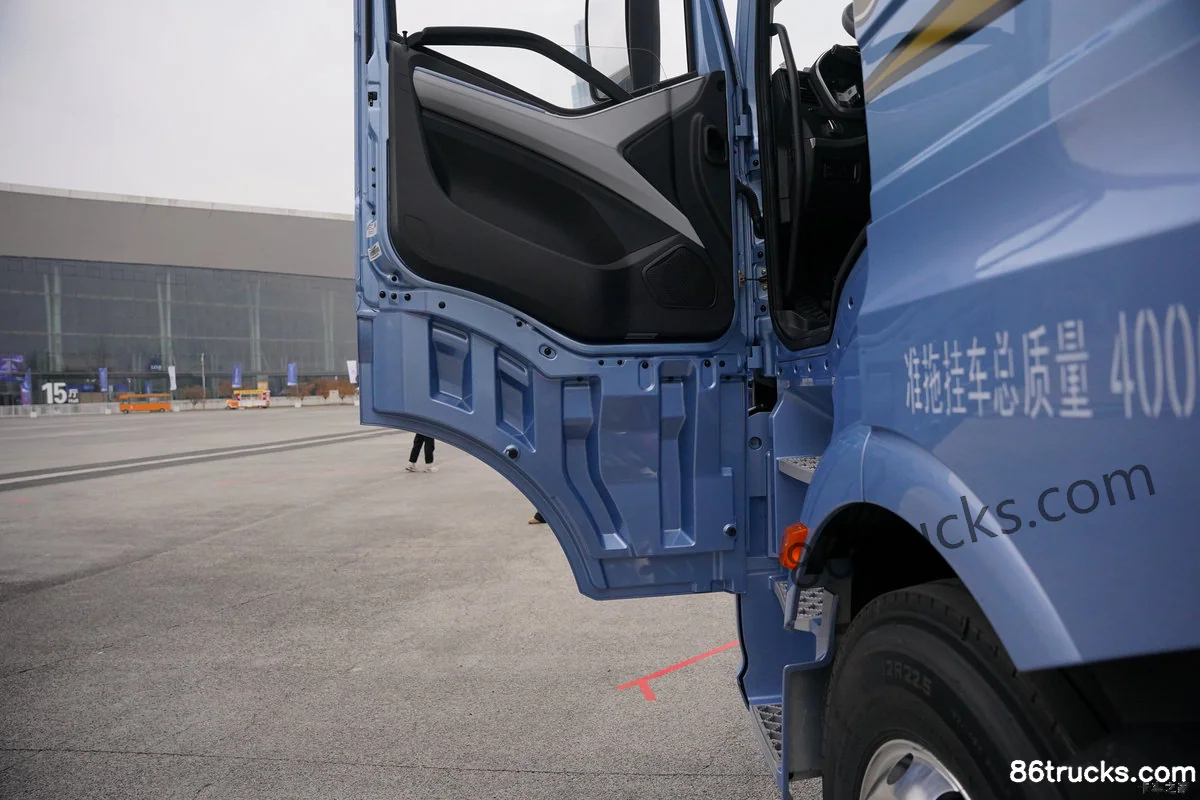

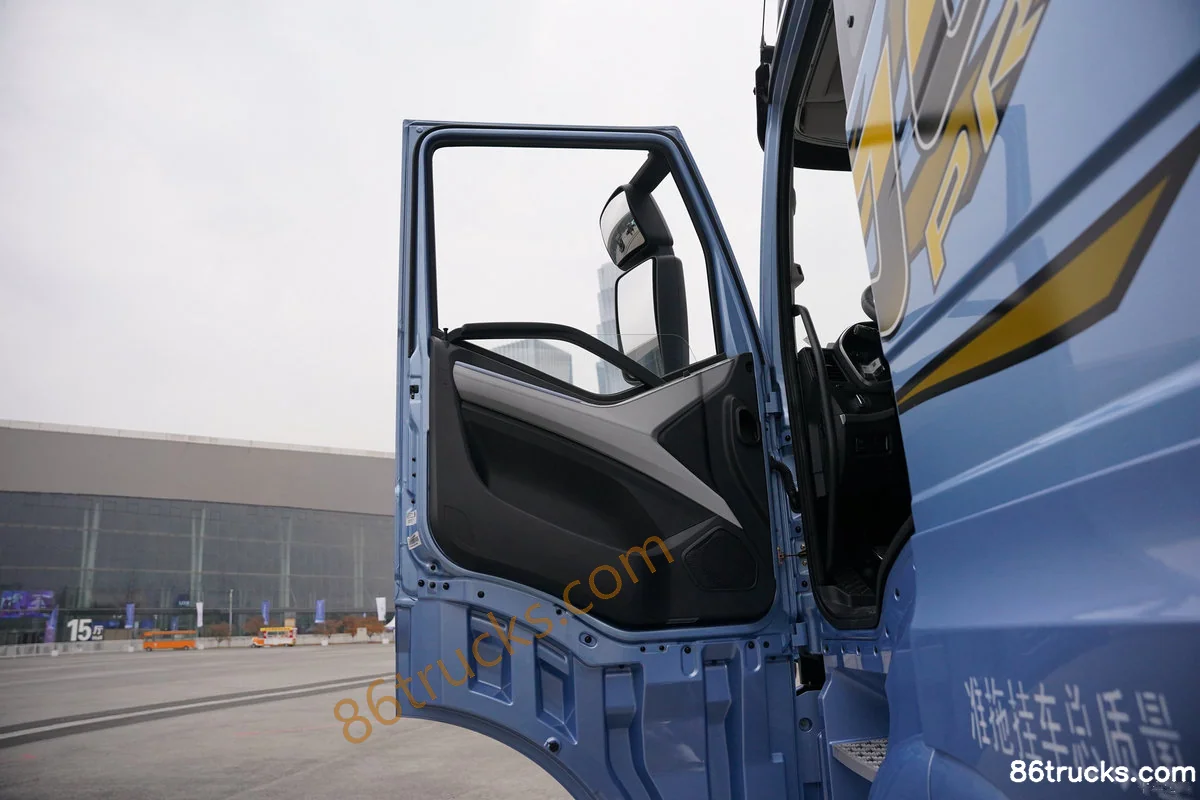

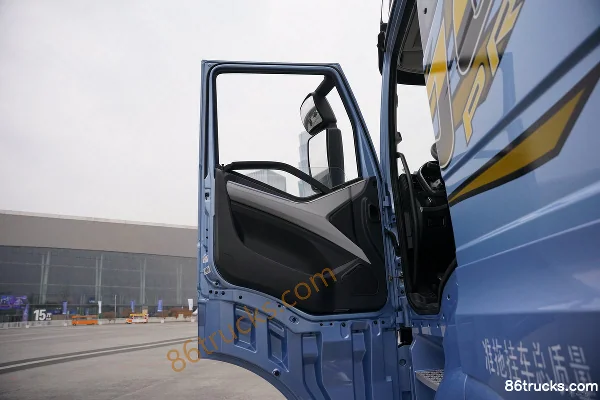

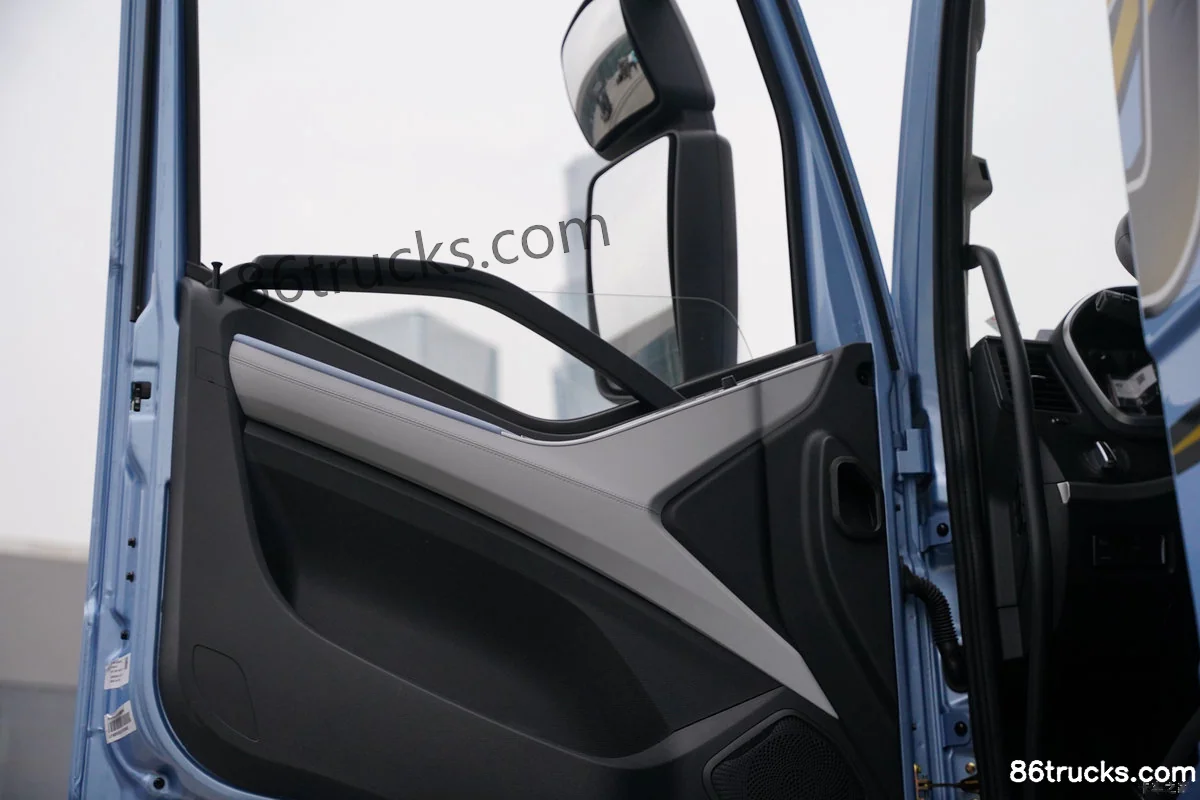

Cab3

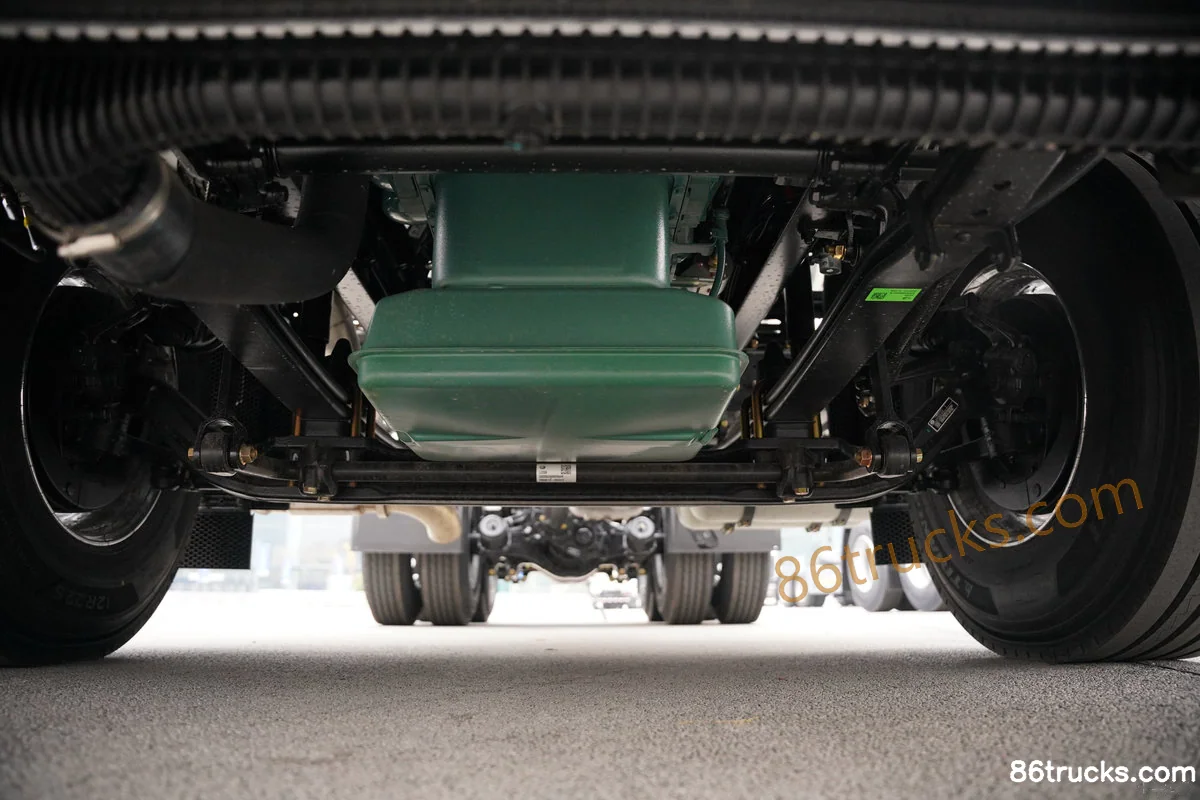

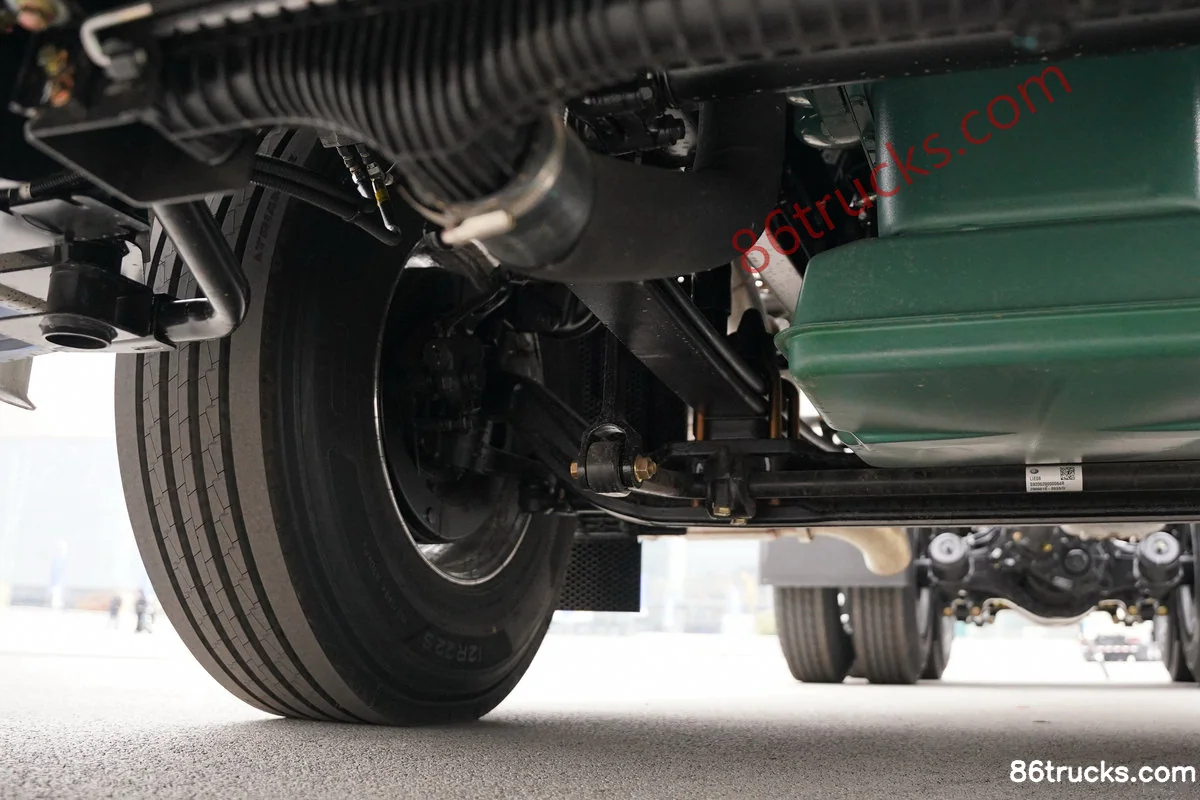

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck?

Key specs of FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck: Drive: 6x4; Horsepower: 500 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck suited for?

FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck differ from other variants in the same series?

FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck belongs to FAW Jiefang J6 PRO Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6 PRO 12.5L LNG 500hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
