Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck

Export reference
From $21,944
MSRP ¥15.8M CNY
Horsepower: 168
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Fast Gear
Curb Weight:: 5.8ton
seating capacity: 3Personnel
Rated payload: 9.8ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.8t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 168 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 168 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5169CCY-AC
Type: stake truck
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 6.8m
engine: FotonISF3.8s4R168
transmission: Fast Gear8JS75TE
Cab length: 8.995m
Cab width: 2.5m
Cab height: 3.82m
Front track width: 1930mm
rear track: 1800mm
Curb Weight: 5.8ton
Rated payload: 9.8ton
GVWR: 15.795ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 10°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.3/2.495m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4R168
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 125kW
Max hp: 168Horsepower
Max torque: 600N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS75TE
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.4m
Cargo box height: 0.55m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab width: 2200mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5980kg
rear axle description: 153 heavy-duty
rear axle allowable load: 9815kg
Leaf spring count: 8/10+10
Tire
Tire Size: 9.00-20,9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

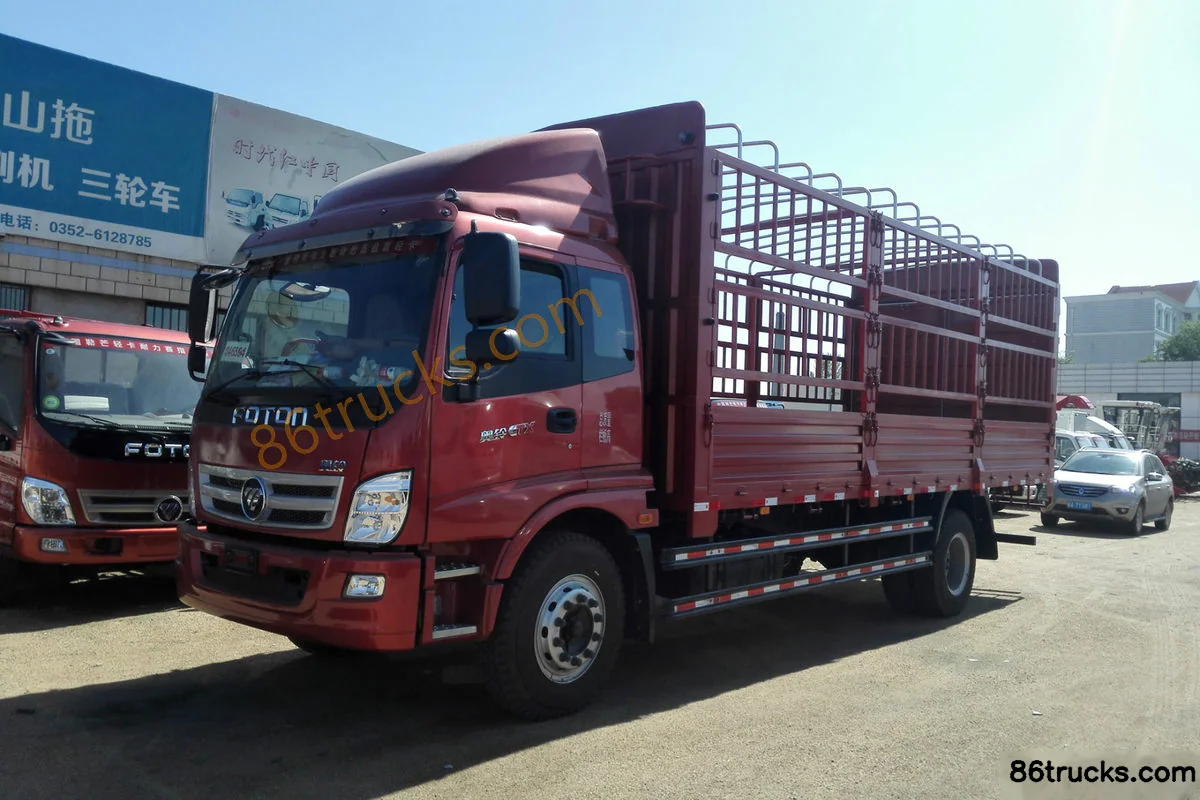

Exterior1

1 photos

FAQ

What is the export price of Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck, and what does it include?

Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck export reference is about From $21,944; MSRP is ¥15.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck?

Key specs of Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck: Drive: 4x2; Horsepower: 168 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck suited for?

Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck differ from other variants in the same series?

Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTX 168hp 4X2(6 wheels) 6.75m semi-row stake cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
