JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift)

Export reference
MSRP N/A
Horsepower: 245
Emission: China VI
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 8.9ton
seating capacity: 3Personnel
Rated payload: 15.9ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift) is a Heavy-duty cargo trucks featuring 6.2m cargo length, Van body cargo body, 3Personnel volume and 15.9t payload. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 245 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5251XXYP3K24D46S
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 4600+1300mm
Box length class: 6.2m
engine: YuchaiYCS06245-60
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.875
Cab length: 8.49m
Cab width: 2.55m
Cab height: 3.96m
Front track width: 1920mm
rear track: 1860/1850mm
Curb Weight: 8.9ton
Rated payload: 15.9ton
GVWR: 24.995ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle: 10°
market segment: Logistics Freight
Remarks: Rear Axle Lift
Front/rear suspension: 1.4/1.19m
Version: Value Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06245-60
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.23L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.2m
Cargo box width: 2.48m
Cargo box height: 2.6m
*Cargo box interior width: 2.4800000190735
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 7000kg
Frame Dimensions: 280×80×8mm
rear axle description: 153
rear axle allowable load: 17995 (two-axle group)kg
Axle ratio: 4.875
Leaf spring count: 9/9+7/3
Tire
Tire Size: 11R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

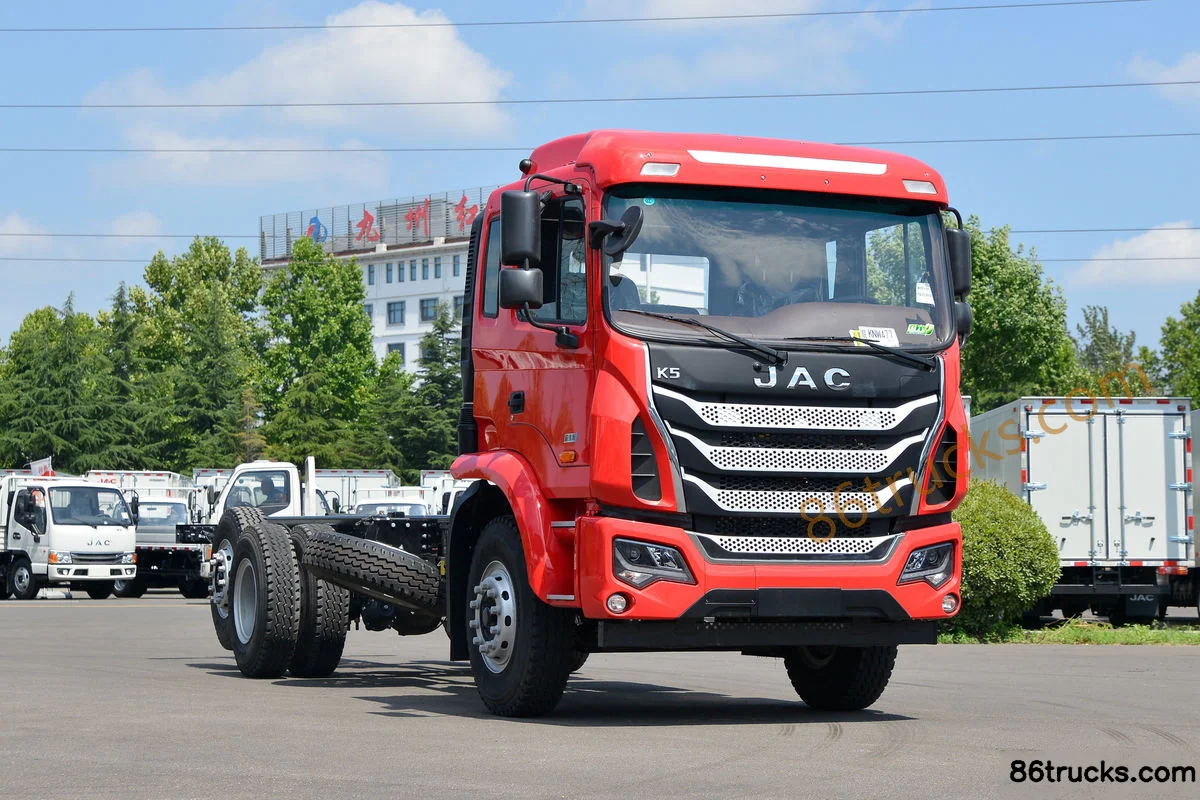

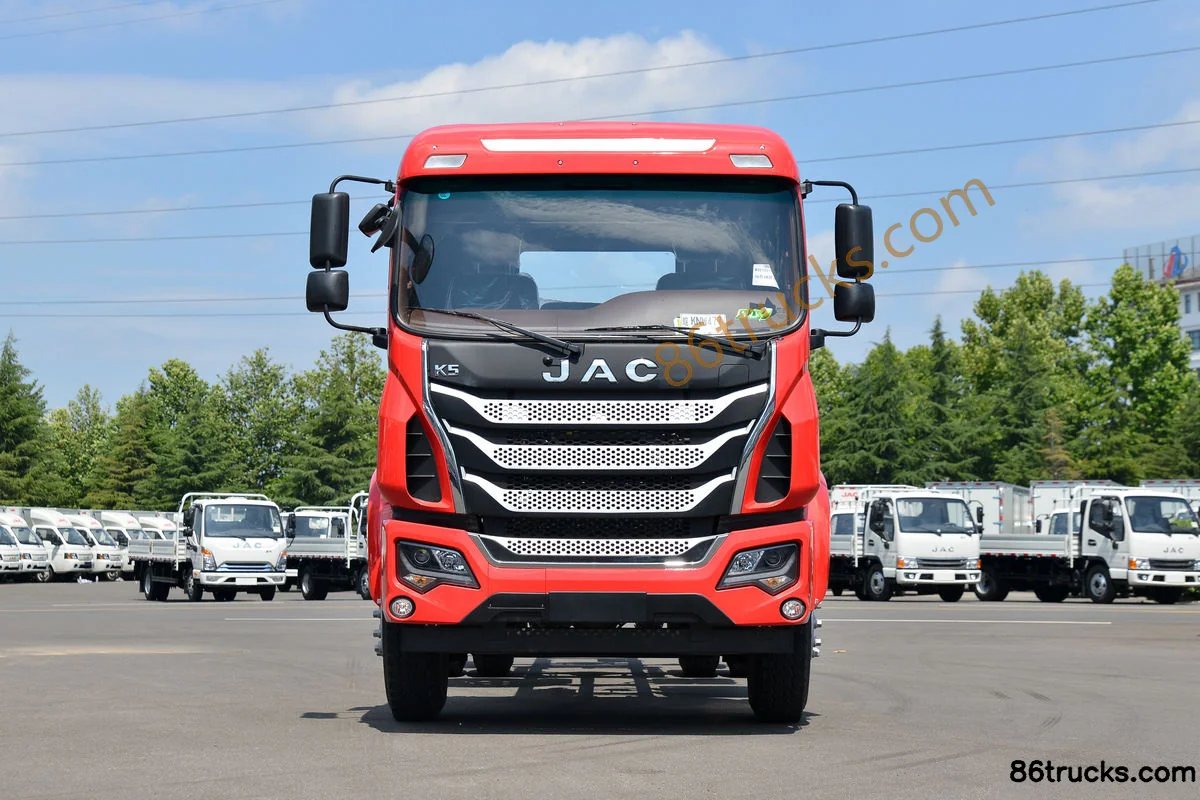

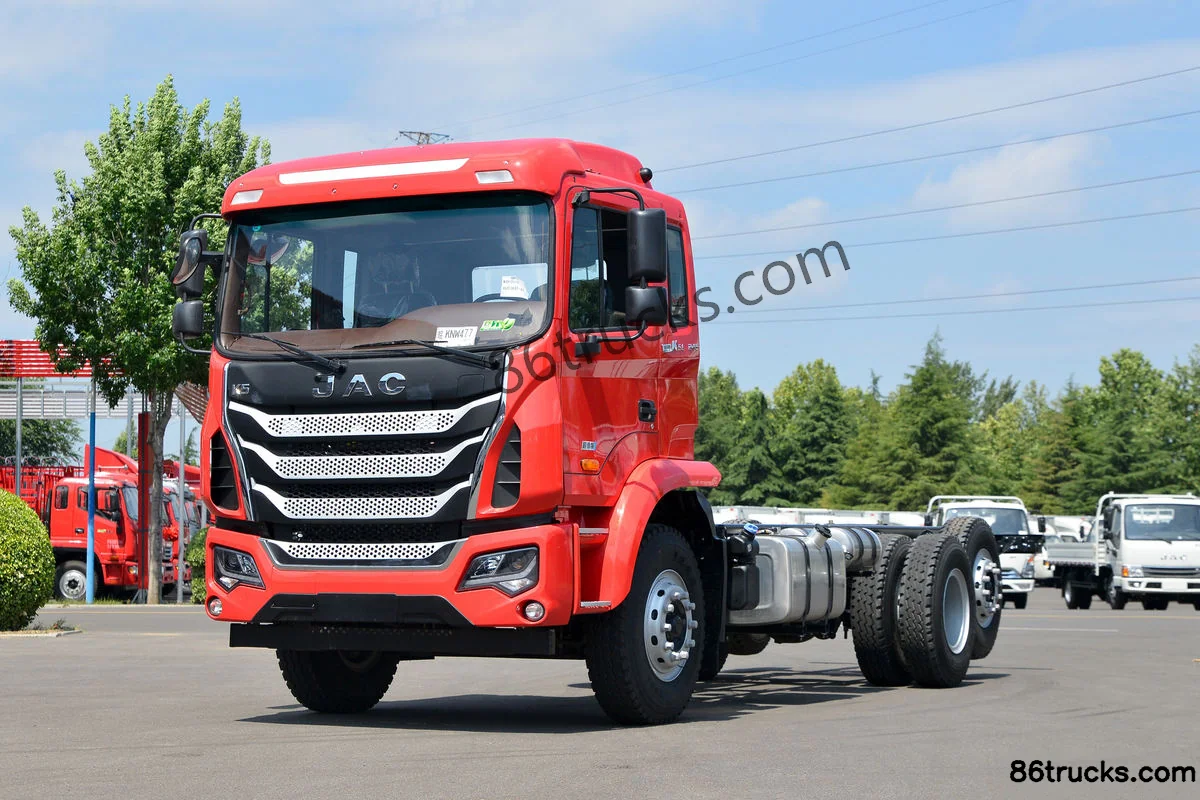

Exterior3

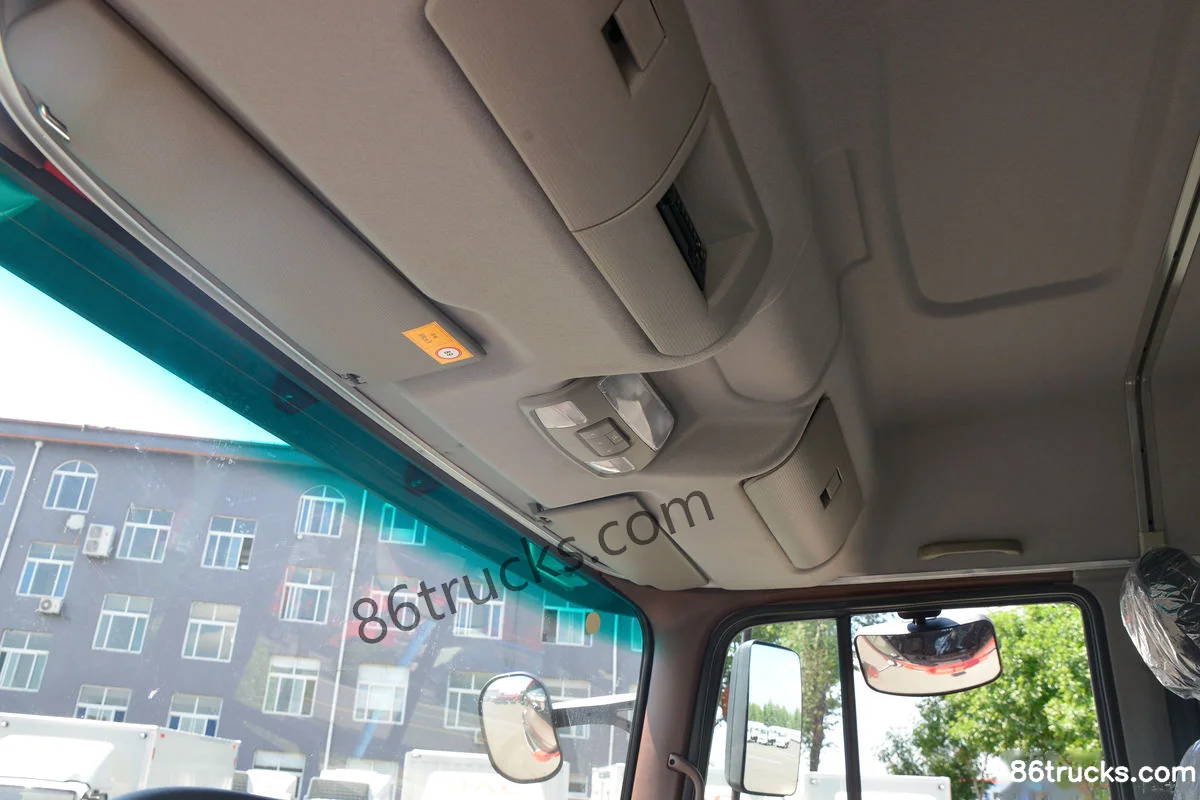

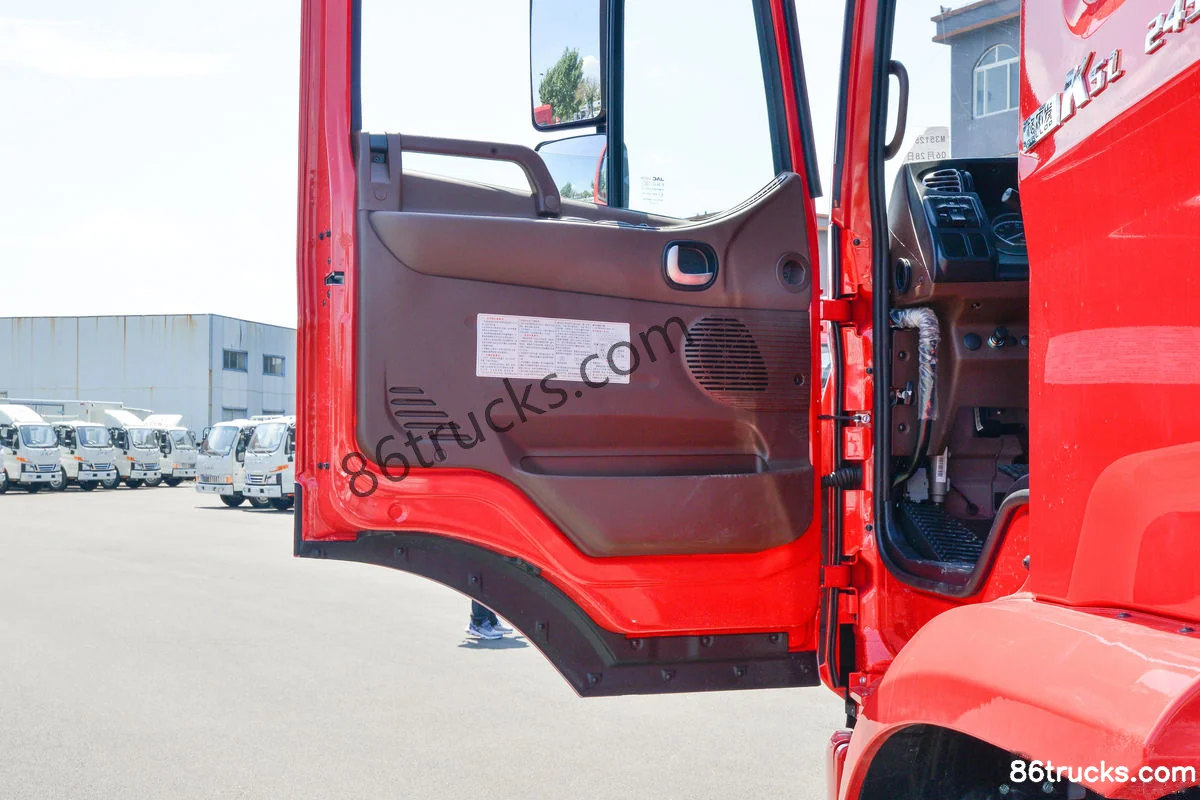

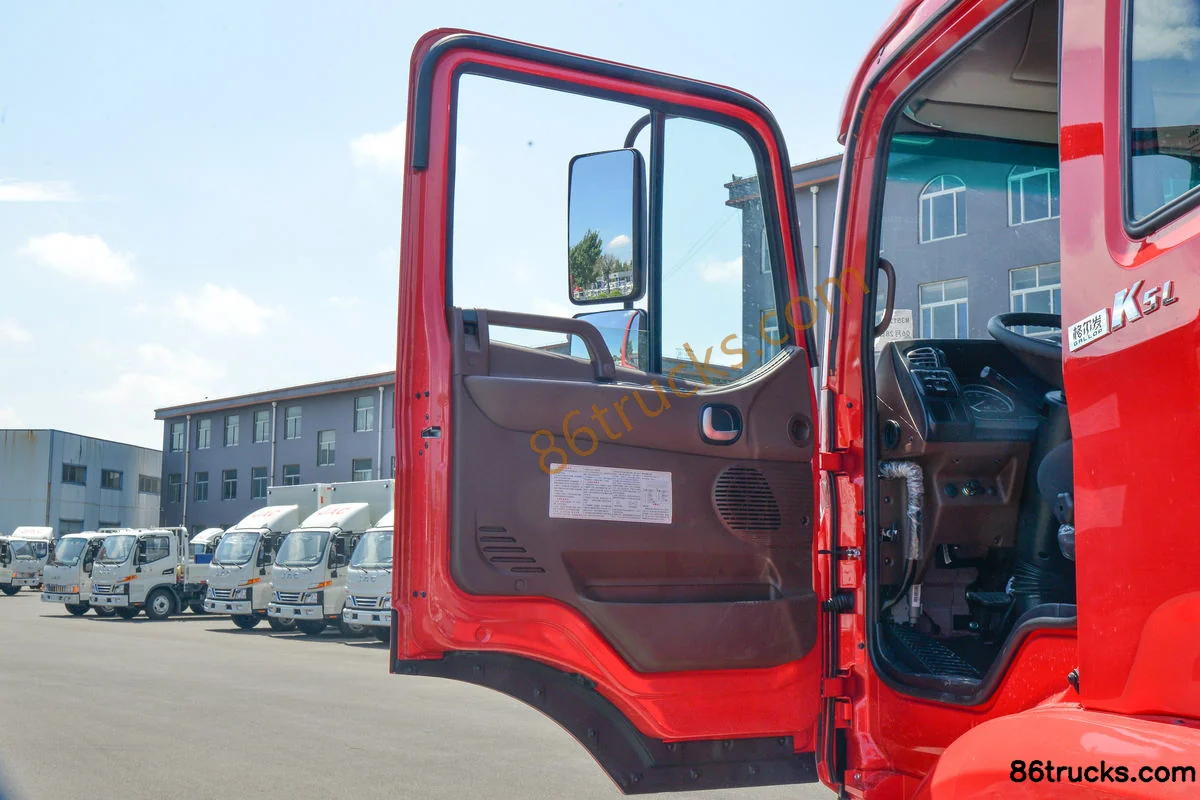

Cab3

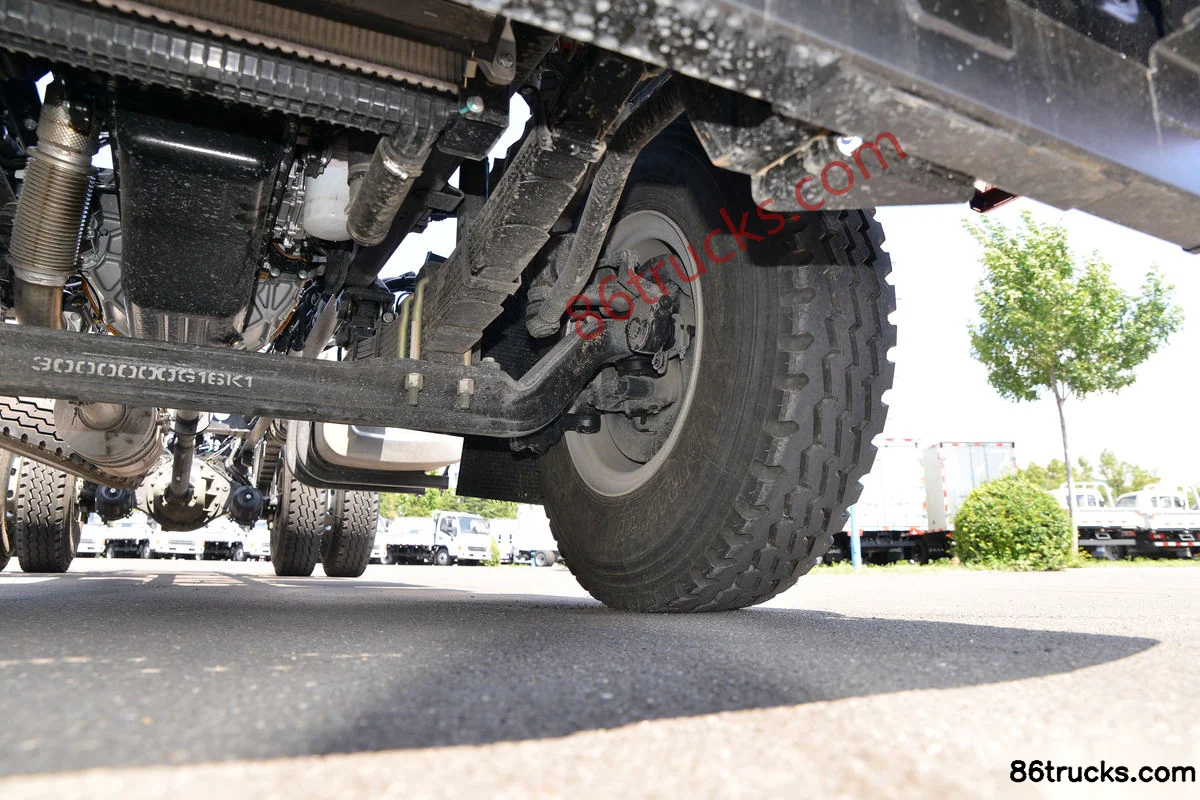

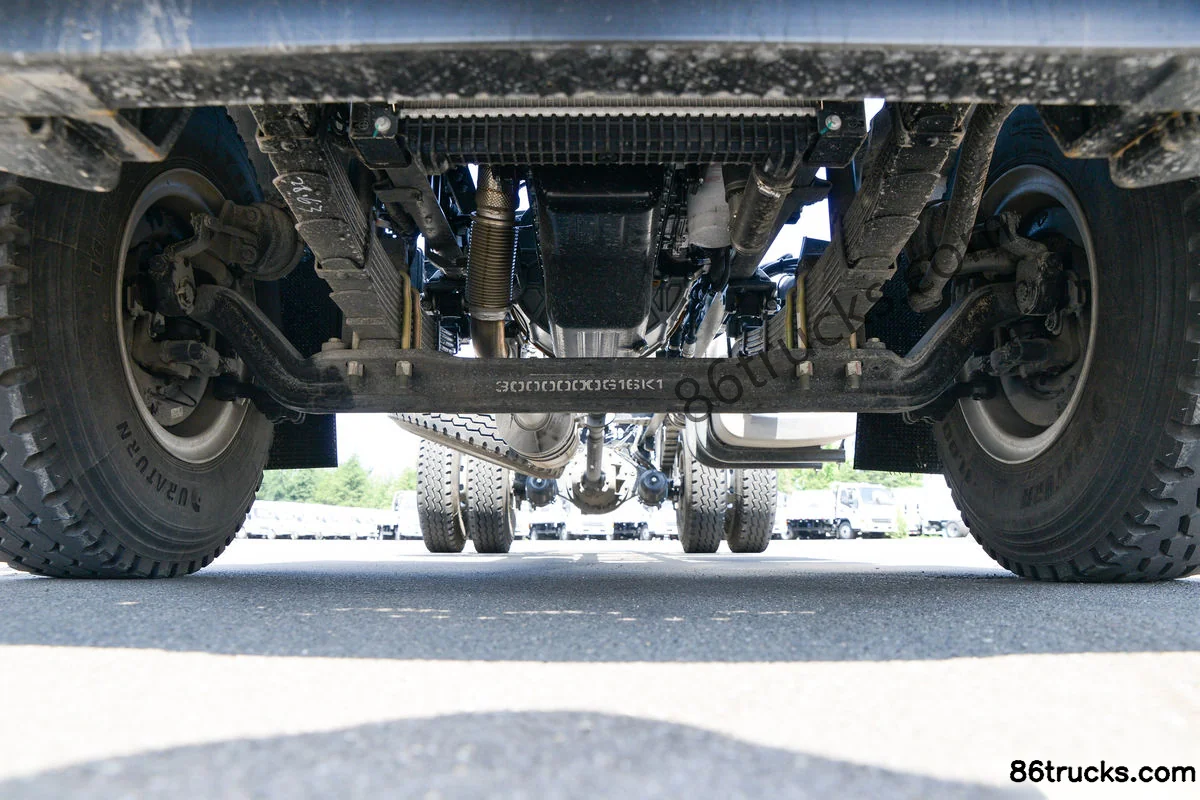

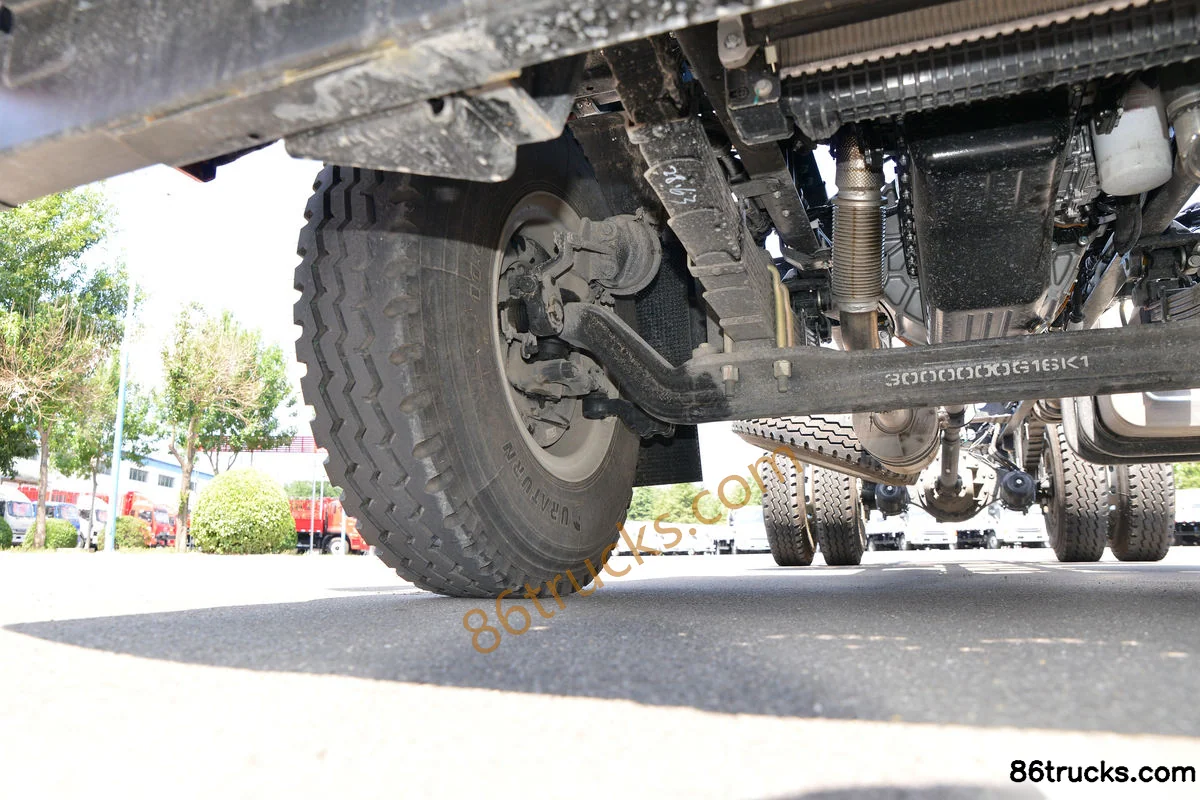

Chassis3

9 photos

FAQ

What emission standard does JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift)?

Key specs of JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift): Drive: 6x2; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift) suited for?

JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift) differ from other variants in the same series?

JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift) belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5L Value Edition 245 hp 6X2(8 wheels) 6.2m van cargo truck (China VI) (rear axle lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
