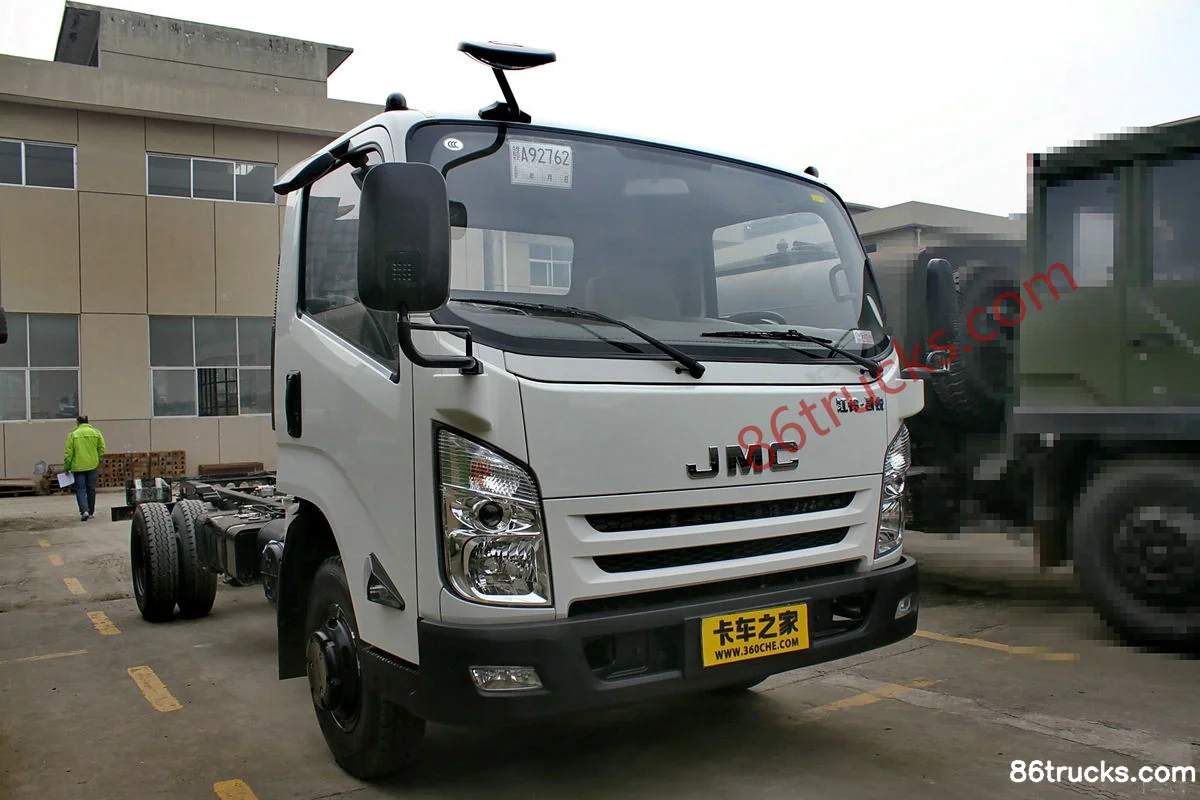

JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis

Export reference
From $18,750
MSRP ¥13.5M CNY
Horsepower: 152
Emission: China V (Beijing)
Fuel: Diesel
Engine: JMC495
Transmission: GETRAG
Curb Weight:: 3.52ton
seating capacity: 3Personnel
Rated payload: 3.995ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis is a Light Truck featuring 5.075m cargo length, Chassis cargo body, 3Personnel volume and 3.995t payload. On the powertrain side, it comes with a JMC495 engine, 152 hp, 4X2 (6 wheels) drive and China V (Beijing) emissions.

China V (Beijing) 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1083TKA25
Type: Chassis
Drive type: 4X2
Wheelbase: 3815mm
engine: JMCJX4D30A5H
transmission: Getrag 6MTI420
Cab length: 6.995m
Cab width: 2.26m
Cab height: 2.4m
Front track width: 1680mm
rear track: 1640mm
Curb Weight: 3.52ton
Rated payload: 3.995ton
GVWR: 7.71ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 20°
departure angle: 13°
Front/rear suspension: 1.155/2.025m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX4D30A5H
Engine info: JMC495
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.892L
Emission standard: China V (Beijing)
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 382N·m
Max torque speed: 1800-2800rpm
Rated speed: 2800rpm
Engine Type: Water-cooled, inline, 4-stroke
Transmission Parameters
Transmission Model: Getrag 6MTI420
Transmission Brand: GETRAG
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 5.075m
Cargo box width: 2.1m
Cargo box height: 0.55m
*Cargo box interior width: 2.0999999046326
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2700kg
rear axle allowable load: 5010kg
Leaf spring count: 8/7+7
Tire
Tire Size: 7.50R16LT
Number of tires: 6pcs
Control configuration
ABS:

Photos

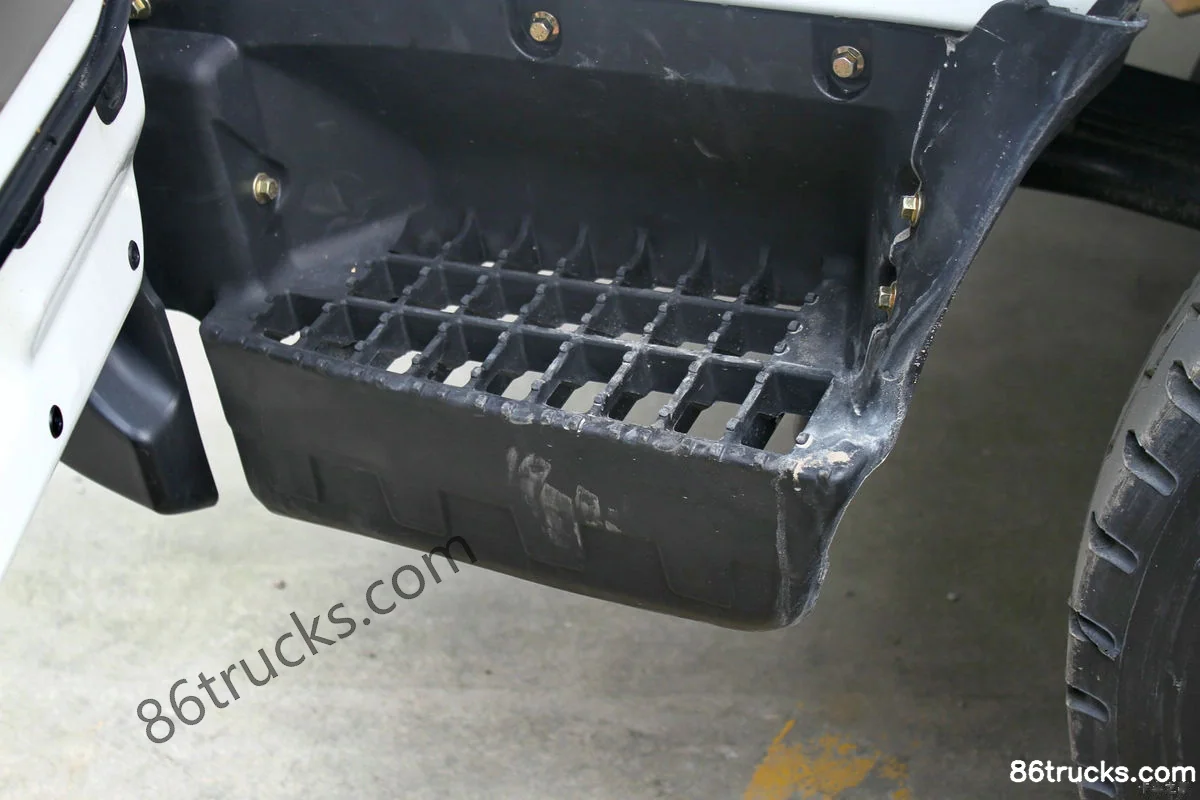

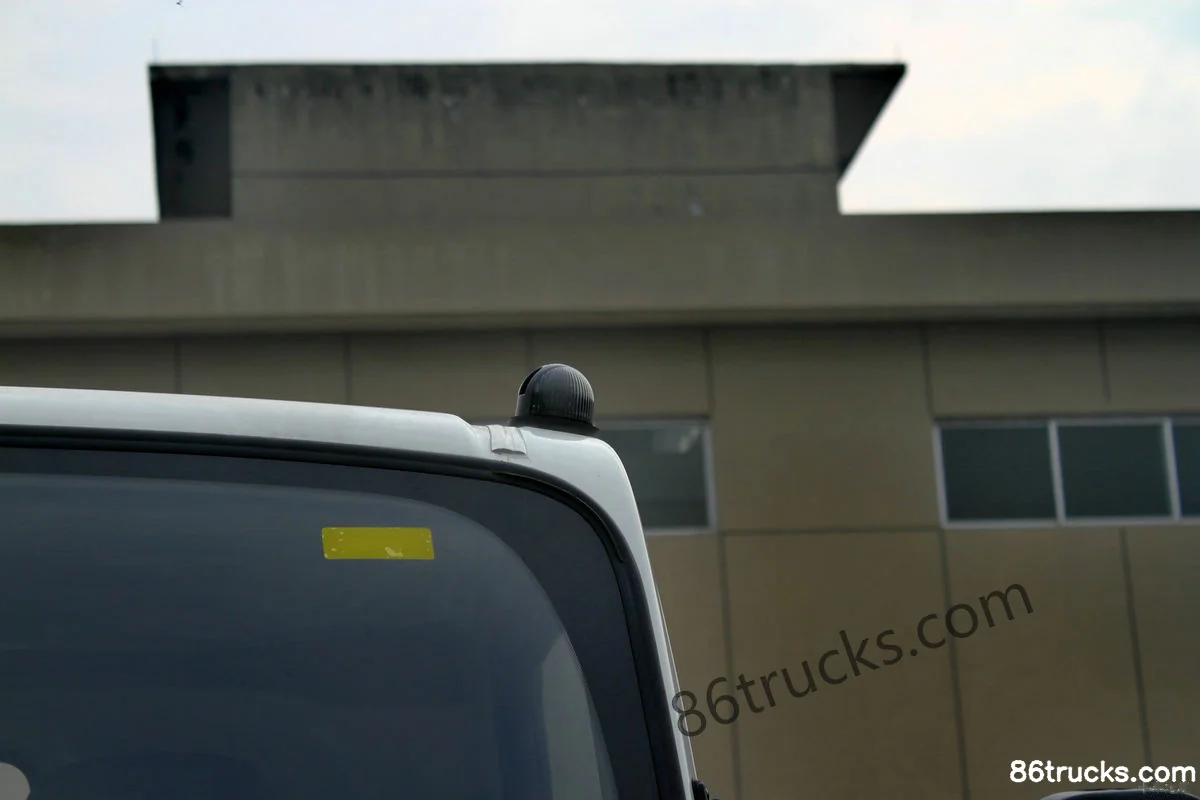

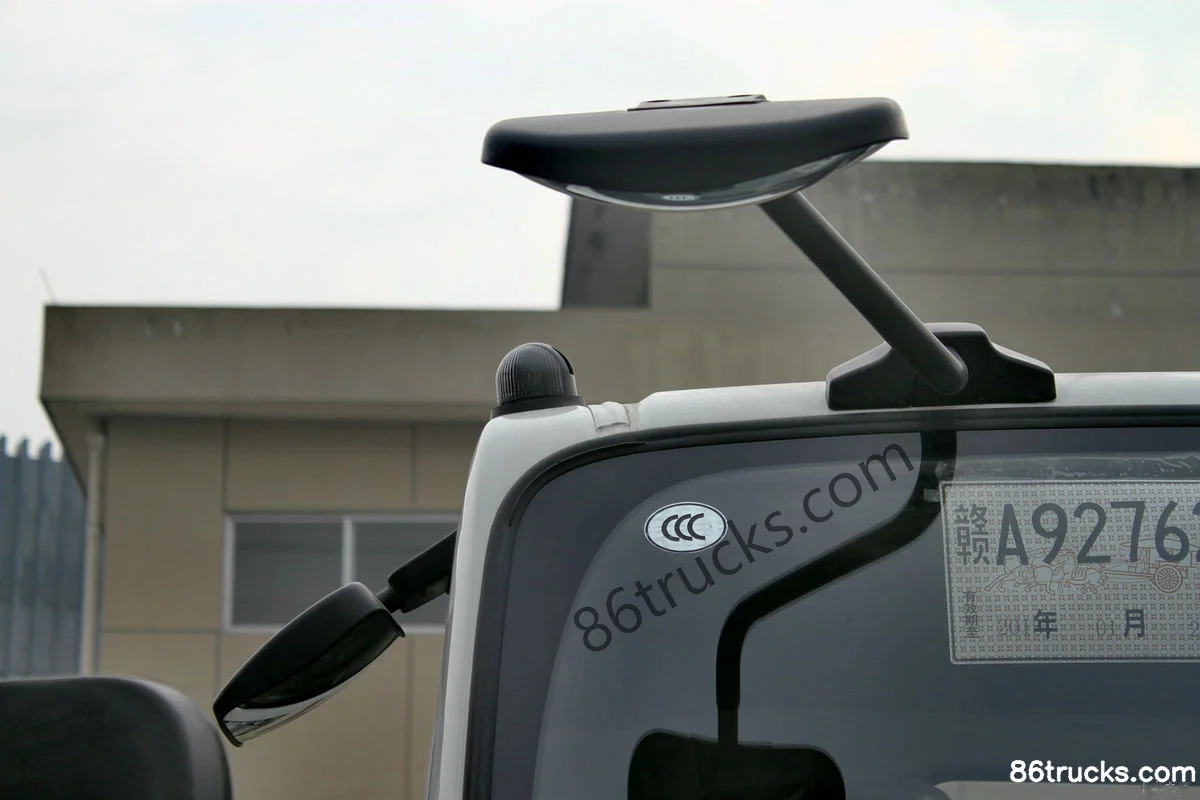

Exterior3

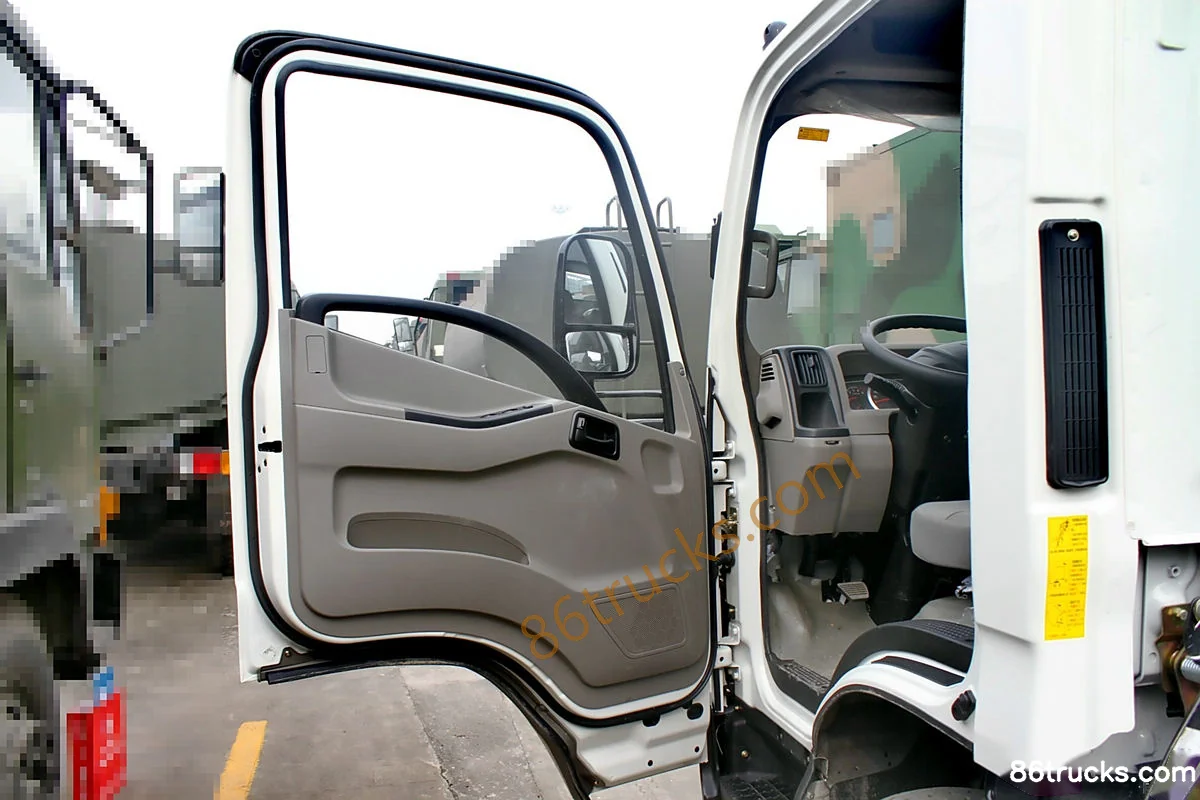

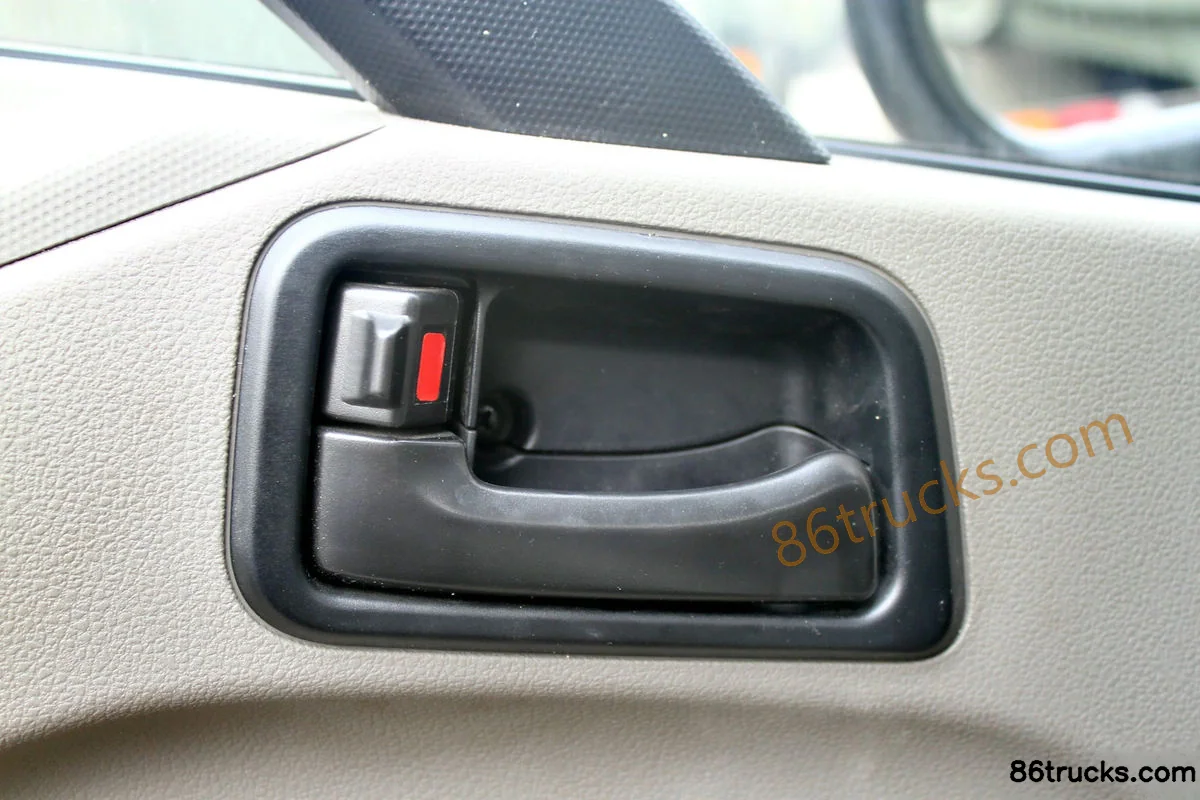

Cab3

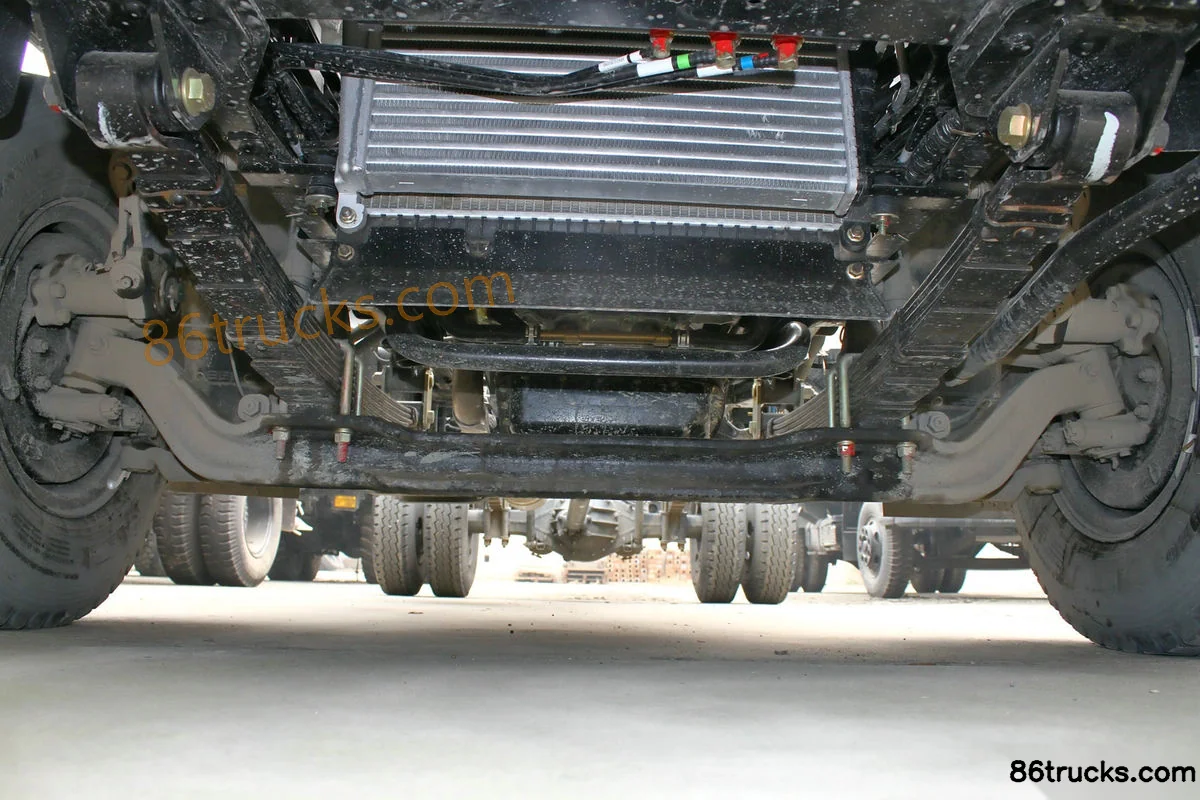

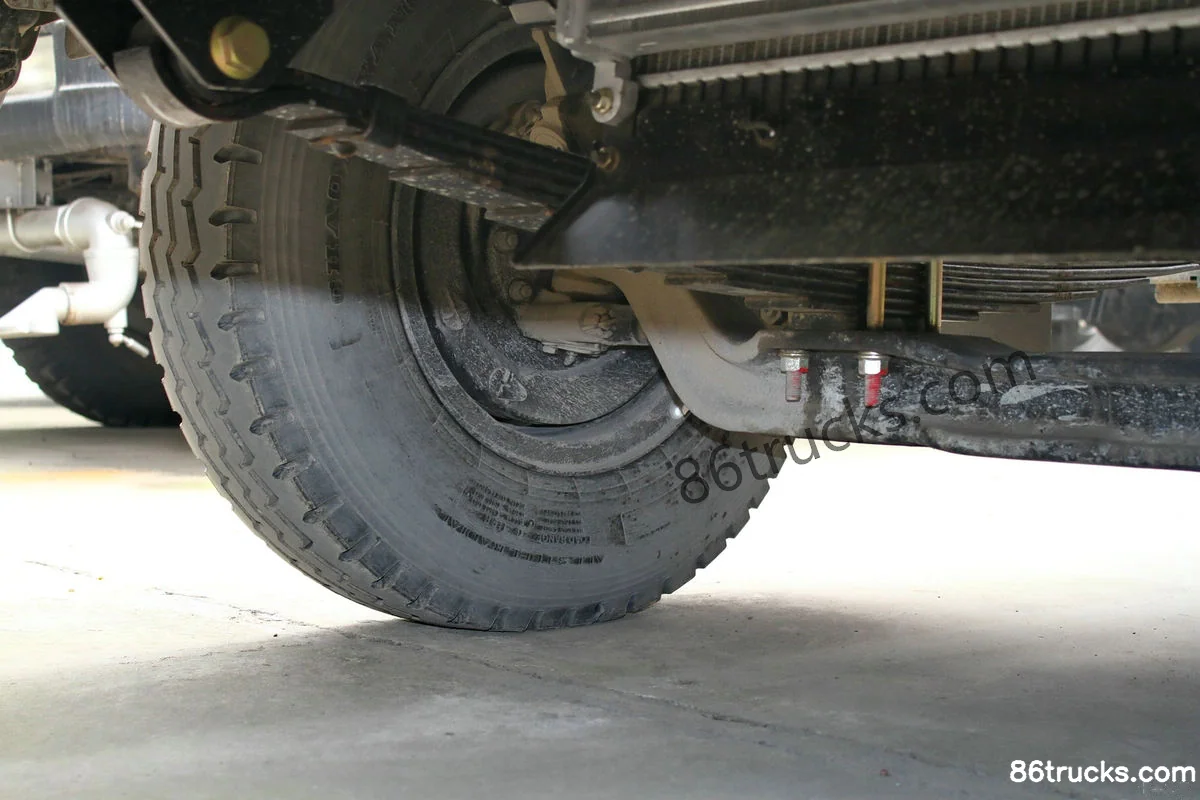

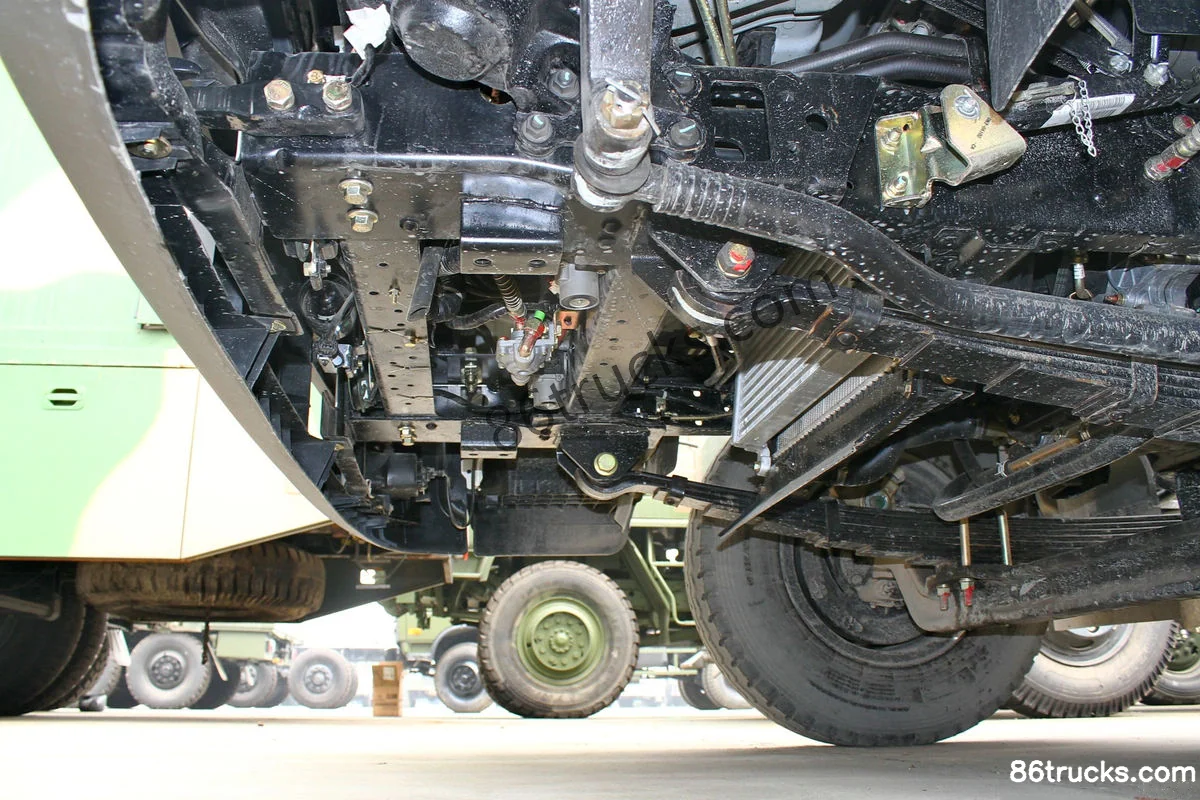

Chassis3

9 photos

FAQ

What is the export price of JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis, and what does it include?

JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis export reference is about From $18,750; MSRP is ¥13.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis use, and can it enter my country?

This model is listed as China V (Beijing). Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis?

Key specs of JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis: Drive: 4x2; Horsepower: 152 hp; Emission: China V (Beijing); Fuel: Diesel; Engine: JMC495; Transmission: GETRAG. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis suited for?

JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis differ from other variants in the same series?

JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis belongs to JMC Kairui 800 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kai Rui 800 152 hp 4X2(6 wheels) 3815mm Wheelbase Single Row Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
