Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis

Export reference
MSRP N/A
Horsepower: 210
Emission: China V
Fuel: Diesel
Engine: Dongkang 6.7L
Transmission: Dongfeng
Curb Weight:: 6.1ton
seating capacity: 3Personnel
Rated payload: 7.795ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis is a Medium-duty truck featuring 5.3m cargo length, Chassis cargo body, 3Personnel volume and 7.795t payload. On the powertrain side, it comes with a Dongkang 6.7L engine, 210 hp, 4X2 (6 wheels) drive and China V emissions.

China V 210 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL1140B10
Type: Chassis
Drive type: 4X2
Wheelbase: 4200mm
engine: DongfengISD210 50
transmission: DongfengDF6S900
Rear Axle Ratio: 5.571
Cab length: 7.7m
Cab width: 2.5m
Cab height: 2.82m
Front track width: 1880mm
rear track: 1860mm
Curb Weight: 6.1ton
Rated payload: 7.795ton
GVWR: 14.29ton
Max. speed: 98km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12°
Front/rear suspension: 1.44/2.06m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISD210 50
Engine info: Dongkang 6.7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.7L
Emission standard: China V
Max output power: 155kW
Max hp: 210Horsepower
Max torque: 800N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: 6-cylinder, inline, turbocharged, intercooled, electronic common-rail China V engine, SCR
Transmission Parameters
Transmission Model: DongfengDF6S900
Transmission Brand: Dongfeng
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 5.3m
Cargo box width: 2.294m
Cargo box height: 0.6m
*Cargo box interior width: 2.2939999103546
Cab parameters
Cab: D530 (Crew Cab)
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 4800kg
Frame Dimensions: 250×80×(7+4)mm
rear axle allowable load: 9490kg
Axle ratio: 5.571
Leaf spring count: 8/10+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

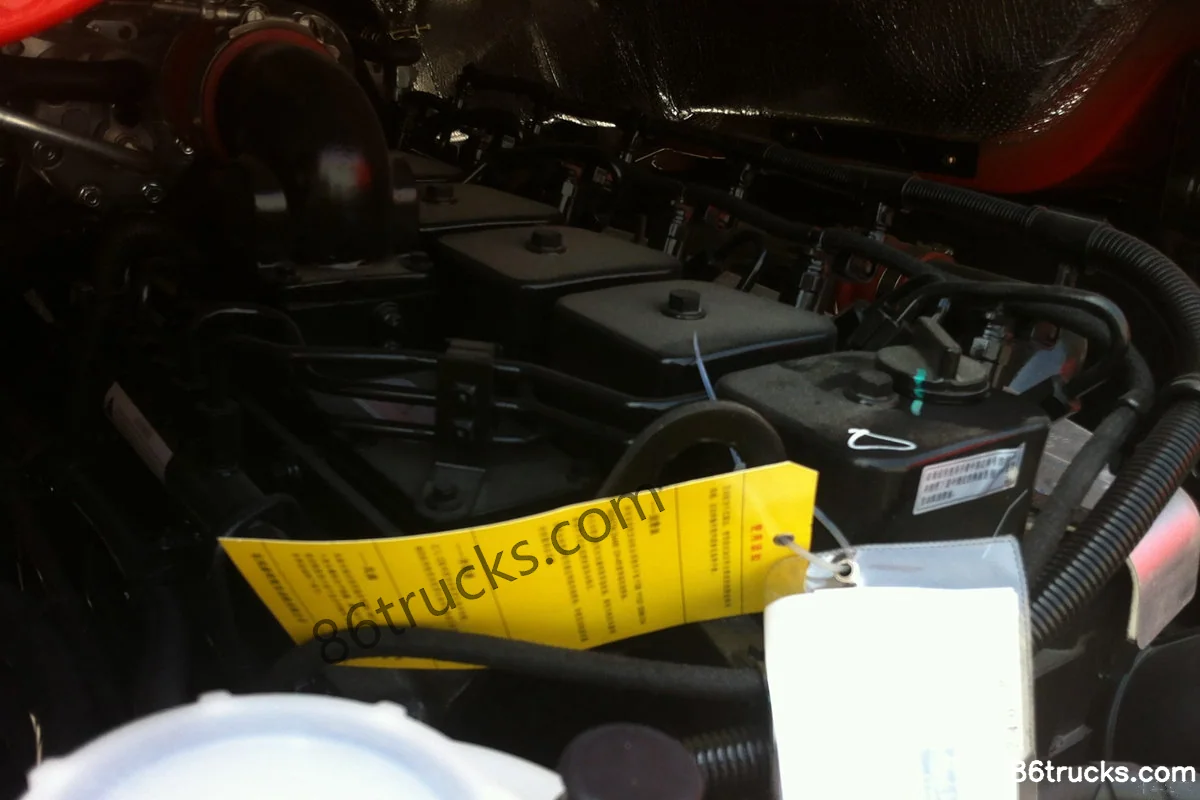

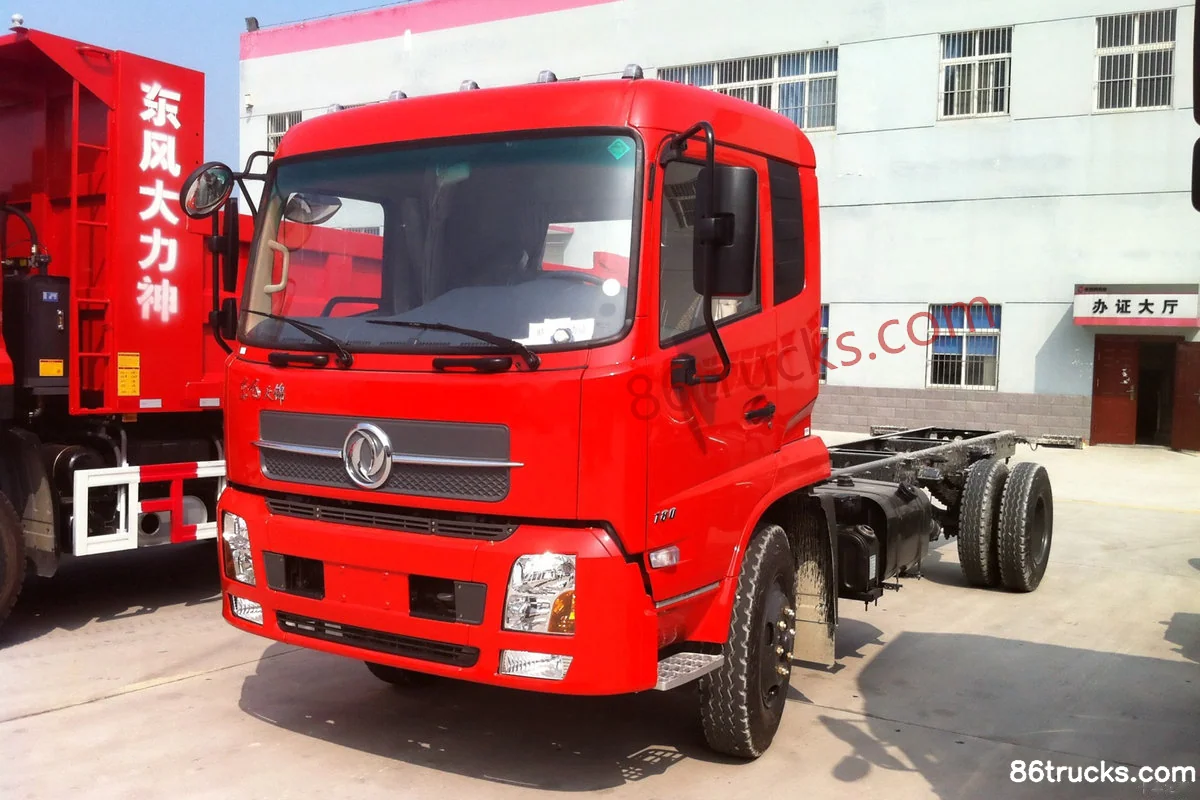

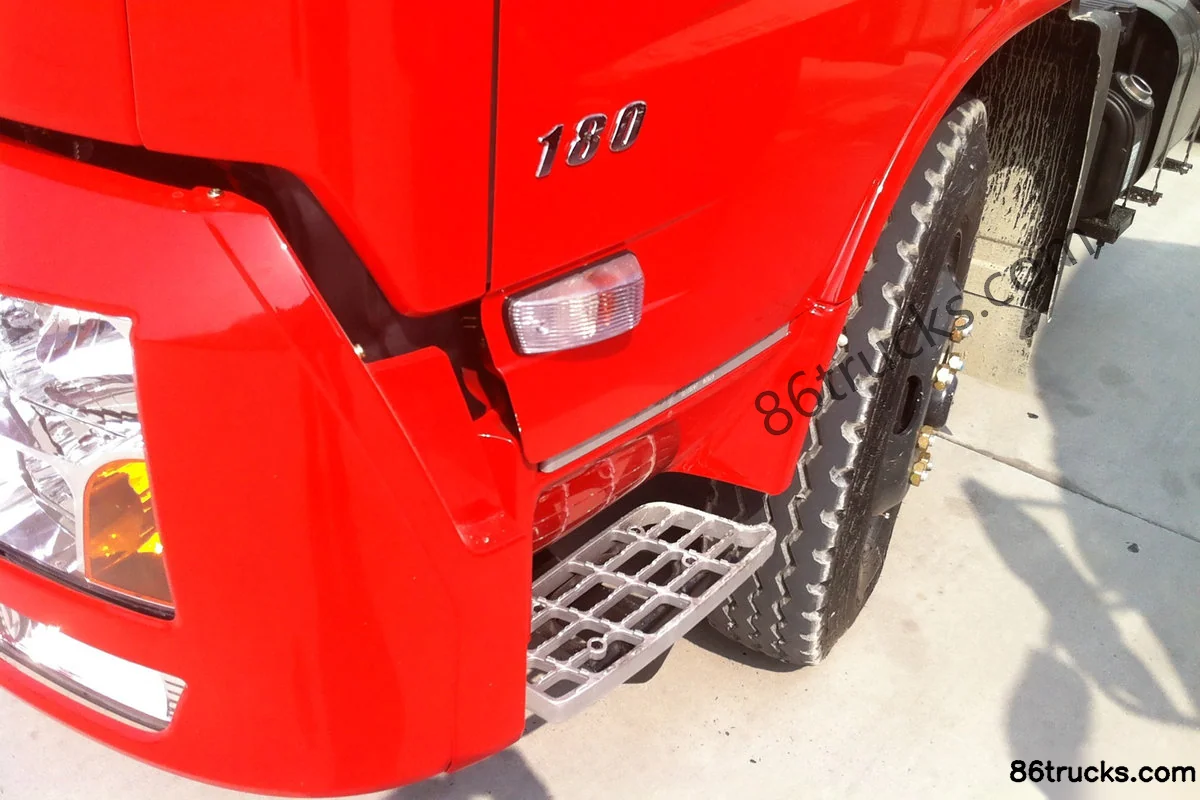

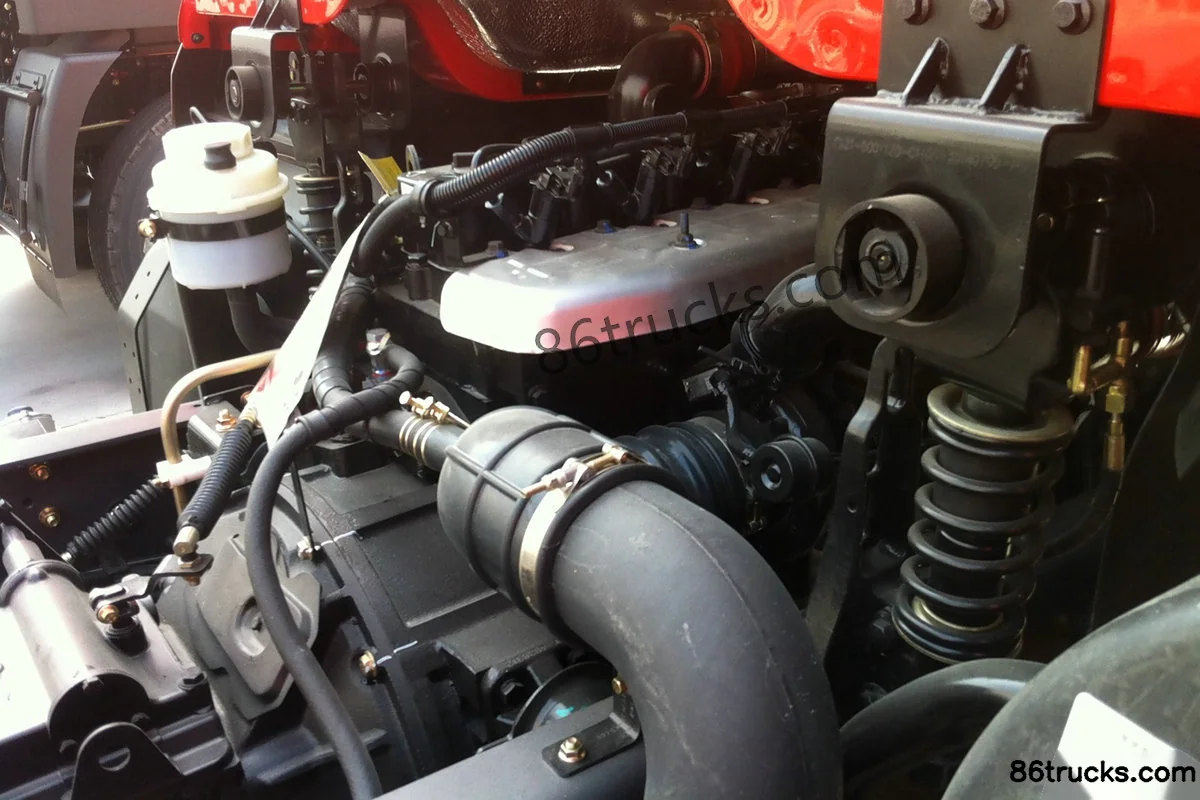

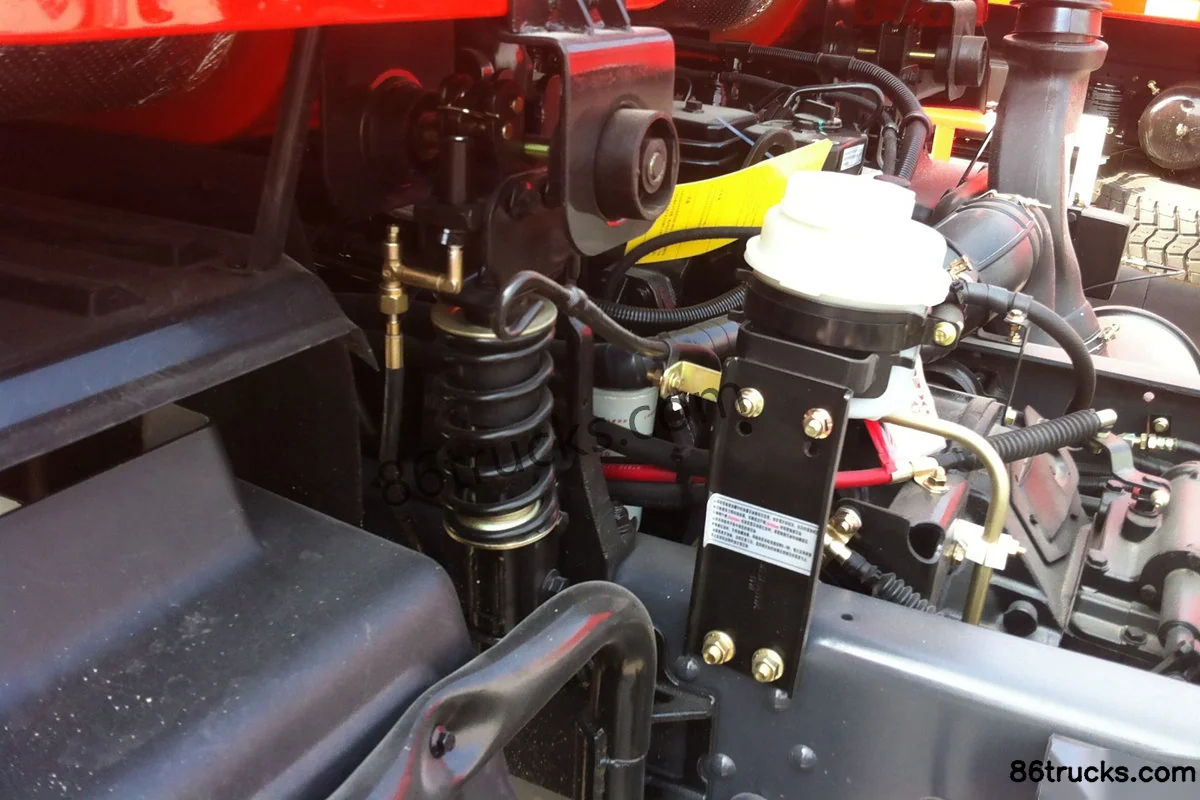

Photos

Exterior2

Chassis3

5 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis: Drive: 4x2; Horsepower: 210 hp; Emission: China V; Fuel: Diesel; Engine: Dongkang 6.7L; Transmission: Dongfeng. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis belongs to Dongfeng Tianjin Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 210hp 4X2(6 wheels) 4200 wheelbase semi-sleeper cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
