Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.23ton
Wheelbase:: 3360mm
Cargo box type:: Van body
Model code (announced):: BJ5045XXYEVZ
Type:: enclosed cargo truck
Box length class:: 4.2m

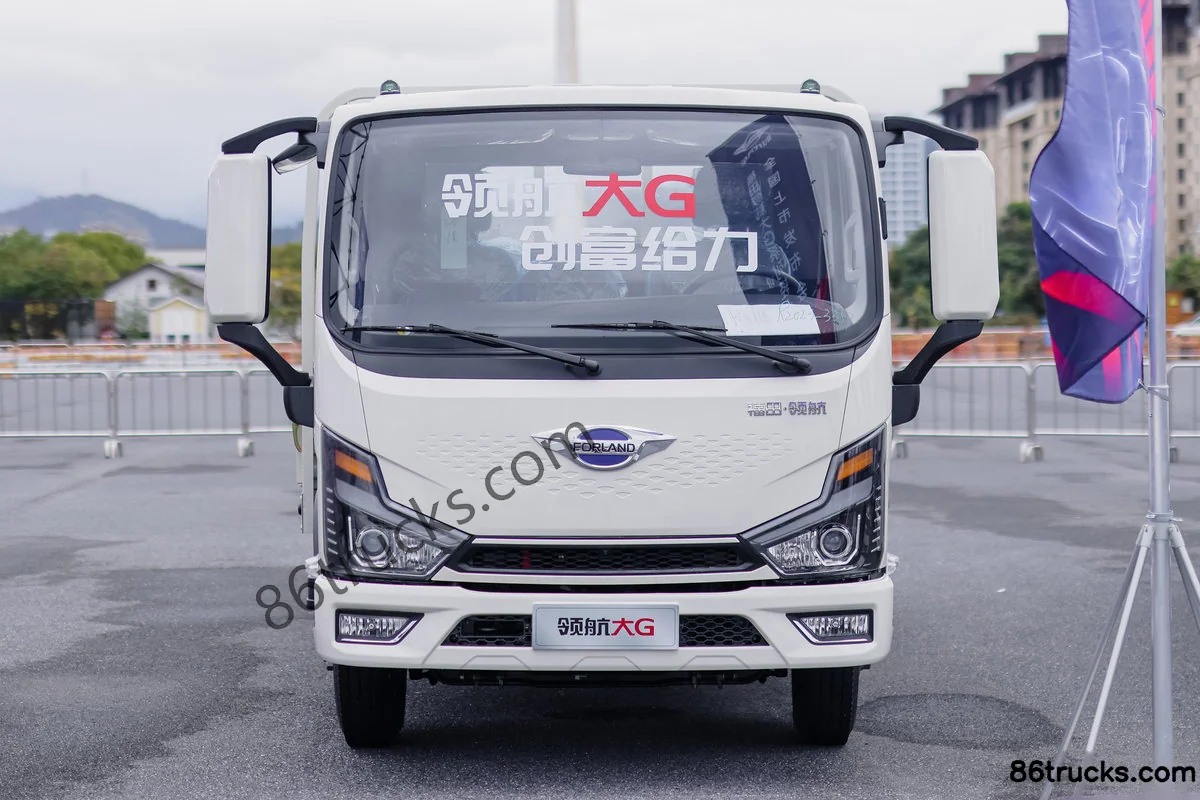

Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels) exterior
View more photos (1)
Drive 4X2 (6 wheels)
CLTC range: 283km
Motor 1 Brand: Foton
Curb Weight: 3.07ton

Overview

The Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels) is a Light Truck featuring 283km battery/range, Foton motor, 4X2 (6 wheels) drive and 1.23t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5045XXYEVZ
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.16m
Cab height: 3.16m
CLTC range: 283km
Curb Weight: 3.07ton
Rated payload: 1.23ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Remarks: Standard: driver's shock-absorbing seat
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTB065B
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 65kW
Peak power: 120kW
total peak torque: 360N·m
total rated torque: 170N·m
Electronic Control
ECU Brand: Ligong Huachuang
Battery/Charging
Battery Brand: CATL
Charging method: Slow charge / fast charge
Battery type: Lithium Iron Phosphate Battery
fast charge time:
Battery rated voltage: 502.32V
Battery capacity: 100.46kWh
Energy Density: 159.56
fast charge range: 20%-100%
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.14m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 1880mm
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1850kg
rear axle description: Electric Drive Axle
rear axle allowable load: 2645kg
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Reverse Radar:
Reverse Camera:
Exterior features
Aluminum air tank:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):

Photos

Exterior1

Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels) Exterior (1) | 86Trucks

1 photos

FAQ

What are the key specs of Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels)?

Key specs of Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels) suited for?

Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels) differ from other variants in the same series?

Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels) belongs to Forland Linghang L1 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Forland L1 4.5T 4.14m Electric Van Light Truck 100.46kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
